BEARROBOTICS Servi Plus User manual

Servi Plus User ManualServi Plus User Manual
ver 1.0.5

Servi Plus User Manual
About This Manual
This document describes how to use and maintain Servi Plus. Please read this
manual before starting to use the product for proper use.
yThe content of this manual is based on the default settings and screens.
yThe content of this manual as well as the exterior and specications of the
product are subject to change for improvement without prior notice.
Target Audience
This manual is designed for Servi Plus users.
Conventions
This manual follows the below conventions for users’ better understanding.
Symbol Meaning
Key Parts and GUIs
Buttons and graphical user interfaces (GUIs) of the screen
are highlighted in bold.
If multiple menu options need to be selected in sequence,
the order is given by the symbol > between options.
Notes and Cautions Useful use instructions and additional information are
provided in Notes and Cautions.
Cross Reference
Provides shortcuts to relevant contents or detailed
information within the user manual. Cross references are
highlighted with underscores (_).
Figures Figures are provided to help users understand how to use
the product and access screens.
Copyrights
Copyright © 2023 Bear Robotics, Inc. All Rights Reserved.
Trademark
All trademarks included in this manual are registered trademarks, and the name
of this product and other trademarks in this manual are registered trademarks of
their respective companies.
Restriction
This document is protected by copyright laws. The reproduction, distribution, or
modification of this document, in whole or in part, without official consent is strictly
prohibited.
Disclaimer
Bear Robotics, Inc. makes every effort to ensure but cannot guarantee that the
information contained in this document is complete and accurate. The user shall
bear the sole responsibility for any consequences of using this document.
Bear Robotics, Inc. has the right to change the content of this document without
prior notice.

Servi Plus User Manual
Standards Approvals (only USA)
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference (1) this device may
not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class A digital device, according to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC ID: PD99260NG / 2AC7Z-ESPC3MINI1
The W52 and W53 band can only be used indoors.

Servi Plus User Manual
About This Manual 2
Target Audience 2
Conventions 2
Copyrights 2
Standards Approvals (only USA) 3
Safety Precautions 5
Robot Components 8
Components 8
Part Names 9
How to Use 10
Check before use 10
Coverage - Space and Recognition 10
Turning On/Off 11
Charging the Robot 11
E-stop 12
Using Trays 13
About Lights 13
Using Servi Plus 16
Using Robot Workow 20
Status Messages 27
Robot Settings 28
General 28
About 29
Wi-Fi 29
Localization 30
Zero Weight 30
Manual Drive 31
Sound 31
Robot Workow 32
Advanced 32
Reboot 33
Managing Robots 34
Product Specications 38
Robot 38
Charger 39
Content

Servi Plus User Manual | 5
Safety Precautions
These instructions are provided to help ensure user safety and prevent any
damage or loss of property. To ensure proper use, please read the instructions
below.
Warning
Warning
A warning indicates a possible risk that may lead to death or severe
injury.
Power Supply
yTake measures to prevent the risk of electric shock or re.
– Be careful not to damage the power cord. It may cause a re or electric
shock.
– Do not forcefully pull out or insert the power plug with wet hands or
grab the power cord excessively.
– Do not use a damaged power plug, power cord, or loose outlet.
– Do not plug multiple electrical devices into one outlet at the same
time.
– Be sure to check the rated power and voltage and use the appropriate
power source.
– Do not insert conductive objects such as sticks or nails into the outlet
holes with the power is connected.
– Do not touch the pins of the plug directly after removing it from the
outlet.
– Any foreign matter on the pins and contact area of the power plug
should be cleaned thoroughly with a dry cloth.
Usage
yBe careful not to expose the robot to moisture or liquid.
yAvoid using robots in areas where ammable gas or liquid is leaked, or
where there is a lot of industrial oil or metallic dust.
yTake care to prevent the robot from being exposed to moisture or getting
wet.
yDo not use the product nearby high-voltage appliances.
yDo not get in the way of the robot's path while it is moving.
yBe careful not to let children hang on or ride on the robot. It may cause
electric shock, tipping, accidents, or injuries.
yDo not apply a strong impact to the robot when using or moving it.
yIf the robot malfunctions or produces strange noises, smells, or smoke,
stop the robot immediately using the E-stop button and contact customer
service for assistance.

Safety Precautions
Servi Plus User Manual | 6
Charging/Battery
yCharge the robot using the charging adapter provided as a component.
Failing to do so may result in damage to the robot or its battery.
yUnplug the charging adapter when not using it an extended period of
time.
yAfter removing the charging adapter from the robot, be sure to close
the charging cover. Leaving it open may allow foreign objects to enter.
Otherwise, a failure or a re can occur.
yDo not charge the robot in areas where water is present. Otherwise, a
failure or a re can occur.
Caution
Caution
Caution indicates a risk that may lead to injuries or property
damages.
Usage
yPlease avoid using the robot in places with excessively high or low
temperatures.
yRemove any wires, liquids, debris, or other foreign objects from the oor
before using the robot.
yDo not cover the robot's sensors with stickers or other foreign objects.
yThe robot is intended only for use indoors. Do not use the robot outdoors
or beyond the designated operating range.
yRemove any obstacles such as chairs, tables, or trash cans from the
robot's path and keep pets away from it while it is in operation.
yDo not push or move the robot by holding its tray while it is moving. This
can cause damage to the weight sensor.
yDuring peak times, monitor robot behaviors and manually stop it if there is
a risk of collision.
yDo not use the robot in areas with strong indoor lighting or direct
reections of light. Doing so can affect its perception of the environment,
leading to unexpected circumstances.
yDo not install, modify, disassemble, or repair the robot arbitrarily. For
installation or repair, please contact customer service.
yDo not use the robot in places with magnetic elds or electromagnetic
interference.
yIf any liquids, such as water or beverages enter the robot, turn off it
immediately and contact our customer center.
yDo not change the preset speed during installation. Doing so can cause a
risk of collision.
yDo not place items on the robot tray that exceed its size or load capacity.
yPick up the food only after the robot stops at the designated table.

Safety Precautions
Servi Plus User Manual | 7
yTake care when placing hot dishes or objects on the robot tray to avoid
burns.
yBe careful not to get your foot or small objects caught in the robot's
bottom drive unit while it is moving or rotating.
yDo not turn off the robot's volume completely. If you do not hear the sound
of its movement or guidance, it can cause a risk of collision.
yDo not scratch or press the touch screen with sharp objects.
yBe careful that conductive materials do not touch the touch screen.
yIf the robot malfunctions or the screen becomes unresponsive, press the
E-stop button on the back bottom to stop it.
Charging/Battery
yCharge the battery promptly to avoid the robot running out of power.
Leaving the robot with a low battery for extended periods could shorten its
battery life or cause malfunctions.
yContact customer service if the battery life is signicantly shorter than
usual.
yDo not disassemble the battery pack or modify/change any internal
components.
yDo not short-circuit the robot's charging terminals with wires or metallic
objects. Doing so may cause malfunctions.
yWhen storing the robot for extended periods, turn off the power and store
it in a safe place.
yWhen storing the robot for extended periods, make sure to charge it
regularly to prevent discharging.
Cleaning
yWhen cleaning the product, avoid using alcohol or cleaning agents
containing acidic or strong components.
yUse a soft, dry cloth, or rag to remove foreign substances from the robot
surfaces, including the top of the robot, camera sensor, or LiDAR sensor.
yMake sure to turn off the power before cleaning or inspecting the robot.

Servi Plus User Manual | 8

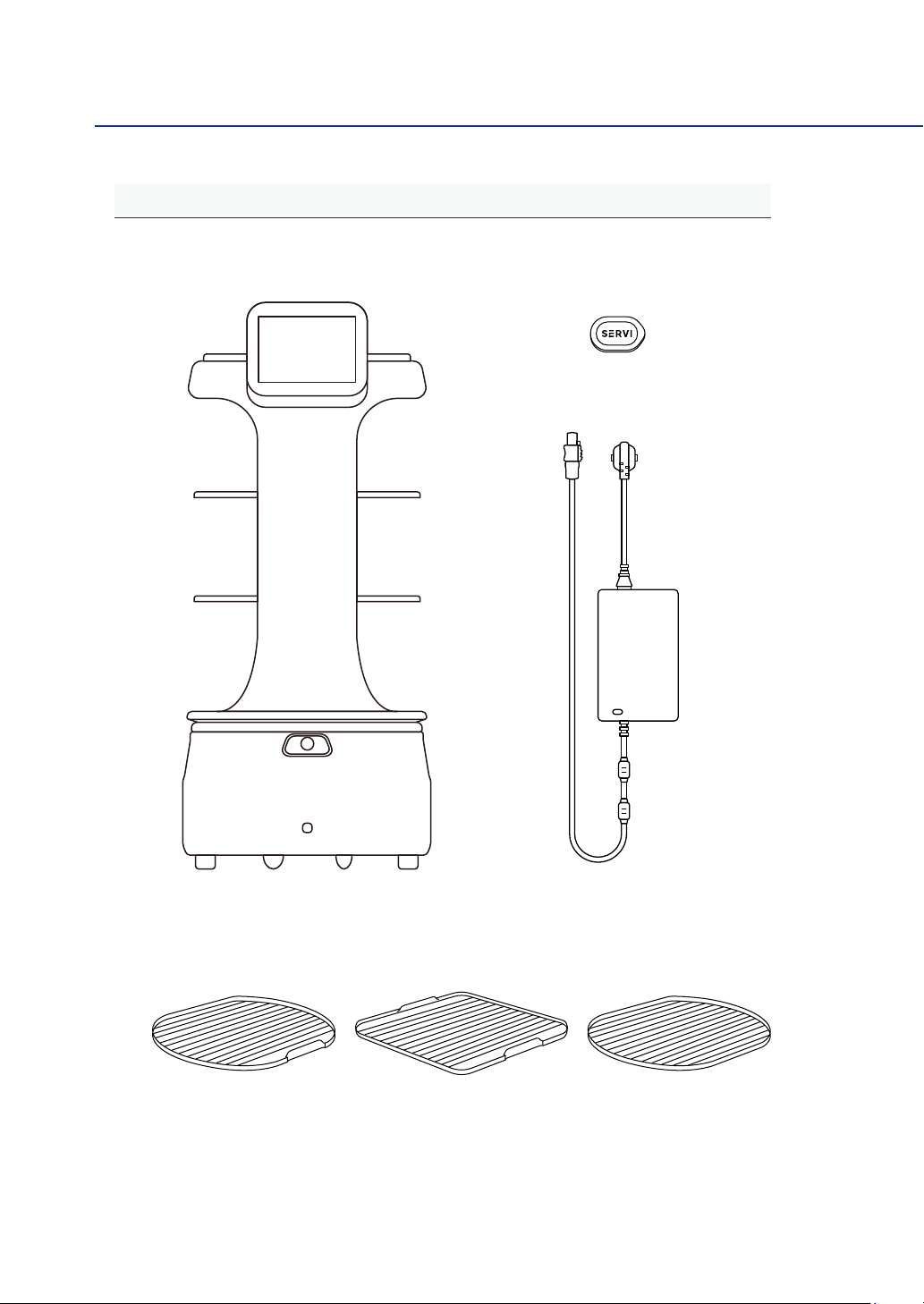

Robot Components
Components
The robot is delivered with the following components.
Robot main body Charger
Top Tray Pad Middle Tray Pad (2ea) Bottom Tray Pad
Spare Part-in Plugs (2ea)

Robot Components
Servi Plus User Manual | 9
Part Names
Below are the part names and locations.
Back Front Side
앞면 뒷면 옆면
1Touch screen
2Tray
3E-stop button
4Wireless charging
sensor (optional)
53-Sided custom
display
6
Down-facing camera,
front camera
7Up-facing camera
8Side button
9Food light
0Pillar light
!Base LED
@LiDAR sensor
#Auxiliary wheels
$Charging terminal
and power button
%Wheels

Servi Plus User Manual | 10
How to Use
Check before use
Below are the recommended environmental conditions for the robot's operation.
yThe optimal operating temperature range for the robot is 50 – 95 ˚F (10 – 35
˚C), and the optimal humidity range is 10 – 80%.
yUse the robot in an indoor space with no moisture and good ventilation.
yUse the robot on a at oor without vibrations or risk of shocks.
yClear the path of the robot's movement.
Coverage - Space and Recognition
Below is the robot’s coverage including the minimum range of movement and
recognition.
yThe minimum path clearance width for the robot’s passing is 31.5 in (80 cm).
Make sure to leave enough space for the robot to move safely.
yThe robot uses a 2D LiDAR sensor and a 3D depth sensor to detect objects
and calculate the distance to and location of objects.
– The 2D LiDAR (Light Detection and Ranging) detects surrounding objects
and measures information such as distance, direction, and speed to the
target. The maximum measurement range of the 2D LiDAR is 65.6 ft (20 m)
with 230° of coverage.
– The 3D depth sensor measures the distance to surrounding objects. The
measurement range of the 3D depth sensor is 8.2 ft (2.5 m).
ySince obstacles placed outside the camera's measurement range or sensor's
recognition range are difcult for the robot to detect, make sure to remove
them from the robot's path. Examples of obstacles that the robot may have
difculty detecting include:
– Small objects with a thickness of less than 2 in (5 cm), small bumps or
steps on the oor
– Objects hanging or oating in the air such as lighting xtures or mobiles
– Objects made of mirrors or glass materials

How to Use
Servi Plus User Manual | 11
Turning On/Off
You can find the power button of the robot at the bottom right of its body.
1. Open the charging cover and press the black power button on the left to turn
on the robot.
yThe boot screen is displayed on the touch screen, and the pillar light and
base LEDs will light up.
2. To turn off the robot, press and hold the power button for 5 seconds.
Charging the Robot
The below instructions describe how to charge the robot battery.
Caution
yMake sure to use the provided charging adapter and components to charge the
battery. Failing to do so can lead to damage to the robot or battery.
yIt is recommended to charge the battery in a location where the power plug can
be easily disconnected in case of an emergency.
Battery Level
The battery level can be checked in the top right corner of the screen.
yWhen the battery is low, the message “Low Battery” will appear on the
screen with a voice prompt.

How to Use
Servi Plus User Manual | 12
How to Charge
1. Open the charging cover at the bottom of the robot's main body.
2. Insert the charging adapter into the charging terminal of the robot, and
plug the power plug into the outlet.
Connect the charger and turn it to the right. If it clicks then it starts
charging.
※ Servi and Servi Plus can share the same charger.
E-stop
In case an object or person suddenly appears in front of the robot, please press
the E-stop button.
yActivating the E-stop will cause the wheels to lock.
yTo release the E-stop, turn the E-stop button to the right (arrow) direction.
yAfter releasing the E-stop, any ongoing mission will be canceled, and the
touch screen will display “Mission Failed”.
Return to the home screen by pressing the Go to Home button and deliver the
robot by entering a new destination. This will release the wheel lock.
If the robot malfunctions or produces strange sounds, smells, or smoke, press the
E-stop button and press and hold the power button for 5 seconds.

How to Use
Servi Plus User Manual | 13
Using Trays
Four trays are provided with the robot by default, but the number and location of
the trays can be changed. You can ask our installation engineer to change the
number of trays.
Note
Please do not change the tray location arbitrarily. It can cause a malfunction.
About Lights
3-Sided Custom Display
Located nearby the upper-most tray, the 3-Sided Custom Display displays
guidance messages.

How to Use
Servi Plus User Manual | 14
Food light
Each tray has lighting installed to help users easily recognize their servings.
The tray lighting turns on when food is loaded.
Pillar light
It helps to identify the tray with the ordered food.
Upon the robot's arrival at the table, the lighting on both sides of the tray
containing the customer's ordered food will turn on.

How to Use
Servi Plus User Manual | 15
Base LED
It is located at the bottom of the robot, and the color of the base LED changes
per the robot's operational status.
Booting Rainbow
Standby Blue
Under operation Green
E-stop Red
Charging Yellow
Fully charged Green
Deadlock Orange
Multi-Robot Purple

How to Use
Servi Plus User Manual | 16
Using Servi Plus
Preparing for Use
To use the robot, you must have registered the robot and completed the
mapping process by following the touchscreen instructions.
Bear Robotics offers a cloud-based service that includes robot monitoring, robot
workflow, robot guide, and troubleshooting measures anytime, anywhere.
To install the robot, you will need to sign up for the Universe, the Servi
management system. Please contact Bear Robotics, for the sign-up process.
https://universe.bearrobotics.ai/
Robot Initial Setting
To use the robot, you must register your robot and perform a mapping process.
Please complete the initial setup by following the touchscreen instructions.
○Step 1. Register a Robot
Turn on the robot and register it by following the touchscreen instructions.
Create a location in Universe and complete registration by entering the
4-digit code displayed on the touch screen.
<Touch Screen Registration Code Screen> <Universe Registration Code Screen>
○Step 2. Start Mapping
Drive the robot around by following the touch screen instructions to allow it to
map the oor with its cameras and LiDAR. Below is the mapping sequence.
You can add destinations on the touch screen or in Universe.
Caution
Place the robot towards a wall before pressing the Start mapping button. If the wall
is transparent or the robot starts from another location, the resulting map image
may have distortions.

How to Use
Servi Plus User Manual | 17
○Step 3. Finish Mapping
Wrap up the mapping on the touch screen, select the Maps tab in Universe,
and press Refresh (F5). You can see the map image and destination taken
from the robot.
Specify tables, chairs, and restricted spaces in the toolbox to further dene
the range.
<Uploading Maps Saved in Robot to Universe> <Editing Maps in Universe>
Maps
○Step 4. Go to Settings
Press and hold the robot name (2 – 3 seconds) on the left top of the touch
screen and go to the Settings screen.
○Step 5. Localize a Robot
Set the map and serving locations and move to Localization to make the
robot understand where it is. Check that the destination matches the place
where the robot is, press the destination, and press the Conrm button.
Or you can press and hold the destination on the Home screen to relocate
your robot.

How to Use
Servi Plus User Manual | 18
Tray Selection Settings
Go to Settings > Advanced. You can enable or disable tray selection depending
on the serving conditions or your preferences.
yTray Selection
– OFF: This is the default value. The robot delivers to the destination
without a separate tray selection. The destination names are displayed
in order.
– ON: You can enable different trays for different destinations. Set up and
move to the Home screen, and you can nd a robot image appearing
on the right where you can select a tray.
<Tray Selection: OFF> <Tray Selection: ON>

How to Use
Servi Plus User Manual | 19
Robot Workow Settings
Servi Plus helps with delivery and bussing in various modes. You can set it up
for different modes including serving, bussing, etc. On the initial screen, the tray
selection is off. To change the behavior, follow the instructions below.
○Robot Workow Default Screen
Go to Settings > Robot Workow.
The image below shows the Robot Workow screen with default settings.
yType
– Serving: It is a default value item.
– Bussing: Even if you have set tray selection, the robot image does not
appear on the Home screen. If you enter a bussing destination, the
destination names are listed on the right.
yService Mode
– Table: It is a default value item.
– Patrol: Even if you have set tray selection, the robot image does not
appear on the Home screen. The destination names appear in order
on the right. Selecting Patrol will disable the Return item.
yArrival Message
When the robot arrives at the table, a voice prompt occurs saying “Please
take your food”. You can turn it off by switching it to OFF.
yThank you Message
– This message is used in a bussing type or a station is selected in
service mode.
– If a user loads something on the tray and the robot detects the weight
and a message prompt occurs saying “Thank you”. You can set it to
ON/OFF.
yReturn
Auto is set as default and moves to the designated Return To after all
servings are complete.

How to Use
Servi Plus User Manual | 20
yStation At
It is displayed when the user selects the bussing type and then a station in
service mode. You can specify Return To.
yReturn To
To change Return To to the other position, press Change and select a
saved destination.
yEmpty Tray
If it is turned ON, the robot starts the next delivery when the tray is
unloaded.
yFull Tray
The bussing type is changed from Empty Tray to Full Tray.
yTimer
The timer denes how long the robot stays at a destination. To enable the
timer, press ON and set Return After. You can turn it off by switching it to
OFF.
yReturn After
The robot starts moving to the next destination after the designated
Return After, which can be set using the timer.
Using Robot Workow
Serving
For information on features of Robot Workflow, refer to Page 19.
○Tray Selection OFF
The default Robot Workow screen. Enter the destination and press the GO
button.
