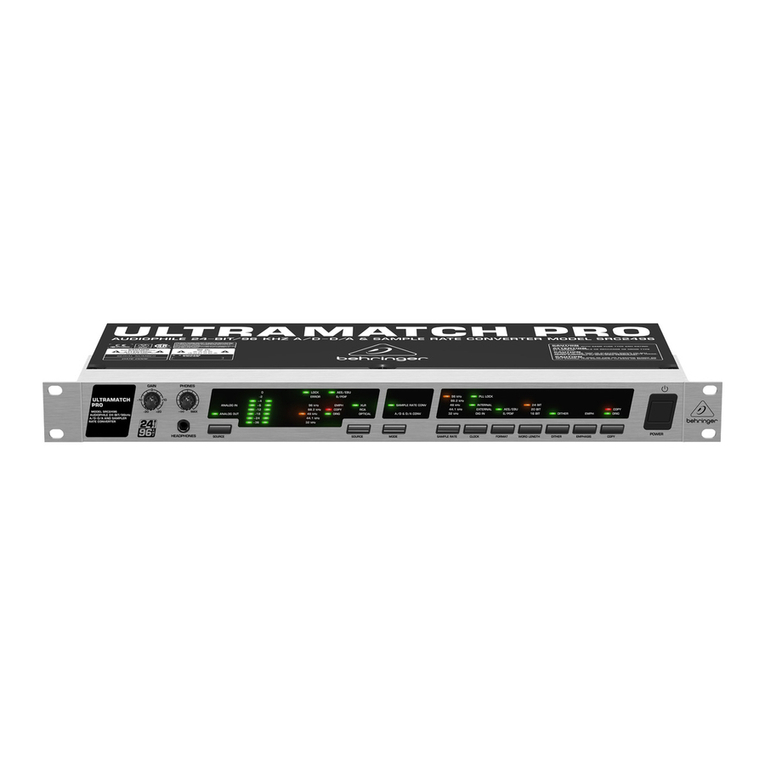

ULTRAMATCH PRO SRC2496
Audiophile 24-Bit/96 kHz A/D-D/A & Sample Rate Converter

2ULTRAMATCH PRO SRC2496 Technical Specifications
ULTRAMATCH PRO SRC2496
Audiophile 24-Bit/96 kHz A/D-D/A & Sample Rate Converter
High-end 24-bit/96 kHz A/D and D/A converter for ultimate signal integrity
Converts any sample rate between 31 and 100 kHz into 32, 44.1, 48, 88.2 or 96 kHz sample rates
Flexible format conversion between AES/EBU and S/PDIF (coaxial or optical)
Universal sample rate synchronization via wordclock or digital input
Allows parallel A/D and D/A conversion at identical sample rate
Precise metering for input/output signal and headphone monitoring
Allows direct manipulation of emphasis bits and other signicant, digitally transmitted information in order to record virtually any audio signal
High-precision quartz clock generator removes jitter and corrects o-tune, incorrect sample rates
Extremely fast tracking supports varispeed applications
Self-adjusting anti-aliasing lter with exceptionally steep edge
All 3 outputs (XLR, RCA, Optical) simultaneously operational (splitter)
Inputs separately selectable (patchbay functionality)
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
Specications
Digital Input 3
Type Toslink, optical ber cable
Synchronization Input
Type BNC
Input impedance 50 kohms
Standard Wordclock (1 x FS)
Nominal input level 2 V to 6 V peak-to-peak
Digital Output 1
Type XLR, transformer-balanced
Output impedance 110 ohms balanced
Nominal output level 3.5 V peak-to-peak
Synchronization
Internal sampling rates 32, 44.1, 48, 88.2, 96 kHz
Synchronization via digital input accepts all sampling rates
and wordclock between 31 and 100 kHz,
automatic synchronization by PLL
Digital Input 1
Type XLR, transformer-balanced
Input impedance 110 ohms
Nominal input level 0.2 V to 5 V, peak-to-peak
Digital Input 2
Type RCA, transformer-balanced
Input impedance 75 ohms
Nominal input level 0.2 V to 5 V, peak-to-peak

3ULTRAMATCH PRO SRC2496 Technical Specifications
Digital Output 2
Type RCA, transformer-balanced
Output impedance 75 ohms
Nominal output level 0.5 V, peak-to-peak
Digital Output 3
Type Toslink, optical bre cable
Analog Inputs
Type XLR, balanced
Input impedance 20 kohms
Converter 24-bit/96 kHz 128/64 times
oversampling delta-sigma
AKM A/D converter
Input level -4 dBu to +22 dBu for 0 dBFS,
adjustable
S/N-Ratio >105 dB
Analog Outputs
Type XLR, balanced
Output impedance 160 ohms
Converter 24 bit/96 kHz 128 times oversampling
delta-sigma AKM D/A converter
Output level +16 dBu @ 0 dBFS
S/N Ratio >108 dB
Jitter Suppression
Jitter permitted at input >40 ns
Internal jitter at input <2 ns
Internal jitter with external <20 ns, 10 ns typ.
Synchronization
Channel Status Information in Output Signal
Professional mode Professional, audio use, stereo,
no emphasis or 50/15 µs,
Fs = 32, 44.1, 48, 88.2, 96 kHz
Consumer mode Consumer, audio use, 2-channel,
original material switchable,
copypermit switchable, no emphasis
or 50/15 µs, Fs = 32, 44.1, 48 kHz;
(88.2, 96 kHz not dened)
Power Supply
Mains Voltage
U.S.A./Canada 120 V~, 60 Hz
Europe/U.K./Australia 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
General export model 120/230 V~, 50 - 60 Hz
Power consumption 15 W
Fuse 100 - 120 V~: T 250 mA H 250 V
200 - 240 V~: T 125 mA H 250 V
Mains connection Standard IEC receptacle
Dimensions/Weight
Dimensions approx. 1.75 x 19 x 8.54"
approx. 44.5 x 483 x 217 mm
Weight approx. 5.06 lbs/2.3 kg
Shipping weight approx. 7.48 lbs/3.4 kg
