Behringer AB200 User manual

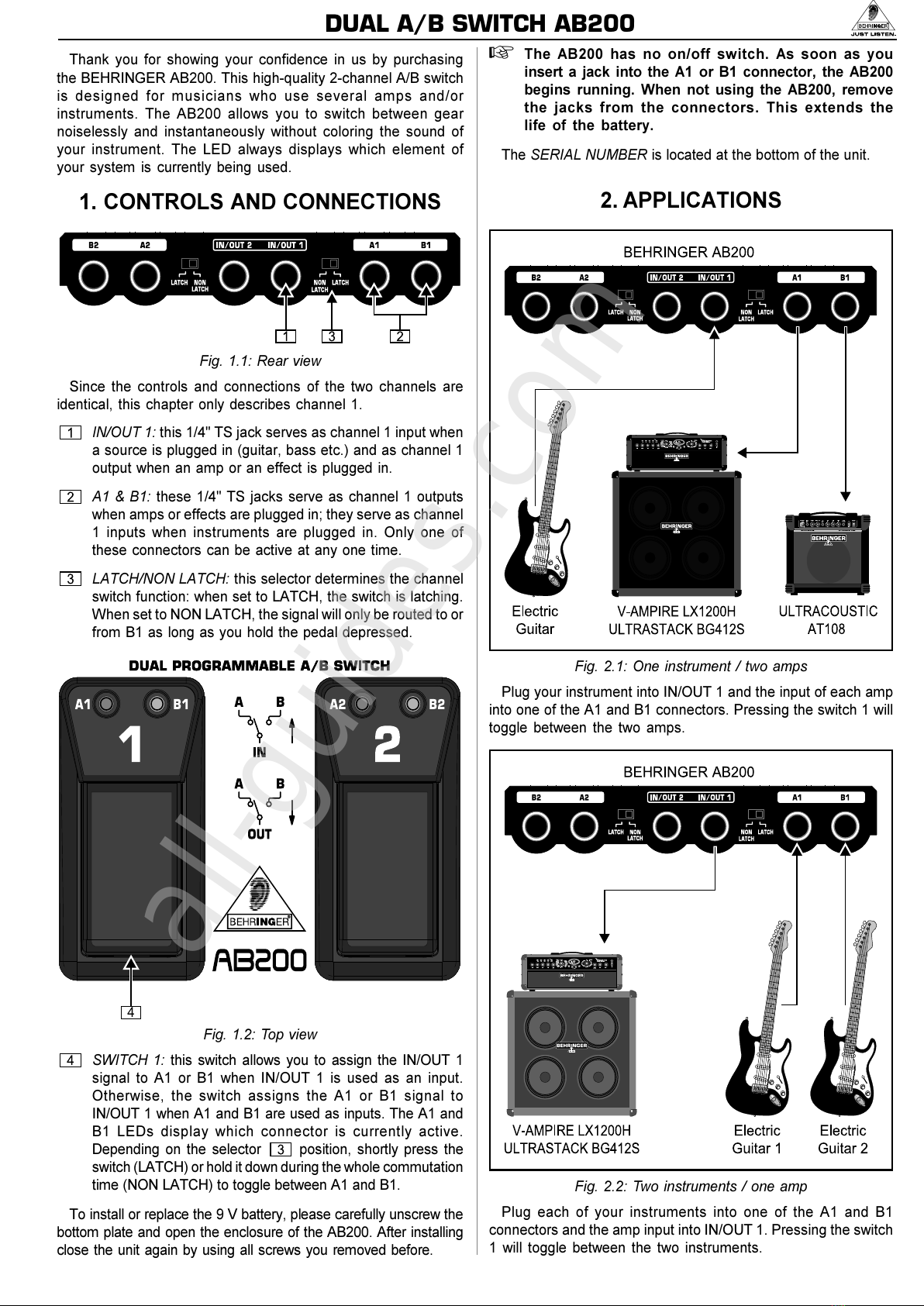

DUAL A/B SWITCH AB200
Thank you for showing your confidence in us by purchasing
the BEHRINGER AB200 This high-quality 2-channel A/B switch
is designed for musicians who use several amps and/or
instruments The AB200 allows you to switch between gear
noiselessly and instantaneously without coloring the sound of
your instrument The LED always displays which element of
your system is currently being used
1. CONTROLS AND CONNECTIONS
Fig. 1.1: Rear view
Since the controls and connections of the two channels are
identical, this chapter only describes channel 1
IN/OUT 1: this 1/4" TS jack serves as channel 1 input when
a source is plugged in (guitar, bass etc ) and as channel 1
output when an amp or an effect is plugged in
A1 & B1: these 1/4" TS jacks serve as channel 1 outputs
when amps or effects are plugged in; they serve as channel
1 inputs when instruments are plugged in Only one of
these connectors can be active at any one time
LATCH/NON LATCH: this selector determines the channel
switch function: when set to LATCH, the switch is latching
When set to NON LATCH, the signal will only be routed to or
from B1 as long as you hold the pedal depressed
4
Fig. 1.2: Top view
SWITCH 1: this switch allows you to assign the IN/OUT 1
signal to A1 or B1 when IN/OUT 1 is used as an input
Otherwise, the switch assigns the A1 or B1 signal to
IN/OUT 1 when A1 and B1 are used as inputs The A1 and
B1 LEDs display which connector is currently active
Depending on the selector position, shortly press the
switch (LATCH) or hold it down during the whole commutation
time (NON LATCH) to toggle between A1 and B1
To install or replace the 9 V battery, please carefully unscrew the
bottom plate and open the enclosure of the AB200 After installing
close the unit again by using all screws you removed before
+The AB200 has no on/off switch. As soon as you
insert a jack into the A1 or B1 connector, the AB200
begins running. When not using the AB200, remove
the jacks from the connectors. This e tends the
life of the battery.
The SERIAL NU BER is located at the bottom of the unit
2. APPLICATIONS
Fig. 2.1: One instrument / two amps
Plug your instrument into IN/OUT 1 and the input of each amp
into one of the A1 and B1 connectors Pressing the switch 1 will
toggle between the two amps
Fig. 2.2: Two instruments / one amp
Plug each of your instruments into one of the A1 and B1
connectors and the amp input into IN/OUT 1 Pressing the switch
1 will toggle between the two instruments
All manuals and user guides at all-guides.com
all-guides.com
DUAL A/B SWITCH AB200
Fig. 2.3: Two instruments / two amps
Two AB200 channels are needed for this application: plug
each instrument into one of the A1 and B1 connectors and each
amp input into one of the A2 and B2 connectors Link IN/OUT 1
and IN/OUT 2 plugs using a short cable Pressing the switch 1
toggles between the two instruments while pressing the switch
2 toggles between the two amps
3. WARRANTY
For our current warranty terms and conditions, please refer to
our website at http://www behringer com
4. SPECIFICATIONS
In 1, In 2, Out A, Out B
Connector 1/4" TS
Impedance relais hard bypass
Battery 9 V type 6LR61
Power consumption <30 mA
Dimensions (H x W x D) approx 46 mm (1 4/5")
x 14 mm (5 1/4")
x 89 mm (3 1/2")
Weight approx 0 28 kg (0 62 lbs)
BEHRINGER is constantly striving to maintain the highest professional standards. As a result
of these efforts, modifications may be made from time to time to e isting products without prior
notice. Specifications and appearance may therefore differ from those listed or shown.
5. SAFETY INSTRUCTIONS
Do not use near water, or install near heat sources. Use only authorized
attachments/accessories. Do not service product yourself. Contact our
qualified servicing personnel for servicing or repairs.
No utilizar cerca de agua o instalar cerca de fuentes de calor. Utilice sólo
accesorios y aditamentos autorizados. No intent reparar el producto usted
mismo. Contacte a nuestro personal t cnico cualificado para servicio y
reparaciones.
Íåýêñïëóàòèðóéòåïðèáîðâáëèçèîò èñòî÷íèêîââîäûè òåïëà.
Ïðèìåíÿéòåòîëüêîàâòîðèçîâàííûåäîïîëíèòåëüíûåóñòðîéñòâà.
Íèêîãäàíåðåìîíòèðóéòåïðèáîðñàìîñòîÿòåëüíî.Ðåìîíòìîæåò
ïðîèçâîäèòüòîëüêîêâàëèôèöèðîâàííûéñïåöèàëèçèðîâàííûé
ïåðñîíàë.
Ne pas utiliser ni installer à proximit de liquide ou de sources de chaleur.
Utilisez exclusivement les accessoires autoris s. Ne r alisez pas de
maintenance vous-même sur le produit. Contactez notre personnel technique
pour tout service ou r paration.
Betreibe das Gerät nicht in der Nähe von Wasser oder Wärmequellen.
Verwende bitte nur autorisiertes Zubehör. Führe bitte keinerlei Reparaturen
am Gerät eigenständig durch. Reparaturen sind nur von qualifiziertem
Fachpersonal vorzunehmen.
Non usare in prossimità dellacqua o installare vicino a fonti di calore.
Usare solo collegamenti ed accessori approvati. Non tentare di riparare
lapparecchio da s . Contattare il nostro personale specializzato per eseguire
operazioni di manutenzione e riparazione.
Niet gebruiken in de buurt van water of warmtebronnen. Gebruik uitsluitend
geautoriseerde uitbreidingen/originele accessoires. Probeer nooit zelf het
apparaat te repareren. Neem voor reparaties of onderhoud contact op met
de leverancier.
Nieu¿ywaæwpobli¿uwodyaninieinstalowaæwpobli¿uróde³ciep³a.
Stosowaæwy³¹czniedodatki/akcesoriadopuszczoneprzezproducenta.Nie
naprawiaæurz¹dzeniasamodzielnie.Serwisowanieinaprawyzlecaænaszemu
wykwalifikowanegopersonelowi.
Älä käytä laitetta veden tai lämmönlähteiden lähellä. Käytä vain
hyväksyttyjä lisätarvikkeita. Älä tee laitteeseen itse minkäänlaisia
korjauksia. Ainoastaan pätevä ammattihenkilökunta saa suorittaa
korjaukset; tämä koskee.
Må ikke anvendes i nærheden af vand eller installeres i nærheden af
varmeenheder. Brug kun godkendte tilslutninger/tilbehør. Forsøg ikke selv
at reparere produktet. Kontakt vores kvalificerede servicepersonale for at
få udført service og reparation.
Får inte användas i närheten av vatten eller installeras nära värmekällor. Använd
endast godkända delar/tillbehör. Utför aldrig själv någon service på produkten.
Kontakta vår kvalificerade servicepersonal för service eller reparationer.
Não utilize na proximidade de água, nem instale perto de fontes de calor.
Use apenas conexões e acessórios autorizados. Não repare o seu produto.
Contacte o nosso pessoal qualificado para consertos ou reparações.
Ìç ÷ñçóéìïðïéåßôå ôç óõóêåõÞ êïíôÜ óå íåñü êáé ìçí ôçí åãêáèéóôÜôå êïíôÜ óå
ðçãÝò èåñìüôçôáò. ×ñçóéìïðïéåßôå ìüíï åãêåêñéìÝíá åîáñôÞìáôá/ðáñåëêüìåíá.
Ìçí åêôåëåßôå ïé ßäéïé åñãáóßåò óÝñâéò. éá ôçí åêôÝëåóç åñãáóéþí óÝñâéò Þ
åðéóêåõÞò, åðéêïéíùíÞóôå ìå ôï åéäéêåõìÝíï ðñïóùðéêü óÝñâéò ôçò åôáéñåßáò ìáò.
