Beko HTZG 64110 S User manual

Table
top
cooker
HTZG
64110
S
Kochfeld HTZG 64111 S
Kookplaat
Table de cuisson

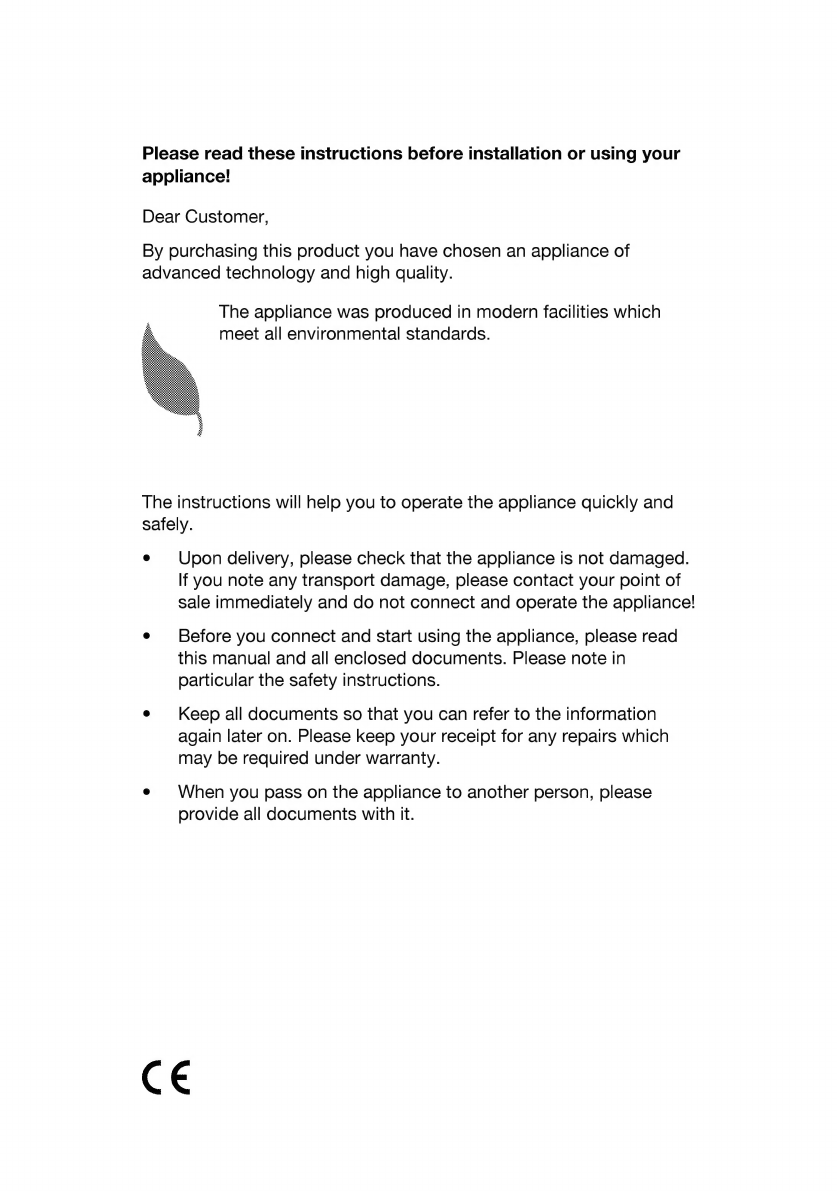

Please read these instructions before installation or using your
appliance!
Dear Customer,
By purchasing this product you have chosen an appliance of
advanced technology and high quality.
The appliance was produced in modern facilities which
meet all environmental standards.
The instructions will help you to operate the appliance quickly and
safely.
Upon delivery, please check that the appliance is not damaged.
If you note any transport damage, please contact your point of
sale immediately and do not connect and operate the appliance!
Before you connect and start using the appliance, please read
this manual and all enclosed documents. Please note in
particular the safety instructions.
Keep all documents so that you can refer to the information
again later on. Please keep your receipt for any repairs which
may be required under warranty.
When you pass on the appliance to another person, please
provide all documents with it.
СЄ

Table of Contents
1 General Ї!пїюгтатїоп............... 4
OVEMIEMW жылан NTA ea
Technical Оаїа..........................................
Accessories supplied with the unit… … …
lector Габе westrand
2 Safety 1п5$1гисїїОП$.................
Explanation of safety instructions ............
Basic safety instructions …
Safety for children ....................................
Safety when working with gas …… … … … ….
MENGER DE
DIS OSA asics E ыы
Packaging таїегіа!...................................
Old eguip menena шеа
Future transportation …
3 Installation. … 9
Before іпѕїааїоп..................................... 9
Installation and connection … … …… ee 9

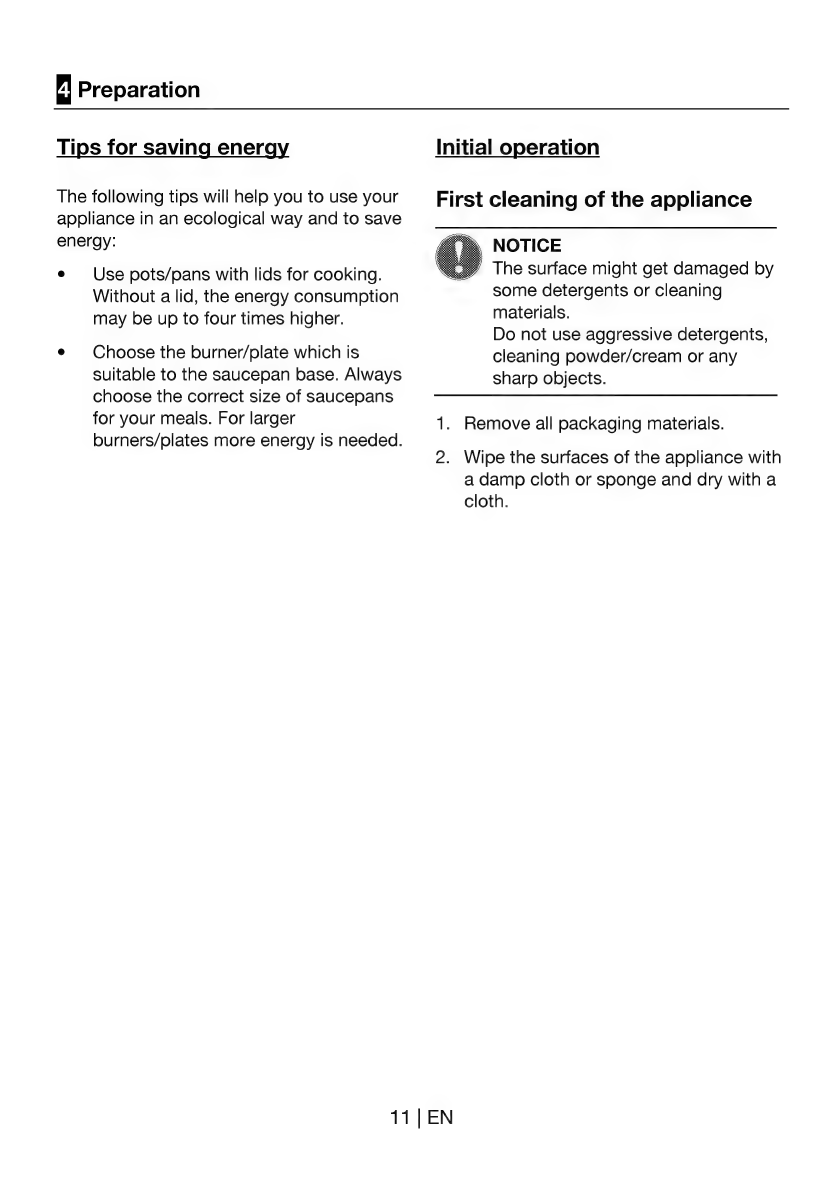

4 Ргерагаіоп........................... 11
Tips for saving епегду............................ 11
Mitia operato хаа 11
First cleaning of the appliance … … … … … 11
[ How To Use The Hob........... 12
General information on cooking … … … … 12
HOW TO: USC MODS а denten tete 12
6 Maintenance and Саге......... 14
General information … … en 14
How to clean the hob … … … 14
Troubleshooting … 15
3 | EN

1 General Information

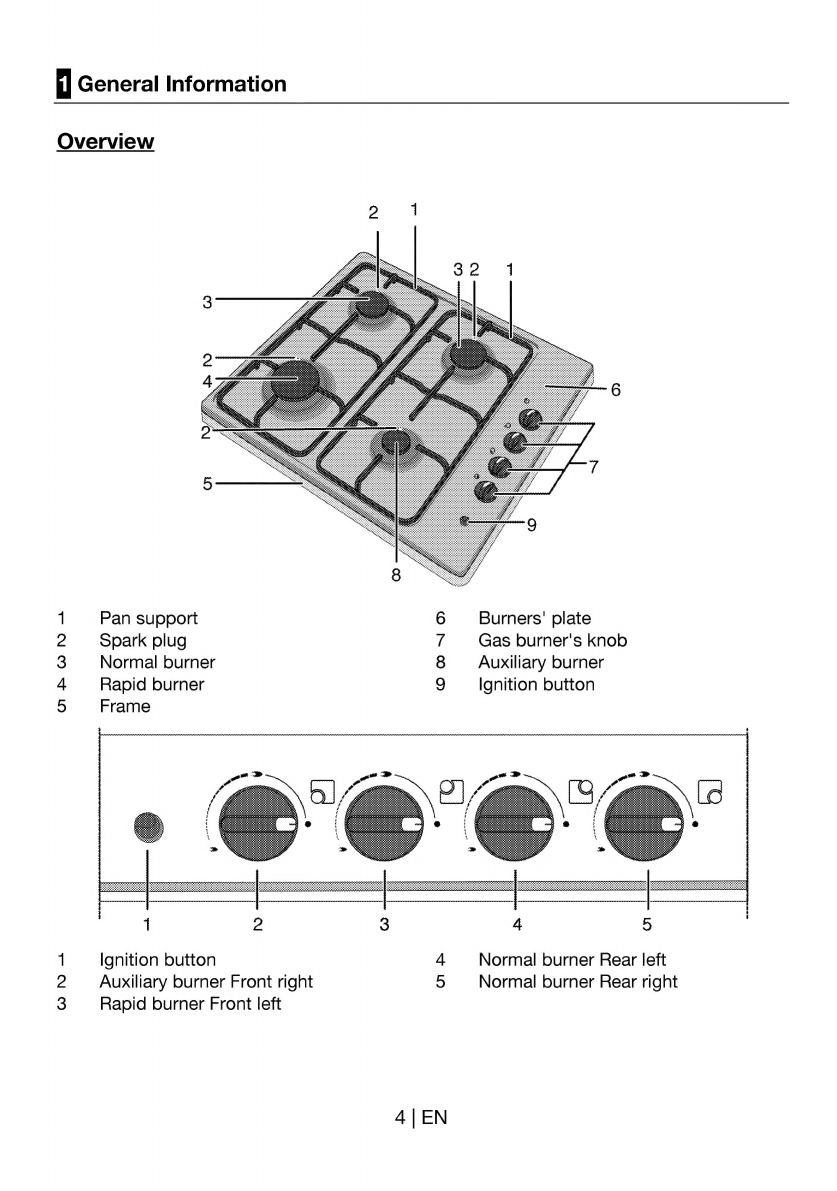

Overview
2 4
1 Pan support 6 Burners' plate
2 Spark plug 7 Gas burner's knob
3 Normal burner 8 — Auxiliary burner
4 Rapid burner 9 Ignition button
5 Frame
1 2 3 4 5
1 Ignition button
2 Auxiliary burner Front right
3 Rapid burner Front left
Nn Normal burner Rear left
Normal burner Rear right
ол
4| EN

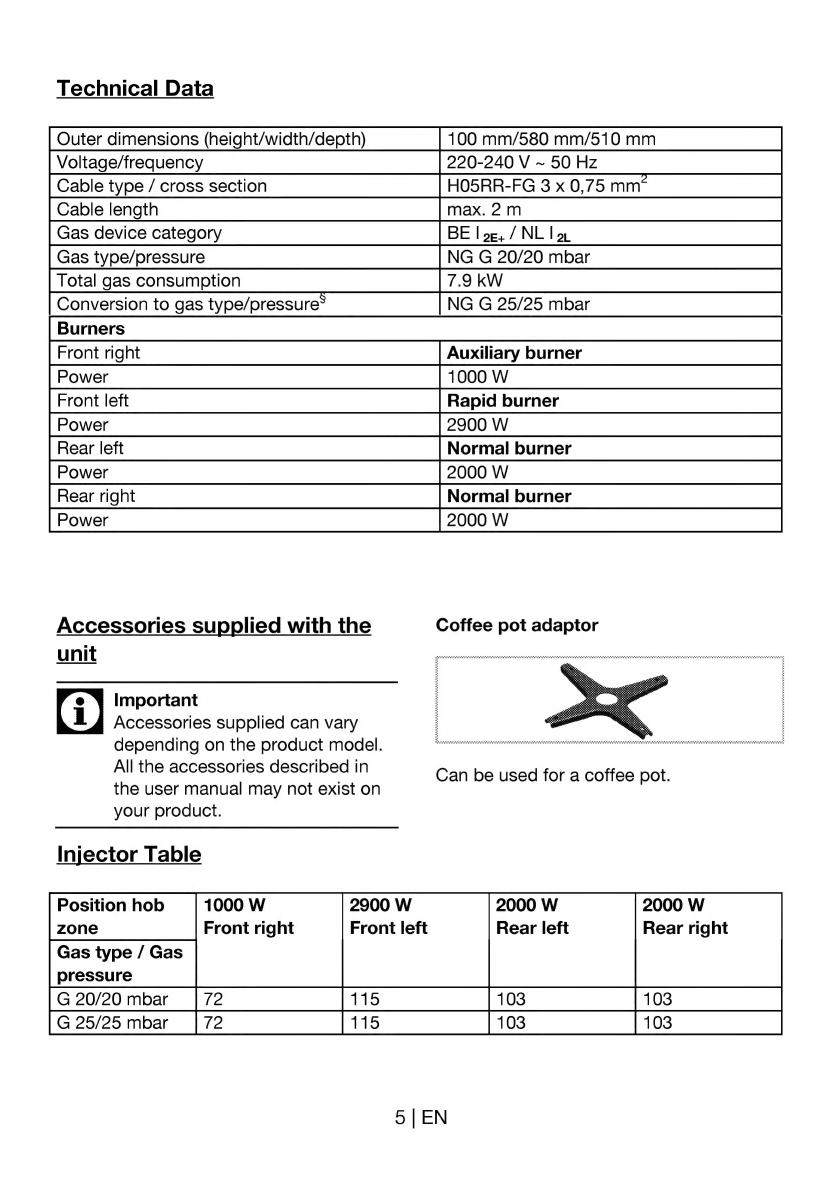

Technical Data
Outer dimensions (height/width/depth) 100 mm/580 mm/510 mm
Conversion to gas type/pressure® NG G 25/25 mbar
Front right Auxiliary burner
Power
Front left Rapid burner
Power
Rear left
Power
Rear right
Power
Accessories supplied with the Coffee pot adaptor
unit
Important
Accessories supplied can vary
depending on the product model.
All the accessories described in
the user manual may not exist on
your product.
Can be used for a coffee pot.
Injector Table
Position hob 1000 W 2900 W 2000 W 2000 W
zone Front right Front left Rear left Rear right
Gas type / Gas
pressure
G 20/20 mbar
G 25/25 mbar
5 | ЕМ

2 Safety Instructions
Explanation of safety
instructions
The following types of safety instructions
and information are used in this manual. e
They can be distinguished by the symbol
and the initial signal word.
DANGER
2. High risk of personal injury.
Non-observance may or will cause
serious injuries or death.
CAUTION
Risk of personal injury.
Non-observance may or will cause
minor or medium injuries.
NOTICE
Risk of material damage. e
Non-observance may or will cause
damage on the appliance or other
objects. å
Important И
Tip for the user.
Useful information on how to use
the appliance. No injury risk
information.
Basic safety instructions
e The manufacturer reserves its right to
make changes in the technical
specifications in order to improve the
appliance quality without any prior
notice. Figures included in this manual
are for schematic purpose only and
may not match exactly with your ©
appliance. Values stated on the
markings of the appliance or in other
printed documents supplied with the
6| EN
appliance are obtained under
laboratory conditions as per relevant
standards. These values may vary
according to the usage of the
appliance and ambient conditions.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of appliance by a
person responsible for their safety.
Children should be supervised to
ensure that they do not play with the
appliance.
An additional protective means to
avoid contact with the oven door is
available. This part should be fitted
when young children are likely to be
present.
Never use when judgement or
coordination is impaired by the use of
alcohol and/or drugs.
Do not operate the appliance if it is
defective or shows any visible damage.
Do not carry out any repairs or
modifications on the appliance.
However, you may remedy some
malfunctions; see Troubleshooting,
page 15.
Be careful when using alcoholic drinks
in your dishes. Alcohol evaporates in
high temperatures and may cause fire
since it will catch fire when it gets in
contact with hot surfaces.
Do not heat closed food containers
and glass jars. Pressure that may
build-up in the jar can cause it to burst.
Ensure that no flammable materials are
adjacent to the appliance as the sides
become hot during use.

e [о not leave empty pots or pans оп
plates that are switched on. They
might get damaged.
e Since it may be hot, do not leave
plastic or aluminum dishes on the
surface of appliance. These kind of
dishes should not be used to keep
food either.
e Check all controls on the appliance are
switched off after use.
Important
For the warranty to be valid, the
appliance must be installed by a
qualified person in accordance
with current regulations.
Safety for children
e Accessible parts of the appliance will
become hot whilst the appliance is in
use and until the appliance has cooled,
children should be kept away.
e Accessible parts may be hot when the
grill is in use. Young children should
be kept away.
e [о not store any items above the
appliance that children may reach.
e The packaging materials will be
dangerous for children. Keep the
packaging materials away from
children. Please dispose of all parts of
the packaging according to
environmental standards.

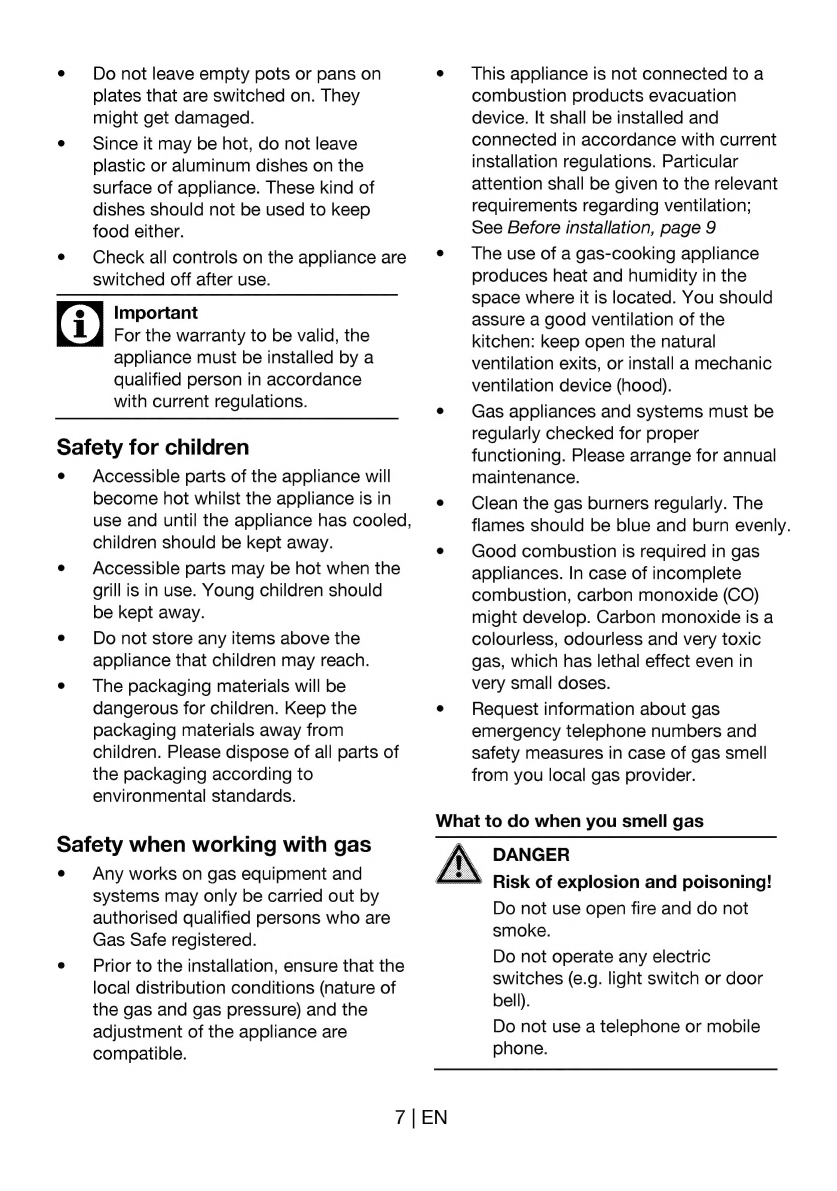

Safety when working with gas
e Any works on gas equipment and
systems may only be carried out by
authorised qualified persons who are
Gas Safe registered.
e Prior to the installation, ensure that the
local distribution conditions (nature of
the gas and gas pressure) and the
adjustment of the appliance are
compatible.
e This appliance is not connected to a
combustion products evacuation
device. It shall be installed and
connected in accordance with current
installation regulations. Particular
attention shall be given to the relevant
requirements regarding ventilation;
See Before installation, page 9
e The use of a gas-cooking appliance
produces heat and humidity in the
space where it is located. You should
assure a good ventilation of the
kitchen: keep open the natural
ventilation exits, or install a mechanic
ventilation device (hood).
e Gas appliances and systems must be
regularly checked for proper
functioning. Please arrange for annual
maintenance.
e Clean the gas burners regularly. The
flames should be blue and burn evenly.
e Good combustion is required in gas
appliances. In case of incomplete
combustion, carbon monoxide (CO)
might develop. Carbon monoxide is a
colourless, odourless and very toxic
gas, which has lethal effect even in
very small doses.
e Request information about gas
emergency telephone numbers and
safety measures in case of gas smell
from you local gas provider.
What to do when you smell gas
\ DANGER
À Risk of explosion and poisoning!
Do not use open fire and do not
smoke.
Do not operate any electric
switches (e.g. light switch or door
bell).
Do not use a telephone or mobile
phone.
7 | EN

1. Close all valves оп gas appliances and
gas meter.
2. Open doors and windows.
3. Check all tubes and connections for
tightness. If you still smell gas leave the
property.
4. Warn the neighbours.
5. Call the fire-brigade. Use a telephone
outside the house.
6. Do not re-enter the property until you
are told it is safe to do so.
Intended use
The appliance is designed for domestic use
only. Commercial use is not admissible.
This appliance should not be used for
warming the plates under the grill, hanging
towels and dish cloths etc. on the handles,
drying and the heating purposes.
The manufacturer shall not be liable for any
damage caused by improper use or
handling errors.
Disposal
Packaging material
DANGER
Risk of suffocation by the
packaging materials!
Keep children away from the
packaging materials.
The packaging material and transport locks
are made from materials that are not
harmful to the environment. Please dispose
of all parts of the packaging according to
environmental standards. This is beneficial
to the environment.
Old equipment
This appliance bears the selective sorting
symbol for waste electrical and electronic
equipment (WEEE). This means that this
appliance must be handled pursuant to
European Directive 2002/96/EC in order to
be recycled or dismantled to minimize its
impact on the environment. For further
information, please contact your local or
regional authorities.
Electronic appliances not included in the
selective sorting process are potentially
dangerous for the environment and human
health due to the presence of hazardous
substances.
Future transportation
NOTICE
Do not place other items on the
top of the appliance. The appliance
must be transported upright.
Store the appliance's original box and
transport the appliance in its original carton.
Follow the guidance marks that are printed
on the carton.
[1] Important
Verify the general appearance of
your equipment by identifying
possible damage during the
transportation.
Secure the caps and pan supports with
adhesive tape.
If you do not have the original carton
Pack the appliance in bubble wrap or thick
cardboard and tape it securely in order to
prevent damage during transportation.
8 | EN

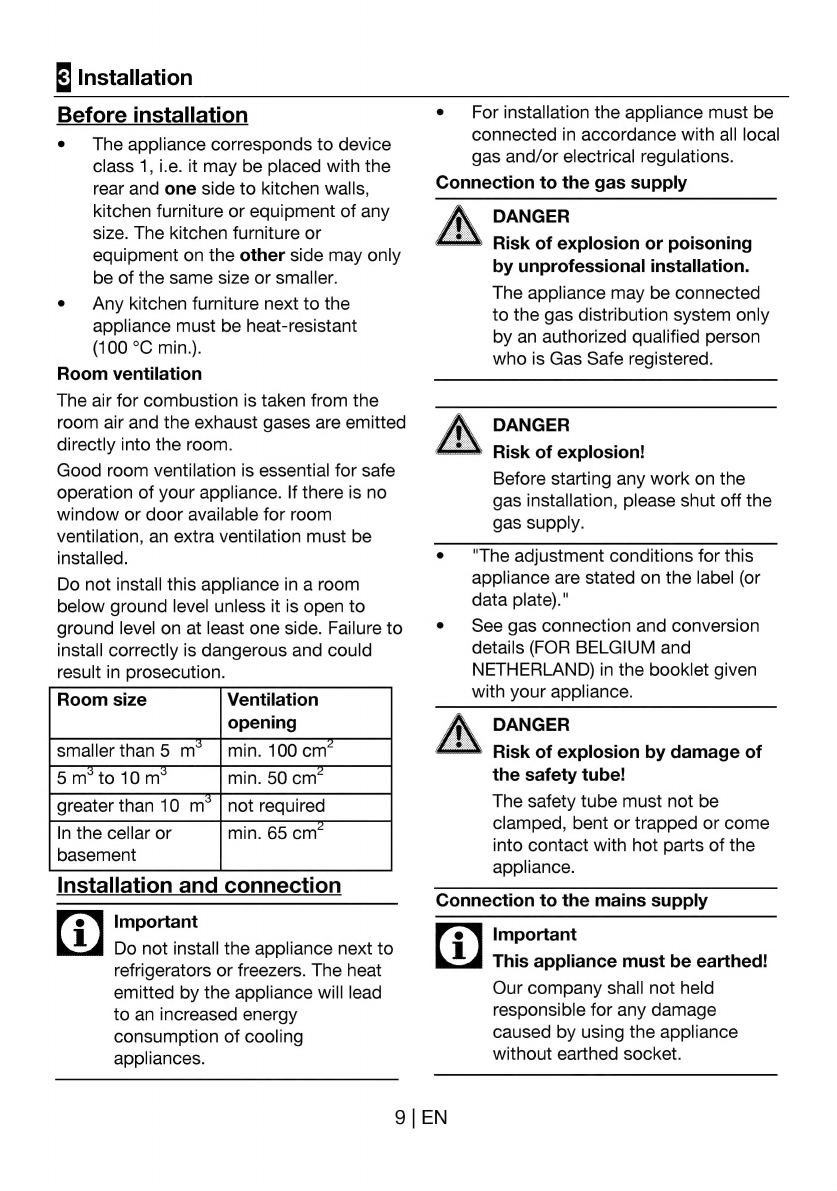

Ё Installation
Before installation
e The appliance corresponds to device
class 1, i.e. it may be placed with the
rear and one side to kitchen walls,
kitchen furniture or equipment of any
size. The kitchen furniture or
equipment on the other side may only
be of the same size or smaller.
e Апу kitchen furniture next to the
appliance must be heat-resistant
(100 °C min.).
Room ventilation
The air for combustion is taken from the
room air and the exhaust gases are emitted
directly into the room.
Good room ventilation is essential for safe
operation of your appliance. If there is no
window or door available for room
ventilation, an extra ventilation must be
installed.
Do not install this appliance in a room
below ground level unless it is open to
ground level on at least one side. Failure to
install correctly is dangerous and could
result їп prosecution.
opening
basement
Installation and connection
[1] Important
Do not install the appliance next to
refrigerators or freezers. The heat
emitted by the appliance will lead
to an increased energy
consumption of cooling
appliances.
e For installation the appliance must be
connected in accordance with all local
gas and/or electrical regulations.
Connection to the gas supply
DANGER
Risk of explosion or poisoning
by unprofessional installation.
The appliance may be connected
to the gas distribution system only
by an authorized qualified person
who is Gas Safe registered.
DANGER
Risk of explosion!
Before starting any work on the
gas installation, please shut off the
gas supply.
• "The adjustment conditions for this
appliance are stated on the label (or
data plate)”
e See gas connection and conversion
details (FOR BELGIUM and
NETHERLAND) in the booklet given
with your appliance.
DANGER
Risk of explosion by damage of
the safety tube!
The safety tube must not be
clamped, bent or trapped or come
into contact with hot parts of the
appliance.
Connection to the mains supply
(i) Important
This appliance must be earthed!
Our company shall not held
responsible for any damage
caused by using the appliance
without earthed socket.
9 | EN

DANGER
> Risk of electric shock, short
circuit or fire by unprofessional
installation!
The appliance may be connected
to the mains supply only by an
authorized qualified person and the
appliance is only guaranteed after
correct installation.
DANGER
Risk of electric shock, short
circuit or fire by damage of the
mains lead!
The mains lead must not be
clamped, bent or trapped or come
into contact with hot parts of the
appliance.
If the mains lead is damaged, it
must be replaced by a qualified
electrician.
The mains supply data must correspond to
the data specified on the rating plate of the
appliance. The rating plate is located at the
rear housing of the appliance.
The supply cable of the appliance must
correspond to the specifications; see
technical data table Technical Data, page 5.
[1] Important
The plug should be easily
accessible after installation (but not
above the hob).
Plug the mains lead into the socket.
Installing cooktop legs
1. Remove all pieces that may fall down
from the top of the cooktop, overturn it
and place on a flat surface.
2. Install the 4 legs supplied with your
product to their slots on the corners of
the cooktop.
3. Proper installation is confirmed by the
click sound while inserting the legs.
Final check
1. Turn on gas supply.
2. Check gas installations for secure fitting
and tightness.
3. Ignite burners and check appearance of
the flame.
Ө
10 | EN
Important
The flames should be blue and
burn smoothly. If the flames
appear yellowish, check secure
position of the burner cap or clean
the burner. Switch off gas and let
burner cool before touching it.

4 Preparation
Tips for saving energy Initial operation
The following tips will help you to use your First cleaning of the appliance
appliance in an ecological way and to save
energy:
e Use pots/pans with lids for cooking.
Without a lid, the energy consumption
may be up to four times higher.
e Choose the burner/plate which is
suitable to the saucepan base. Always
choose the correct size of saucepans
for your meals. For larger 1.
burners/plates more energy is needed.
NOTICE
The surface might get damaged by
some detergents or cleaning
materials.
Do not use aggressive detergents,
cleaning powder/cream or any
sharp objects.
Remove all packaging materials.
2. Wipe the surfaces of the appliance with
11 | EN
a damp cloth or sponge and dry with a
cloth.

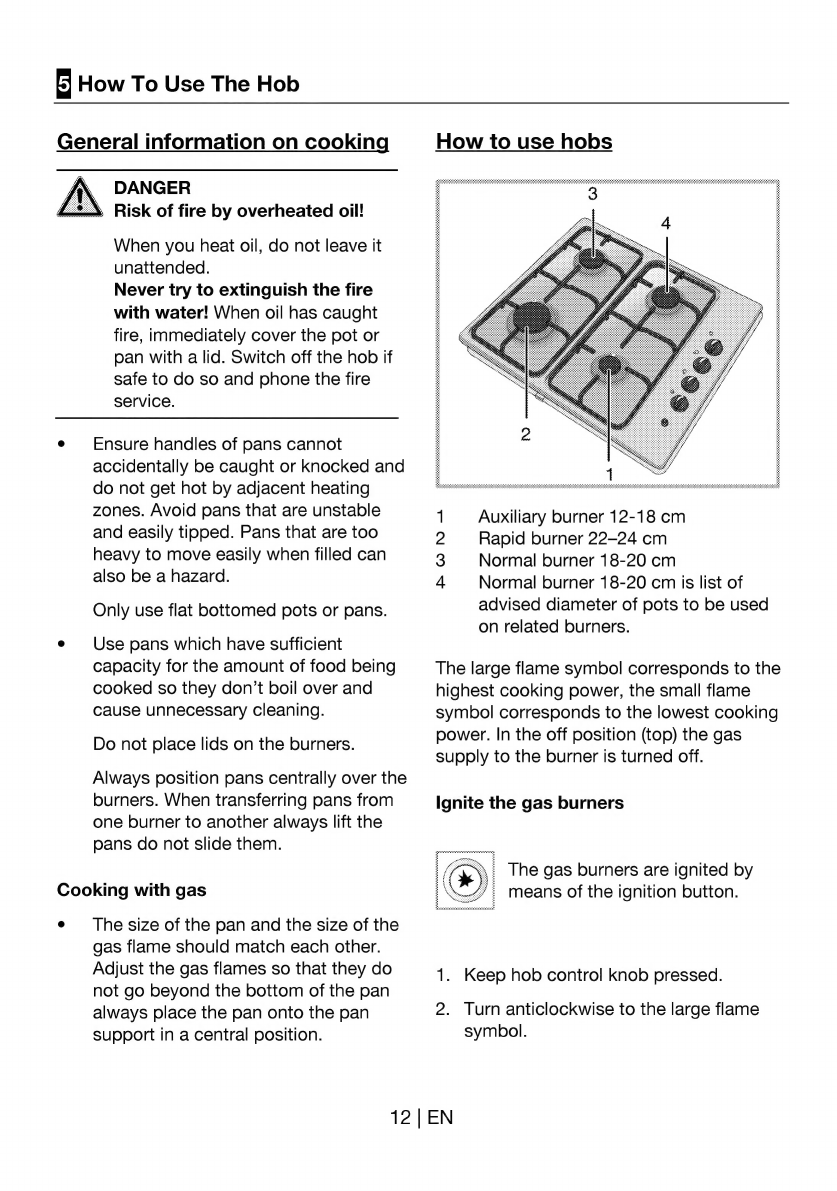

5 How To Use The Hob
General information on cooking
DANGER
Risk of fire by overheated oil!
When you heat oil, do not leave it
unattended.
Never try to extinguish the fire
with water! When oil has caught
fire, immediately cover the pot or
pan with a lid. Switch off the hob if
safe to do so and phone the fire
service.
Ensure handles of pans cannot
accidentally be caught or knocked and
do not get hot by adjacent heating
zones. Avoid pans that are unstable
and easily tipped. Pans that are too
heavy to move easily when filled can
also be a hazard.
Only use flat bottomed pots or pans.
Use pans which have sufficient
capacity for the amount of food being
cooked so they don’t boil over and
cause unnecessary cleaning.
Do not place lids on the burners.
Always position pans centrally over the
burners. When transferring pans from
one burner to another always lift the
pans do not slide them.
Cooking with gas
The size of the pan and the size of the
gas flame should match each other.
Adjust the gas flames so that they do
not go beyond the bottom of the pan
always place the pan onto the pan
support in a central position.
How to use hobs
1 Auxiliary burner 12-18 cm
2 Rapid burner 22-24 cm
3 Normal burner 18-20 cm
4 Normal burner 18-20 ст is list of
advised diameter of pots to be used
on related burners.
The large flame symbol corresponds to the
highest cooking power, the small flame
symbol corresponds to the lowest cooking
power. In the off position (top) the gas
supply to the burner is turned off.
Ignite the gas burners
| The gas burners are ignited by
_ means of the ignition button.
1. Keep hob control knob pressed.
2. Turn anticlockwise to the large flame
symbol.

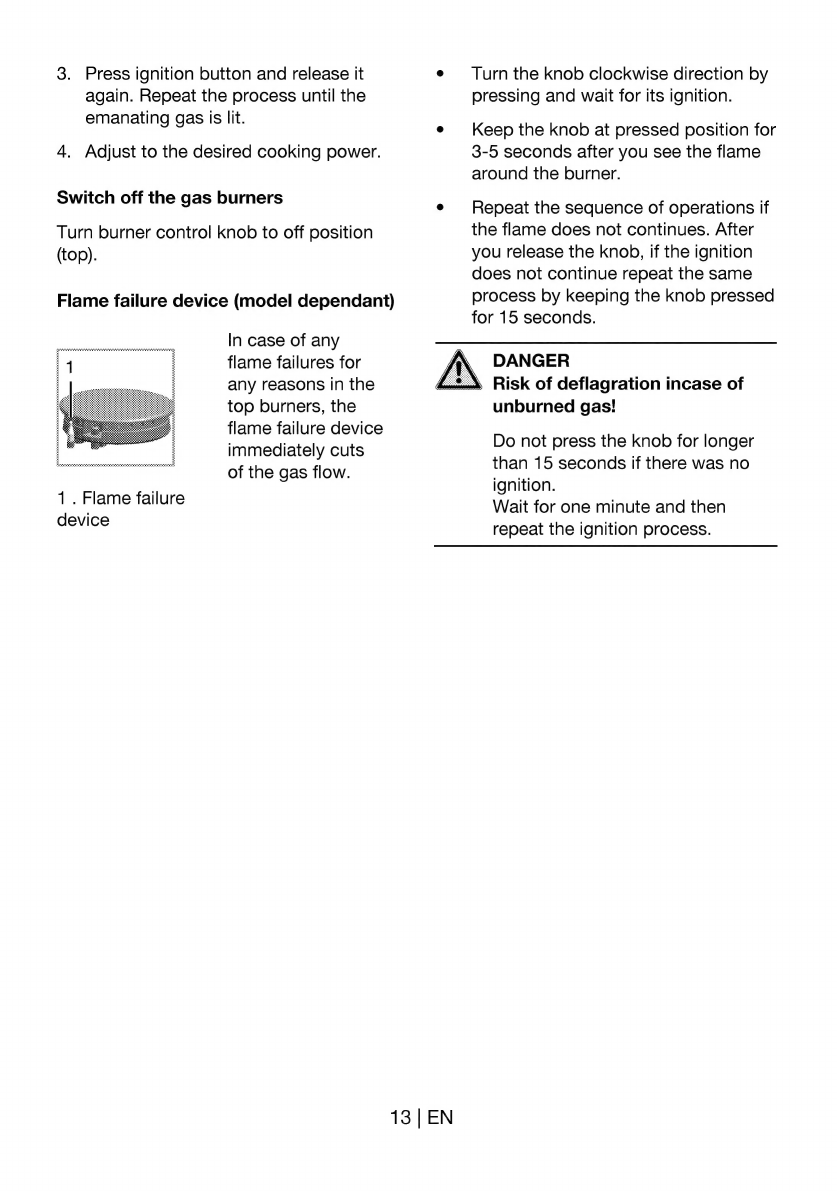

12 | EN

3. Press ignition button and release it
again. Repeat the process until the
emanating gas is lit.
4. Adjust to the desired cooking power.
Switch off the gas burners
Turn burner control knob to off position
(top).
Flame failure device (model dependant)
1 . Flame failure
device
In case of any
flame failures for
any reasons in the
top burners, the
flame failure device
immediately cuts
of the gas flow.
13 | EN
Turn the knob clockwise direction by
pressing and wait for its ignition.
Keep the knob at pressed position for
3-5 seconds after you see the flame
around the burner.
Repeat the sequence of operations if
the flame does not continues. After
you release the knob, if the ignition
does not continue repeat the same
process by keeping the knob pressed
for 15 seconds.
DANGER
Risk of deflagration incase of
unburned gas!
Do not press the knob for longer
than 15 seconds if there was no
ignition.
Wait for one minute and then
repeat the ignition process.

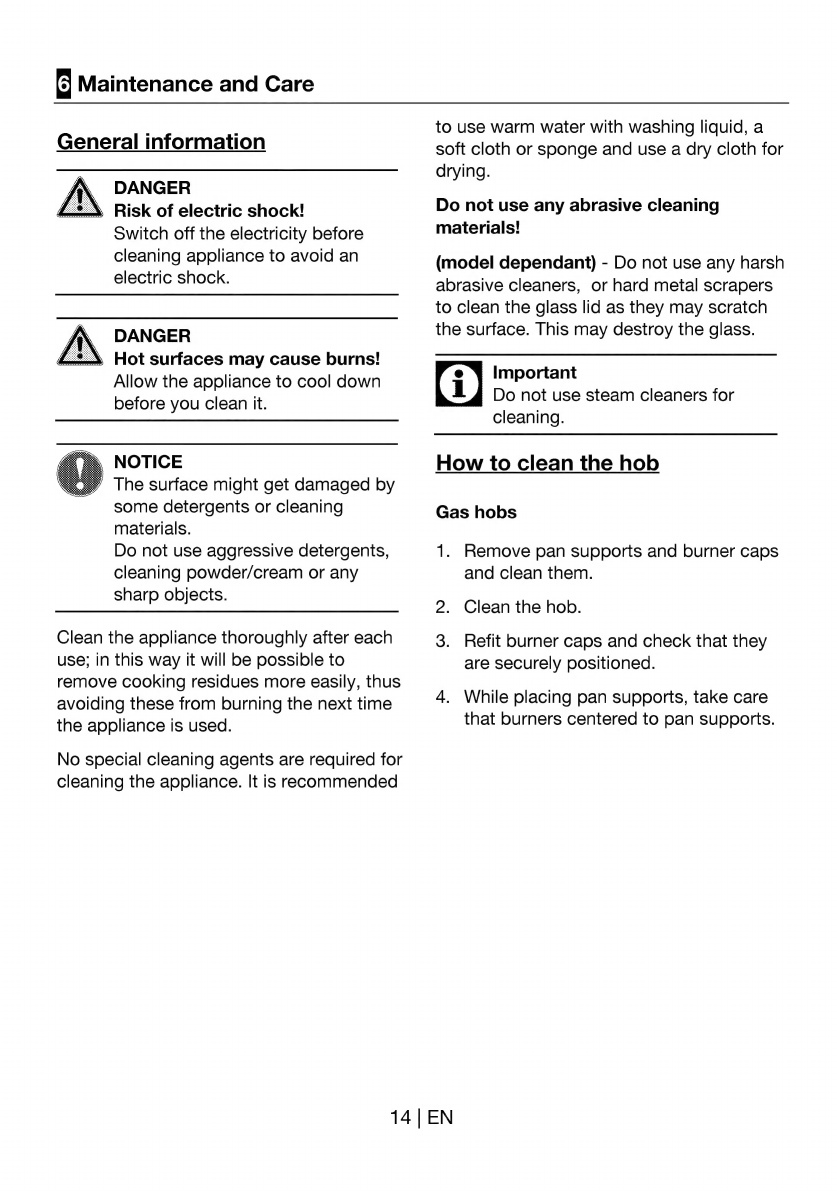

6 Maintenance and Care
General information
DANGER
» Risk of electric shock!
Switch off the electricity before
cleaning appliance to avoid an
electric shock.
DANGER
Hot surfaces may cause burns!
Allow the appliance to cool down
before you clean it.
» NOTICE
* The surface might get damaged by
some detergents or cleaning
materials.
Do not use aggressive detergents,
cleaning powder/cream or any
sharp objects.
Clean the appliance thoroughly after each
use; їп this way it will be possible to
remove cooking residues more easily, thus
avoiding these from burning the next time
the appliance is used.
No special cleaning agents are required for
cleaning the appliance. It is recommended
to use warm water with washing liquid, a
soft cloth or sponge and use a dry cloth for
drying.
Do not use any abrasive cleaning
materials!
(model dependant) - Do not use any harsh
abrasive cleaners, or hard metal scrapers
to clean the glass lid as they may scratch
the surface. This may destroy the glass.
Important
Do not use steam cleaners for
cleaning.
How to clean the hob
Gas hobs
1. Remove pan supports and burner caps
and clean them.
2. Clean the hob.
3. Refit burner caps and check that they
are securely positioned.
. While placing pan supports, take care
that burners centered to pan supports.
14 | EN

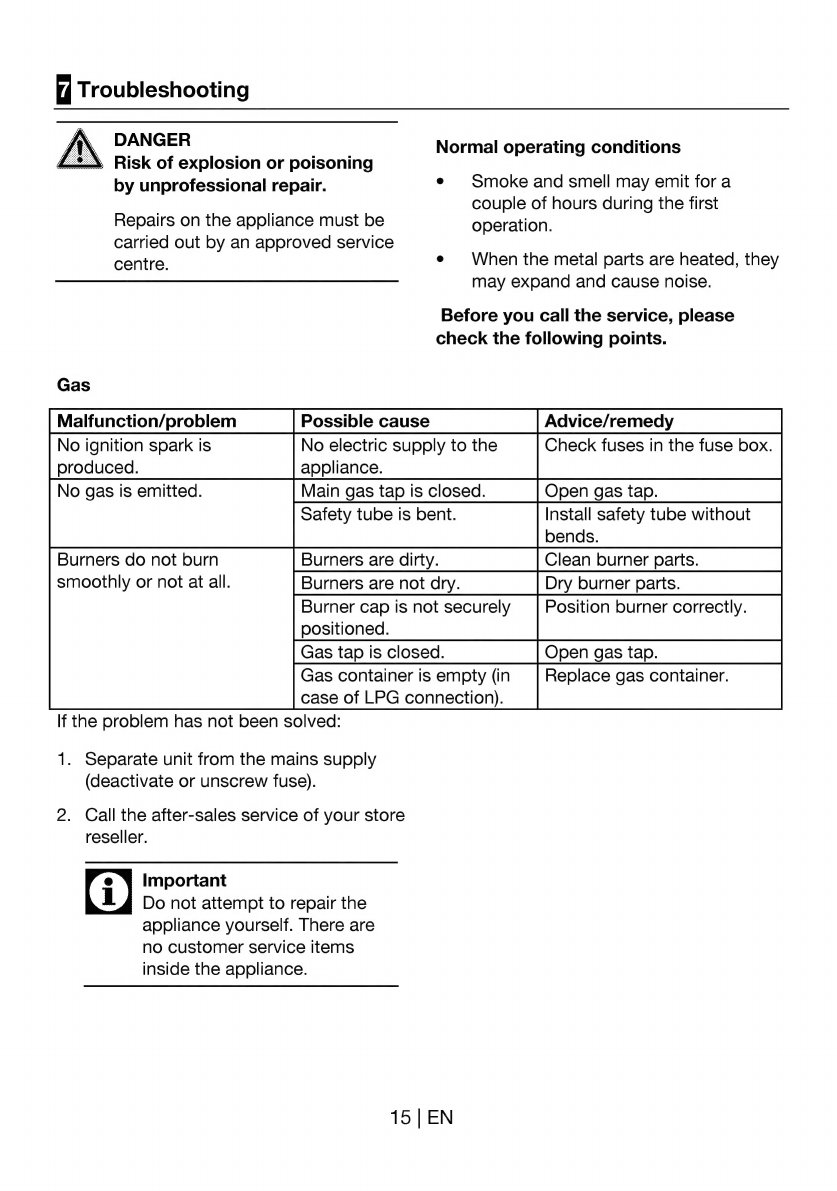

Troubleshooting
4\ DANGER Normal operating conditions
А Risk of explosion or poisoning
by unprofessional repair. ө Smoke and smell пау emit for a
couple of hours during the first
Repairs on the appliance must be operation.
carried out by an approved service
centre. e When the metal parts are heated, they
may expand and cause noise.
Before you call the service, please
check the following points.
Gas
Malfunction/problem Advice/remedy
No ignition spark is No electric supply to the Check fuses in the fuse box.
produced. appliance.
No gas is emitted. Main gas tap is closed. Open gas tap.
Safety tube is bent. Install safety tube without
bends.
Burners do not burn Burners are dirty. Clean burner parts.
smoothly or not at all. Burners are not dry. Dry burner parts.
Burner cap is not securely Position burner correctly.
positioned.
Gas tap is closed. Open gas tap.
Gas container is empty (in Replace gas container.
case of LPG connection).
If the problem has not been solved:
1. Separate unit from the mains supply
(deactivate or unscrew fuse).
2. Call the after-sales service of your store
reseller.
Important
Do not attempt to repair the
appliance yourself. There are
no customer service items
inside the appliance.
15 | EN
