Beko DWD8650X User manual

contents
3
Introduction
Welcome 2
Know your dishwasher / specification 4
Standards and testing information /
EC declaration of conformity 4
Warning and safety information 5
Electrical Safety 5
Childrens safety 5
General 5
Recyclin 6
Ener y and water savin 6
What should not be washed in your dishwasher 6
Before first use 6
Turbo Fan Heat Dryin System 6
Installation 7
Electrical requirements 7
This appliance must be earthed 7
Fittin a different plu 7

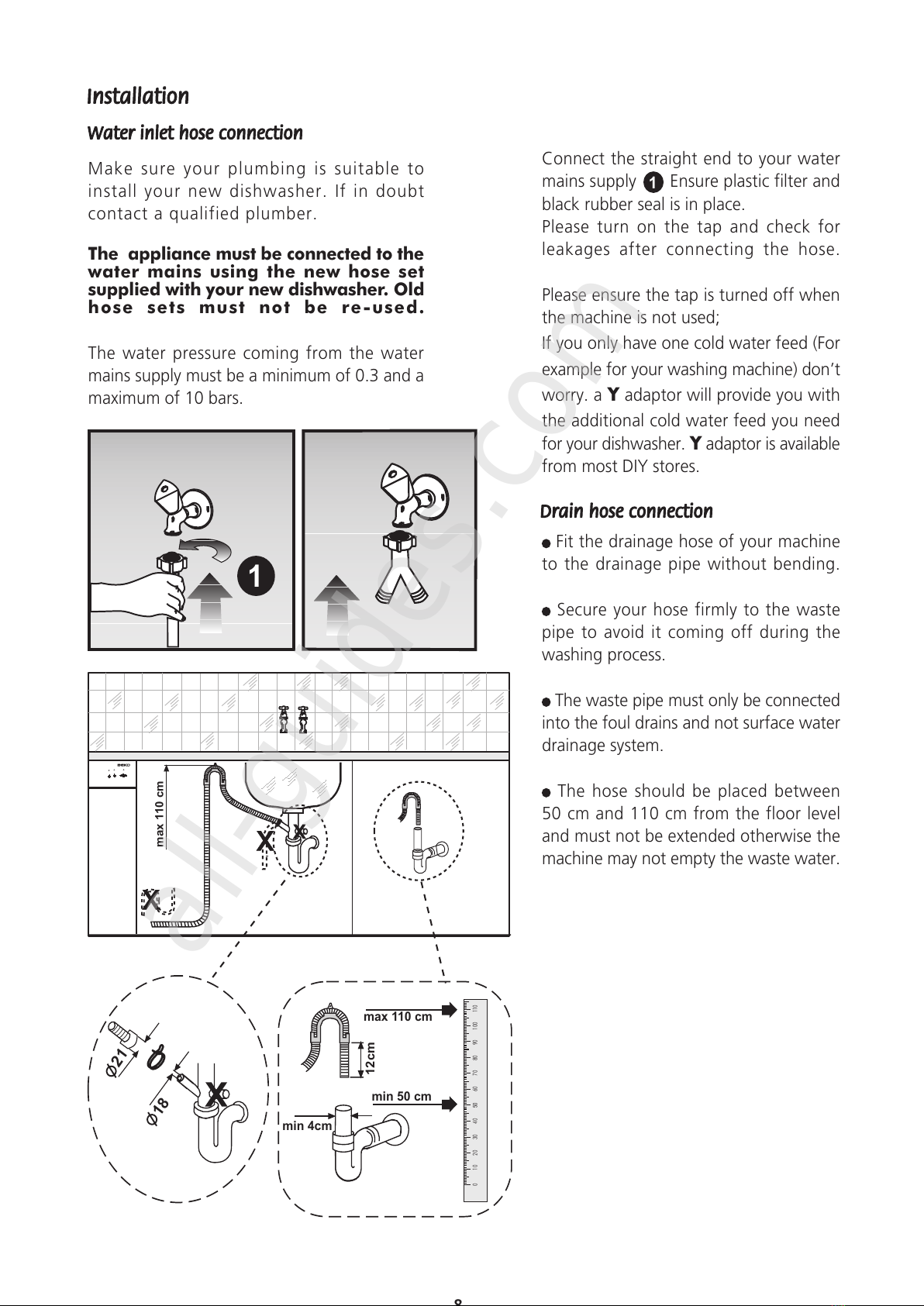

Water inlet hose connection 8
Drain hose connection 8

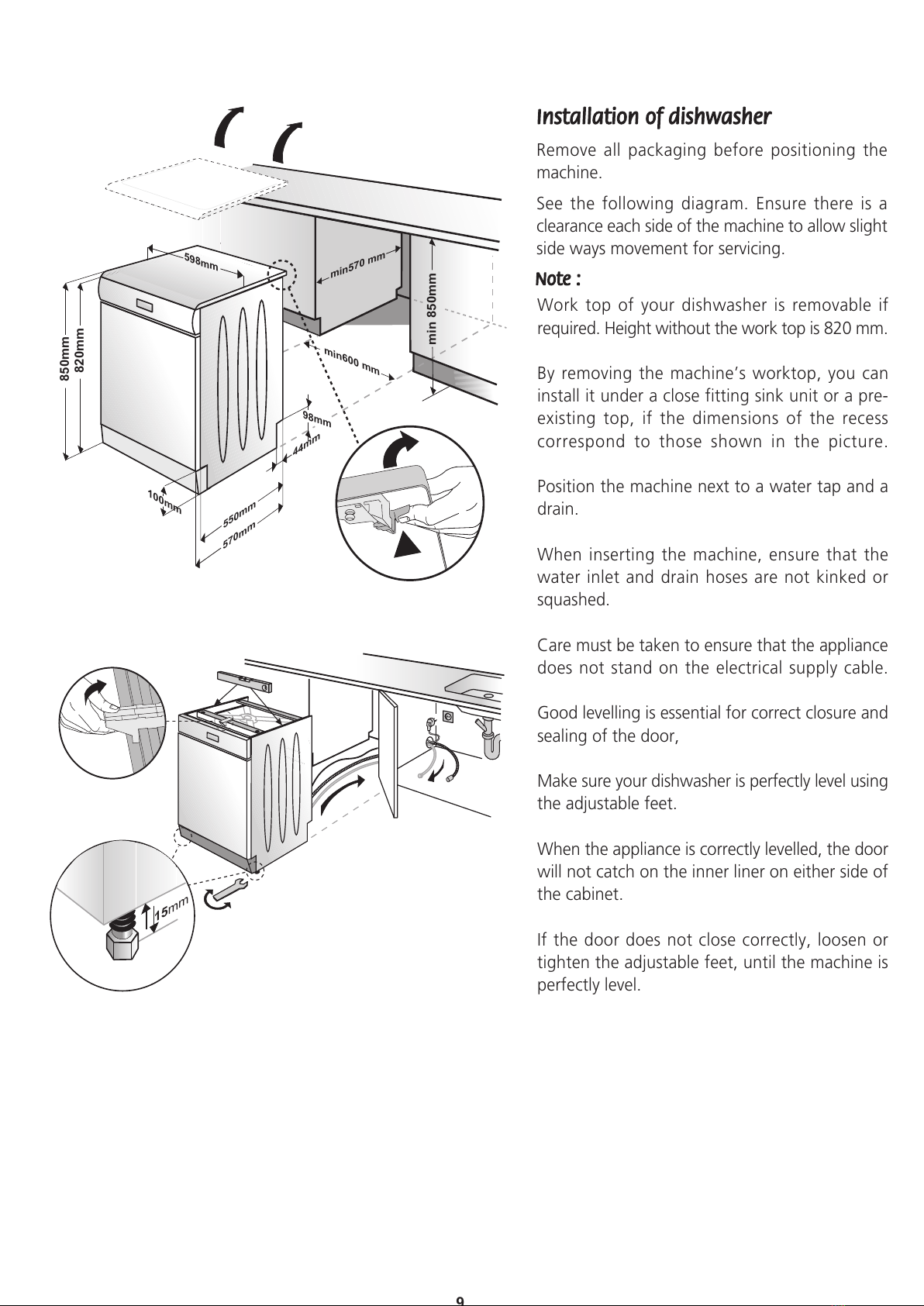

Installation of dishwasher 9
How to use 1
Water hardness & Re eneration settin s 10

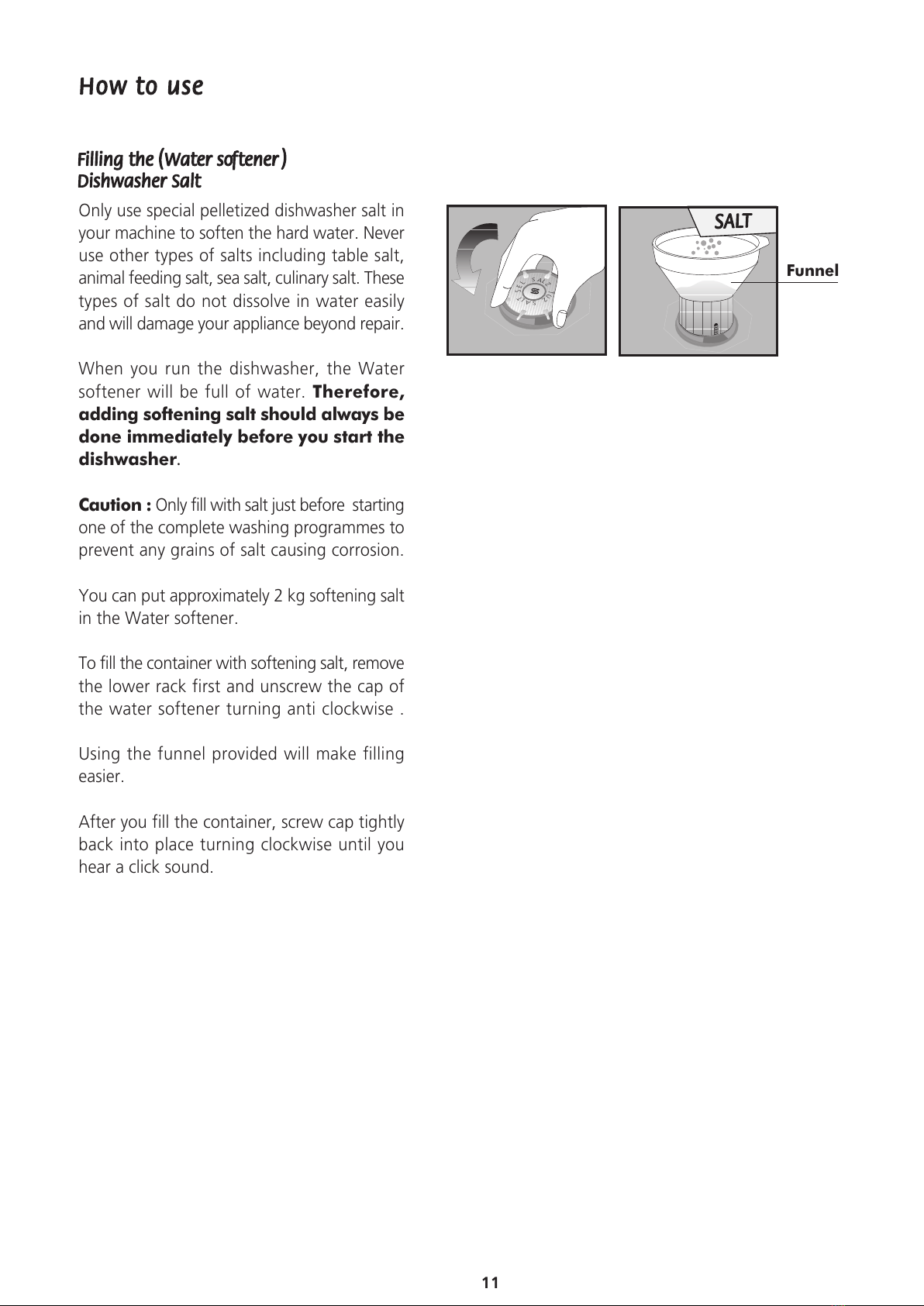

Fillin the (Water softener) Dishwasher salt 11

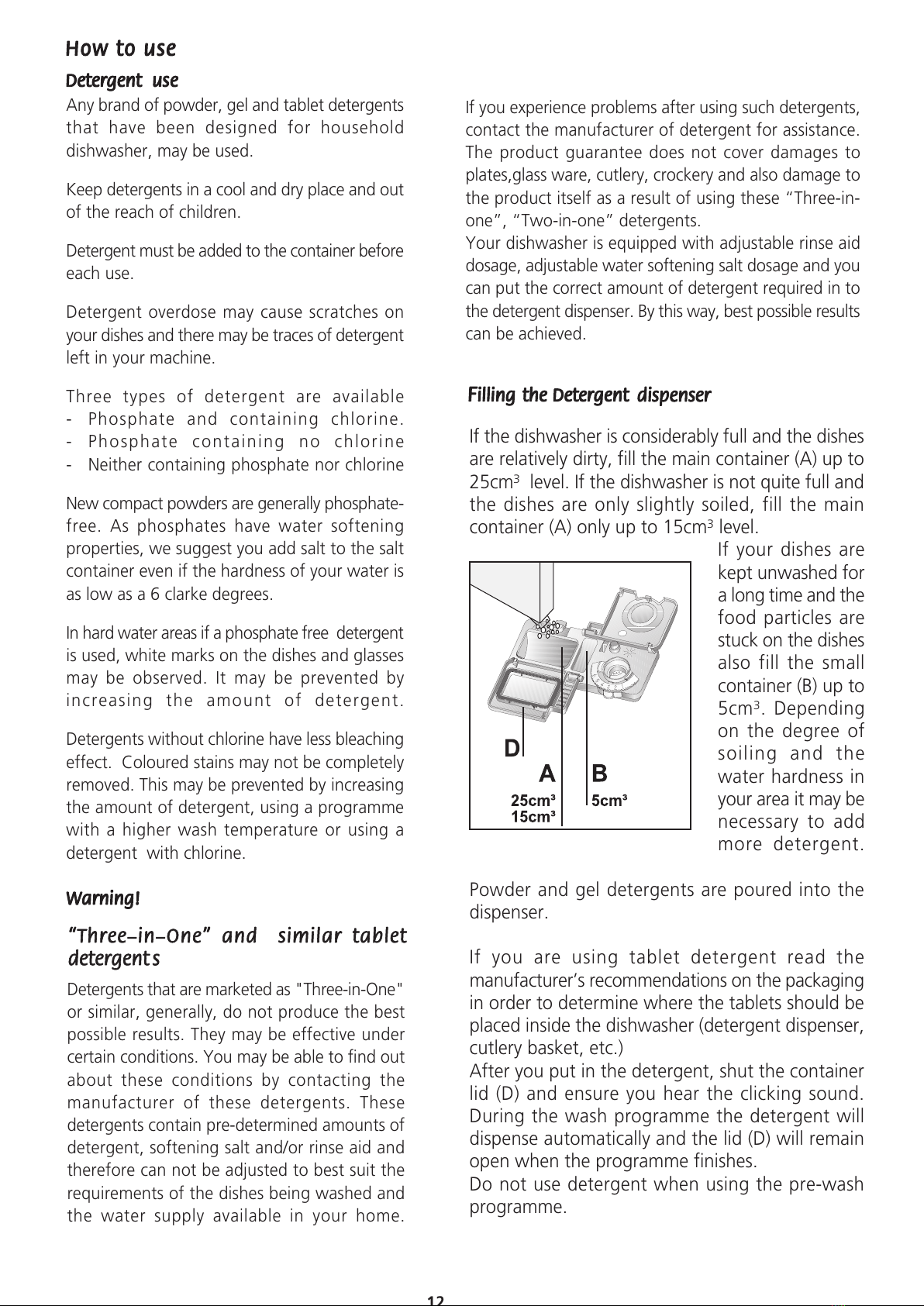

Deter ent use 12
Fillin the deter ent dispenser 12

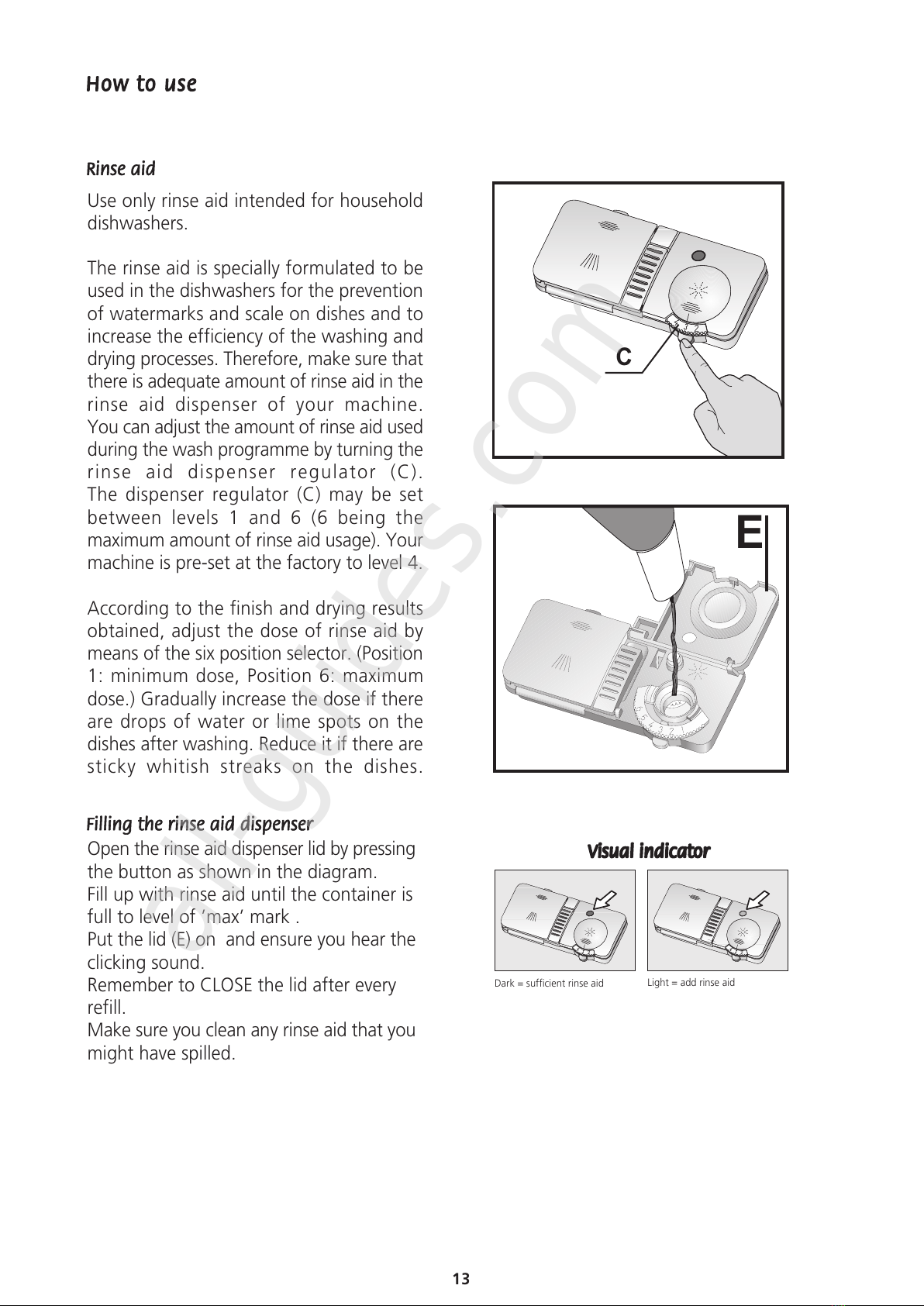

Rinse aid 13
Fillin the rinse aid dispenser 13

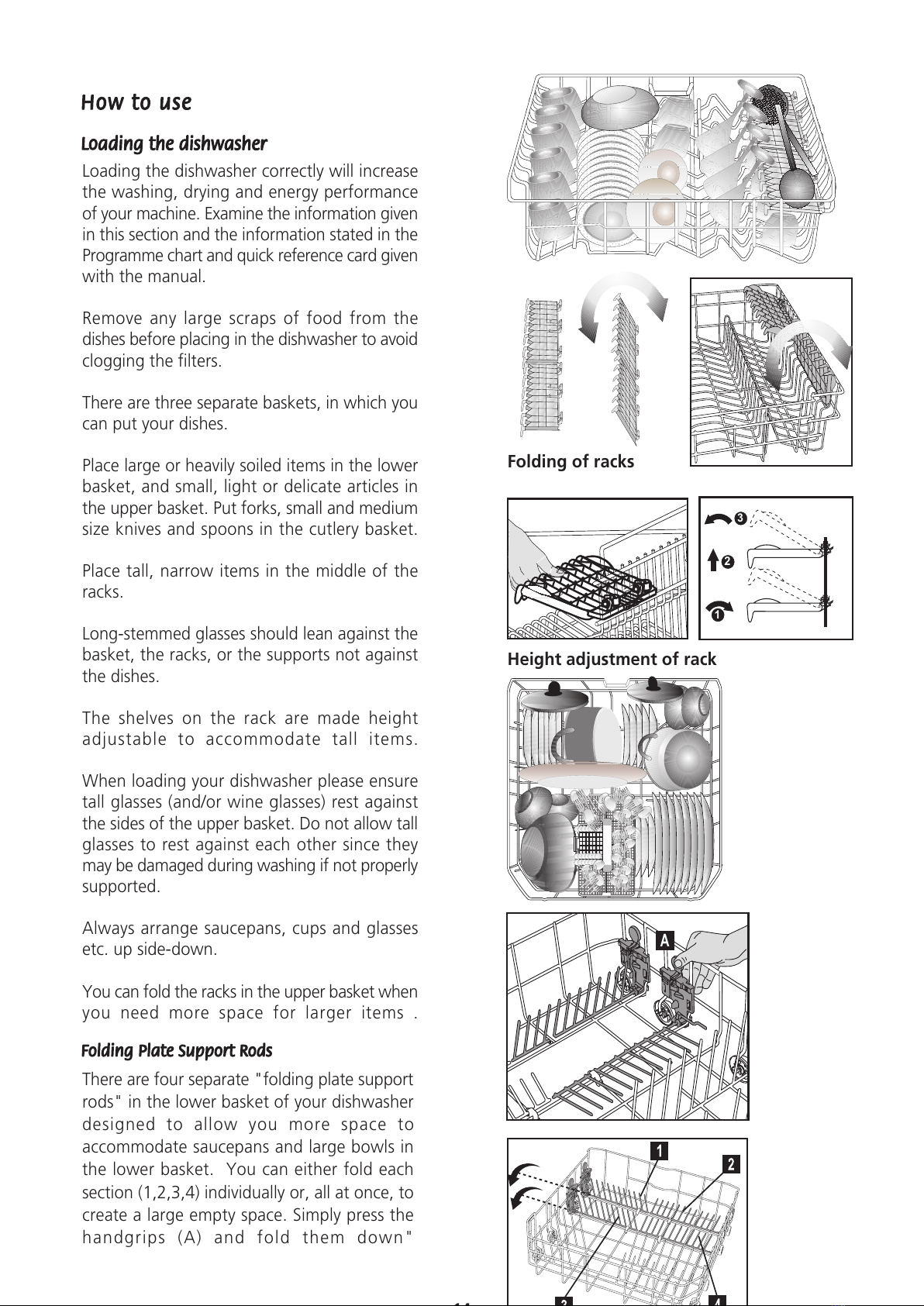

Loadin the Dishwasher 14
Foldin plate support rods 14
Three-way split cutlery basket 15
Upper basket hei ht adjustment (Unloaded) 15

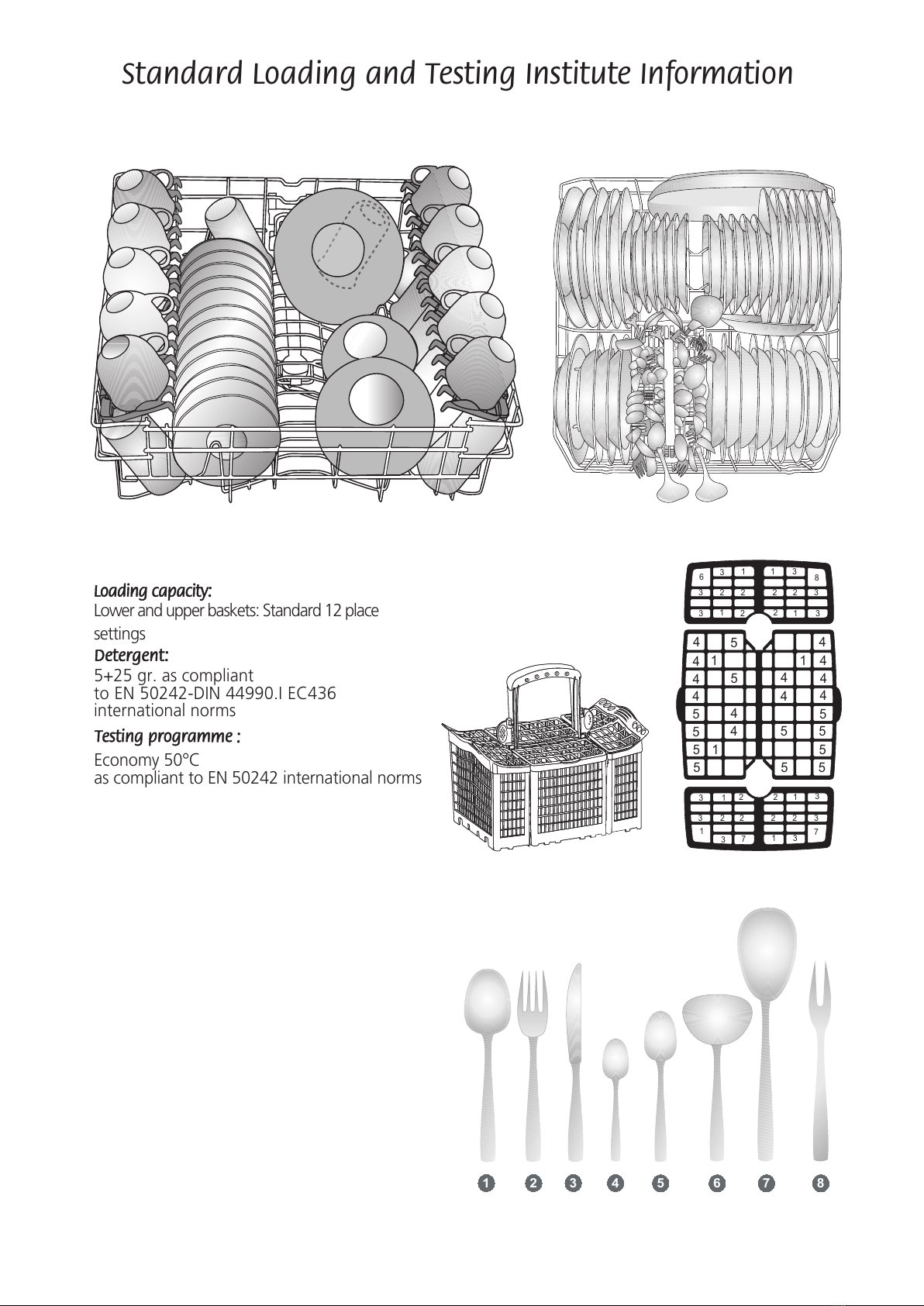

Standard loading and testing institute information 16
Operating the dishwasher 17
How to cancel the washin pro ramme 17
How to chan e the washin pro ramme 17
Unloadin the Dishwasher 17

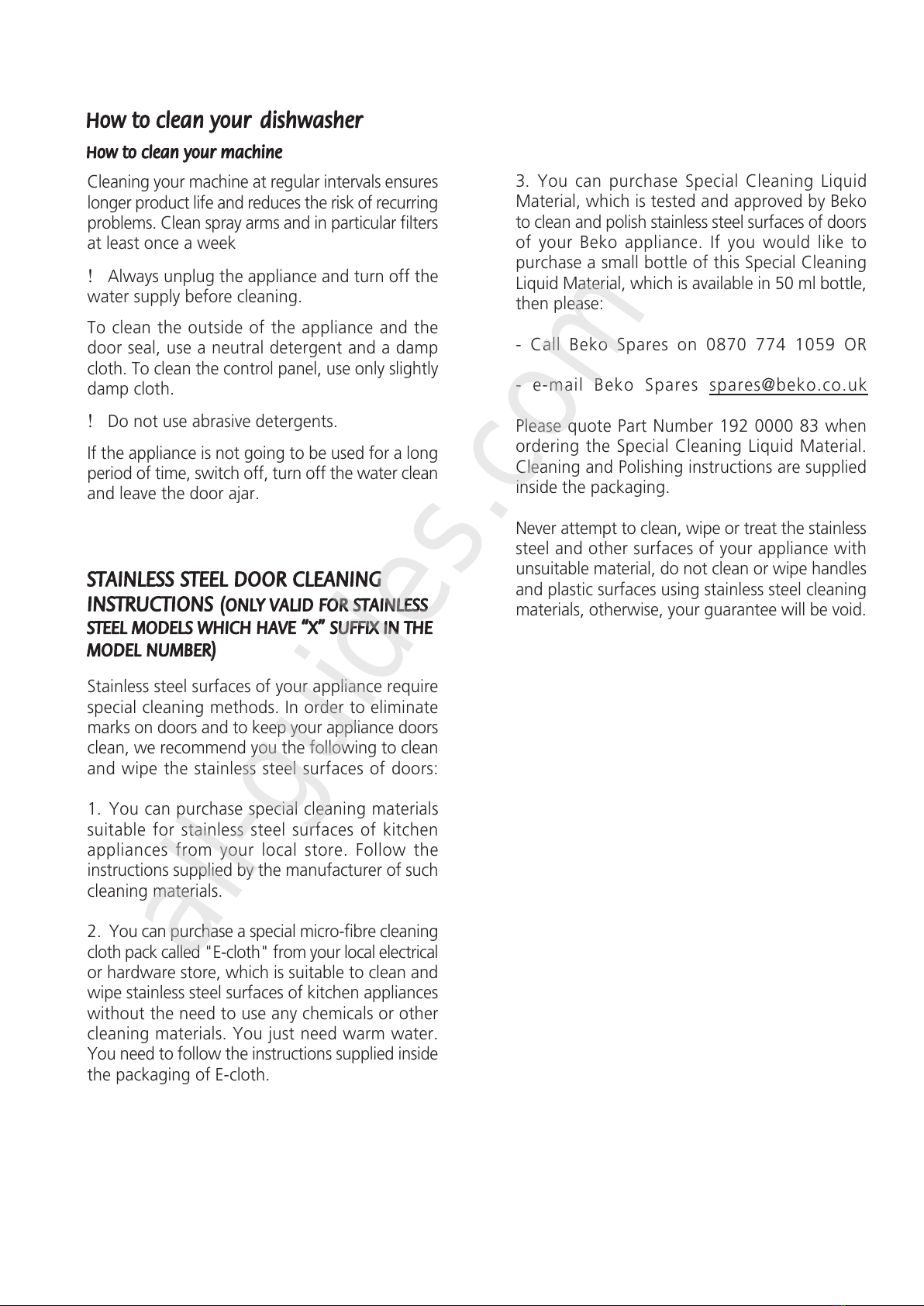

How to clean your Dishwasher 18
Stainless steel door cleanin instructions 18
Filters 19
Upper spray arm 19
Lower spray arm 19

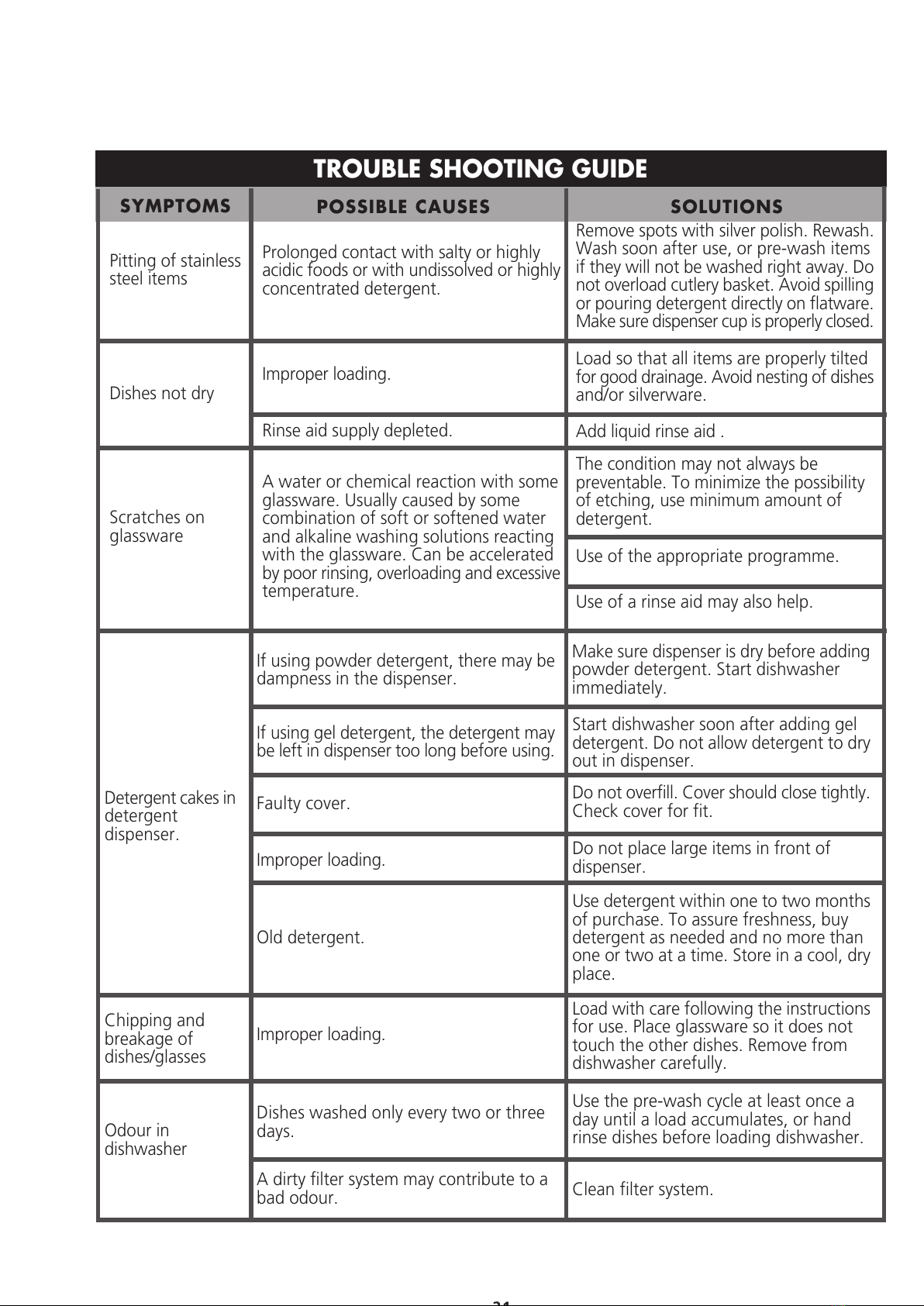

Before calling service / Trouble shooting 2
Guarantee 23
How to obtain service 23
All manuals and user guides at all-guides.com
all-guides.com

4
specification
Because we continually strive to improve our
products, we may chan e our specifications and
desi ns without prior notice.
Diameter of plates for :
Upper basket : 25 cm max.
Lower basket : 31 cm max.
73/23/EC
89/336/EC
93/68/EC
IEC 436/DIN 44990
EN 50242
This appliance has been desi ned, constructed and
distributed in compliance with the safety requirements
of EC directives.
Load capacity : 12 place settin s.
Upper basket
Dishwasher salt cap
L wer basket
Cutlery basket
Detergent and Rinse
aid dispenser
Upper
spray arm
L wer
spray arm
Filters
Upper basket track latch
Heating element
c ncealed behind
the liner
Pr gramme
Selecti n&Starting
Guide
Rem vable
w rk t p
Rem vable
kick plate
Turb Fan Heat
Drying System
Load Capacity
Hei ht
Width
Depth
Depth/Hei ht
(without worktop)
Net wei ht
Supply volta e
Fuse currrent
Total power
Heater power
Pump powers
12 Place settin s
850 mm
598 mm
598 mm
570 mm / 820 mm
51 k
220-240 V ~ 50 Hz
13 A
1900-2200 W
2000 W
125/30 W
:
:
:
:
:
:
:
:
:
:
:
T p Spray
1
2
3
4
5
6
On / Off
7
8
Start / Stop Half Load
Wash
Rinse
End
Dry
Rinse Aid Salt
Key Lock
NORMAL
55 C
5
SUPER
60 C
6
1
RAPID
35 C
3
DELICATE
40 C
4
ECONOMY
50 C
7
INTENSIVE
70 C
AUTO
SENSING
PRE-WASH
No Heat
2
Time Delay
8
AUTO
Time Delay - h /
Remaining Time - min
Pro ramme Knob
Start / Stop button
Half Load button Door Handle
Pro ress indicator li hts
Salt level indicator li ht
Rinse aid level indicator li ht
On / off indicator li ht
&
Pro ramme startin point
Display and plus (+) / minus (-) buttons
On/Off button
All manuals and user guides at all-guides.com

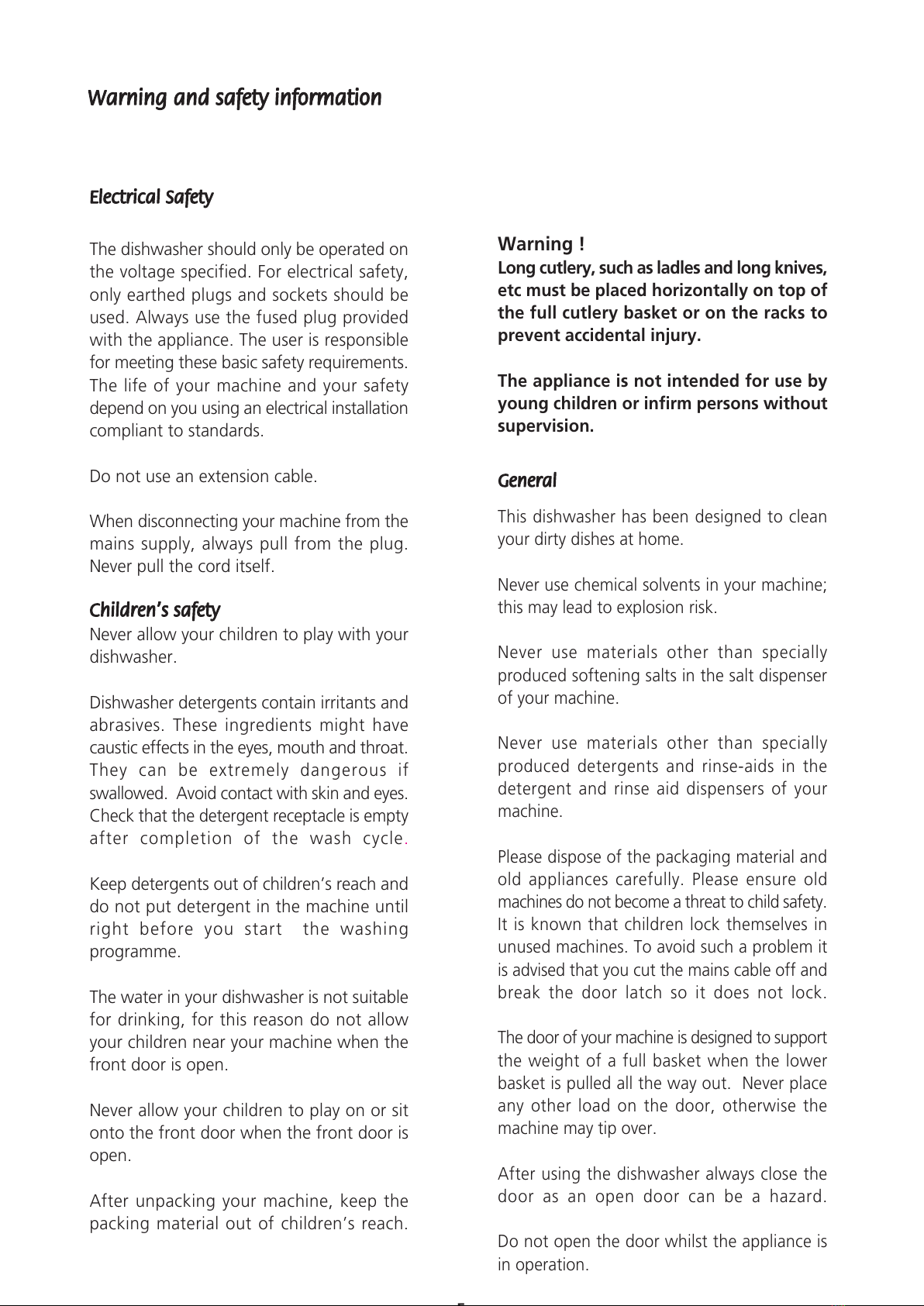

The dishwasher should only be operated on
the volta e specified. For electrical safety,
only earthed plu s and sockets should be
used. Always use the fused plu provided
with the appliance. The user is responsible
for meetin these basic safety requirements.
The life of your machine and your safety
depend on you usin an electrical installation
compliant to standards.
Do not use an extension cable.
When disconnectin your machine from the
mains supply, always pull from the plu .
Never pull the cord itself.
Never allow your children to play with your
dishwasher.
Dishwasher deter ents contain irritants and
abrasives. These in redients mi ht have
caustic effects in the eyes, mouth and throat.
They can be extremely dan erous if
swallowed. Avoid contact with skin and eyes.
Check that the deter ent receptacle is empty
after completion of the wash cycle.
Keep deter ents out of childrens reach and
do not put deter ent in the machine until
ri ht before you start the washin
pro ramme.
The water in your dishwasher is not suitable
for drinkin , for this reason do not allow
your children near your machine when the
front door is open.
Never allow your children to play on or sit
onto the front door when the front door is
open.
After unpackin your machine, keep the
packin material out of childrens reach.
Warning !
L ng cutlery, such as ladles and l ng knives,
etc must be placed h riz ntally n t p f
the full cutlery basket r n the racks t
prevent accidental injury.
The appliance is n t intended f r use by
y ung children r infirm pers ns with ut
supervisi n.
This dishwasher has been desi ned to clean
your dirty dishes at home.
Never use chemical solvents in your machine;
this may lead to explosion risk.
Never use materials other than specially
produced softenin salts in the salt dispenser
of your machine.
Never use materials other than specially
produced deter ents and rinse-aids in the
deter ent and rinse aid dispensers of your
machine.
Please dispose of the packa in material and
old appliances carefully. Please ensure old
machines do not become a threat to child safety.
It is known that children lock themselves in
unused machines. To avoid such a problem it
is advised that you cut the mains cable off and
break the door latch so it does not lock.
The door of your machine is desi ned to support
the wei ht of a full basket when the lower
basket is pulled all the way out. Never place
any other load on the door, otherwise the
machine may tip over.
After usin the dishwasher always close the
door as an open door can be a hazard.
Do not open the door whilst the appliance is
in operation.
5
All manuals and user guides at all-guides.com

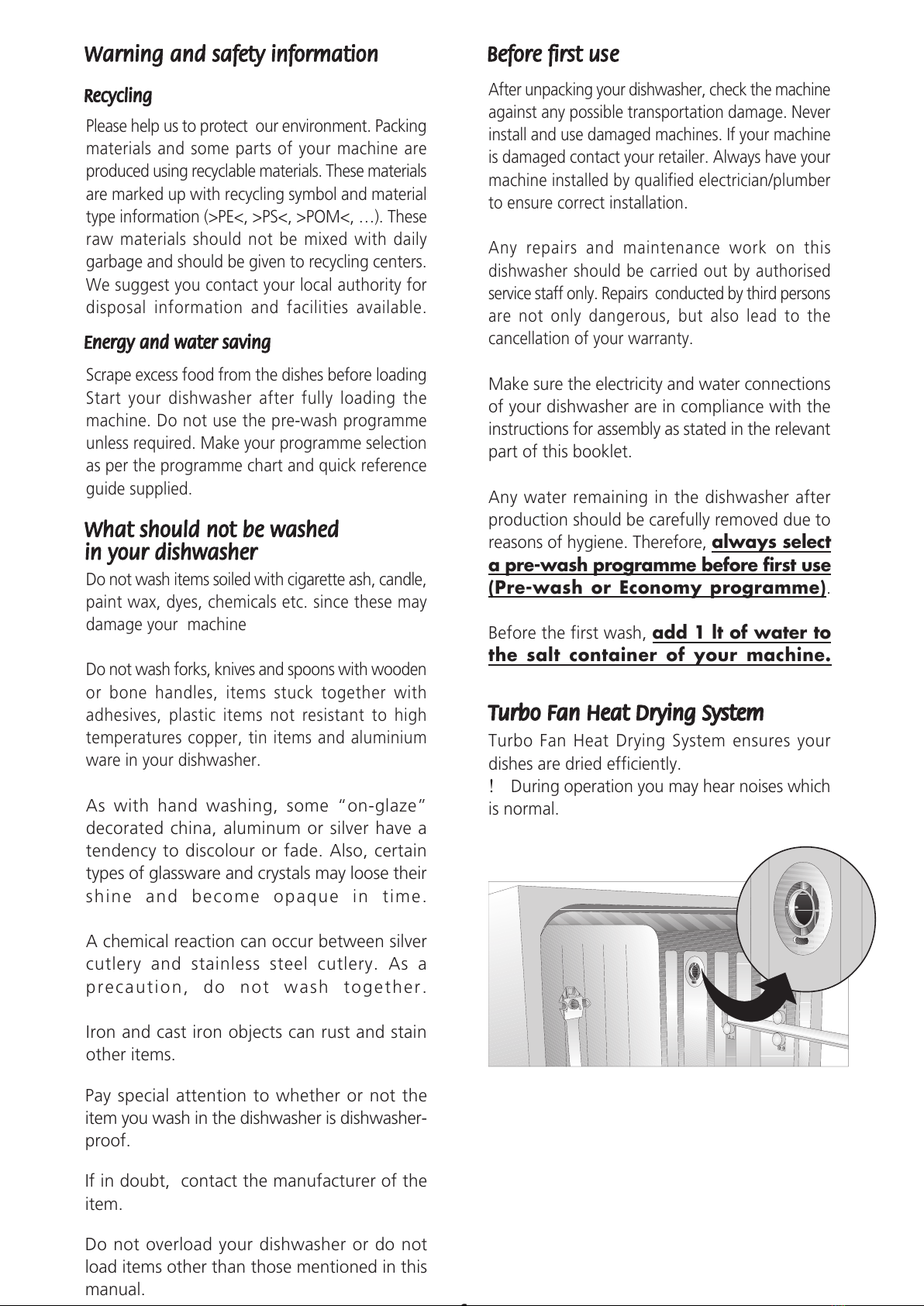

Please help us to protect our environment. Packin
materials and some parts of your machine are
produced usin recyclable materials. These materials
are marked up with recyclin symbol and material
type information (>PE<, >PS<, >POM<, ). These
raw materials should not be mixed with daily
arba e and should be iven to recyclin centers.
We su est you contact your local authority for
disposal information and facilities available.
Scrape excess food from the dishes before loadin
Start your dishwasher after fully loadin the
machine. Do not use the pre-wash pro ramme
unless required. Make your pro ramme selection
as per the pro ramme chart and quick reference
uide supplied.
Do not wash items soiled with ci arette ash, candle,
paint wax, dyes, chemicals etc. since these may
dama e your machine
Do not wash forks, knives and spoons with wooden
or bone handles, items stuck to ether with
adhesives, plastic items not resistant to hi h
temperatures copper, tin items and aluminium
ware in your dishwasher.
As with hand washin , some on- laze
decorated china, aluminum or silver have a
tendency to discolour or fade. Also, certain
types of lassware and crystals may loose their
shine and become opaque in time.
A chemical reaction can occur between silver
cutlery and stainless steel cutlery. As a
precaution, do not wash to ether.
Iron and cast iron objects can rust and stain
other items.
Pay special attention to whether or not the
item you wash in the dishwasher is dishwasher-
proof.
If in doubt, contact the manufacturer of the
item.
Do not overload your dishwasher or do not
load items other than those mentioned in this
manual.
6
After unpackin your dishwasher, check the machine
a ainst any possible transportation dama e. Never
install and use dama ed machines. If your machine
is dama ed contact your retailer. Always have your
machine installed by qualified electrician/plumber
to ensure correct installation.
Any repairs and maintenance work on this
dishwasher should be carried out by authorised
service staff only. Repairs conducted by third persons
are not only dan erous, but also lead to the
cancellation of your warranty.
Make sure the electricity and water connections
of your dishwasher are in compliance with the
instructions for assembly as stated in the relevant
part of this booklet.
Any water remainin in the dishwasher after
production should be carefully removed due to
reasons of hy iene. Therefore, always select
a pre-wash programme before first use
(Pre-wash or Economy programme).
Before the first wash, add 1 lt of water to
the salt container of your machine.
Turbo Fan Heat Dryin System ensures your
dishes are dried efficiently.
! Durin operation you may hear noises which
is normal.
All manuals and user guides at all-guides.com

7

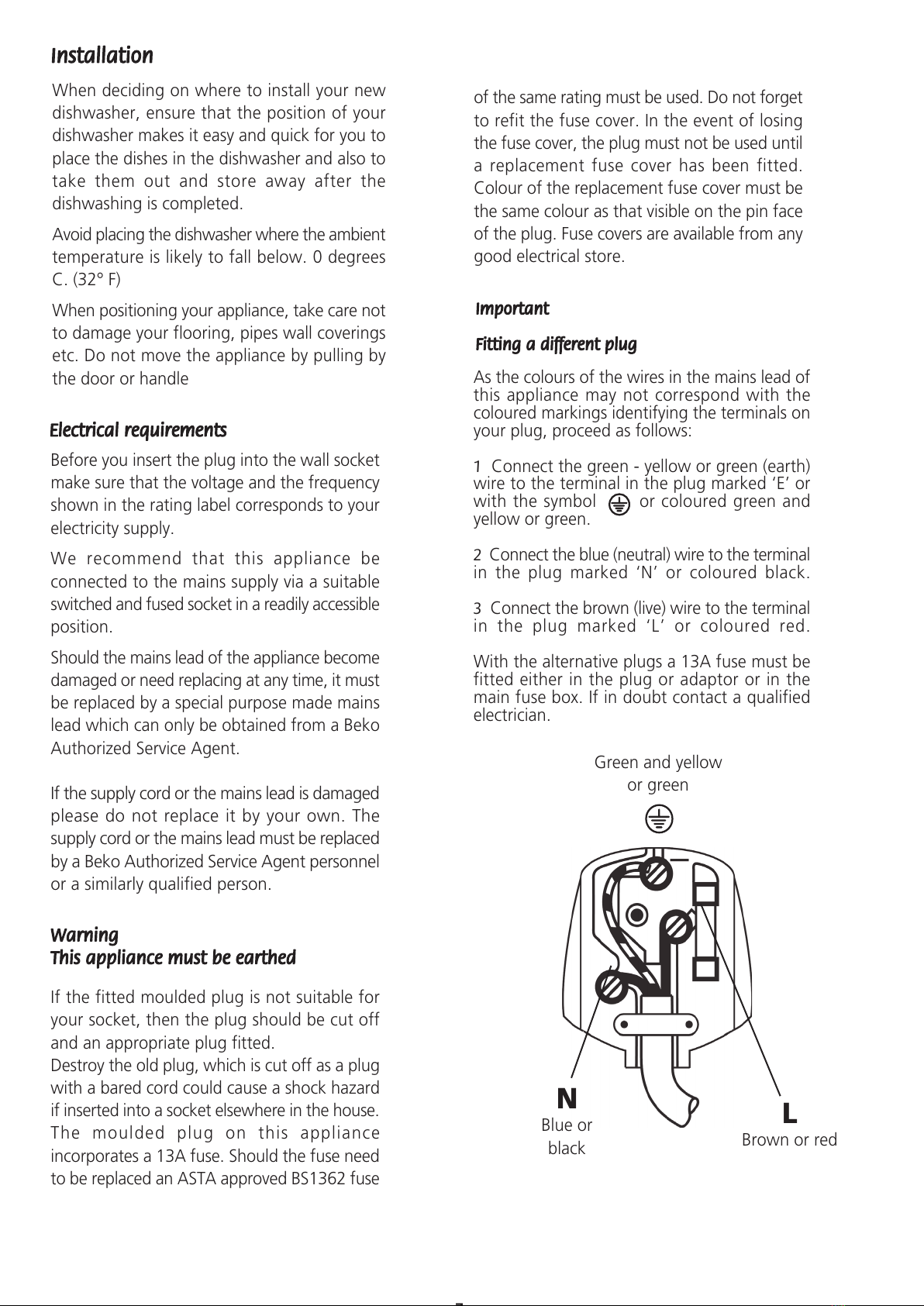

When decidin on where to install your new
dishwasher, ensure that the position of your
dishwasher makes it easy and quick for you to
place the dishes in the dishwasher and also to
take them out and store away after the
dishwashin is completed.
Avoid placin the dishwasher where the ambient
temperature is likely to fall below. 0 de rees
C. (32° F)
When positionin your appliance, take care not
to dama e your floorin , pipes wall coverin s
etc. Do not move the appliance by pullin by
the door or handle
Before you insert the plu into the wall socket
make sure that the volta e and the frequency
shown in the ratin label corresponds to your
electricity supply.
We recommend that this appliance be
connected to the mains supply via a suitable
switched and fused socket in a readily accessible
position.
Should the mains lead of the appliance become
dama ed or need replacin at any time, it must
be replaced by a special purpose made mains
lead which can only be obtained from a Beko
Authorized Service A ent.
If the supply cord or the mains lead is dama ed
please do not replace it by your own. The
supply cord or the mains lead must be replaced
by a Beko Authorized Service A ent personnel
or a similarly qualified person.
If the fitted moulded plu is not suitable for
your socket, then the plu should be cut off
and an appropriate plu fitted.
Destroy the old plu , which is cut off as a plu
with a bared cord could cause a shock hazard
if inserted into a socket elsewhere in the house.
The moulded plu on this appliance
incorporates a 13A fuse. Should the fuse need
to be replaced an ASTA approved BS1362 fuse
of the same ratin must be used. Do not for et
to refit the fuse cover. In the event of losin
the fuse cover, the plu must not be used until
a replacement fuse cover has been fitted.
Colour of the replacement fuse cover must be
the same colour as that visible on the pin face
of the plu . Fuse covers are available from any
ood electrical store.
As the colours of the wires in the mains lead of
this appliance may not correspond with the
coloured markin s identifyin the terminals on
your plu , proceed as follows:
1 Connect the reen - yellow or reen (earth)
wire to the terminal in the plu marked E or
with the symbol or coloured reen and
yellow or reen.
2 Connect the blue (neutral) wire to the terminal
in the plu marked N or coloured black.
3 Connect the brown (live) wire to the terminal
in the plu marked L or coloured red.
With the alternative plu s a 13A fuse must be
fitted either in the plu or adaptor or in the
main fuse box. If in doubt contact a qualified
electrician.
L
Brown or red
N
Blue or
black
Green and yellow
or reen
All manuals and user guides at all-guides.com

Make sure your plumbin is suitable to
install your new dishwasher. If in doubt
contact a qualified plumber.
The appliance must be connected to the
water mains using the new hose set
supplied with your new dishwasher. Old
hose sets must not be re-used.
The water pressure comin from the water
mains supply must be a minimum of 0.3 and a
maximum of 10 bars.
Fit the draina e hose of your machine
to the draina e pipe without bendin .
Secure your hose firmly to the waste
pipe to avoid it comin off durin the
washin process.
The waste pipe must only be connected
into the foul drains and not surface water
draina e system.
The hose should be placed between
50 cm and 110 cm from the floor level
and must not be extended otherwise the
machine may not empty the waste water.
Connect the strai ht end to your water
mains supply Ensure plastic filter and
black rubber seal is in place.
Please turn on the tap and check for
leaka es after connectin the hose.
Please ensure the tap is turned off when
the machine is not used;
If you only have one cold water feed (For
example for your washin machine) dont
worry. a Y adaptor will provide you with
the additional cold water feed you need
for your dishwasher. Y adaptor is available
from most DIY stores.
1
8
max 110 cm
01020 30 40
50
60 70 80 90 100 110
12cm
min 4cm
max 110 cm
min 50 cm
18
21
1
All manuals and user guides at all-guides.com
all-guides.com

min600
mm
820mm
100mm
98mm
44mm
550mm
570mm
min570 mm
598mm
850mm
min 850mm
Remove all packa in before positionin the
machine.
See the followin dia ram. Ensure there is a
clearance each side of the machine to allow sli ht
side ways movement for servicin .
Work top of your dishwasher is removable if
required. Hei ht without the work top is 820 mm.
By removin the machines worktop, you can
install it under a close fittin sink unit or a pre-
existin top, if the dimensions of the recess
correspond to those shown in the picture.
Position the machine next to a water tap and a
drain.
When insertin the machine, ensure that the
water inlet and drain hoses are not kinked or
squashed.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Good levellin is essential for correct closure and
sealin of the door,
Make sure your dishwasher is perfectly level usin
the adjustable feet.
When the appliance is correctly levelled, the door
will not catch on the inner liner on either side of
the cabinet.
If the door does not close correctly, loosen or
ti hten the adjustable feet, until the machine is
perfectly level.
15mm
9
All manuals and user guides at all-guides.com

10
The dishwasher requires lime free water. Hard water leaves watermarks on your dishes. Your dishwasher
has a special water softenin system to remove the hardness of the tap water. Settin this system
correctly will increase the washin effectiveness.
To find out the water hardness level of water in your area, contact your local Water Board or Determine
water hardness level by the help of test strip provided.
Test Strip
Let the water
flow from your
tap for 1
minute.
Remove the
test strip from
its packin .
Fill a lass with
tap water and
dip the test strip
into water for 1
second.
Take the test strip
out of the water
and shake it.
Hold for
1 minute. Set the water hardness level of your dishwasher
accordin to the result shown by the test strip.
b
a
e
1 minute
1 second
cd f
No Lime
Very low lime content
Low lime content
Medium lime content
Lime content
High lime content
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
If you move to a different location, the level of water hardness will possibly be changed. It is essential to
reset the water hardness in order to obtain optimum washing efficiency.
If the hardness of the water you use is more than 80°d ( rench Hardness) or if you are using pit water, we
recommend that you use filters and purifiers.
When your machine is switched off, turn the Pro ramme Knob to position 1.
While keepin the Start/Stop button pressed, switch the machine on by pressin the On/Off button, and release the On/Off
switch.
Press and hold Start/Stop button for 10 seconds.
Last settin will be displayed on the panel of your dishwasher for 5 seconds.
Water hardness level 1 will be shown on the panel, since Pro ram Selection Button is set at that position.
You can set the level of hardness by chan in the position of the Pro ramme Knob accordin to the table iven above.
After the hardness settin is selected, save the selected value by pressin the Start/Stop button once more.
Switch the machine off by pressin the On/Off button.
* If your tap water is below 9F (French hardness), you do not need to use special dishwasher salt in your machine. In this case,
salt indicator li ht will be on continuously.
Water Hardness Level
Level 1
Level
Level 3
Level 4
Level 5
0-5
6-11
12-17
18-22
0-9
10-20
21-30
31-40
0-6
7-14
15-21
22-28
23-34 41-6029-42
Hardness
Level
Clarke
degree
s°dE
German
degrees
°dH
rench
degrees
°d Hardness Level Displayed
Position of the
Programme Knob
1
2
3
4
5
*
Level 6
35-45 61-8043-56 5
Display will show
Display will show
Display will show
Display will show
Display will show
Display will show
! or level 5 and level 6 there is no difference between hardness level settings.
All manuals and user guides at all-guides.com

11
S
A
L
Z
T
U
Z
S
A
L
T
S
E
L
unnel
Only use special pelletized dishwasher salt in
your machine to soften the hard water. Never
use other types of salts includin table salt,
animal feedin salt, sea salt, culinary salt. These
types of salt do not dissolve in water easily
and will dama e your appliance beyond repair.
When you run the dishwasher, the Water
softener will be full of water. Therefore,
adding softening salt should always be
done immediately before you start the
dishwasher.
Caution : Only fill with salt just before startin
one of the complete washin pro rammes to
prevent any rains of salt causin corrosion.
You can put approximately 2 k softenin salt
in the Water softener.
To fill the container with softenin salt, remove
the lower rack first and unscrew the cap of
the water softener turnin anti clockwise .
Usin the funnel provided will make fillin
easier.
After you fill the container, screw cap ti htly
back into place turnin clockwise until you
hear a click sound.
All manuals and user guides at all-guides.com

Any brand of powder, gel and tablet detergents
that have been designed for household
dishwasher, may be used.
Keep detergents in a cool and dry place and out
of the reach of children.
Detergent must be added to the container before
each use.
Detergent overdose may cause scratches on
your dishes and there may be traces of detergent
left in your machine.
Three types of detergent are available
- Phosphate and containing chlorine.
- Phosphate containing no chlorine
- Neither containing phosphate nor chlorine
New compact powders are generally phosphate-
free. As phosphates have water softening
properties, we suggest you add salt to the salt
container even if the hardness of your water is
as low as a clarke degrees.
In hard water areas if a phosphate free detergent
is used, white marks on the dishes and glasses
may be observed. It may be prevented by
increasing the amount of detergent.
Detergents without chlorine have less bleaching
effect. Coloured stains may not be completely
removed. This may be prevented by increasing
the amount of detergent, using a programme
with a higher wash temperature or using a
detergent with chlorine.
12
Detergents that are marketed as "Three-in-One"
or similar, generally, do not produce the best
possible results. They may be effective under
certain conditions. You may be able to find out
about these conditions by contacting the
manufacturer of these detergents. These
detergents contain pre-determined amounts of
detergent, softening salt and/or rinse aid and
therefore can not be adjusted to best suit the
requirements of the dishes being washed and
the water supply available in your home.
If you experience problems after using such detergents,
contact the manufacturer of detergent for assistance.
The product guarantee does not cover damages to
plates,glass ware, cutlery, crockery and also damage to
the product itself as a result of using these Three-in-
one, Two-in-one detergents.
Your dishwasher is equipped with adjustable rinse aid
dosage, adjustable water softening salt dosage and you
can put the correct amount of detergent required in to
the detergent dispenser. By this way, best possible results
can be achieved.
If the dishwasher is considerably full and the dishes
are relatively dirty, fill the main container (A) up to
25cm³ level. If the dishwasher is not quite full and
the dishes are only slightly soiled, fill the main
container (A) only up to 15cm³ level.
If your dishes are
kept unwashed for
a long time and the
food particles are
stuck on the dishes
also fill the small
container (B) up to
5cm³. Depending
on the degree of
soiling and the
water hardness in
your area it may be
necessary to add
more detergent.
Powder and gel detergents are poured into the
dispenser.
If you are using tablet detergent read the
manufacturers recommendations on the packaging
in order to determine where the tablets should be
placed inside the dishwasher (detergent dispenser,
cutlery basket, etc.)
After you put in the detergent, shut the container
lid (D) and ensure you hear the clicking sound.
During the wash programme the detergent will
dispense automatically and the lid (D) will remain
open when the programme finishes.
Do not use detergent when using the pre-wash
programme.
All manuals and user guides at all-guides.com

Use only rinse aid intended for household
dishwashers.
The rinse aid is specially formulated to be
used in the dishwashers for the prevention
of watermarks and scale on dishes and to
increase the efficiency of the washing and
drying processes. Therefore, make sure that
there is adequate amount of rinse aid in the
rinse aid dispenser of your machine.
You can adjust the amount of rinse aid used
during the wash programme by turning the
rinse aid dispenser regulator (C).
The dispenser regulator (C) may be set
between levels 1 and ( being the
maximum amount of rinse aid usage). Your
machine is pre-set at the factory to level 4.
According to the finish and drying results
obtained, adjust the dose of rinse aid by
means of the six position selector. (Position
1: minimum dose, Position : maximum
dose.) Gradually increase the dose if there
are drops of water or lime spots on the
dishes after washing. Reduce it if there are
sticky whitish streaks on the dishes.
13
Open the rinse aid dispenser lid by pressing
the button as shown in the diagram.
Fill up with rinse aid until the container is
full to level of max mark .
Put the lid (E) on and ensure you hear the
clicking sound.
Remember to CLOSE the lid after every
refill.
Make sure you clean any rinse aid that you
might have spilled.
C
Dark = sufficient rinse aid Light = add rinse aid
E
All manuals and user guides at all-guides.com
all-guides.com

Loading the dishwasher correctly will increase
the washing, drying and energy performance
of your machine. Examine the information given
in this section and the information stated in the
Programme chart and quick reference card given
with the manual.
Remove any large scraps of food from the
dishes before placing in the dishwasher to avoid
clogging the filters.
There are three separate baskets, in which you
can put your dishes.
Place large or heavily soiled items in the lower
basket, and small, light or delicate articles in
the upper basket. Put forks, small and medium
size knives and spoons in the cutlery basket.
Place tall, narrow items in the middle of the
racks.
Long-stemmed glasses should lean against the
basket, the racks, or the supports not against
the dishes.
The shelves on the rack are made height
adjustable to accommodate tall items.
When loading your dishwasher please ensure
tall glasses (and/or wine glasses) rest against
the sides of the upper basket. Do not allow tall
glasses to rest against each other since they
may be damaged during washing if not properly
supported.
Always arrange saucepans, cups and glasses
etc. up side-down.
You can fold the racks in the upper basket when
you need more space for larger items .
14
2
3
1
Folding of racks
Height adjustment of rack
A
There are four separate "folding plate support
rods" in the lower basket of your dishwasher
designed to allow you more space to
accommodate saucepans and large bowls in
the lower basket. You can either fold each
section (1,2,3,4) individually or, all at once, to
create a large empty space. Simply press the
handgrips (A) and fold them down"
All manuals and user guides at all-guides.com

Warning !
Long cutlery, such as ladles and long knives, etc must e placed horizontally on top
of the full cutlery asket or on the racks to prevent accidental injury.
Handle of the cutlery asket is not remova le
Place larger items such as saucepans in the lower basket.
You can remove the cutlery basket to make room for other items .Place spoons and forks in
the cutlery basket with handles down and knives with handles up to prevent accidental injury.
15
Three-way split cutlery basket
Depending on the amount of load and load type, three-way split cutlery basket can be split into three parts. Part B
and/or part C can be placed in the upper basket.
To dismantle the three-way split cutlery basket follow the below instructions and see the
diagrams supplied.
Rotate handgrip which is at the bottom of handle.
Remove top and bottom hangers by sliding each part in opposite direction.
If you want to reassemble the cutlery basket, the reverse of the above operations should be
carried out.
Part A can not be placed in the upper basket.
Long cutlery, such as ladles and carving knives, should not be placed in the upper basket parts B or C. They can be
placed on the side racks on the upper basket horizontally.
In order to obtain the best cleaning and drying performance in cutlery basket, use the separators of parts A, B and C.
To remove the separators follow the below instructions
For Part A ;
Press to release catches on sides and the separators can be pulled off.
For Parts B and C;
Press to release catches on sides and the separators can be pulled off.
A
A
BC
A
BC
The factory fitted position of the upper basket is the higher position. That is lower wheels are engaged.
According to the size of the dishes you can change the position of the upper basket.
To do this.
Release the latches on both the right and left tracks by turning them sideways. Pull out the basket
completely.Insert the other set of wheels and place the basket back on the track then shut the latches.
A
A
All manuals and user guides at all-guides.com

16
Standard Loading and Testing Institute Information
Lower and upper baskets: Standard 12 place
settings
5+25 gr. as compliant
to EN 50242-DIN 44990.I EC43
international norms
Economy 50°C
as compliant to EN 50242 international norms
7
31
6
322
312
138
223
213
312213
322223
1
3137
4
4
4
4
5
5
5
5
5
5
1
1
4
4
4
4
5
55
5
5
5
4
4
4
4
1
8765
4321
All manuals and user guides at all-guides.com

17
To change the programme selection while the
machine is operating:
·Press start/stop button. The indicator light will
go off.
·Select the new programme. Press start/stop
button. The indicator light will be on and new
programme will start.
!The new programme will NOT start right from
the beginning. It will start from the stage last
carried out by the previous programme selection.
Dishes should be allowed to cool for about
15 - 30 minutes after the end of the programme.
You will improve drying results by leaving the
dishwasher door ajar for at least 15-30 minutes
as soon as the programme finishes.
! Care must e taken when opening the
door, as steam will escape.
First unload the lower, then the upper rack. This
prevents drops of water from falling onto the full
lower basket when the dishes in the upper basket
are being removed.
·Turn the water tap on. Open the door of the
machine.
·Check that the upper and lower arms can rotate
freely.
·Pour (Put in) the detergent.
· Close the door of the machine.
·Push in the on/off button and check that the
on/off indicator light comes on.
·Check the salt and rinse aid level indicator
lights before you start the machine. If necessary
add salt and rinse aid.
·Select the required programme by referring to
the programme chart. Choose the desired
programme by turning the selector knob.
Then select from available options, if required.
·The display shows the Total Duration of the
selected programme in minutes.
·Press start / stop button and check that the
function indicator light comes on.
!Do not open the dishwasher door whilst the
appliance is in operation. However, in case the
door is opened while the machine is working,
then a safety mechanism ensures the machine
immediately stops. Water may be very hot, so be
careful.
! Care must be taken if opening the door, as
steam and water will escape.
·Press the on/off button after the programme
is completed. The indicator light will go off.
·Turn off the water tap, unload the baskets.
!Just after the dishwasher has started the
selected programme, if you find that you want to
put in another item to be washed, then switch
the dishwasher off by pressing the On/Off button,
the indicator light will go off, wait for a few
moments and then open the door carefully. Then
after putting in the item, switch it back on again.
The indicator light will come on and the dishwasher
will resume operation.
To cancel a programme while the machine is
operating:
·Press and hold start/stop button for 5 seconds.
The indicator light will start flashing. The machine
will drain the water inside the machine for 45
seconds.
·The programme is cancelled when start/stop
indicator light goes off. Then, you can choose and
start a new programme.
!Depending on the stage of the programme
you have cancelled, there may be detergent residue
or rinse aid inside the machine and on the load.
Make sure the items in the dishwasher are not
used before washing properly.
All manuals and user guides at all-guides.com

Cleaning your machine at regular intervals ensures
longer product life and reduces the risk of recurring
problems. Clean spray arms and in particular filters
at least once a week
!Always unplug the appliance and turn off the
water supply before cleaning.
To clean the outside of the appliance and the
door seal, use a neutral detergent and a damp
cloth. To clean the control panel, use only slightly
damp cloth.
!Do not use abrasive detergents.
If the appliance is not going to be used for a long
period of time, switch off, turn off the water clean
and leave the door ajar.
18
Stainless steel surfaces of your appliance require
special cleaning methods. In order to eliminate
marks on doors and to keep your appliance doors
clean, we recommend you the following to clean
and wipe the stainless steel surfaces of doors:
1. You can purchase special cleaning materials
suitable for stainless steel surfaces of kitchen
appliances from your local store. Follow the
instructions supplied by the manufacturer of such
cleaning materials.
2. You can purchase a special micro-fibre cleaning
cloth pack called "E-cloth" from your local electrical
or hardware store, which is suitable to clean and
wipe stainless steel surfaces of kitchen appliances
without the need to use any chemicals or other
cleaning materials. You just need warm water.
You need to follow the instructions supplied inside
the packaging of E-cloth.
3. You can purchase Special Cleaning Liquid
Material, which is tested and approved by Beko
to clean and polish stainless steel surfaces of doors
of your Beko appliance. If you would like to
purchase a small bottle of this Special Cleaning
Liquid Material, which is available in 50 ml bottle,
then please:
- Call Beko Spares on 0870 774 1059 OR
- e-mail Beko Spares [email protected]
Please quote Part Number 192 0000 83 when
ordering the Special Cleaning Liquid Material.
Cleaning and Polishing instructions are supplied
inside the packaging.
Never attempt to clean, wipe or treat the stainless
steel and other surfaces of your appliance with
unsuitable material, do not clean or wipe handles
and plastic surfaces using stainless steel cleaning
materials, otherwise, your guarantee will be void.
All manuals and user guides at all-guides.com
all-guides.com

For the efficient operation of your dishwasher,
check the filters and the spray arms regularly.
There are three different filters in your machine
Main filter
Coarse filter
Micro filter
To remove the coarse and micro filter assembly
to clean, turn it anti clockwise as far as it goes
and lift it up. Then press the two tongues in
wards and pull out the coarse filter.
Pull the main filter off.
Clean all three filters under running tap water
with a brush.
Reinsert the main filter in its place.
Place the coarse filter into the micro filter. Ensure
the marks align properly.
Turn the coarse filter clockwise until you hear
a clicking sound.
It is important that you fit the filters correctly.
Caution : the dishwasher must not e used
without filters.
Incorrect repositioning of the filters will
produce poor washing results.
Cleaning of the filters is vital to ensure
correct operation of the machine.
19
Turn the nut anti clockwise and remove both the
nut and the spray arm.
Flush away food particles under running water.
Put the spray arm back on and screw on the nut
turning clockwise until a clicking sound is heard.
Remove the spray arm from its slot by releasing
the catches and pulling it upwards.
Flush away the food particles under running
water.
Reinsert the spray arm back into its original
position.
Micro filter
Coarse filter
Main filter
Lower spray arm
All manuals and user guides at all-guides.com

20
Spotting / filming /
poor cleaning
results
Small particles
(food or detergent)
left on items
Increase the amount of detergent,
especially when washing full loads, or in
hard water.
Increase water softener dosage. Use
additional detergent, increase rinse agent
dosage.
Check the nozzle holes in the spray arms.
They may be blocked with a soil particle.
Check and clean them periodically.
Check mains water pressure
Remove any accumulated or deposited
foods. Check and clean them periodically.
Rinse items thoroughly before putting them
in the dishwasher to remove dishwashing
detergent.
Insufficient amount of detergent
Hard water.
Spray arms need cleaning
Improper loading.
Insufficient water fill.
Filter system needs cleaning.
Oversudsing - Prewashing with a liquid
dishwashing detergent.
Follow instructions for use for proper
loading procedures. Place dishes so water
spray reaches all soiled surfaces. Do not
overcrowd the baskets since this will block
the water spray.
Water not reaching surfaces, dishwasher
overcrowded.
Insufficient water fill.
Powder detergent stored too long or
under adverse conditions.
Rinse aid supply depleted.
Check to be sure water action is not
blocked by dishes. Check filter system for
accumulated or deposited food or
detergent. Load dishwasher correctly.
Keep filter system clean.
Check mains water pressure
Use powder detergent within one to two
months after purchase. Open one box at
a time. Always close pouring spout after
each use. Store in a cool, dry place.
Add rinse aid to the dispenser.
Before calling service check the following & Trouble shooting guide supplied on the
following page.
TROUBLE SHOOTING GUIDE
POSSIBLE CAUSES SOLUTIONS
SYMPTOMS
Is the machine plugged in?
Does the fuse need replacing ?
Is the water mains supply fully
turned on?
Is the machine switched on?
?
+
Is the dishwasher door closed firmly?
Are the filters clogged?
Is the detergent dosage and/or
rinse aid sufficient? Is there
enough salt in the water softener?
All manuals and user guides at all-guides.com

21
TROUBLE SHOOTING GUIDE
POSSIBLE CAUSES SOLUTIONS
SYMPTOMS
Pitting of stainless
steel items
Dishes not dry
Scratches on
glassware
Prolonged contact with salty or highly
acidic foods or with undissolved or highly
concentrated detergent.
Remove spots with silver polish. Rewash.
Wash soon after use, or pre-wash items
if they will not be washed right away. Do
not overload cutlery basket. Avoid spilling
or pouring detergent directly on flatware.
Make sure dispenser cup is properly closed.
Load so that all items are properly tilted
for good drainage. Avoid nesting of dishes
and/or silverware.
Add liquid rinse aid .
Improper loading.
Rinse aid supply depleted.
A water or chemical reaction with some
glassware. Usually caused by some
combination of soft or softened water
and alkaline washing solutions reacting
with the glassware. Can be accelerated
by poor rinsing, overloading and excessive
temperature.
The condition may not always be
preventable. To minimize the possibility
of etching, use minimum amount of
detergent.
Use of the appropriate programme.
Use of a rinse aid may also help.
Detergent cakes in
detergent
dispenser.
Chipping and
breakage of
dishes/glasses
Odour in
dishwasher
Make sure dispenser is dry before adding
powder detergent. Start dishwasher
immediately.
Start dishwasher soon after adding gel
detergent. Do not allow detergent to dry
out in dispenser.
Do not overfill. Cover should close tightly.
Check cover for fit.
Do not place large items in front of
dispenser.
Use detergent within one to two months
of purchase. To assure freshness, buy
detergent as needed and no more than
one or two at a time. Store in a cool, dry
place.
If using powder detergent, there may be
dampness in the dispenser.
If using gel detergent, the detergent may
be left in dispenser too long before using.
Faulty cover.
Improper loading.
Old detergent.
Improper loading.
Dishes washed only every two or three
days.
A dirty filter system may contribute to a
bad odour.
Load with care following the instructions
for use. Place glassware so it does not
touch the other dishes. Remove from
dishwasher carefully.
Use the pre-wash cycle at least once a
day until a load accumulates, or hand
rinse dishes before loading dishwasher.
Clean filter system.
Printed in Turkey
Part no: 17 2214 01 00
Revision : 0
All manuals and user guides at all-guides.com

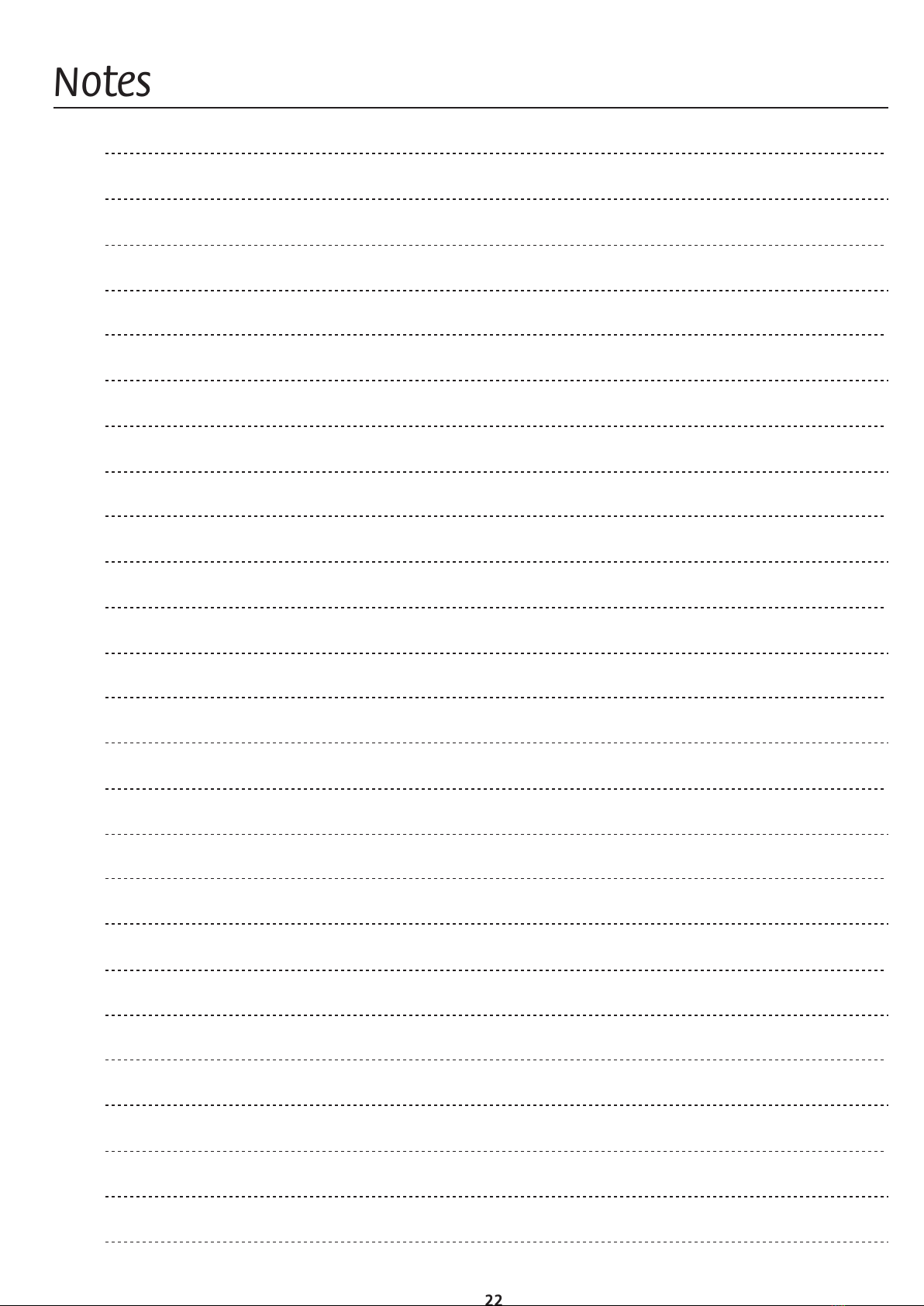

Notes
22
All manuals and user guides at all-guides.com
