Beko UFC524W User manual

Instructions for Use 51
Instructions for Use
Upright Freezer
Thank you for your trust and for buying this appliance. We hope it will
successfully serve the purpose for many years.
The upright freezer for domestic use is intended for freezing fresh
food and for long-term storing of frozen food (up to one year,
depending on the kind of food).
Before Putting Into Use 52-53
Important 54-55
Placing and Installation 56
Description of the appliance 57
Operation Control 58-59
Use 60-61
Maintenance And Cleaning 62-63
Trouble Shooting Guide 64-65

Instructions for Use52
Before Putting Into Use
• Before connecting the appliance to the mains supply, leave it stand
for about 2 hours which will reduce the possibility of malfunctions in
the cooling system that might have occurred due to transport
handling.
• Clean the appliance thoroughly, especially the interior (see Cleaning
and Maintenance).
Instructions for Use
These instructions for use were prepared for the user. They describe
the appliance and its correct and safe use. They were prepared for
various types/models of appliances therefore you might find in it
description of some functions and accesories that do not apply to your
appliance.
Mounting Instructions
Integrated appliances are equipped with instructions for mounting the
appliance into the kitchen unit.
The appliance should be professionally mounted by qualified technician
and instructions are for his use only.
We Care for the Environment
• Our products use environmentally friendly packaging, which can be
either recycled or disposed of in an environmentally friendly manner.
To this end, individual packaging materials are clearly marked.
• These instructions are printed either on recycled paper or chlorine
free bleached paper.
• When your appliance finally wears out, please try not to burden the
environment with it; call your nearest authorised service agent. (See
Disposing of the Worn Out Appliance)
Tips for Energy Saving
• This is especially important if you have an upright model.
• Check periodically if the appliance is provided with sufficient cooling
(undisturbed circulation of air through the bottom rail openings).
• Turn the thermostat knob from higher to lower setting as soon as
possible (depends on how loaded the appliance is, ambient
temperature...)

Instructions for Use 53
• Never use continuous operation unless
unnecessarily required; switch the
operation mode selection switch to the
setting for automatic operation as soon as
possible.
• Before freezing packages of fresh foods,
make sure they are cooled to ambient
temperature. (except for the soup)
• Ice and frost layer increase energy
consumption, so do clean the appliance
as soon as the layer is 3-5 mm thick.
• If the gasket is damaged or if it turns out that the sealing is poor, the
energy consumption is substantially higher. To restore efficiency,
replace the gasket.
• Condenser at the bottom of the appliance must always be clean and
dust free (see Section Cleaning of the Appliance).
• Always consider instructions stated in sections Positioning and
Energy Saving Tips, otherwise the energy consumption is
substantially higher.

Instructions for Use54
Important
• If you've bought this appliance to replace an old one equipped with a
lock that cannot be opened from inside (lock, bolt), make sure that
the lock is broken. This will make it impossible for the children to lock
themselves in
• the appliance and suffocate.
• Mind to connect the appliance correctly to the mains supply (see
Connection to the Mains Supply).
• Do not touch the cooled surfaces while the appliance operates,
especially not with wet hands, because the skin might stick to the
cold surfaces.
• Do not freeze bottled drinks, especially not fizzy ones such as mineral
water, sparkling wine, beer, cola etc., because liquid expands during
freezing and the glass bottle is very likely to blow up.
• Never try to eat frozen food (bread, fruit, vegetables), because you
may get frostbites.
• Carefully check the foods for color and smell and if you are in doubt
about their quality, throw them away because they may be spoiled
and therefore dangerous to eat.
• Disconnect the appliance from the mains before repairing (only a
qualified technician should repair it) and before cleaning.
• Use only enclosed tools or tools recommended by the manufacturer.
• For the sake of environment protection - be careful not to damage
the rear wall of the appliance (the condenser unit or the tubes - for
example when moving the appliance) or any part of the refrigerating
system inside the appliance. Do not use sharp object for defrosting
the appliance. Use only enclosed tools or tools recommended by the
manufacturer.
• The refrigerating system of the appliance is filled with refrigerant and
oil, so when the appliance is damaged, handle it with care and
dispose it of in compliance with environmental protecting
precautions. (See We Care for the Environment).
• Heating element incorporated in the appliance, all around the rim, is
controlled by the operation of the compressor and it prevents the
door gasket to freeze on to the freezer housing.
• In the supply cord is damaged, it must be replaced by the
manufacturer or his service agent or a qualified person in order to
avoid hazard.
• The rating plate is in the interior or on the rear wall of the appliance.

Instructions for Use 55
Storing Time During Power Supply Interruption
Avoid opening the freezer in case of failure or power supply
interruption! In case the interruption is extended over longer period of
time (15 hours).
Disposing of the Worn Out Appliance
• When your appliance finally wears out, dispose it of. If the appliance
has a lock, break it, in order to prevent eventual accidents (danger of
children get locked inside the appliance).
• The refrigerating system of the appliance is filled with refrigerant and
insulating substances which should be separately treated and
processed. Call your nearest authorised service agent or specialised
servicing centre. If you don't find one, contact your local authorities or
your distributor. Be careful not to damage the tubes on the rear wall
of the appliance (danger of pollution).
• To avoid pollution of the environment make sure not to damage the
hose at the bottom of the appliance.

Instructions for Use56
Placing and Installation
Choosing the Right Place
Place the appliance in dry and well ventilated room. Allowed ambient
temperature depends on the model (class) of the appliance and is
stated on the rating plate of the appliance. Never place the appliance
near heat emitting devices (e.g. cooker, radiator, water heater and
similar devices) and do not expose it to direct sunlight.
The appliance should be positioned at least 3 cm away from the
electric or gas cooker and at least 30 cm away from the oil or coal
stove. If this is not possible, use an appropriate insulation.
Class Ambient temperature
SN (sub-normal) from + 10°C to + 32°C
N (normal) from + 16°C to + 32°C
Connection to Power Supply
Connect the appliance with the cable and plug to the power supply
socket outlet with a ground terminal (safety socket).
Required nominal voltage and frequency are indicated on the rating
plate.
The connection to the mains supply and earthing have to be made
according to current standards and regulations. The appliance resists
temporary voltage tolerance up to -15 to +10 %.
Adjusting the height of the appliance
The appliance is equipped with four adjustable legs, so that the height
may be adjusted from 82 to 90 cm. The height must be adjusted prior
building the appliance into the opening slot, and it should be set at such
height that the top panel of the appliance fits exactly below the kitchen
worktop (see Mounting Instructions).

Instructions for Use 57

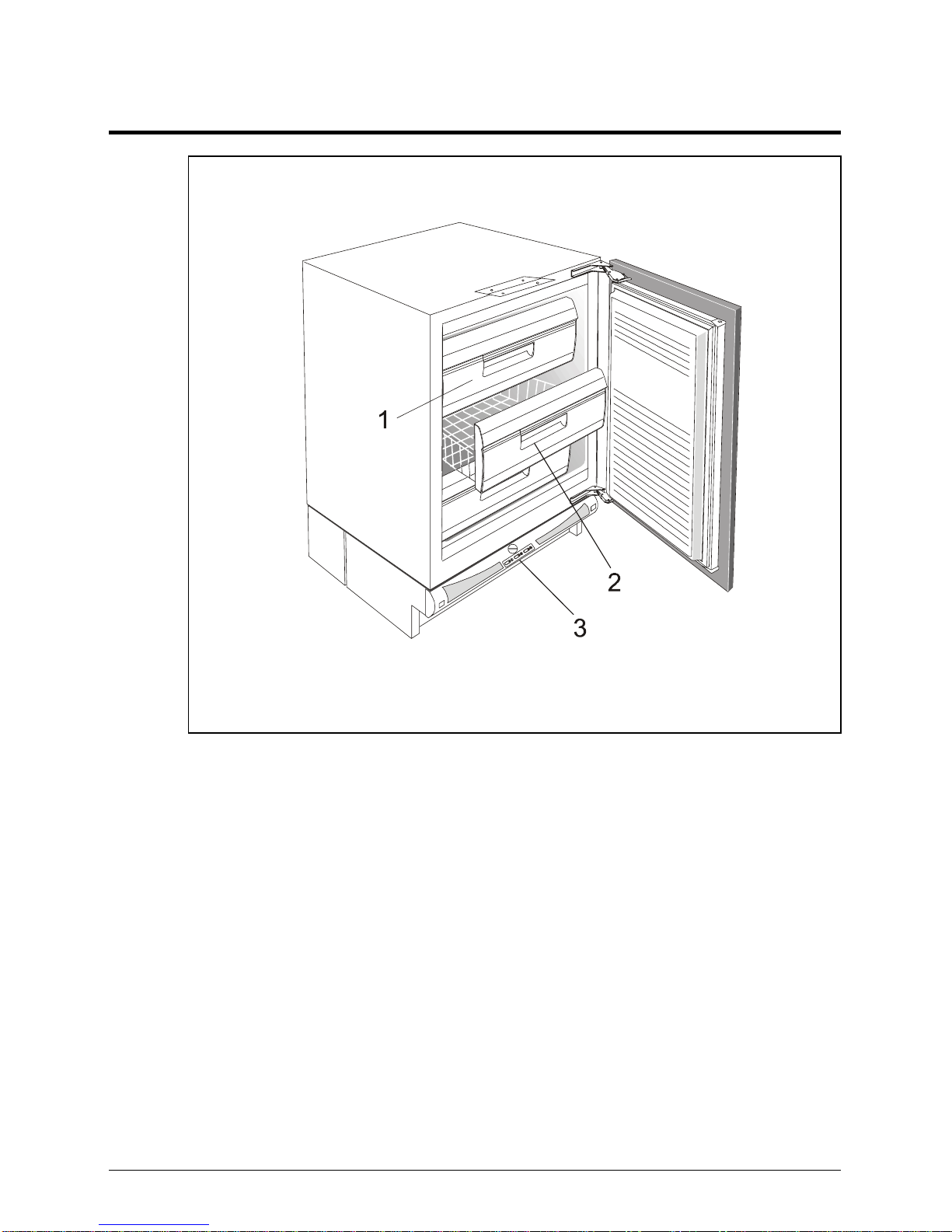

Description of the Appliance
Freezing Compartment (1)
is used for freezing fresh foods.
Storing Basket (2)
is used for storing packages of frozen foods.
Control Panel (3)
See Operation Controls

Instructions for Use58
Operation Control
The freezer is controlled with switches and thermostat button,
incorporated in the bottom section of the appliance.
Control panel
1ON/OFF switch (green signal lamp)
2Continued operation button (yellow signal lamp)
3 Alarm off button (red signal lamp)
ON/OFF Switch (1)
The appliance is switched on - the green light is on.
The appliance is switched off - the green light is off.
Continued operation button (2)
This switch is used to select one of the two operation modes:
continuous and automatic.
Continuous operation - the yellow light is on.
The cooling system operates continuously. This mode is selected when
you want to freeze large amounts of fresh foods and in case you want
to deep freeze already frozen foods.
Automatic operation - the yellow light is off.
The interior temperature is controlled by the thermostat which turns the
cooling system on and off.
The frequency of switching the cooling system on and off depends on:
− the thermostat knob position (thermostat setting),
− how often you open the door; and
− ambient temperature.

Instructions for Use 59
Alarm off button and the red signal lamp (3)
The sound of the alarm is switched off by pressing the Alarm Off
button. The alarm goes off because of high temperature inside the
freezer (red signal lamp is on), or because of the excessive dust
collected at the condenser (red signal lamp is off).
Consult the Section Troubleshooting Guide
Temperature Selection
When the freezer operates automatically, the
interior temperature is controlled by the
thermostat.
The most suitable thermostat position is in the
middle between max (7) and min (1).
We recommend setting the thermostat on
positions towards max (7) only in case you want
to accelerate cooling, as for example before
loading smaller amounts of fresh foods or when
the operation mode shall correspond to the ambient temperature.
Thermostat settings towards min (1) help you save energy provided
that the freezer is loaded with smaller amount of frozen foods.
Changes of the ambient temperature affects temperature in the interior
of the appliance. Choose correct setting of the thermostat knob.

Instructions for Use60
Use
Starting the empty freezer
Switch the freezer on. Sound alarm is on because of inappropriate
temperature. It may be switched off by pressing the alarm button .
Put the mode selection switch to the continuous operation position. All
three signal lamps are on. Place fresh food into the freezer several
hours after the red signal lamp goes off.
Freezing Fresh Foods
Proper use of the appliance, adequately packed food, correct
temperature and taking into account hygienic precautions will
substantially influence the quality of freezing the food or storing of the
frozen foodstuffs.
• Carefully select food to be frozen: it should be of adequate quality and
suitable for freezing.
• Choose correct packaging for each kind of food and pack it correctly.
− The packaging should be air tight and well sealed without leaking
since this could cause substantial vitamin loss and dehydration.
− Foils and bags should be soft enough to tightly wrap around the food.
• Mark packages with following data: kind and amount of foods and the
date of loading.
• It is most important that the food is frozen as quickly as possible. We
therefore recommend the size of the package not to be too large and to
be cooled before loading into the freezer.
• The amount of the fresh foods that can be loaded in the freezer within
24 hours is stated on the rating plate. If the loaded amount is too large,
the quality of freezing is reduced which affects the quality of frozen
foods.
Proper freezing procedure
Freeze the food in the freezing compartment (see Section Description
of the Appliance)
− 24 hours prior freezing of fresh food switch the continued operation
button (2) to the uninterrupted operation (yellow lamp is on). At the
end of this period load fresh food into the freezing compartment.
− After 24 hours move the frozen food to the storage compartment of
the freezer and repeat the freezing procedure with new load if
required. Fresh food should not touch the already frozen packages.
− Approximately 24 hours after the last loading of fresh food press the
continued operation button again (2) and switch to the automatic
operation (yellow signal lamp is off).

Instructions for Use 61
− In case of freezing minor quantities of fresh food (1-2 kg), it is not
necessary to switch the appliance to the continued operation mode (2).
Storage of frozen food
Store the already frozen food in the storage compartment of the
freezer. The bottom basin of the appliance is also intended for storage
purposes. Storage baskets may be removed at random and food may
be placed directly upon the cooling shelves.
Storing Commercially Frozen Foods
The storage time and recommended temperature for storing
commercially frozen foods is indicated on the packaging. For storing
and use consider manufacturer's instruction.
When shopping, be careful and choose only packages of foods which
are adequately packed and provided with complete data and stored in
freezers where the temperature is not higher than -18°C.
Do not buy packages of food wrapped with frost. This indicates that the
package was thawed before at least once. Take care that packages
don't start to thaw. Temperature rise shortens the storage time of
commercially frozen foods.
Approximate Storage Time of Frozen Foods
Food Storage time (in months)
123456789101112
Vegetable + + +
Fruit +++
Braed, Pastries +
Milk +
Redy-made meals +
Meat: Beef +++
Veal + + +
Pork + + +
Poultry + + +
Game + + +
Minced meat +
Smoked sausages +
Fish: lean +
fat +
Offal +
Defrosting of Frozen Food
Partially thawed or defrosted foods should be used as soon as
possible. Cold air preserves the food but it does not destroy
microorganisms which rapidly activate themselves after defrosting and
make foods perishable.
Partial defrosting reduces the nutritional value of foods, especially of
fruits, vegetables and ready-made meals.

Instructions for Use62
Maintenance and Cleaning
Freezer Defrosting
Frost and ice layer, depositing on the inner walls of the freezer should
be defrosted when 3-5 mm thick.
• 24 hours prior defrosting press the continued operation mode button
(2) (yellow lamp is on) to provide extra low temperature of food inside
the freezer. After this period take the food out and protect them from
melting.
• Disconnect the appliance from the mains supply.
• Avoid using defrosting sprays, as they may cause damage to the
plastic parts and may be hazardous to health.
• Water collected at the bottom basket of the appliance should be
mopped with a sponge or highly absorbing cloth.
Cleaning the Appliance
Before cleaning the appliance disconnect the cable from the
mains supply. Do not use abrasive cleaning agents.
• Clean the exterior of the appliances with water and liquid detergent.
• Varnished surfaces are cleaned with soft cloth and an alcohol based
cleaning agent (for example glass cleaners). You may also use
alcohol (ethanol or isoprophylic alcohol).
• The application of abrasive and specially aggressive cleaners, such
as the stainless steel cleaners, is not appropriate for the cleaning of
plastic and coated parts.
• Wash the interior with lukewarm water and some vinegar.
• The air openings in the bottom rail should be cleaned or
vacuumed periodically.
• Sound alarm signals the excessive dusting of the condenser. The
alarm may be switched of by the alarm off button (3).
Cleaning of the condenser
Dust from the condenser should
be vacuumed in the following
manner:
− push the finger through the
opening in the bottom rail and
release the fastener;
− pull the rail towards you and
remove it;
− remove the bottom board of the

Instructions for Use 63
kitchen cabinet;
− pull the condenser dish out;
− use the vacuum cleaner to clean the dust from the condenser;
− replace the condenser dish and the bottom rail in the opposite order.
− pull the condenser dish out;
− use the vacuum cleaner to clean the dust from the condenser;
− replace the condenser dish and the bottom rail in the opposite order.
After you have cleaned the appliance, reconnect it to the mains supply
and put the food packages back to their place.
Periodical cleaning of the condenser
In order to optimize the operation of the appliance and save
energy, it is recommended to clean periodically the dust from the
condenser at the back of the appliance.
Disconnect the appliance from the
mains prior the commencement of
cleaning!
• Empty the contents of the appliance.
• Remove the supporting panel from
the bottom of the kitchen cabinet.
• Remove the screws fixing the
appliance to the kitchen worktop.
• Pull the appliance out and expose
the condenser at the back of the
appliance.
• Unscrew the screws from the
condenser bonnet and remove the bonnet.
• Clean the dust and dirt from the condenser.
After cleaning return the appliance to its place, plug in the mains power
cord and fill with food.
Switch Off the Appliance When Not in Use
If you do not intend to use the appliance for a longer period of time,
disconnect the power supply, empty the appliance, defrost it and clean
it. Leave the door slightly open.

Instructions for Use64
Trouble Shooting Guide
During the service, you can come across some troubles that in most
cases result from improper handling of the appliance and can easy be
eliminated.
The Appliance Fails to Operate After Connecting to the
Mains Supply
• Check the voltage in the socket and see if the appliance is switched
on (green signal lamp is on).
Sound alarm, red signal lamp is on
If the temperature within the freezer is too high, it is signaled by the red
signal lamp and the sound alarm, which may be switched off by
pressing the alarm off button (3). When the lamp goes off the interior of
the freezer has again reached the appropriate temperature.
Another increase of temperature within the freezer is again signaled
both by the red lamp and the sound alarm.
The reasons for this may be the following:
• The door was frequently opened or it was left opened for too long.
• The door is not properly closed (the door may sag, the gasket may be
polluted or damaged).
• Power supply has been interrupted for a longer period of time.
• Perhaps you have overloaded the appliance with fresh foods.
The alarm sounds, red lamp is off
Excessive dust on the condenser or around the air circulation openings
in the bottom rail may set off the sound alarm. It may be switched off by
pressing the alarm off button (3).
Clean the condenser and the air circulation openings in the bottom rail
(consult the Section Cleaning of the Appliance).

Instructions for Use 65
Cooling system is operating continuously
• Continued operation mode is on (yellow lamp is on).
• Press the button (2) and switch the continued operation mode off
(yellow lamp goes off).
• Insufficient cooling of compressor and condenser. This is signaled by
the sound alarm.
• Check the air circulation through the bottom rail openings and if
necessary clean or vacuum the dust from the condenser. See
Section Cleaning and Maintenance.
The Door is Hard to Open
If you want to open the door that has just or recently been closed, you
may find it hard to open. The reason why this happens is, that when
you open the door, warm air gets into the appliance and when it is
cooling, the underpressure seals the door. After few minutes (5-10), the
door can easily be opened.
Noise
Cooling in refrigerating-freezing appliances is enabled by the cooling
system with compressor, which produces noise. How noisy the
appliance is depends on where it is placed, how it is used and
how old the appliance is.
• During the operation of the compressor the noise of liquid is heard
and when the compressor is not operating, the refrigerant flow is
heard. This is a normal condition and it has no influence whatsoever
on the lifetime of the appliance.
• After starting the appliance, the operation of the compressor and
the refrigerant flow may be louder, which does not mean that
something is wrong with the appliance and it has no influence on the
lifetime of the appliance. Gradually the noise is reduced.
:(5(6(59(7+(5,*+772$/7(57+(
63(&,),&$7,216:,7+12,1)/8(1&(217+(
23(5$7,212)7+($33/,$1&(
