Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your Refrigerator 3
2 Important Safety
Warnings 4
Intended use .....................................4
General safety ..................................4
For products with a ..........................7
water dispenser;................................7
Child safety........................................7
Compliance with WEEE Directive and
Disposing of the Waste Product: .......7
Package information..........................8
HC warning .......................................8
Things to be done for energy saving..8
Recommendations for the fresh food
compartment.....................................9
3 Installation 10
Points to be paid attention to when the
relocation of the refrigerator.............10
Electrical connection........................10
Disposing of the packaging .............11
Disposing of your old refrigerator .....11
Placing and Installation ....................11
Adjusting the legs ............................12
Changing the illumination lamp .......12
4 Preparation 13
5Using your refrigerator
Indicator Panel 14
Indicator Panel.................................14
Door Open Warning.........................20
Dual cooling system: .......................20
Freezing fresh food..........................20
Recommendations for preservation of
frozen food ......................................21
Defrosting........................................21
Placing the food ..............................21
Deep-freeze information ..................22
Odour filter ......................................23
Egg section .....................................23
Water Dispenser..............................24
Sliding storage container .................26
Rotary storage container .................26
Blue light .........................................27
Ice making.......................................27
Movable Body shelf: ........................28
Humidity Controlled Crisper.............29
(FreSHelf).........................................29
6 Maintenance and
cleaning 30
Protection of plastic surfaces ..........30
7.
Troubleshooting 31
CONTENTS

EN
3
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included
in the product you have purchased, then it is valid for other models.
1Your Refrigerator
1. Egg holder
2. Door shelves
3. Sliding and Rotary storage containers
4. Adjustable legs
5. Freezer compartment drawers
6. Snack compartment
7. Crisper
8. Blue light
9. Adjustable glass shelves
10.Bottle shelf
11.Movable body shelf
12.Fan
13.Fridge compartment
14.Freezer compartment
*optional
1
12
13
14
4
5
6
7
*8
*9
*10
*11
*2
*3

EN
4
2Important Safety Warnings
Please review the following
information. Failure to observe
this information may cause
injuries or material damage.
Otherwise, all warranty and
reliability commitments will
become invalid.
Original spare parts will be
provided for 10 years, following
the product purchasing date.
Intended use
This product is intended
to be used
• indoors and in closed
areas such as homes;
• in closed working environments
such as stores and offices;
• in closed accommodation
areas such as farm houses,
hotels, pensions.
• It should not be used outdoors.
General safety
• When you want to dispose/
scrap the product, we
recommend you to consult the
authorized service in order to
learn the required information
and authorized bodies.
• Consult your authorized
service for all your questions
and problems related to the
refrigerator. Do not intervene or
let someone intervene to the
refrigerator without notifying
the authorised services.
• For products with a freezer
compartment; Do not eat
cone ice cream and ice
cubes immediately after you
take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer
compartment; Do not put
bottled and canned liquid
beverages in the freezer
compartment. Otherwise,
these may burst.
• Do not touch frozen
food by hand; they may
stick to your hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be
used in cleaning and defrosting
processes of your refrigerator.
In such cases, the vapor
may get in contact with the
electrical parts and cause
short circuit or electric shock.
• Never use the parts on your
refrigerator such as the door as
a means of support or step.
• Do not use electrical devices
inside the refrigerator.
• Do not damage the parts,
where the refrigerant is
circulating, with drilling or
cutting tools. The refrigerant
that might blow out when the
gas channels of the evaporator,
pipe extensions or surface
coatings are punctured causes
skin irritations and eye injuries.
• Do not cover or block the
ventilation holes on your

EN
5
refrigerator with any material.
• Electrical devices must be
repaired by only authorised
persons. Repairs performed
by incompetent persons
create a risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s
mains supply by either
turning off the relevant fuse or
unplugging your appliance.
• Do not pull by the cable
when pulling off the plug.
• Ensure highly alcoholic
beverages are stored
securely with the lid fastened
and placed upright.
• Never store spray cans
containing flammable and
explosive substances
in the refrigerator.
• Do not use mechanical devices
or other means to accelerate
the defrosting process, other
than those recommended
by the manufacturer.
• This product is not intended
to be used by persons with
physical, sensory or mental
disorders or unlearned
or inexperienced people
(including children) unless
they are attended by a person
who will be responsible
for their safety or who will
instruct them accordingly
for use of the product
• Do not operate a damaged
refrigerator. Consult with
the service agent if you
have any concerns.
• Electrical safety of your
refrigerator shall be guaranteed
only if the earth system in your
house complies with standards.
• Exposing the product to
rain, snow, sun and wind
is dangerous with respect
to electrical safety.
• Contact authorized service
when there is a power cable
damage to avoid danger.
• Never plug the refrigerator
into the wall outlet during
installation. Otherwise,
risk of death or serious
injury may arise.
• This refrigerator is intended
for only storing food items.
It must not be used for
any other purpose.
• Label of technical specifications
is located on the left wall
inside the refrigerator.
• Never connect your
refrigerator to electricity-
saving systems; they may
damage the refrigerator.
• If there is a blue light on the
refrigerator, do not look at the
blue light with optical tools.
• For manually controlled
refrigerators, wait for at
least 5 minutes to start the
refrigerator after power failure.
• This operation manual
should be handed in to the
new owner of the product
when it is given to others.
• Avoid causing damage on
power cable when transporting
the refrigerator. Bending

EN
6
cable may cause fire. Never
place heavy objects on
power cable. Do not touch
the plug with wet hands
when plugging the product
• Do not plug the refrigerator
if the wall outlet is loose.
• Water should not be sprayed
on inner or outer parts of the
product for safety purposes.
• Do not spray substances
containing inflammable
gases such as propane gas
near the refrigerator to avoid
fire and explosion risk.
• Never place containers filled
with water on top of the
refrigerator; in the event of
spillages, this may cause
electric shock or fire.
• Do not overload the
refrigerator with food. If
overloaded, the food items
may fall down and hurt you
and damage refrigerator
when you open the door.
• Never place objects on top
of the refrigerator; otherwise,
these objects may fall down
when you open or close
the refrigerator’s door.
• As they require a precise
temperature, vaccines, heat-
sensitive medicine and scientific
materials and etc. should not
be kept in the refrigerator.
• If not to be used for a long
time, refrigerator should be
unplugged. A possible problem
in power cable may cause fire.
• The plug’s tip should be
cleaned regularly with
a dry cloth; otherwise,
it may cause fire.
• Refrigerator may move
if adjustable legs are not
properly secured on the floor.
Properly securing adjustable
legs on the floor can prevent
the refrigerator to move.
• When carrying the refrigerator,
do not hold it from door handle.
Otherwise, it may be snapped.
• When you have to place
your product next to another
refrigerator or freezer, the
distance between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.
• The product shall never be
used while the compartment
which is located at the top or
back of your product and in
which electronic boards are
available (electronic board
box cover) (1) is open.

EN
7
1
1
For products with a
water dispenser;
• Pressure for cold water inlet
shall be maximum 90 psi (6.2
bar). If your water pressure
exceeds 80 psi (5.5 bar), use
a pressure limiting valve in
your mains system. If you do
not know how to check your
water pressure, ask for the help
of a professional plumber.
• If there is risk of water
hammer effect in your
installation, always
use a water hammer
prevention equipment in
your installation. Consult
Professional plumbers
is you are not sure that
there is no water hammer
effect in your installation.
• Do not install on the
hot water inlet. Take
precautions against of
the risk of freezing of the
hoses. Water temperature
operating interval shall be
33°F (0.6°C) minimum and
100°F (38°C) maximum.
• Use only potable water.
Child safety
• If the door has a lock, the
key should be kept away
from reach of children.
• Children must be supervised
to prevent them from
tampering with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children’s safety, cut the
power cable and break the locking
mechanism of the door, if any, so that it
will be non-functional before disposing
of the product.

EN
8
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and our
national asset wealth.
If you want to contribute to the re-
evaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities
where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks
in your refrigerator.
• Do not overload your refrigerator
so that the air circulation inside
of it is not prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep
your refrigerator at least 30cm away
from heat emitting sources and at
least 5cm from electrical ovens.
• Pay attention to keep your
food in closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items
in the freezer when you remove
the shelf or drawer of the freezer.
Energy consumption value stated
for your refrigerator has been
determined by removing freezer
shelf or drawer and under maximum
load. There is no harm to use a shelf
or drawer according to the shapes
and size of food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
9
Recommendations for the
fresh food compartment
*May not be available in all models

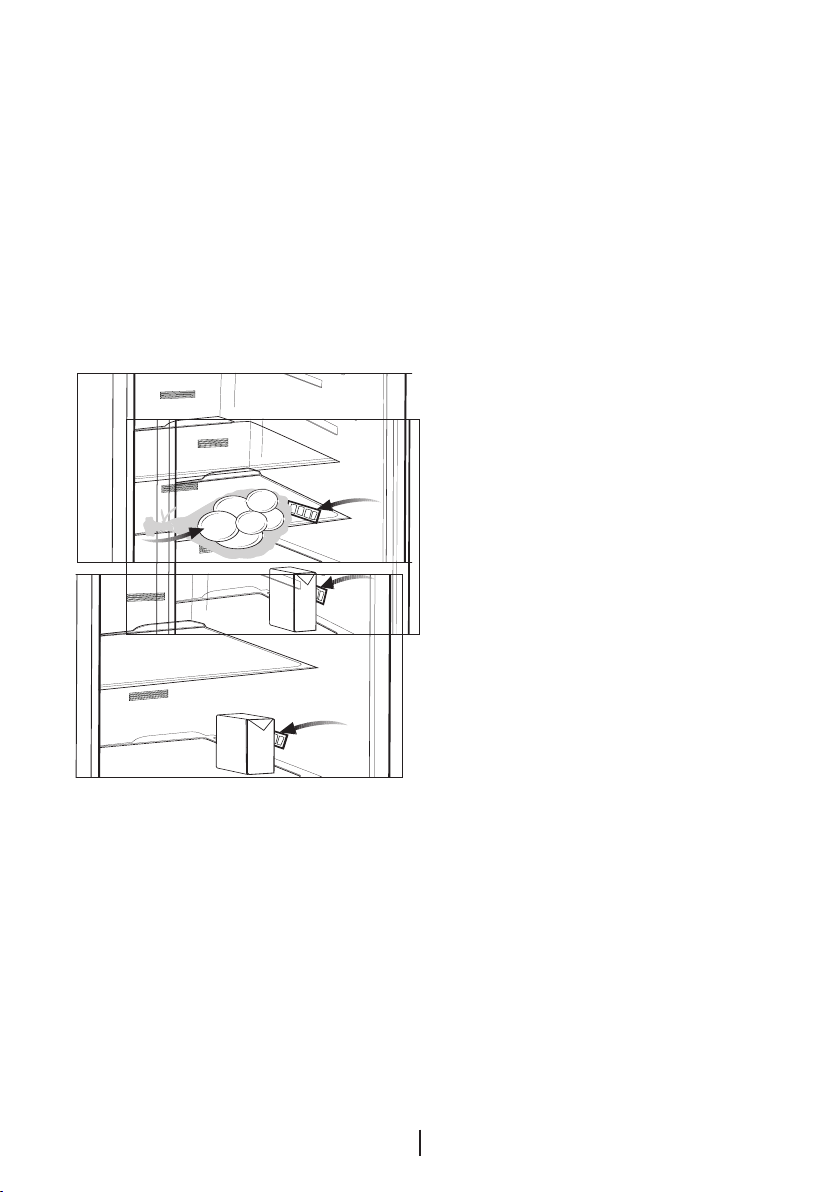

Do not allow the food to touch
the temperature sensor in fresh
food compartment. To allow the
fresh food compartment keep its
ideal storage temperature, sensor
must not be hindered by food.
Do not place hot foods
in the product.
temperature
sensor
food
MILK
juice
etc.
temperature
sensor

EN
10
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer
will not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation
of your refrigerator, it should
be emptied and cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your refrigerator should
be fixed with adhesive tape and
secured against impacts. Package
should be bound with a thick
tape or sound ropes and the
transportation rules on the package
should be strictly observed.
3. Original packaging and
foam materials should be kept for
future transportations or moving.
Before you start the refrigerator,
Check the following before you
start to use your refrigerator:

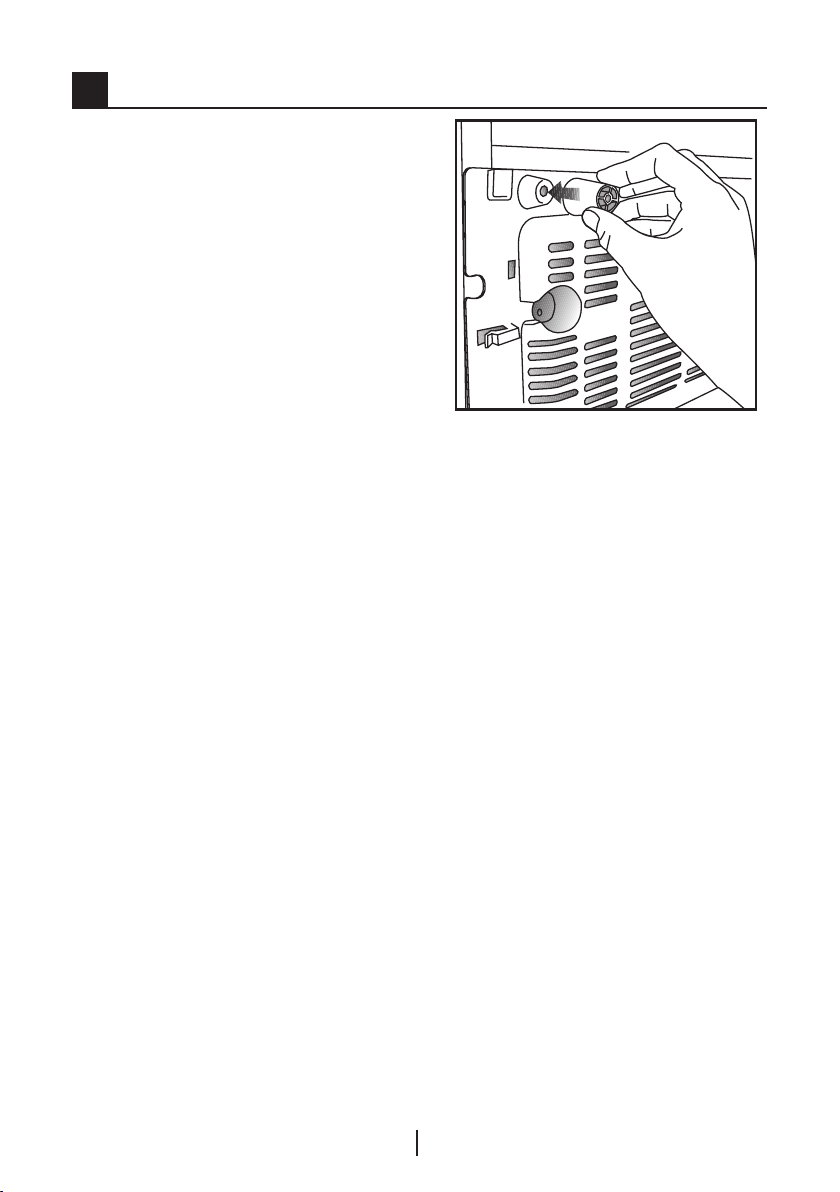

1. Attach 2 plastic wedges as
illustrated below. Plastic wedges
are intended to keep the distance
which will ensure the air circulation
between your refrigerator and
the wall. (The picture is drawn up
as a representation and it is not
identical with your product.)
2. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the
refrigerator to the wall socket.
When the fridge door is opened,
fridge internal lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is
not running and this is quite normal.
5. Front edges of the refrigerator
may feel warm. This is normal.
These areas are designed to be
warm to avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.

EN
11
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator
shall be guaranteed only if the
earth system in your house
complies with standards.
• The voltage stated on the label
located at left inner side of
your product should be equal
to your network voltage.
• Extension cables and multi plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated
before it is repaired! There is
the risk of electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center
of your municipality about the
disposal of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator
away from heat sources, humid
places and direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on
the materials such as rug or carpet.
4. Place your refrigerator on an
even floor surface to prevent jolts.

EN
12
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction
of black arrow and raised when you
turn in the opposite direction. Taking
help from someone to slightly lift the
refrigerator will facilitate this process.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in
a safe and comfortable way.The lamps
used in this appliance have to withstand
extreme physical conditions such as
temperatures below -20 °C.
(only chest and upright freezer)

EN
13
4Preparation
• Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
• The ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating
your refrigerator under cooler
conditions is not recommended
with regard to its efficiency.
• Please make sure that the interior of
your refrigerator is cleaned thoroughly.
• If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
• When you operate your refrigerator
for the first time, please observe
the following instructions
during the initial six hours.
• The door should not be
opened frequently.
• It must be operated empty
without any food in it.
• Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings
in the “Recommended solutions
for the problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.
• The baskets/drawers that are
provided with the chill compartment
must always be in use for low
energy consumption and for
better storage conditions.
• Food contact with the temperature
sensor in the freezer compartment
may increase energy consumption
of the appliance. Thus any contact
with the sensor(s) must be avoided.
• In some models, the instrument panel
automatically turns off 5 minutes
after the door has closed. It will
be reactivated when the door has
opened or pressed on any key.
• Due to temperature change as a
result of opening/closing the product
door during operation, condensation
on the door/body shelves and
the glass containers is normal

EN
14
5 Using your refrigerator Indicator Panel
Indicator Panel
Indicator panels may vary depending on your product’s model.
Indicator panel aids in using your refrigerator with its audio and visual functions.
1 7 3
45*62
1. Freezer Compartment
Temperature Indicator
2. Error Status Indicator
3. Fridge Compartment
Temperature Indicator
4. Fridge Compartment
Temperature Setting Button
5. Economy Mode Indicator
6. Ioniser Indicator
7. Freezer Compartment
Temperature Setting Button
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included
in the product you have purchased, then it is valid for other models.

EN
15
1. Freezer Compartment
Temperature Indicator
It indicates the temperature set for
Freezer compartment.
2. Error Status Indicator
If your refrigerator does not cool
adequately or if there is a sensor
failure, this indicator will be activated.
When this indicator is active, Freezer
Compartment Temperature indicator
will display "e" and Fridge Compartment
Temperature Indicator will display
numbers such as "1,2,3…". These
numbers on the indicator provides
information about the error to the
service personnel.
3. Fridge Compartment
Temperature Indicator
Indicates the temperature set for
Fridge compartment.
4. Fridge Compartment
Temperature Setting Button
Press this button to set the
temperature of the fridge compartment
to 8, 6, 4, 2, 8... respectively. Press this
button to set the desired temperature
for the fridge compartment.
5. Economy Mode Indicator
Indicates that the refrigerator is
running in energy-efficient mode.
6. Ioniser Indicator
Indicator light lights up continuously.
This light indicates that your refrigerator
is protected against the bacteria.
7. Freezer Compartment
Temperature Setting Button
Pressthis buttontosetthetemperature
of the freezer compartment to -15, -18,
-21, -24, -15... respectively. Press this
button to set the desired temperature
for the freezer compartment.

EN
16
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included
in the product you have purchased, then it is valid for other models.
* OPTIONAL
15
14
1
2
3
4
5
13
12
11
10
9
7
6
8
1. Fridge compartment setting button
2. Freezer compartment setting
/ Icematic on-off button
3. Error status indicator
4. Key lock indicator
5. Eco Extra Function indicator
6. Eco Extra/Vacation Button
7. Vacation function indicator
8. Energy saving function (display off)
9. Economic usage indicator
10. Quick fridge function indicator
11. Quick fridge function button
12. Fridge compartment temperature
setting indicator
13. Quick freeze function button
14. Freezer compartment
temperature setting indicator
15.Quick freeze function indicator

EN
17
* OPTIONAL 1. Fridge Compartment Setting
Button
This function allows you to make
the fridge compartment temperature
setting. Press this button to set the
temperature of the fridge compartment
to 8, 6, 4, 2 respectively.
2. Freezer Compartment Setting /
Icematic On-Off Button
This function allows you to
make the freezer compartment
temperature setting. Press this
button to set the temperature of
the freezer compartment to -18,
-20, -22 and -24 respectively.
To stop ice formation, press
Icematic on-off button for 3 seconds.
Water flow from water tank will
stop when this function is selected.
However, ice made previously can
be taken from the Icematic. To
restart ice formation, press Icematic
on-off button for 3 seconds.
3. Error Status Indicator
If your refrigerator does not cool
adequately or if there is a sensor
failure, this indicator will be activated.
When this indicator is active,
Freezer Compartment Temperature
indicator will display "E" and Fridge
Compartment Temperature Indicator
will display numbers such as
"1,2,3…". These numbers on the
indicator provides information about
the error to the service personnel.
When you place hot food into the
freezer compartment or if you leave the
door open for a long time, exclamation
mark can illuminate for some time.
This is not a failure; this warning will
disappear when the food cools down.
4. Key Lock Indicator
Use this function if you do not
want your refrigerator temperature
setting changed. Press Fridge
compartment setting button and
Freezer compartment setting button
simultaneously for a long time (3
sec) to activate this function.
5. Eco Extra Function Indicator
It indicates that the Eco-
Extra function is active.
If this function is active, your
refrigerator will automatically detect
the least usage periods and energy-
efficient cooling will be performed
during those times. Economy
indicator will be active while energy-
efficient cooling is performed.
Press the relevant button again
to deactivate this function.
6. Eco Extra/Vacation Button
Press this button briefly to
activate the Eco Extra function.
Press and hold this button for
3 sec. to activate the Vacation
function. Press this button again to
deactivate the selected function.
7. Vacation Function Indicator
Indicates that the vacation function
is active. If this function is active,
"- -" appears on the indicator of
the fridge compartment and no
cooling is performed in the fridge
compartment. Other compartments
will be cooled in accordance with
the temperature set for them.
Press the relevant button again
to deactivate this function.

EN
18
8. Energy saving function (display
off)
If the product doors are kept closed
for a long time energy saving function
is automatically activated and energy
saving symbol is illuminated.When
energy saving function is activated,
all symbols on the display other than
energy saving symbol will turn off. When
the Energy Saving function is activated,
if any button is pressed or the door is
opened, energy saving function will be
canceled and the symbols on display
will return to normal.
Energy saving function is activated
during delivery from factory and cannot
be canceled.
9. Economy Mode Indicator
Indicates that the refrigerator is
running in energy-efficient mode.
Freezer Compartment temperature
This indicator will be active if the
function is set to -18 or the energy
efficient cooling is being performed
due to Eco-Extra function.
10. Quick Fridge Indicator
This icon flashes in an
animated style when the Quick
Fridge function is active.
11. Quick Fridge Function
When you press the Quick
Fridge button, the temperature of
the compartment will be colder
than the adjusted values.
This function can be used for food
placed in the fridge compartment and
required to be cooled down rapidly.
If you want to cool large amounts
of fresh food, it is recommended
to active this feature before
putting the food into the fridge.
Quick Fridge indicator turns on
when the Quick Fridge function is
on. To cancel this function press
Quick Fridge button again.
If you do not cancel it, Quick Fridge
will cancel itself automatically after 4
hours or when the fridge compartment
reaches to the required temperature.
This function is not recalled when
power restores after a power failure.
12. Fridge Compartment
Temperature Setting Indicator
Indicates the temperature set
for the Fridge Compartment.
13. Freezer Compartment
Temperature Setting Indicator
Indicates the temperature set
for the Freezer Compartment.
14. Quick Freeze Function
Quick Freeze indicator turns on
when the Quick Freeze function is
active. To cancel this function press
Quick Freeze button again. Quick
Freeze indicator will turn off and return
to its normal settings. If you do not
cancel it, Quick Freeze will cancel
itself automatically after 8 hours
or when the freezer compartment
reaches to the required temperature.
If you want to freeze large amounts
of fresh food, press the Quick Freeze
button before putting the food
into the freezer compartment.

EN
19
If you press the Quick Freeze button
repeatedly with short intervals, the
electronic circuit protection will
be activated and the compressor
will not start up immediately.
This function is not recalled when
power restores after a power failure.
15. Quick Freeze Indicator
This icon flashes in an
animated style when the Quick
Freeze function is active.
cold pack
foodstuffs
foodstuffs
cold pack
