Beko RCNE560E35ZXP User manual

Refrigerator
User manual

58 5693 0000/AD
RCNE560E35ZXP - RCNE560E35ZGB
EN / AR

Please read this manual before using the product!
Dear Valued Customer,
We wish you to get the best results from your product that has been manufactured meticulously at modern plants
and tested with detailed quality control checks.
For this reason, we recommend that you read this user manual thoroughly before starting the product. If you hand
over the product to someone else, please remember to give the user manual as well.
This manual will help you use your appliance in a fast and safe way.
• Please read this user manual carefully before installing and using the product.
• Always follow the applicable safety instructions.
• Keep the user manual in an easily accessible place for further use.
• Please read all the other documents provided with the product.
Please keep in mind that this manual may apply to several product models. This manual expressly indicates the
differences between various models.
CImportant information and
useful hints.
ARisk of injury and property
damage.
BRisk of electric shock.
Packaging materials of
this product has been
manufactured from recyclable
materials in accordance with
the National Environment
Regulations.

3/35EN
Refrigerator / User Guide
1 Important Instructions Regarding Safety and
Environment 3
1.1. General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1.1 Hydrocarbon (HC) Warning. . . . . . . . . . . . . . . . . 5
1.1.2 For Products with a Water Dispenser/Ice Machine 5
1.2. Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3. Children's Safety . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4. Compliance with the WEEE Directive and Disposing
the Waste Product: . . . . . . . . . . . . . . . . . . . . . . 6
1.5. Compliance with the RoHS Directive:. . . . . . . . . . 6
1.6. Packaging Information . . . . . . . . . . . . . . . . . . . . 6

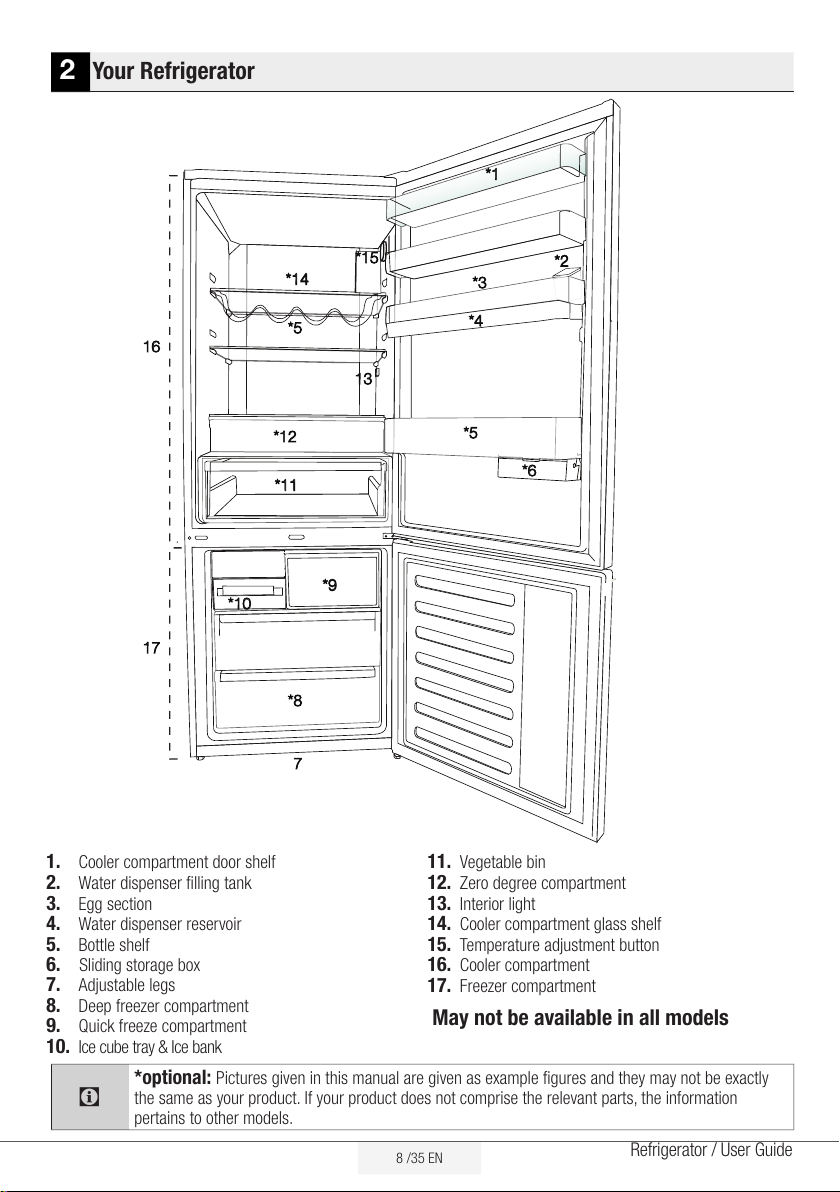

2 Your Refrigerator 7
3 Installation 8
3.1. Right place for installation. . . . . . . . . . . . . . . . . . 8
3.2. Attaching the plastic wedges . . . . . . . . . . . . . . . 8
3.3. Adjusting the stands. . . . . . . . . . . . . . . . . . . . . . 8
3.4. Power connection. . . . . . . . . . . . . . . . . . . . . . . . 8
3.5. Reversing the doors . . . . . . . . . . . . . . . . . . . . . . 9
3.6. Reversing the doors . . . . . . . . . . . . . . . . . . . . . 10
4 Preparation 11
4.1. What to do for energy saving . . . . . . . . . . . . . . 11
4.2. First Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Using the product 12
5.1. Temperature adjustment button . . . . . . . . . . . . 12
5.2. Rapid freezing . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.3. Vacation function . . . . . . . . . . . . . . . . . . . . . . . 13
5.4. Thermostat setting button. . . . . . . . . . . . . . . . . 14
5.5. Thermostat setting button. . . . . . . . . . . . . . . . . 14
5.6. Defrost. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.7. Indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.8. Indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.9. Indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.10.Indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.11.Ice bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.12.Eggholder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.13.Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.14. Vegetable bin . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.15.Zero degree compartment . . . . . . . . . . . . . . . . 23

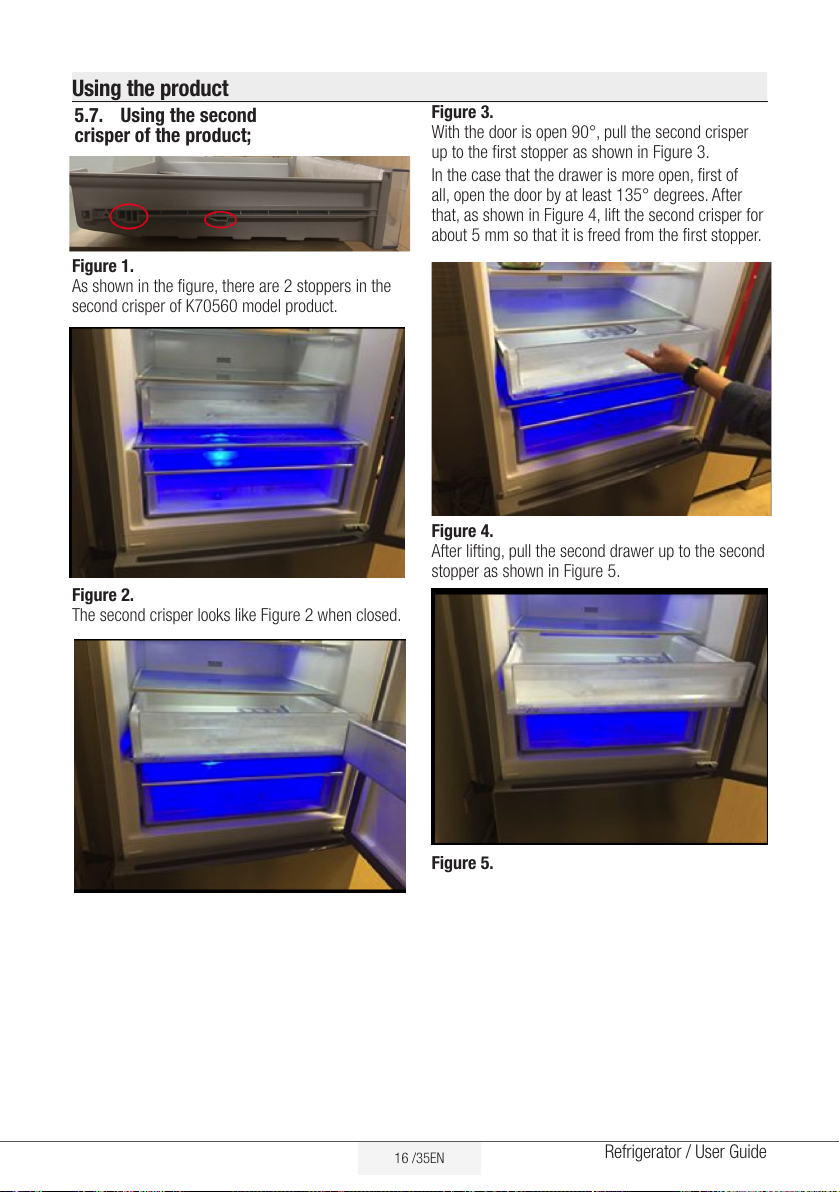

5.16.Using the second crisper of the product; . . . . . . 24
5.17.Moving door rack . . . . . . . . . . . . . . . . . . . . . . . 25
5.18.Sliding storage box . . . . . . . . . . . . . . . . . . . . . 25
5.19.Moisture controlled vegetable bin . . . . . . . . . . . 25
5.21.Automatic ice machine . . . . . . . . . . . . . . . . . . 26
5.20.Deodoriser Module . . . . . . . . . . . . . . . . . . . . . . 26
5.22.Icematic and ice storage container . . . . . . . . . . 27
5.23.Using the water dispenser . . . . . . . . . . . . . . . . 27
5.24.Filling the water dispenser's tank . . . . . . . . . . . 28
5.25. Cleaning the water tank . . . . . . . . . . . . . . . . . 28
5.26.Drip tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.27.HerbBox/HerbFresh . . . . . . . . . . . . . . . . . . . . . 29
5.28.Freezing fresh food. . . . . . . . . . . . . . . . . . . . . . 30
5.29.Recommendations for storing frozen foods . . . . 30
5.30.Deep freezer details . . . . . . . . . . . . . . . . . . . . . 31
5.31.Placing the food . . . . . . . . . . . . . . . . . . . . . . . . 31
5.32.Door open alert . . . . . . . . . . . . . . . . . . . . . . . . 31
5.33.Changing the opening direction of the door . . . . 31
5.34.Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6 Care and Cleaning 32
6.1. Avoiding Bad Odours . . . . . . . . . . . . . . . . . . . . 32
6.2. Protection of plastic surfaces . . . . . . . . . . . . . . 32
6.3. Cleaning the Inner Surface . . . . . . . . . . . . . . . . 32
6.4. Stainless Steel Outer Surfaces . . . . . . . . . . . . . 32
6.5. Cleaning Products with Glass Doors . . . . . . . . . 33
6 Care and Cleaning 33
7 Troubleshooting 34

4 /35 EN Refrigerator / User Guide
This chapter contains safety information
that will help you avoid the risk personal
injury or property damage. Failure to
follow these instructions shall render any
product warranty void.
Intended use
A
WARNING:
Keep ventilation openings, in
the appliance enclosure or in
the built-instructure, clear of
obstruction.
A
WARNING:
Do not use mechanical
devices or other means to
accelerate the defrosting
process, other than those
recommended by the
manufacturer.
A WARNING:
Do not damage the refrigerant
circuit.
A
WARNING:
Do not use electrical
appliances inside the food
storage compartments of the
appliance, unless they are of
the type recommended by the
manufacturer.
This appliance is intended to be used in
household and similar applications such
as
– staff kitchen areas in shops, offices and
other working environments;
– farm houses and by clients in hotels,
motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail
applications.
1.1. General Safety
• Persons with physical, sensory or
mental disabilities; persons who
lack experience and information and
children should not approach, enter or
play with the product.
• Failure to follow the instructions and
uncontrolled use of the product lead to
dangerous results!
• Unplug the product if you encounter a
failure during use.
• If the product malfunctions, it must
not be operated until repaired by the
authorised service provider. Risk of
electric shock!
• Plug the product into a grounded
socket protected by a fuse that
corresponds to the value on its
nameplate. Have a qualified electrician
ground the product. Our company
cannot be held responsible for
damages resulting from the failure to
use the product with a grounded socket
pursuant to local regulations.
• Unplug the product when not in use.
• Never wash the product by spreading
or pouring water onto it! Risk of electric
shock!
• Never touch the plug with wet hands!
• Never unplug the product by pulling the
cable. Always pull the plug by holding
the socket.
1Important Instructions Regarding Safety and Environment

Safety and environment instructions
5/35EN
Refrigerator / User Guide
• Do not plug the refrigerator if the wall
socket is loose.
• Never connect your refrigerator to
energy saving devices. Such systems
are harmful to your product.
• Unplug the product during
installation, care, cleaning and
repairing procedures.
• Always have the Authorised Service
Provider install the product and
establish its electrical connections.
The manufacturer cannot be held
responsible for damages caused
by procedures performed by
unauthorised persons.
• Do not eat cone ice cream or ice
cubes immediately after you take
them out of the freezer compartment!
This may cause frostbite in your
mouth!
• Do not touch frozen food with wet
hands! They may stick to your hand!
• Do not put bottled or canned
liquid beverages in the freezer
compartment. They may burst!
• Never use steam or steam cleaners
to clean or defrost the refrigerator.
Steam gets into contact with the live
parts in your refrigerator, causing
short circuit or electric shock!
• Do not use mechanical devices
or other means to accelerate the
defrosting process other than those
recommended by the manufacturer.
• Never use the parts in your
refrigerator such as the door and
drawer as a means of support or
step. This may cause the product to
tip over or damage the parts of it.
• Do not damage the parts where the
refrigerant is circulating with drilling
or cutting tools. The refrigerant
that might blow out when the gas
channels of the evaporator, pipe
extensions or surface coatings are
punctured causes skin irritations and
eye injuries.
• Do not cover or block the ventilation
holes in your refrigerator with any
object.
• Place the beverage with higher proofs
tightly closed and vertically.
• Do not use gaseous sprays near the
product since there is the risk or fire
or explosion!
• Flammable items or products that
contain flammable gases (e.g. spray)
as well as explosive materials should
never be kept in the appliance.
• Do not place vessels filled with liquid
onto the product. Splashing water on
an electrical part may cause electric
chock or the risk of fire.
• Do not store items that need precise
temperature adjustment (such as
vaccines, heat-sensitive medication,
science materials etc.) in the
refrigerator.
• If you are not going to use the product
for a long time, unplug it and remove
the food in it.
• If there is a blue light on the
refrigerator, do not look at this light
with optical tools.
• Exposing the product to rain, snow,
sun or wind is dangerous in terms of
electrical safety.
• In products with mechanical control
(thermostat), wait for 5 minutes
to plug in the product again after
unplugging.
• Do not overload the refrigerator.
Objects in the refrigerator may fall
down when the door is opened,
causing injury or damage. Similar

Safety and environment instructions
6 /35EN Refrigerator / User Guide
problems may arise if any object is
placed onto the product.
• If the product has a door handle, do
not pull the handle when re-locating
the product. The handle might be
loose.
• Be careful not to jam your hand or
any other body part in the moving
parts of the refrigerator.
• Do not put your hand or any other
foreign materials into the ice
machine while it is operating.
1.1.1 Hydrocarbon (HC) Warning
• If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention not to damage the cooling
system or the piping during use and
transportation. If damaged, keep
the product away from potential fire
sources that may cause it to catch
fire and ventilate the room where the
product is placed.
C
If the product is damaged and
if you see gas leak, please
keep away from the gas. It may
cause frostbite when it gets into
contact with the skin.
(including R134)
CIgnore this warning if the cooling
system of your product contains
R134a.
C
Type of gas used in the product
is stated on the type plate which
is on the left wall inside the
refrigerator.
AWARNING:
Never throw the product into fire
for disposal.
1.1.2 For Products with a Water
Dispenser/Ice Machine
• Pressure for cold water inlet shall
be maximum 90 psi (620 kPa). If
your water pressure exceeds 80 psi
(550 kPa), use a pressure limiting
valve in your mains system. If you
do not know how to check your
water pressure, ask for the help of a
professional plumber.
• If there is a risk of water impact
in your installation, always use a
water impact protection equipment
in that installation. Please consult
professional plumbers if you are not
sure if there is water impact in your
installation.
• Do not make installation on the hot
water inlet.
• Use drinking water only.
• Take the necessary measures
against the freezing risk of the
hoses. The water temperature
operating range must be 0.6°C
(33°F) minimum and 38°C (100°F)
maximum.
A
WARNING:
Never connect the product
to a cold water mains with a
pressure of 550 kPa (80 psi)
or above.

Safety and environment instructions
7/35EN
Refrigerator / User Guide
1.2. Intended Use
• This product has been designed for
domestic use. It is not suitable for
commercial use and it must not be
used out of its intended use.
• It must be used only for storing
food.
• The manufacturer will not take any
responsibility for damages resulting
from improper use or transport.
• Original spare parts will be available
for 10 years after the purchase date
of the product.
1.3. Children's Safety
• If there is a lock on the door of the
product, the key should be kept out
of the reach of children.
• Do not let children play with the
product.
A
DANGER:
Before disposing your old
refrigerator or freezer:
• Children may get locked
inside.
• Remove the doors.
• Leave the shelves to
prevent children from
getting inside the product
easily.
1.4. Compliance with the WEEE Directive
and Disposing the Waste Product:
This product conforms to the EU
WEE Directive (2012/19 EU). This
product bears a classification symbol
for waste electrical and electronic
equipment (WEEE). This product has
been manufactured from high quality
parts and materials which can be
reused and are suitable for recycling. Therefore,
do not dispose the product with normal domestic
waste or other waste at the end of its service life.
Take it to a collection centre for recycling electrical
and electronic equipment. Please consult local
authorities to learn about the locations of such
collection centres.
1.5. Compliance with the RoHS Directive:
The unit you have purchased conforms to the EU
RoHS Directive (2011/65/EU). It does not contain
harmful or prohibited materials specified in the
Directive.
1.6. Packaging Information
• Packaging materials of the product have been
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose the packaging
materials with normal domestic waste or other
types of waste. Take these materials to a
recycling point designated by local authorities.
A
DANGER:
Risk of Fire or Explosion:
• This product uses flammable
refrigerant.
• Do not use mechanical devices to
defrost the refrigerator.
• Do not use chemicals for cleaning.
• Do not pierce the refrigerant pipe.
• If the refrigerant pipe is pierced, it
must be repaired only by licensed
service personnel.
• Please consult the repair/user
manual before cleaning the product.
All safety instructions must be
followed.
• Dispose the product according to
federal or local regulations.

8 /35 EN Refrigerator / User Guide
1. Cooler compartment door shelf
2. Water dispenser filling tank
3. Egg section
4. Water dispenser reservoir
5. Bottle shelf
6. Sliding storage box
7. Adjustable legs
8. Deep freezer compartment
9. Quick freeze compartment
10. Ice cube tray & Ice bank
11. Vegetable bin
12. Zero degree compartment
13. Interior light
14. Cooler compartment glass shelf
15. Temperature adjustment button
16. Cooler compartment
17. Freezer compartment
2Your Refrigerator
C*optional: Pictures given in this manual are given as example figures and they may not be exactly
the same as your product. If your product does not comprise the relevant parts, the information
pertains to other models.
*1
*2
*3
*4
*5
*5
*6
*8
*9
7
*11
*12
13
*15
16
17
*14
*10
*4
May not be available in all models

9/35EN
Refrigerator / User Guide
3Installation
3.1. Right place for installation
Contact the Authorized Service for the product's
installation. To ready the product for installation, see
the information in the user guide and make sure the
electric and water utilities are as required. If not, call
an electrician and plumber to arrange the utilities as
necessary.
B
WARNING: The manufacturer assumes
no responsibility for any damage caused
by the work carried out by unauthorized
persons.
B
WARNING: The product’s power cable
must be unplugged during installation.
Failure to do so may result in death or
serious injuries!
A
WARNING: If the door span is too narrow
for the product to pass, remove the door
and turn the product sideways; if this does
not work, contact the authorized service.
• Place the product on a flat surface to avoid vibration.
• Place the product at least 30 cm away from the
heater, stove and similar sources of heat and at least
5 cm away from electric ovens.
• Do not expose the product to direct sunlight or keep
in damp environments.
• The product requires adequate air circulation to
function efficiently.
• If the product will be placed in an alcove, remember
to leave at least 5 cm distance between the product
and the ceiling and the walls.
• Do not install the product in environments with
temperatures below -5°C.
• Your product requires adequate air circulation to
function efficiently. If the product will be placed in an
alcove, remember to leave at least 5 cm clearance
between the product and the ceiling, rear wall and the
side walls.
• If the product will be placed in an alcove, remember
to leave at least 5 cm clearance between the product
and the ceiling, rear wall and the side walls. Check
if the rear wall clearance protection component is
present at its location (if provided with the product). If
the component is not available, or if it is lost or fallen,
position the product so that at least 5 cm clearance
shall be left between the rear surface of the product
and the wall of the room. The clearance at the rear is
important for efficient operation of the product.
3.2. Attaching the plastic wedges
Use the plastic wedges in the provided with the product
to provide sufficient space for air circulation between the
product and the wall.
1. To attach the wedges, remove the screws on the product
and use the screws provided with the wedges.
2. Attach 2 plastic wedges on the ventilation cover as shown
in the figure.
3.3. Adjusting the stands
If the product is not in balanced position, adjust the front
adjustable stands by rotating right or left.
3.4. Power connection
AWARNING: Do not use extension or multi
sockets in power connection.
BWARNING: Damaged power cable must
be replaced by Authorized Service.
CWhen placing two coolers in adjacent
position, leave at least 4 cm distance
between the two units.
• Our firm will not assume responsibility for any
damages due to usage without earthing and power
connection in compliance with national regulations.
• The power cable plug must be easily accessible
after installation.
• Do not use multi-group plug with or without
extension cable between the wall socket and the
refrigerator.
C
Hot Surface Warning!
Side walls of your product is equipped
with refrigerant pipes to improve the
cooling system. Refrigerant with high
temperatures may flow through these
areas, resulting in hot surfaces on the
side walls. This is normal and does not
need any servicing. Please pay attention
while touching these areas.

Installation
10 /35EN Refrigerator / User Guide
3.5. Reversing the doors
Proceed in numerical order .
45
11
10
3
9
9
2
1
5
6
7
8
12
13
14
15
17
18
19
16
21
4
20
20

Installation
11/35EN
Refrigerator / User Guide
3.6. Reversing the doors
Proceed in numerical order .
1
17
1
20
11
13 9
2
10
5
3
20
20
8
18
17
19
45 °
180°
(8) (13)
14
6
4
12
16
15

12 /35 EN Refrigerator / User Guide
4.1. What to do for energy saving
AConnecting the product to electronic
energy-saving systems is harmful, as it
may damage the product.
• Do not keep the refrigerator doors open for long
periods.
• Do not place hot food or beverages into the
refrigerator.
• Do not overfill the refrigerator; blocking the internal
air flow will reduce cooling capacity.
• In order to store the maximum amount of food into
the cooler compartment of your refrigerator, you
should take out the upper drawers and place it onto
the glass rack. The declared energy consumption of
your refrigerator was determined by taking out the
cooler, ice tray and upper drawers in a way that will
enable maximum storage. Using the below drawer
when storing is strongly recommended. Energy
saving function should be activated for best energy
consumption.
• You should not block the airflow by putting food in
front of the cooler fan. A space of minimum 3cm
must be left in front of the protective fan wire when
placing food.
• Depending on the product’s features; defrosting
frozen foods in the cooler compartment will ensure
energy saving and preserve food quality.
• Food should be stored using the drawers in the
cooler compartment in order to ensure energy
saving and protect food in better conditions.
• Food packages should not be in direct contact with
the heat sensor located in the cooler compartment.
If they are in contact with the sensor, energy
consumption of the appliance might increase.
• Make sure the foods are not in contact with the
cooler compartment temperature sensor described
below.
• Since hot and humid air will not directly penetrate
into your product when the doors are not opened,
your product will optimize itself in conditions sufficient
to protect your food. In this energy saving function,
functions and components such as compressor, fan,
heater, defrost, lighting, display and so on will operate
according to the needs to consume minimum energy
while maintaining the freshness of your foodstuff.
4.2. First Use
Before using your refrigerator, make sure the necessary
preparations are made in line with the instructions in
“Safety and environment instructions” and “Installation”
sections.
4Preparation
• Keep the product running with no food inside for
6 and do not open the door, unless absolutely
necessary.
CA sound will be heard when the
compressor is engaged. It is normal to
hear sound even when the compressor is
inactive, due to the compressed liquids and
gasses in the cooling system.
CFront edges of the product might heat
up. This is normal. These areas are
designed to warm up in order to prevent
condensation.
CIn some models indicator panel turns off
automatically 5 minutes after the door
closes. It will be reactivated when the door
is open or any button is pressed.

13/35EN
Refrigerator / User Guide
5Using the product
May not be available in all models
C*Optional: The figures in this user guide are intended as drafts and may not perfectly match your
product. If your product does not comprise the relevant parts, the information pertains to other models.
5.1. Indicator panel
Indicator panel allows you to set the temperature and control the other functions related to the product
without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.
Activating the energy-saving function will turn off all
other signs on the display. When the energy-saving
function is active, pressing any button or opening
the door will deactivate the energy-saving function
and the display signals will return to normal.
The energy-saving function is an active function at
the factory defaults and cannot be cancelled.
3. Rapid cooling function
Press and release the button
( ) to activate the quick cooling function.
The quick cooling indicator ( ) will light and the
coolant compartment temperature setting will be
set to 1°C.
To cancel the rapid cooling function, press and
release the button ( ) again. The rapid cooling
indicator will turn off and the product will return to
its normal settings.
1 2
3
45
6
789
*10
*12
11
1. High temperature/fault alert
This indicator ( ) will light up in case of temperature
warnings or fault alerts.
When the freezer compartment temperature heats up
to a critical level for frozen foods, this indicator and
the temperature display alternately display the highest
temperature and temperature unit reached by the
freezer compartment. After checking the food in the
freezer compartment, the alarm is cleared by pressing
the Alarm Off ( ) button.
This indicator ( ) also illuminates when a sensor
malfunction occurs. When this indicator is lit, the
temperature display alternately displays “E” and
numbers such as “1,2,3...”.
These numbers on the display
inform service personnel of the error.
2. Energy saving (display off)
When the doors of the product are not opened
or closed, the energy saving function is activated
automatically and the energy saving icon lights up.(
)

Using the product
14 /35EN Refrigerator / User Guide
8. Eco-fuzzy
Press and release the eco fuzzy button to activate the
eco fuzzy function. The economic use indicator
( ) will light up after the function is activated. The
freezer compartment will start operating in economical
mode .after 6 hours. To deactivate
the eco fuzzy function, press and release the eco fuzzy
function button.
9. Freezer compartment temperature setting
button
By pressing this button the freezer compartment
temperature can be adjusted to -18, -19, -20, -21,
-22, -23, -24, -18 ... respectively. To set the freezer
compartment temperature
to the desired value, press this button ( ).
10. Ice maker off indicator
Shows the ice making status of ice maker. If the ( )
indicator is lit, the ice maker does not make ice.
CWhen this function is selected, water
intake from the water tank will stop.
However, previously made ice in the
ice maker can be removed.
11. Quick freeze function button/ice maker on-
off switch
To activate or deactivate
the quick freeze function,
press and release this button ( ).When the function
is activated,the quick freeze indicator ( ) lights up.
The freezer compartment temperature displays as
-27.The freezer compartment is cooled to a lower
value than the set temperature.If you want to freeze
arge amounts of fresh food, press the quick
freeze button before putting food
into the freezer compartment.
To stop the ice making process of the ice maker,
press and hold the quick freeze button 11 for 3
seconds, the ( ) indicator will light up and the ice
making will stop after you have spilled the ice that has
been made inside the ice maker.
Press and hold the fast freeze button 11 for 3 seconds
to make the ice maker start making ice again, and
the ( ) indicator will turn off and ice maker will start
making ice.
CIf the quick cooling function is not can-
celled, it is automatically
cancelled after 24 hour.
CThis function is not remembered after
a power failure.
4. Cooler compartment temperature setting
button
When this button ( ) is pressed, the refrigerant
compartment temperature can be set to 8, 7, 6, 5,
4, 3, 2, 1, 8... respectively. Press this button to set
the refrigerant compartment temperature to the
desired value.
5. Vacation Function
To activate the vacation function, press the Alarm Off
button 6 for 3 seconds. Vacation function function is
active ( ) indicator lits, the cooler compartment
temperature indicator displays the inscription "- -"
and no cooling process will be active in the cooling
compartment. In this function, it is not appropriate to
keep your food in the refrigerator compartment. The
freezer compartment will continue to cool according
to the set temperature.
To cancel this function, press press the Alarm Off
button 6 for 3 seconds.
6. Termination of the High Temperature
Warning:
In case of power failure/high temperature warning,
you may delete the warning ( ) by pressing any
button on the indicator or high temperature alarm
off button for 1 second after checking the food
inside the freezer compartment.
Note: Cancelling by pressing any button is not
applicable for every model.
7. Key lock
Press the Eco fuzzy button 8 for 3 seconds to
activate the key lock. When the key lock is activated,
the ( ) indicator lights and the buttons do not work.
To deactivate the key lock, press the Eco fuzzy
button 8 for 3 seconds, the ( ) indicator turns off
and the buttons
start operating again.
If you wish to avoid changing the temperature
setting of the refrigerator, press the Eco fuzzy
button 8 for 3 seconds.

Using the product
15/35EN
Refrigerator / User Guide
CUse the quick freeze function when you
want to quickly freeze food you put in
the freezer compartment. If you want
to freeze large amounts of fresh food,
activate the function before placing the
food in the product.
CIf the quick freeze function
is not cancelled, it is automatically
cancelled after 24 hour.
CThis function is not remembered after
a power failure.
12. Economic use indicator
Indicates that the product
works energy efficient. When the freezer
compartment temperature is set to -18 or when
energy-efficient cooling is performed with the Eco
Fuzzy function, this indicator ( ) lights.
CWhen quick cooling and quick freeze
functions are selected, economic use
indicator will go off.
5.2. Ice bucket
*optional
• Take the ice bucket from the freezer
compartment.
• Fill the ice bucket with water.
• Place the ice bucket into the freezer
compartment.
• The ice will be ready after approximately
two hours. Take the ice bucket from
the freezer compartment and bend in
sightly over the holder that you are going
to serve. Ice will easily pour into
the serving holder.
5.3. Eggholder
You can put the eggholder on the door or body rack of
your choice. If you decide to put it on the body rack, it is
recommended to prefer the shelves below as they are
colder.
ADo not put the eggholder into the
freezer compartment.
5.4. Fan
Fan was designed to distribute circulate the cold air
inside your refrigerator homogeneously. Operating
time of the fan might vary depending the features of
your product.
While in some products fan only operates with
compressor, in others control system determines the
operating time based on the need for cooling.
5.5. Vegetable bin
*optional
Product’s vegetable bin is designed to keep
vegetables fresh by preserving humidity. For
this purpose, the overall cold air circulation is
intensified in the vegetable bin.
5.6. Zero degree compartment
*optional
Use this compartment to keep delicatessen at
lower temperatures or meat products for immediate
consumption.
Zero degree compartment is the coolest place
where foods such as dairy products, meat, fish and
chicken can be stored in ideal storage conditions.
Vegetables and/or fruits should not be stored in this
compartment.

Using the product
16 /35EN Refrigerator / User Guide
5.7. Using the second
crisper of the product;
Figure 1.
As shown in the figure, there are 2 stoppers in the
second crisper of K70560 model product.
Figure 3.
With the door is open 90°, pull the second crisper
up to the first stopper as shown in Figure 3.
In the case that the drawer is more open, first of
all, open the door by at least 135° degrees. After
that, as shown in Figure 4, lift the second crisper for
about 5 mm so that it is freed from the first stopper.
Figure 4.
After lifting, pull the second drawer up to the second
stopper as shown in Figure 5.
Figure 2.
The second crisper looks like Figure 2 when closed.
Figure 5.

Using the product
17/35EN
Refrigerator / User Guide
5.8. Moving door rack
*optional
Moving door rack can be fixed in 3 different
positions.
In order to move the rack, push the buttons on
the side evenly. Rack will be movable.
Move the rack up or down.
When the rack is in the position that you want,
release the buttons. Rack will be fixed again
in the position where you have released the
buttons.
5.9. Sliding storage box
*optional
This accessory has been designed to increase the
usage volume of the door racks.
Thanks to its ability to move sideways, it enables you
to easily place long bottle, jar or boxes that you put
in the bottle rack below.
5.10. Moisture controlled vegetable bin
*optional
With moisture control feature, moisture rates of
vegetables and fruits are kept under control and
ensures a longer freshness period for foods.
It is recommended to store leafed vegetables such
as lettuce and spinach and similar vegetables prone
to moisture loss not on their roots but in horizontal
position into the vegetable bin as much as possible.
When placing the vegetables, place heavy and hard
vegetables at the bottom and light and soft ones on
the top, taking into account the specific weights of
vegetables.
Do not leave vegetables in the vegetable bin in
plastic bags. Leaving them in plastic bags causes
vegetables to rot in a short time. In situations where
contact with other vegetables is not preferred,
use packaging materials such as paper that has a
certain porosity in terms of hygiene.
Do not put fruits that have a high ethylene gas
production such as pear, apricot, peach and
particularly apple in the same vegetable bin with
other vegetables and fruits. The ethylene gas coming
out of these fruits might cause other vegetables and
fruits to mature faster and rot in a shorter period of
time.

Using the product
18 /35EN Refrigerator / User Guide
5.12. Automatic ice machine
*optional
Automatic ice machine enables you to easily make
ice in your refrigerator. In order to obtain ice from
the ice machine, take out the water tank in the
cooler compartment, fill it with water and fix it back.
First ice will be ready in about 2 hours in the ice
machine drawer in the cooler compartment.
After placing the full water tank, you can obtain
about 60-70 cubes of ice until it is fully empty.
If the water in the tank has waited for 2-3 weeks, it
should be changed.
CIn products with automatic ice
machine, you might hear a sound
when pouring the ice. This sound is
normal and is not a sign of failure.
5.11. Deodoriser Module
(FreshGuard) *optional
The deodoriser module quickly eliminates the bad
smells in your refrigerator before they permeate the
surfaces. Thanks to this module, which is placed
on the ceiling of the fresh food compartment, the
bad odours dissolve while the air is actively being
passed on the odour filter, then the air that has
been cleaned by the filter is re-emitted to the fresh
food compartment. This way, the unwanted odours
that may emerge during the storage of foods in the
refrigerator are eliminated before they permeate the
surfaces.
This is achieved thanks to the fan, LED and the
odour filter integrated into the module. In daily use,
the deodoriser module will turn on automatically on
a periodic basis. To maintain efficient performance, it
is recommended to have the filter in the deodoriser
module by the authorised service provider every 5
years. Due to the fan integrated into the module, the
noise you will hear during operation is normal. If you
open the door of the fresh food compartment while
the module is active, the fan will pause temporarily
and resume where it has left off after some time
the door is closed again. In case of power failure,
the deodoriser module will resume where it has left
off in the total operation duration once the power is
back.
Info: It is recommended to store aromatic foods
(such as cheese, olives and delicatessen foods) in
their packaging and sealed to avoid bad odours that
may result when smells of various foods get mixed.
Besides, it is recommended to take spoiled foods
out of the refrigerator quickly to prevent the other
foods from getting spoiled and avoid bad odours.

Using the product
19/35EN
Refrigerator / User Guide
5.13. Icematic and ice storage container
*optional
Using the Icematic
Fill the Icematic with water and place it into its seat.
Your ice will be ready approximately in two hours. Do
not remove the Icematic from its seating to take ice.
Turn the knobs on the ice reservoirs clockwise by
90 degrees.
Ice cubes in the reservoirs will fall down into the ice
storage container below.
You may take out the ice storage container and
serve the ice cubes.
If you wish, you may keep the ice cubes in the ice
storage container.
Ice storage container
Ice storage container is only intended for
accumulating the ice cubes. Do not put water in it.
Otherwise, it will break.
5.14. Using the water dispenser
*optional
CIt is normal for the first few glasses of
water taken from the dispenser to be
warm.
CIf the water dispenser is not used for a
long period of time, dispose of first few
glasses of water to obtain fresh water.
1. Push in the lever of the water dispenser with your
glass. If you are using a soft plastic cup, pushing
the lever with your hand will be easier.
2. After filling the cup up to the level you want, rele-
ase the lever.
CPlease note, how much water flows
from the dispenser depends on how far
you depress the lever. As the level of
water in your cup / glass rises, gently
reduce the amount of pressure on the
lever to avoid overflow. If you slightly
press the arm, the water will drip; this
is quite normal and not a failure.

Using the product
20 /35EN Refrigerator / User Guide
5.15. Filling the water dispenser's tank
Water tank filling reservoir is located inside the door
rack.
1. Open the cover of the tank.
2. Fill the tank with fresh drinking water.
3. Close the cover.
CDo not fill the water tank with any
other liquid except for water such as
fruit juices, carbonated beverages or
alcoholic drinks which are not suitable
to use in the water dispenser. Water
dispenser will be irreparably damaged
if these kinds of liquids are used.
Warranty does not cover such usages.
Some chemical substances and
additives contained in these kinds of
drinks/liquids may damage the water
tank.
CUse clean drinking water only.
CCapacity of the water tank is 3 litres;
do not overfill.
5.16. Cleaning the water tank
1. Remove the water filling reservoir inside the door
rack.
2. Remove the door rack by holding from both sides.
3. Grab the water tank from both sides and remove
it with an angle of 45°C.
4. Remove the cover of the water tank and clean
the tank.
CComponents of the water tank and
water dispenser should not be washed
in dishwasher.
