Beko DN136110M User manual

DN136110M
Refrigerator
Réfrigérateur

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
This product is supplied with the selective sorting symbol for waste electrical
and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling

EN
2
CONTENTS
1 Your refrigerator 3
2 Important Safety Warnings4
Intended use ..................................... 4
For products with a water dispenser;. 6
Child safety........................................ 6
HCA Warning .................................... 6
Things to be done for energy saving .. 7
3Installation 8
Points to be considered when re-
transporting your refrigerator .............8
Before operating your refrigerator ...... 8
Electric connection ............................ 8
Disposing of the packaging ............... 9
Disposing of your old refrigerator ....... 9
Placing and Installation ...................... 9
Adjusting the feet............................. 10
Changing the illumination lamp ....... 10
Open door warning.......................... 10
Reversing the doors ........................ 11
Reversing the doors ........................ 12
4 Preparation 13
5 Using your refrigerator 14
Fridge compartment temperature
setting button ................................. 14
Freezer compartment temperature
setting button ................................. 15
Freezing fresh food ..........................16
Recommendations for preservation of
frozen food ...................................... 16
Placing the food .............................. 17
Deep-freeze information .................. 17
Crisper humidity control sliders........18
Using the rotary crisper (in some
models) ........................................... 18
Making ice ....................................... 18
6 Maintenance and
cleaning 19
Protection of plastic surfaces .......... 19
7 Recommended solutions
for the problems 20

EN
3
3
1
*2
*4
5
*8
9
4
4
13
14
*7
12
12
*12
11
6
10
1Your refrigerator
1- Freezer compartment shelf
2- Ice storage container
3- Thermostat knob
4- Adjustable glass shelves
5- Interior light
6- Crisper humidity control sliders
7- Crisper cover
8- Crisper
9- Adjustable front feet
10- Freezer compartment door shelf
11- Egg holders
12- Fridge compartment door shelves
13- Freezer compartment
14- Fridge compartment
*OPTIONAL
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

EN
4
2Important Safety Warnings
Please review the following
information. Failure to observe this
information may cause injuries or
material damage. Otherwise, all
warranty and reliability commitments
will become invalid.
The usage life of the unit you
purchased is 10 years. This is the
period for keeping the spare parts
required for the unit to operate as
described.
Intended use
This product is intended to be used
– indoors and in closed areas such as
homes;
– in closed working environments such
as stores and offices;
– in closed accommodation areas such
as farm houses, hotels, pensions.
• This product should not be used
outdoors.
General safety
• When you want to dispose/scrap
the product, we recommend you
to consult the authorized service in
order to learn the required information
and authorized bodies.
• Consult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat cone ice
cream and ice cubes immediately
after you take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer
compartment; Do not put bottled and
canned liquid beverages in the freezer
compartment. Otherwise, these may
burst.
• Do not touch frozen food by hand;
they may stick to your hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes of
your refrigerator. In such cases, the
vapor may get in contact with the
electrical parts and cause short circuit
or electric shock.
• Never use the parts on your
refrigerator such as the door as a
means of support or step.
• Do not use electrical devices inside
the refrigerator.
• Do not damage the parts, where
the refrigerant is circulating, with
drilling or cutting tools. The refrigerant
that might blow out when the gas
channels of the evaporator, pipe
extensions or surface coatings are
punctured causes skin irritations and
eye injuries.
• Do not cover or block the ventilation
holes on your refrigerator with any
material.
• Electrical devices must be repaired
by only authorised persons. Repairs
performed by incompetent persons
create a risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the
relevant fuse or unplugging your
appliance.

EN
5
• Do not pull by the cable when pulling
off the plug.
• Place the beverage with higher proofs
tightly closed and vertically.
• Never store spray cans containing
flammable and explosive substances
in the refrigerator.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• This product is not intended to be
used by persons with physical,
sensory or mental disorders or
unlearned or inexperienced people
(including children) unless they are
attended by a person who will be
responsible for their safety or who will
instruct them accordingly for use of
the product
• Do not operate a damaged
refrigerator. Consult with the service
agent if you have any concerns.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
• Contact authorized service when
there is a power cable damage to
avoid danger.
• Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
• This refrigerator is intended for only
storing food items. It must not be
used for any other purpose.
• Label of technical specifications is
located on the left wall inside the
refrigerator.
• Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
• If there is a blue light on the
refrigerator, do not look at the blue
light with optical tools.
• For manually controlled refrigerators,
wait for at least 5 minutes to start the
refrigerator after power failure.
• This operation manual should be
handed in to the new owner of the
product when it is given to others.
• Avoid causing damage on power
cable when transporting the
refrigerator. Bending cable may cause
fire. Never place heavy objects on
power cable. Do not touch the plug
with wet hands when plugging the
product.
• Do not plug the refrigerator if the wall
outlet is loose.
• Water should not be sprayed directly
on inner or outer parts of the product
for safety purposes.
• Do not spray substances containing
inflammable gases such as propane
gas near the refrigerator to avoid fire
and explosion risk.
• Never place containers filled with
water on top of the refrigerator,
otherwise this may cause electric
shock or fire.
• Do not overload your refrigerator
with excessive amounts of food. If
overloaded, the food items may fall
down and hurt you and damage
refrigerator when you open the door.

EN
6
Never place objects on top of the
refrigerator; otherwise, these objects
may fall down when you open or
close the refrigerator's door.
• As they require a precise
temperature, vaccines, heat-sensitive
medicine and scientific materials
and etc. should not be kept in the
refrigerator.
• If not to be used for a long time,
refrigerator should be unplugged. A
possible problem in power cable may
cause fire.
• The plug's tip should be regularly
cleaned; otherwise, it may cause fire.
• The plug’s tip should be cleaned
regularly with a dry cloth; otherwise, it
may cause fire.
• Refrigerator may move if adjustable
legs are not properly secured on the
floor. Properly securing adjustable
legs on the floor can prevent the
refrigerator to move.
• When carrying the refrigerator, do not
hold it from door handle. Otherwise, it
may be snapped.
• When you have to place your product
next to another refrigerator or freezer,
the distance between devices should
be at least 8cm. Otherwise, adjacent
side walls may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children must be supervised to
prevent them from tampering with the
product.
HCA Warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type plate which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.

EN
7
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
8
3 Installation
BPlease remember that the
manufacturer shall not be held
liable if the information given in the
instruction manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1.Your refrigerator must be emptied and
cleaned prior to any transportation.
2.Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against
any jolt before repackaging.
3.Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
Please do not forget…
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1.Is the interior of the refrigerator dry and
can the air circulate freely in the rear
of it?
2.Please install the 2 plastic wedges
as illustrated in the figure. Plastic
wedges will provide the required
distance between your refrigerator
and the wall in order to allow the air
circulation. (The illustrated figure is
only an example and does not match
exactly with your product.)
3.Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
4.Plug the refrigerator into the wall outlet.
When the fridge door is open, the
fridge compartment interior light will
come on.
5.You will hear a noise as the compressor
starts up. The liquid and gases sealed
within the refrigeration system may
also give rise to noise, even if the
compressor is not running and this is
quite normal.
6.Front edges of the refrigerator may feel
warm. This is normal. These areas
are designed to be warm to avoid
condensation
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.

EN
9
Important:
• The connection must be in compliance
with national regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal to
your mains voltage.
• Extension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is danger of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions. Do not dispose of
them along with the normal household
waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
•You may consult your authorised dealer
or waste collection center of your
municipality about the disposal of
your refrigerator.

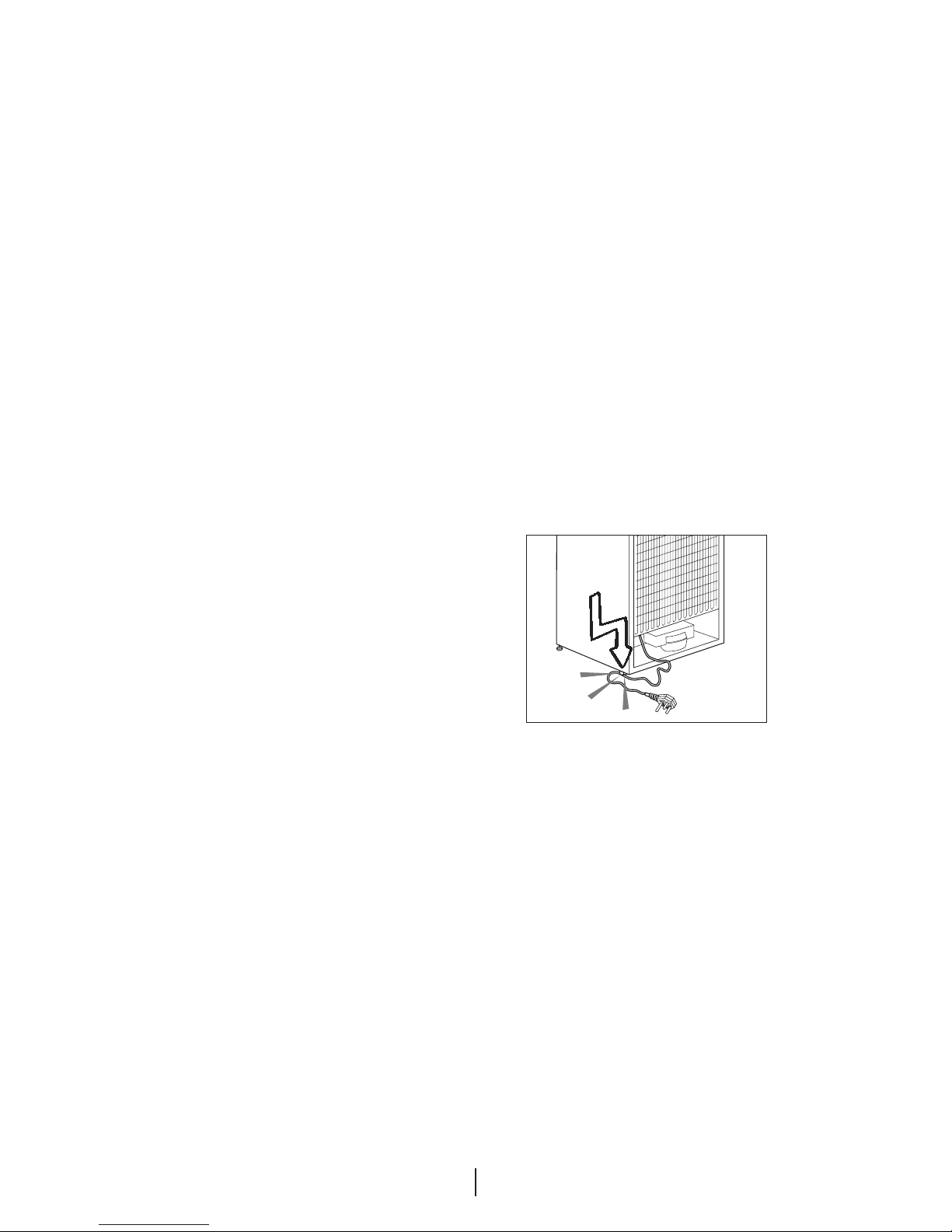

Before disposing of your refrigerator, cut
out the electric plug and, if there are
any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be
installed is not wide enough for the
refrigerator to pass through, then call
the authorised service to have them
remove the doors of your refrigerator
and pass it sideways through the
door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with
the wall. If the floor is covered with
a carpet, your product must be
elevated 2.5 cm from the floor.
4. Place your refrigerator on an even floor
surface to prevent jolts.
5. Do not keep your refrigerator in
ambient temperatures under 10°C.

EN
10
Changing the illumination
lamp
To change the lamp used for
illumination of your refrigerator, please
call your Authorized Service.
Open door warning
An audio warning will be given when
the fridge or freezer compartment
door of your product is left open for
a certain period of time. This audio
warning signal will mute when any
button on the indicator is pressed or
when the door is closed.

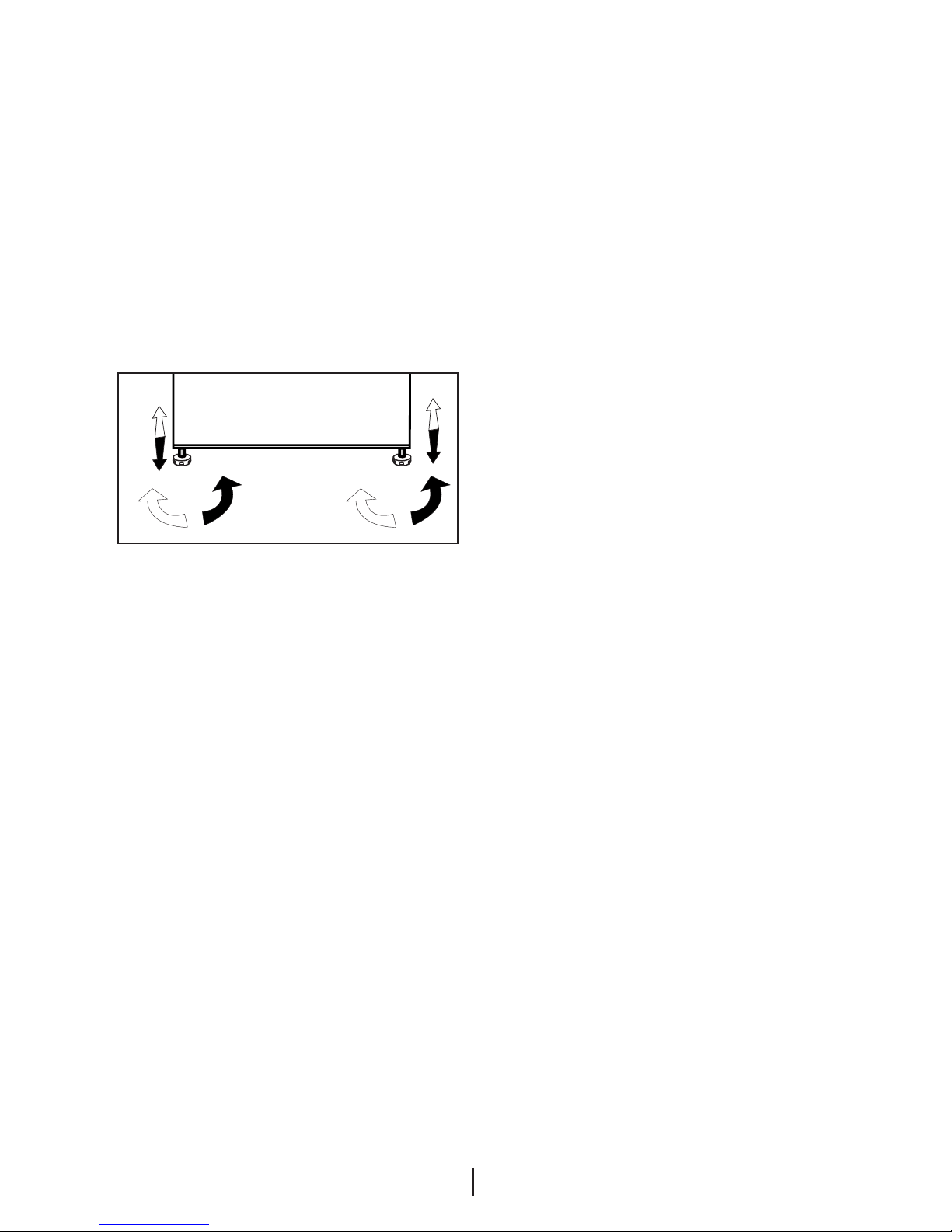

Adjusting the feet
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs as shown in the
illustration below. The corner where
the leg exists is lowered when you turn
it in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.

EN
11
10
10
5
4
1
6
4
12 13
3
7
89
14
19
19
22
17
180°
23
21
16
15
24
24
11
45 °
2
20
18
Reversing the doors
Proceed in numerical order .

EN
12
10
10
5
4
1
6
4
12 13
3
7
89
14
19
19
22
17
180°
23
21
16
15
24
24
11
45 °
2
20
18
Reversing the doors
Proceed in numerical order .

EN
13
4Preparation
CYour refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for
the problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.

EN
14
5Using your refrigerator
Fridge compartment
temperature setting button
543
At regular room temperatures:
Set the temperature button to a
position between “2 and 3” to store
your food.
543
At high room temperatures:
Temperature button must be set to a
cooler position if the food is going to
be frozen or large amounts of food will
be loaded.
If the food in the fridge
compartment
cools too much or freezes,
temperature button must be set to
position “1”.
If the fridge compartment is colder
then the required 24 hours after the
initial startup, open the lower door
and turn the fridge compartment
temperature setting button towards to
the position “1” and if it is warmer then
the required, slightly turn it towards to
the position “5”.
Temperature button allows you to
make the general temperature setting
of your refrigerator.
Temperature button of the refrigerator
controls both the temperature
of the freezer compartment and
the amount of the air send to the
fridge compartment and thus,
the temperature of the fridge
compartment.

EN
15
Freezer compartment
temperature setting button
Freezer compartment setting button
can be set to a position between
Normal and Quick Freezing.
• In Normal position, the amount of the
air sent to the fridge compartment
reaches to maximum.
• In Quick Freezing position, the
amount of the air sent to the
freezer compartment reaches to
maximum. And the amount of the
air sent to the fridge compartment
decreases to minimum. In this
case, the temperature of the fridge
compartment will increase. This is
normal.
• If you do not need more cooling in
either of the compartments, leave the
setting button in Normal position.
• In cases where the room temperature
is high (25 °C and above), it is
suggested to set the freezer
compartment setting button to a
position near the Normal.
• In low room temperatures, it
is suggested to set the freezer
compartment setting button to a
position between the Normal and
Quick Freezing.

EN
16
Freezer Compartment
Adjustment
Fridge
Compartment
Adjustment
Explanations
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C 4°C These settings are recommended when the ambient
temperature exceeds 30°C.
Quick Freeze 4°C
Use when you wish to freeze your food in a short
time. Your refrigerator will return to its previous mode
when the process is over.
-18°C or colder 2°C
If you think that your fridge compartment is not cold
enough because of the hot conditions or frequent
opening and closing of the door.
-18°C or colder Quick Fridge
You can use it when your fridge compartment is
overloaded or if you wish to cool down your food
rapidly. It is recommended that you activate quick
fridge function 4-8 hours before placing the food.
Freezing fresh food
• It must be preferred to wrap or cover
the food before placing them in the
refrigerator.
• Hot food must cool down to the
room temperature before putting
them in the refrigerator.
• The foodstuff that you want to freeze
must be fresh and in good quality.
• Foodstuff must be divided into
portions according to the family’s
daily or meal based consumption
needs.
• The foodstuff must be packaged in
an airtight manner to prevent them
from drying even if they are going to
be kept for a short time.
• Materials to be used for packaging
must be tear-proof and resistant to
cold, humidity, odor, oils and acids
and they must also be airtight.
Moreover, they must be well closed
and they must be made from easy-
to-use materials that are suitable for
deep freeze usage.
• Frozen food must be used
immediately after they are thawed
and they should never be re-frozen.
• Please observe the following
instructions to obtain the best results.
1. Do not freeze too large quantities
of food at one time. The quality of
the food is best preserved when it
is frozen right through to the core as
quickly as possible.
2. Placing warm food into the freezer
compartment causes the cooling
system to operate continuously until
the food is frozen solid.
3. Take special care not to mix already
frozen food and fresh food.
Recommendations for
preservation of frozen food
• Prepacked commercially frozen
food should be stored in accordance
with the frozen food manufacturer's
instructions for a ( 4 star)
frozen food storage compartment.
• To ensure that the high quality
achieved by the frozen food
manufacturer and the food retailer is
maintained, the following should be
remembered:
1. Put packages in the freezer as quickly
as possible after purchase.
2. Ensure that contents are labeled and
dated.
3. Do not exceed "Use By", "Best
Before" dates on the packaging.

EN
17
Defrosting
The freezer compartment defrosts
automatically.
Placing the food
Freezer
compartment
shelves
Various frozen food
such as meat, fish,
ice cream, vegetables
and etc.
Egg tray Egg
Fridge
compartment
shelves
Food in pans, covered
plates and closed
containers
Fridge
compartment door
shelves
Small and packaged
food or drinks (such
as milk, fruit juice and
beer)
Crisper Vegetables and fruits
Freshzone
compartment
Delicatessen products
(cheese, butter, salami
and etc.)
Deep-freeze information
Food must be frozen as rapidly as
possible when they are put in a
refrigerator in order to keep them in
good quality.
The TSE norm requires (according to
certain measurement conditions) the
refrigerator to freeze at least 4.5 kg of
foodstuff at 32°C ambient temperature
to -18°C or lower within 24 hours for
every 100-liters of freezer volume.
It is possible to keep the food for
a long time only at -18°C or lower
temperatures.
You can keep the freshness of food
for many months (at -18°C or lower
temperatures in the deep freeze).
WARNING! A
• Foodstuff must be divided into
portions according to the family’s daily
or meal based consumption needs.
• Foodstuff must be packaged in an
airtight manner to prevent them from
drying even if they are going to be kept
for a short time.
Materials necessary for packaging:
• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen
Materials to be used for packaging
the foodstuff must be tear-proof and
resistant to cold, humidity, odor, oils
and acids.
Foodstuff to be frozen should not be
allowed to come in contact with the
previously frozen items to prevent their
partial thawing.
Frozen food must be used immediately
after they are thawed and they should
never be re-frozen.

EN
18
Crisper humidity control
sliders
Using the crisper humidity control
sliders
Crisper of your refrigerator is designed
specially to keep your vegetables fresh
without loosing their humidity. Cold air
circulates basically around the crisper
and the amount of the cold air passing
through the crisper is controlled by the
sliders on the front side of the crisper
cover.
You can adjust the humidity control
sliders to a suitable position according
to the humidity and cooling condition
of your food in the crisper.
If you want your food in the crisper
to cool more, open the holes of the
humidity control sliders and if you
want them to cool less and keep their
humidity for a longer time, close the
holes.
Using the rotary crisper (in
some models)
The crisper of your refrigerator which
opens with a rotating movement is
designed specially to provide ease of
usage and allow you to store more
vegetables and fruits (large volume)
you buy during large shopping.
When you grab and pull the handle
on the lower left hand side of the
crisper, it will rotate from left to right
and open easily. The separator in the
crisper will allow you to separate the
vegetables and fruits according to their
types and prevent them from crushing.
Making ice
Fill the ice container with water and
place it into its seat. Your ice will be
ready approximately in two hours.
You can easily remove your ice by
slightly twisting the ice container.

EN
19
6Maintenance and cleaning
A Never use gasoline, benzene or
similar substances for cleaning
purposes.
BWe recommend that you unplug the
appliance before cleaning.
B Never use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish for
cleaning.
CUse lukewarm water to clean the
cabinet of your refrigerator and wipe it
dry.
CUse a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
BMake sure that no water enters the
lamp housing and other electrical
items.
BIf your refrigerator is not going to be
used for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.
CCheck door seals regularly to ensure
they are clean and free from food
particles.
ATo remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-cooked
meals in your refrigerator in unsealed
containers as they damage the
plastic surfaces of your refrigerator. In
case of spilling or smearing oil on the
plastic surfaces, clean and rinse the
relevant part of the surface at once
with warm water.
