Beko GNE60020X User manual

GNE60020X

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the
user manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 The refrigerator 3
2 Warnings 4
Electrical requirements....................... 5
Warning! This appliance must be
earthed.............................................. 5
Energy saving tips .............................6
Compliance with WEEE Directive and
Disposing of the Waste Product: ....... 6
Compliance with rohs directive: ......... 6
Package information.......................... 6
Recommendations for freshfood
compartment..................................... 7
3 Installation 8
Points to be considered when re-
transporting your refrigerator .............8
Before operating your refrigerator ...... 8
Electric connection ............................ 9
Disposing of the packaging ...............9
Disposing of your old refrigerator ....... 9
Placing and Installation .................... 10
Floor balance adjustment ................10
Adjusting the gap between the upper
door ................................................ 11
4 Preparation 12
5 Using your refrigerator 13
Indicator Panel................................. 13
Egg tray........................................... 14
Sliding Body Shelves ....................... 14
Chiller compartment ........................ 15
Door Open Warning......................... 15
Dual cooling system: .......................15
Freezing fresh food ..........................16
Recommendations for preservation of
frozen food ...................................... 16
Placing the food .............................. 17
Deep-freeze information .................. 17
Crisper ............................................ 18
Rotating Middle Section .................. 19
Blue light ......................................... 19
Telescopic Drawer .......................... 20
6 Maintenance and
cleaning 21
Protection of plastic surfaces .......... 21
7 Troubleshooting 22
CONTENTS

EN
3
2
A
B
3
4
5
6
7
8
9
1
11
11
10
1The refrigerator
A- Fridge compartment
B- Freezer compartment
1- Butter & Cheese shelf
2- Fridge compartment door
shelves
3- Fridge compartment glass
shelves
4- Diffuser cover
5- Illumination lens
6- Rotating middle section
7- Chiller compartment
8- Bottle shelf
9- Crisper
10- icebox
11- Adjustable separators
CFigures that take place in this instruction manual are schematic and may
not correspond exactly with your product. If the subject parts are not included in
the product you have purchased, then it is valid for other models.
Congratulations on your choice of a BEKO quality Appliance which has been
designed to give you service for many years.

EN
4
2Warnings
• Do not connect your appliance to
the electricity supply until all packing
and transit protectors have been
removed.
• If transported horizontally leave
to stand upright for at least 4
hours before switching on to allow
compressor oil to settle
• If you are discarding an old
refrigerator with a lock or latch fitted
to the door, disable the lock/latch,
ensure that it is left in a safe condition
to prevent the entrapment of young
children.
• This fridge/freezer must only be used
for its intended purpose i.e the storing
and freezing of edible foodstuff.
• Do not dispose of the appliance
on a fire. At BEKO, the care and
protection of our environment is an
ongoing commitment. This appliance
which is among the latest range
introduced is particularly environment
friendly. Your appliance contains non
CFC / HFC natural substances in the
cooling system (Called R600a) and in
the insulation (Called cyclopentane)
which are potentially flammable
if exposed to fire. Therefore, take
care not to damage, the cooling
circuit / pipes of the appliance in
transportation and in use. In case of
damage do not expose the appliance
to fire or potential ignition source and
immediately ventilate the room where
the appliance is situated.
• We suggest you contact your local
authority for disposal information and
facilities available.
• See Installation Instructions on page
8 for information on suitable location.
• To obtain the best possible
performance and trouble free
operation from your appliance it is
very important to carefully read these
instructions.
• On delivery, check to make sure that
the product is not damaged and that
all the parts and accessories are in
perfect condition.
• Ensure that the plug remains readily
accessible. Do not use multiple
adapter or extension cable.
• Failure to observe these instructions
may invalidate your right to free
service during the guarantee period.
• Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances
inside the food storage
compartments of the appliance,
unless they are of the type
recommended by the manufacturer.
• We suggest you keep these
instructions in a safe place for easy
reference.
• This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision
or instruction concerning use of
the appliance in a safe way and
understand the hazards involved.

EN
5
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
• Children should be supervised to
ensure that they do not play with the
appliance.
Electrical requirements
Before you insert the plug into the wall
socket make sure that the voltage and
the frequency shown on the rating
plate inside the appliance corresponds
to your electricity supply.
Rating label is on the left hand side of
fridge inner liner.
We recommend that this appliance be
connected to the mains supply via a
suitable switched and fused socket.
The appliance must be positioned so
that the plug is accessible.
Should the mains lead of the appliance
become damaged or should it need
Replacing at any time, it must be
replaced by a special purpose made
mains lead which can only be obtained
from a BEKO authorised service
agent.
Warning! This appliance
must be earthed
If the fitted moulded plug is not
suitable for your socket, then the plug
should be cut off and an appropriate
plug fitted. Destroy the old plug which
is cut off as a plug with bared cord
could cause a shock hazard if inserted
into a socket elsewhere in the house.
The moulded plug on this appliance
incorporates a 13 A fuse. Should
the fuse need to be replaced an
ASTABEAB approved BS 1362 fuse
of the same rating must be used. Do
not forget to refit the fuse cover. In the
event of losing the fuse cover the plug
must not be used until a replacement
fuse cover has been fitted.
Colour of the replacement fuse cover
must be the same colour as that
visible on the pin face of the plug. Fuse
covers are available from any good
electrical store.
Important! Fitting A Different Plug
As the colours of the wires in the
mains lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your plug
proceed as follows: (See diagram).
1. Connect the green-yellow or green
(Earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2. Connect the blue (Neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (Live) wire to the
terminal in the plug marked ‘L’ or
coloured red.
With alternative plugs a 13 A fuse must
be fitted either in the plug or adaptor
or in the main fuse box. If in doubt
contact a qualified electrician.
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm. 32mm.
12mm.
FUSE
CORD GRIP

EN
6
Energy saving tips
1. Ensure your appliance is installed in a
well ventilated area.
2. Ensure the time between buying
chilled/frozen food and placing
them in your appliance is kept at
minimum, particularly in summer. We
recommend you use a cool bag or a
special carrier bag to carry perishable
food.
3. Do not leave the door (s) of your
appliance open longer than
necessary and ensure they are closed
properly after each opening.
4. Defrost frozen food in the fridge
compartment, so that frozen food
acts as an ice pack to assist cooling
in the fridge.
5. Energy consumption of this
appliance is measured while freezer
compartment is loaded without
use of top shelf lid and the drawers
except the bottom drawer. It is
advised that freezer compartment is
loaded without use of drawers except
the bottom drawer in order to achieve
maximum loading capacity.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU). This
product bears a
classification symbol for
waste electrical and
electronic equipment
(WEEE).This product has
been manufactured with
high quality parts and materials which
can be reused and are suitable for
recycling. Do not dispose of the waste
product with normal domestic and
other wastes at the end of its service
life. Take it to the collection center for
the recycling of electrical and
electronic equipment. Please consult
your local authorities to learn about
these collection centers.
Compliance with rohs
directive:
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.

EN
7
Recommendations for
freshfood compartment

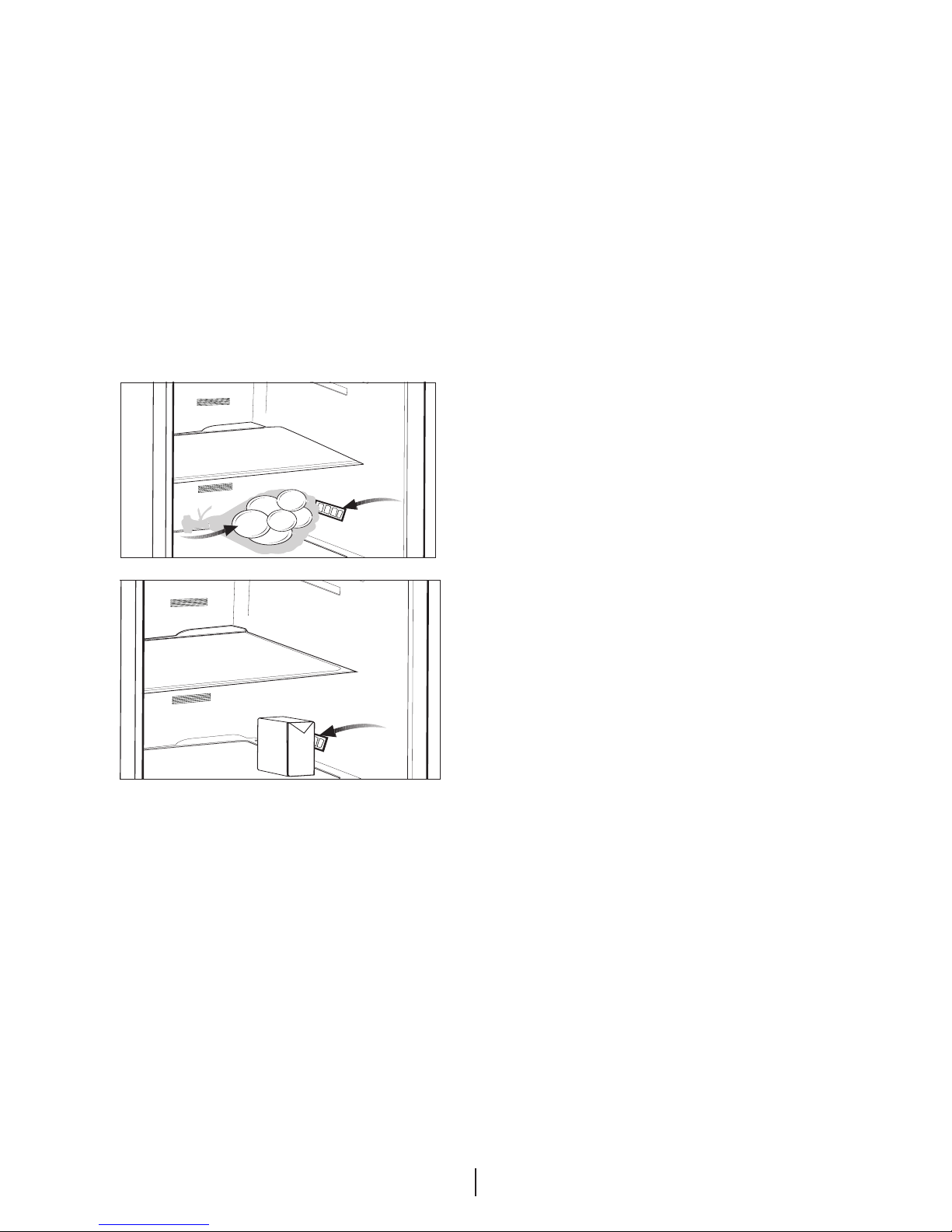

•Pleasedonotletanyfoodstuffto
come to contact with the temperature
sensor in freshfood compartment.
In order to maintain freshfood
compartment at ideal storage
temperature, the sensor must not be
blocked by foodstuffs.
•Donotplacehotfoodstuffinyour
appliance.
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
temperature
sensor
food
MILK
juice
etc.
temperature
sensor

EN
8
3Installation
CPlease remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.
3. Packaging must be adequate and the
rules of transportation printed on the
package must be followed.
CAlways remember...
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?
2. You can install the 2 plastic wedges
as illustrated in the figure. Plastic
wedges will provide the required
distance between your refrigerator
and the wall in order to allow the air
circulation. (The illustrated figure is
only an example and may not match
exactly with your product.)
3. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
4. Plug the refrigerator into the wall
outlet. When the door is open the
respective interior light will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.

EN
9
Electric connection
Connect your refrigerator to a
grounded socket which is being
protected by a fuse with the
appropriate capacity.
Important:
BThe connection must be in
compliance with national regulations.
BThe power cable plug must be easily
accessible after installation.
BThe specified voltage must be equal
to your mains voltage.
BExtension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BA faulty appliance must not be
operated until it is repaired! There is
danger of electric shock!
BWarning against electric voltage.
Disposing of the packaging
AThe packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
AYou may consult your authorised
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
ABefore disposing of your refrigerator,
cut off the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.

EN
10
Placing and Installation
ACaution: Never plug the refrigerator
into the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
AIf the entrance door of the room
where the refrigerator will be installed
is not wide enough for the refrigerator
to pass through, then carefully remove
the doors of your refrigerator and pass
it sideways through the door.
1. Install your refrigerator to a place
that allows ease of use.
2. Keep your refrigerator away from
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall.
If the floor is covered with a carpet,
your product must be elevated 2.5 cm
from the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.
Floor balance adjustment
AIf your refrigerator is unbalanced;
1- Ventilation cover is removed by
unscrewing its screws as illustrated
in the figure before the procedure.
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly tilt the refrigerator will facilitate
this process.
2. After the balance issue is remedied,
install back the ventilation cover and
fasten the screws.
D
A B C
3. Remove the screws fastening the
lower ventilation cover using a Phillips
screwdriver.

EN
11
Adjusting the gap between
the upper door
CYou can adjust the gap between
the fridge compartment doors as
illustrated in the figures.
Door shelves should be empty when
adjusting the door height.
C Using a screwdriver, remove the
screw of upper hinge cover of the door
you want to adjust.
C Adjust the door by loosening the
screws.
C Fix the door you have adjusted by
tightening the screws without changing
the position of the door.
C Replace the hinge cover and fix
with the screw.
Screw center

EN
12
4Preparation
• Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, radiators and
stoves and at least 5 cm away from
electrical ovens and should not be
located under direct sunlight.
• The ambient temperature of the room
• where you install your refrigerator
should at least be 5°C.
• The refrigerator will operate under
colder conditions (to -5C) but is not
recommended with regard to its
efficiency.
• Please make sure that the interior
of your refrigerator is cleaned
thoroughly.
• If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
• When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it.
• Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.

EN
13
1 7 3
45*62
5Using your refrigerator
Indicator Panel
Indicator panel aids in using your refrigerator with its audio and visual functions.
1. Freezer Compartment Temperature
Indicator
2. Error Status Indicator
3. Fridge Compartment Temperature
Indicator
4. Fridge Compartment Temperature
Setting Button
5. Economy Mode Indicator
6. Ioniser Indicator
7. Freezer Compartment Temperature
Setting Button
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

EN
14
1. Freezer Compartment
Temperature Indicator
It indicates the temperature set for
Freezer Compartment.
2. Error Status Indicator
If your refrigerator does not cool
adequately or if there is a sensor
failure, this indicator will be activated.
When this indicator is active,
Freezer Compartment Temperature
indicator will display "e" and Fridge
Compartment Temperature Indicator
will display numbers such as "1, 2,
3…". These numbers on the indicator
provides information about the error to
the service personnel.
3. Fridge Compartment
Temperature Indicator
Indicates the temperature set for
Fridge Compartment.
4. Fridge Compartment
Temperature Setting Button
Press this button to set the
temperature of the fridge
compartment to 8, 6, 4, 2, 8...
respectively.Press this button to set
the desired temperature for the Fridge
Compartment.
5. Economy Mode Indicator
Indicates that the refrigerator is running
in energy-efficient mode.
6. Ioniser Indicator
Indicator light lights up continuously.
This light indicates that your
refrigerator is protecting against
bacteria.
7. Freezer Compartment
Temperature Setting Button
Press this button to set the
temperature of the freezer
compartment to -18, -20, -22, -24,
-18... respectively. Press this button
to set the desired temperature for the
Freezer Compartment.
Egg tray
You can install the egg holder to the
desired door or body shelf.
Never store the egg holder in the
freezer compartment
Sliding Body Shelves
Sliding body shelves can be pulled
by slightly lifting up from the front and
moved back and forth. They come to
a stop point when pulled towards front
to allow you reach the foods placed at
the back of the shelf; when it is pulled
after slightly lifted upwards at the
second stop point, the body shelf will
be released.
The shelf should be held tightly from
the bottom as well in order to prevent
it from tipping over. The body shelf is
placed on the rails at the sides of the
refrigerator body by bringing it to one
lower or one upper level.
The body shelf should be pushed
backwards to seat it completely.
1
2
3
4

EN
15
Chiller compartment
Chiller compartments enable the
foods to be frozen become ready
for freezing. You can also use these
compartments to store your food at a
temperature a few degrees below the
fridge compartment.
You can increase the inner volume of
your refrigerator by removing any of
the chiller compartments. To do this,
pull the compartment towards yourself;
the compartment will lean against the
stopper and stop. This compartment
will be released when you lift it about 1
cm and pull it towards yourself.
Dual cooling system:
Your refrigerator is equipped with
two separate cooling systems to
cool the fresh food compartment
and freezer compartment. Thus, air
in the fresh food compartment and
freezer compartment do not get
mixed. Thanks to these two separate
cooling systems, cooling speed is
much higher then other refrigerators.
Odours in the compartments do not
get mixed. Also additional power
saving is provided since the defrosting
is performed individually.
Door Open Warning
An audio warning signal will be given
when the door of your product is
left open for at least 1 minute. This
warning will be muted when the door
is closed or any of the display buttons
(if any) are pressed.

EN
16
Freezer Compartment
Adjustment
Fridge
Compartment
Adjustment
Explanations
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C 4°C These settings are recommended when the ambient
temperature exceeds 30°C.
Quick Freeze 4°C
Use when you wish to freeze your food in a short
time. Your refrigerator will return to its previous mode
when the process is over.
-18°C or colder 2°C
If you think that your fridge compartment is not cold
enough because of the hot conditions or frequent
opening and closing of the door.
-18°C or colder Quick Fridge
You can use it when your fridge compartment is
overloaded or if you wish to cool down your food
rapidly. It is recommended that you activate quick
fridge function 4-8 hours before placing the food.
Freezing fresh food
• Itmustbepreferredtowraporcover
the food before placing them in the
refrigerator.
• Hotfoodmustcooldowntothe
room temperature before putting
them in the refrigerator.
• Thefoodstuffthatyouwanttofreeze
must be fresh and in good quality.
• Foodstuffmustbedividedinto
portions according to the family’s
daily or meal based consumption
needs.
• Thefoodstuffmustbepackagedin
an airtight manner to prevent them
from drying even if they are going to
be kept for a short time.
• Materialstobeusedforpackaging
must be tear-proof and resistant to
cold, humidity, odor, oils and acids
and they must also be airtight.
Moreover, they must be well closed
and they must be made from easy-
to-use materials that are suitable for
deep freeze usage.
• Frozenfoodmustbeused
immediately after they are thawed
and they should never be re-frozen.
• Pleaseobservethefollowing
instructions to obtain the best results.
1. Do not freeze too large quantities
of food at one time. The quality of
the food is best preserved when it
is frozen right through to the core as
quickly as possible.
2. Placing warm food into the freezer
compartment causes the cooling
system to operate longer and is not
recommended.
3. Take special care not to mix already
frozen food and fresh food.
Recommendations for
preservation of frozen food
• Prepackedcommerciallyfrozen
food should be stored in accordance
with the frozen food manufacturer's
instructions for a ( 4 star)
frozen food storage compartment.
• Toensurethatthehighquality
achieved by the frozen food
manufacturer and the food retailer is
maintained, the following should be
remembered:
1. Put packages in the freezer as quickly
as possible after purchase.
2. Ensure that contents are labelled and
dated.
3. Do not exceed "Use By", "Best
Before" dates on the packaging.

EN
17
Defrosting
The freezer compartment defrosts
automatically.
Placing the food
Freezer
compartment
shelves
Various frozen food
such as meat, fish,
ice cream, vegetables
and etc.
Egg tray Eggs
Fridge
compartment
shelves
Food in covered plates
and closed containers
Fridge
compartment door
shelves
Small and packaged
food or drinks (such
as milk, fruit juice and
beer)
Crisper Vegetables and fruits
Freshzone
compartment
Delicatessen products
(cheese, butter, salami
and etc.)
Deep-freeze information
Food must be frozen as rapidly as
possible when they are put in a freezer
in order to keep them in good quality.
The TSE norm requires (according to
certain measurement conditions) the
refrigerator to freeze at least 4.5 kg of
foodstuff at 32°C ambient temperature
to -18°C or lower within 24 hours for
every 100-liters of freezer volume.
It is possible to keep the food for
a long time only at -18°C or lower
temperatures.
You can keep the freshness of food
for many months (at -18°C or lower
temperatures in the deep freeze).
WARNING! A
•Foodstuffmustbedividedinto
portions according to the family’s daily
or meal based consumption needs.
•Foodstuffmustbepackagedinan
airtight manner to prevent them from
drying even if they are going to be kept
for a short time.
Materials necessary for packaging:
•Coldresistantadhesivetape
•Selfadhesivelabel
•Rubberbands
•Pen
Materials to be used for packaging
the foodstuff must be tear-proof and
resistant to cold, humidity, odour, oils
and acids.
Foodstuff to be frozen should not be
allowed to come in contact with the
previously frozen items to prevent their
partial thawing.
Frozen food must be used immediately
after they are thawed and they should
never be re-frozen.

EN
18
1 2
3 4
5
7
6
Crisper
Crisper of your refrigerator is designed
specially to keep your vegetables
freshly without loosing their humidity.
For this purpose, cool air circulation
occurs around the crisper in general.
Remove the door shelves that align
with the crisper before removing the
crispers. You can remove the crispers
as illustrated in the figure.

EN
19
Rotating Middle Section
Rotating middle section is intended
to prevent the cold air inside your
refrigerator from escaping outside.
1- Sealing is provided when the
gaskets on the door presses on the
surface of the rotating middle section
while the fridge compartment doors
are closed.
2- Another reason that your refrigerator
is equipped with a rotating middle
section is that it increases the net
volume of the fridge compartment.
Standard middle sections occupy
some non-usable volume in the
refrigerator.
3- Rotating middle section is closed
when the left door of the fridge
compartment is closed.
4- It must not be opened manually.
It moves under the guidance of the
plastic part on the body while the door
is closed.
Blue light
Foodstuff stored in the crispers that
are enlightened with a blue light
continue their photosynthesis by
means of the wavelength effect of blue
light and helps preserve their freshness
and increase their vitamin content.
