Beko GNE60020X User manual

GNE 60020 X
Refrigerator
Kühlschrank
Réfrigérateur
Koelkast

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
This product bears the selective sorting symbol for waste electrical and
electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling

EN
2
1 The refrigerator 3
2 Important Safety
Warnings 4
Intended use ..................................... 4
General safety ................................... 4
Child safety........................................ 6
HCA Warning .................................... 6
Things to be done for energy saving .. 6
3 Installation 7
Points to be considered when re-
transporting your refrigerator ............. 7
Before operating your refrigerator ...... 7
Electric connection ............................ 8
Disposing of the packaging ............... 8
Disposing of your old refrigerator ....... 8
Placing and Installation ...................... 9
Floor balance adjustment ..................9
Adjusting the gap between the upper
door ................................................ 10
4 Preparation 11
5 Using your refrigerator 12
Indicator Panel................................. 12
Egg tray........................................... 13
Sliding Body Shelves ....................... 13
Chiller compartment ........................ 14
Door Open Warning......................... 14
Dual cooling system: ....................... 14
Freezing fresh food .......................... 15
Recommendations for preservation of
frozen food ...................................... 15
Placing the food .............................. 16
Deep-freeze information .................. 16
Crisper ............................................ 17
Movable Middle Section ................. 18
Blue light ......................................... 18
Telescopic Drawer .......................... 19
6 Maintenance and
cleaning 20
Protection of plastic surfaces .......... 20
7 Recommended solutions
for the problems 21
CONTENTS

EN
3

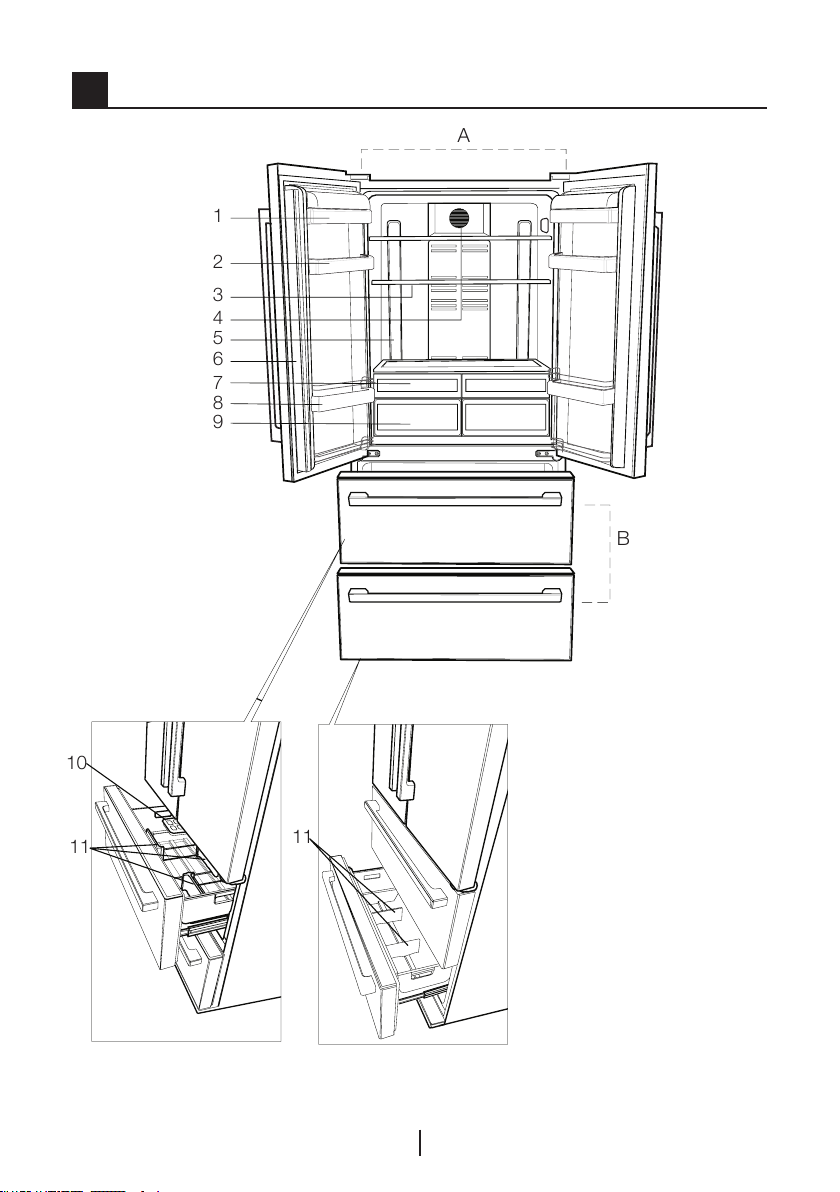

1The refrigerator
A- Fridge compartment
B- Freezer compartment
1- Butter & Cheese shelf
2- Fridge compartment door
shelves
3- Fridge compartment glass
shelves
4- Diffuser cover
5- Illumination lens
6- Movable middle section
7- Chiller compartment
8- Bottle shelf
9- Crisper
10- icebox
11- Movable separators
CFigures that take place in this instruction manual are schematic and may
not correspond exactly with your product. If the subject parts are not included in
the product you have purchased, then it is valid for other models.
2
A
B
3
4
5
6
7
8
9
1
11
11
10

EN
4
2Important Safety Warnings
Please review the following
information. If these are not followed,
personal injury or material damage
may occur. Otherwise, all warranty and
reliability commitments will become
invalid.
The usage life of the unit you
purchased is 10 years. This is the
period for keeping the spare parts
required for the unit to operate as
described.
Intended use
• This appliance is intended to be used
in household and similar applications
such as
– staff kitchen areas in shops, offices
and other working environments;
– farm houses and by clients in hotels,
motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail
applications.
• It should not be used outdoors. It is
not appropriate to use it outdoor even
if the place is covered with a roof.
General safety
• When you want to dispose/scrap
the product, we recommend you
to consult the authorized service in
order to learn the required information
and authorized bodies.
• Consult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorized services.
• Do not eat cone ice cream and ice
cubes immediately after you take
them out of the freezer compartment!
(This may cause frostbite in your
mouth.)
• Do not put bottled and canned
liquid beverages in the freezer
compartment. Otherwise, these may
burst.
• Do not touch frozen food by hand;
they may stick to your hand.
• Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes of
your refrigerator. In such cases, the
vapor might get in contact with the
electrical parts and cause short circuit
or electric shock.
• Never use the parts on your
refrigerator such as the door as a
means of support or step.
• Do not use electrical devices inside
the refrigerator.
• Do not damage the cooling circuit,
where the refrigerant is circulating,
with drilling or cutting tools. The
refrigerant that might blow out when
the gas channels of the evaporator,
pipe extensions or surface coatings
are punctured may cause skin
irritations and eye injuries.
• Do not cover or block the ventilation
holes on your refrigerator with any
material.
• Repairs of the electrical appliances
must only be made by qualified
persons. Repairs performed by
incompetent persons may create a
risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the
relevant fuse or unplugging your
appliance.

EN
5
• Do not pull by the cable when pulling
off the plug.
• Place the beverage with higher proofs
tightly closed and vertically.
• Do not store explosive substances
such as aerosol cans with a
flammable propellant in this
appliance.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, others than those
recommended by the manufacturer.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Do not operate a damaged
refrigerator. Consult your service if
you have any doubts.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
• Contact the authorized service when
there is a power cable damage and
etc. so that it will not create a danger
for you.
• Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
• This refrigerator is designed solely for
storing food. It should not be used for
any other purposes.
• The label that describes the technical
specification of the product is
located on the inner left part of the
refrigerator.
• Do not hook up the refrigerator to
electronic energy saving systems as it
may damage the product.
• If the refrigerator has blue light do not
look at the blue light through optical
devices.
• If the power supply is disconnected
in manually controlled refrigerators
please wait for at least 5 minutes
before reconnecting the power.
• This product manual should be
passed to the next owner of the
refrigerator if the owner changes.
• When moving the refrigerator make
sure that you do not damage the
power cord. In order to prevent
fire the power cord should not be
twisted. Heavy objects should not
be placed on the power cord. When
the refrigerator is being plugged do
not handle the power outlet with wet
hands.
• Do not plug the refrigerator if the
electric outlet is loose.
• Do not splash water directly on the
outer or inner parts of the refrigerator
due to safety.
• Do not spray inflammable materials
such as propane gas etc near
refrigerator due to the risk of fire and
explosion.
• Do not place objects filled with water
on top of the refrigerator as it may
result in electric shock or fire.
• Do not overload the refrigerator with
excess food. The excess food may
fall when the door is opened resulting
in injuring you or damaging the
refrigerator. Do not place objects on

EN
6
top of the refrigerator as the objects
may fall when opening or closing the
refrigerator door.
• Materials that require certain
temperature conditions such as
vaccine, temperature sensitive
medicines, scientific materials etc
should not be kept in refrigerator.
• If refrigerator will not be operated for
an extended period of time it should
be unplugged. A problem in electrical
cable insulation may result in fire.
• The tip of the electric plug should be
cleaned regularly otherwise it may
cause fire.
• The refrigerator may move when the
adjustable feet is not positioned firmly
on the floor. Using the adjustable feet
you can unsure that the refrigerator is
positioned firmly on the floor.
• If the refrigerator has door handle
do not pull the refrigerator via door
handles when moving the product as
it may disconnect the handle from the
refrigerator.
• If you must operate your appliance
adjacent to another refrigerator or
freezer, the distance between the
appliances must be at least 8 cm.
Otherwise condensation may occur
on the side walls facing each other.
• Water mains pressure must not be
below 1 bar. Water mains pressure
must not be above 8 bars.
• Use only drinkable potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children should be supervised to
ensure that they do not play with the
appliance
HCA Warning
If your product is equipped with
a cooling system that contains
R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore the warning if your product
is equipped with a cooling system
that contains R134a.
You can see the gas used in
production of your product on the
rating plate that is located on the left
inner part of it.
Never dispose the product in fire.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators.
• Pay attention to keep your food in
closed containers.
• Maximum amount of food can be
put in your refrigerator’s freezer
compartment when the freezer
compartment shelf or drawer
is removed.Declared energy
consumption value of your refrigerator
was determined when the freezer
compartment shelf or drawer was
removed and under maximum
amount of food load.There is no risk
in using a shelf or drawer according
to the shapes and sizes of the foods
to be frozen.

EN
7
3Installation
CPlease remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
CAlways remember...
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?
2. You can install the 2 plastic wedges
as illustrated in the figure. Plastic
wedges will provide the required
distance between your refrigerator
and the wall in order to allow the air
circulation. (The illustrated figure is
only an example and does not match
exactly with your product.)
3. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
4. Plug the refrigerator into the wall
outlet. When the door is open the
respective interior light will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.

EN
8
Electric connection
Connect your refrigerator to a
grounded socket which is being
protected by a fuse with the
appropriate capacity.
Important:
BThe connection must be in
compliance with national regulations.
BThe power cable plug must be easily
accessible after installation.
BThe specified voltage must be equal
to your mains voltage.
BExtension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BThe appliance must not be operated
before it is repaired! There is danger
of electric shock!
BWarning against electric voltage.
Disposing of the packaging
AThe packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
AYou may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
A Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.

EN
9
Placing and Installation
ACaution: Never plug the refrigerator
into the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, than call the authorized
service to have them remove the
doors of your refrigerator and pass it
sideways through the door.
1. Install your refrigerator to a place
that allows ease of use.
2. Keep your refrigerator away from
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall.
If the floor is covered with a carpet,
your product must be elevated 2.5 cm
from the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.
5. Do not keep your refrigerator in
ambient temperatures under 10°C.
Floor balance adjustment
AIf your refrigerator is unbalanced;
1- Ventilation cover is removed by
unscrewing its screws as illustrated
in the figure before the procedure.
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.
2. After the balance issue is remedied,
install back the ventilation cover and
fasten the screws.
D
A B C
3. Remove the screws fastening the
lower ventilation cover using a Philips
screwdriver.

EN
10
Adjusting the gap between
the upper door
CYou can adjust the gap between
the fridge compartment doors as
illustrated in the figures.
Door shelves should be empty when
adjusting the door height.
C Using a screwdriver, remove the
screw of upper hinge cover of the door
you want to adjust.
C Adjust the door appropriately as
you desire by loosing the screws.
C Fix the door you have adjusted by
tightening the screws without changing
the position of the door.
C Replace the hinge cover and fix
with the screw.
Screw center

EN
11
4Preparation
CYour refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for
the problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.

EN
12
1 *2 3
45*67
5Using your refrigerator
Indicator Panel
Indicator panel aids in using your refrigerator with its audio and visual functions.
1. Freezer Compartment Temperature
Indicator
2. Error Status Indicator
3. Fridge Compartment Temperature
Indicator
4. Fridge Compartment Temperature
Setting Button
5. Economy Mode Indicator
6. Ioniser Indicator
7. Freezer Compartment Temperature
Setting Button
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

EN
13
1. Freezer Compartment
Temperature Indicator
It indicates the temperature set for
Freezer Compartment.
2. Error Status Indicator
If your refrigerator does not cool
adequately or if there is a sensor
failure, this indicator will be activated.
When this indicator is active,
Freezer Compartment Temperature
indicator will display "e" and Fridge
Compartment Temperature Indicator
will display numbers such as "1, 2,
3…". These numbers on the indicator
provides information about the error to
the service personnel.
3. Fridge Compartment
Temperature Indicator
Indicates the temperature set for
Fridge Compartment.
4. Fridge Compartment
Temperature Setting Button
Press this button to set the
temperature of the fridge
compartment to 8, 6, 4, 2, 8...
respectively.Press this button to set
the desired temperature for the Fridge
Compartment.
5. Economy Mode Indicator
Indicates that the refrigerator is running
in energy-efficient mode.
6. Ioniser Indicator
Indicator light lights up continuously.
This light indicates that your
refrigerator is protected against the
bacteria.
7. Freezer Compartment
Temperature Setting Button
Press this button to set the
temperature of the freezer
compartment to -18, -20, -22, -24,
-18... respectively. Press this utton
to set the desired temperature for the
Freezer Compartment.
Egg tray
You can install the egg holder to the
desired door or body shelf.
Never store the egg holder in the
freezer compartment
Sliding Body Shelves
Sliding body shelves can be pulled
by slightly lifting up from the front and
moved back and forth. They come to
a stop point when pulled towards front
to allow you reach the foods placed at
the back of the shelf; when it is pulled
after slightly lifted upwards at the
second stop point, the body shelf will
be released.
The shelf should be hold tightly from
the bottom as well in order to prevent
it from tipping over. The body shelf is
placed on the rails at the sides of the
refrigerator body by bringing it to one
lower or one upper level.
The body shelf should be pushed
backwards to seat it completely.
1
2
3
4

EN
14
Chiller compartment
Chiller compartments enable the
foods to be frozen become ready
for freezing. You can also use these
compartments to store your food at a
temperature a few degrees below the
fridge compartment.
You can increase the inner volume of
your refrigerator by removing any of
the chiller compartments. To do this,
pull the compartment towards yourself;
the compartment will lean against the
stopper and stop. This compartment
will be released when you lift it about 1
cm and pull it towards yourself.
Dual cooling system:
Your refrigerator is equipped with
two separate cooling systems to
cool the fresh food compartment
and freezer compartment. Thus, air
in the fresh food compartment and
freezer compartment do not get
mixed. Thanks to these two separate
cooling systems, cooling speed is
much higher then other refrigerators.
Odours in the compartments do not
get mixed. Also additional power
saving is provided since the defrosting
is performed individually.
Door Open Warning
An audio warning will be given when
the fridge or freezer compartment
door of your product is left open for
a certain period of time. This audio
warning signal will mute when any
button on the indicator is pressed or
when the door is closed.

EN
15
Freezer Compartment
Adjustment
Fridge
Compartment
Adjustment
Explanations
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C 4°C These settings are recommended when the ambient
temperature exceeds 30°C.
Quick Freeze 4°C
Use when you wish to freeze your food in a short
time. Your refrigerator will return to its previous mode
when the process is over.
-18°C or colder 2°C
If you think that your fridge compartment is not cold
enough because of the hot conditions or frequent
opening and closing of the door.
-18°C or colder Quick Fridge
You can use it when your fridge compartment is
overloaded or if you wish to cool down your food
rapidly. It is recommended that you activate quick
fridge function 4-8 hours before placing the food.
Freezing fresh food
• It must be preferred to wrap or cover
the food before placing them in the
refrigerator.
• Hot food must cool down to the
room temperature before putting
them in the refrigerator.
• The foodstuff that you want to freeze
must be fresh and in good quality.
• Foodstuff must be divided into
portions according to the family’s
daily or meal based consumption
needs.
• The foodstuff must be packaged in
an airtight manner to prevent them
from drying even if they are going to
be kept for a short time.
• Materials to be used for packaging
must be tear-proof and resistant to
cold, humidity, odor, oils and acids
and they must also be airtight.
Moreover, they must be well closed
and they must be made from easy-
to-use materials that are suitable for
deep freeze usage.
• Frozen food must be used
immediately after they are thawed
and they should never be re-frozen.
• Please observe the following
instructions to obtain the best results.
1. Do not freeze too large quantities
of food at one time. The quality of
the food is best preserved when it
is frozen right through to the core as
quickly as possible.
2. Placing warm food into the freezer
compartment causes the cooling
system to operate continuously until
the food is frozen solid.
3. Take special care not to mix already
frozen food and fresh food.
Recommendations for
preservation of frozen food
• Prepacked commercially frozen
food should be stored in accordance
with the frozen food manufacturer's
instructions for a ( 4 star)
frozen food storage compartment.
• To ensure that the high quality
achieved by the frozen food
manufacturer and the food retailer is
maintained, the following should be
remembered:
1. Put packages in the freezer as quickly
as possible after purchase.
2. Ensure that contents are labeled and
dated.
3. Do not exceed "Use By", "Best
Before" dates on the packaging.

EN
16
Defrosting
The freezer compartment defrosts
automatically.
Placing the food
Freezer
compartment
shelves
Various frozen food
such as meat, fish,
ice cream, vegetables
and etc.
Egg tray Egg
Fridge
compartment
shelves
Food in pans, covered
plates and closed
containers
Fridge
compartment door
shelves
Small and packaged
food or drinks (such
as milk, fruit juice and
beer)
Crisper Vegetables and fruits
Freshzone
compartment
Delicatessen products
(cheese, butter, salami
and etc.)
Deep-freeze information
Food must be frozen as rapidly as
possible when they are put in a
refrigerator in order to keep them in
good quality.
The TSE norm requires (according to
certain measurement conditions) the
refrigerator to freeze at least 4.5 kg of
foodstuff at 32°C ambient temperature
to -18°C or lower within 24 hours for
every 100-liters of freezer volume.
It is possible to keep the food for
a long time only at -18°C or lower
temperatures.
You can keep the freshness of food
for many months (at -18°C or lower
temperatures in the deep freeze).
WARNING! A
• Foodstuff must be divided into
portions according to the family’s daily
or meal based consumption needs.
• Foodstuff must be packaged in an
airtight manner to prevent them from
drying even if they are going to be kept
for a short time.
Materials necessary for packaging:
• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen
Materials to be used for packaging
the foodstuff must be tear-proof and
resistant to cold, humidity, odor, oils
and acids.
Foodstuff to be frozen should not be
allowed to come in contact with the
previously frozen items to prevent their
partial thawing.
Frozen food must be used immediately
after they are thawed and they should
never be re-frozen.

EN
17
1 2
3 4
5
7
6
Crisper

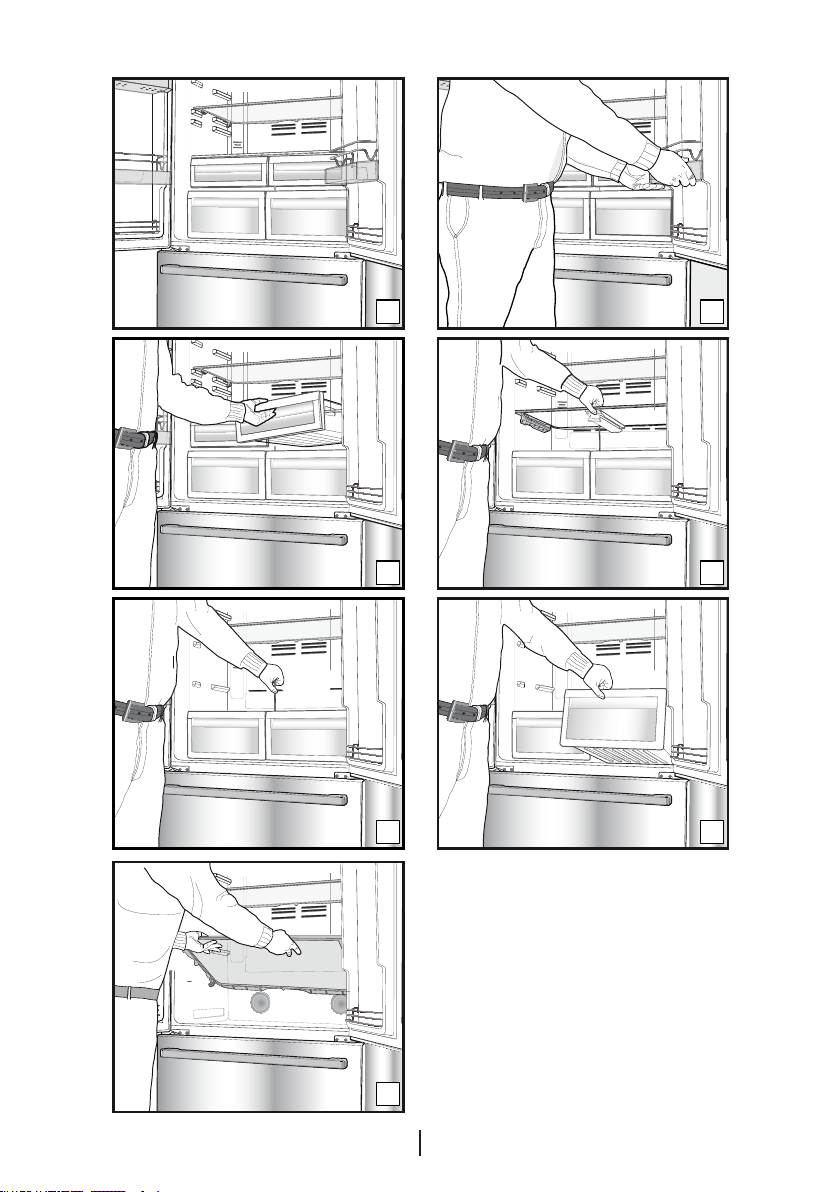

Crisper of your refrigerator is designed
specially to keep your vegetables
freshly without loosing their humidity.
For this purpose, cool air circulation
occurs around the crisper in general.
Remove the door shelves that align
with the crisper before removing the
crispers. You can remove the crispers
as illustrated in the figure.

EN
18
Movable Middle Section
Movable middle section is intended
to prevent the cold air inside your
refrigerator from escaping outside.
1- Sealing is provided when the
gaskets on the door presses on the
surface of the movable middle section
while the fridge compartment doors
are closed.
2- Another reason that your refrigerator
is equipped with a movable middle
section is that it increases the net
volume of the fridge compartment.
Standard middle sections occupy
some non-usable volume in the
refrigerator.
3- Movable middle section is closed
when the left door of the fridge
compartment is closed.
4- It must not be opened manually.
It moves under the guidance of the
plastic part on the body while the door
is closed.
Blue light
Foodstuff stored in the crispers that
are enlightened with a blue light
continue their photosynthesis by
means of the wavelength effect of blue
light and thus, preserve their freshness
and increase their vitamin content.

EN
19
Telescopic Drawer
Pay attention not to squeeze any parts
of your body such as hands, feet and
etc. between the movable parts while
the drawer is in use in order to avoid
any injury.
You can remove the partition in the
drawer as illustrated when you want to
clean it.
You can remove the drawers only for
cleaning. It is not possible to group
the drawers in their places after
loading them with food when they are
removed.
