Beko HSA29520 User manual

HSA29520
GB
Instruction for use
IT Istruzioni per l'uso
NL
Gebruiksaanwijzing
SK Návod na používanie
CZ Návod k použití

WARNING!
In order to ensure a normal operation of your refrigerating appliance, which uses a completely
environmentally friendly refrigerant the R 600a (flammable only under certain conditions) you must
observe the folloving rules:
Do not hinder the free circulation of the air around the appliance.
Do not use mechanic devices in order to accelerate the defrosting, others than the ones
recommended by the manufacturer.
Do not destroy the refrigerating circuit.
Do not use electric appliances inside the food beeping compartment, others than those that might
have been reccommended by the manufacturer.
AVVERTENZA!
Per garantire il funzionamento adeguato dell'elettrodomestico, che utilizza il refrigerante R 600a
completamente adatto all'ambiente (infiammabile solo in determinate condizioni), è necessario attenersi alle
seguenti regole:
Non ostacolare la libera circolazione dell'aria attorno all'elettrodomestico.
Per accelerare lo sbrinamento non utilizzare dispositivi meccanici diversi da quelli consigliati dal produttore.
Non danneggiare il circuito refrigerante.
Non utilizzare all'interno del comparto del cibo elettrodomestici diversi da quelli consigliati dal produttore.
WAARSCHUWING!
U moet de volgende regels in acht nemen om de normale werking van uw koelkast, die het volledig
milieuvriendelijke koelmiddel R 600a gebruikt, te verzekeren:
Hinder de vrije luchtcirculatie rond het toestel niet.
Gebruik geen andere mechanische toestellen om het ontdooien te versnellen dan de toestellen die
door de fabrikant worden aangeraden.
Vernietig het koelcircuit niet.
Gebruik geen andere elektrische toestellen in de bewaarlade voor etenswaren dan de toestellen die
eventueel door de fabrikant worden aangeraden.
VAROVANIE!
Aby sa zabezpečila normálna prevádzka vašej chladničky, ktorá používa úplne ekologické chladivo R
600a (horľavé len pri určitých podmienkach), musíte dodržiavaťnasledujúce pravidlá:
Nebráňte voľnej cirkulácii vzduchu okolo spotrebiča.
Nepoužívajte mechanické prístroje na urýchľovanie rozmrazovacieho procesu, iné ako odporúča
výrobca.
Neporušujte chladiaci okruh.
Nepoužívajte elektrické spotrebiče vo vnútri priestoru na skladovanie potravín, okrem tých, ktoré
odporúča výrobca.
UPOZORNĚNÍ!
Pro zajištění normálního provozu chladicího spotřebiče, který používá zcela ekologické chladivo R
600a (hořlavé pouze za určitých podmínek), je třeba dodržet následující pravidla:
Nezabraňujte volné cirkulaci vzduchu v okolí spotřebiče.
Nepoužívejte jiné mechanické prostředky pro urychlení odmrazování, než doporučuje výrobce.
Nepoškoďte chladicí okruh.
Nepoužívejte jiné elektrické spotřebiče uvnitřpotravinového oddělení se signalizací, než doporučuje
výrobce.

GB
Content
Advice for recycling of the old appliance /1
Packing Recycling /2
Transport instructions /2
Warnings and special advice /2
Setting up /3
Electric connection /3
Switching off /4
Appliance descrip
tion /4
Freezer operation /4
Advice for food conservation /5
Use of baskets /5
Defrosting of the appliance /6
Cleaning of the appliance /6
Replacing the interior light bulb /6
Defects finding guide /7
Appliance data sheet /7
Consigli per il riciclaggio del vecchio
elettrodomestico /8
Riciclaggio dell'imballo /9
Istruzioni per il trasporto /9
Avvisi e consigli specifici /9
Installazione /10
Collegamento elettronico /10
Spegnimento /11
Descrizione elettrodomestico /11
Funzionamento freezer /11
Consigli per la conservazione del cibo /12
Uso dei cestelli /12
Sbrinamento dell'elettrodomestico /13
Pulizia dell'elettrodomestico /13
Sostituzione della lampadina interna /13
Guida per l'individuazione di difetti /14
Dati dell'elettrodomestico /14
Advies voor
het recycleren van het oude toestel /15
Recycleren van de verpakking /16
Transportinstructies /16
Waarschuwingen en speciaal advies /16
Installatie /17
Elektrische aansluiting /17
Uitschakelen /18
Beschrijving van toepassing /18
Invriezen /18
Advies voor
voedselbewaring /19
Gebruik van manden /19
Ontdooien van het apparaat /20
Reinigen van het apparaat /20
Het binnenlichtje vervangen /20
Probleemoplossing /21
Apparaatgegevensblad /21
NL
Inhoud
IT
Indice
Rada pre recyklovanie starého zariadenia /22
Recyklovanie balenia /23
Pokyny pre prepravu /23
Varovania a všeobecné rady /23
Nastavenie /24
Zapojenie do siete /24
Vypínanie /24
Opis zariadenia /25
Používanie /25
Rada pre uchovanie jedla /25
Odmrazovanie zariadenia /26
Čistenie zariadenia /26
Výmena žiarovky vnútorného osvetlenia /27
Príručka odstraňovania závad /27
Údaje o zariadení /28
Recyklace starého spotřebiče /29
Recyklace obalu /30
Přepravní pokyny /30
Upozornění a zvláštní rady /30
Nastavení /31
Elektrické zapojení /31
Vypnutí /32
Popis spotřebiče /32
Provoz mrazničky /32
Uchovávání potravin /33
Použití košíků/33
Odmrazování /34
Čištění spotřebiče /34
Výměna vnitřní žárovky /34
Odstraňování závad /35
Datový list spotřebiče /36
SK
Obsag
CZ
Obsag

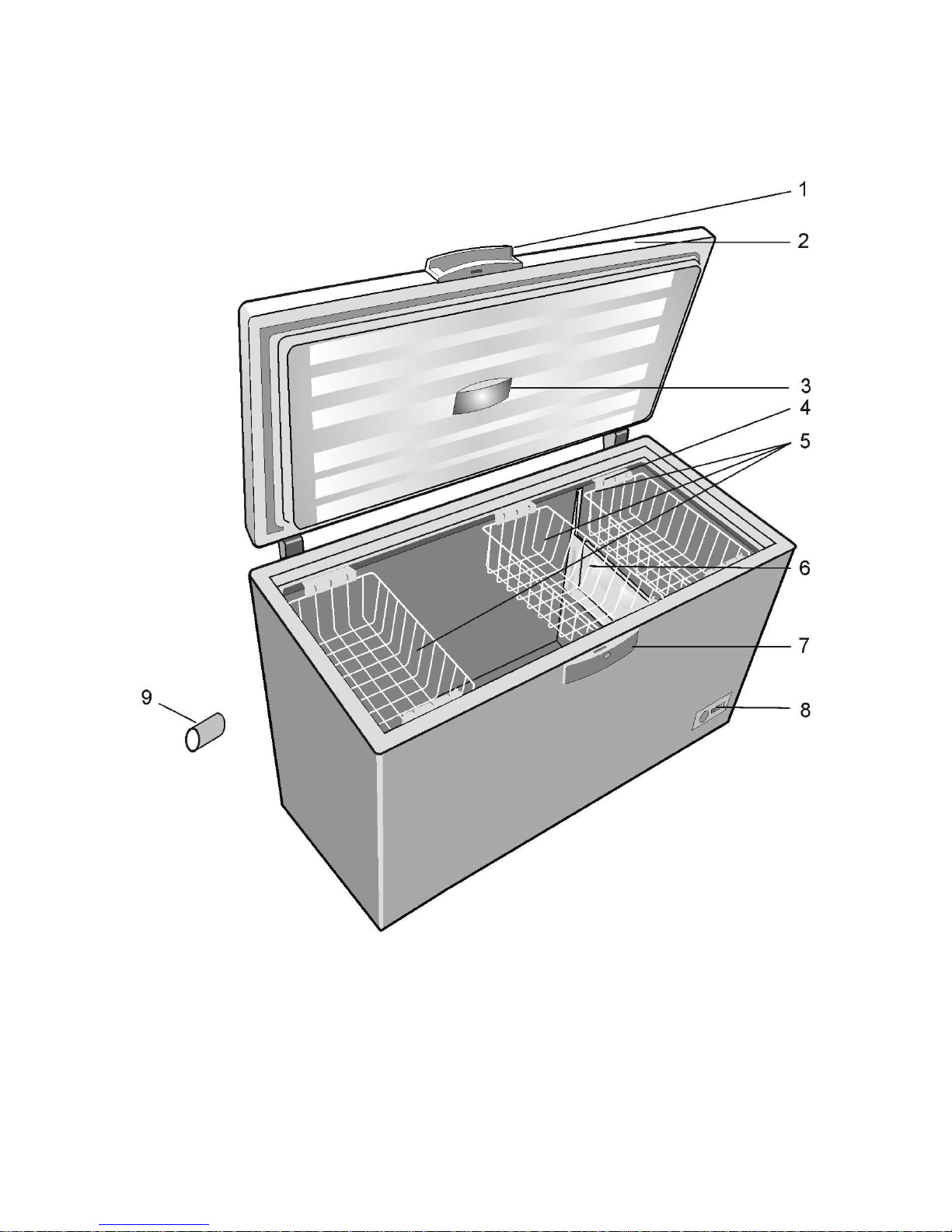

1

2
3
4
8
5
7
6

Congratulations for your choice!
The chest freezer you have purchased is one in the BEKO
products range and represents a harmonious joinng between
the refrigeration technique with the aestetical outlook. It has a
new and attractive design and is built according to the
European and national standards which guarantee its operation
and safety features. At the same time, the used refrigerant,
R600a, is environment-friendly and it does not affect the ozone
layer.
In order to use the best your freezer, we advise you to read
carefully the information in these user instructions.
Advice for recycling your old appliance
If your newly purchased appliance replaces an older appliance,
you must consider a few aspects.
The old appliances are not valueless scrap. Their disposal,
while preserving the environment, allows the recovery of
important raw materials.
Make your old appliance useless :
- disconnect the appliance from the supply;
- remove the supply cord (cut it);
- remove the eventual locks on the door to avoid the blocking of
children inside, while playing, and the endangering of their lives.
The refrigerating apliances contain insulating materials and
refrigerants which require a proper recycling.
1
GB Instruction for use
This appliance is not intended for use by person wi
th reduced physical, sensory or mental
capabilities or lack of experience and knowledge unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Packing Recycling
WARNING!
Do not allow children to play with the
packing or with parts of it. There is the risk
of suffocation with parts of corrugated
cardboard and with plastic film.
In order to get to you in good condition, the
appliance was protected with a suitable
packing. All the materials of the packing are
compatible with the environment and
recyclable. Please help us recycle the packing
while protecting the environment !
IMPORTANT!
Before putting the appliance in operation, read
carefully and entirely these instructions. They
contain important information concerning the
setting up, use and maintenance of the
apliance.
The manufacturer is free of any responsibility if
the information in this document are not
observed. Keep the instructions in a safe place
in order to reach them easily in case of need.
They can also be useful subsequently by
another user.
ATTENTION!
This appliance must be used only for its
intended purpose, (household use), in
suitable areas, far from rain, moisture or
other weather conditions.
Transport instructions
The appliance must be transported, as much
as possible, only in vertical position. The
packing must be in perfect condition during
transport.
If during transport the appliance was put in
horisontal position (only according to the
markings on the packing), it is advised that,
before putting it into operation, the appliance
is left to rest for 12 hours in order to allow the
settling of the refrigerating circuit.
The failure to to observe these instructions
can cause the breakdown of the
motorcompressor and the cancellation of its
warranty.
Warnings and general advice
Do not plug in the ap
pliance if you noticed a
failure.
The repairs must be done only by qualified
personel.
In the following situations please unplug the
appliance from the mains:
- when you defrost completely the appliance;
- when you clean the appliance.
To unplug the appliance, pull by the plug,
not by the cable!
Ensure the minimum space between the
appliance and the wall against which it is
placed.
Do not climb on the appliance.
Do not allow the children to play or hide
inside the appliance.
Never use electric appliances inside the
freezer, for defrosting.
Do not use the appliance near heating
appliances, cookers or other sources of heat
and fire.
Do not leave the freezer door open more
than it is necessary to put in or take out the
food.
Do not leave the food in the ap
pliance if it is
not working.
Do not keep inside products containing
flammable or explosive gases.
Do not keep inside fizzy drinks (juice,
mineral water, champagne, etc.) in the
freezer: the bottle can explode! Do not freeze
drinks in plastic bottles.
Do not eat ice cubes or icecream
immediately after having taken them out of the
freezer because they may cause „freezer
burns”.
Never touch cold metal parts or frozen food
with wet hands because your hands can
quickly freeze on the very cold surfaces.
2
GB Instruction for use

If you do not use your appliance for a few
days, it is not advisable to switch it off. If you
do not use it for a longer period, please
proceed as follows :
- unplug the appliance;
- empty the freezer;
- defrost it and clean it;
-
leave the door open to avoid the formation of
unpleasant smells.
The supply cord can be replaced only by
an authorised person.
If your appliance has a lock, keep it locked
and store the key in a safe place, out of the
reach of children. If you are discarding an
appliance with lock, make sure that, is made
ineffective. This is very important so as to
avoid children being trapped inside, which
may cause their loss of life.
Setting up
This appliance was designed to operate at an
ambient temperature between +10
0
C and
+43
0
C (SN/T class). If the ambient
temperature is above +43
0
C, inside the
appliance the temperature can increase.
Set up the appliance far from any source of
heat and fire. Placing it in a warm room, the
direct exposure to sunbeams or near a heat
source (heaters, cookers, ovens), will
increase the energy consumption and shorten
the product life.
• Please observe the following minimun
distances:
• 100 cm from the cookers working with
coal or oil;
• 150 cm from the electric and gas
cookers.
• Ensure the free circulation of the air around
the appliance, by observing the distances
shown in Item 2.
Assemble on the condenser (in the rear side)
the supplied spacers. (Item 3).
• Place the appliance in a perfectly even, dry
and well ventilated place.
Assemble the supplied accessories.
Electric connection
Your appliance is intended to operate at a
single-phase voltage of 230V/50 Hz. Before
plugging in the appliance, please make sure
that the parameters of the mains in your house
(voltage, currect type, frequency) complyto the
operation parameters of the appliance.
• The information concerningthe supply voltage
and the absorbed power is given on the marking
label placed in the back side of the freezer.
• The electric installation must comply with
the law requirements.
• The earthing of the appliance is
compulsory. The manufacturer has no
responsibility for any damage to persons,
animals or goods which may arise from
the failure to observe the specified
conditions.
• The appliance is endowed with a supply
cord and a plug (European type, marked
10/16A) with double earthing contact for
safety. If the socket is not the same type with
the plug, please ask a specialised electrician
to change it.
•
Do not use extension pieces or multiple
adapters.
3
GB Instruction for use

Switching off
The switching off must be possible by taking
the plug out of the socket or by means of a
mains two-poles switch placed before the
socket.
Operation
Before putting into operation, clean the inside
of the appliance (see chapter „Cleaning").
After finishing this operation please plug
in the appliance, adjust the thermostat
knob to an average position
. The green and
red LEDs in the signalling block must light.
Leave the appliance work for about 2
hours without putting food inside it.
The freezing of the fresh food is possible
after min. 20 hours of operation.
Appliance description
(Item. 1)
1. Door handle
2. Door
3. Lamp housing
4. Basket handle
5. Baskets
6. Try
7. Lock housing
8. Thermostat box
9. Spacer for transport
Freezer operation
Temperature adjustment
The temperature of the freezer is adjusted by
means of the knob assembled on the
thermostat (item. 4), position „MAX” being the
lowest temperature.
The achieved temperatures can vary
according to the conditions of use of the
appliance, such as: place of the appliance,
ambient temperature, frequency of door
opening, extent of filling with food of the
freezer. The position of the thermostat knob
will change according to these factors.
Normally, for an ambient temperature of
approx. 43
0
C, the thermostat will be adjusted
on an average position.
The signalling system is placed on the front
side of the freezer (Item 5).
It includes:
1. Thermostat adjustment knob – the inside
temperature is adjusted.
2. green LED – shows that the appliance is
supplied with electric energy.
3. red LED – damage – lights if the
temperature in the freezer is too high. The
LED will operate 15-45 minutes after the
putting into operation of the freezer, then it
must go off. If the LED goes on during the
operation, this means that defects have
occurred.
4. Orange button– fast freeze – by pushing it
the orange led goes on, showing that the
appliance entered into the "fast freeze"
mode . The exit of this mode is done by
pushing the button again, and the orange
led goes off.
The three LEDs give information about the
mode of operation of the freezer.
4
GB Instruction for use

Advice for food conservation
The freezer is intended to keep the frozen
food fo
r a long time, as well as to freeze fresh
food.
One of the main elements for a successful
food freezing is the packing.
The main conditions that the packing must
fulfill are the following: to be airtight, to be
inert towards the packed food, to resist to low
temperatures, to be proof to liquids, grease,
water vapours, smells, to be able to be
washed.
These conditions are fulfilled by the following
types of packings: plastic or aluminium film,
plastic and aliminium vessels, waxed
cardboard glasses or plastic glasses.
IMPORTANT!
- For freezing the fresh food please use the
supplied baskets of the appliance.
- Do not place into the freezer a too large
quantity of food at a time. The quality of the
food is best kept if they are deeply frozen as
quickly as possible. This is why it is advisable
not to exceed the freezing capacity of the
appliance specified in the "Appliance data
sheet" (page 7). In order to reduce the
freezing time, push the button for „fast
freeze”.
- The fresh food must not come into contact
with the food already frozen.
- The frozen food you have bought can be
placed into the freezer without having to
adjust the thermostat.
- If the freezing date is not mentioned on the
packing, please take into consideration a
period of max. 3 months, as a general guide.
-
The food, even partially defrosted, cannot be
frozen again, it must be consumed
immediately or cooked and then refrozen.
- The fizzy drinks will not be kept in the
freezer.
- In case of a power failure, do not open the
door of the a
ppliance. The frozen food will not
be affected if the failure lasts less than 67
hours.
DO NOT FORGET!
After 24 hours since the food was
placed inside, please cancel the "fast
freeze" mode by pushing again the
button 4, when the orange led goes off.
Use of baskets
The baskets can be introduced into the
appliance on the bottom of the cabinet liner
and superposed. To do so please proceed as
follows:
1. Rotate the handle 20
0
then pull the handle
in the direction shown by the arrow
(item6.1). Following this operation you get
the position of the handle as in item 6.2.
2. Rotate the handle in the direction shown
by the arrow (item 6.2) until it gets the
position in item 6.3.
3.
Fasten the handle on the wire by moving it
in the direction shown by the arrow (item
6.3).
4. Thus it is obtained the assembled basket
with the handle in the shown position to be
put inside the cabinet of the appliance
(item 6.4).
The baskets can be placed into the freezer as
follows (item 7).
5
GB Instruction for use

Defrosting of the appliance
We advise you to defrost the freezer at
least twice a year or when the ice layer has an
excessive thickness.
The ice build-
up is a normal phenomenon.
The quantity and the rapidity of ice build-
up depends on the ambient conditions and on
the frequency of the door opening.
We advise you to defrost the appliance
when the quantity of frozen food is the least.
Before defrosting, adjust the thermostat
knob to a higher position so that the food
stores more cold.
- Unplug the appliance.
- Take out the frozen food, wrap it in several
sheets of paper and put them in refrigerator or
a cool place.
Take the separator panel and put it under
the freezer in the direction of the dripping
tube. Take out the obstructing plug. The
water which results will be collected in the
special tray (separator panel). After the
melting of the ice and the run-off of the
water please wipe with
a cloth or with a
sponge, then dry well. Put the obstruction
plug back in its place. (Item. 8)
For a fast thaw please leave the door
open.
Do not use sharp metal objects to remove
the ice.
Do not use hairdryers or other electric
heating appliances for defrosting.
Inside cleaning
Before starting the cleaning, unplug the
appliance from the mains.
•
It is advisable to clean the appliance when
you defrost it.
• Wash the inside with lukewarm water
where you add some neutral detergent. Do
not use soap, detergent, gasoline or acetone
which can leave a strong odour.
•
Wipe with a wet sponge and dry with a soft
cloth.
During this operation, avoid the excess of
water, in order to prevent its entrance into the
thermal insulation of the appliance, which
would cause unpleasant odours.
Do not forget to clean also the door gasket
especially the bellow ribs, by means of a
clean cloth.
Outside cleaning
• Clean the outside of the freezer by means
of a sponge soaked in soapy warm water,
wipe with a soft cloth and dry.
• The cleaning of the outside part of the
refrigerating circuit (motorcompressor,
condenser, connection tubes) will be done
with a soft brush or with t
he vacuum-cleaner.
During this operation, please take care not to
distort the tubes or detach the cables.
Do not use scouring or abrasive materials !
• After having finished the cleaning, replace
the accessories at their places and plug in the
appliance.
Replacing the interior light bulb
If the lamp burns out, disconnect the
appliance from the mains. Take out the
lamp trim. Make sure the lamp is
screwed correctly. Plug in the appliance
again. If the lamp still does not go on,
replace it with another one model E14-
15W. Mount back the lamp trim in its
place.
6
GB Instruction for use

Appliance data sheet
BRAND
MODEL HSA29520
APPLIANCE TYPE CHEST FREEZER
Total gross volume (l) 288
Total useful volume (l) 284
Freezing capacity (kg/24 h) 17
Energy efficiency class (1) A+
Energy consumption (kWh/an) (2) 265
Autonomy (hours) 67
Noise (dB (A) re 1 pW) 41
Ecological refrigerating agent R 600a
(1) Energy classes : A . . . G (A = economical . . . G = less economical)
(2) The real power consumption depends on the using conditions and on the appliance
location.
Defects finding guide
The appliance does not work.
There is a power failure.
The plug of the supply cord is not inserted
well into the socket.
The fuse is blown.
The thermostat is in „OFF” position.
The temperatures are not low
enough(red LED on).
The food prevents the door closing.
The appliance was not placed correctly.
The appliance is placed too close to a heat
source.
The thermostat knob is not in the corr
ect
position.
Excessive ice build-up
The door was not closed properly.
The inside lighting does not work
The lamp is blown. Unplug the appliance
from the mains, take out the lamp and
replace it with a new one.
The following are not defects
Possible n
oddings and cracks coming
from the product: circulation of the
refrigerant in the system.
7
Noises during operation
In order to keep the temperature at the value
you have adjusted, the compressor of the
appliance starts periodically.
The noises which can be heard in such
situation are normal.
They are redced as soon as the appliance
reaches the operation temperature.
The humming noise is made by the
compressor. It can become a little stronger
when
the compressor starts.
The bubbling and gurgling noises coming from
the refrigerant circulating in the pipes of the
appliance, are normal operating noises.
Warning !
Never try to repair yourself the appliance
or its electric components. Any repair
made by an unauthorised person is
dangerous for the user and can result in
the warranty cancellation.
GB Instruction for use

Congratulazioni per la scelta!
Il congelatore a bancone acquistato è uno dei prodotti della
gamma BEKO e rappresenta il punto di incontro armonico
tra tecniche di congelamento e aspetto esteriore. Ha un
design nuovo e attraente ed è costruito in base alle norme
europee e nazionali che ne garantiscono il funzionamento e le
funzioni di sicurezza. Nello stesso tempo, il refrigerante
utilizzato, R600a, rispetta l'ambiente e non ha effetti negativi
sull'ozono.
Per un utilizzo ottimale del freezer, si consiglia di leggere
attentamente le informazioni contenute in questo manuale per
l'utente.
Consigli per il riciclaggio del vecchio
elettrodomestico
Se l'elettrodomestico appena acquistato ne sostituisce uno
vecchio, è necessario prendere in considerazione alcuni
elementi.
I vecchi elettrodomestici non sono rottami senza valore. Lo
smaltimento degli elettrodomestici da un lato rispetta l'ambiente
dall'altro consente il recupero di importanti materie prime.
Rendere inutilizzabile l'elettrodomestico:
- scollegarlo dall'alimentazione;
- Rimuovere il cavo di alimentazione (tagliarlo);
- rimuovere gli eventuali lucchetti sullo sportello per evitare che i
bambini vi entrino durante il gioco mettendosi in pericolo di vita.
I congelatori contengono materiali isolanti che richiedono un
riciclaggio adeguato.
IT Istruzioni per l’uso
8
Questo apparecchio elettrico non e' inteso per essere utilizzato da persona con handicap
fisico, e/o mentale o con mancanza di esperienza e competenza anche se ad esse si
ano
state date istruzioni concernenti l'uso da un supervisore o da persona con esperienza. I
bambini devono essere supervisionati da un un adulto affinche' non utilizzino
l'apperecchio per il gioco.

Riciclaggio dell'imballo
AVVERTENZA!
Non permettere ai bambini di giocare con
l'imballo o con parti di esso. Esiste il
pericolo di soffocamento con parti del
cartone ondulato e con la pellicola di
plastica.
Per arrivare a destinazione in buone
condizioni, l'elettrodomestico è protetto da un
imballo adatto.
Tutti i materiali di imballo sono
compatibili con l'ambiente e sono riciclabili. Si
consiglia di riciclare l'imballo per proteggere
l'ambiente!
IMPORTANTE!
Prima di mettere in funzione
l'elettrodomestico, leggere attentamente e in
modo completo queste istruzioni, in quanto
includono informazioni importanti
sull'installazione, l'utilizzo e la manutenzione
dell'elettrodomestico.
Il produttore è libero da ogni responsabilità se
non vengono rispettate le informazioni
contenute nella presente documentazione.
Conservare queste istruzioni in un posto sicuro
per averle a portata di mano in caso di
necessità.
Di conseguenza potrebbero risultare
utile anche ad altri utenti.
ATTENZIONE!
È necessario utilizzare questo
elettrodomestico solo per lo scopo per cui
è stato progettato (utilizzo domestico), in
aree adatte, lontano da pioggia, umidità o
altri fenomeni atmosferici.
Istruzioni per il trasporto
È necessario trasportate l'elettrodomestico
solo in posizione verticale. Durante il trasporto
l'imballo deve essere in condizioni perfette.
Se l'elettrodomestico è stato trasportato in
posizione orizzontale (solo in base alle
segnalazioni sull'imballo), è necessario che
prima della messa in funzione
l'elettrodomestico venga lasciato a riposare
12
ore affinché il circuito di raffreddamento si
stabilizzi.
La mancata osservanza di queste istruzioni
può causare la rottura del motocompressore e
l'annullamento della garanzia.
Avvertenze e consigli
generali
Non collegare l'elettrodomestico se si è
notato un guasto.
Le riparazioni devono essere effettuate
esclusivamente da personale qualificato.
Nelle seguenti situazioni scollegare
l'elettrodomestico dalla rete elettrica:
- durante lo sbrinamento completo;
- durante la pulizia.
Per scollegare l'elettrodomestico, tirare
dalla spina non dal cavo!
Assicurarsi che vi sia lo spazio minimo tra
l'elettrodomestico e la parete contro la quale è
collocato.
Non salire sull'elettrodomestico.
Non consentire ai bambini di giocare o
nascondersi all'interno dell'elettrodomestico.
Non utilizzare mai elettrodomestici all'interno
del congelatore per sbrinare.
Non utilizzare l'elettrodomestico vicino a
caloriferi, fornelli o altre fonti di calore e fuoco.
Non lasciare aperto lo sportello del freezer
più a lungo del tempo necessario per inserire o
estrarre i cibi.
Non lasciare cibo nell'elettrodomestico se
quest'ultimo non è in funzione.
Non conservare all'interno prodotti che
contengono gas infiammabili o esplosivi.
Non conservare all'interno del freezer bibite
frizzanti (succhi, acqua minerale, champagne,
ecc.): la bottiglia può esplodere! Non
congelare bibite in bottiglie di plastica.
Non mangiare cubetti di ghiaccio o gelati
appena usciti dal freezer poiché possono
provocare "bruciature da freddo”.
Non toccare mai parti in metallo fredde o cibo
congelato con le mani umide, poicè le mani
potrebbero congelare velocemente su
superfici molto fredde.
9
IT Istruzioni per l’uso

Sen non si utilizza l'elettrodomestico per
alcuni giorni, non è consigliabile spegnerlo.
Se
non lo si utilizza per un periodo più lungo,
procedere come segue:
- scollegare l'elettrodomestico;
- svuotare il freezer;
- scongelarlo e pulirlo;
- lasciare aperto lo sportello per evitare la
formazione di odori sgradevoli.
È possibile sostituire il cavo di alimentazione
da personale autorizzato.
Se il vostro dispositivo ha la serratura,
tenetelo chiusi e tenete la chiave in luogo
sicuro, fuori dalla portata dei bambini. Se
state buttando un elettrodomestico con
serratura, accertatevi che sia aperta.
Questo è
molto importante per evitare che i bambini vi
restino intrappolati, cosa che può provocarne
la morte.
Installazione
Questo elettrodomestico è stato progettato per
operare ad una temperatura ambiente tra -
10°C e +43°C (Classe SN/T). Se la
temperatura ambiente è al di sopra di +43°C,
la temperatura all’interno dell’elettrodomestico
può salire.
Installare l'elettrodomestico lontano da fonti di
calore o da fiamme. Se collocato in una stanz
a
calda o sotto la luce diretta del sole o vicino a
una fonte di calore (termosifoni, fornelli, forni),
il consumo di energia aumenta e la durata del
prodotto sarà inferiore.
• Rispettare le seguenti distanze minime:
• 100 cm da fornelli a carbone o a olio
combustibile;
• 150 cm da fornelli elettrici o a gas.
• Verificare che l'aria circoli liberamente
intorno all'elettrodomestico osservando le
distanze mostrate nell'elemento 2.
Montare sul condensatore (nella parte
posteriore) i distanziatori forniti (elemento 3).
• Posizionare l'elettrodomestico in luoghi ben
ventilati, perfettamente piani e asciutti.
Montare gli accessori forniti.
Collegamento elettrico
L'elettrodomestico è progettato per il
funzionamento con tensione monofase di
230V/50 Hz. Prima di collegare
l'elettrodomestico, assicurarsi che i parametri
della rete elettrica domestica (tensione, tipo di
corrente, frequenza) siano conformi ai parametri
di funzionamento dell'elettrodomestico.
• Le informazioni relative alla tensione di
alimentazione e alla potenza diassorbimento
sono riportate sull'etichetta posta nella parte parta
posteriore del freezer.
• L'installazione elettrica deve essere
conforme ai requisiti di legge.
• È obbligatorio mettere a terra
l'elettrodomestico. Il produttore non è
responsabile per danni a persone, animali
o cose che derivino dalla mancata
osservanza delle condizioni specificate.
• L'elettrodomestico è dotato di cavo di
alimentazione e spina (tipo europeo,
contrassegnata 10/16 A) con doppio contatto
di messa a terra di sicurezza.
Se la presa non
è dello stesso tipo della spina, chiedere ad un
elettricista specializzato di sostituirla.
•
Non utilizzare prolunghe o adattatori multipli.
10
IT Istruzioni per l’uso

Spegnimento
Lo spegnimento dell'elettrodomestico deve
essere possibile estraendo la spina dalla
presa o tramite un interruttore a due poli posto
prima della presa.
Funzionamento
Prima della messa in funzione, pulire l'interno
dell'elettrodomestico (vedere il capitolo
"Pulizia").
Dopo aver completato questa operazione,
collegare l’elettrodomestico, regolare la
manopola del termostato in posizione media.
Le spie verde e rossa di segnalazione blocco
devono illuminarsi. Lasciare
l'elettrodomestico in funzione per almeno
2 ore senza cibo all'interno.
È possibile congelare cibi freschi dopo
almeno 20 ore di funzionamento.
Descrizione
dell'elettrodomestico
(Elemento 1)
1. Maniglia della porta:
2. Porta
3. Alloggiamento della lampadina
4. Maniglia del cestello
5. Cestello
6. Prova
7. Alloggiamento della serratura
8. Scatola del termostato
9. Distanziatore per trasporto
Funzionamento del freezer
Regolazione della temperatura
La temperatura del freezer viene regolata
tramite una manopola montata sul termostato;
(elemento 4) essendo la posizione “MAX” la
temperatura più bassa.
Le temperature raggiunte possono variare in
base alle condizioni di utilizzo
dell'elettrodomestico, ad esempio: Posizione,
temperatura ambientale, frequenza di
apertura dello sportello, estensione di
riempimento con cibo del freezer. La
posizione della manopola del termostato
cambierà in base a questi fattori. In genere
con una temperatura ambientale di circa
43
0
C, il termostato verrà regolato su una
posizione media.
Il sistema di segnalazione si trova sulla
parte anteriore del freezer (elemento 5).
Include:
1.
Manopola di regolazione del termostato:
viene regolata la temperatura interna.
2.
spia verde: indica che l'elettrodomestico è
alimentato.
3. spia rossa - danno: si illumina se la
temperatura interna del freezer è troppo
elevata. La spia si illuminerà per 15-45
minuti dopo aver collegato
l'elettrodomestico, quindi deve spegnersi.
Se la spia si illumina durante il
funzionamento, significa che si sono
verificati dei guasti.
4. Tasto arancio-congelamento veloce-
premendolo, la spia arancione si accend
e,
mostrando che l'elettrodomestico è entrato
in modalità freezer. Per annullare questa
funzione, premere di nuovo il tasto
congelamento rapido e la spia arancione si
spegnerà.
Le tre spie informano sulla modalità di
funzionamento del freezer.
IT Istruzioni per l’uso
11

Consigli per la conservazione
del cibo
Il freezer è progettato per la conservazione a
lungo termine di cibi congelati e per congel
are
cibi freschi.
Uno degli elementi principali per il
congelamento corretto dei cibi è la
confezione.
Le condizioni principali che la confezione
deve soddisfare sono le seguenti: essere a
tenuta d'aria, essere inerte rispetto al cibo,
resistere alle basse temperature, essere a
prova di liquidi, grassi, vapore acqueo, odori e
essere lavabile.
Queste condizioni sono soddisfatte dai
seguenti tipi di confezioni: pellicola di plastica
o alluminio, bicchieri di carta cerata o di
plastica.
IMPORTANTE!
- Per congelare cibi freschi utilizzare il
cestello in dotazione.
- Non posizionare nel freezer una quantità di
cibo troppo grande in una sola volta. La
qualità del cibo viene conservata al meglio se
si congela completamente il più rapidamente
possibile. Per tale motivo è sconsigliato
superare la capacità di congelamento
dell'elettrodomestico specificata nei "Dati
dell'elettrodomestico" (pagina 14) . Per
ridurre il tempo di congelamento, premere
il tasto”congelamento veloce”
- Il cibo fresco non deve venire a contatto con
cibo già congelato.
-
Il cibo acquistato già congelato deve essere
posto nel freezer senza regolazione del
termostato.
12
IT Istruzioni per l’uso
Se la data di congelamento non è riportata
sulla confezione, considerare un periodo di
massimo 3 mesi in linea generale.
- Il cibo, anche parzialmente scongelato, non
può essere ricongelato, deve essere
consumato immediatamente o collo e
ricongelato.
- Le bevande frizzanti non verranno
conservate nel freezer.
-
In caso di guasti all'alimentazione, non aprire
lo sportello dell'elettrodomestico. Il cibo
congelato non subirà effetti negativi se il
guasto dura meno di 67 ore.
DA RICORDARE!
Dopo 24 ore dall’inserimento dei cibi,
annullare la modalità”congelamento
veloce”premendo nuovamente il tasto
4, quando la spia arancione si spegne.
Uso dei cestelli
I cestelli possono essere introdotti
nell’elettrodomestico sul fondo dell’armadietto
e sovrapposti Per eseguire questa
operazione, procedere come segue:
1. Ruotare la maniglia di 20°poi tirare la
maniglia nella direzione mostrata dalla
freccia (elemento 6.1) Seguendo questa
operazione otterrete la posizione delle
maniglie come nell’elemento 6.2
2. Ruotare la maniglia nella direzione
mostrata dalla freccia (elemento 6.2) fino a
che raggiunge la posizione nell’elemento
6.3
3. Serrare la maniglia sul filo muovendola
nella direzione mostrata dalla freccia
(elemento 6.3)
4. In questo modo si ottiene il cestello
assemblato con la maniglia nella posizione
mostrata per inserirlo dentro l’armadietto
dell’elettrodomestico (elemento 6.4).
The baskets can be placed into the freezer as
follows (item 7).

Sbrinamento
dell'elettrodomestico
Si consiglia di sbrinare il freezer almeno
due volte all'anno o quando lo spessore del
ghiaccio diventa troppo elevato.
La formazione di ghiaccio è un fenomeno
normale.
La quantità e la rapidità della formazione
di ghiaccio dipende dalle condizioni ambientali
e dalla frequenza di apertura dello sportello.
Si consiglia di sbrinare l'elettrodomestico
quando la quantità di cibo congelato è
minima.
Prima dello sbrinamento, regolare la
manopola del termostato su una posizione
superiore in modo che il cibo si conservi più
freddo.
- Scollegare l'elettrodomestico;
- Estrarre il cibo congelato, avvolgerlo in vari
fogli di carta e porli in luogo freddo o nel
frigorifero.
Take the separator panel and put it under
the freezer in the direction of the dripping
tube. Tirare fuori la spina. The water
which results will be collected in the
special tray (separator panel). Dopo lo
sbrinamento del ghiaccio, rimuovere
l'acqua con un panno o una spugna, poi
asciugare bene. Collegare
l'elettrodomestico e accenderlo.
(Elemento 7)
Lasciare aperti gli sportelli per evitare la
formazione di odori sgradevoli;
Non utilizzare oggetti metallici acuminate
per rimuovere il ghiaccio.
Non utilizzare asciugacapelli a alter
apparecchiature di riscaldamento per
sbrinare.
Pulizia interna
Prima di cominciare la pulizia, scollegare
l'elettrodomestico dalla rete elettrica.
• Si consiglia di pulire l'elettrodomestico
quando si esegue lo sbrinamento.
•
Lavare l'interno con acqua tiepida con
aggiunta di detergenti naturali. Non utilizzare
sapone, detergente, gasolina o acetone che
possono lasciare odori forti.
• Pulire con una spugna bagnata e asciugare
con un panno morbido.
Nel corso di que
sta operazione, evitare acqua
in eccesso por prevenire che penetri
nell'isolamento termico del dispositivo, il che
potrebbe causare odori sgradevoli.
Non dimenticare di pulire anche la
guarnizione dello sportello, soprattutto le
stecche a soffietto, con un panno pulito.
Pulizia esterna
• Pulire l'eterno del freezer utilizzando una
spugna immersa in acqua calda, strofinare
con un panno morbido e asciutto.
•
la pulizia dell'esterno del circuito di
raffreddamento (motocompressore,
condensatore, tubi di collegamento) verrà
effettuata con una spazzola morbida o con
l'aspirapolvere. Nel corso di questa
operazione, fare attenzione a non distorcere i
tubi e a non staccare i cavi.
Non utilizzare materiali per strofinamento o
abrasivi!
• Dopo aver terminato la pulizia, riporre gli
accessori in posizione e collegare
l'elettrodomestico.
Sostituzione della lampadina
interna
Se la lampadina si brucia, scollegare
l’elettrodomestico dall'alimentazione
principale. Tirare fuori la lampadina
Accertarsi che sia correttamente
svitata.
Collegare nuovamente l'elettrodomestico.
Se la lampadina ancora non si accende
sostituirla con un’altra modello E14-15W e
montarla al suo posto.
13
IT Istruzioni per l’uso

Dati dell'elettrodomestico
MARCA
MODELLO HSA29520
TIPO ELETTRODOMESTICO CONGELATORE A BANCO
Volume lordo totale (l) 288
Volume utile totale (l) 284
Capacità di congelamento (kg/24 ore) 17
Classe di efficienza dell'energia (1) A+
Consumo elettrico (kWh/an) (2) 265
Autonomia (ore) 67
Rumore (dB (A) re 1 pW) 41
Agente refrigerante ecologico R 600a
(1) Classi di energia: A . . . G (A = economica. . . G = meno economica)
(2) Il consumo elettrico reale dipende dalle condizioni di utilizzo e dalla posizione
dell'elettrodomestico.
Rumori durante il funzionamento
Per mantenere la temperatura al valore
regolato, i compressori dell'elettrodomestico si
avviano periodicamente.
I rumori avvertiti in questa situazione sono
normali.
Si riducono appena l'elettrodomestico
raggiunge la temperatura di funzionamento.
Il gorgoglio viene emesso dal compressore.
Può diventare un po' più forte quando il
compressore si avvia.
I rumori di ribollio e gorgoglio, provocati dal
refrigerante che circola nei tubi
dell'elettrodomestico, sono normali durante il
funzionamento.
Avvertenza!
Non provare mai a riparare l'elettrodomestico
o i suoi componenti da soli.
Tutte le riparazioni
eseguite da persone non autorizzate sono
pericolose per l'utente e possono causare
l'annullamento della garanzia.
IT Istruzioni per l’uso
Guida per l'individuazione di difetti
L'elettrodomestico non funziona
Vi è una mancanza di alimentazione.
La spina del cavo di alimentazione non è
ben inserita nella presa.
Il fusibile è bruciato.
Il termostato è in posizione "OFF".
La temperatura non è abbastanza bassa (è
acceso il LED su)
Il cibo impedisce la chiusura dello sportello.
L'elettrodomestico non è stato posizionato
correttamente.
L'elettrodomestico è posizionato troppo
vicino a una fonte di calore.
La manopola del termostato non è nella
posizione corretta.
Formazione eccessiva di ghiaccio
Lo sportello non è stato chiuso
correttamente.
L'elettrodomestico non funziona
La lampadina è bruciata. Scollegare
l'elettrodomestico dalla rete di
alimentazione, togliere la lampadina e
sostituirla con una nuova.
Le seguenti condizioni non sono difetti
Possibili oscillamenti e rumori provenienti
dal prodotto: circolazione del refrigerante
nel sistema.
14

Proficiat met uw keuze!
De diepvrieskist die u aangekocht hebt is er één uit het
productgamma van BEKO en vertegenwoordigt een harmonieuze
combinatie van koeltechniek met esthetisch uitzicht. Het toestel heeft
een nieuw en aantrekkelijk ontwerp en is vervaardigd volgens de
Europese en nationale normen die zijn werking en veiligheidsfuncties
garanderen. Het gebruikte koelmiddel, R600a, is milieuvriendelijk en
beïnvloedt de ozonlaag niet.
Om uw diepvriezer zo goed mogelijk te gebruiken, afviseren we u om
de informatie in deze gebruikershandleiding zorgvuldig te lezen.
Advies voor het recycleren van uw oud apparaat
Indien uw nieuw aangekocht apparaat een ouder apparaat vervangt,
moet u enkele aspecten in overweging nemen.
De oude apparaten zijn geen waardeloze afval. Hun verwijdering,
maakt naast het behoud van het milieu ook het terugwinnen van
belangrijke grondstoffen mogelijk.
Maak uw oude apparaten onbruikbaar:
- Koppel het toestel los van het stroomnetwerk.
- Verwijder het netsnoer (knip het af).
- Verwijder de eventuele grendels op de deur om het opsluiten van
kinderen in het toestel tijdens het spel en het in gevaar brengen van
hun leven te vermijden.
De koeltoestellen bevatten isolatiematerialen en koelmiddelen die
een juiste recyclage vereisen.
15
NL Gebruiksaanwijzing
Dit toestel is niet geschikt voor gebruik door personen met fysische of mentale
problemen of met een gebrek aan ervaring of kennis tenzij er toezicht of uitleg over het
product gegeven wordt door de persoon die de verantwoordelijkheid over hun veiligheid
draagt.
Kinderen moeten onder toezicht staan zodat ze niet met het toestel kunnen spelen.
Other manuals for HSA29520
1
Table of contents
Languages:
Other Beko Refrigerator manuals

Beko
Beko RDNE500K21S User manual

Beko
Beko CSG1582D1W User manual

Beko
Beko UM584W Owner's manual

Beko
Beko DSA240K31WN Instruction Manual

Beko
Beko CN 136222 X User manual

Beko
Beko DNE27000KLS User manual

Beko
Beko QL22 Assembly instructions

Beko
Beko CFP1691DX User manual

Beko
Beko TM1546W User manual

Beko
Beko TSE1424N User manual

Beko
Beko DS136010 User manual

Beko
Beko RCSA360K30XPN User manual

Beko
Beko RFNE 320 L 23 W User manual

Beko
Beko RCNA366EDZX User manual

Beko
Beko CSA29023 User manual

Beko
Beko BCC7030F User manual

Beko
Beko SSE 31000 User manual

Beko
Beko B3RCNE404ZXP User manual

Beko
Beko CHA 33100 - ANNEXE 950 User manual

Beko
Beko CSA29020 User manual
