Beko RCNA406I40WN Instruction Manual

RCNA406I40WN
Refrigerator - Freezer
Instruction of use
Chladnička - Mrazák
Pokyny pro používání
Chladnička - Mraznička
Návod na použitie
Chłodziarko - Zamrażarki
Instrukcja obsługi
Hűtőszekrény - Fagyasztó
Használati útmutató
EN-CZ-SK-PL-HU

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and checked
under the most meticulous quality control procedures, will provide you an effective
service.
Therefore, read this entire user manual carefully before using the product and keep it as
a reference. If you handover the product to someone else, give the user manual as well.
The user manual will help you use the product in a fast and safe way.
Read the manual before installing and operating the product.
Make sure you read the safety instructions.
Keep the manual in an easily accessible place as you may need it later.
Read the other documents given with the product.
Remember that this user manual is also applicable for several other models. Differences
between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips.
Warning against dangerous conditions for life and property.
Warning against electric voltage.
WARNING!
In order to ensure a normal operation of your refrigerating appliance, which uses a
completely environmentally friendly refrigerant the R600a (flammable only under
certain conditions) you must observe the following rules:
Do not hinder the free circulation of the air around the appliance.
Do not use mechanical devices in order to accelerate the defrosting, others than the
ones recommended by the manufacturer.
Do not destroy the refrigerating circuit.
Do not use electric appliances inside the food keeping compartment, other than
those that might have been recommended by the manufacturer.

CONTENTS
2 EN
4 Preparation 12
5 Using your refrigerator 13
Indicator Panel.....................................

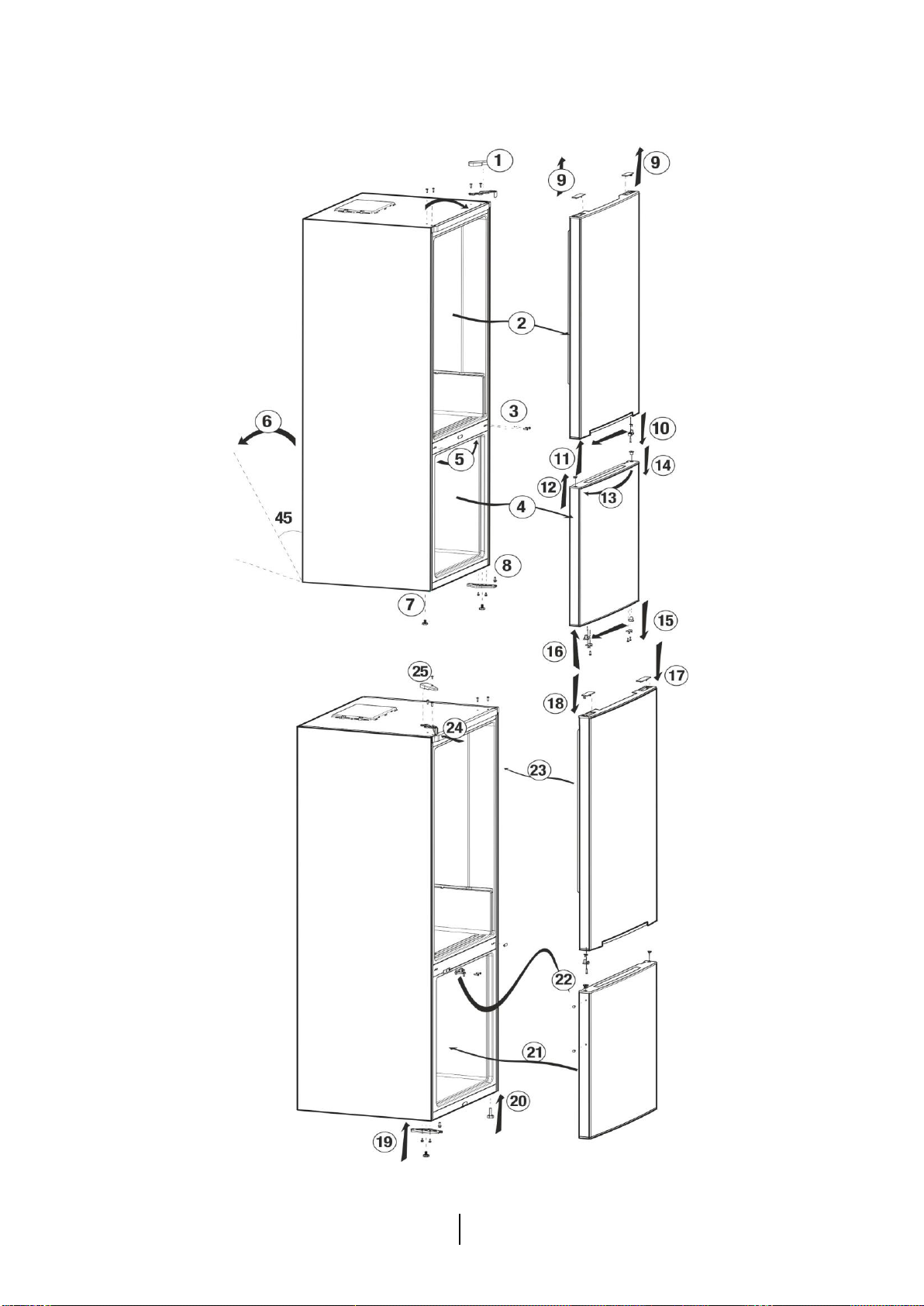

Reversing the doors …………………..
Freezing fresh food..............................
Dual cooling system:............................
Compartment for keeping
perishable food ………………………
Recommendations for preservation
of frozen food......................................
Defrosting.............................................
Placing the food....................................
Deep-freeze information.......................
Recommendations for the fresh food
compartment.......................................
6 Maintenance and cleaning 19
Protection of plastic surfaces ..............
7 Troubleshooting 20
10
11
11
12
13
13
13
14
14
14
15
15
16
16
17
1 Your refrigerator 4
2 Important Safety Warnings 5
5
Intended use.........................................
General safety.......................................
For products with a water dispenser......
Child safety............................................
Compliance with the WEEE Regulation
and Disposing of the Waste Product…..
Package information..............................
HCA warning..........................................
Things to be done for energy saving…..
3 Installation 9
Points to be paid attention to when the
relocation of the refrigerator....................
Before you start the refrigerator,............
Electrical connection............................
Disposing of the packaging..................
Disposing of your old refrigerator.........
Placing and Installation........................
Changing the illumination lamp ...........
Adjusting the legs................................
3
4
4
4
6
6
6
7
7
7
8
8
8
8
8
9
9
9
9

Your refrigerator
1
1. Control panel
2. Interior light
3. Fresh Food fan
4. Adjustable Cabinet shelves
5. Wine bottles support
6. Zero degree compartment
7. Cover glass
8. Salad crispers
9. Ice tray
10.Compartment for quickly freezing
11. Compartments for frozen froods keeping
12. Adjustable front feet
13. Shelf for jars
14. Shelf for bottles
15. Freezer fan
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in
the product you have purchased, then it is valid for other models.
3 EN

Important Safety Warnings
2
Please review the following information.
Failure to observe this information may
cause injuries or material damage.
Otherwise, all warranty and reliability
commitments will become invalid.
Original Spare parts will be provided for
10 years, following the product
purchasing date.
Intended use
This product is intended to be used
indoors and in closed areas such as
homes;
in closed working environments such
as stores and offices;
in closed accommodation areas such
as farm houses, hotels, pensions.
It should not be used outdoors.
General safety
When you want to dispose/scrap
the product, we recommend you
to consult the authorized service in
order to learn the required information
and authorized bodies.
Consult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorised services.
For products with a freezer
compartment; Do not eat cone ice
cream and ice cubes immediately
after you take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
For products with a freezer
compartment; Do not put bottled and
canned liquid beverages in the freezer
compartment. Otherwise, these may
burst.
Do not touch frozen food by hand;
they may stick to your hand.
Unplug your refrigerator before
cleaning or defrosting.
Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes of
your refrigerator. In such cases, the
vapor may get in contact with the
electrical parts and cause short circuit
or electric shock.
Never use the parts on your
refrigerator such as the door as a
means of support or step.
Do not use electrical devices inside
the refrigerator.
Do not damage the parts, where
the refrigerant is circulating, with
drilling or cutting tools. The refrigerant
that might blow out when the gas
channels of the evaporator, pipe
extensions or surface coatings are
punctured causes skin irritations and
eye injuries.
Do not cover or block the ventilation
holes on your refrigerator with any
material.
Electrical devices must be repaired
by only authorised persons. Repairs
performed by incompetent persons
create a risk for the user.
4 EN

In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the
relevant fuse or unplugging your
appliance.
Do not pull by the cable when pulling
off the plug.
Place the beverage with higher proofs
tightly closed and vertically.
Never store spray cans containing
flammable and explosive substances
in the refrigerator.
Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
This product is not intended to be
used by persons with physical,
sensory or mental disorders or
unlearned or inexperienced people
(including children) unless they are
attended by a person who will be
responsible for their safety or who will
instruct them accordingly for use of the
product.
Do not operate a damaged
refrigerator. Consult with the service
agent if you have any concerns.
Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
Contact authorized service when
there is a power cable damage to
avoid danger.
Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
This refrigerator is intended for only
storing food items. It must not be
used for any other purpose.
Label of technical specifications is
located on the left wall inside the
refrigerator.
Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
If there is a blue light on the
refrigerator, do not look at the blue
light with optical tools.
For manually controlled refrigerators,
wait for at least 5 minutes to start the
refrigerator after power failure.
This operation manual should be
handed in to the new owner of the
product when it is given to others.
Avoid causing damage on power
cable when transporting the
refrigerator. Bending cable may cause
fire. Never place heavy objects on
power cable.
Do not touch the plug with wet hands
when plugging the product.
Do not plug the refrigerator if the wall
outlet is loose.
Water should not be sprayed on
inner or outer parts of the product for
safety purposes.
5 EN

6 EN
Do not spray substances containing
inflammable gases such as propane
gas near the refrigerator to avoid fire
and explosion risk.
Never place containers filled with
water on top of the refrigerator; in the
event of spillages, this may cause
electric shock or fire.
Do not overload the refrigerator with
food. If overloaded, the food items
may fall down and hurt you and
damage refrigerator when you open
the door.
Never place objects on top of the
refrigerator; otherwise, these objects
may fall down when you open or
close the refrigerator's door.
As they require a precise
temperature, vaccines, heat-sensitive
medicine and scientific materials
and etc. should not be kept in the
refrigerator.
If not to be used for a long time,
refrigerator should be unplugged. A
possible problem in power cable may
cause fire.
The plug's tip should be cleaned
regularly with a dry cloth; otherwise, it
may cause fire.
Refrigerator may move if adjustable
legs are not properly secured on the
floor. Properly securing adjustable
legs on the floor can prevent the
refrigerator to move.
When carrying the refrigerator, do not
hold it from door handle. Otherwise, it
may be snapped.
When you have to place your product
next to another refrigerator or freezer,
the distance between devices should
be at least 8cm. Otherwise, adjacent
side walls may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
Use only potable water.
Child safety
If the door has a lock, the key should
be kept away from reach of children.
Children must be supervised to
prevent them from tampering with the
product.
Compliance with the WEEE
Regulation and Disposing of the
Waste Product
The symbol on the product or on
packaging indicates that this product may
not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city office, you
household waste disposal service or the
shop where you purchased the product.

7 EN
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and our
national asset wealth.
If you want to contribute to the
reevaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities
where you are located.
HCA warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
Saving
Do not leave the doors of your
refrigerator open for a long time.
Do not put hot food or drinks in your
refrigerator.
Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30 cm away from
heat emitting sources and at least
5 cm from electrical ovens.
Pay attention to keep your food in
closed containers.
For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.
In case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.

8 EN
Installation
3
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside your
refrigerator should be fixed with
adhesive tape and secured against
impacts. Package should be bound
with a thick tape or sound ropes
and the transportation rules on the
package should be strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the
refrigerator,
Check the following before you start
to use your refrigerator:
1. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
2. Connect the plug of the refrigerator
to the wall socket. When the fridge
door is opened, fridge internal lamp
will turn on.
3. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is
not running and this is quite normal.
4. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
The power plug must be easily
accessible after installation.
Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
Extension cables and multi plugs
must not be used for connection.
A damaged power cable must be
replaced by a qualified electrician.
Product must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your refrigerator is
produced from recyclable materials.

9 EN
Disposing of your old
Refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
If the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on
the materials such as rug or carpet.
4. Place your refrigerator on an even
floor surface to prevent jolts.
Changing the illumination
Lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
Authorized Service.
The lamp(s) used in this appliance is not
suitable for household room illumination.
The intended purpose of this lamp is to
assist the user to place foodstuffs in the
refrigerator/freezer in a safe and
comfortable way.
The lamps used in this appliance have to
withstand extreme physical conditions
such as temperatures below -20°C.
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction
of black arrow and raised when you
turn in the opposite direction. Taking
help from someone to slightly lift the
refrigerator will facilitate this process.

10 EN
10 EN
Preparation
4
Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
The ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating
your refrigerator under cooler
conditions is not recommended with
regard to its efficiency.
Please make sure that the interior
of your refrigerator is cleaned
thoroughly.
If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
The door should not be opened
frequently.
It must be operated empty without
any food in it.
Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
Original packaging and foam
materials should be kept for future
transportations or moving.

Using your refrigerator
5
11 EN
*Optional: The figures in this user guide are intended as drafts and may not
perfectly match your product. If your product does not comprise the relevant
parts, the information pertains to other models.
Indicator Panel
Indicator panel allows you to set the
temperature and control the other
functions related to the product.
1. ON/OFF BUTTON
This button allows turn off of refrigerator
if press and hold for 3 seconds, also if
press again 3 seconds the refrigerator
turn on.
2. QUICK FRIDGE BUTTON
This button represent the Quick Fridge
function. This function can be used for
food placed in the fridge compartment
and required to be cooled down rapidly.
If press 3 seconds the refrigerator enter
in Vacation mode. When the vacation
function is activated, “- -” is displayed
on the fridge compartment temperature
indicator and no active cooling is
performed on the fridge compartment.
3. SET FRIDGE BUTTON
This button allows you to choose the
fridge compartment temperature
progressively from minimum to
maximum.
4. LCD DISPLAY
5. SET FREEZER BUTTON
This button allows you to choose the
freezer compartment temperature
progressively from minimum to
maximum.
6. QUICK FREEZE BUTTON
This button represent the Quick Frezze
function, the fast freeze function enables
you to load fresh food in freeze
compartment for stored. if press and hold
for 3 seconds the refrigerator enter in
eco mode. Refrigerator will start
operating in the most economic mode at
least 6 hours later and the economic
usage indicator will turn on when the
function is active.
7. ALARM OFF BUTTON
In case of power failure/high temperature
alarm, after checking the food located in
the freezer compartment press the alarm
off button to clear the warning.

Reversing the doors
Proceed in numerical order
12 EN

13 EN
Energy consumption of your appliance is
declared while the freezer compartment
is fully loaded on shelves without the use
of the drawers.
5. It is recommended that you place
foodstuffs on top shelf of freezer for initial
freezing.
Dual cooling system:
Your refrigerator is equipped with two
separate cooling systems to cool the
fresh food compartment and freezer
compartment. Thus, air in the fresh food
compartment and freezer compartment
do not get mixed.
Thanks to these two separate cooling
systems, cooling speed is much higher
than other refrigerators. Odors in the
compartments do not get mixed. Also
additional power saving is provided
since the defrosting is performed
individually.
Compartment for keeping
perishable food (low temperature
/-20C - +30C).
This compartment was designed to store
frozen food, which can be defrosted
slowly (meat, fish, chicken,etc) as
needed. Low temperature compartment
is the coldest place in refrigerator where
dairy products (cheese,butter), meat fish
or chicken can be kept in ideal conditions
storage.
Vegetables and/or fruits should not be
placed in this compartment.
Freezing fresh food
Wrap or cover the food before
placing them in the refrigerator.
Hot food must cool down to the room
temperature before putting them in the
refrigerator.
The foodstuff that you want to freeze
must be fresh and in good quality.
Foodstuff must be divided into portions
according to the family’s daily or meal
based consumption needs.
Foodstuff must be packaged in an
airtight manner to prevent them from
drying even if they are going to be kept
for a short time.
Materials to be used for packagings
must be resistant to cold and humidity
and they must be airtight. The packaging
material of the food must be at a
sufficient thickness and durability.
Otherwise the food hardened due to
freezing may puncture the packaging. It
is important for the packaging to be
closed securely for safe storage of the
food.
Frozen food must be used immediately
after they are thawed and they should
never be re-frozen.
Placing warm food into the freezer
compartment causes the cooling system
to operate continuously until the food is
frozen solid.
Please observe the following
instructions to obtain the best results.
1. Do not freeze too large quantities of
food at one time. The quality of the food
is best preserved when it is frozen right
through to the core as quickly as
possible.
2. Take special care not to mix already
frozen food and fresh food.
3. Make sure raw foods are not in
contact with cooked foods in the fridge.
4. Maximum frozen food storage volume
is achieved without using the drawers
provided in the freezer compartment.

Freezer
Compartment
Setting
Fridge
Compartment
Setting
Explanations
-18°C
4°C
This is the normal recommended setting.
-20, -22 or -24°C
4°C
These settings are recommended when
the ambient temperature exceeds 30°C.
Quick Freeze
4°C
Use when you wish to freeze your food in
a short time. If is recommended to be
used to maintain the quality of meat and
fish products.
-18°C or colder
2°C
If you think that your fridge compartment
is not cold enough because of the hot
conditions or frequent opening and
closing of the door.
-18°C or colder
Quick Fridge
You can use it when your fridge
compartment is overloaded or if you wish
to cool down your food rapidly. It is
recommended that you activate quick
fridge function 4-8 hours before placing
the food.
Freezer
compartment
shelves
Various frozen food
such as meat, fish, ice
cream, vegetables and
etc.
Egg holder
Egg
Fridge
compartment
shelves
Food in pans, covered
plates and closed
containers
Fridge
compartment
door shelves
Small and packaged
food or drinks (such as
milk, fruit juice and
beer)
Crisper
Vegetables and fruits
Fresh zone
compartment
Delicatessen products
(cheese, butter, salami
and etc.)
Placing the food
Recommendations for
preservation of frozen food
Pre-packed commercially frozen food
should be stored in accordance with the
frozen food manufacturer's instructions in
a frozen food storage compartment.
To ensure that the high quality
supplied by the frozen food manufacturer
and the food retailer is maintained,
following points should be noted:
1. Put packages in the freezer as
quickly as possible after purchase.
2. Ensure that contents of the package
are labeled and dated.
3. Do not exceed "Use By", "Best
Before" dates on the packaging.
Defrosting
The freezer compartment defrosts
automatically.
14 EN

15 EN
Recommendations for the
fresh food compartment
*optional
Do not allow the food to touch the
temperature sensor in fresh food
compartment. To allow the fresh food
compartment keep its ideal storage
temperature, sensor must not be
hindered by food.
Do not place hot foods in the product.
Deep-freeze information
Food must be frozen as rapidly as
possible when they are put in the freezer
in order to keep them in good quality.
The TSE norm requires (according to
certain measurement conditions) the
refrigerator to freeze at least 4.5 kg of
foodstuff at 32°C ambient temperature
to -18°C or lower within 24 hours for
every 100-liters of freezer volume.
It is possible to preserve the food for a
long time only at -18°C or lower
temperatures.
You can keep the freshness of food
for many months (at -18°C or lower
temperatures in the deep freeze).
WARNING!
Foodstuff must be divided into portions
according to the family’s daily or meal
based consumption needs.
Foodstuff must be packaged in an
airtight manner to prevent them from
drying even if they are going to be kept
for a short time.
Materials necessary for packaging:
Cold resistant adhesive tape
Self-adhesive label
Rubber rings
Pen
Materials to be used for packaging
the foodstuff must be tear-proof and
resistant to cold, humidity, dour, oils
and acids.
Foodstuff to be frozen should not be
allowed to come in contact with the
previously frozen items to prevent their
partial thawing. Thawed out food must
be consumed and must not be frozen
again.

16 EN
Maintenance and cleaning
6
Protection of plastic surfaces
Do not put the liquid oils or oil-cooked
meals in your refrigerator in unsealed
containers as they damage the
plastic surfaces of your refrigerator.
In case of spilling or smearing oil on
the plastic surfaces, clean and rinse
the relevant part of the surface at
once with warm water.
Never use gasoline, benzene or
similar substances for cleaning
purposes.
We recommend that you unplug the
ppliance before cleaning.
Never use any sharp abrasive
instrument, soap, household cleaner,
detergent and wax polish for
cleaning.
Use lukewarm water to clean the
cabinet of your refrigerator and wipe
it dry.
Use a damp cloth wrung out in a
solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
Make sure that no water enters the
lamp housing and other electrical
items.
If your refrigerator is not going to be
used for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.
Check door seals regularly to ensure
they are clean and free from food
particles.
To remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
Never use cleaning agents or water
that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.

17 EN
Troubleshooting
7
The refrigerator does not operate.
• The plug is not inserted into the socket correctly. >>>Insert the plug into the
socket securely.
• The fuse of the socket which your refrigerator is connected to or the main fuse
have blown out. >>>Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL
CONTROL and FLEXI ZONE).
• Ambient is very cold. >>>Do not install the refrigerator in places where the
temperature falls below 10°C.
• Door has been opened frequently. >>>Do not open and close the door of
refrigerator frequently.
• Ambient is very humid. >>>Do not install your refrigerator into highly humid
places.
• Food containing liquid is stored in open containers. >>>Do not store food with
liquid content in open containers.
• Door of the refrigerator is left ajar. >>>Close the door of the refrigerator.
• Thermostat is set to a very cold level. >>>Set the thermostat to a suitable level.
Compressor is not running
• Protective thermic of the compressor will blow out during sudden power
failures or plug-out plug-ins as the refrigerant pressure in the cooling system
of the refrigerator has not been balanced yet. The refrigerator will start running
approximately after 6 minutes. Please call the service if the refrigerator does not
startup at the end of this period.
• The fridge is in defrost cycle. >>>This is normal for a full-automatically defrosting
refrigerator. Defrosting cycle occurs periodically.
• The refrigerator is not plugged into the socket. >>>Make sure that the plug is fit
into the socket.
• Temperature settings are not made correctly. >>>Select the suitable temperature
value.
• There is a power outage. >>>Refrigerator returns to normal operation when the
power restores.
The operation noise increases when the refrigerator is running.
• The operating performance of the refrigerator may change due to the changes in
the ambient temperature. It is normal and not a fault.
Please review this list before calling the service. It will save your time and money. This
list includes frequent complaints that are not arising from defective workmanship or
material usage. Some of the features described here may not exist in your product.

18 EN
The refrigerator is running frequently or for a long time.
• New product may be wider than the previous one. Larger refrigerators operate
for a longer period of time.
• The room temperature may be high. >>>It is normal that the product operates
for longer periods in hot ambient.
• The refrigerator might be plugged in recently or might be loaded with food.
>>>When the refrigerator is plugged in or loaded with food recently, it will take
longer for it to attain the set temperature. This is normal.
• Large amounts of hot food might be put in the refrigerator recently. >>>Do not
put hot food into the refrigerator.
• Doors might be opened frequently or left ajar for a long time. >>>The warm air
that has entered into the refrigerator causes the refrigerator to run for longer
periods. Do not open the doors frequently.
• Freezer or fridge compartment door might be left ajar. >>>Check if the doors are
closed completely.
• The refrigerator is adjusted to a very low temperature. >>>Adjust the refrigerator
temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not
properly seated. >>>Clean or replace the seal. Damaged/broken seal causes
the refrigerator to run for a longer period of time in order to maintain the current
temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low value. >>>Adjust the freezer
temperature to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature is adjusted to a very low value. >>>Adjust the fridge
temperature to a warmer degree and check.
Food kept in the fridge compartment drawers is frozen.
• The fridge temperature is adjusted to a very high value. >>>Adjust the fridge
temperature to a lower value and check.
Temperature in the fridge or freezer is very high.
• The fridge temperature is adjusted to a very high value. >>>Fridge compartment
temperature setting has an effect on the temperature of the freezer. Change the
temperatures of the fridge or freezer and wait until the relevant compartments
attain a sufficient temperature.
• Doors are opened frequently or left ajar for a long time. >>>Do not open the
doors frequently.
• Door is ajar. >>>Close the door completely.
• The refrigerator is plugged in or loaded with food recently. >>>This is normal.
When the refrigerator is plugged in or loaded with food recently, it will take longer
for it to attain the set temperature.
• Large amounts of hot food might be put in the refrigerator recently. >>>Do not
put hot food into the refrigerator.
