Belco GREENSCAPE 600 User manual

Rev. 04/23

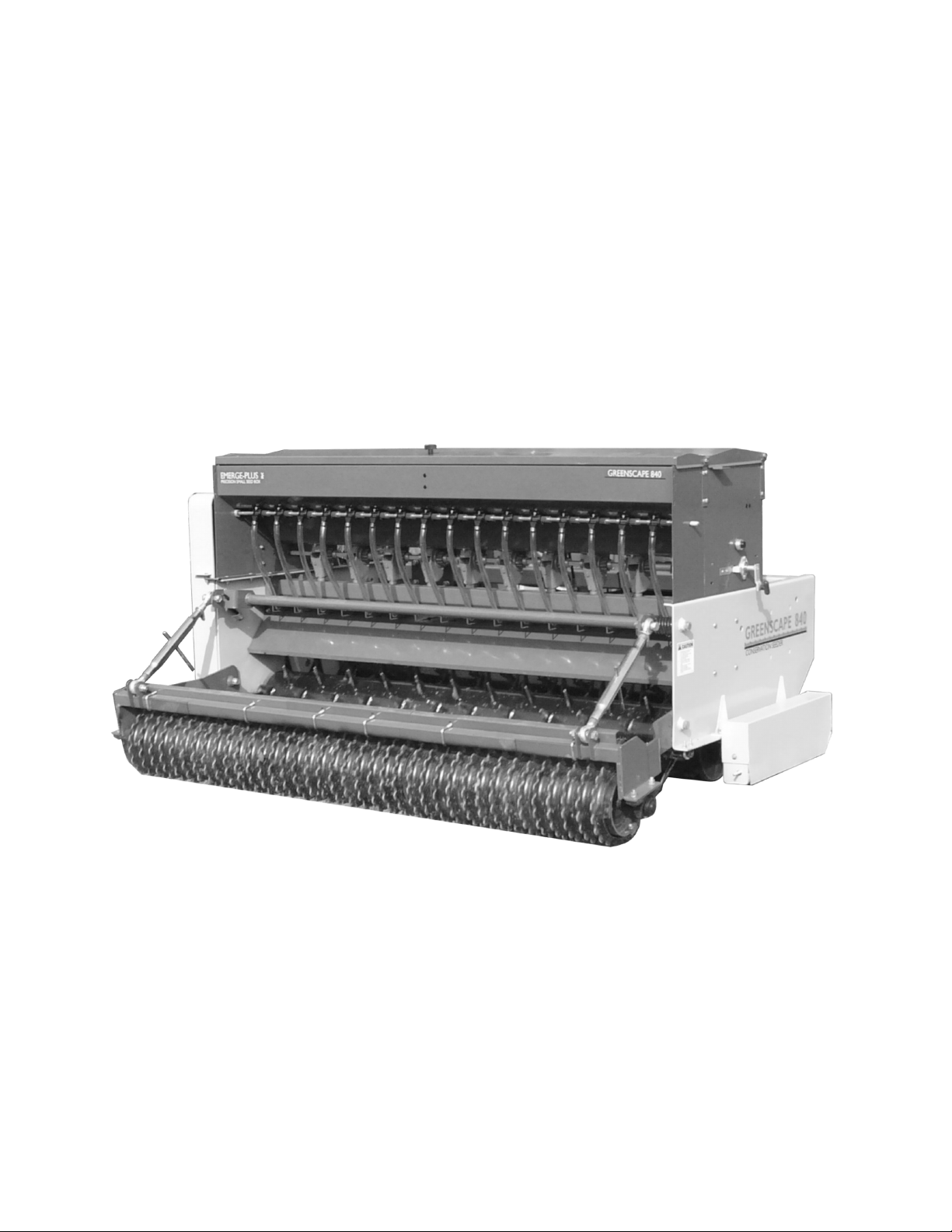

Conservation Seeder
Operator’s Manual
GREENSCAPE 600 & 840

2
Greenscape Conservation Seeder 600 & 800
Page left blank intentionally

3
Greenscape Conservation Seeder 600 & 800
TO THE DEALER:
Assembly and proper installation of this product is the responsibility of the Belco Resources dealer. Read
manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check
Lists in the Owner’s/Operator’s Manual are completed before releasing equipment to the owner.
TO THE OWNER:
Read this manual before operating your Belco Resources equipment. The information presented will prepare
you to do a better and safer job. Keep this manual handy for ready reference. Require all operators to read this
manual carefully and become acquainted with all the adjustment and operating procedures before attempting to
operate. Replacement manuals can be obtained from your selling dealer. The equipment you have purchased
has been carefully engineered and manufactured to provide dependable and satisfactory use. Like all
mechanical products, it will require cleaning and upkeep. Lubricate the machine as specified. Observe all
safety information in this manual and safety decals on the equipment. For service, your authorized Belco
Resources dealer has trained mechanics, genuine Belco Resources service parts, and the necessary tools and
equipment to handle all your needs. Use only genuine Belco Resources service parts. Substitute parts will void
the warranty and may not meet standards required for safe and satisfactory operation.
Record your implement model and serial number in the space provide below. Your dealer will need this
information to give you prompt, efficient service.
Model Number: ______________________________________
Serial Number: _______________________________________
Date Purchased: ______________________________________

4
Greenscape Conservation Seeder 600 & 800
Introduction …………………………………………………………………………………………….. 5
Technical Specifications ……………………………………………………………………………….. 5
Safety …………………………………………………………………………………………………… 6
Safety Signal Words ……………………………………………………………………………………. 6
General Safety Guidelines ……………………………………………………………………………… 7
Safety Decal Care ………………………………………………………………………………………. 7
Before Operation ……………………………………………………………………………………….. 8
During Operation ……………………………………………………………………………………….. 9
Highway And Transport Operations …………………………………………………………………… 10-11
Attaching to Tractor…………………………………………………………………………………….. 12
Operating Instructions….……………………………………………………………………………... 13
Calibration Adjustments & Rates………………………………………………………………………. 14
Seed Rate Adjustment Proceedure……………………………………………………………………... 15-16
Calibration Charts…………………………. …………………………………………………………... 17-19
Trouble Shooting………………………………………………………………………………………... 20
Torque Specifications ………………………………………………………………………………….. 21
Parts Breakdown ……………………………………………………………………………………….. 23-62
Warranty ………………………………………………………………………………………………... 63
Table of Contents

5
Greenscape Conservation Seeder 600 & 800
Thank you for purchasing your Greenscape Conservation Seeder. The Greenscape Conservation Seeder
Effectively prepares the soil, drops and lightly covers the seed, and then firmly presses the soil for a perfectly
prepared seedbed. The Greenscape Conservation Seeder is ground driven with no PTO shafts or gearboxes to
maintain and requires a min. 35 HP (600) or 50 HP (840).
Technical Specifications
• Three point hitch Cat. 1 &2
• Heavy tubular frame construction
• Ground driven, no PTO or gearbox to maintain
• Precise seed metering cups with individual clean out gates
Greenscape 600 Greenscape 840
Hitch Cat. 1 & 2 Cat. 1 & 2
Horse power (min.) 35 HP 50 HP
Working width 60” 84
Overall width 73” 98”
Overall length 67” 76”
Overall height 48” 54”
Weight 1480 lbs. 2090 lbs.
Large seed box capacity 3-1/2 Bu. (4.4 cu. ft.) 8-1/4 Bu. (10.3 cu. ft.)
Legume seed box capacity 1-1/2 Bu. (1.87 cu. ft.) 2-1/8 Bu. (2.64 cu. ft.)
Front spike roller 15.75” O.D. (72 spikes) 19.75” O.D. (132 spikes)
Rear spike roller 15.75” O.D. (114 spikes) 19.75” O.D. (150 spikes)
Rear cultipacker roller Fiber reinforced nylon rings Fiber reinforced nylon rings
Roller spikes AR-500 steel AR-500 steel
Spike roller drive ratio 15:22 15:20
Seed box drive ratio 15:28 standard 17:28 standard
Introduction

6
Greenscape Conservation Seeder 600 & 800
Safety
It is important that you read the entire manual and to become familiar with this product before you begin using
it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues
arising from modification. We strongly recommend this product not be modified and /or used for any
application other than that for which it is designed. If you have any questions relative to a particular
application, DO NOT use the product until you have first contacted us to determine if it can or should be
performed on the product.
Read and understand this manual and all safety signs before operating and maintaining . Review the safety
instructions and precautions annually.
Safety Signal Words
TAKE NOTE! This safety alert symbol found though out this manual is used to call you attention to
instructions involving you personal safety and the safety of others. Failure to follow these instructions
can result in injury or death.
This symbol means:
Attention!
Become alert!
Your safety is involved!
Note the use of the signal words, DANGER, WARNING and CAUTION with the safety messages.
The appropriate signal word for each has been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or
serious injury. This signal word is to be limited to the most extreme situations typically for machine
components which, for functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury, and includes hazards that are exposed when guards are removed. It may also be used
to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
Important Safety Information

7
Greenscape Conservation Seeder 600 & 800
General Safety Guidelines
Safety of the operator is one of the main concerns in designing and developing a new piece of equipment.
Designers and manufacturers build in as many safety features as possible. However, every year many accidents
occur which could have been avoided by a few seconds of thought and a more careful approach to handling
equipment. You, the operator, can avoid many accidents by observing the following precautions in this section.
To avoid personal injury, study the following precautions and insist those working with you, or for you, follow
them.
Replace any DANGER, WARNING, CAUTION or instruction safety decal that is not readable or is missing.
Location of such decals are indicated in this manual. Do not attempt to operate this equipment under the
influence of drugs or alcohol.
Review the safety instructions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a
responsible adult familiar with farm machinery and trained in this equipment’s operations. Do not allow
persons to operate or assemble this machine until they have read this manual and have developed a
thorough understanding of the safety precautions and of how it works.
To prevent injury of death, use a tractor equipped with a Roll Over Protection System (ROPS). Do not paint
over, remove or deface any signs or warning decals on your equipment. Observe all safety signs and practice
the instructions on them.
Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question -
Don’t try it!
• Keep safety signs clean and legible at all times.
• Replace safety signs that are missing or have become illegible.
• Replaced parts that displayed a safety sign should also display the current safety sign
• Safety signs are available from your Distributor or Dealer Parts Department or the factory.
Safety Decal Care
Important Safety Information

8
Greenscape Conservation Seeder 600 & 800
How to install Safety Signs:
• Be sure that the installation area is clean and dry.
• Decide on the exact position before you remove the backing paper.
• Remove the smallest portion of the split backing paper.
• Align the decal over the specified area and carefully press the small portion with the exposed sticky
backing in place.
• Slowly peel back the remaining paper and carefully smooth the remaining portion of the decal in place.
• Small air pockets can be pierced with a pin and smoothed out using the piece of decal backing paper.
• Carefully study and understand this manual.
• Do not wear loose-fitting clothing, which may catch in moving parts.
• Always wear protective clothing and substantial shoes.
• Assure that all tires are inflated evenly.
• Give the machine a visual inspection for any loose bolts, worn parts or cracked welds, and make necessary
repairs. Follow the maintenance safety instructions included with this manual.
• Be sure that there are no tools lying on or in the equipment.
• Do not use the machine until you are sure that the area is clear, especially of children and animals.
• Don’t hurry the learning process or take the machine for granted. Ease into it and become familiar with
your new equipment.
• Practice operation of your equipment and its attachments. Completely familiarize yourself and other
operators with its operation before using.
• Use a tractor equipped with a Roll Over Protection System (ROPS) and fasten your seat belt prior to
starting engine.
• The manufacturer does not recommend usage of tractor with ROPS removed.
• Move tractor wheels to the widest recommended settings to increase stability.
• Securely attach to towing unit. Use a high strength, appropriately sized hitch pin with a mechanical retainer
and attach safety chain.
• Do not allow anyone to stand between the tongue or hitch and the towing vehicle when backing up to the
equipment.
• Do not use the machine until you are sure that the area is clear, especially of children and animals.
Before Operation
Important Safety Information

9
Greenscape Conservation Seeder 600 & 800
• Children should not be allowed on the product.
• Clear the area of small children and bystanders before moving the feeder.
• If using a towing unit, securely attach feeder by using a hardened 3/4” pin, a metal retainer, and safety
chains if required. Shift towing unit to a lower gear before going down steep downgrades, thus using the
engine as a retarding force. Keep towing vehicle in gear at all times. Slow down for corners and rough
terrain.
• Make sure you are in compliance with all local and state regulations regarding transporting equipment on
public roads and highways. Lights and slow moving signs must be clean and visible by overtaking or
oncoming traffic when feeder in transported.
• Beware of bystanders, particularly children! Always look around to make sure that it is safe to start the
engine of the towing vehicle or move the machine. This is particularly important with higher noise levels
and quiet cabs, as you may not hear people shouting.
• NO PASSENGERS ALLOWED! Do not carry passengers anywhere on, or in, the tractor or equipment,
except as required for operation.
• Keep hands and clothing clear of moving parts.
• Do not clean, lubricate or adjust your equipment while it is moving.
• When halting operation, even periodically, set the tractor or towing vehicle brakes, disengage the PTO,
shut off the engine and remove the ignition key.
• Be especially observant of the operating area and terrain. Watch for holes, rocks or hidden hazards. Always
inspect the area prior to operation.
• DO NOT operate near the edge of drop-offs or banks.
• DO NOT operate on steep slopes as overturns may result.
• Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops.
During Operation
Important Safety Information
Warning: Never backup with the implement on the ground! This will cause
damage to the implement. Always lift the implement high enough to clear the
ground before backing up.

10
Greenscape Conservation Seeder 600 & 800
• Adopt safe driving practices.
• Keep the brake pedals latched together at all times. Never use independent braking with machine in tow
as loss of control and/or upset of machine can result.
• Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an
emergency stop to be safe and secure. Keep speed at a minimum.
• Reduce speed prior to turns to avoid the risk of overturning.
• Avoid sudden uphill turns on steep slopes.
• Always keep the tractor or towing vehicle in gear to provide engine braking when going downhill. Do not
coast.
• Do not drink and drive!
• Comply with state and local laws governing highway safety and movement of farm machinery on public
roads.
• Use approved accessory lighting flags and necessary warning devices to protect operators of other vehicles
on the highway during daylight and nighttime transport. Various safety lights and devices are available
from your dealer.
• The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their
use. Local laws should be checked for all highway and marking requirements.
• When driving the tractor and equipment on the road or highway under 40 kph (20 mph) at night or during
the day, use the amber warning lights and a slow moving vehicle (SMV) identification emblem.
• Plan your route to avoid heavy traffic.
• Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including narrow
bridges, intersections, etc.
• Be observant of bridge loading ratings. Do not cross bridges rated at lower than the gross weight at which
you are operating.
• Watch for obstructions overhead and to the side while transporting.
• Always operate in a position to provide maximum visibility at all times. Make allowances for increased
length and weight of the equipment when making turns, stopping the machine, etc.
• Pick the most level route when transporting across fields. Avoid the edges of ditches or gullies and steep
hillsides.
• Be extra careful when working in inclines.
Highway and Transport Operations
Important Safety Information

11
Greenscape Conservation Seeder 600 & 800
• Maneuver the tractor or towing vehicle at safe speeds.
• Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death.
• Avoid loose fill, rocks and holes, they can be dangerous for equipment operation or movement.
• Allow for machine length when making turns,
• Operate the towing vehicle from the operator’s seat only.
• Never stand alongside of machine with engine running or attempt to start engine and/or operate machine
while standing alongside of machine.
• Never leave running equipment attachments unattended.
• As a precaution, always recheck the hardware on equipment following every 100 hours of operation.
Correct all problems. Follow the maintenance safety procedures.
Highway and Transport Operations
Important Safety Information

12
Greenscape Conservation Seeder 600 & 800

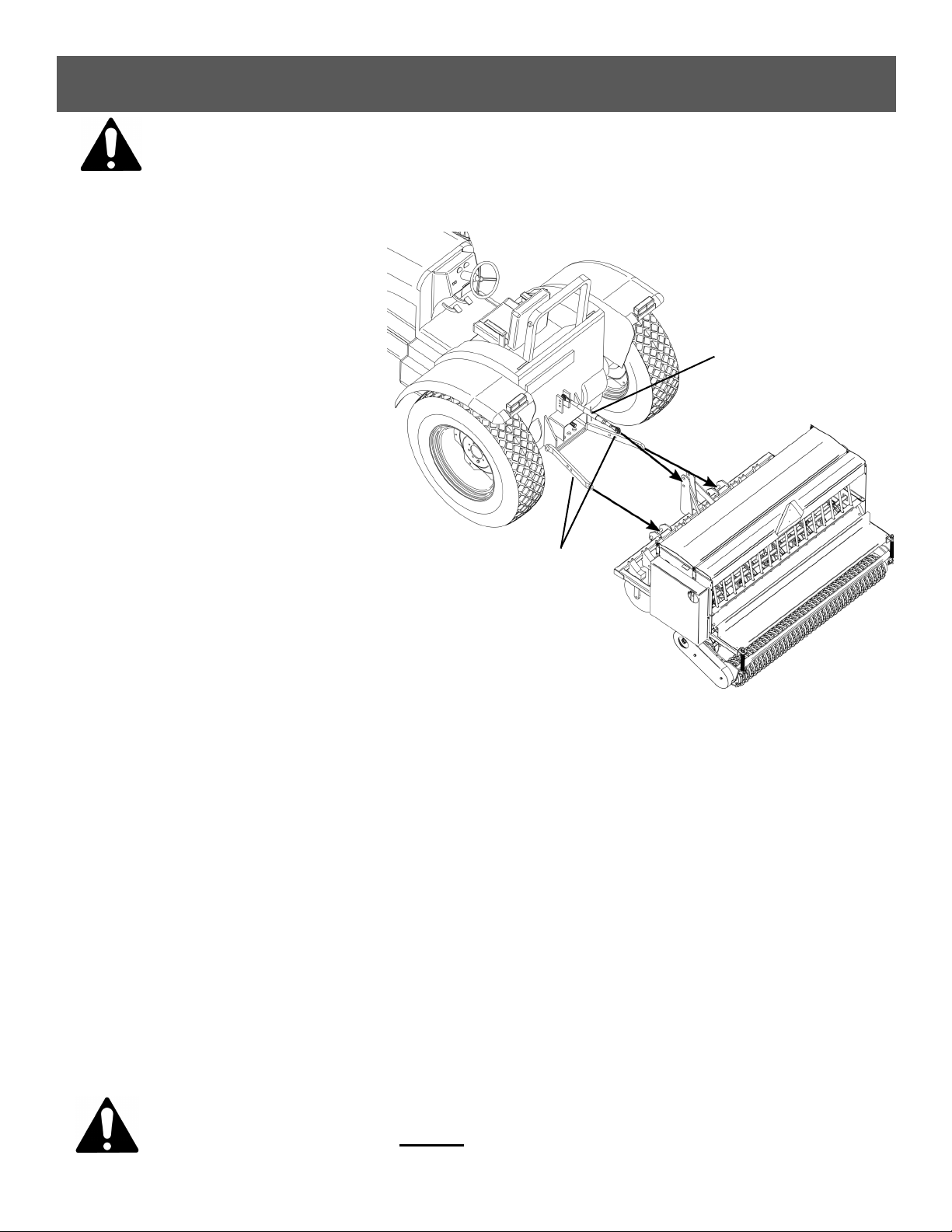

Attaching the Conservation Seeder
• Back up the tractor to the Conservation Seeder, while lining up the lower tractor links to the Conservation
Seeder lower pins.
• Stop the engine, set the brake and
remove the key from the tractor and
block the tractor tires.
• Secure the tractor lower arms to the
Plotter lower pins with lynch pins.
• Attach the tractor top link to the
Conservation Seeder with the top link
pin and r-clip.
• Adjust the tractor sway bars/chains to
center the rotary cutter and remove
excess sway.
• Adjust lower links and top link so that
the Conservation Seeder is level.
• Operate the tractor hydraulic controls
very slowly up and down. There
should be no contact between the
Conservation Seeder or any part of the tractor. Failure to check clearance can result in damage to the
Conservation Seeder, tractor (especially the tires) and possible injury to the operator. Maintain no less than
6” of clearance between the Conservation Seeder, tractor and tractor tires throughout the complete range of
motion.
Operating Instructions
• The top link on the tractor hitch should be properly adjusted to carry the machine level in an operating
position. During operation the tractor lift must be fully lowered to allow the machine to follow the contour
of the ground.
• The machine is totally ground driven, so proceed with a speed that is most comfortable and safe for
existing conditions.
• Be sure to stop forward motion before lifting machine off ground. This practice will stop rollers from ‘free
spinning’ and therefore eliminate the unwanted application of when turning around.
Attaching to Tractor
Warning: When attaching the Conservation Seeder, Never allow anyone to stand between
the Conservation Seeder and the tractor. Serious injury or death can occur!
Tractor Top Link
Tractor Lower Arms
Warning: Never backup with the implement on the ground! This will cause
damage to the implement. Always lift the implement high enough to clear the
ground before backing up.

13
Greenscape Conservation Seeder 600 & 800
The Greenscape Conservation Seeder is a multi-task landscape machine. It can be used for primary seeding,
over seeding, applying fertilizer or lime, aerating and dethatching.
If conditions are such that multiple passes are needed before application of seed; you can disengage seed box
by
Rotate the pin 90 degrees and release. To re-engage seed box drive assembly, reverse this procedure.
When the sprocket rotates enough to align the holes, the internal spring will cause the pin to engage the inside
sprocket.
The depth of the second spike roller can be controlled by the length of the turnbuckles that connect the torque
bar to the cultipacker roller. Lengthen the turnbuckles to raise the rear or ‘driven’ spike roller or shorten the
turnbuckle if you want the driven spike roller to operate deeper. The rear cultipacker roller is spring loaded in
order to provide good ground contact in uneven terrain and to prevent itself and the driven spike roller from
cavitating in low spots. The tickler tines are to improve seed to soil contact and should not be positioned ag-
gressive enough to ‘carry’ trash or residue in an over seeding situation.
The top link on the tractor hitch should be properly adjusted to carry the machine level in an
operating position. During operation the tractor lift must be fully lowered to allow the machine to
follow the contour of the ground.
The machine is totally ground driven, so proceed with a speed that is most comfortable and safe for existing
conditions.
Be sure to stop forward motion before lifting machine off ground. This practice will stop rollers
from ‘free spinning’ and therefore eliminate the unwanted application of when turning around.
Never operate the machine in reverse, serious damage will occur.
Operating Instructions

14
Greenscape Conservation Seeder 600 & 800
The tables and rate charts in this manual are for guidelines only. They are designed to be an aid as a starting
point. You must do your own calibration; as many factors cause rates to change. Variations in seed/granular
size, density, moisture, seed treatment, and the amount of machine overlap will affect the final application rate.
Also ‘slippage’ of front spike roller will cause variations. For instance, in loose soil, such as disced or
harrowed, the front roller will slip possibly up to 20%; while in over seeding into established vegetation, you
will likely have very little slippage. The most accurate way to set application rates is to drive a predetermined
distance and actually catch the seeds dispensed. To do this, remove at least one drop hose and tie a plastic bag
onto bottom of seed cup. Then weigh the seeds in the bag and multiply by the number of cups on your
machine. Refer to the following example to properly calibrate your machine.
Distance traveled (in feet) x Width of machine (in feet) / 43,560 = acres
For example:
You collect 1.25 oz of seed from ‘1’ cup after driving a 1/100 of an acre (87 ft. for model Green- scape 600
machine or 62ft. for model 840)
60” (5’) machine --- 87’ = 1/100 acres 84” (7’) machine --- 62’ = 1/100 acres
1.25 oz (seed caught from 1 cup) x 8
(total number of cups on
60” hopper)
10 oz (seed applied to
1/100 acre)
x 100
1000 oz (seed applied to 1 acre)
/16 (16oz = 1 lb)
62.5 lbs per acre
1.25 oz (seed caught from 1 cup) x 10
(total number of cups on 84” hop-
per)
12.5 oz (seed
applied to 1/100 acre)
x 100
1250 oz (seed applied to 1 acre)
/16 (16oz = 1 lb)
78.125 lbs per acre
Calibration Adjustments & Rates

15
Greenscape Conservation Seeder 600 & 800
Seed Rate Adjustment Procedure
Large Grass Seed Hopper:
To increase the seed rate, turn the knob on the right end of the
hopper Counterclockwise. Refer to the indicator reading on
the square seed shaft and find the corresponding number on the
calibration chart 2 to assure your new rate. Reverse this
procedure to decrease rate. Remember to rotate the seed shaft
while adjusting to prevent damage to cups especially if seeds
are in hopper.
Note: When seed cups are fully closed, the indicator should be
on 0 (on the rule). This can be adjusted by simply adjusting the
pointer as needed. Fully open would be 1-3/4”.
Precision Legume Hopper:
The seed rate adjustment for the small hopper is located on the left side of the hopper behind the panel
standing at the rear of the machine. To increase the seed rate, turn the knob on the left
side of the hopper Clockwise. Refer to the indicator reading on the square seed shaft
(right side) and find the corresponding number on the calibration chart in Chart 3 to assure
your new rate. Reverse this procedure to decrease rate.
Refer to Chart 3 or 4 on page 14-15 of this manual or the rate chart located inside
the hopper lid for the corresponding seeding rate. Note: When seed cups are fully
closed, the indicator should be on 0 (on the rule). Fully open would be 1-1/8”.
Native Grass Seed Hopper:
Models 600-4 & 840-4 are equipped with three seed boxes. The front seed box
has a special agitator shaft for fluffy or chaffy seeds; such as some wildflowers
and native grasses. Generally, when planting
seed of this type the seed cup gate position should be in the lower
position : (third notch).

16
Greenscape Conservation Seeder 600 & 800
Also, the transmission sprockets for the large boxes are equipped with disengaging pins. This allows the opera-
tor to disengage either the front box, center box or, if equipped, the combination of both center and rear small
boxes. To disengage, pull the spring pin out, rotate 90 degrees to lock. To re-engage, rotate
pin 90 degrees to release. Each of the seed boxes can be set at different planting rates and used simultaneously
if needed. If not using a large seed box, it should be disengaged to pre- vent unnecessary wear and tear on
components .
Seeds per Seed Box
Legume Seedbox (small hopper):
All small round types seeds that flow easily and are generally planted at a fairly low rate, typically from as low
as 3 lbs. per acre to about 65 lbs. per acre. This would include all clo- ver, alfalfa, brassicas and many flowers
that have seed counts from about 100,000 seeds/lb to well over 7,000,000 seeds/lb. The seed size diameter
would be from about 3/16" (5 mm) to as small as 1/128" (0.019 mm).
Large Seedbox:
All cereal grains, rye, wheat, oats barley and rice. Any seeds that are irregular shaped (elongated, rice shape)
but still flow easily should be planted with this box. Most cool season grasses, such as fescue, ryegrass and
bluegrass would be planted with this box. All types of beans, peas, corn and sunflowers can be planted with
this box. Seed sizes would be from about 3/8" (9.5 mm) elongated up to about 3/8" (9.5 mm) diameter round.
Seeding rates are typically from about 25 lbs. per acre to 400 lbs. per acre
Native Grass Seedbox:
Any seed that does not flow well because of chaff, beards, trash, etc should be planted in this box. This includes
many annual and perennial warm season native grasses that are very light and fluffy. Any seed type that will
not flow easily through your fingers when held apart would need to go in this box. Seeding rates typically are
from 8 to 100 lbs. per acre.
Seed Rate Adjustment Procedure
Caution: When adjusting seeder shaft on a loaded box, rotate the shaft slowly to prevent
cup damage.
Caution: Never allow a rider on the maching for any reason including collecting seeds for
calibration purposes. Always affix a container or plastic bag to seed cup spouts or hoses to
catch samples. Never place hands in hopper or near agitator shaft while seed shaft is rotating.

17
Greenscape Conservation Seeder 600 & 800
Calibration Chart Large Seed Hopper
Distribution rate in ‘lbs per acre’
** Total material collected from all cups in pounds
Note: Measure actual sha movement from closed posion for a more accurate seeder
opening seng.
Calibration Charts
** lbs of
Seed collect-
ed
Distance Traveled in Feet
100 200 300 400 500 600 700 800 900 1000
0.1 0.1 8.7 4.4 2.9 2.2 1.8 1.5 1.3 1.1 1
0.5 43 21.8 14.5 10.9 8.7 7.3 6.2 5.5 4.8 4.4
187.1 43.6 29 21.8 17.4 14.5 12.5 10.9 9.7 8.7
1.5 130.7 65.3 43.6 32.7 26.1 21.8 18.7 16.3 14.5 13.1
2174.2 87.1 58.1 43.6 34.8 29 24.9 21.8 19.4 17.4
2.5 217.8 108.9 72.6 54.5 43.6 36.3 31.1 27.2 24.2 21.8
3261.4 130.7 87.1 65.3 52.3 43.6 37.4 32.7 29 26.1
3.5 304.9 152.5 101.6 76.2 61 50.8 43.6 38.1 33.9 30.5
4348.4 174.2 116.2 87.1 69.7 58.1 49.8 43.6 38.7 34.8
4.5 392 196 130.7 98 78.4 65.3 56 49 43.6 39.2
55435.6 217.8 145.2 108.9 87.1 72.6 62.3 54.5 48.4
5.5 5.5 479.2 239.6 159.7 119.8 95.8 79.9 68.5 59.9 53.2
66522.7 261.4 174.2 130.7 104.5 87.1 74.7 65.3 58.1
6.5 6.5 566.3 283.1 188.8 141.6 113.2 94.4 80.9 70.8 62.9
77609.8 304.9 203.3 152.5 121.9 101.6 87.2 76.2 67.8
7.5 7.5 653.4 326.7 217.8 163.4 130.7 108.9 93.4 81.7 72.6
88696.9 348.5 232.3 174.2 139.4 116.2 99.6 87.1 77.4
8.5 8.5 740.5 370.3 246.8 185.1 148.1 123.4 105.8 92.6 82.3
99784 392 261.4 196 156.8 130.7 112.1 98 87.1
9.5 9.5 827.6 413.8 275.9 206.9 165.5 137.9 118.3 103.5 92
10 10 871.2 435.6 290.4 217.8 174.2 145.2 124.5 108.9 96.8

18
Greenscape Conservation Seeder 600 & 800
Calibration Chart - Large Hopper - Chart 2
Seed Cup Position
Seed Type 1/4 1/2 3/4 11-1/4 1-1/2 1-3/4 Gate Pos.
Kentucky 31 Tall Fescue 18 34 45 58 70 84 98 top
Annual Rye Grass 26 45 59 79 97 112 122 top
Kentucky Blue Grass 15 24 32 44 52 63 73 top
Perennial Rye Grass 24 38 51 69 84 101 107 top
Creeping Red Fescue 13 22 29 41 49 59 66 top
Rebel III Fescue 17 29 38 61 73 87 98 top
Pennington Contractor's Mix 20 31 42 60 73 87 97 top
Orchard Grass 10 17 23 35 43 50 55 top
Wheat 49 84 115 143 168 197 220 top
Oats 20 41 63 87 109 125 142 top
Fertilizer 10-10-10 59 101 133 198 245 287 315 middle
Top Dress 16-0-070 122 164 245 301 357 458 top
Calibration Charts
Calibration Chart - Small Hopper - Chart 3
"lbs. per acre"
Seed Type 3/16 1/4 3/8 1/2 3/4 11-1/8
Pennsicola Bahai 36811 14 20 22
Centipede 4610 15 23 29 34
Hulled Bermuda 4711 16 24 32 37
Red Clover 5813 17 29 37 45
Landino Clover 4713 17 27 36 42
Dixie Crimson 5813 17 29 37 45
White Millet 3813 17 28 36 43
Total Alfalfa 5813 16 27 35 41
Carpet Grass 36916 20 25 30
Tiffany Teff 5714 18 29 36 40
Buffalo Grass - 346811 13

19
Greenscape Conservation Seeder 600 & 800
Calibration Charts
Calibration Chart - Small Hopper - Chart 4
"lbs. per acre"
Flute Engagement
Seed Type 3/16 1/4 3/8 1/2 3/4 11-1/8
Sorghum 611 15 22 31 38 51
Kobe Lespedza 34611 15 17 20
Korean Lespedza 4610 16 24 29 35
Bi-Color Lespedza 712 16 22 32 43 50
Brown Top Millet 5713 15 22 27 31
Japanese Millet 4610 15 20 24 26
Hybrid Pearl Millet 813 17 22 35 48 55
Rape 6912 17 29 40 55
Switchgrass 6912 15 21 26 28
Calibration Chart - Native Grass Hopper - Chart 5
Sprocket Positions
Sprocket Drive Upper 15 20 30 40
Sprocket Drive Lower 40 30 20 15
Seed Variety "lbs. per acre"
Little Blue Stem 814 32 58
Virginia Wild Rye 12 20 46 82
Big Blue Stem 611 27 46
Native River Oats 916 37 65
Indian Grass 12 34 78 138
Native Side Oats Gamma 814 33 58
Calibration Chart - Large Hopper - Chart 6
Seed Cup Position (lbs per acre)
Seed Type 1/4 1/2 3/4 11-1/4 1-1/2 1-3/4 Gate Pos.
Barley - 80 116 155 193 217 253 top
Wheatgrass - 80 114 154 190 214 250 top
Soybeans - 100 165 205 245 288 327 top
Sunflower - 33 45 58 70 85 100 top
Corn - 112 198 238 298 360 418 middle

20
Greenscape Conservation Seeder 600 & 800
Lubrication & Maintenance
1 Hour Check all fasteners and hardware including set screws in sprockets and
bearing collars and retighten as necessary.
8 Hours Grease bearings and inspect chains for tightness.
25 Hours Remove guard cover on right hand side of machine and inspect chain; lubricate using
multi-
purpose lithium base grease.
As needed: Remove any crop residue, grasses, weeds, or debris wrapped around shafts near
bearings.
This can cause bearings to overheat and lead to premature failure.
Always: Protect machine from weather. Never leave fertilizer in hopper. Do not
leave seed in hopper for more than 24 hours. Remove all fertilizer and seeds
and thoroughly clean hoppers and lubricate all drive chains before storage.
Troubleshooting
Caution: Turn off tractor engine, lock parking brake and remove key before servicing
machine.
Problem Cause Solution
Loose chains Tighten idlers
Machine makes a clicking or
popping noise
Chain stretched or damaged Replace chain
Sprocket tooth damaged or
broken
Replace sprocket
Crop residue is dragging or
rolling up
Tickler tines set too aggres-
sive
Loosen U-bolts and or rotate forward
to raise tips off the ground
Seed flow continuing when machine
is lifted
Rollers free spinning
Stop forward movement be-
fore raising machine
