Belimo EXT-CF230-D402-AF User manual

O56002 - 04/12 - Subject to change. © Belimo Aircontrols (USA), Inc.
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN

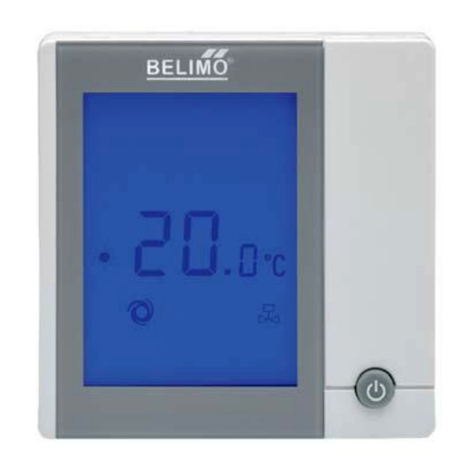

LCD Electronic Thermostat
EXT-CF230-D202-AF, EXT-CF230-D402-AF
Overview of Functions
Slim type EXT-CF230-D202-AF and EXT-CF230-D402-AF thermostat provides the
foundation for modern fancoil applications.
Features
• Large LCD with blue backlight
• Stylish appearance with hidden buttons
• For 2 or 3 wires on-off controlled devices in 2-pipe FCU system (EXT-CF230-D202-
AF)
• For 2 wires on-off controlled devices in 4-pipe FCU system (EXT-CF230-D402-AF)
• 3 speed / auto-speed for fan controls
• Defrost - low temperature protection
• Temperature off-set adjustment
• Temperature / setpoint display selection
• Memory rentention
• Set point range adjustment
• °C display
Technical Data
Nominal Voltage 230 VAC
Nominal Voltage Range 85-260 VAC
Temperature Display Range 0…55°C [ <0°C : LO, >55°C : HI ]
Sensing Element & Control NTC Thermistor, 100k ohm @ 25°C
System Switch On/Off, Cooling/Heating
Fan Control Switch High-Med-Low or Auto-speed
LCD Display 0.5 K increase/decrease
Setpoint Range 5…35°C
Body Material Fire-retardant ABS
Electrical Ratings Relay output contact 3A Resistive, 1A Inductive,
250 VAC 50/60 Hz
Fan switch 3A Resistive, 1A Inductive,
AC 250V 50/60 Hz
Control Signal On/Off Control, 3-wires & spring return 2 wires
Cooling or Heating (2-pipe system)
Temperature Range Operating: 0 to 45°C
Storage: 0 to 50°C
Protection Class II
Wiring Connections Terminal wiring 0.5 ... 1.5 mm2
Agency Approval LV Directive CE according to 2006/95/EC
EMC CE according to 2004/108/EC
Ambient Humidity max. 95% r.h., non-condensing
Weight 140 g
Dimensions (L x H x D) 86 x 86 x 14 (mm)
Degree of Protection IP 30
Basic Features
Modes On/Off - Cooling / Heating
Fan speed 3 speed ( Low , Medium , High ) / Auto
Auto speed: difference between setpoint and ambient temperature,
1 K - Low ; 2 K - Medium ; 3 K - High
Defrost Low temperature protection. When the unit in “OFF” status and
ambient temperature lower than 5°C, it will switch on automatically
in heat mode with “ ” showing. When the temperature reached
7°C, it will stop automatically.
Backlight The backlight will light up 7 seconds whenever button is pressed.
By pressing “ ”, backlight light up 30 seconds.
Valve When the valve is opening, the icon “ ” displays.
Restart When “RST” button is pressed, the thermostat will restart with last
saved setting.
Memory
All last saved parameters will be kept after power failure or power off.
Dimension and Terminals
230 VAC Neutral N (comm)
Output for fan - High speed
Output for fan - Medium speed
Output for fan - Low speed
Output for actuator - Cool
Output for actuator - Heat
230 VAC Live L
Precios de Lista
EXT-CF230-D202-AF $90.00
EXT-CF230-D402-AF $100.00

O56002 - 04/12 - Subject to change. © Belimo Aircontrols (USA), Inc.
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
LCD Electronic Thermostat
EXT-CF230-D202-AF, EXT-CF230-D402-AF
Maintenance mode
When the unit in “OFF” status, press “” for 5 seconds to enter maintenance mode.
Press “” to change over from “disp > 0set > defr > usp > lsp”. If button is not
pressed over 10 seconds, it will return to normal mode automatically.
disp Display selection - ambient temperature (rt) / setpoint (sp)
In maintenance mode “disp”, press “,” to select “rt” or “sp”.
“rt” : display ambient temperature (factory setting)
“sp” : display setpoint
0set Temperature offset adjustment
In maintenance mode “0set”, press “,” to adjust ambient
temperature reading.
-3, -2, -1, 0, 1, 2, 3. (factory setting “0”)
defr Defrost - low temperature protection
In maintenance mode “defr”, press “,” to adjust.
“0n” = ON
“0ff” = OFF (factory setting)
usp Upper set point adjustment (factory setting 35°C)
In maintenance mode “usp”, press “,” to adjust max. temperature
set point.
lsp Lower set point adjustment (factory setting 35°C)
In maintenance mode “lsp”, press “,” to adjust min. temperature
set point.
do not open
To be opened by accredited servicing agents only Electronic control - Type 2.B
action (micro-disconnection operation). Separate collection for electrical and
electronic equipment.
Wiring Diagrams
230 VAC
EXT-CF230-D202-AF
5 A fuse
On-Off Control - 2 Wires
comm
230 VAC
EXT-CF230-D202-AF
5 A fuse
On-Off Control - 3 Wires
230 VAC
EXT-CF230-D202-AF
5 A fuse
On-Off Control - 2 Wires
Auto Change-Over

O56002 - 04/12 - Subject to change. © Belimo Aircontrols (USA), Inc.
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
LCD Electronic Thermostat
EXT-CF230-D202-AF, EXT-CF230-D402-AF
Installation Manual
Mounting Method
1open the clip with screw driver 2unplug the connector
3wiring 4mount it with screws
5plug in the connector 6close it with clip
