Thank you for purchasing the VideoLink Powerline Internet Adapter (the Adapter). Most people don’t enjoy buying long and
expensive Ethernet cables or pulling the cables from one place to another, but the Adapter offers one of the easiest ways to enjoy
home or small-business networking. Users can now experience a total network solution with the Adapter. The VideoLink Powerline
Internet Adapter operates on the HomePlug®Powerline AV standard, providing up to 200Mbps* bandwidth over home AC wiring.
Since the home power lines are the most pervasive medium in households with multiple outlets in every room, the Adapter allows
multiple home desktop and notebook computers to be networked to share an Internet connection, printers, and files, stream video,
and play games without any additional wiring. The advanced signal processing is capable of maintaining coverage throughout the
entire house, even across different phase rings.
These Adapters also use xtendnet technology to ensure the most robust
powerline network in the market. Each additional Belkin VideoLink
Powerline or Gigabit Powerline Adapter that is plugged in is capable of
repeating the data signal for maximum coverage of your home.
The installation of the Adapter only requires that a 10/100Mbps Ethernet
port is available on your device. This makes the VideoLink Powerline
Internet Adapter compatible with any device, including Mac, Windows,
and UNIX machines. Note that you need at least two adapters to create
a powerline network.
For security, all HomePlug devices are equipped with 128-bit AES
encryption. The private home power grid plus encryption makes
HomePlug significantly more secure than competing technologies.
The VideoLink Powerline Internet Adapter provides the best solution for
no-new-wires home networking. With easy plug-and-play installation,
and the reliability of HomePlug Ethernet’s products, the VideoLink
Powerline Internet Adapter is the best solution for high-speed
networking.

2
Powerline AV Networking Adapter
SECTIONSTable of Contents 2341
INTRODUCTION
Features
• Up to 200Mbps* bandwidth over standard home power lines
• HomePlug signal easily passes through circuit breaker
• 128-bit AES encryption ensures data security
• Encryption completed by hardware, without sacrifice to bandwidth
• Uses IEEE 802.3 computer interface
• Plug-and-play installation
• xtendnet™ feature for a robust powerline network
• HomePlug Powerline AV-compliant
• Coexistence with HomePlug 1.0 and 1.0 Turbo networks

3
Powerline AV Networking Adapter
SECTIONSTable of Contents 2341
INTRODUCTION
Product Specifications
Computer Interface: IEEE 802.3/802.3u
Operating Temperature: 32–104 degrees F (0–40 degrees C)
Storage Temperature: -4–176 degrees F (-20–80 degrees C)
Humidity: Max. 5%–90% (non-condensing)
*The standard transmission rate—200Mbps—is the physical data rate.
Actual data throughput will be lower.

4
Powerline AV Networking Adapter
SECTIONSTable of Contents 2341
INTRODUCTION
System Requirements
• At least 2 HomePlug devices
• AvailableEthernetportoneachcomputerornetworkdevice
• Availablepoweroutlet
• Standardhomepowerlinewiring
• CD-ROMdrive
Package Contents
• Two VideoLink Powerline Internet Adapters
• 2 Ethernet Cables
• User Manual on CD
• Quick Installation Guide
Power LED
Solid Green Power on
Off Power off
Blinking Green Encryption setting up
Solid Green Encryption setup successful
Double Flash Fail in encryption
Powerline Link LED
Blinking Powerline data transmitting
or receiving
Color Green Link rate excellent: greater
than 80Mbps
Color Amber Link rate low: less than 80Mbps
Off No activity
Ethernet Link LED
Solid Green 10/100Mbps port linked
Off No Ethernet link

5
Powerline AV Networking Adapter
SECTIONSTable of Contents 1 3 4
INSTALLING AND SETTING UP THE ADAPTERS
2
Overview
Installation of the VideoLink Powerline Internet Adapter takes only
seconds and does not require setting up long wires throughout the
house. Simply plug the units directly into any available wall outlet and
connect to any device with an Ethernet port. Users have the option to
randomly change the security password for their powerline network.
Hardware Setup

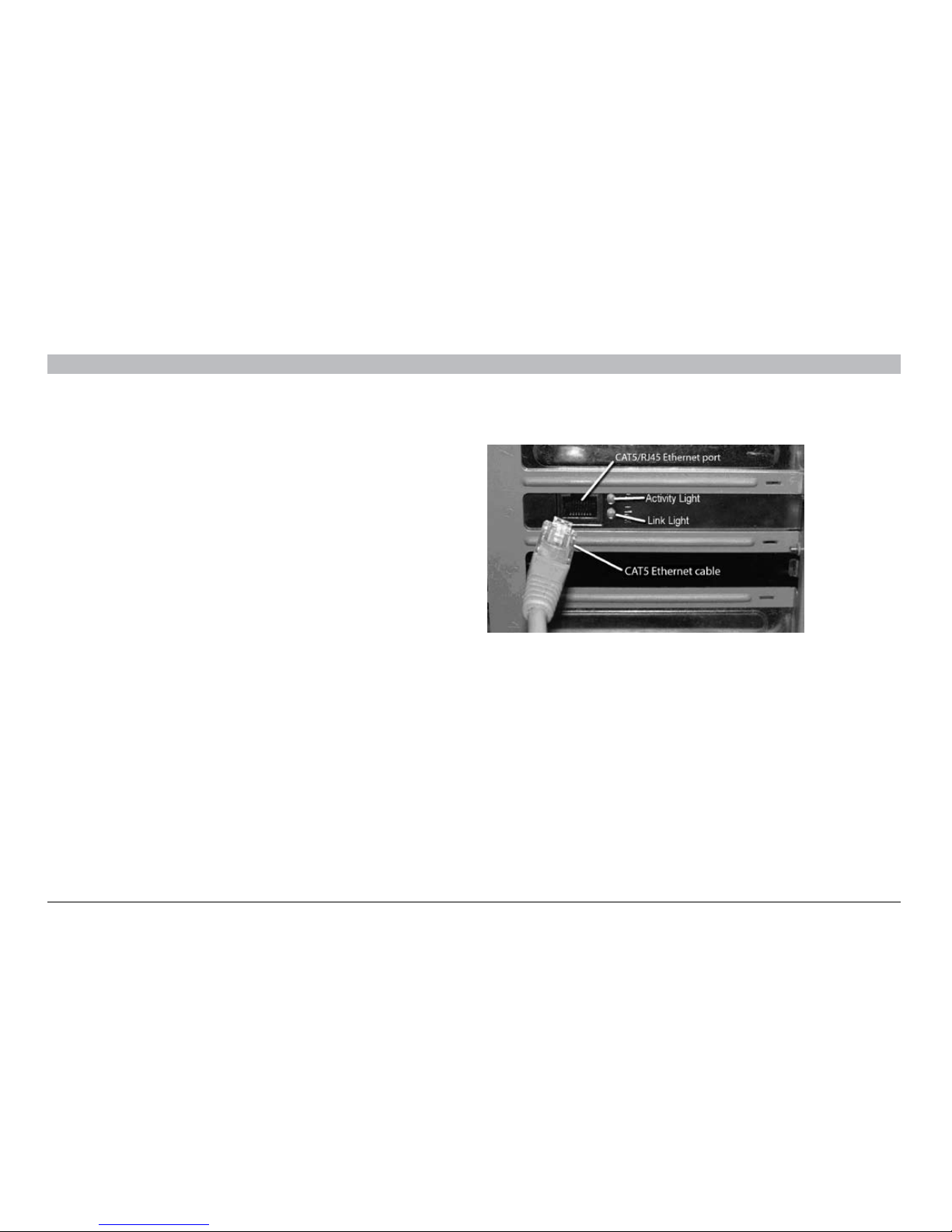

1. Plug your network cable into the device’s RJ45 network
adapter port.
2. Plug the other end of your network cable into the RJ45 port located
at the back of the Adapter.

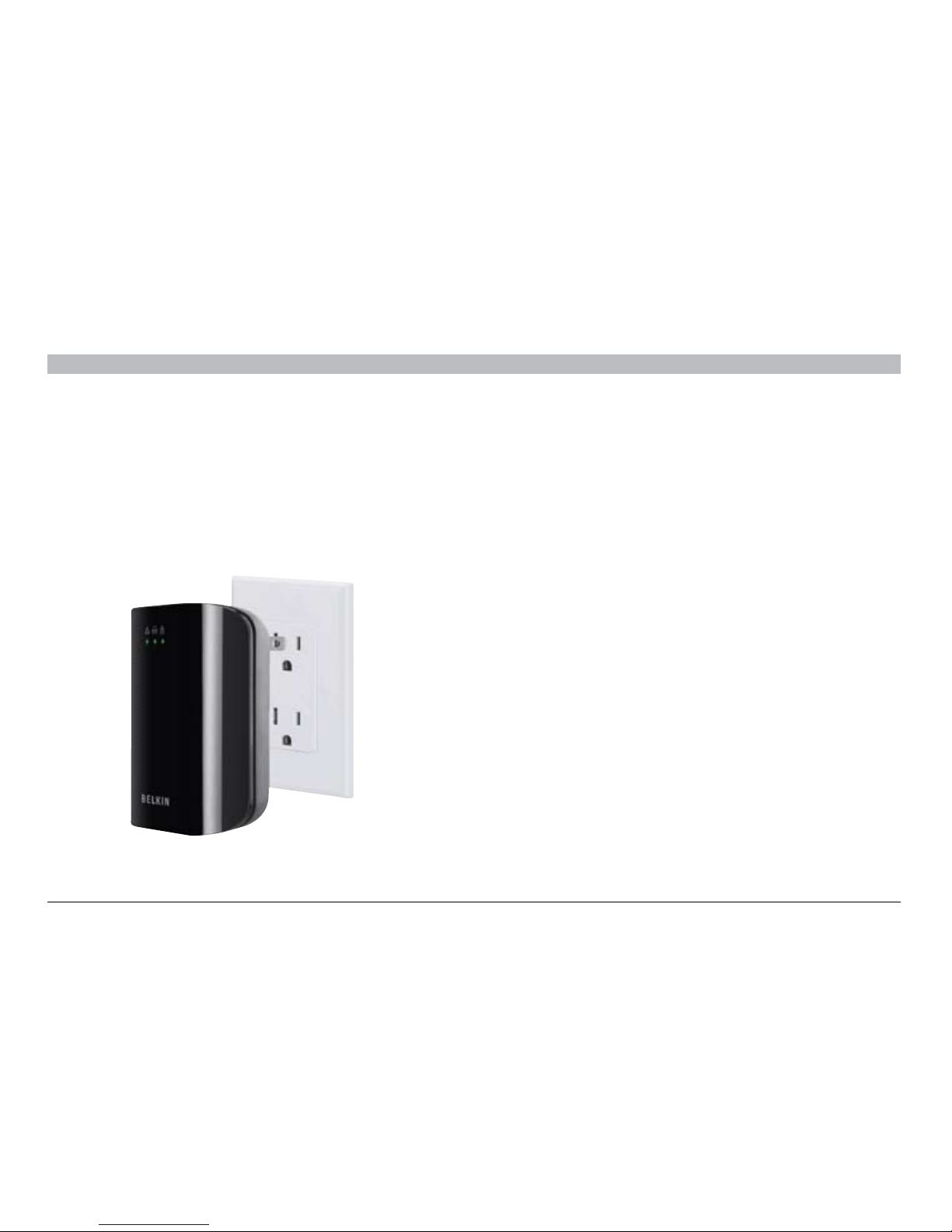

3. Insert the Adapter directly into a power outlet in the wall.
NOTE: Do not plug the device into a UPS or power strip with
surge protection as they may filter the powerline signal.
4. Repeat this process for the second Adapter.

6
Powerline AV Networking Adapter
SECTIONSTable of Contents 1 2 4
CONFIGURATION
3
Overview
The Adapter uses 128-bit AES encryption to block access from
the outside. By default, the protection is enabled. However, it is
recommended that you change the default network password with the
“Encryption” button located on the units.
Changing the Network Password
1. With both Adapters plugged into the wall, press the “Encryption”
button on both units for 10 seconds. The password on these
Adapters has now been changed to a random value.
2. Next, press the “Encryption” button on one unit for more than one
second, but less than three seconds.
3. Within two minutes, press the “Encryption” button on the second
unit for more than one second, but less than three seconds.
4. The new network password has now been saved to the second
unit. The password will not be lost, even if the Adapters are
unplugged from the wall.

7
Powerline AV Networking Adapter
SECTIONSTable of Contents 1 2 43
CONFIGURATION
Adding Another Adapter to the Network
1. If the default network password has been changed, a new Adapter
will have to load the new password before it can join the network.
2. Press the “Encryption” button on an encrypted unit for more than
one second, but less than three seconds.
3. Within two minutes, press the “Encryption” button on the new unit
for more than one second, but less than three seconds.
4. The new device has now been loaded with the network password
and added to the current powerline network.
Resetting to Factory Defaults
Using a pointed object, press and hold the “Reset” button for one
second to restore defaults. This procedure resets the network password
to the default out-of-box value.
Technical Support
You can find technical support information at www.belkin.com/support
or www.belkin.com.
