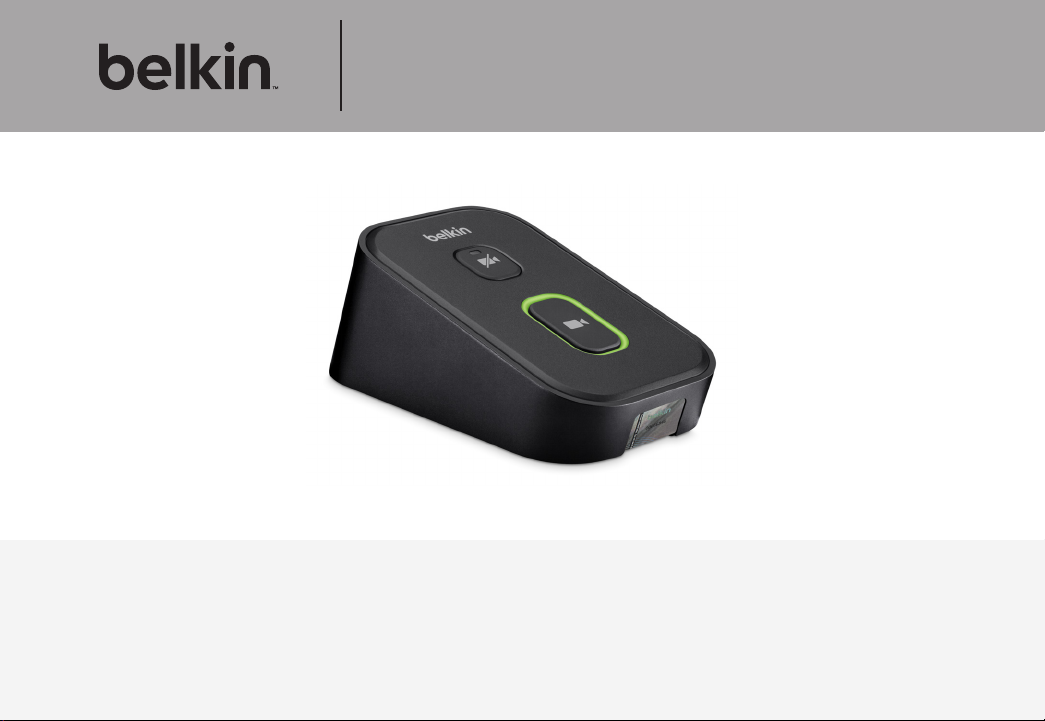

Belkin F1DN003A User manual
Secure Web Camera Adapter
User Manual
F1DN003A – Belkin Secure Web Camera Adapter
Document Number 8820-01353 Rev. A00
i
Belkin Secure Web Camera Adapter User Manual
TABLE OF CONTENTS
SECTIONS 123456
Table of Contents
Introduction ..............................................1
Package Contents.........................................1
Overview.................................................2
Security Features .........................................2
Operational Features ......................................3
Equipment Requirements ...................................4
Safety Precautions ........................................5
Unit Display Diagrams .....................................6
Tamper-Evident Label......................................8
Active Anti-Tampering System ...............................8
Product Specifications .....................................9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before Installation ........................................10
Installation ..............................................11
Operation ...............................................12
Normal Operation ........................................12
Operation...............................................12
Troubleshooting .........................................16
Operation Troubleshooting.................................16
Information..............................................18
FCC Statement ..........................................18
Warranty ...............................................18
Reporting Belkin Product Security Vulnerability ................21
1
Belkin Secure Web Camera Adapter User Manual
INTRODUCTION
SECTIONS
Table of Contents 234561
Thank you for purchasing this Belkin Secure Web Camera Adapter, a
major enhancement to Belkin’s cyber-security product line. It is a simple
appliance that connects and disconnects the USB connection of a web
camera. It provides an easy and intuitive way to control the web-camera
connection and to prevent security breaches.
There are many cases where webcams are used in secure or sensitive
environments. Attackers may exploit this by remotely opening the web
camera to listen to, or see, the classified conversations and meetings
taking place next to these non-classified computers.
The Belkin Secure Web Camera Adapter is a simple accessory that can
be used to protect the USB webcam from being abused.
This User Manual provides all the details you’ll need to install and
operate your new Secure Web Camera Adapter, in addition to expert
troubleshoot advice, in the unlikely event of a problem.
Important: This product is equipped with an always-on active anti-
tamper system. Any attempt to open the enclosure may activate the
anti-tamper system and render the unit permanently inoperable. If
the unit’s enclosure appears disrupted, please call Belkin Technical
Support at (800) 282-2355.
Package Contents
• Belkin Secure Web Camera Adapter
• 6 ft. USB type A to USB type B Cable
• This User Manual
Reporting Belkin Product Security Vulnerability
If you are aware of potential security vulnerability with any Belkin
Government product, we encourage you to contact us immediately
at the following email address: gov_security@belkin.com or our
technical support line at: 1-800-282-2355
After your communication is received, Belkin Government personnel
will contact you to follow up. To ensure confidentiality, Belkin
encourages you to use our PGP encryption key.
The gov_securit[email protected] email address is not intended to
reach technical support on Belkin Government products or services.
Any support inquiries should be directed to our technical support line
at: 1-800-282-2355
BACK TO TABLE OF CONTENTS >
2
Belkin Secure Web Camera Adapter User Manual
OVERVIEW
SECTIONS
Table of Contents 1 34562
Security Features
Belkin’s cyber-security products are the most advanced and secure
commercially available products in their field. The Belkin Secure Web
Camera Adapter is an accessory that is designed to improve security
when using web cameras in secure environments, and includes these
security features:
Timer Activated Camera
The user must press a button to connect the web camera’s USB
connection to the computer. The automatic timer disconnects the web
camera’s USB connection after limited time, forcing the user to press
the activation button to keep it active.
Non-Programmable Firmware
The Belkin Secure Web Camera Adapter’s firmware cannot be
reprogrammed, preventing a remote attack on the control logic.
Active Always-On Active Anti-Tamper
The Belkin Secure Web Camera Adapter includes an active anti-tamper
system, preventing access and tampering of the adapter’s electronic
circuitry, permanently disabling the product once tampering is detected.
Holographic Tamper-Evident Label
A serially numbered holographic tamper-evident security label on the
Belkin Secure Web Camera Adapter enclosure clearly shows if the
enclosure has been opened or compromised.
Secure Packaging
Secure “tear away” packaging clearly shows if the packaging was
opened or tampered with during shipping, and ensures secure delivery
all the way to the end user.
USB Device Filtering
The Belkin Secure Web Camera Adapter is programmed to allow only
webcams and other audio devices to be used. All other USB peripherals
will be filtered and rejected.
BACK TO TABLE OF CONTENTS >
3
Belkin Secure Web Camera Adapter User Manual
SECTIONS
Table of Contents 1 3456
OVERVIEW
2
Operational Features
The Belkin Secure Web Camera Adapter enhances security when using
a web camera in a secure environment. Some of the key operational
features are:
Easy to Install
Simply connect the Web Camera Adapter between the web camera
and the computer’s USB port. Only requires the web camera’s driver
software to be loaded on the computer(s).
Easy and Intuitive User Interface
Simple two-button interface to activate and disconnect camera.
Activation Timer
Press the Activation button [icon] to start 60-second activation timer.
User must press the Activation button [icon] when its light blinks to
reset the timer and keep the camera active. If the user did not press the
Activation button, then the adapter automatically disconnects the web
camera when the timer expires.

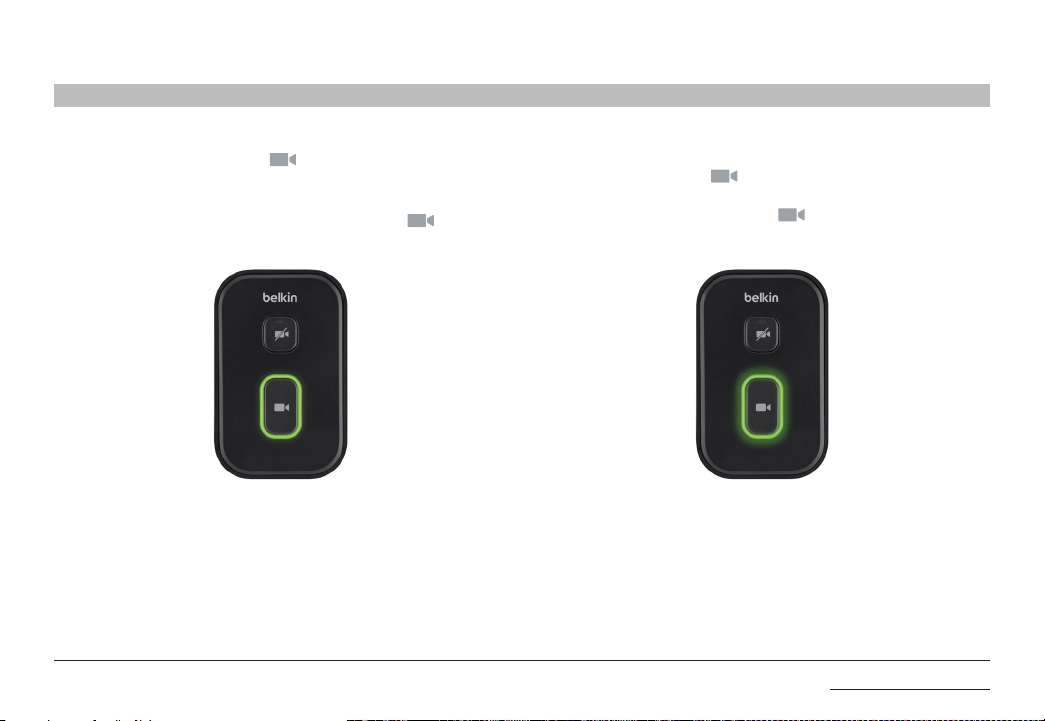

Blinking Activation Button
Activation button starts blinking after camera is active for 40 seconds,
and blinks faster in the last five seconds. The user must press the
activation button during this period to reset the timer and keep the
camera activated.
BACK TO TABLE OF CONTENTS >
4
Belkin Secure Web Camera Adapter User Manual
SECTIONS
Table of Contents 1 3456
OVERVIEW
2
Equipment Requirements
Cables
Belkin Secure Web Camera Adapter connects to the computer with a
USB type A to USB type B cable. A 6-foot (1.8m) USB cable is included
with the device. The web camera connects directly to the Belkin Secure
Web Camera Adapter.
The following Belkin USB cables are also approved for use with the
Secure Web Camera Adapter.
• F3U133b06
(Belkin PRO Series - USB cable – 4-pin USB Type A (M) – 4-pin USB
Type B (M) - 6 ft. (USB/Hi-Speed USB) - molded - B2B)
• F3U133b16
(Belkin - USB cable – 4-pin USB Type A (M) – 4-pin USB Type B
(M) - 16 ft.)
• F3U133-03-TAA
(Belkin PRO Series - USB cable – 4-pin USB Type A (M) – 4-pin USB
Type B (M) - 3 ft. (USB/Hi-Speed USB) - molded - B2B)
• F3U133-06-TAA
(Belkin PRO Series - USB cable – 4-pin USB Type A (M) – 4-pin USB
Type B (M) - 6 ft. (USB/Hi-Speed USB) - molded - B2B)
• F3U133-10-TA A
(Belkin PRO Series - USB cable – 4-pin USB Type A (M) – 4-pin USB
Type B (M) - 10 ft. (USB/Hi-Speed USB) - molded - B2B)
Important: Do not connect a USB hub between the web camera and
the Belkin Secure Web Camera Adapter, or between the adapter and
the computer.
Web Camera Software
The connected web camera must be able to connect and have a
software driver that is compatible to the computer, and operating
system, to which the Belkin Secure Web Camera Adapter will connect.
BACK TO TABLE OF CONTENTS >
5
Belkin Secure Web Camera Adapter User Manual
SECTIONS
Table of Contents 1 3456
OVERVIEW
2
Safety Precautions
Please read the following safety precautions carefully before using the
product:
• Before cleaning, disconnect the product from any electrical power
supply.
• Do not expose the product to excessive humidity or moisture.
• Do not store or use for extensive period of time in extreme thermal
conditions—it may shorten product lifetime.
• Install the product only on a clean secure surface.
• If the product is not used for a long period of time, disconnect it
from electrical power.
• If any of the following situations occurs, have the product checked
by a Belkin qualified service technician:
– Liquid penetrates the product’s case.
– The product is exposed to excessive moisture, water or any
other liquid.
– The product is not working well even after carefully following
the instructions in this user manual.
– The product has been dropped or is physically damaged.
– The product shows obvious signs of breakage or loose internal
parts.
– Power supply overheats, is broken or damaged, or has a
damaged cable.
• The product should be stored and used only in temperature- and
humidity-controlled environments as defined in the product’s
environmental specifications.
• Never attempt to open the product enclosure. Any attempt to
open the enclosure will permanently damage the product.
• The product contains a non-replaceable internal battery. Never
attempt to replace the battery or open the enclosure.
BACK TO TABLE OF CONTENTS >
8
Belkin Secure Web Camera Adapter User Manual
SECTIONS
Table of Contents 1 3456
OVERVIEW
2
Tamper-Evident Label
The Belkin Secure Web Camera Adapter uses a holographic tamper-
evident label that shows if the enclosure was tampered with. The label
shows white dots or the text “VOID” when removed. Inspect the tamper-
evident label when opening product packaging.
IMPORTANT NOTICE:
Call Belkin Technical Support at (800) 282-2355 if for any reason,
the tamper-evident label is missing, torn, disconnected, appears
disrupted, or looks different than the example shown here.
12345678
Belkin Holographic Tamper-Evident Label
Active Anti-Tampering System
The Belkin Secure Web Camera Adapter is equipped with an always-
on active anti-tampering system. If the system detects mechanical
intrusion, the adapter disconnects the USB connection and all LEDs
(admin, enable, disable) flash.
If the product indicates a tampered state, avoid using the product
and call Belkin Technical Support.
BACK TO TABLE OF CONTENTS >
9
Belkin Secure Web Camera Adapter User Manual
SECTIONS
Table of Contents 1 3456
OVERVIEW
2
Product Specifications
Part No. F1DN003A
Enclosure Impact-Resistant ABS Plastic
Power Requirements 5V DC, 1A (maximum) from connected
computer through USB connection
No. of Users Supported 1
User Interface Two buttons:
Activate connection and Disconnect
Two lights:
Red LED on Disconnect button
Blinking Green ring around Activate button
Connections USB type A – Connect web camera
USB type B – Connect to computer
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
Dimensions 2.15 (W) x 3.77 (D) x 0.83 (H) inches /
55 (W) x 96 (D) x 21 (H) mm
Weight Product: 0.55 lbs. (0.2kg)
Made in USA
BACK TO TABLE OF CONTENTS >
10
Belkin Secure Web Camera Adapter User Manual
INSTALLATION
SECTIONS
Table of Contents 12 4563
Before Installation
Unpack the Product
Before opening the product’s sealed packaging, inspect the packaging’s
seals to assure that the packaging was not opened or tampered with
during shipping. If the packaging’s seals look suspicious, do not use the
product and contact Belkin support.
After opening the packaging, inspect the package contents to verify
all required components are included. See the packaging contents list
on page 1.
After removing the Belkin Secure Web Camera Adapter from its
packaging materials, inspect the tamper-evident label to assure that it
is properly sealed and was not tampered with. Do not use that product
if the label is damaged or missing, and contact Belkin support.
Where to Place the Belkin Secure Web Camera Adapter
The Belkin Secure Web Camera is designed to be placed on a desktop
within easy reach, typically next to the keyboard or mouse, or near the
base of the display.
Optionally, you can fix the Belkin Secure Web Camera Adapter to a rack
or table using VELCRO®pads, if necessary.
The Secure Web Camera Adapter must be located in a secure and well-
protected environment, to prevent potential access by attackers.
Consider the following when deciding where to place the Belkin Secure
Web Camera Adapter:
User can easily reach and press the push-buttons.
Distance: The longest USB cable from the Secure Web Camera Adapter
to the connected computer can be up to 16 feet.
The web camera must connect directly to the Belkin Secure Web
Camera Adapter.
Install Web Camera Software
Before connecting the Belkin Secure Web Camera Adapter, install the
web camera driver software on the computer to which the web camera
will connect. This may require connecting the web camera directly to
the computer and configuring its software.
It is possible to use other audio\video USB devices through the
Secure Web Camera Adapter.
The adapter will not allow USB storage or HID devices to be used.
BACK TO TABLE OF CONTENTS >
11
Belkin Secure Web Camera Adapter User Manual
SECTIONS
Table of Contents 12 456
INSTALLATION
3
Installation
Step 1 – Connect the web camera
• In the Secure Web Camera Adapter’s back panel, insert the USB
plug of the web camera into the USB port marked Webcam.
• Mount the web camera on a stable and secure surface, where it
can clearly view the computer user or the subject.
Step 2 – Connect to the computer
• In the Secure Web Camera Adapter’s back panel, insert the USB
type B plug of the USB cable into the USB port marked Computer.
• Insert the other end of the USB cable into an open USB A port on
the connected computer.
Web Camera
Computer Web Camera Adapter
USB Cable USB Cable
Connecting the Secure Web Camera Adapter
Note: Use the following USB cables to connect the Belkin Secure
Web Camera Adapter to the computer:
• Up to 3 ft. (0.95m): F3U133-03-TAA
• From 3 ft. (0.95m) to 6 ft. (1.8m): F3U133b06 or F3U133-06-TAA
• From 6 ft. (1.8m) to 10 ft. (3m): F3U133-10-TAA
• From 10 ft. (3m) to 16 ft. (4.8m): F3U133b16
Step 3 – Restart the computer
• Restart the connected computer.
• Verify the Secure Web Camera Adapter is receiving power from
the computer. On the back panel, the LED next to the webcam
port should light up solid Green.
• The RED LED light on the Disconnect button should light up.
• When the computer is starting up, press the Activate button to
connect the web camera to the computer.
• Verify that the computer is identifying the connected web camera.
• Open the web camera software on the computer and verify that
the computer is receiving a video signal from the web camera.
BACK TO TABLE OF CONTENTS >
12
Belkin Secure Web Camera Adapter User Manual
OPERATION
SECTIONS
Table of Contents 123 564
Normal Operation
The Belkin Secure Web Camera Adapter begins working automatically
once connected to a powered computer. Follow the steps below to
verify that the computer identifies the web camera:
• Power up the computer:
– After the computer’s BIOS screen, the operating system’s
initialization screen appears.
– Press the Activate button on the Secure Web Camera
Adapter.
• If the computer is already running:
– Open the web camera software that you installed before
connecting the Secure Web Camera Adapter (see Before
Installation on page 10).
– Press the Activate button and verify that the software is
identifying the web camera.
Operation
The user operates the Belkin Secure Web Camera Adapter by pressing
two buttons:
• Activate connects the web camera to the computer and starts
the automatic timer.
• Disconnect disconnects the web camera from the computer.
1. By default, the Secure Web Camera Adapter keeps the web
camera disconnected from the computer.
– The RED LED on the Disconnect button lights when the
web camera is disconnected.
BACK TO TABLE OF CONTENTS >
13
Belkin Secure Web Camera Adapter User Manual
SECTIONS
Table of Contents 123 56
OPERATION
4

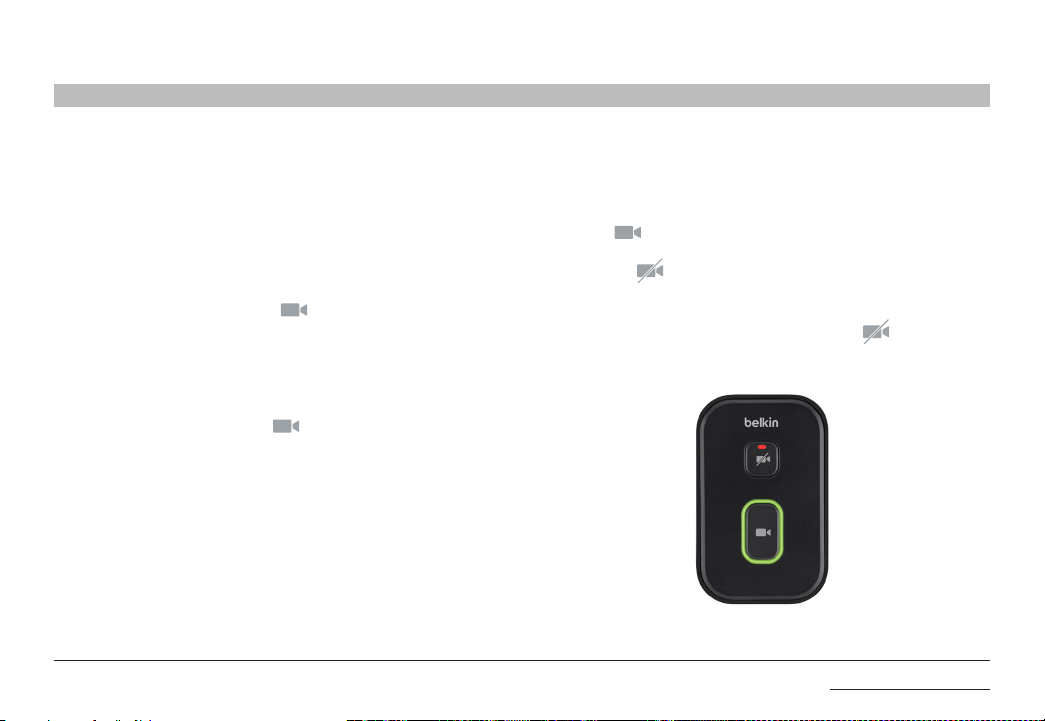

2. Press the Activate button to activate the web camera.
– The activation timer starts and connects the web camera to
the computer for 60 seconds.
– The GREEN ring around the Activate button lights up.
3. Forty (40) seconds after the timer starts, the GREEN ring around
the Activate button starts blinking slowly.
– Five seconds before the timer expires, the GREEN ring
around the Activate button blinks faster.
BACK TO TABLE OF CONTENTS >
14
Belkin Secure Web Camera Adapter User Manual
SECTIONS
Table of Contents 123 56
OPERATION
4
4. Press the Activate button to restart the 60-second timer.
– If you did not press the Activate button when it blinks,
the Secure Web Camera Adapter automatically disconnects
the web camera from the computer when the 60-second
timer ends.
5. When you want to activate the web camera or during a video
conference, continue pressing the Activate button when
it blinks.
6. To disconnect the web camera:
– Wait for the timer to end and disconnect the camera
automatically, OR
– Press the Disconnect button [icon].
7. The Secure Web Camera Adapter returns to being disconnected.
– The RED LED on the Disconnect button lights.
BACK TO TABLE OF CONTENTS >
15
Belkin Secure Web Camera Adapter User Manual
SECTIONS
Table of Contents 123 56
OPERATION
4
Belkin Secure Web Camera Adapter LED Indications Table
Product State Red LEDs Green LEDs Admin Bi-Color LED
Idle - Powered on, no device Off Off Green
Product tampered Blinking red Blinking red Blinking red
Device connected but rejected Blinking Off Green
Device connected and OK On Off Green
Device connected and OK –
user presses the Activate push-button. First 75% of the time. Off On Green
Device connected and OK –
user presses the Activate push-button. Last 25% of the time. Off Blinking slow Green
Device connected and OK –
user presses the Activate push-button. Last 5% of the time. Off Blinking fast Green
BACK TO TABLE OF CONTENTS >
16
Belkin Secure Web Camera Adapter User Manual
TROUBLESHOOTING
SECTIONS
Table of Contents 1234 65
Important Security Note: If you are aware of potential security
vulnerability while installing or operating this product, please
contact Belkin immediately at the following email address:
gov_securit[email protected]
Operation Troubleshooting
This section describes how to resolve problems that arise when
operating the Belkin Secure Web Camera Adapter.
No USB connection
Problem: The USB connection between the Belkin Secure Web Camera
Adapter and the computer is not working.
• LED on the adapter’s back panel does not light.
• RED LED on the Disconnect button does not light.
Solutions:
Check the computer:
• Connect the USB cable from the Belkin Secure Web Camera
Adapter to another USB port on the computer.
• Connect the web camera directly to a USB port on the computer.
Check the cable:
• Replace the USB cable connecting the Belkin Secure Web
Camera Adapter to the computer.
Problem: The USB connection between the web camera and the Belkin
Secure Web Camera Adapter is not working.
• Computer does not identify the web camera when the USB
connection is activated.
• Activity light on the web camera does not light.
• LED on the adapter’s back panel does light.
• RED LED on the Disconnect button does light.
Solutions:
Check the computer:
• Restart the computer, pressing the Activate button while the
operating system is initializing.
• Connect the web camera directly to a USB port on the computer.
Replace the Secure Web Camera Adapter:
• Replace the Secure Web Camera Adapter and check if it is
working.
Computer does not identify the camera
Problem: The Belkin Secure Web Camera Adapter and the connected
web camera appear to operate, but the computer does not detect the
camera.
• LED on the adapter’s back panel does light.
• RED LED on the Disconnect button does light.
• GREEN light around Activate button lights when pressing the
button.
BACK TO TABLE OF CONTENTS >
17
Belkin Secure Web Camera Adapter User Manual
TROUBLESHOOTING
SECTIONS
Table of Contents 1234 65
• Activity light on the web camera does light.
• Computer does not identify the web camera when the USB
connection is activated.
Solutions:
Check the computer:
• Connect the web camera directly to the computer, reinstall the
driver software, and restart the computer.
• Open the web camera software on the computer and check that
it is properly configured.
• On a Microsoft®Windows®computer, check if it identifies the
camera: Open the Control Panel -> Device Manager -> Imaging
Devices, and check that the web camera’s driver software is
installed.
BACK TO TABLE OF CONTENTS >
18
Belkin Secure Web Camera Adapter User Manual
INFORMATION
SECTIONS
Table of Contents 123456
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista,
CA 90094, declare under our sole responsibility that the products:
F1DN003A, to which this declaration relates:
Complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CE Declaration of Conformity
We, Belkin International, Inc., declare under our sole responsibility that
the F1DN003A, to which this declaration relates, are in conformity with
Emissions Standard EN55022 and with Immunity Standard EN55024,
LVP EN61000-3-2, and EN61000-3-3.
ICES
This Class B digital apparatus complies with Canadian ICES-003. Cet
appareil numérique de la classe B est conforme á la norme NMB-003
du Canada.
Warranty
Belkin International, Inc., Limited 3-Year Product Warranty
What this warranty covers?
Belkin International, Inc. (“Belkin”) warrants to the original purchaser of
this Belkin product that the product shall be free of defects in design,
assembly, material, or workmanship.
What the period of coverage is?
Belkin warrants the Belkin product for three years.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of
charge (except for shipping charges for the product). Belkin reserves
the right to discontinue any of its products without notice, and disclaims
any limited warranty to repair or replace any such discontinued
products. In the event that Belkin is unable to repair or replace the
product (for example, because it has been discontinued), Belkin will
offer either a refund or a credit toward the purchase of another product
from Belkin.com in an amount equal to the purchase price of the
product as evidenced on the original purchase receipt as discounted
by its natural use.
BACK TO TABLE OF CONTENTS >
Table of contents
Other Belkin Camera Accessories manuals
