Belkin F1DN-PSU-10P12V User manual

8820-03379 Rev.A00
F1DN-PSU-10P12V: Belkin Rack PSU 10 X 12VDC, 10 Ports Power Supply, Including: Rack Mount Kit
and 10 x Power Cables, for Extender Transmitter & Receiver Fiber SFP
F1DN-PSU-10P48V: Belkin Rack PSU 10 X 48VDC, 10 Ports Power Supply, Including: Rack Mount Kit
and 10 x Power Cables, for Extender Transmitter & Receiver Copper CAT6
Objectives
• Scan the QR code or visit Belkin Cybersecurity YouTube Playlist for Secure KVM Unboxing and Troubleshooting videos.
• This guide includes instructions for Belkin F1DN-PSU-10P12V and F1DN-PSU-10P48V.
• This Manual and additional product documentation is available for online download on Belkin website. For further assistance please refer to:
https://www.belkin.com/products/product-resources/cybersecurity/resources/.

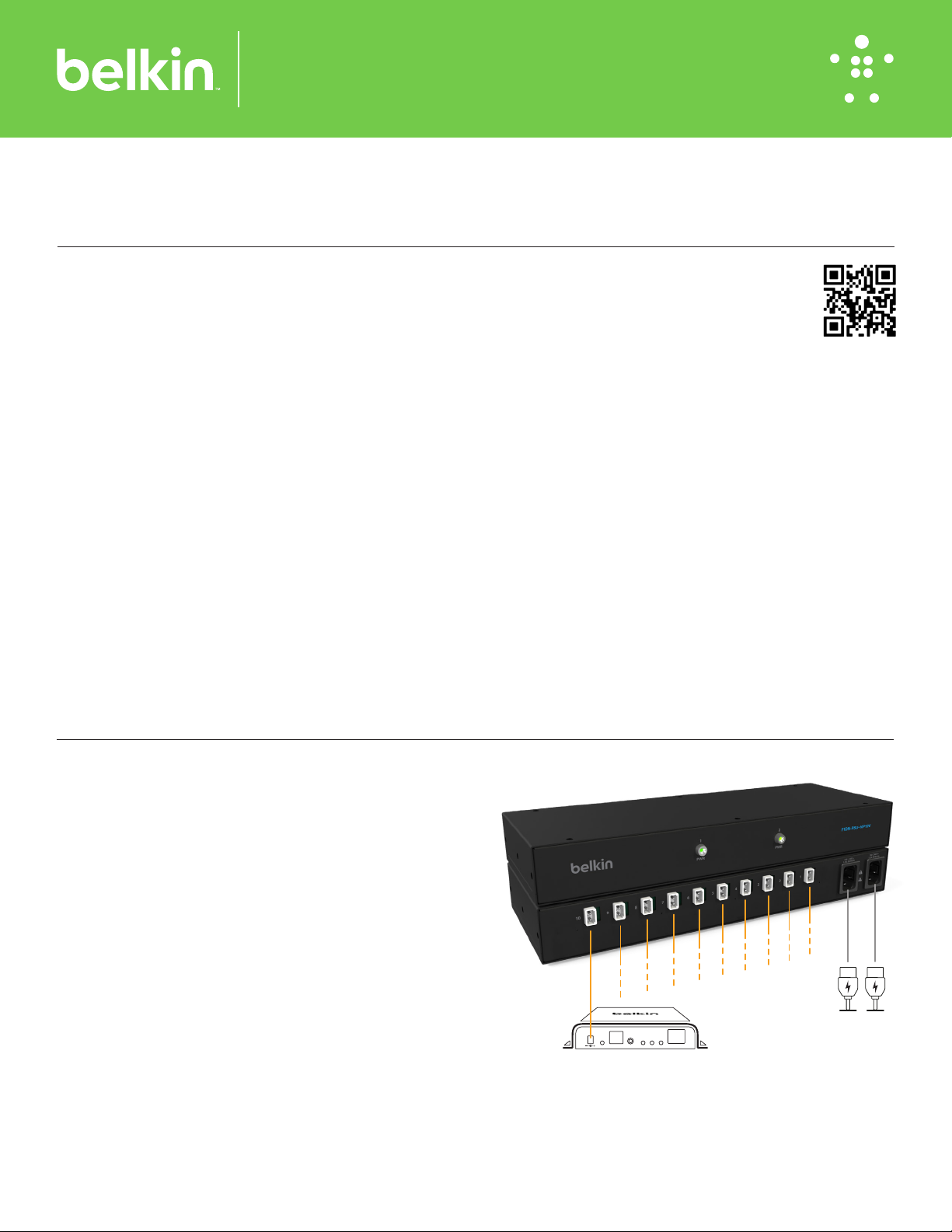

Quick Installation Guide
Belkin Rack PSU
Verify that all peripherals are turned OFF prior to
connecting them to the product.
Connect C13 Female to C14 Male 1.8m Extender Cables
to Power Adapter Kit.
Connect 2x 100-240V-1/2A, 50/60 Hz Power Adapter
Kits to PSU.
• If connecting less than 5 compatible Extenders to PSU, you may
use 1x 100-240V-1/2A, 50/60 Hz Power Adapter Kit to PSU.
Connect 6ft DC Junction Box Cable to PSU.
Connect 6ft DC Junction Box Cable to compatible Belkin
Extender.
Repeat steps 5 and 6 for up to 10 compatible Belkin
Extenders.
F1DN-PSU-10P12V Model is shown
Pre-installation Guidelines
• Determine where you will install the PSU and the orientation of the PSU.
• Ens ure the PSU will be installed on a flat, clean, and dry surface. This PSU is
not intended for exposed outdoor installation.
• Ensure that distance between the Extenders, PSU, Secure KVM/KM and
each computer does not exceed cabling lengths or Extender supported
distances.
• Ensure that once the PSU is installed that the ports are accessible.
• F1D N-PSU-10P12V is compatible with the following Belkin Extenders:
–F1DN-KVM-EXTFI Extender Transmitter Fiber SFP -
Universal Video (4K 60Hz 4X2X0)
–F1DN-KVM-EXRFI Extender Receiver Fiber SFP -
Universal Video (4K 60Hz 4X2X0)
• F1DN-PSU-10P48V is compatible with the following Belkin Extenders:
–F1DN-KVM-EXTC6 Extender Transmitter Copper CAT6 -
Universal Video (4K 60Hz 4X2X0)
–F1DN-KVM-EXRC6 Extender Receiver Copper CAT6 -
Universal Video (4K 60Hz 4X2X0)
–F1DN-KVM-EXTC6X Extender Transmitter Copper CAT6 -
Universal Video (4K 60Hz 4X4X4)
–F1DN-KVM-EXRC6X Extender Receiver Copper CAT6 -
Universal Video (4K 60Hz 4X4X4)
Package Contents
• 1 x RACK PSU
• 2 x C13 Female to C14 Male 1.8m Extender Cables
• 2 x 100-240V-1/2A, 50/60 Hz Power Adapter Kits
• 10 x 6ft DC Junction Box Cables
• 1 x Rack Mount Kit
HDBaseTRCU
PWR LINKVIDEO PoE
DC 48V
Power
KVM Extender

8820-03379 Rev.A00
F1DN-PSU-10P12V: Belkin Rack PSU 10 X 12VDC, 10 Ports Power Supply, Including: Rack Mount Kit
and 10 x Power Cables, for Extender Transmitter & Receiver Fiber SFP
F1DN-PSU-10P48V: Belkin Rack PSU 10 X 48VDC, 10 Ports Power Supply, Including: Rack Mount Kit
and 10 x Power Cables, for Extender Transmitter & Receiver Copper CAT6
Ports and LEDs Index:
a. Power Adapter Port 1
b. Power Adapter Port 2
c. DC Junction Box Cable Ports
d. LEDs for Power Adapter Ports 1 (a)
and 2 (b)
abc
d
Environmental
• Operating temperature is 32° to 104° F (0° to
40°C).
• Storage temperature is -4° to 140° F (-20° to
60°C).
• Humidity requirements are 0-80% relative
humidity, non-condensing.
RACK PSU Dimensions
13.5 (L) 5 (W) 1.625 (H) inches / 342.9 (W) x 127
(H) x 41.28 (D) mm
Weight: 3.516 lbs / 1.59 kg
