Belleze 050-FM18 User manual

Mantel with 18” Insert Firebox
item no. 050-FM18
www.bellezefurniture.com
[email protected]
1-800-682-6376
@bellezefurniture
FOLLOW US: CONTACT INFO: NOTE:
The instruction booklet contains IMPORTANT safety
information Please read and keep for future reference.

2
OUR BRAND
Since 2013, Belleze has been dedicated to providing customers with quality products and
exceptional service and has prospered into one of the nation’s largest retailers of indoor and
outdoor home décor. Every Belleze product is carefully selected to ensure they meet our
standards as well as your standards. We believe quality should never be determined by price
which is why Belleze is committed to providing high end merchandise at the absolute lowest cost.
PLEASE LIKE, COMMENT AND FOLLOW.
@bellezefurniture
TABLE OF CONTENTS
Safety Information
Technical Specication
Package Content
Assembly Instruction
Users Instruction
Control Panel
Remote Control
Care and Maintenance
Trouble Shooting
03
04
05
08
15
16
18
19
19

3
When using electrical appliances, basic safety precautions should always be followed including the following:
READ ALL INSTRUCTIONS BEFORE USE
1. Read all instructions before using this
heater.
2. Do not use this heater outdoors.
3. This heater is not intended for use in
bathrooms, laundry areas and similar indoor
locations. Never locate the heater where
it may fall into a bathtub or other water
container.
4. Do not run the power cord under carpeting.
Do not cover the power cord with throw
rugs, runners, or the like. Arrange the power
cord away from tra󰀩c areas and where it will
not be tripped over.
5. To disconnect the heater, turn controls to o󰀨,
then remove the plug from the outlet.
6. Connect to properly grounded outlet
only. Always plug heaters directly into a
wall outlet/receptacle. Never use with an
extension cord or reloadable power tap
(outlet/power strip).
7. To prevent a possible re, do not block
operate the rebox on soft surfaces, like a
bed, where openings may become blocked.
8. There is a thermostat limiter inside the
heater. When the inner temperature
overheat or abnormal heating occurs,
the thermostat protective device cuts o󰀨
the power supply to avoid replace from
damaged or risk of re.
9. Use the heater only as described in the
manual. Any other use not recommended by
the manufacturer may cause re, electrical
shock, or injury.
⚠WARNING: There is no user serviceable
parts inside replace/heater. If the unit appears
to malfunction, turn the unit o󰀨 and unplug from
the wall immediately and contact Customer
Service.
⚠WARNING: This heater is hot when in use.
To avoid burns, do not let bare skin touch hot
surfaces. If provided, use handles when moving
thos heater. Keep combustible material, such
as furniture, pillows, bedding, papers, clothes,
and curtains at least 3ft (0.9m) from the front of
the heater and keep them away from the side or
rear.
⚠WARNING: Extreme caution is necessary
when any heater is used by or near children
or invalids and whenever the heater is left
operating and unattended.
⚠WARNING: Always unplug the heater when
not in use.
⚠WARNING: Do not operate any heater with
a damaged cord or plug or after the heater
malfunctions, has been dropped, or damaged in
any manner. Return the heater to an authorized
service facility for examination, electrical or
mechanical adjustment, or repair.
⚠WARNING: Do not insert or allow foreign
objects to enter any ventiliation or exhaust
openings as this may cause an electric shock or
re, or damage to the heater.
⚠WARNING: A heater has hot and arching
or sparking parts inside. Do not use in areas
where gasoline, paint, or ammable liquids are
used or stored.
⚠CAUTION: While the heater is in use, the
top center of the replace can get hot to the
touch, and may cause serious injury or burns.
Always supervise small children around the
replace/heater. Do not place any cloth or
decorations over the heater outlet or replace,
or otherwise obstruct the heater outlet of the
replace, as this may cause a re and serious
injury.

4
TECHNICAL SPECIFICATION
Model Number 050-FM18
Dimensions (W x D x H) (FIREPLACE) 18.7” x 5.03” x 17.1”
Power Rating 1400 W
Voltage 120 V
Frequency 60 Hz
LB
Weight Limitation
77 Top
Maximum Load
77 lb / 35 kg

5
PACKAGE CONTENT (FIREPLACE)
Screw x18 Remote Control
Fireplace UnitSide Trim (L/R)Top Trim

6

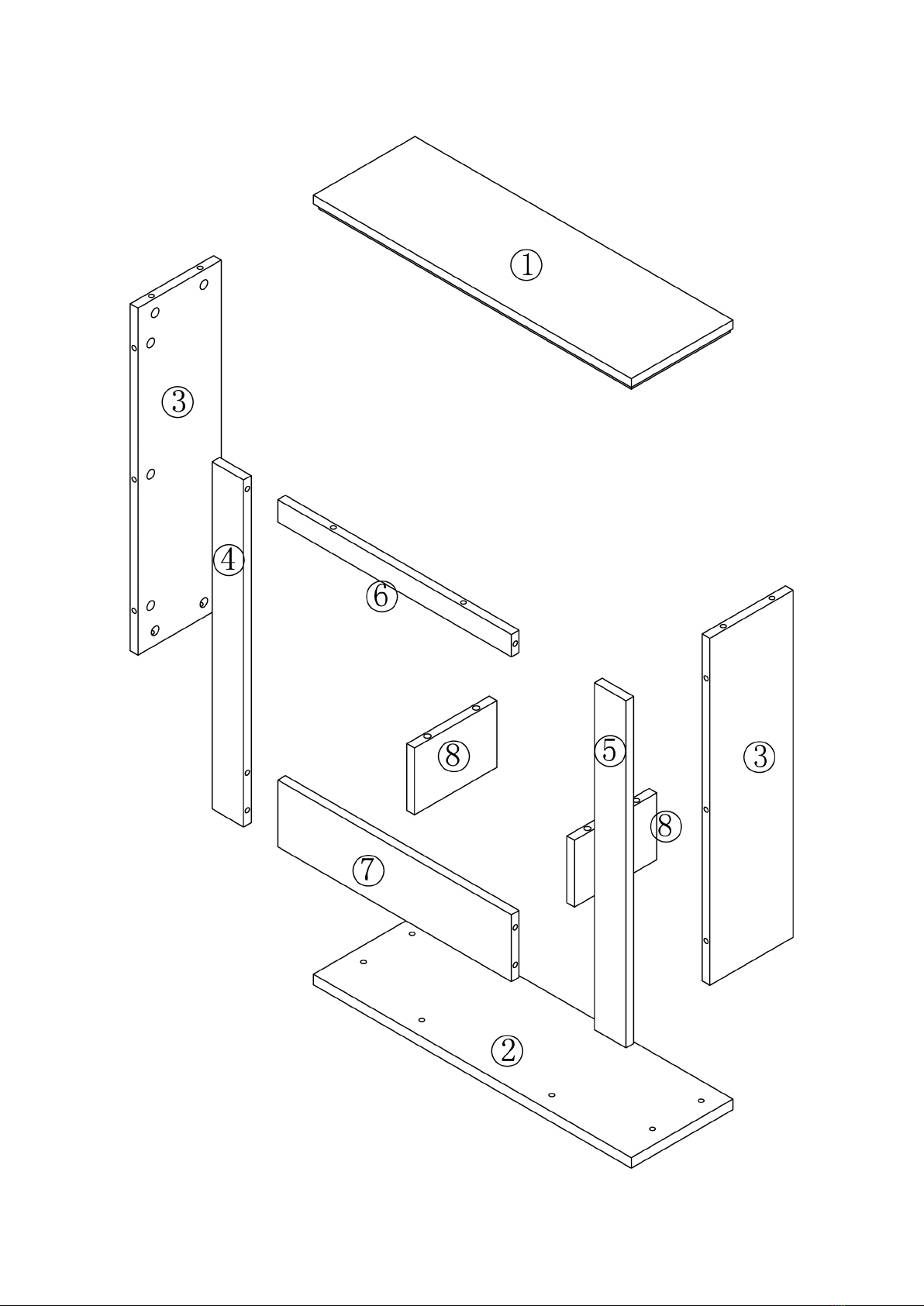

PACKAGE CONTENT (MANTEL)

7
CODE DESCRIPTION QTY
1 Top Panel 1
2 Case Panel 1
3 Side Panel 2
4Left Insert Ba󰀪e 1
5Right Insert Ba󰀪e 1
6Upper Insert Ba󰀪e 1
7 Front Lower Panel 1
8 Insert Holder 2
CODE PICTURE DESCRIPTION QTY
A Cam Bolt 18+1
B Cam Lock 18+1
C Wood Dowel 6
D Flat Head Screw 4
E Round Head Screw 4
F Metal Plate 2

8
Tools Needed
Estimated Time for Assembly
35 - 40 min

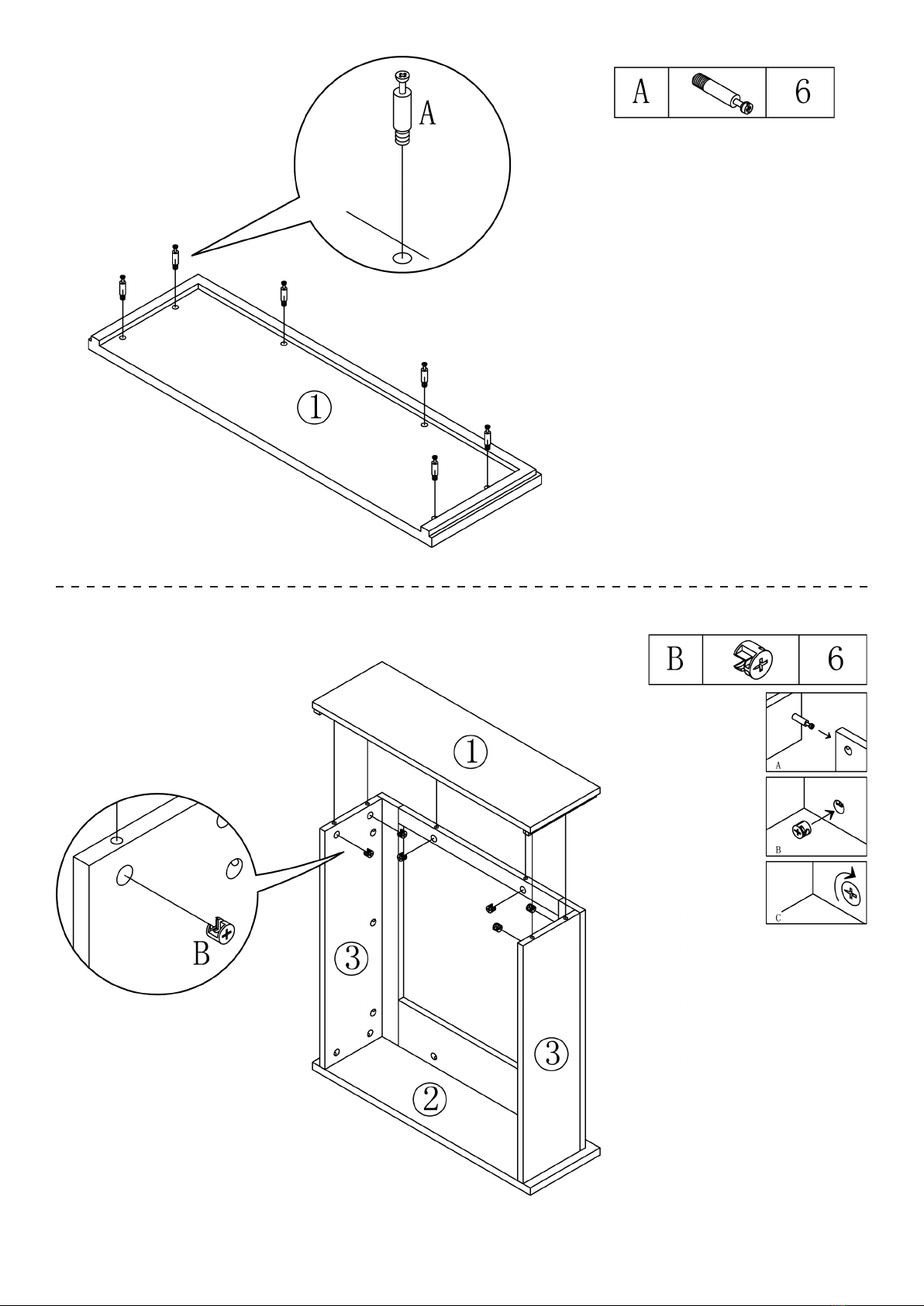

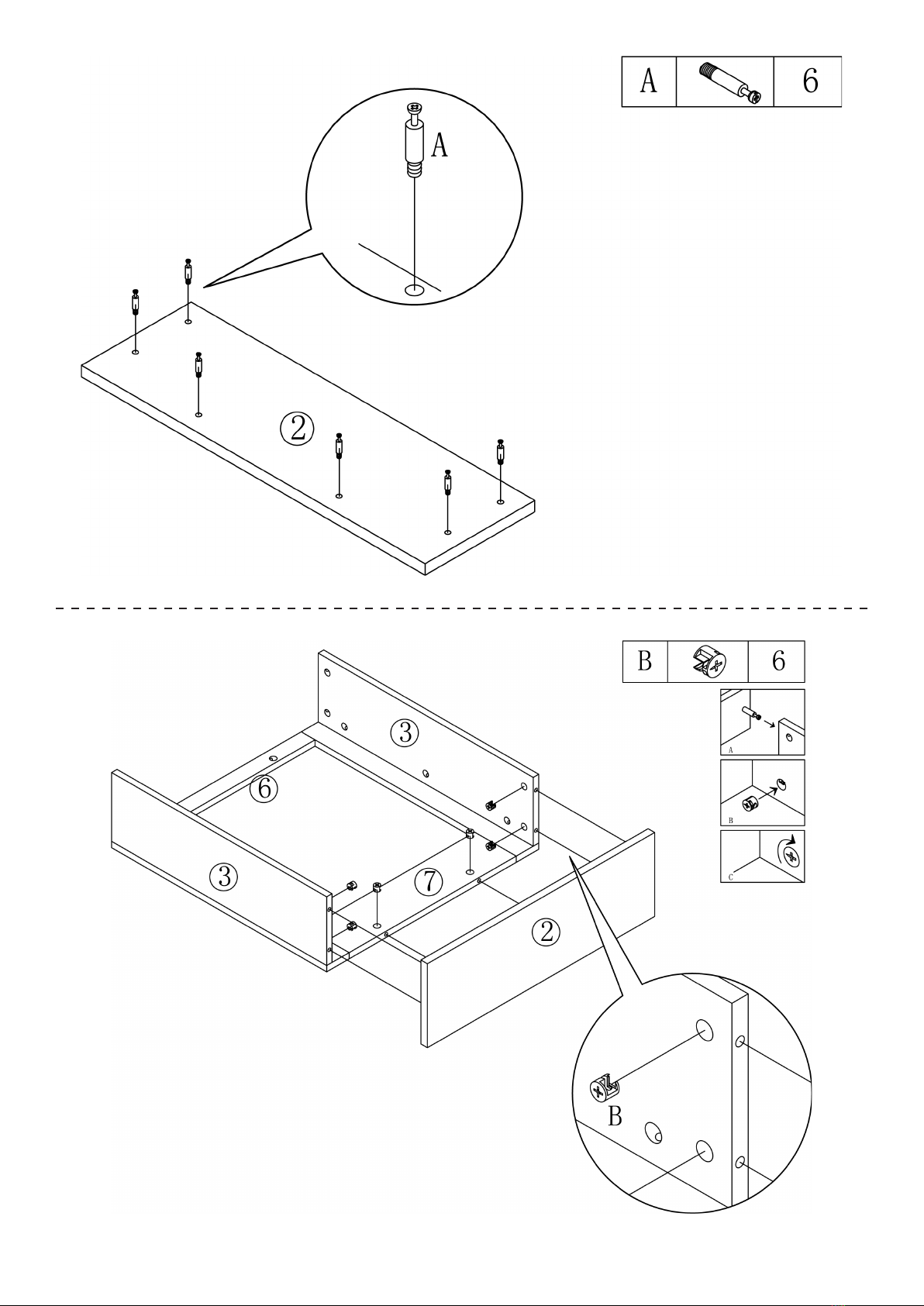

ASSEMBLY INSTRUCTION (MANTEL)
1

9
2
3

10
4
5

11
6
7

12
8
9

13
ASSEMBLY INSTRUCTION
Estimated Time for Assembly
20:00
STEP 1
Take out the unit from the box and layout all the spare parts for easy assembly. Make sure all
small items are not left in packaging materials.
STEP 2
Attach the top trim to the top of the unit and secure it by tightening 2 screws. Make sure the right
angle side faces toward the front of the unit.
Align and attach two side trims to the sides of the replace unit. Identify the right and the left and
make sure the right angle side is faces toward the front of the unit.
• This unit has a glass front panel. Use extreme caution when handling glass to
prevent personal injury or damage.
⚠CAUTION

14
STEP 3
Carefully set the unit from the back of the mantel and center it in the opening.
Check the alignment and attach the unit to the mantel by inserting screws through the drilled holes
on the trim to the mantel.
NOTE: Do not attempt to install the unit from the front of the mantel. It will not t.

15
USER INSTRUCTION
Grounding
This product must be grounded. If it should malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock.
This unit comes standard with a 6ft (1.8m) long, three wired cord. Always plug the unit into a wall
outlet. An extension or relocate tab should never be used.
Before use
Check that the air intake and exhaust is not covered or obstructed in anyway.
Keep combustible objects at least 3ft away from the unit.
Plug the unit to a grounded power socket.
• Improper connection of the equipment grounding conductor can result in a risk of
electric shock. Check with a qualied electrician or serviceman if you are in doubt as
to whether the product is properly grounded.
• DO NOT modify the plug provided with the product nor using any bypass device
if the plug does not t the outlet. Have a proper outlet installed by a qualied
electrician.
⚠CAUTION / WARNING

16
USER INSTRUCTION (CONTROL PANEL)
Power ON / OFF
Press the power button to turn on the unit. Press again to turn o󰀨 the unit.
NOTE: There is a thermostat limiter inside the unit. When the inner temperature is too hot, the unit
will automatically turned o󰀨 to avoid damage to the product or risk of re.
Control Panel
The control panel is located on the top right corner of the unit.
• DO NOT unplug the unit when it is still “ON”
⚠CAUTION / WARNING
Power Button
Flame Control
Heater Control
Timer Control
Function Indicator
Display
Flame Control
Press the ame control button to rotate and set ame e󰀨ect levels. The ame setting are as
follows
Button Press Flame Level Display Value Fireplace Appearance
1st Press High L3 Highest ame, logs glow
2nd Press Medium L2 Medium ame, logs glow
3rd Press Low L1 Low ame, logs glow
4th Press OFF None OFF
NOTE: When the heater is turn on, the ame e󰀨ect level can only rotate and set between High,
Medium, and Low.

17
Heater Control
Press the heater control to turn on and o󰀨 the heater.
When the heater is turned on, press and hold the heater control button for 5 seconds to enter
temperature adjustment mode. The LED indicator is red. In adjustment mode, the display will
ashes. There are 22 levels to change Fahrenheit temperature (ON, 62°F - 82°F). After this is set,
the display will ash 5 times and exit from setting status.
To switch from degree Fahrenheit to degree Celsius, press and hold the power button for 5
seconds when the heater is turned on. The LED indicator will turn to green. There are 12 levels to
change Celsius temperature (ON, 17°C - 27°C). Repeat the same process to convert Celsius to
Fahrenheit.
NOTE: Degree Fahrenheit will be displayed in RED and degree Celsius will be displayed in Green.
Timer Control
Press the timer button to turn the timer on. The timer function can controls both the ame e󰀨ect
and heater.
The timer can set as the table suggested below
Button Press Timer Interval Display
1st press 30 Minutes 30
2nd press 1 Hour 1h
3rd press 2 Hours 2h
4th press 3 Hours 3h
5th press 4 Hours 4h
6th press 5 Hours 5h
7th press 6 Hours 6h
8th press OFF None
NOTE: Timer only controls heater if only the heater is on before timer is set.
NOTE: Timer only controls ame e󰀨ect function if only the ame e󰀨ect function is on before timer
is set.
NOTE: Timer can control both heater and ame e󰀨ect function if both are on before timer is set

18
USER INSTRUCTION (REMOTE CONTROL)
Remote Control
The operation of the remote control buttons work the same as the button on the control panel.
NOTE: The remote control cannot be used to switch between degree Fahrenheit and degree
Celsius.
Install / Replace Battery
The remote control is provided with a CR2025
battery. Remove the plastic insulating sheet before
using.
To replace or remove old battery, push in the clip
and pull the battery bracket out simultaneously.
Insert a new battery with the button side into the
battery bracket, make sure the battery is rmly
seated.
To replace the bracket, simply push it into the
remote control. Make sure the bracket snaps into
position.
NOTE: Remove battery from remote control if not
use for an extended period of time.
• Dispose old / used battery at a suitable recycling point or according to local
regulations.
• DO NOT ingest battery. If accidentally swallowed, seek for medical help immediately.
⚠CAUTION / WARNING
Power ButtonHeater Control
Flame ControlHeater Up
Timer ControlHeater Down

19
CARE AND MAINTENANCE
Cleaning the unit:
Always turn o󰀨 and unplug the unit from power outlet before cleaning.
Allow the unit to cool down completely before performing any maintenance or cleaning.
Use a vacuum cleaner or duster to regularly remove any accumulated dust on the unit
Use a damp soft cloth to clean the surface and bu󰀨 with a dry cloth.
Do not use abrasive cleansers, liquid sprays or any cleaner that could scratch the surface.
TROUBLE SHOOTING
Problem Solution
The unit does not turn on Make sure the unit is plugged into a standard
120V grounded power source. Press the power
button on the control panel.
Flame e󰀨ect is on, but there is no ame e󰀨ect Open the top and back panel to check if the
ame spindle has fallen o󰀨 from the spindle
motor.
The heater does not blow warm air Make sure the set temperature is higher than
the room temperature.
The heater does not work Turn all switches to OFF and unplug the unit for
5 minutes.
Plug the unit back to power and operate as
normal.
Error Code 88 shown on the indicator Reset the unit by unplug the unit from power
source for 5 minutes and then plug it back.
Remote control does not work Use it closer to the unit / change battery /
remove insulating plastic sheet.

[email protected]
1-800-682-6376
Warranty
Belleze products come with a 1 year warranty from the date of purchase.
In any event that the product arrives damaged or missing parts,
we are more than happy to provide you with replacement part(s).
Register your product on our website to enjoy extended warranty!!
@bellezefurniture
FOLLOW US: CONTACT INFO:
Easy Return
We hope you enjoy your new Belleze furniture!
Share your photos on Instagram and tag us @bellezefurniture.
We work hard to make sure order arrives safe and secure, but rest assured
we will take care of it if it is not up to standard. If you need replacement parts,
Contact us at 1-800-682-6376 or email us at [email protected]
we will send you replacements with no hassle.
You don’t have to worry about re-packaging / schedule pick-up.
Contact Us Replacement You
