Belleze 050-HA-50323 User manual

23" Insert Fireplace Heater
www.belleze.com
[email protected]
1-800-682-6376
@bellezefurniture
FOLLOW US: CONTACT INFO: ITEM NO. 050-HA-50323
The instruction booklet contains IMPORTANT
safety information. Please read it in full and
keep it for future reference.

2
Estimated time for assembly:
15 mins
Scan this QR Code
to view our online tutorial
TECHNICAL SPECIFICATION
Model Number 050-HA-50323
Power Rating 1400 W
Voltage 120 V
Frequency 60 Hz

3v.11282022
When using electrical appliances, basic safety precaution should always be
followed including the following:
READ ALL INSTRUCTION BEFORE USE
1. Read all instructions before using this heater.
2. Do not use this heater outdoors.
3. This heater is not intended for use in bathrooms, laundry areas and similar
indoor locations. Never locate the heater where it may fall into a bathtub or
other water container.
4. Do not run the power cord under carpeting.Do not cover the power cord with
throw rugs, runners, or the like. Arrange the power cord away from tra󰀩c
areas and where it will not be tripped over.
5. To disconnect the heater, turn controls to o󰀨, then remove the plug from the
outlet.
6. Connect to properly grounded outlet only. Always plug heaters directly into a
wall outlet/receptacle. Never use with an extension cord or reloadable power
tap (outlet/power strip).
7. To prevent a possible re, do not use the rebox on soft surfaces, like a bed,
where openings may become blocked.
8. There is a thermostat limiter inside the heater. When the inner temperature
overheat or abnormal heating occurs, the thermostat protective device cuts
o󰀨 the power supply to avoid replace from damaged or risk of re.
9. Use the heater only as described in the manual. Any other use not
recommended by the manufacturer may cause re, electrical shock, or injury.

4
⚠WARNING
There is no user serviceable parts inside the replace / heater. If the unit
appears to be malfunction, turn o󰀨 the unit and unplug from the wall outlet
immediately, and then contact the customer service.
⚠WARNING
The heater is hot when in use. To avoid burns, do not touch hot surfaces. Keep
combustible materials such as furniture, pillows, bedding, papers, clothes, and
curtains at least 3 ft (0.9 m) away from the front of the heater, and away from the
side or rear of the heater.
⚠WARNING
Extreme caution is necessary when heater is used by or near children or people
with physical challenges and whenever the heater is left operating unattended.
⚠WARNING
Always unplug the heater when not in use.
⚠WARNING
Do not operate any heater with a damaged cord or plug or after the heater
malfunctions, has been dropped, or damaged in any manner. Return the
heater to an authorized service facility or examination, electrical or mechanical
adjustment, or repair.
⚠WARNING
Do not insert or allow foreign objects to enter any ventilation or exhaust opening
of the heater as this may cause an electric shock or re, or damage to the
heater.
⚠WARNING
A heater has hot and arching or sparking parts inside. Do not use in areas where
gasoline, paint, or ammable liquids are used or stored.
⚠WARNING
While the heater is in use, the top center of the replace can get hot to the touch,
and may cause serious injury or burns. Always supervise small children around
the replace / heater. Do not place any cloth or decorations over the heater
outlet or replace, or otherwise obstruct the heater outlet of the replace, as this
may cause a re and serious injury.

5v.11282022
Assemble the furniture on an empty carton, carpet, or rug to prevent scratches
or damage.
For safety, please keep pets and children away from the assembly area.
Ensure the product is fully assembled before use. If you are missing any
hardware or products, do not use it until you have restored the missing parts.
This furniture requires 2 people for assembly.
Read this instruction manual prior to assembly to familiarize yourself with the
various steps.
Lay out all components and hardware separately on a at surface and make
sure that no parts are missing or damaged before assembly. Do not destroy or
discard any packaging until you are certain that you have all the necessary parts
for assembly.
CAUTION
There are small components used in the construction of this product.
Loose items should be kept away from pets and children to avoid a choking
hazard.
Keep all plastic bags and packaging lm away from pets and children to avoid
su󰀨ocation.

6

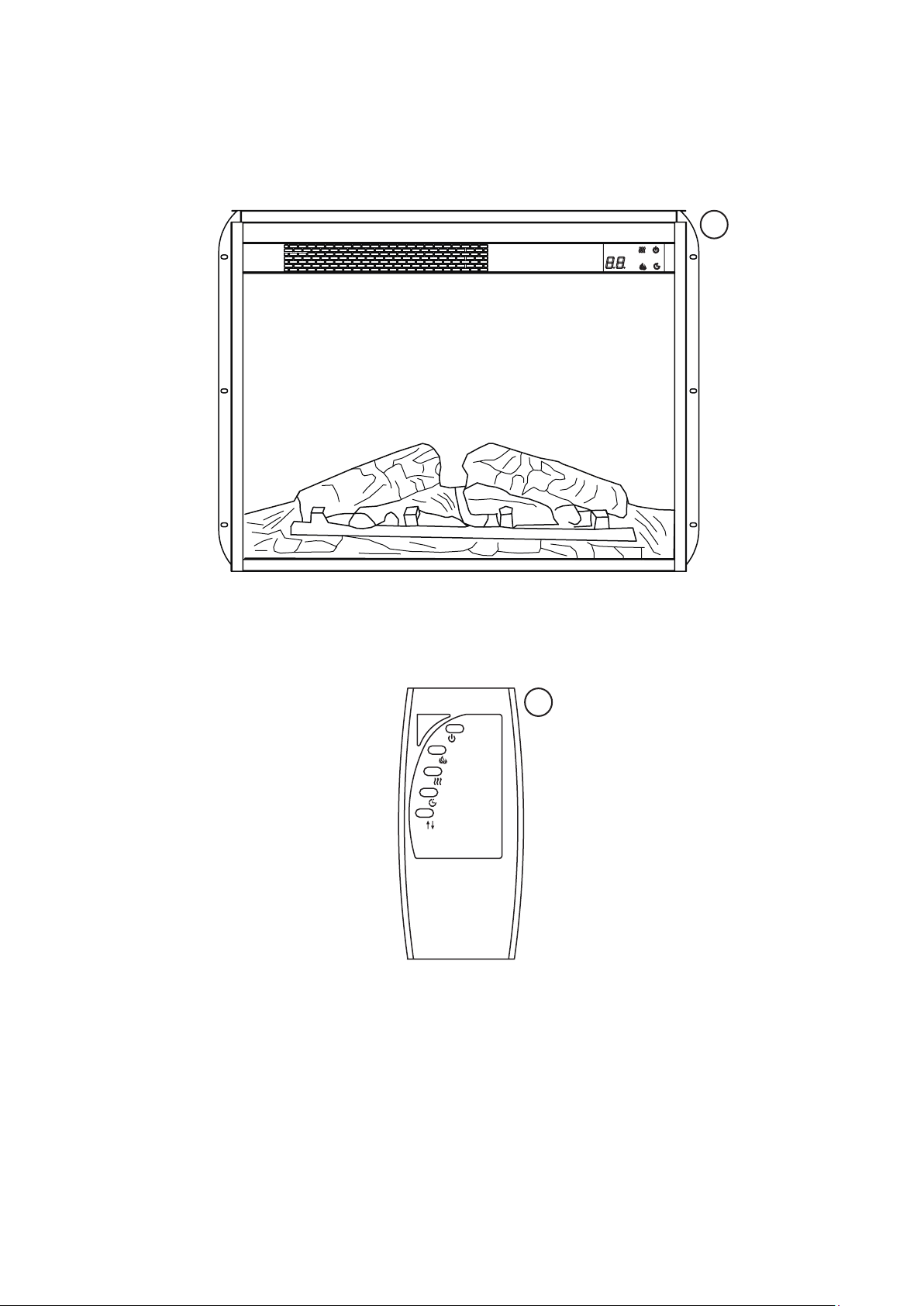

PACKAGE CONTENTS
1
2

7v.11282022
PACKAGE CONTENTS
CODE DESCRIPTION QTY
1 Heater 1
2 Remote Control 1
3 4X12mm screw 6

8

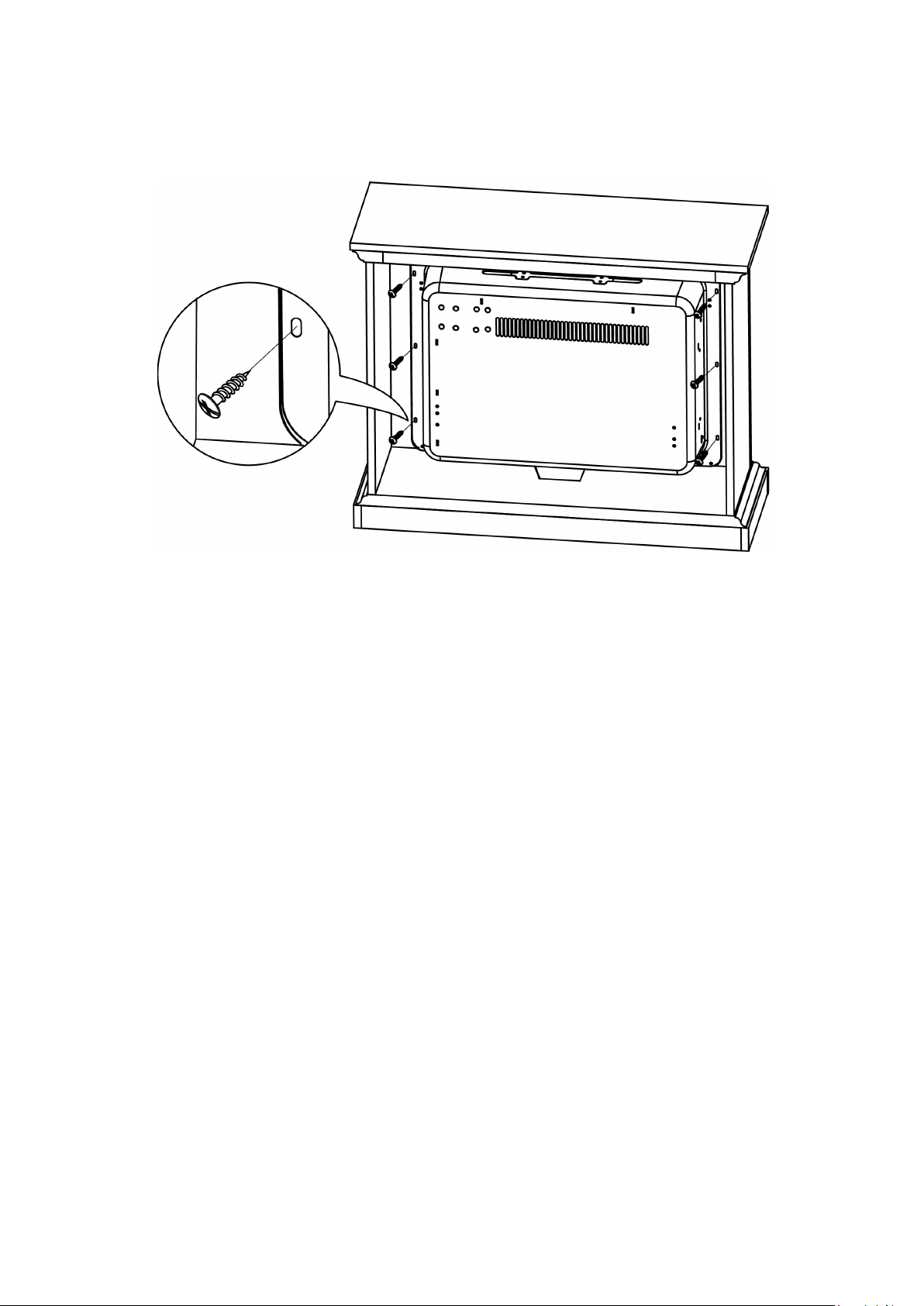

Set the unit from the back of the replace mantel and center it in the opening.
Check the alignment and attach the unit to the mantel by inserting screws
through the drilled holes on the mantel.
NOTE: Do not attempt to install the unit from the front of
tha mantel. It will not t.
YOU’RE FINISHED!

9v.11282022
USER INSTRUCTION
•Improper connection of the equipment grounding conductor can result in a
risk of electric shock. Check with a qualied electrician or serviceman if you
are in doubt as to whether the product is properly grounded.
• DO NOT modify the plug provided with the product nor using any bypass
device if the plug does not t the outlet. Have a proper outlet installed by a
qualied electrician.
⚠CAUTION / WARNING
Before use
• Check that the air intake and exhaust is not covered or obstructed in anyway.
•Keep combustible objects at least 3 ft (0.9 m) away from the unit.
• Plug the unit to a grounded power socket
Grounding
•This product must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock.
• This unit comes standard with a 6 ft (1.8 m) long, three wired cord. Always plug the unit into a
wall outlet. An extenson or relocate tab should never be used.

10
USER INSTRUCTION (CONTROLS)
Heater Control
Timer Control
Flame Control
Display
Control Panel
The control panel is located on the top right corner of the unit.
Power Button
Remote Control
The operation of the remote control buttons work the same as the button on the control panel.
NOTE: The remote control cannot be used to switch between degree Fahrenheit and degree
Celsius.
Power Button
Flame Control
Heater Control
Timer Control
Temperature Control

11 v.11282022
Power ON / OFF
Press the power button to turn on the unit. Press again to turn o󰀨 the unit.
NOTE: There is a thermostat limiter inside the unit. When the inner temperature is too hot, the unit
will automatically turned o󰀨 to avoid damage to the product or risk of re.
• DO NOT unplug the unit when it is still “ON”
⚠CAUTION / WARNING
Flame Control
Press the ame control button to control the ame brightness levels. The ame control includes 4
frightness level and ame e󰀨ect o󰀨.
Heater Control
Press the heater control to turn on and o󰀨 the heater.
Temperature Control (Control Panel)
When the heater is ON, press and hold the heater control button for 5 seconds to enter
temperature adjustment mode. There are 11 temperature settings (64°F - 82°F / 18°C - 27°C).
Temperature Control (Remote Control)
When the heater is ON, press atemperature control button to adjust the temperature. There are 11
temperature settings (64°F - 82°F / 18°C - 27°C).
Lock Function
Press and hold the heater control button for 10 seconds, the ember bed will ash 6 times,
indicating that the heater function is locked.
To unlock, press and hold the heater control button for 10 seconds again, the ember bed will ash
6 times, indicating that the heater function is unlocked.
NOTE: Lock function cannot be set with the remote control.
Changing Temperature Unit
On the heat mode, to switch from defree Fahrenheit to degree Celsius, press and hold the power
button for 5 seconds, the display will flash 3 times and convert to another temperature unit.
NOTE: Temperature unit cannot be changed with the remote control.
Timer Control
Press the timer button to turn the timer on. Timer can be set between 1 to 8 hours with 1 hour
interval.
Once the timer is up, the heater will shut down and enter standby mode. Press the power button to
start the heater.
USER INSTRUCTION (CONTROL PANEL)

12
USER INSTRUCTION (REMOTE CONTROL)
Install / Replace Battery
The remote control is provided with 2 AAA batteries.
1. Press and slide o󰀨 the back cover from the remote control.
2. Insert 2 AAA betteries into the battery compartment and make sure to intall batteries in the
correct polarity.
3. The negative end of the battery should be install against the spring inside the battery
compartment.
• Dispose old / used battery at a suitable recycling point or according to local
regulations.
• DO NOT ingest battery. If accidentally swallowed, seek for medical help
immediately.
⚠CAUTION / WARNING

13 v.11282022
TROUBLE SHOOTING
Error Code Possible Cause Solution
E1 The heater is overheating Call Customer Service
E2 NTC is defective Call Customer Service
E3 The heat is not working
Make sure the vents are not
dirty or clogged. Unplug the
power and wait for 5 minutes.
Plug in the power again and
turn on the heater.
Call customer service if the
problem is not resolved.

14
FURNITURE CARE AND MAINTENANCE
⚠ WARNING
The manufacturer and seller are not responsible for any and all liability relating to personal injury,
property damage or losses, whether direct, indirect, or incidental, resulting from the incorrect
attachment, improper use, inadequate maintenance, unapproved modication or neglect of this
product.
Thank you for your purchase. We want your item to last as long as possible.
To ensure the product gives you years of longevity, please follow the recommendations
in this care and maintenance guide.
CLEANING
• Always turn o󰀨 and unplug the unit from the power outlet before cleaning.
• Always wait until the unit has cooled down before performing any
maintenace or cleaning.
• Remove any accumulated dust on the unit with a vacuum cleaner or duster.
• Clean the furniture surface with a lightly dampened cloth or soft brush.
• Dry the surface immediately after cleaning.
⚠DO NOT use abrasive cleaner to clean the surface.

15 v.11282022
© All copyright of this document belongs to BELLEZE .
This document may not be printed, translated, reproduced, or distributed in whole or in
part without written permission from BELLEZE.
Model no.: 050-HA-50323
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
⚠ WARNING: Changes or modications to this unit not expressly approved by the
party responsible for the compliance cound void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device,
pursuant to part 15 of the FCC rules. This limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio /TV technical for help.
Importer: One Big Outlet
Importer Address: 19301 E Walnut Dr. N., City of Industry, CA 91745 United States
Importer Tel: [phone]

AFTER-SALE SERVICE
We hope you enjoy your new BELLEZE furniture!
Share your photos on Instagram and tag us: @bellezefurniture.
Encounter any di󰀩culties or missing parts?
Contact us at 1-800-682-6376 or email us at [email protected]
We will send you replacement.
Hassle free!
No need to worry about repackaging and sending your item back.
WARRANTY
BELLEZE products come with a 1-year warranty from the date of delivery.
Register your product on our website to enjoy our limited lifetime warranty!
[email protected]
1-800-682-6376
@bellezefurniture
FOLLOW US: CONTACT INFO:
