INSTALLATION INSTRUCTIONS AND INSTRUCTIONS FOR USE
DERBY 3
Gas fires with closed combustion system
Bellfires wishes you many cosy evenings with your new Bellfires gas fire

3
Bellfires English
Instructions for use and installation instructions
BELLFIRES GAS FIRES WITH CLOSED COMBUSTION SYSTEM:
Derby 3 (DY3)

4
Bellfires English
Instructions for use and installation instructions

5
Bellfires English
Instructions for use and installation instructions
CONTENTS
Page
1. WARRANTY TERMS ................................................................................. 7
2. INSTRUCTIONS FOR USE ....................................................................... 9
3. INSTALLATION INSTRUCTIONS .............................................................. 22
4. MAINTENANCE ......................................................................................... 81
5. FAULTS ...................................................................................................... 82
6. DISMANTLING / ASSEMBLING OF THE GLASS
. ... .............................. ... 83
7. ELECTRICAL DIAGRAM ............................................................. ......... ..... 89
8. DIMENSIONS ............................................................................................ 90
9. TECHNICAL DETAILS/REGULATIONS .................................................... 95
10. REPLACEMENT PARTS LIST .................................................................. 97
11. DISPOSAL OF PACKAGING AND APPLIANCE ....................................... 100

6
Bellfires English
Instructions for use and installation instructions

7
Bellfires English
Instructions for use and installation instructions
∇
1 WARRANTY TERMS
Bellfires gas fire
Warranty
Bellfires guarantees the quality of the supplied hearth and the quality of the
materials used.
This warranty runs for a period of twelve (12) months from first use of the hearth
and covers defects which are a result of construction faults or the failure of
component parts.
Bellfires has an obligation under the terms of this warranty (at its discretion) not
to charge for the replacement of any component parts.
Note: The following aspects are not covered under the terms of the warranty:
- defects arising which are attributable in whole or in part to:
a Not paying due heed to installation, operating and maintenance
instructions
b Fitting/installation or repair by third parties (including the buyer)
c Discolouration in the ironwork as a result of heat transfer
- the sealing cord, the thermocouple and the glass of the product
Should you wish to claim under the warranty,
please contact your dealer.
Please carefully retain your invoice with this warranty!
Your Bellfires dealer: Date of installation:
Bellfires
Hallenstraat 17
NL-5531 AB Bladel
Tel. + 31 497 339200 Fax. + 31 497 339210

8
Bellfires English
Instructions for use and installation instructions

9
Bellfires English
Instructions for use and installation instructions
2 INSTRUCTIONS FOR USE
2.1 INTRODUCTION
Congratulations on your purchase of this modern Bellfires gas fire. This quality product
will provide you with many years of enjoyment due to the flame effect and warmth that
it provides. Please read the instructions for use carefully before using the appliance for
the first time. Keep this booklet in a safe place.
2.2 BUILT-IN PROTECTION OF THE APPLIANCE
The appliance is fully protected by means of a thermo-electric pilot light shut off in the
event of a gas escape from the main burner.
In addition, the appliance is fitted with a patented safety system, whereby the door will
extract any over-pressure that arises in a controlled way. In this, a spring system briefly
causes the door to hinge forward a few centimetres.
A loud noise can occur. If this happens, immediately close the gas tap and contact the
fitter.
2.2.1 Safety
Do not place embers, vermiculite granules, wood logs or pebbles against
the pilot light burner. Make sure that the pilot flame can burn at all times
freely over the main burner. Only in this way is proper ignition of the main
burner ensured.
Ignoring these directions could lead to a dangerous situation.
It is essential that the appliance, the complete concentric flue
system and the outlet are cleaned and inspected annually by a
recognised fitter/gas specialist. The safe operation of the appliance
will thus remain guaranteed.
See for additional instructions Chapter 4: Maintenance.
If the pilot flame goes out for any reason, wait for 5 minutes before
attempting to re-light it.
The gas fire must never be used with the door open or the door glass
removed.
Never place flammable material on the ceramic log set.
The filling of the main burner with embers, vermiculite granules,
wood logs or pebbles may not under any circumstances be changed
or added to.

10
Bellfires English
Instructions for use and installation instructions
Do not place easily-flammable materials, such as nylon clothing or
flammable liquids, in the vicinity of the gas fire.
Ensure at all times that children and other people who are not
aware of the operation of the gas appliance are only in the vicinity
of the appliance exclusively under supervision.
Use a fireguard to protect the people and children mentioned
above against possible burns.
2.3 OPERATING YOUR GAS FIRE - GENERAL
Read these instructions carefully before lighting the fire !!
The gas fire can be operated with a pilot light that burns continuously. The ignition and
control knob are located outside the gas fire in a special box (supplied) (operating unit) .
The pilot light is situated in the front of the burner, behind a cowl. Should the pilot light
go out, you must wait five (5) minutes before attempting to re-ignite the fire.
Important
Once the fire is lit, it must burn at maximum for approx. 10 minutes to allow the chimney
to come up to temperature.
2.4 HAND CONTROL
The burner is operated using the control knob. Select the required setting and the
burner will then burn at this setting until it is changed.
Figure 1: Gas regulator block BM 733
“OFF” POSITION
IGNITION POSITION
CONTROL KNOB
BURNER CONTROL RANGE

11
Bellfires English
Instructions for use and installation instructions
2.4.1 Igniting the fire
• Open the gas supply valve in the gas pipe to the appliance.
• Press in the control knob and turn it (clockwise) as far as possible. It is now in the
“off” position.
• Press the control knob and turn it anti-clockwise to the “PILOT” ignition position.
You will hear a click, which is the spark for the pilot light. You may have to “click”
several times before the pilot light ignites.
• Once the pilot light is ignited, hold in the knob for another ten (10) seconds and
then release it.
Important: If the pilot flame goes out, then wait for at
least 5 minutes before repeating the above
procedure.
• The burner is ignited by turning the knob anti-clockwise to the desired setting.
Important: • When the main burner is switched on by turning
the motor knob to the left, the burner must
ignite within 10 seconds.
If this does not happen, immediately close the
gas tap and warn the fitter.
• If the main burner ignites with a pop;
immediately close the gas tap and warn
the fitter.
2.4.2 Turning off the fire
Press the knob and turn it to “PILOT”.
The burner will continue to burn for a few seconds before being extinguished.
2.4.3 Extinguishing the pilot light
You can extinguish the pilot light by pressing the control knob when it is in the “PILOT”
position and turning it clockwise to the “OFF” position.
If the gas fire is not going to be used for a long period of time, it is recommended to
close the gas supply valve to the fire.
Important: If the pilot flame goes out for any reason,
wait for 5 minutes before attempting to
re-light it.
If the pilot light frequently goes out, then please contact your installer.

12
Bellfires English
Instructions for use and installation instructions
2.5 REMOTE CONTROL
2.5.1 General
The appliance is opperated by radio remote control. This comprises a hand-held
transmitter and a receiver. The receiver is part of the gas control block assembly.
The receiver and the gas control block are behind the (white) panel door (operating unit)
next to the appliance. Press the door inwards to open; this will release the catch and the
door will spring out.
The hand-held transmitter and receiver are powered by batteries.
Hand-held transmitter : 1x 9V battery.
Receiver : 4x 1.5V battery type LR6 or AA.
Option: 6V adapter (230 VAC). Available from your fitter.
Note: Hand-held transmitter and receiver are not interchangeable with previous models.
2.5.2 Hand-held transmitter
The remote control works by radio signal. The hand-held transmitter is configured in the
factory with a unique signal code.

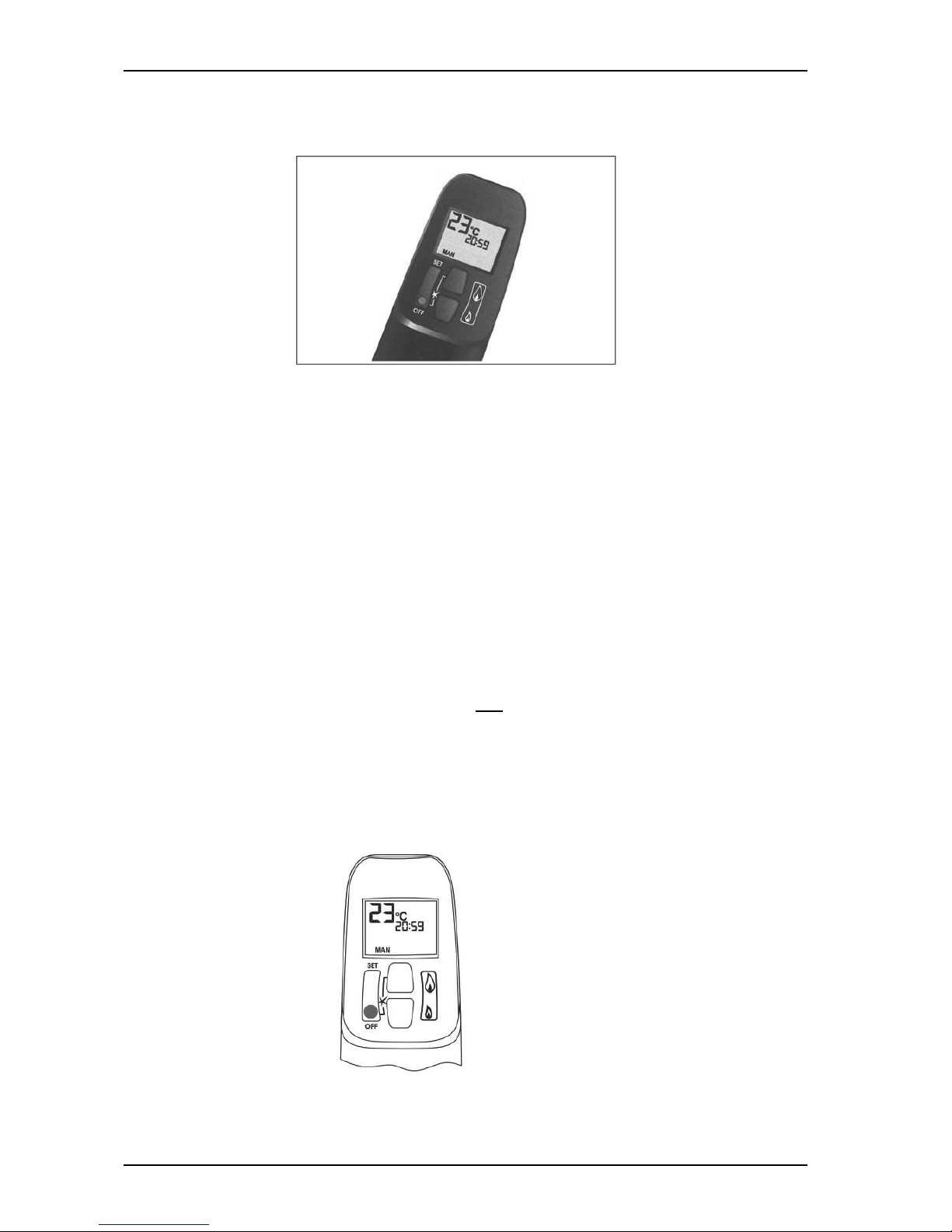

Figure 2: Hand-held transmitter

13
Bellfires English
Instructions for use and installation instructions
Figure 3: Receiver “RESET” button
Set the display
• Connect the batteries. By simultaneously pressing OFF and (small flame), can be
switched from °F (and 12 hour clock) to °C (and 24 hour clock), or vice versa.
• The display will automatically return to mode after some time, but you may
immediately return to mode by pressing the OFF button.
Set the current time
• By simultaneously pressing (large flame) and (small flame), the display flashes.
You are in SET mode.
• While the screen is flashing, you can adjust the time.
• Press (large flame) to set the hour and (small flame) to set the minute.
• Wait or press OFF to return to mode.
Important: Setting up signal code before using the appliance for the first time.
Before the appliance can be used, the receiver must first learn the hand-held
transmitter’s signal code.
• Press the “RESET” button on the receiver, and keep this pressed until 2 audio signals
are heard. See figure 3.
Release the “RESET” button after the second (somewhat longer) audio signal.
• Press, within 20 seconds, the (small flame) button on the hand-held transmitter,
until 2 short signals are heard . The signal code has now been set up on the receiver .
If, however, a single long sound is heard, this means that setting the signal code has
failed or that the wiring has been connected incorrectly.
You only need to set up the signal code once. It is not necessary when changing the
batteries of the hand-held transmitter or receiver.

14
Bellfires English
Instructions for use and installation instructions
Manual operation
Here you can turn the burner on and off, and adjust the height of the flames.
• Press (large flame) to turn on the burner and to increase the flame
height.
• Press (small flame) decrease the flame height to turn the burner off.
The pilot light will keep burning. (Stand-by position)
• The appliance will automatically revert to stand-by if:
°the hand-held transmitter is outside the range of the receiver for more
than 6 hours.
°the batteries in the hand-held transmitter are almost depleted.
°the batteries in the receiver are fully depleted. (The pilot light will also
be turned off.)
This also applies to the Thermostat and Timer operation.
• When one of the buttons on the hand-held transmitter is pressed (except
the SET button), the transmission symbol appears on the screen.
The receiver confirms the transmission with an audio signal.
Operating day temperature thermostat
(Appliance is in the stand-by position and the pilot light is burning.)
Automatic temperature regulation of the pre-set day temperature.
The room temperature is measured and compared with the pre-set day
temperature. The flame height is automatically regulated so as to reach the
pre-set day temperature.
Also see: Setting the desired temperature.
Operating possibilities
It is possible to use the remote control in 3 ways to operate the appliance:
1 :
2 : and
3 :
You can cycle through the menu with operating possibilities by repeatedly depressing
the SET button.
At the selected starting time (P1 or P2 ) or stopping time (P1 or P2 ) is
also shown.
Returning to is also possible by pressing the (small flame) or (large flame)
button.

15
Bellfires English
Instructions for use and installation instructions
Operating the night temperature thermostat
(Appliance is in the stand-by position and the pilot light is burning.)
Automatic temperature regulation of the pre-set night temperature.
The room temperature is measured and compared with the pre-set night
temperature. The flame height is automatically regulated so as to reach the
pre-set night temperature.
Also see: Setting the desired temperature.
Timer operation
(Appliance is in the stand-by position and the pilot light is burning.)
Appliance functions automatically according to the two pre-set heating periods;
P1 and P2. These heating periods repeat automatically every 24 hours.
Also see: Programming the timer: P1 and P2.
The appliance works thermostatically at the pre-set starting times P1 and
P2 and the room temperature is automatically regulated to the pre-set day
temperature .
The appliance works thermostatically at the pre-set stopping times P1 and
P2 and the room temperature is automatically regulated to the pre-set night
temperature .
In order to allow the appliance to regulate the temperature at night, the night
temperature must be set to at least 5°C.
If the setting is lowered to , the appliance will switch to stand-by
at night. The appliance will automatically operate at the following day cycle
.
N.B.: The pre-set temperature is shown on the screen every 30 seconds.
Setting the desired temperature
• Select the desired mode of operation or by pressing the SET button
briefly.
• Press the SET button until the temperature indication on the display begins to flash.
• Set the temperature with (large flame) or (small flame).
• Wait or press the OFF button briefly to go to mode.
• If the temperature control in should be off (lower battery consumption),
decrease the night temperature until appears on the display.
Important: Place the hand-held transmitter in a place that is not
influenced by direct sunlight, draught, heat from
the appliance and other heat sources.

16
Bellfires English
Instructions for use and installation instructions
Programming the timer: P1 and P2
• Select the desired mode of operation by pressing the SET button briefly.
• Press the SET button until P1 (heating period 1) and the time appear in the
display. (The time indication flashes.)
• Set the time for the beginning of the first heating period by pressing (large flame)
for houre and (small flame) for minute’setting.
• Press the SET button briefly; P1 appears on the display. Set the time for the end
of the first heating period.
• Press SET again to set the second heating period P2 (heat ON) and P2 (heat
OFF).
• Wait a moment or press OFF to switch back to mode.
2.5.3 Operation (Remote Control)
Igniting the fire
• Open the gas supply valve in the gas pipe to the fire.
• Press the “O I” switch on the gas control block to the “I” position.
• Turn the operating knob on the gas control block to the ON position.
• Switch the hand-held transmitter to the
position.
• On the hand-held transmitter, press the OFF and (large flame) buttons
simultaneously. A short tone will signal the start. Release the buttons. Short beeps
will then follow until the pilot light and main burner are ignited. Once the main burner
has been ignited, the flame height will automatically rise to the maximum position.
Important: • If the pilot flame goes out for any reason, wait for 5 minutes
before attempting to re-light it.
• If the pilot light does not ignite after 3 ignition attempts;
close the gas tap and warn the fitter.
• Once the pilot light is burning, the main burner must ignite
within 10 seconds automatically.
If this does not happen, immediately close the gas tap and
warn the fitter.
• If the main burner ignites with a pop; immediately close the
gas tap and warn the fitter.

17
Bellfires English
Instructions for use and installation instructions
Figure 4: Gas regulating block; Operating Knob in ON-position
Motor-Knob
(in maximum position)
Microswitch
Operating Knob
Connection Piezo Igniter
(only for MANual control)
ON/OFF Switch
8-wire
Receiver Jack
• Possible error messages:
* 3x short audio signal, audible when the motor-knob operates:
Receiver batteries need changing soon (having heard this signal, the
appliance can be ignited another ten times approximately).
* 5 second unbroken tone:
Error. For example, one of the cables may not be properly connected,
the “O I” switch is not in the “I” position.
* 5 short beeps:
Ignition of the pilot light and main burner failed. Possible cause: air in
the pilot light pipe.
Important: If the pilot flame goes out, then wait for
at least 5 minutes before repeating the
above procedure.
Setting the flame height / extinguishing the fire
• After ignition, the burner automatically sets the flames to the maximum height .
• Press button (small flame) to lower the flames and to turn off the main burner
(Extinguishing the fire: small flame button: pilot light remains burning (stand-by
position)!)
(Pressing briefly the (small flame) button gradually lowers the flames to the low
position.)
Pressing the (small flame) button twice automatically lowers the flames to the low
position. (When this happens, the flames will first automatically go to maximum!)
This is indicated by “LO” on the display.

18
Bellfires English
Instructions for use and installation instructions
• Press button (large flame) to increase the flame level and to turn on the burner
from the stand-by position.
(Pressing briefly the (large flame) button gradually increases the flames to the
high position.)
Pressing the (large flame) button twice automatically increases the flames to the
high position. This is indicated by “HI” on the display.
Important: • If you turn on the main burner by pressing the (large flame)
button, it must ignite within 10 seconds.
If this does not happen, immediately close the gas tap and
warn the fitter.
• If the main burner ignites with a pop; immediately close the gas
tap and warn the fitter.
Switching off the appliance
• Press the
(small flame) button to lower the flames or to switch off the main burner.
• Then press the OFF button to switch off the appliance, including the pilot light.
• Press the “O I” switch (on the gas control block) to the “O” position. This conserves
battery life.
• If the appliance is not to be used for some time, please close the gas supply valve in
the gas pipe.
Important: If the pilot flame goes out for any reason,
wait for 5 minutes before attempting to
re-light it.
Faults
• If the signals from the hand-held transmitter do not seem to be reaching the receiver,
the cause may be:
* Spent batteries: replace the batteries.
* An electronic problem: press the “RESET” button on the receiver.
• If the appliance regularly switches itself off, please contact your installer.
Replacing the batteries
• The hand-held transmitter/receiver batteries have a service life of approx. one year.
We recommend you use alkaline batteries.
Rechargeable batteries are not permitted.
• The batteries must be replaced whenever:
1 Hand-held transmitter : The battery symbol indicates this in the display.
: Battery fully charged
: Battery empty
2 Receiver: 3x short audio signal, audible when the motor-knob operates.

19
Bellfires English
Instructions for use and installation instructions
1 Hand-held transmitter:
* Open the cover on the back of the transmitter.
*Carefully remove the 9V battery and disconnect it from the contact.
Do not pull the wires!
*Connect the new battery and replace in the battery compartment. Close the cover.
2 Receiver:
* Carefully pull the receiver assembly out of the compartment behind the (white)
panel door.
* Open the cover.
* Remove the batteries from the battery compartment.
* Place four new 1.5V batteries (LR6 or AA type) as indicated in the battery
compartment. The negative end (-) of the battery must always be at the contact
spring end of the compartment.
* Close the cover and place the receiver back in its holder.
• If the batteries are inserted incorrectly, the electronics or drive may be irreparably
damaged.
• Only replace the batteries when the appliance has been completely switched off.
Figure 5: Gas regulating block; Operating Knob in MAN-position
2.5.4 Operation (Hand control)
In an emergency it is possible to operate the appliance manually. To do so, the ignition
(piezo) cable must first be removed and transferred carefully to the piezo connector on
the gas control block.
Motor-Knob
(in maximum position)
Microswitch
Operating Knob
(in Position for
Manual Ignition)
Metallic Core for Manual
Ignition (recessed switch)
Connection Piezo Igniter
(only for MANual control)
ON/OFF Switch
8 Wire
Receiver Jack
Piezo button
(only for MANual control)

20
Bellfires English
Instructions for use and installation instructions
Igniting the fire
• Open the gas supply valve in the gas pipe to the fire.
• Switch the “O I” switch on the gas regulating block to the “I” position.
• Turn the motor-knob on the gas regulating block completely to the right, in the OFF
position. The switch will audibly ‘click’.
• Turn the operating knob on the gas control block to the MAN position. A recessed
switch within the knob will become visible.
• Press the recessed switch. Use a pen or similar instrument to do this.
Gas will now flow to the pilot light.
• While holding down the recessed switch, press the (square) piezo button several
times (the piezo button is alongside the “O I” switch) to ignite the pilot light.
Check whether the pilot light has been lit through the glass.
lOnce the pilot light is lit, the recessed switch must be kept down for a further ten
seconds, after which it can be released.
Important: If the pilot flame goes out, then wait for
at least 5 minutes before repeating the
above procedure.
• Move the operating knob to the ON position. Depending on the position of the motor-
knob, the burner will either ignite or not.
• By turning the motor-knob anti-clockwise to the desired position, the burner will ignite
and the flame height can be controlled.
Important: • When the main burner is switched on by turning
the motor knob to the left, the burner must
ignite within 10 seconds.
If this does not happen, immediately close the
gas tap and warn the fitter.
• If the main burner ignites with a pop; immediately
close the gas tap and warn the fitter.
Extinguishing the fire
• Turn the motor-knob on the gas regulating block as far as it will go in a clockwise
direction. The knob will audibly ‘click’. The burner is now switched off. The pilot light
will remain lit.
Switching off the appliance
• Press the “O I” switch on the gas regulating block to the “O” position.
The pilot light will be extinguished.
• If the gas fire is not going to be used for a long period of time, it is
recommended to close the gas supply valve to the fire.
Important: If the pilot flame goes out for any reason,
wait for 5 minutes before attempting to
re-light it.
