Bellfires SMART BELL 80-70 PF Installation and operation manual

Bell•res wishes you many cosy evenings with your new Bell•res gas •re
This document is an essential part of your gas •re.
Read it carefully before use of the gas •re and keep it in a safe place!
Serial number:
Production date:
INSTRUCTIONS FOR USE &
MANUAL DAILY MAINTENANCE
SMART BELL 80-70 PF
Gas •re with closed combustion system

3
Bellfires English
Instructions for use
BELLFIRES GAS FIRE WITH CLOSED COMBUSTION SYSTEM:
Smart Bell 80-70 PF (Premium Fire) (SB 80-70 PF)

4
Bellfires English
Instructions for use

5
Bellfires English
Instructions for use
CONTENTS
Page
1. WARRANTY TERMS ................................................................................. 7
2. INSTRUCTIONS FOR USE ....................................................................... 9
3. USING THE APPLIANCE FOR THE FIRST TIME ..................................... 32
4. DAILY MAINTENANCE ......................................
........... ......... ....... .. . . ...... ... 33
5. ANNUAL MAINTENANCE .
.............. ................................... ................ ........ 34

6
Bellfires English
Instructions for use

7
Bellfires English
Instructions for use
1 WARRANTY TERMS
Interfocos
Warranty terms
Interfocos B.V. guarantees the quality of the supplied Bellfires hearth and the quality
of the materials used. All Bellfires hearths are developed and manufactured according
to the highest possible quality standards. If, despite all this, something should prove
amiss with the Bellfires hearth you have purchased, Interfocos B.V. offers the following
manufacturer’s warranty.
Article 1: Warranty
1.1. If Interfocos B.V. determines that the Bellfires hearth you have purchased is
defective as a result of a flaw in the construction or material, Interfocos B.V.
guarantees to repair or replace the hearth free of charge, without charging any
costs for labour or spare parts.
1.2. Repair or replacement of the Bellfires hearth will be undertaken by Interfocos B.V.
or by a Bellfires dealer as designated by Interfocos B.V.
1.3. This warranty is supplementary to the existing legal national warranty of Bellfires
dealers and Interfocos B.V. in the country of purchase and is not intended to
restrict your rights and claims based on the applicable legal provisions.
Article 2: Warranty conditions
2.1. Should you wish to claim under the warranty, please contact your Bellfires dealer.
2.2. Complaints should be reported as quickly as possible after they have manifested
themselves.
2.3. Complaints will only be accepted if they are reported to the Bellfires dealer,
together with the serial number of the Bellfires hearth which is stated on the front
of the instructions for use.
2.4. In addition, the original receipt (invoice, receipt, cash receipt) showing the date of
purchase must also be submitted.
2.5. Repairs and replacements during the warranty period do not give any entitlement
to an extension of the warranty period. After a repair or replacement of warranty
parts, the warranty period shall be deemed to have started on the date of
purchasing the Bellfires hearth.
2.6. If a certain part is eligible for the warranty and the original part is no longer
available, Interfocos B.V. shall ensure that an alternative part of at least the
same quality shall be provided.
Article 3: Warranty exclusions
3.1. The warranty on the Bellfires hearth ceases to be in effect if:
a. it is not installed according to the supplied installation instructions, and to
national and/or local regulations;
b. it has been installed, connected or repaired by a non-Bellfires dealer;

8
Bellfires English
Instructions for use
c. it has not be used or maintained according to the instructions for use;
d. it has been changed, neglected or roughly treated;
e. it has been damaged as a result of external causes (outside the hearth
itself), for example, lightning strike, water damage or fire;
3.2. In addition, the warranty lapses if the original purchase receipt shows any
change, deletion, removal or if it is illegible.
Article 4: Warranty area
4.1. The warranty is only valid in those countries where Bellfires hearths are sold
through an official dealer network.
Article 5: Warranty period
5.1. This warranty will only be granted during the warranty period.
5.2. The body of the Bellfires hearth is guaranteed for a period of 10 years against
construction and/or material faults, starting from the moment of purchase.
5.3. For other parts of the Bellfires hearth, a similar warranty applies from the moment
of purchase for a period of one year.
5.4. For user parts such as glass, glass (cord), thermocouple and the interior of the
combustion chamber, a similar guarantee is given until after the first burning.
Article 6: Liability
6.1. A claim granted by Interfocos B.V. under this warranty does not automatically
imply that Interfocos B.V. also accepts liability for any possible damage.
The liability of Interfocos B.V. never extends further than that stated in these
warranty conditions. Any liability of Interfocos B.V. for consequential damage is
expressly excluded.
6.2. That stated in this provision is not valid if and to the extent that is derives from
a mandatory provision.
6.3. All agreements entered into by Interfocos B.V. are, unless specifically stated
otherwise in writing and to the extent that they are permitted based on applicable
law, subject to the Conditions of the Dutch Metal and Engineering Association
(METAALUNIEVOORWAARDEN), as filed with the registrar of the Court of
Rotterdam on 1 January 2014.
Interfocos B.V.
Hallenstraat 17
5531 AB Bladel
The Netherlands
Tel: [phone]
Email: info@Bellfires.com
Carefully retain the instructions for use; they show the serial number of the hearth.
You will need this if you wish to claim under the warranty.

9
Bellfires English
Instructions for use
2 INSTRUCTIONS FOR USE
2.1 INTRODUCTION
Congratulations on your purchase of this modern Bellfires gas fire. This quality product
will provide you with many years of enjoyment due to the flame effect and warmth that
it provides.
Please read the instructions for use carefully before using the appliance for the first time.
Keep this booklet in a safe place.
2.2 BUILT-IN PROTECTION OF THE APPLIANCE
The appliance is fully protected by means of a thermo-electric pilot light shut off in the
event of a gas escape from the main burner. In addition, the appliance is fi tted with a
patented safety system, whereby the door will extract any over-pressure that arises in
a controlled way. In this, a spring system briefl y causes the door to hinge forward a few
centimetres. A loud noise can occur. If this happens, immediately close the gas tap and
contact the fitter.
2.2.1 Safety
Do not place embers, vermiculite granules, wood logs or pebbles / ‘
fire
glass’ against the pilot light burner. Make sure that the pilot flame can
burn at all times freely over the main burner. Only in this way is proper
ignition of the main burner ensured.
Ignoring these directions could lead to a dangerous situation.
Do not place flammable objects within 100 cm of the appliance.
Pay special attention to furnishings and ornaments around the fire.
When igniting the pilot light and burner, always keep a minimum
distance of 100 cm from the front of the appliance.
If the pilot flame goes out for any reason, wait for 5 minutes before
attempting to re-light it.
It is essential that the appliance, the complete concentric flue system and
the outlet are cleaned and inspected annually by a recognised fitter/gas
specia lis t. The safe operation of the appliance w ill thus remain gu arante ed.
For this, please refer to the Installation instructions (Chapter 2:
Maintenance), that are supplied separately with each appliance.

10
Bellfires English
Instructions for use
The gas fire must never be used with the door open or the door glass
removed.
Never place flammable material on the ceramic log set.
The filling of the main burner with embers, vermiculite granules,
wood logs or pebbles / ‘
fire glass’ may not under any circumstances
be changed or added to.
Do not place easily-flammable materials, such as nylon clothing or
flammable liquids, in the vicinity of the gas fire.
Ensure at all times that children and other people who are not
aware of the operation of the gas appliance are only in the vicinity
of the appliance exclusively under supervision.
Use a fireguard to protect the people and children mentioned
above against possible burns.

11
Bellfires English
Instructions for use
2.3 FLAME EFFECT
The appliance is supplied with a “Premium Fire” double burner, from the factory.
This burner has a specific flame effect, see below for an impression.
Both burners ON
Only front burner ON
Natural gas: The above sketches provide an impression of the flame effect.
This can differ from reality. The flame effect is namely
dependant on the composition and supply pressure of the
natural gas present.

12
Bellfires English
Instructions for use
Remote control
2.4 OPERATION: REMOTE CONTROL
2.4.1 General
Read these instructions carefully before lighting the fire ""
The appliance is operated by radio remote control. This comprises a hand-held
transmitter and a receiver. The receiver is part of the gas control block assembly.
The receiver and the gas control block are under in the appliance.

13
Bellfires English
Instructions for use
Note: Hand-held transmitter and receiver are not interchangeable with previous models.
The pilot light is situated in the front of the burner, behind a cowl. Should the pilot light
go out, you must wait five (5) minutes before attempting to re-ignite the fire.
Important
Once the fire is lit, it must burn at maximum for approx. 10 minutes to allow the chimney
to come up to temperature"
Electrical connections and batteries:
*) During a power outage, you can temporarily install batteries in the receiver so that
the appliance continues to operate.
Hand-held 2x 1.5V battery
transmitter Type LR03 or AAA
Receiver 6VDC Note:
via the 5 wire cable No batteries in the
from the Light-Module receiver. *)
Module - Light and 230 VAC
(optional) Convection fan

14
Bellfires English
Instructions for use
2.4.2 Hand-held transmitter
The remote control works by radio signal. The hand-held transmitter is configured in the
factory with a unique signal code.
Figure 1: Hand-held transmitter

15
Bellfires English
Instructions for use

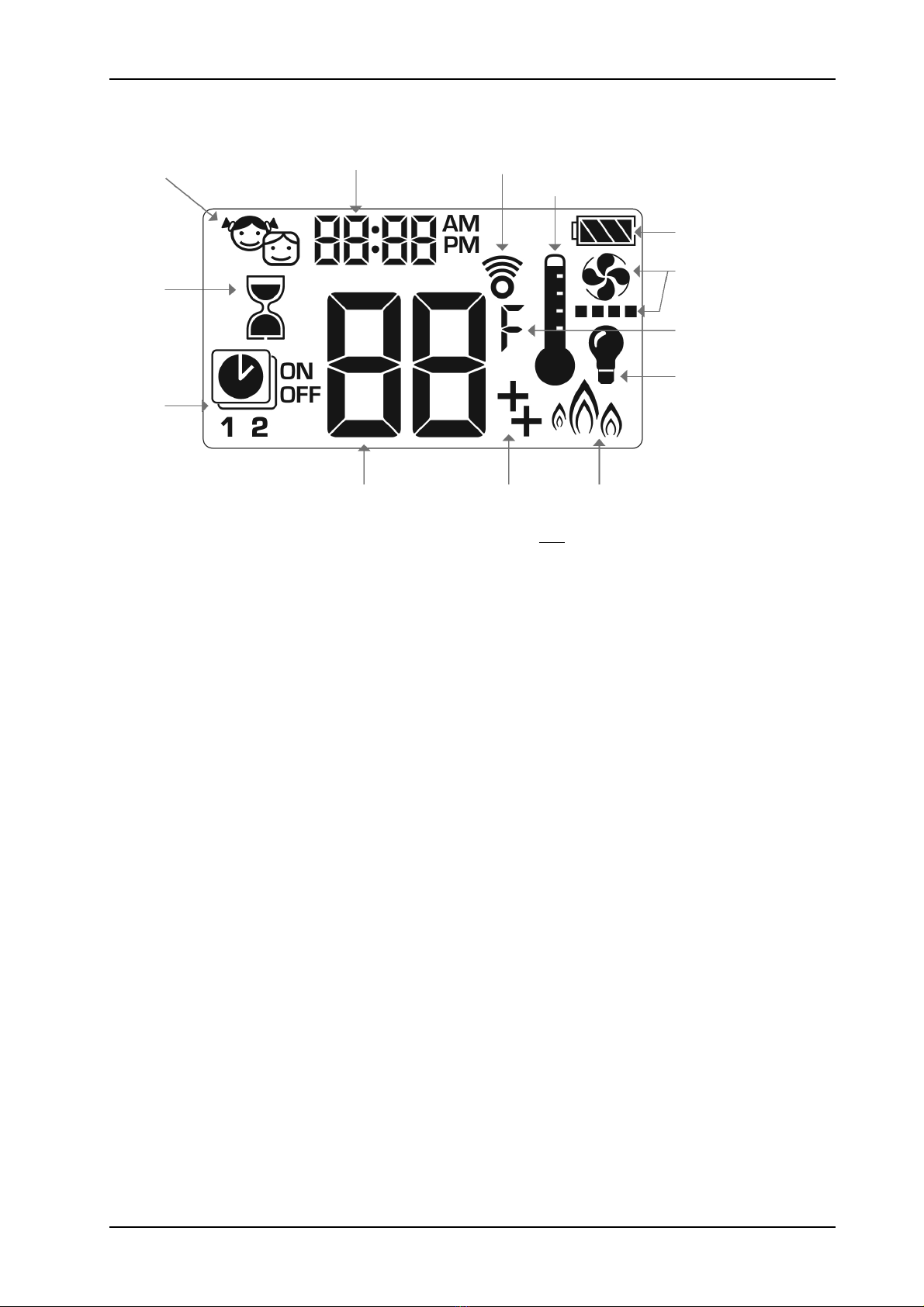

Figure 2: Display hand-held transmitter
Child proof
Signal
Indicator
Battery Status
Time
Thermostatic Mode
AUX-Function:
indicates that both
“front burner” and
“rear burner” are ON
Eco ModeTemperature
Fan-Symbol:
Operating convection
fan (option). Fan speed
levels: 1 to 4 bars
Light-Symbol:
Operating Ambient
lighting/Dimmer
Count-
down
Timer
Program
Mode
Fahrenheit or Celsius:
°F/12 or °C/24 hour

16
Bellfires English
Instructions for use
1 2
ON
AM
PM
OFF
1 2
ON
AM
PM
OFF
1 2
ON
AM
PM
OFF
SETTING FAHRENHEIT OR CELSIUS
• To change between °C and °F, press and
buttons simultaneously.
Note:
Choosing °F results in a 12 hour clock.
Choosing °C results in a 24 hour clock.
SETTING THE TIME
• Pres and buttons simultaneously.
Day flashes.
• Press or button to select a number to
correspond with the day of the week (e. g.
1= Monday, 2=Tuesday, 3= Wednesday,
4=Thursday, 5= Friday, 6 = Saturday,
7= Sunday).
• Press and buttons simultaneously.
Hour flashes.
• To select hour press or button.
• Press and buttons simultaneously.
Minutes flash.
• To select minutes press and button.
• To confirm press and buttons
simultaneously or wait.

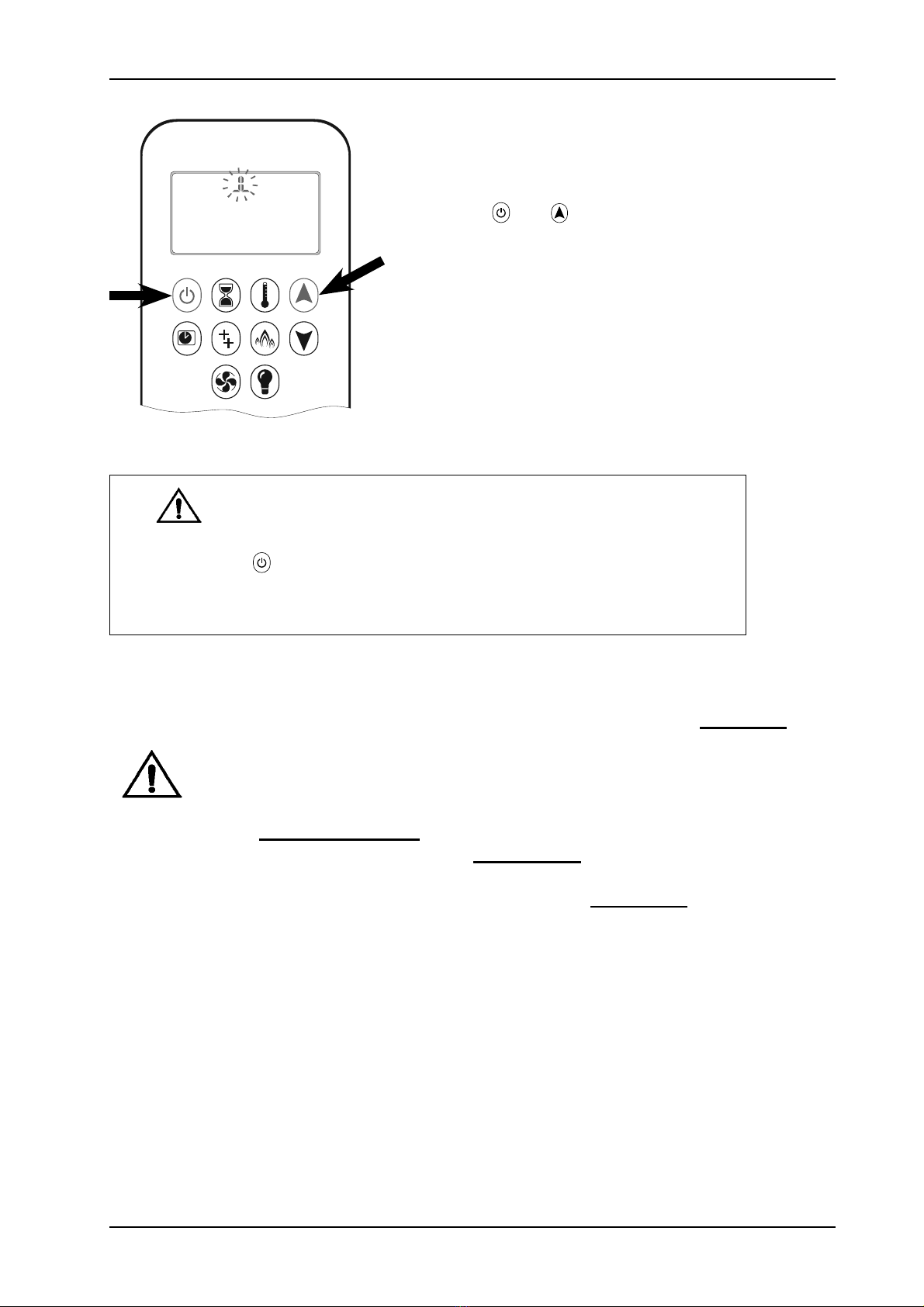

CHILD PROOF
ON:
• To activate press and buttons
simultaneously.
• displayed and the hand-held transmitter is
rendered inoperable, except for the off function.
OFF:
• To deactivate press and buttons
simultaneously.
• disappears.

17
Bellfires English
Instructions for use
Burner:
The appliance’s entire burner consists of a “front burner” and a “rear burner”.
Burner operation described below applies to:
1 Both “front burner” and “rear burner”.
(The -symbol (AUX -function) on the hand-held transmitter’s display is visible.)
or
2 Only “front burner”. The “rear burner” is turned off.
(The -symbol (AUX -function) on the hand-held transmitter’s display is not visible.)
Figure 3: Receiver “RESET” button
IMPORTANT: SETTING UP SIGNAL CODE BEFORE USING THE APPLIANCE
FOR THE FIRST TIME
Before the appliance can be used, the receiver must first learn the hand-held
transmitter’s signal code.
• Press the “RESET” button on the receiver, and keep this pressed until 2 beeps are
heard. See figure 3.
Release the “RESET” button after the second (somewhat longer) beep.
• Press, within 20 seconds, the button (small flame) on the hand-held transmitter,
until 2 short beeps are heard. The signal code has now been set up on the receiver.
If, however, a single long beep is heard, this means that setting the signal code
has failed or that the wiring has been connected incorrectly.
You only need to set up the signal code once. It is not necessary when changing the
batteries of the hand-held transmitter or receiver.

18
Bellfires English
Instructions for use
1 2
ON
AM
PM
OFF
2.4.3 Operation (Remote control)
MANUAL MODE (HAND-HELD TRANSMITTER)
SWITCH ON THE APPLIANCE / IGNITING THE FIRE
• Open the gas supply valve in the gas pipe to the fire.
Warning
When the pilot light is ignited, the motor turns
automatically to maximum flame height.
Hand-Held Transmitter One-Button Operation
(Default Setting)
• Press button until two short beeps and a
blinking series of lines confirms the start
sequence has begun; release button.
• Main gas flows once pilot ignition is confirmed.
• Hand-held transmitter automatically goes into
Manual Mode after main burner ignition.
Note
Change from one-button to two-button ignition operation by pressing
and holding button for 10 sec. immediately after installing batteries.
ON is displayed and 1is flashing. When change is complete 1will
change to 2.

19
Bellfires English
Instructions for use
1 2
ON
AM
PM
OFF
Hand-Held Transmitter Two-Button Operation
• Press and button simultaneously until
two short beeps and a blinking series of lines
confirms the start sequence has begun; release
buttons.
• Main gas flows once pilot ignition is confirmed.
• Hand-held transmitter automatically goes into
Manual Mode after main burner ignition.
Note
Change from two-button to one-button ignition operation by pressing
and holding button for 10 sec. immediately after installing batteries.
ON is displayed and 2is flashing. When change is complete 2will
change to 1.
Important: • If the pilot !ame goes out for any reason, wait for 5 minutes
before attempting to re-light it.
• If the pilot light does not ignite after 3 ignition attempts;
close the gas tap and warn the "tter.
• Once the pilot light is burning, the main burner must ignite
within 10 seconds automatically.
If this does not happen, immediately close the gas tap and
warn the "tter.
• If the main burner ignites with a pop; immediately close the
gas tap and warn the "tter.

20
Bellfires English
Instructions for use
• Press button and hold to set appliance
to pilot light.
STAND-BY MODE (PILOT LIGHT)
• Possible error messages:
* 3 seconds: short beeps, audible when the motor-knob operates:
Receiver batteries need changing soon (having heard this signal, the
appliance can be ignited another ten times approximately).
* 5 seconds: unbroken beeps:
Error. For example, one of the cables may not be properly connected.
Important: If the pilot !ame goes out, then wait for
at least 5 minutes before repeating the
above procedure.
1 2
ON
AM
PM
OFF
Figure 4: Gas regulating block
Motor-knob
Microswitch8-wire Receiver Jack
Pilot gas adjustment screw
(Factory set) (Puncture the casing
with a small screwdriver)
Adjustment screw
Maximum burner pressure
(Factory set and sealed)
We recommend to let the pilot light
burn in the winter months, to prevent
condensation on the inside of the glass.
