Bellfires Derby Setup guide

INSTALLATION INSTRUCTIONS AND INSTRUCTIONS FOR USE
Gas fires with closed combustion system
Bellfires wishes you many cosy evenings with your new Bellfires gas fire
This document is an essential part of your gas fire.
Read it carefully before installation and use of the
gas fire and keep it in a safe place!

3
Bellfires English
Instructions for use and installation instructions
BELLFIRES GAS FIRES WITH CLOSED COMBUSTION SYSTEM:
Derby
Derby II
Jersey
Flat Bell
Topsham
Topsham Tunnel
York
Kent
Retro Bell Large
Retro Bell Intermediate
Retro Bell Small
Retro Bell Solo
View Bell
Corner Bell Large
Corner Bell Small
Horizon Bell XL
Horizon Bell Large
Horizon Bell Large Tunnel
Horizon Bell Medium
Horizon Bell Small
Horizon Bell Small Tunnel
Vertical Bell Large
Vertical Bell Large Tunnel
Vertical Bell Small
Smart Bell

4
Bellfires English
Instructions for use and installation instructions

5
Bellfires English
Instructions for use and installation instructions
CONTENTS
1. WARRANTY TERMS .................................................................................
2. INSTRUCTIONS FOR USE .......................................................................
3. INSTALLATION INSTRUCTIONS ..............................................................
4. MAINTENANCE .........................................................................................
5. FAULTS ......................................................................................................
6. ELECTRICAL DIAGRAM ...........................................................................
7. DIMENSIONS ............................................................................................
8. TECHNICAL DETAILS/REGULATIONS ....................................................
9. REPLACEMENT PARTS LIST ..................................................................
10. DISPOSAL OF PACKAGING AND APPLIANCE .......................................
Page
7
9
19
67
68
69
70
83
97
99

6
Bellfires English
Instructions for use and installation instructions

7
Bellfires English
Instructions for use and installation instructions
Bellfires gas fire
Warranty
Bellfires guarantees the quality of the supplied hearth and the quality of the
materials used.
This warranty runs for a period of twelve (12) months from first use of the hearth
and covers defects which are a result of construction faults or the failure of
component parts.
Bellfires has an obligation under the terms of this warranty (at its discretion) not
to charge for the replacement of any component parts.
Note: The following aspects are not covered under the terms of the warranty:
-defects arising which are attributable in whole or in part to:
aNot paying due heed to installation, operating and maintenance
instructions
bFitting/installation or repair by third parties (including the buyer)
cHeat cracks arising in the jacket due to normal heating
dDiscolouration in the ironwork as a result of heat transfer
-the grate, the thermocouple and the glass of the product
Should you wish to claim under the warranty,
please contact your dealer.
Please carefully retain your invoice with this warranty!
Your Bellfires dealer: Date of installation:
Bellfires
Hallenstraat 17
NL-5531 AB Bladel
Tel. + 31 497 339200 Fax. + 31 497 339210
1. WARRANTY TERMS
∇

8
Bellfires English
Instructions for use and installation instructions

9
Bellfires English
Instructions for use and installation instructions
2INSTRUCTIONS FOR USE
2.1 INTRODUCTION
Congratulations on your purchase of this modern Bellfires gas fire. This quality product
will provide you with many years of enjoyment due to the flame effect and warmth that it
provides. Please read the instructions for use carefully before using the appliance for
the first time. Keep this booklet in a safe place.
2.2 BUILT-IN PROTECTION OF THE APPLIANCE
The appliance is fully protected by means of a thermo-electric pilot light shut off in the
event of a gas escape from the main burner.
2.2.1 Safety
Do not place embers, vermiculite granules, wood logs or pebbles
against the pilot light burner. Make sure that the pilot flame can
burn at all times freely over the main burner. Only in this way is
proper ignition of the main burner ensured.
Ignoring these directions could lead to a dangerous situation.
It is essential that the appliance, the complete concentric flue
system and the outlet are cleaned and inspected annually by a
recognised fitter/gas specialist. The safe operation of the appliance
will thus remain guaranteed.
See for additional instructions Chapter 4: Maintenance.
If the pilot flame goes out for any reason, wait for 5 minutes before
attempting to re-light it.
The gas fire must never be used with the door open or the door glass
removed.
Never place flammable material on the ceramic log set.
The filling of the main burner with embers, vermiculite granules, wood
logs and pebbles may not under any circumstances be changed or
added to.
Do not place easily-flammable materials, such as nylon clothing or
flammable liquids, in the vicinity of the gas fire.

10
Bellfires English
Instructions for use and installation instructions
Ensure at all times that children and other people who are not
aware of the operation of the gas appliance are only in the vicinity
of the appliance exclusively under supervision.
Use a fireguard to protect the people and children mentioned
above against possible burns.
2.3 OPERATING YOUR GAS FIRE - GENERAL
Read these instructions carefully before lighting the fire!
The gas fire can be operated with a pilot light that burns continuously. The ignition and
control knob is located at the bottom of the front of your gas fire or outside the gas fire
in a special box (supplied). If the control knob is fitted to the front of the gas fire, the
gas fire frame must be removed to access the knob.
The pilot light is situated in the front of the burner, behind a cowl. Should the pilot light
go out, you must wait five (5) minutes before attempting to re-ignite the fire.
Important
The burner is operated using the control knob. Select the required setting and the
burner will then burn at this setting until it is changed.
2.4 HAND CONTROL
The burner is operated using the control knob. Select the required setting and the
burner will then burn at this setting until it is changed.
“OFF” POSITION
IGNITION POSITION
CONTROL KNOB
BURNER CONTROL RANGE
Figure 1: Gas regulator block BM 733

11
Bellfires English
Instructions for use and installation instructions
2.4.1 Igniting the fire
•Open the gas supply valve in the gas pipe to the appliance.
•Press in the control knob and turn it (clockwise) as far as possible. It is now in the
“off” position.
•Press the control knob and turn it anti-clockwise to the “PILOT” ignition position.
You will hear a click, which is the spark for the pilot light. You may have to “click”
several times before the pilot light ignites.
•Once the pilot light is ignited, hold in the knob for another ten (10) seconds and
then release it.
If the pilot flame goes out, then wait for at
least 5 minutes before repeating the above
procedure.
•The burner is ignited by turning the knob anti-clockwise to the desired setting.
2.4.2 Turning off the fire
Press the knob and turn it to “PILOT”.
The burner will continue to burn for a few seconds before being extinguished.
2.4.3 Extinguishing the pilot light
You can extinguish the pilot light by pressing the control knob when it is in the “PILOT”
position and turning it clockwise to the “OFF” position.
If the gas fire is not going to be used for a long period of time, it is recommended to
close the gas supply valve to the fire.
If the pilot flame goes out for any reason,
wait for 5 minutes before attempting to
re-light it.
If the pilot light frequently goes out, then please contact your installer.
2.5 REMOTE CONTROL
2.5.1 General
The appliance is opperated by radio remote control. This comprises a hand-held
transmitter and a receiver. The receiver is part of the gas control block assembly.
The receiver and the gas control block are behind the (white) panel door (operating
unit) next to the appliance. Press the door inwards to open; this will release the catch
and the door will spring out.
or:
The receiver and the gas control block are behind the operating flap at the bottom of
the appliance. Pull the flap forward to open.

12
Bellfires English
Instructions for use and installation instructions
2.5.2 Hand-held transmitter
The remote control works by radio signal. The signal code default setting is factory set,
but may be modified if requierd.
Figure 2: Hand-held transmitter
Set the display
lConnect the batteries. By simultaneously pressing OFF and , can be
switched from °F (and 12 hour clock) to °C (and 24 hour clock), or vice versa.
lThe display will automatically return to MAN mode after some time, but you
may immediately return to MAN by pressing the OFF button.
Set the current time
lBy simultaneously pressing and , the display flashes. You are in SET mode.
lPress to set the hour and to set the minute.
lWait or press OFF to return to MAN mode.
Programming the desired temperature
lSelect the desired mode of operation or by pressing theSET button briefly.
lHold the SET button until the display flashes.
lSet the temperature with or .
lWait or press the OFF button briefly to go to MAN mode.
lIf the temperature control in should be off (lower battery consumption),
decrease the night temperature until appears on the display.

13
Bellfires English
Instructions for use and installation instructions
Programming the timer: P1 and P2
lSelect the desired mode of operation by pressing the SET button
briefly.
lPress the SET button until P1 (heating period 1) flashes.
lSet the time for the beginning of the first heating period by pressing for hour and
for minute’setting.
lPress the SET button briefly; P1 appears on the display. Set the time
for the end of the first heating period.
lPress SET again to set the second heating period P2 (heat ON) and
P2 (heat OFF).
lIf all 4 times are set, pressing the OFF button or waiting will complete
the programming.
Changing the signal code:
l15 different codes can be set by changing the position of one or more “DIP switches”
in the hand-held transmitter.
lThe “DIP switches” are concealed behind the battery holder in the hand-held
transmitter.
lPress the reset button on the receiver until a signal is heard.
lThen hold down button on the hand-held transmitter for 20 seconds.
lThe receiver will then read the new code.
Figure 3: “DIP-switches” in battery compartment hand-held transmitter
2.5.3 Operation (Remote Control)
Igniting the fire
lOpen the gas supply valve in the gas pipe to the fire.
lPress the “O I” switch on the gas control block to the “I” position.
lTurn the operating knob on the gas control block to the ON position.
lOn the hand-held transmitter, press the ««
««
«- OFF and buttons simultaneously. A
short tone will signal the start. Short beeps (0.2 secs, 1Hz.) will then follow until the
pilot light and main burner are ignited. Once the main burner has been ignited, the
flame height will automatically rise to the maximum position.

14
Bellfires English
Instructions for use and installation instructions

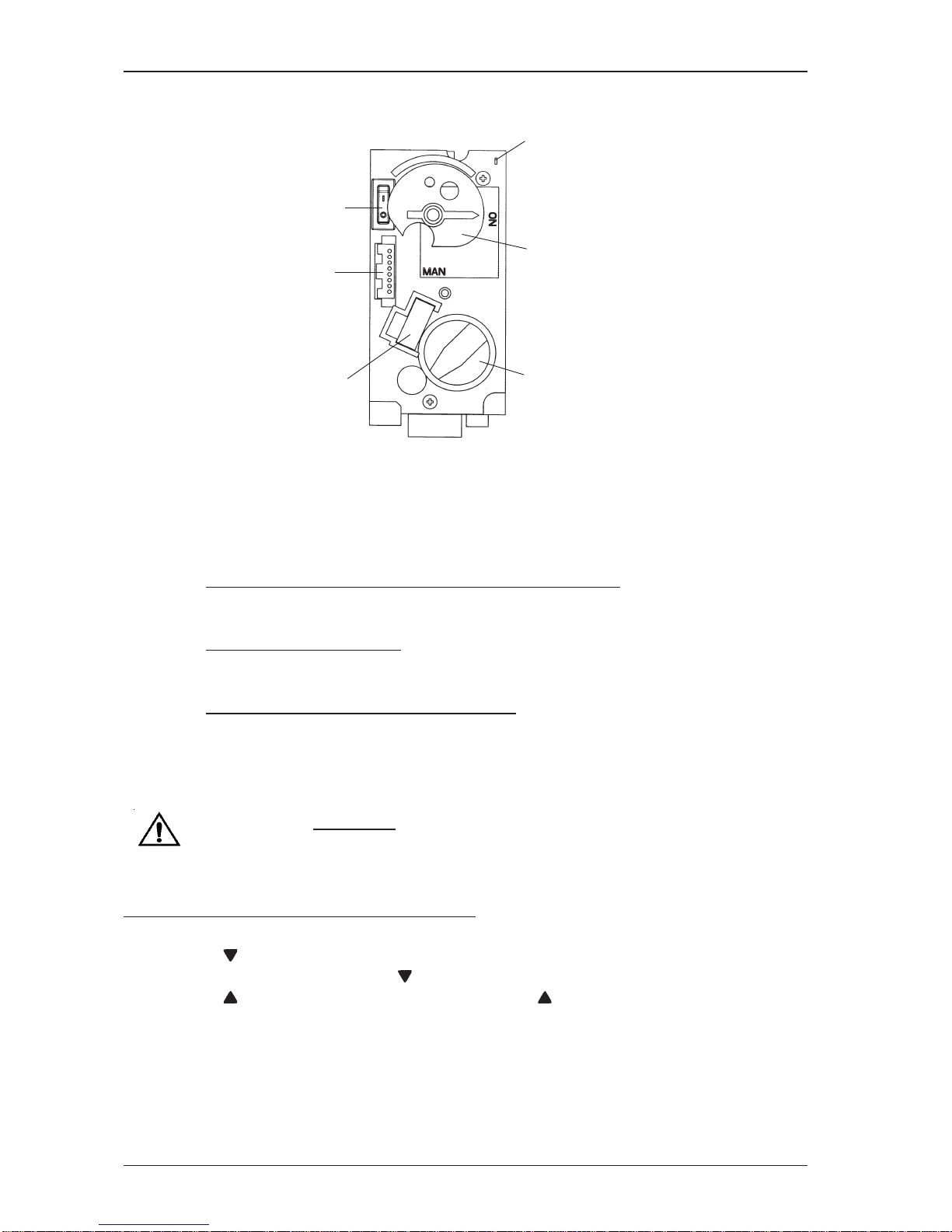

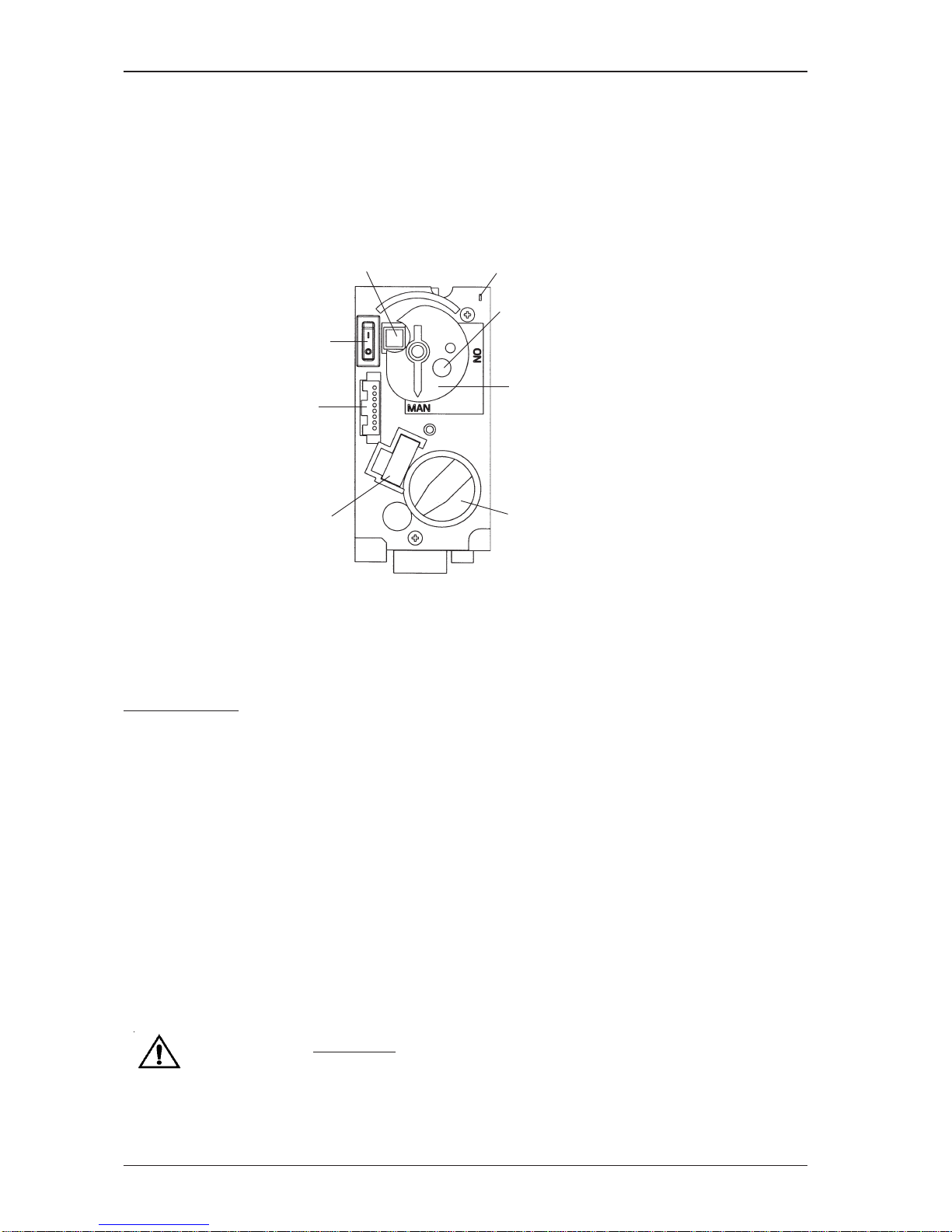

Figure 4: Gas regulating block; Operating Knob in ON-position
lPossible error messages:
*Long beeps (0.8 secs on, 0.2 secs off) during ignition:
Receiver batteries need changing soon (having heard this signal, the
appliance can be ignited another ten times approximately).
*5 second unbroken tone:
Error. For example, one of the cables may not be properly connected,
the “O I” switch is not in the “I” position.
*5 short beeps (0.2 secs on, 0.2 sec off):
Ignition of the pilot light and main burner failed. Possible cause: air in
the pilot light pipe.
Important: If the pilot flame goes out, then wait for
at least 5 minutes before repeating the
above procedure.
Setting the flame height/extinguishing the fire
lAfter ignition, the burner automatically sets the flames to the maximum height.
lPress the button to lower the flames or turn off the burner. (To extinguish the fire
select “STAND BY”.) (Touch the button to lower the flames gradually.)
lPress the button to raise the flames. (Touch the button to raise the flames
gradually.)
Motor-Knob
(in maximum position)
Microswitch
Operating Knob
Connection Piezo Igniter
(only for MANual control)
ON/OFF Switch
8 Wire
Receiver Jack

15
Bellfires English
Instructions for use and installation instructions
Switching off the appliance
lPress the button to lower the flames or to switch off the burner (“STAND BY”).
lThen press the ««
««
«-OFF button to switch off the appliance, including the pilot light.
lPress the “O I” switch (on the gas control block) to the “O” position. This conserves
battery life.
lIf the appliance is not to be used for some time, please close the gas supply valve in
the gas pipe.
Important: If the pilot flame goes out for any reason,
wait for 5 minutes before attempting to
re-light it.
Faults
lIf the signals from the hand-held transmitter do not seem to be reaching the receiver,
the cause may be:
*Spent batteries: replace the batteries.
*An electronic problem: press the “RESET” button on the receiver.
lIf the appliance regularly switches itself off, please contact your installer.
Replacing the batteries
lThe hand-held transmitter/receiver batteries have a service life of approx. one year.
We recommend you use alkaline batteries.
lThe batteries must be replaced whenever:
1. Hand-held transmitter: BATT appears in the display screen.
2. Receiver: long beeps (0.8 secs on, 0.2 secs off) are heard
during ignition.
1. Hand-held transmitter:
*Open the cover on the back of the transmitter.
*Carefully remove the 9V battery and disconnect it from the contact.
Do not pull the wires!
*Connect the new battery and replace in the battery compartment. Close the cover.
2. Receiver:
*Carefully pull the receiver assembly out of the compartment behind the (white)
panel door.
*Open the cover.
*Remove the batteries from the battery compartment.
*Place four new 1.5V batteries (LR6 or AA type) as indicated in the battery
compartment. The negative end (-) of the battery must always be at the contact
spring end of the compartment.
*Close the cover and place the receiver back in its holder.
lIf the batteries are inserted incorrectly, the electronics or drive may be irreparably
damaged.
lOnly replace the batteries when the appliance has been completely switched off.

16
Bellfires English
Instructions for use and installation instructions
2.5.4 Operation (Hand control)
In an emergency it is possible to operate the appliance manually. To do so, the ignition
(piezo) cable must first be removed and transferred carefully to the piezo connector on
the gas control block.
Motor-Knob
(in maximum position)
Microswitch
Operating Knob
(in Position for
Manual Ignition)
Metallic Core for Manual Ignition
(recessed switch)
Connection Piezo Igniter
(only for MANual control)
Piezo button
(only for MANual control)
ON/OFF Switch
8 Wire
Receiver Jack
Figure 5: Gas regulating block; Operating Knob in MAN-position
Igniting the fire
lOpen the gas supply valve in the gas pipe to the fire.
lSwitch the “O I” switch on the gas regulating block to the “I” position.
lTurn the motor-knob on the gas regulating block as far as it will go in a clockwise
direction. The switch will audibly ‘click’.
lTurn the operating knob on the gas control block to the MAN position. Arecessed
switch within the knob will become visible.
lPress the recessed switch. Use a pen or similar instrument to do this.
Gas will now flow to the pilot light.
lWhile holding down the recessed switch, press the (square) piezo button several
times (the piezo button is alongside the “O I” switch) to ignite the pilot light.
Check whether the pilot light has been lit through the glass.
lOnce the pilot light is lit, the recessed switch must be kept down for a further ten
seconds, after which it can be released.
Important: If the pilot flame goes out, then wait for
at least 5 minutes before repeating the
above procedure.

17
Bellfires English
Instructions for use and installation instructions
lMove the operating knob to the ON position. Depending on the position of the motor-
knob, the burner will either ignite or not.
lBy turning the motor-knob anti-clockwise to the desired position, the burner will ignite
and the flame height can be controlled.
Extinguishing the fire
lTurn the motor-knob on the gas regulating block as far as it will go in a clockwise
direction. The knob will audibly ‘click’. The burner is now switched off. The pilot light
will remain lit.
Switching off the appliance
lPress the “O I” switch on the gas regulating block to the “O” position.
The pilot light will be extinguished.
lIf the gas fire is not going to be used for a long period of time, it is
recommended to close the gas supply valve to the fire.
Important: If the pilot flame goes out for any reason,
wait for 5 minutes before attempting to
re-light it.
2.6 USING THE APPLIANCE FOR THE FIRST TIME
The gas fire is coated with a lacquer layer resistant to high temperature. During the first
hours of operation, the burning in of the lacquer may result in an unpleasant smell. This
is harmless, however. Operating the gas fire at full capacity for a few hours, while
ventilating the room, will eliminate the smell.
After using your gas fire for the first few times, you may be aware of a light deposit
behind the glass. This is caused by the paint curing. Once your fireplace has cooled
down, this deposit can be removed with glass cleaner or ceramic hob cleaner.
2.7 DAILYMAINTENANCE
lEnsure that as little dust, and as few particles of cigarette smoke, candles and oil
lamps as possible pollute the air in the room in which the appliance is used. Heating
of these particles by the convection system of the appliance could lead to
discoloration of the walls and ceiling. It is therefore very important to ensure that the
room in which the appliance is located is sufficiently ventilated. Regularly remove
any dust deposits from behind the control flap by means of a vacuum cleaner.
Important: If the glass is broken or cracked, it must be
immediately replaced before operating the
gas fire again.

18
Bellfires English
Instructions for use and installation instructions
lIf anything is spilt on the fire, switch it off immediately and wait for it to cool
down sufficiently before cleaning. Never use scouring powder, aggressive
cleaners or fire polish on the gas fire. Use only a dry lint free cloth.
lHeat resistant lacquer in aerosols can be obtained from your
distributor. During the yearly maintenance, the lacquer can be used to repair
small areas of damage.
The installation must only be carried out by a
CORGI registered installation engineer.
IMPORTANT

19
Bellfires English
Instructions for use and installation instructions
3INSTALLATION INSTRUCTIONS
3.1 GENERAL
The gas fire must be positioned and connected as a “room sealed system” (balance
flue) appliance by a CORGI registered gas installation engineer in accordance with the
following installation instructions, nationally and locally applicable regulations (see
“Technical Details/ Regulations” at the rear of this manual). If you have any queries
regarding the installation, please consult your local gas company.
Important: Before beginning the installation, check that the details on the
rating plate correspond to the gas type and pressure to which
the appliance will be connected.
The appliance is factory set to the correct tolerances. The pilot light is set to the correct
level of consumption.
It is possible to install the gas fire with either a wall or roof outlet, using the Barbas or
Ontop (US-System) concentric flue Ø100 mm (inner) - Ø150 mm (outer) system. The
fumes are exhausted naturally to the outside environment through the inner Ø100 mm
pipe whereas the combustion air supply passes between the Ø100 mm and Ø150 mm
pipes.
The gas fire can be installed in a completely sealed or mechanically ventilated
house without extra ventilation and/or fume extraction.
The gas fire can be installed as an insertion into an existing open fire place or as
a built-in appliance in a new fire place.
The exception to this rule is the Smart Bell. This appliance can also be wall-mounted.
Chimney ventilation and a convection package is then not required.
In order to prevent the fireplace heating up excessively, it must be properly
ventilated by installing vents at the top and bottom of the fireplace..
The appliance can be fitted with a convection package as an optional extra. This is a
‘convection jacket’ for the appliance, two flexible aluminium pipes and two built-in
convection vents. This enables hot air to be circulated into the room.
When handling the frame, we advise you to use the special gloves supplied, and
to leave them with the owner of the hearth after installation.
If an existing chimney is to be used, please consult your installer first. If the chimney
was previously used for a wood or coal fire, then it should be cleaned by an expert.

20
Bellfires English
Instructions for use and installation instructions
3.2 BARBAS AND ONTOP CONCENTRIC FLUE Ø100 MM - Ø150 MM SYSTEM
The appliance is in combination with the concentric flue system [Ø100 mm – Ø150 mm]
(either rigid or flexible) of Barbas or Ontop (US system) compliant with the European
CE norm for gas appliances, and may therefore only be used with these systems.
The guarantee is invalidated if the appliance is (completely or partially) installed using a
different system.
The Barbas and Ontop concentric flue [Ø100 mm - Ø150 mm] systems can be used
with either a newly-built or existing chimney.
3.3 PREPARATION FOR INSTALLATION
The following preparation must be carried out before the gas fire can be installed.
3.3.1 Instructions for positioning the outlet
3.3.1.1 Positioning the outlet for correct operation:
Roof-mounted outlet:
Figure 6: Roof-mounted outlet
This must be positioned at least 0.5 m from the roof edge;
the apex of the roof can be disregarded.
Wall-mounted outlet:
Figure 7: Wall-mounted outlet
This must be positioned at least 0.5 m from:
•the corner of the building.
•the roof overhang, the rain gutter.
•balconies etc., unless the exhaust construction
extends to at least the face of the protruding section.
>0,5 m
>0,5 m

21
Bellfires English
Instructions for use and installation instructions
3.3.1.2. Positioning the outlet to avoid affecting the surrounding area
All listed “distances” in this section are no more than
guidelines.
For the exact minimum “distances”, please consult your
national and local directives.
Distance” = minimum distance required for positioning of the outlet to avoid
adverse effects with respect to:
A. A ventilation opening serving an occupied room, a toilet or a bathroom.
B. Aheating air supply, when the supply flows through an occupied room.
C. A window that can be opened and that is near an occupied room, a toilet or
a bathroom.
Roof-mounted outlet:
To avoid adverse effectsDistance: outlet - A, B or C
At the same roof level. >3 m (*)
At a different roof level. >1 m (*)
At a lower positioned wall. >1 m
At a higher sloping surface. >3 m (**)
(*) If the required distance cannot be achieved, the outlet position rules take
precedence.
(**) If the required distance cannot be achieved, the position of the outlet must
be at least 1 m above the highest facade/roof.
