Bellfires Wi-fi box User manual

Manual for the Bell•res Wi-Fi box
in combination with the Bell•res Gas app

3
English
Instructions for use
CONTENTS
Page
1 Introduction .................................................... ..................... .......... .... ... ... .. 5
2 Installation of the Wi-Fi box .....................................................
................ . 5
2.1 Components .................................................................... ....... ...... .... . 6
2.2 Connections receiver .................................................... ........ ... .... ..... 8
2.3 Connections Bellfires Wi-Fi box . ....................... ......................... ..... .. 9
2.3 Installation Bellfires Wi-Fi box .......................................... .... .... ..... .. .. 10
3 Setting the Bellfires Gas app .............................................
......... .... . ........ 13
3.1 Installation ........................................................................... .... ...... .. .. . 13
3.2 Registration ............................................................. ........... ..... ... ...... . 14
3.3 Connect the tablet or smartphone of the Bellfires Wi-Fi box ............ 16
3.4 Fire settings ...... ............. ............................................ ...... ............ ..... . 19
3.5 Connecting extra mobile devices ..................................................... 20
4 Operating the fire of the Bellfires Gas app
.. .......................... ............ .. ... . . 21
4.1 Start screen .............................. ......... ... ..... .... ...................... .... ......... . 21
4.2 Explanation of the symbols ................ ............................ ....... .... ... .... .. 22
4.3 Menu functions ......................................... ........................... . ............ 24
5 Troubleshooting ........................................................................................ 40

4
English
Instructions for use

5
English
Instructions for use
1 INTRODUCTION
These instructions describe the installation of the Bellfires Wi-Fi box and the use of the
accompanying Bellfires Gas app for the Bellfires appliances.
The Bellfires Gas app is suitable for use on a smartphone or tablet and can be
downloaded free via the Play Store (Android) or App Store (Apple).
The Bellfires Gas app extends the fire’s possibilities. It is possible to set personal
preferences per user. It is also possible to carry out fault diagnostics remotely.
Once the Bellfires Wi-Fi box has been installed, it is still possible to operate the fire
using the remote control supplied. For remote control operation, consult the manual
‘Instructions for use & Daily Maintenance’.
2 INSTALLATION OF THE BELLFIRES WI-FI BOX
The installation must only be carried out by a
“Gas Safe Register” registered installation engineer.
IMPORTANT

6
English
Instructions for use
• Bellfires Wi-Fi box • Receiver (can be recognised by the
Article number: 341645 blue sticker). The receiver with Wi-Fi
functionality can be recognised by the
blue sticker.
Article number: 341644
• Connecting cable between the • 230VAC / 6VDC adapter
Bellfires Wi-Fi box and the receiver Article number: 302092
Article number: 341647
2.1 COMPONENTS
The operating components comprise the following parts.

7
English
Instructions for use

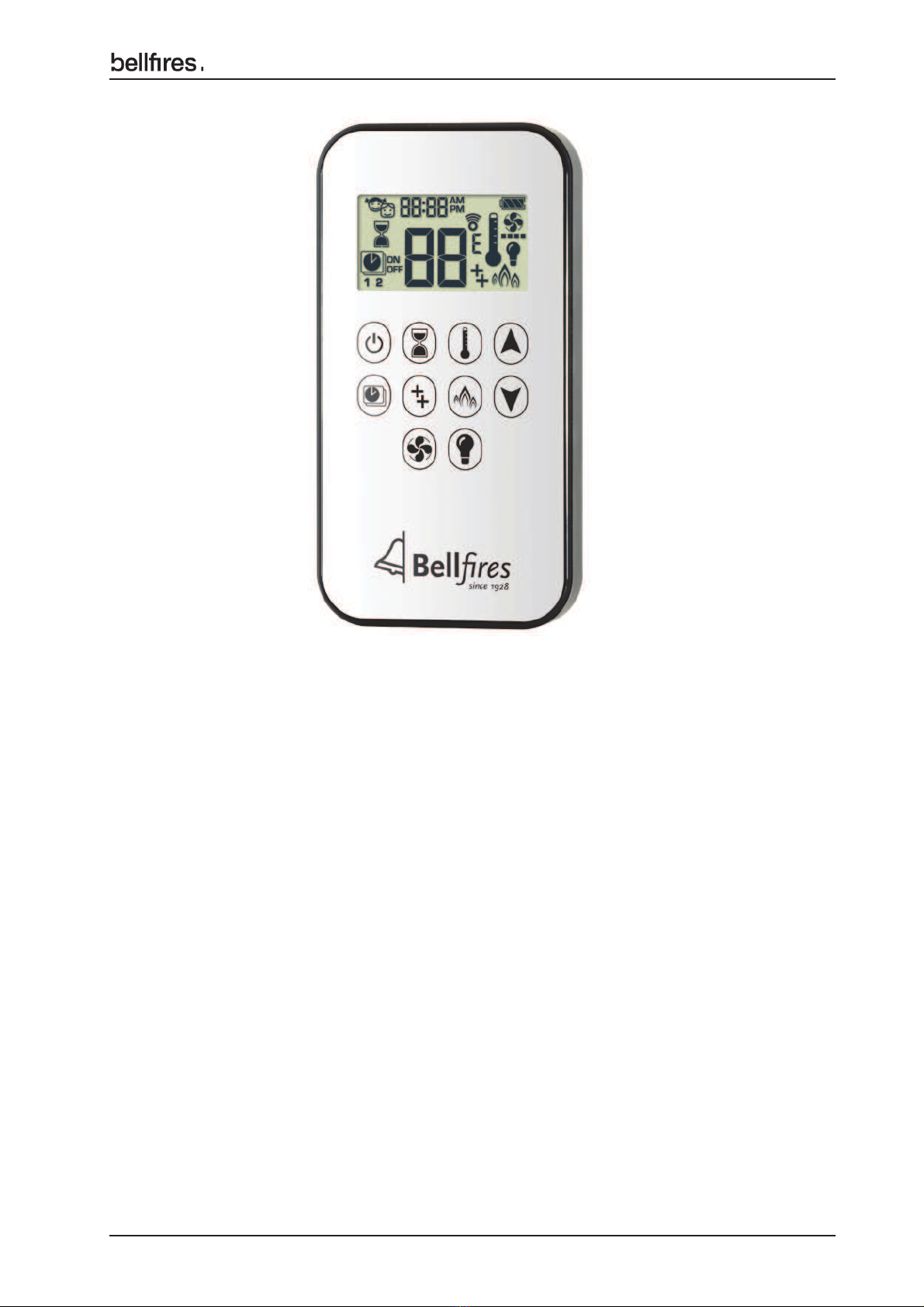

• Hand-held transmitter
Article number: 341643
This must be provided with a blue sticker. If the remote control is provided with a green
or silver-coloured sticker, it is not suitable for use in combination with the Bellfires Wi-Fi
box. In that case, contact your dealer.

8
English
Instructions for use

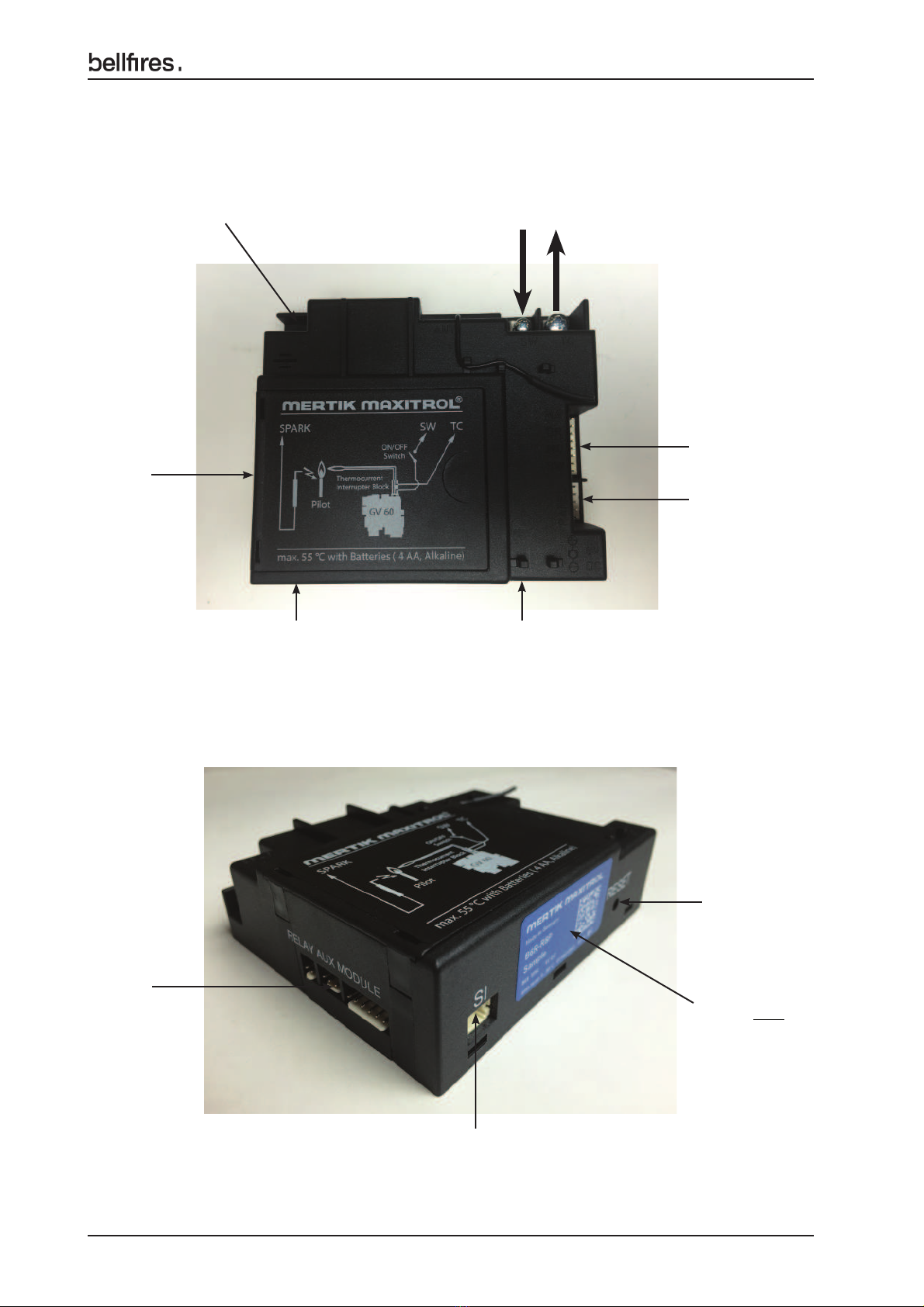

2.2 CONNECTIONS RECEIVER
Thermocouple
voltage / current
OUT - connection (yellow)
AUX:
Electrical
connection
for gas valve
“rear burner”
Thermocouple
voltage / current
IN - connection (red)
Connection
8 wire cable gas
regulator block
Connection
for external
operating
(option)
Piezo cable
connection
RESET button
SI: Serial Interface
Bellfires Wi-Fi box
connection
SW TC
SI: Serial Interface
Bellfires Wi-Fi box
connection
Sticker Blue
RESET button
AUX:
Electrical
connection
for gas valve
“rear burner”

9
English
Instructions for use

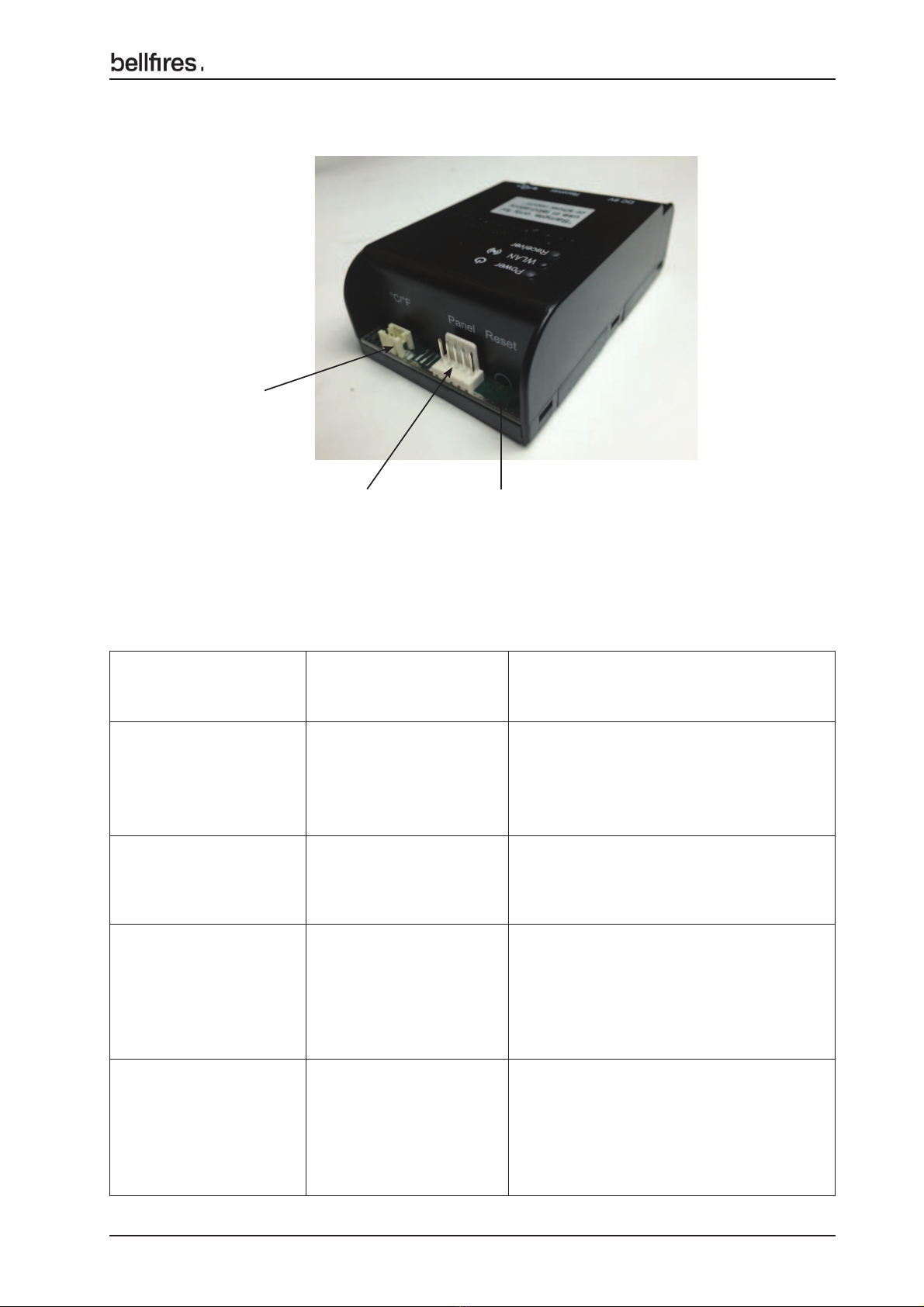

2.3 CONNECTIONS BELLFIRES WIFI BOX
RESET options on the Bellfires Wi-Fi box
Pressing time
RESET button LED Function
1 second Blue Power LED Activates “Acces Point” mode
flashes every for 10 minutes. During this time a
½ sec. connection can be made with the
home network.
5 seconds Blue Power LED Reset system.
flashes 2 times a
second.
10 seconds Blue Power LED Reset to factory settings,
flashes 10 times this takes about 2 minutes.
a second. (During this time the Bellfires
Wi-Fi box will be displayed
als “xpicowifi_xxxx”)
20 seconds Blue Power LED Reset to factory settings, and all
flashes 20 times user data, this takes about
a second. 2 minutes. (During this time
the Bellfires Wi-Fi box will be
displayed as ‘xpicowifi_xxxx’)
ºC / ºF:
Connection for
temperature sensor
(option)
Reset buttonNot in use

10
English
Instructions for use
2.4 INSTALLATION BELLFIRES WI-FI BOX
If the fire is not fitted with Wi-Fi control, then the existing receiver can be replaced by a
receiver with Wi-Fi functionality using the instructions below.
The installation of the Wi-Fi box is also described.
In this case the hand transmitter must also be exchanged for a model that is suitable for
communication with the new receiver.
• Disconnect the connected receiver (which can be recognised by the green sticker,
receivers before October 2015 are provided with a silver sticker) and connect the
disconnected cables to the new receiver (with blue sticker).
• Connect the receiver with the Bellfires Wi-Fi box using the cable supplied. Connect
this cable to the input “SI” on the receiver and the input “Receiver” on the Bellfires
Wi-Fi box.
• Connect the 6 VDC mains adapter to the receiver.
• As soon as the Bellfires Wi-Fi box is connected, the LED lights will light up.
USB:
Not in use
Receiver:
Receiver
connection

11
English
Instructions for use
LED Status
Power Blue On: mains supply OK
Off: no mains supply
WLAN Green On: connected with the home network
Flashing: “Access point” mode. A connection
can be made to a home network.
See Chapter 3
Off: No network found
Receiver Blue On: Bellfires Wi-Fi box is connected with the receiver
Off: no connection with receiver
All LEDs Flashing: Bellfires Wi-Fi box is being internally
configured
• Optionally, an external temperature sensor can be connected to the Bellfires Wi-Fi
box (˚C/˚F) to measure the room temperature. The end of the sensor must be placed
outside the immediate radiation area of the fire.
Note: If the external temperature sensor is not connected, then the room temperature
will be read by the hand transmitter.
• The Bellfires Wi-Fi box can now be set using the Bellfires Gas app. The fire can then
be operated using the Bellfires Gas app.
• The fire can also be operated with the hand transmitter supplied with the Bellfires
Wi-Fi box (can be recognised by the blue sticker). Once the Wi-Fi box is installed, it
is no longer possible to operate the fire using the old hand transmitter.

12
English
Instructions for use
Gas
supply
connection
Thermocouple
Ignition(piezo)cable
2 Wire cable
Motor-
knob
Gas pipe “Rear burner”
“red”
“black”
AUX
“red”
“yellow”
Pilot light
Pilot light gas pipe
Thermocouple
interruptor
8 Wire
cable
Gas pipe “Front burner”
Gas valve
“Rear burner”
AC power
adapter
230 VAC -
6 VDC
Button
“RESET”
Receiver
(with battery
compartment for
4 AA-batteries)
Connection cable
(option) for
external operating
(i.a. Domotica
systems)
Thermo-
electrical
cable TC
Thermo-electrical
cable SW
Module
Ambient
lighting
(option)
Connecting cable 230 VAC
Plug with Earth connection Module (option)
5 Wire
cable
Convection
fan
(option)
Burner
SI
Home Network
Bellfires Gas app for Android/iOS
Temperature
Sensor
(optional)
5 Wire cable
Bellfires
Wi-Fi
box
Hand-held
transmitter
GAS
REGULATOR
BLOCK

13
English
Instructions for use
3 SETTING UP THE BELLFIRES GAS APP
The Bellfires Gas app is available for Apple and Android tablets and smartphones.
Minimum requirements for tablet/smartphone - iOS 8.0 or Android 4.4
Search in the Google Play Store or in the Apple App Store on “Bellfires gas”.
The Bellfires Gas app can be downloaded for free.
Once the Bellfires Gas app has been downloaded, it can be installed straight away.
To set your Bellfires Gas app, you need the name (SSID) and password of your Wi-Fi
router.
System requirements for Wi-Fi router:
• Compatible with IEEE 802.11n/g/b
• WPA2 encryption
• Radio frequency: 2,4 GHz band
• Wireless auto channel; automatic search for Wi-Fi radio channel, free of interference
• Supports User Datagram Protocol (UDP)
Attention: If the Wi-Fi router is part of a corporate network, or if the router is suitable
to be included in a corporate network, the User Datagram Protocol (UDP)
and/or broadcasting needs to be enabled in the router settings.
If the UDP protocol and/or broadcasting are not enabled, the router is not visible to the
Wi-Fi box and they cannot be linked together.
To change the router settings, refer to the corresponding manual or contact the manu-
facturer of the router.
After connecting the Wi-Fi box to the home network, the initial router settings can be
restored, if desired. The connection between the Wi-Fi box and the home network will
remain.
NB: In routers for home use, the UDP protocol is generally always enabled.
3.1 INSTALLATION
The shown screenshots are from an Apple iPad. The screen visual on a smartphone or
Android tablet may differ from these shown screenshots.

14
English
Instructions for use
3.2 REGISTRATION
Before using the Bellfires Gas app, you need to register.
Several people may be registered.
Registration makes it possible to create a user account, with your personal settings.
• If you do not have an
an account yet, you
must register first.
E-mail:
Password:
REGISTRATION
You must register before logging in.
If you have already registered go directly to login.
Registration is one time only.
Back LoginForgot password
Register
LOGIN
To log in you must accept the Terms and Conditions
Start the Bellfires Gas app on your smartphone or tablet
• Select the required language
• Select the required
temperature scale
(˚C or ˚F)
• Select 12-hour or 24-hour
clock
• Select “Next”
Next
TEMPERATURE- AND TIME SETTINGS
Temperature scale
12/24 Hour 12 24
ºF ºC
LANGUAGE
English Deutsch Francais Nederlands Espanol

15
English
Instructions for use
• Complete the requested
details
REGISTRATION
First name:
Last name:
Address:
Zip Code:
City:
Country:
Phone:
• The email address is the
user name for your account
• The password must have
at least 8 characters
• Agree with the “Privacy
Policy”
• Select “Register”
Go to your email in box and click on the link to confirm. Once the registration is succes-
sfully completed, you will receive an email to confirm your account details.
As soon as you receive the confirmation, you can log in on the Bellfires Gas app.
Back Register
Phone:
Dealer:
E-mail:
Password:
Confirm Password:
To log in you must accept the Privacy Policy

16
English
Instructions for use

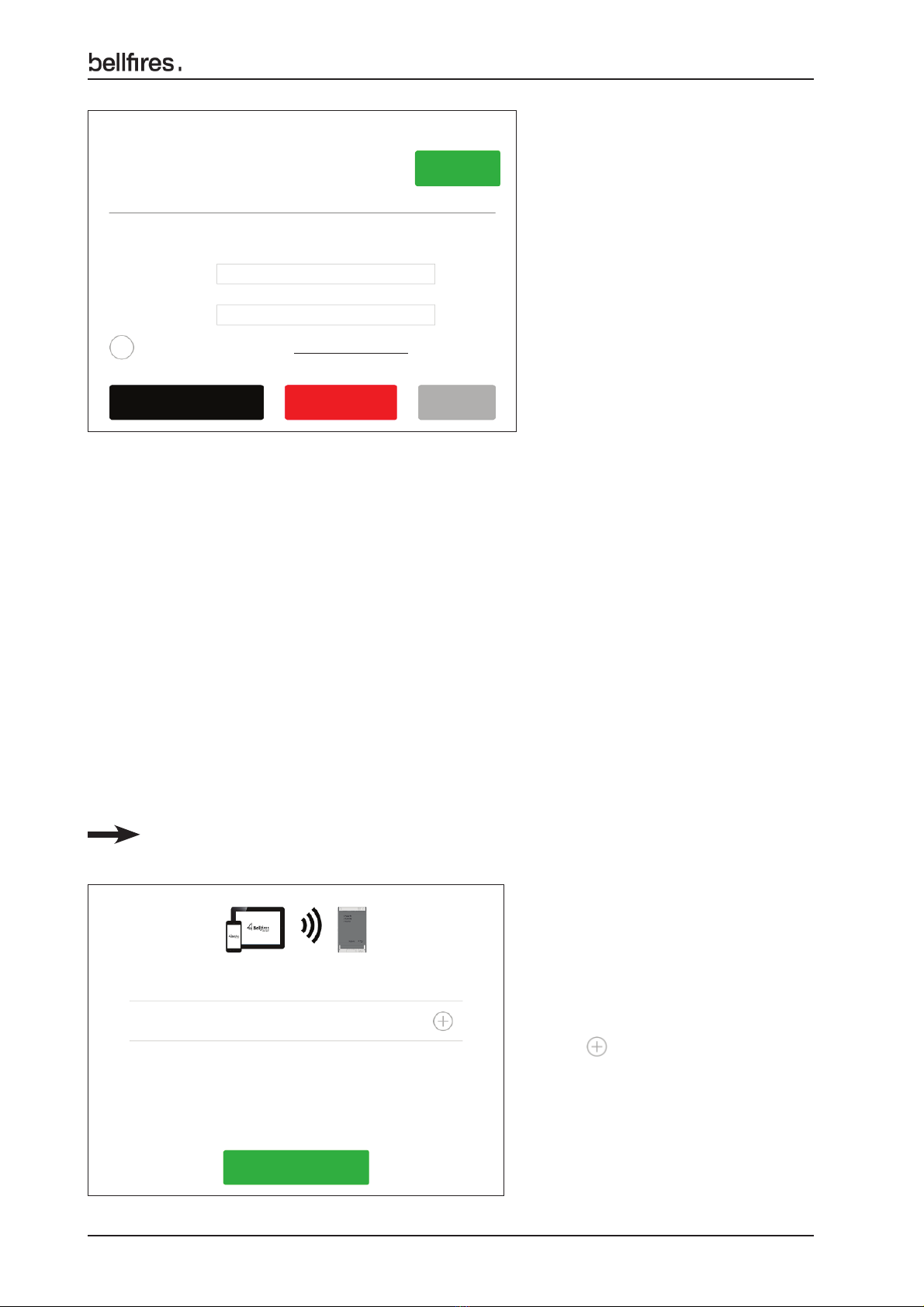

• Return to the Bellfires Gas
app
• Fill in the login details and
agree with the conditions
• Then press “Login”
E-mail:
Password:
REGISTRATION
You must register before logging in.
If you have already registered go directly to login.
Registration is one time only.
Back LoginForgot password
Register
LOGIN
To log in you must accept the Terms and Conditions
• Select “add Wi-Fi box”;
to do this press the
sign
Connect new WiFi-Box
Start APP
Current Wi-Fi Boxes connected:

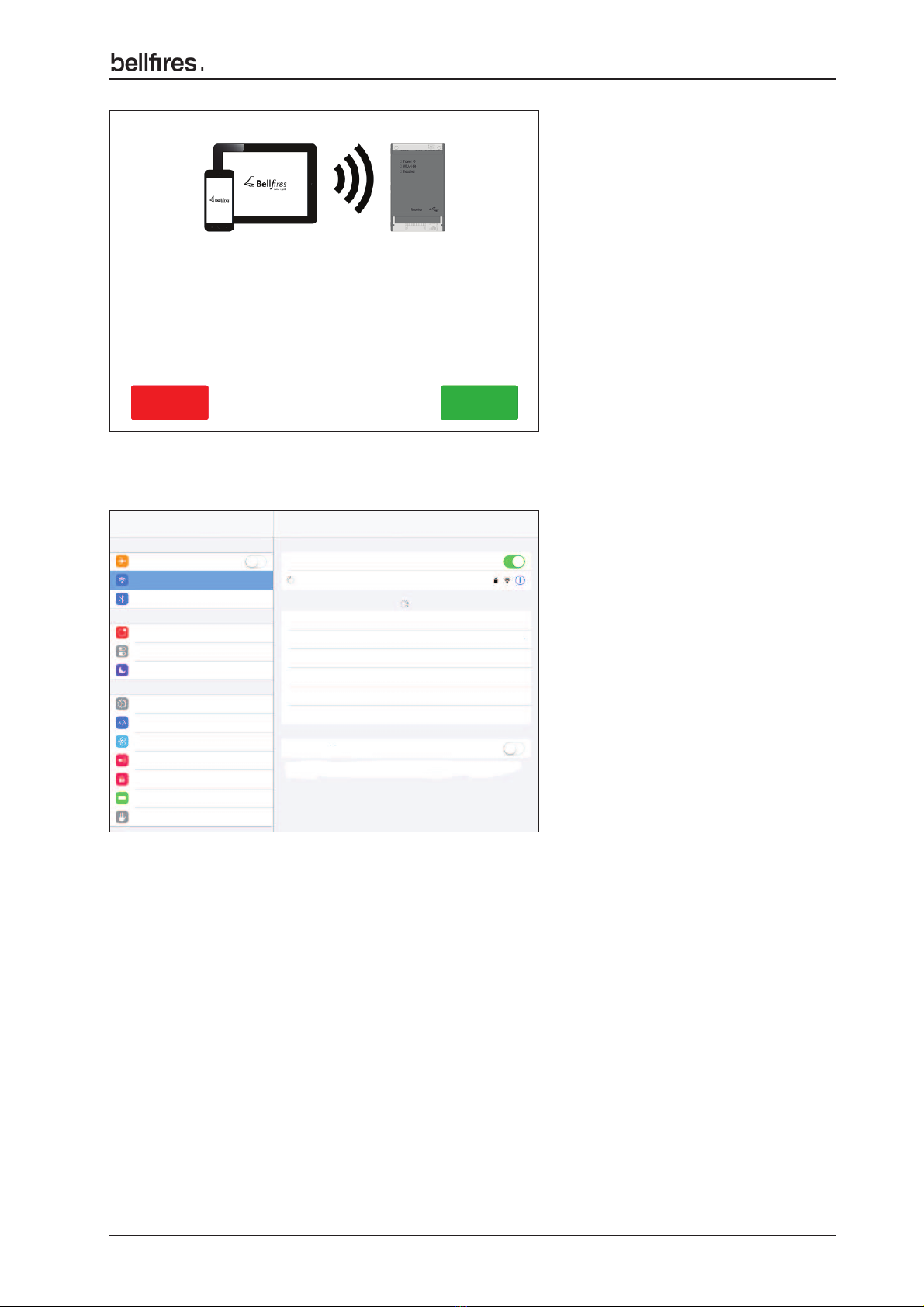

3.3 CONNECT THE TABLET OR SMARTPHONE TO THE BELLFIRES WI-FI BOX
The Bellfires Wi-Fi box which is installed in the fire (see chapter 2) creates its own
network.
To operate the fire using the Bellfires Gas app, the Bellfires Wi-Fi box’s network must
connect to your own home network (wifi router).
Before starting the connection procedure, check:
• The home network availability
• The home network name and password
• That the SSID of the router is not hidden from the Wi-Fi box
• That the home network signal is within range of the Wi-Fi box
• That the Wi-Fi router supports User Datagram Protocol (UDP)
A total of 8 fires can be linked.
Log into the Bellfires Gas app

17
English
Instructions for use
• Select OK
• Go to the Wi-Fi settings on
your smartphone or tablet
and connect to the Wi-Fi
network
“my re_WiFi-box_<number>”
Go to Wi-Fi Settings.
Connect Smart Device to Wi-Fi-Box. Password:
‘MYFIREPLACE’
OK
Back
• Select the network
“my re_WiFi-box_<number>”
• It may take a few minutes
before the Bellfires Wi-Fi
box is displayed.
• The password for the
Bellfires Wi-Fi network is:
MYFIREPLACE
Settings
Wi-Fi
“myfire_WiFi-Box_<EE9F>”
Wi-Fi “myfire_WiFi-Box_<EE9F>”
Airplane Mode
Bluetooth
On
Notifications
Control Centre
Do Not Disturb
General
Display & Brightness
Wi-Fi
Wallpaper
Sounds
Passcode
Battery
Privacy
Other...
Ask to Join Networks
CHOOSE A NETWORK ...
Known networks will be joined automatically. If no known networks are available, you will have
to manually select a network.
Important: If the Bellfires Wi-Fi box is still not displayed after a few minutes, the
Wi-Fi box must be reset by pressing the reset button for 20 seconds (see
page 9). The Bellfires Wi-Fi box will automatically restart after this. As
soon as it is displayed on the screen, the installation can be continued.
Users of IPhone or IPad with iOS 10.0 or higher:
After selection of the network “myfire_WiFi-box” a message appears “No internet
connection”. This message can be ignored. Continue with the instructions below after
selection of the network “myfire_WiFi-box”.

18
English
Instructions for use

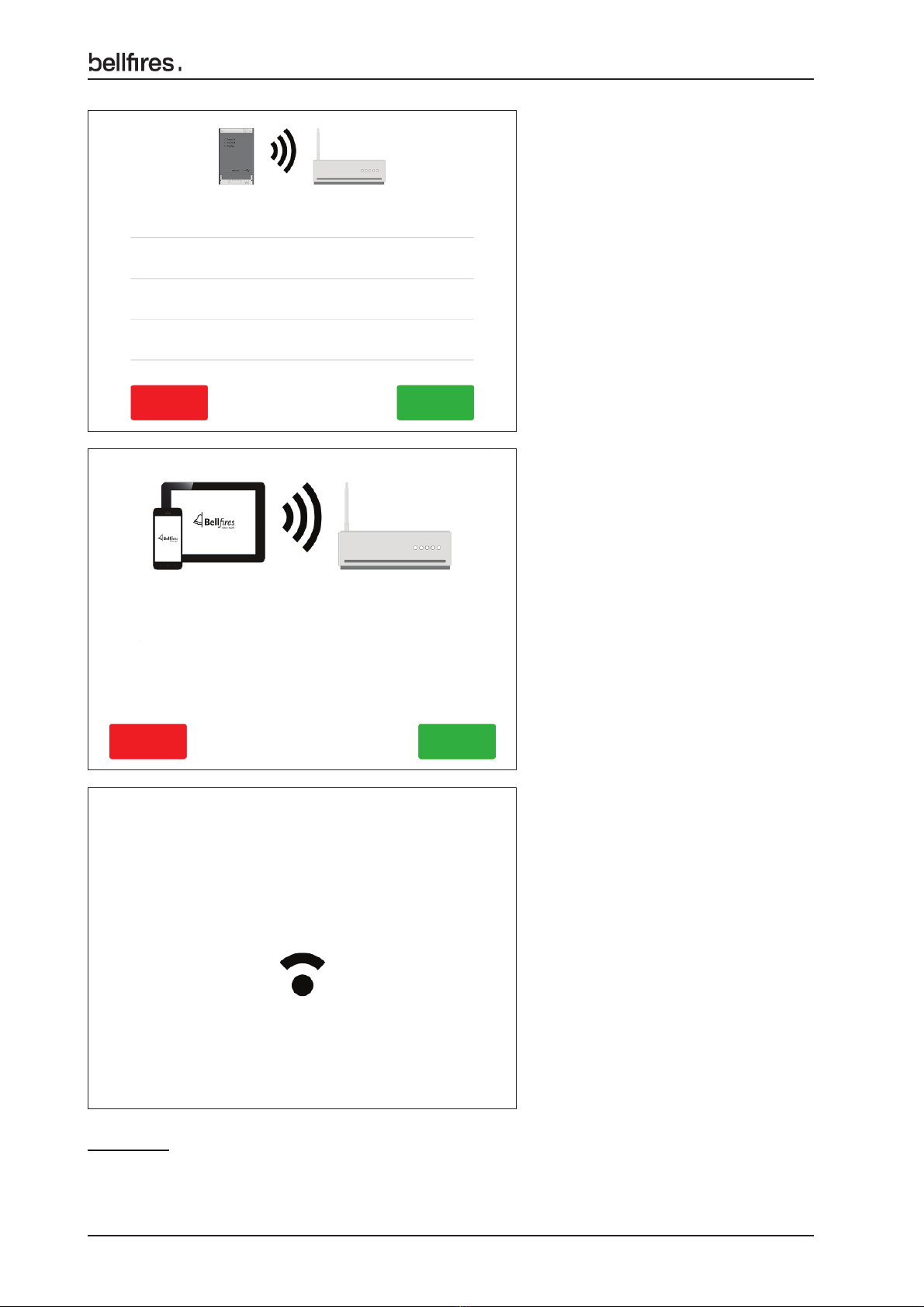

• Return to the Bellfires Gas
app and connect the Bellfires
Wi-Fi box to your own
network.
• To do this, complete the
following details
ºName of the fire (free to
choose)
ºName of the home
network (SSID)
ºHome network’s password
ºSelect “Connect”
Back Connect
Name Your Fire:
House Wi-Fi Name (SSID):
House Wi-Fi Password:
Connect Wi-Fi Box To Your Wi-Fi Router
• It may take a few minutes
before the connection has
been established with your
smartphone or tablet.
Connecting
• Select OK
• Go to the Wi-Fi settings on
your smartphone or tablet
and connect to your home
network.
• Then return to the Bellfires
Gas app
Connect your Smart Device to
your Wi-Fi Router
OK
Back
Attention: Connection is only possible if the so-called UDP protocol of the Wi-Fi
router is enabled. Where applicable, please check with the provider of
the Wi-Fi router. (see also section 3 of these instructions)

19
English
Instructions for use
3.4 FIREPLACE SETTINGS
Once the Bellfires Wi-Fi box of the appliance has been connected to your home net-
work, the fire’s specifications can be entered into the Bellfires Gas app.
• Please select options your
fire is equipped with.
NOTE: The double burner
is described as AUX
Note: If the fire is not provided
with the optional fan system
and/or lighting, then the app will
not display these options.
• Select complete as soon
as the details have been
entered. (scroll down to
do this)
Signal strenght
Wi-Fi-Box 1.3 / 20
Receiver b8.10 / 40.2b
Handset B6R-H8TV21P - N/A
Back Finish
Time settings: Current: 01-03-00 19:11:50
Firename
CONFIRM FIREPLACE SETTINGS
Fireplace name:
Icon
Fan
Light

20
English
Instructions for use

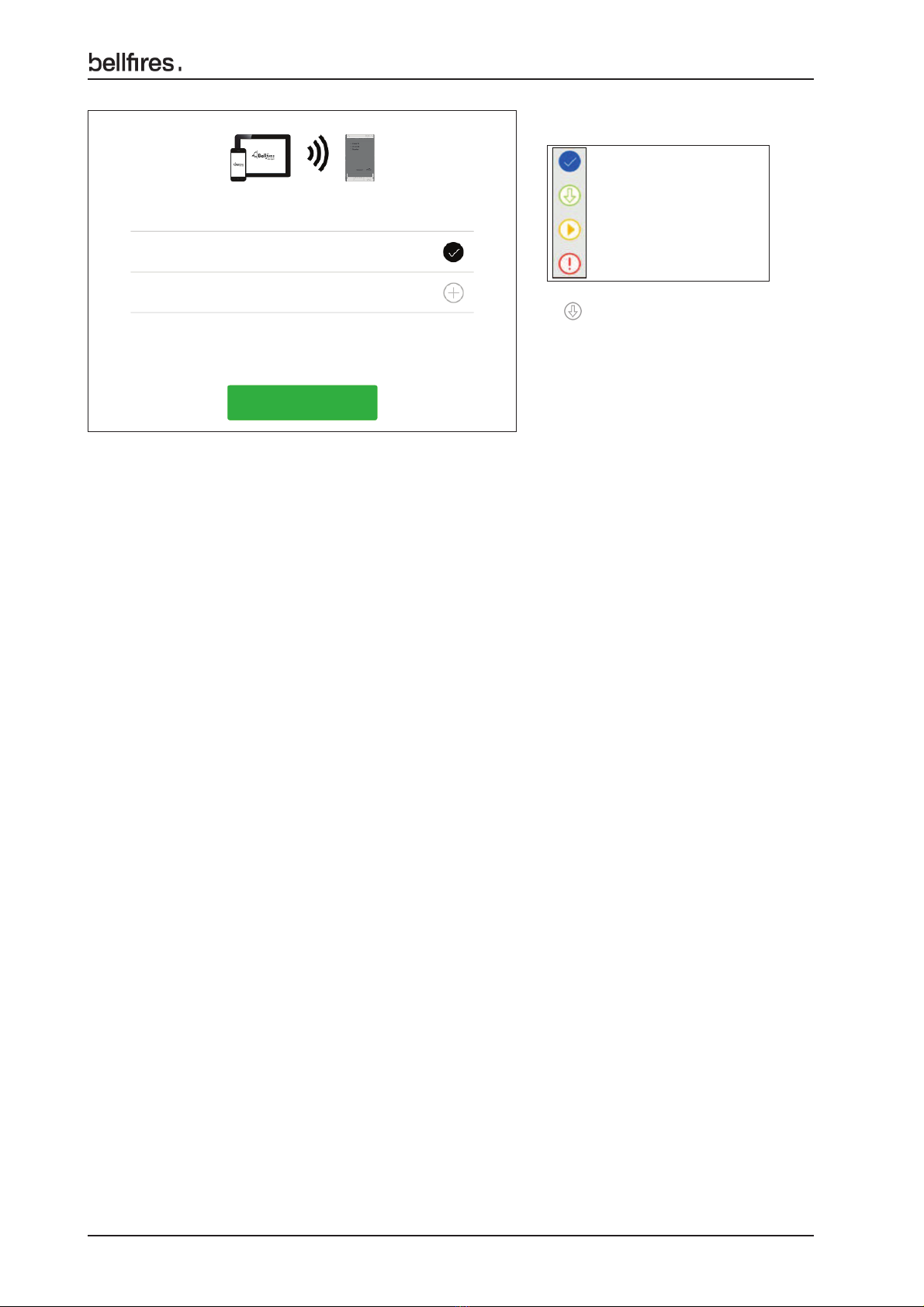

The Bellfires Gas app is ready for use.
Set-up successful
Update available
Set-up failed
Not compatible
• Explanation of the symbols:
If is shown on the screen, it
is recommended to first
download and install the update
before continuing with the
installation.
Current Wi-Fi Boxes connected:
My fireplace
Connect new Wi-Fi Box
Start APP
3.5 CONNECTING EXTRA MOBILE DEVICES
Once you have connected a mobile device to the Bellfires Wi-Fi box for the first time,
you can connect other mobile devices.
• Download the Bellfires Gas app from the App Store or Google Play on the mobile
device that you want to connect
• Start the Bellfires Gas app
• Log in to the Bellfires Gas app (see page 15).
• The Bellfires Gas app will display the connected Wi-Fi boxes.
Then, click on ‘Start app’.
Now you can operate the fire from the mobile device.
Note: Make sure that the mobile device is connected to the same Wi-Fi network as the
Bellfires Wi-Fi box during the initial installation procedure.
