Belling CH772TX User manual

Belling CH77TX Date: 16/08/18

2
To contact Belling about your appliance, please call:
Calls are charged at the basic rate, please check with your telephone service provider for exact charges
Alternatively general, spares and service information is available from
our website at: www.belling.co.uk
Glen Dimplex Home Appliances, Stoney Lane, Prescot, Merseyside, L35 2XW
Warranty Registration
0800 952 1068
*Please call our Customer Care team for extended
warranty
Spares Store
0344 815 3745
Customer Care Helpline
0344 815 3746
in case of difculty within the UK
To contact us by email:
[email protected]
To register your appliance by mail:
Please complete the warranty card
and return to the address supplied
To register your appliance online:
www.belling.co.uk
Your new appliance comes with our 12-month guarantee, protecting you against electrical and
mechanical breakdown. To register, please complete the registration form included, register online
or by phone. For full terms & conditions of the manufacturer’s guarantee, please refer to the web-
site above. In addition, you may wish to purchase an extended warranty. A leaet explaining how to
do this is included with your appliance.
Our policy is one of constant development and improvement, therefore we cannot guarantee the
strict accuracy of all of our illustrations and specications. Changes may have been made subse-
quent to publishing.
GB - Great Britain þ
IE - Ireland þ
DE - Germany
ES - Spain
FR - French
IT - Italy
PL - Poland
NL - Netherlands
SE - Sweden
CN - China
NZ - New Zealand
AU - Australia
Countries of destination:

3
This user guide book is designed to help you through each step of owning your new product.
Please read it carefully before you start using your appliance, as we have endeavored to answer as
many questions as possible, and provide you with as much support as we can.
General information, spares and service information is available from our website.
If you should nd something missing from your product or have any questions that are not covered in
this user guide, please contact us (see contact information inside the front cover).
European Directives
As a producer and a supplier of cooking appliances we are committed to the protection of the environ-
ment and are in the compliance with the WEEE directive. All our electric products are labelled
accordingly with the crossed out wheeled bin symbol. This indicates, for disposal
purposes at end of life, that these products must be taken to a recognized collection points,
such as local authority sites/local recycling centres.
This appliance Complies with European Community Directives (CE) for household and similar electrical
appliances and Gas appliances where applicable.
This appliance conforms to European Directive regarding Eco design requirements for energy-related
products. Our policy is one of constant development and improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and specications - changes may have been made subse-
quent to publishing.
Disposal of Packaging Material
The packaging materials used with this appliance can be recycled. Please dispose of the packaging
materials in the appropriate container at your local waste disposal facilities.
UK ONLY GAS WARNING:
If you smell gas, Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Help line at 0800 111999
INTRODUCTION

4
WARNING
• If the hob surface is cracked, broken or shattered, switch off the
appliance to avoid the possibility of electric shock and call for a
service engineer’s visit.
• During use the appliance becomes hot. Care should be taken to
avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless
continuously supervised. This appliance can be used by children
aged from 8 years and above and persons with reduced
physical sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass or the hob, since they can scratch the
surface, which may result in shattering of the glass.
• Do not use a steam cleaner on any cooking range, hobs and oven
appliances.
• The appliance is not intended to be operated by means of an
external timer or separate control system.
• Unattended cooking on a hob with fat or oil can be dangerous and
may result in re.
• NEVER try to extinguish a re with water, but switch off the
appliance and then cover the ame with a lid or damp cloth.
• Danger of re: Do not store items on the cooking surfaces.
• Only use hob guards designed by the manufacturer of the cooking
appliance or indicated by the manufacturer of the appliance in
the instructions for use as suitable or hob guards incorporated in
the appliance. The use of inappropriate hob guards can cause
accidents.
• Do not place articles on or against the appliance.
• Servicing should be carried out only by authorised personnel.
SAFETY

5
• Always switch off your appliance and allow it to cool down before
you clean any part of it.
• Although every care has been taken to ensure this appliance has
no sharp edges. We recommend that you wear protective gloves
when installing and moving this appliance. This will prevent injury.
• This appliance must be tted to a switch providing all pole
disconnection with a minimum contact separation of 3mm.
• Connection should be made with a suitable exible cable with a
minimum temperature rating of 70°C.
CAUTION
• The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
• This appliance must not be installed behind a decorative door in
order to avoid overheating.
• Fire Safety Advice
If you do have a re in the kitchen, don’t take any risks - get everyone out of your home and call the
Fire Brigade.
Ifyouhaveanelectricalreinthekitchen:
• Pull the plug out, or switch off the power at the fuse box - this may be enough to stop the re imme-
diately
• Smother the re with a re blanket, or use a dry powder or carbon dioxide extinguisher
• Remember: never use water on an electrical or cooking oil re.
• Other Safety Advice
• There is a risk of electric shock, so always make sure you have turned off and unplugged your
appliance.
• This appliance must be earthed.
• The appliance must never be disconnected from the mains supply during use, as this will seriously
affect the safety and performance, particularly in relation to surface temperatures becoming hot and
gas operated parts not working efciently.
• GAS WARNING! - If you smell gas: Do not try to light any appliance, Do not touch any electrical
switch. Contact your local gas supplier immediately.

6

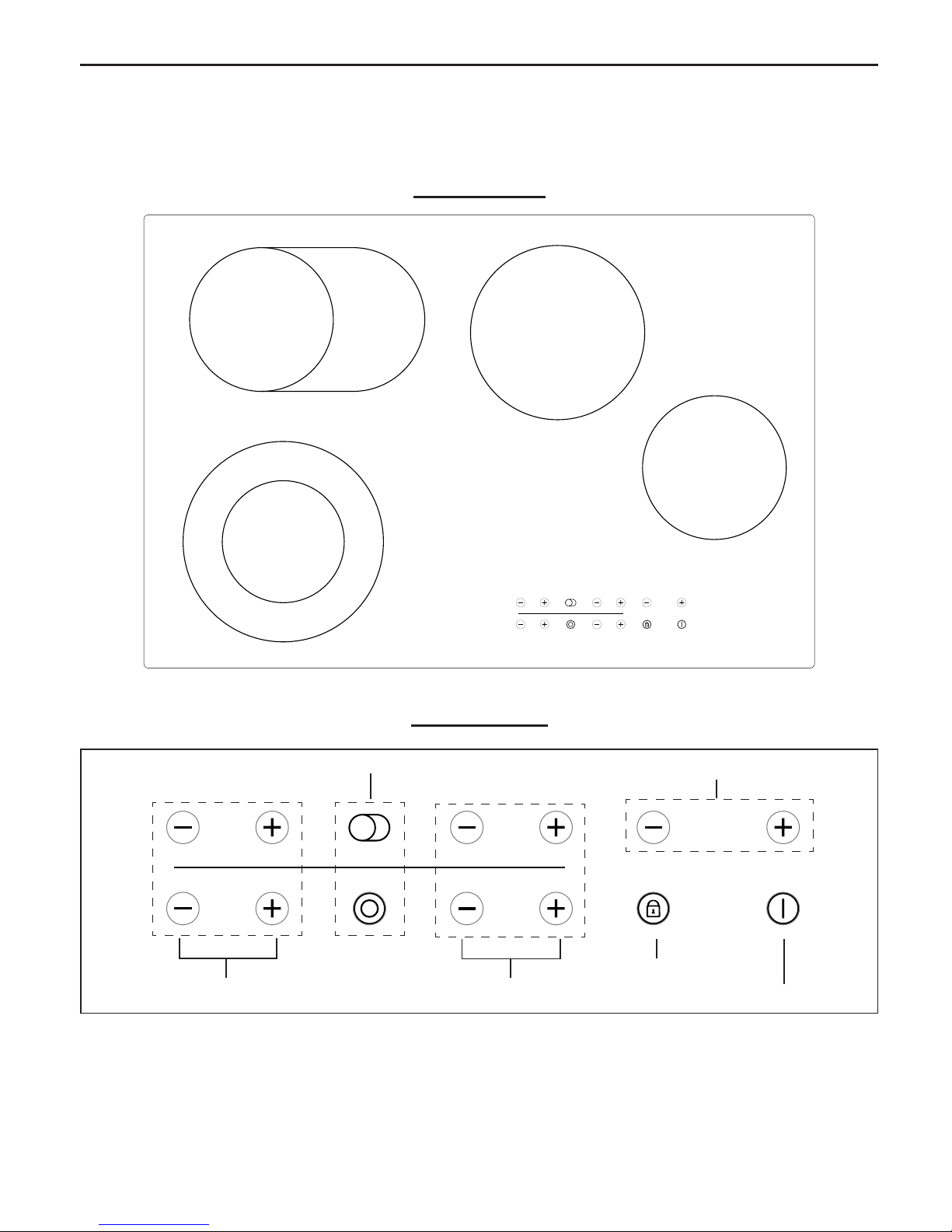

Getting to know your product
Note: Your appliance layout may differ depending on the model.
Control Panel
Hob functions
USING YOUR APPLIANCE
Keylock control
On/Off control
Power regulating controls Power regulating controls
Dual zone controls Timer regulating controls

7
Before using the Hob
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective lm that may still be on your ceramic hob.
Touch controls
Use the at of your nger, not the tip. The controls respond to touch, so you don’t need to apply any
pressure. The touch control keys take approximately 1 second to respond to your touch. Always ensure
the touch control area is clean, dry and free from any objects (e.g. utensils, tea towels and cloths),
spillages and water may make the controls difcult to operate. A beeping sound will be activated and
will keep on beeping every 10 seconds, to attract your attention, please remove any objects and clean
the area as appropriate. Light shining directly on the touch controls can also affect their sensitivity.
Because of this, it is best to switch the hob on rst before switching on the lights on the cooker hood.
Choosing the right Cookware
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits at against the glass, and is the same size as the
cooking zone. Always centre your pan on the cooking zone.
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

8
Start cooking
After switching the hob on, the buzzer will beep once. All the indicator lights, light up for a second and
go out, to indicate that the ceramic hob is now in standby mode.
1. Touch the On/Off Key for 1 second
a beep sounds and the cook zone displays become illuminated.
2. Place a suitable pan on the cooking zone that you wish to use.
• Make sure the bottom of the pan and the bottom of the cooking
zone are clean and dry.
3. Select a heat setting by touching the ”+” or ”-“ control.
• If you don’t choose a heat setting within 1 minute, the ceramic
hob will automatically switch off. You will need to start again at
step 1.
• You can modify the heat setting at any time during cooking.
• By holding down either of these buttons, the value will adjust
up or down.
Finish cooking
Turn the cooking zone off by scrolling down to “-“ or
touching “-“ and ”+” control together.
Turn the whole hob off by touching the On/Off key

9

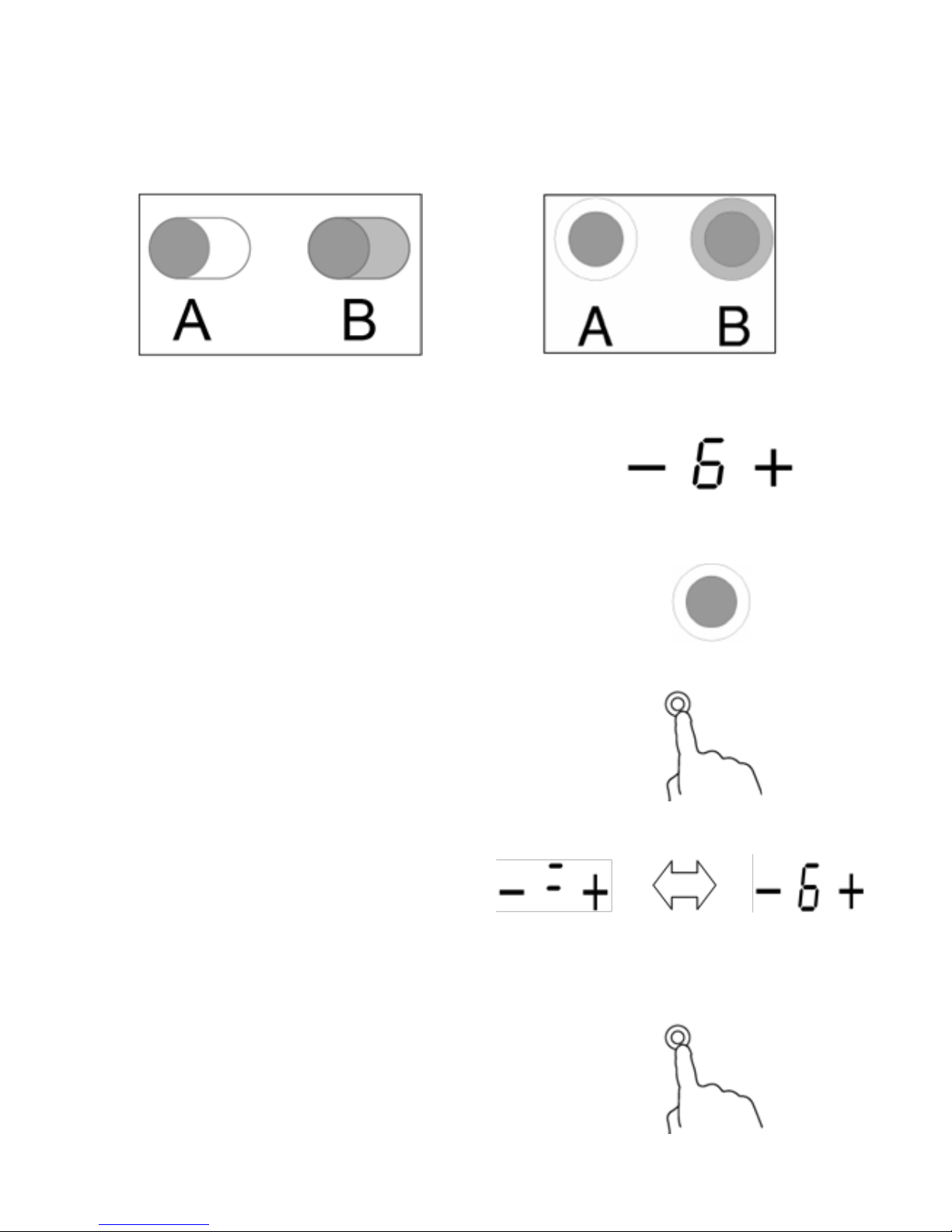

Using the Dual zone function
• The function only works in the top left and bottom left cooking zones.
• The dual cooking zone has two cooking areas that you can use a central section and an outer
section. You can use the central section (A) independently or both sections (B) at once.
Top left zone Bottom left zone
1. Adjust the heating setting between power levels 1 and 9
(e.g. 6, Bottom left zone)
2. The central section of the dual cooking zone will switch on rst.
3. Touching the relevant dual zone control key.
4. The cooking zone indicator show “ = “ and “ 6 ”
alternately
Deactivate the Dual zone
1. Touch the dual zone control key again, the dual zone function
is deactivated. The cooking zone indicator show “6”. Only the
central part of the cooking zone will continue to heat up, and the
relevant cooking zone indicator will just show the relevant power
level.
Note: The dual zone control key will activate when power level 9 is
selected.

10
Locking and unlocking the Controls
• You can lock the controls to prevent unintended use (for example children accidentally turning the
cooking zones on).
• When the controls are locked, all the controls except the On/Off control are disabled.
To lock
1. Touch the keylock control key. The timer display will show “ LO “.
To unlock
Note: Make sure the ceramic hob is turned on.
1. Touch the keylock control key until “LO” disappears from the timer display.
When the keylock function is active, all of the controls are disabled except for the on/off key, so that you
can switch the hob off. If you do switch the hob off in this situation, you must rst touch and hold the
lock key for a few seconds until ‘LO’ disappears from the timer display, before you can switch the hob
back on.
Timer control
You can use the timer in two different ways:
1. You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the
set time has elapsed.
2. You can also set it to turn one or more cooking zones off after the set time has elapsed. Refer to
Setting the timer to turn more than one cooking zone off.
A maximum duration time of 99 minutes can be set.
Timer regulating control
Minute display shows
the number of minutes

11
Using the Timer as a Minute Minder
If you are not selecting any cooking zone
1. Make sure the hob is turned on.
Note: you can use the minute minder even if you’re not
selecting any cooking zone.
2. Touch the “-“ or “+” controls of the timer. The minute minder
indicator will ash.
3. Set the time by touching the “-“ or “+” control of the time.
4. Touching the ”-“ and “+” together, the timer is cancelled,
and the ”--“ will show in the minute display. A few seconds
after the last press of the “-“ or “+” keys, the minute
minder duration time is accepted and starts to count
down.
5. When the time is set, it will begin to count down
immediately. The display will show the remaining time and
the timer indicator will ash for 5 seconds.
Note: If you need to adjust the minute minder duration
time, please start again from step 1.
6. When the minute minder duration time has elapsed, the buzzer
will beep for about 30 seconds and the timer indicator shows ‘--’.
7. Touch the timer “-“ or “+” keys to silence the alarm, if required.
Note:
• Touch the “-“ or “+” key will increase or decrease the minute minder duration time by one minute at a
time.
• Touching and holding the “-“ or “+” key will increase or decrease the minute minder duration time by
10 minutes at a time
• The maximum minute minder duration time which can be set is 99 minutes. If 99 minutes is
exceeded, the timer display will return to 0.

12
Setting the timer to turn one cooking zone off
1. First select the cooking zone you wish to use and select a power level
for that cooking zone. Make sure that you have touched the “-“ or “+”
key of the relevant cooking zone immediately before using the timer
controls.
2. Use the timer control “-“ and/or “+” keys to select the cooking
duration time.
3. By touching the ”-“ and “+” keys together, the cooking
duration time is cancelled, and the display will show ‘--’.
4. When the time is set, it will begin to count down
immediately. The display will show the remaining time and
the timer indicator will ash for 5 seconds.
5. When the cooking duration time has elapsed, the corresponding
cooking zone will be switched off automatically. ‘--’ shows in the
timer display.

13
Note:
• The red dot showing next to the cooking zone power level indicator shows which cooking zone is
currently being controlled by the timer.
• If you want to change the time after the timer is set, please start again from step 1.
Over-Temperature Protection
A temperature sensor measures the temperature underneath the glass. If an excessively high
temperature is observed, then the heating elements will be switched off automatically.

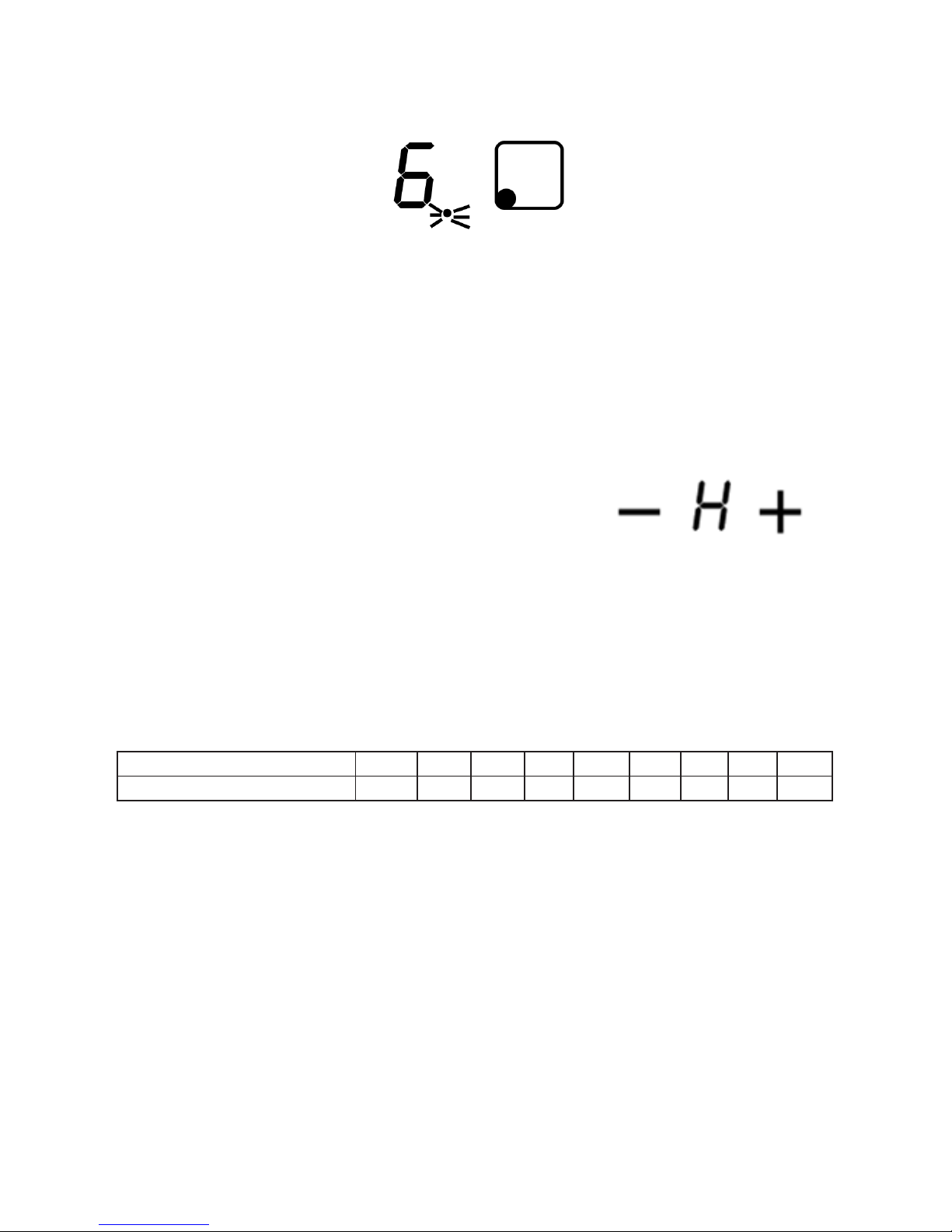

Residual Heat Warning
“H” will show which cooking zone is hot to touch. It will disappear
when the surface has cooled down to a safe temperature. It can
also be used as an energy saving function if you want to heat
further pans, use the hotplate that is still hot.
Note: Please be aware that the glass surface may still be warm for a while, even after the ‘H’ indicator
has disappeared.
Default working times
Another safety feature of the hob is automatic shutdown. This occurs whenever you forget to switch off
a cooking zone. The default shutdown times are shown in the table below:
Power level 1 2 3 4 5 6 7 8 9
Default working timer (hour) 8 8 8 4 4 4 2 2 2

14
Heat Settings
The settings below are guidelines only. The exact setting will depend on several factors, including your
cookware and the amount you are cooking. Experiment with the Ceramic hob to nd the settings that
best suit you.
Heat setting Suitability
1 - 2
• Delicate warming for small
amounts of food.
• Melting chocolate, butter, and
foods that burn quickly
• Gentle simmering
• Slow warming
3 - 4
• Reheating
• Rapid simmering
• Cooking rice
5 - 6 • Pancakes
7 - 8 • Sautéing
• Cooking pasta
9
• Stir-frying
• Searing
• Bringing soup to the boil
• Boiling water

15

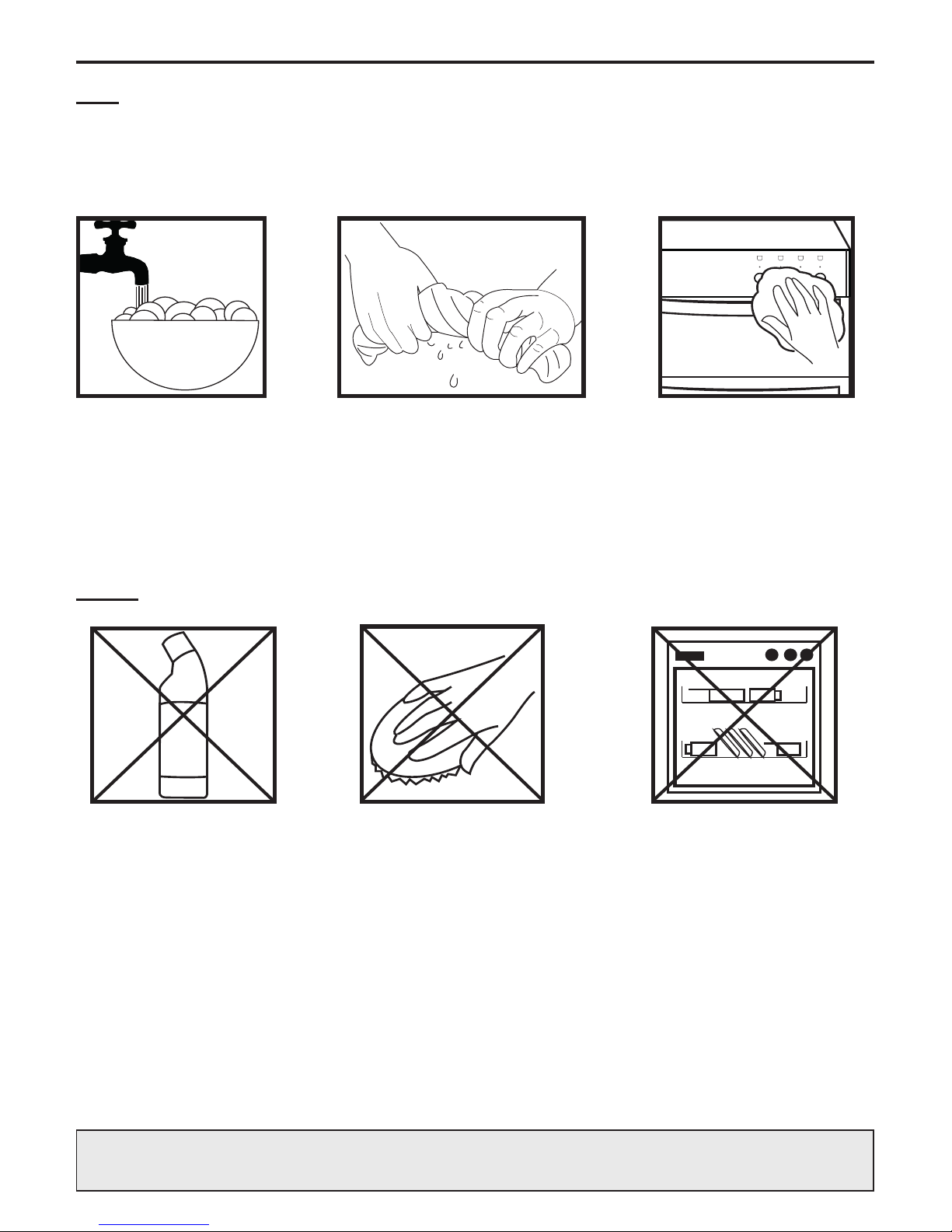

CLEANING YOUR APPLIANCE
Do’s
Note: Always switch off your appliance and allow it to cool down before you clean any part of it.
Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to
them fading.
H
Tips: Some foods can mark or damage the metal or paint work e.g.; Vinegar, fruit juices and salt.
Always clean food spillages as soon as possible.
Dont’s
IT IS IMPORTANT TO CLEAN YOUR APPLIANCE REGULARLY AS A BUILD UP OF FAT CAN
AFFECT IT’S PERFORMANCE OR DAMAGE IT AND MAY INVALIDATE YOUR GUARANTEE.
• Undiluted bleaches
• Chloride products
• Warm, soapy water • Wipe with damp cloth
• Dry with a soft cloth
• Clean, wring out cloth
• Wire Wool
• Abrasive cleaners
• Nylon pads
• Steam cleaners
Do not place in the
dishwasher:
• Cast iron griddle
• Pan supports
We offer a great range of cleaning products and accessories for your appliance.
To shop, please visit www.gdhaonline.co.uk

16
Installation
Preparing the worktop cut out
Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5cm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface
material to avoid larger deformation caused by the heat radiation from the hotplate.
L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)
770 520 55 51 750+4
+1
495+4
+1 50 mini
Make sure that the hob is well-ventilated, and that the air inlet and outlet underneath the hob are not
blocked. Ensure that the hob has not been damaged in any way. Do not install a damaged appliance.
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least
760mm.
A(mm) B(mm) C(mm) D E
760 50 mini 20 mini Air intake Air exit 5mm
A
X
X
X
B
L
HD
W
X

17
Beforelocatingthexingbrackets
The unit should be placed on a stable, smooth surface (use the packaging).
Place the hob in a work surface cut out. Secure by screwing four brackets on the bottom of the hob
(see picture) after installation.
Locate the 4 screw holes (C) on the base of the appliance (D). Attach the 4 retaining brackets (B) to the
base of the appliance (D) using the 4 screws (A), after connecting the connection cable and placing the
appliance into the worktop cut out.
A B C D
Screw Bracket Screw hole Base

18
Connecting the hob to the mains power supply
WARNING: This appliance must be earthed.
1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using
the proper tools, so as to avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must
be installed with a minimum gap of 3mm between the contacts.
3. The installer must ensure that the correct electrical connection has been made and that it complies
with safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a properly qualied person.
WARNING: The bottom surface and the power cord of the hob must not be accessible after installation.
This appliance comes with the power cable supplied (1.2m 4 core 2.5mm2).
Connect to the electricity supply
Warning: Ensure that the power rating of the appliance is compatible with a 25Amp supply before
connecting to the electricity supply. Check with an electrician whether the domestic wiring system is
suitable without alterations.
Should the mains lead of the appliance ever require replacing, we recommend that this is carried out by
a qualied electrician who will replace it with a lead of the same size and temperature rating.
Yellow / Green
Black
Brown
Blue
220-240V~ 380-415V~
220-240V~
1
2
3
4
1
2
3
4
L1
L2
N
Yellow / Green
Black
Brown
Blue
220-240V~
2
3
4
N
L2
L1
1
1
2
3
4

19
&XVWRPHU&DUH
3OHDVHNHHSWKLVKDQGERRNLQDVDIHSODFHDVWKHLQIRUPDWLRQLQVLGHPD\
EHRIXVHVKRXOG\RXVHOORUSDVVRQWKHDSSOLDQFH3OHDVHILOOLQWKH
PRGHOQXPEHUDQGVHULDOQXPEHULQWKHVSDFHVSURYLGHG EHORZDVWKH\
ZLOODVVLVWXVVKRXOG\RXQHHGWRFDOO

:KHQ\RXGLDOWKLVQXPEHU\RXZLOOKHDUDUHFRUGHGPHVVDJHDQGEH
JLYHQVHYHUDORSWLRQV7KLVLQGLFDWHVWKDW\RXUFDOOKDVEHHQDFFHSWHG
DQGLVEHLQJKHOGLQDTXHXH&DOOVDUHDQVZHUHGLQVWULFWURWDWLRQDVRXU
&XVWRPHU&DUHUHSUHVHQWDWLYHVEHFRPHDYDLODEOH
(QWHUDSSOLDQFHQXPEHUVKHUHIRUIXWXUHUHIHUHQFH
7KHVHQXPEHUVFDQEHIRXQGRQ\RXUDSSOLDQFHVGDWD
EDGJH2XWVLGH WKH 8.DQG1RUWKHUQ,UHODQG UHIHU WR \RXU
ORFDOVXSSOLHU
6WRQH\/DQH3UHVFRW0HUVH\VLGH/;: 

20
Cooking hob CH772TX
Cooking Zones 4 Zones
Voltage & Power 1 220-240V~ 6500-7800W
Product Size L x W x H(mm) 770 x 520 x 55
Building-in Dimensions A x B (mm) 750 x 495
Hob Details
TECHNICAL DATA
Weight and Dimensions are approximate. Because we continually strive to improve our products we
may change specications and designs without prior notice.
