Benchmark 1280-001 User manual

WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR A
FACE MASK
3042597
JD512220
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Maximum initial battery voltage (measured without a load)
is 20 volts. Nominal voltage is 18 volts.
20V MAX OSCILLATING
MULTI-TOOL KIT
5 Year Limited Warranty on tool
Battery and charger sold separately

1
PRODUCT SPECIFICATIONS
BENCHMARK 20V MAX OSCILLATING MULTI-TOOL KIT
Voltage 20 V
Variable speed 8,000–18,000 OPM (no load)
Oscillating angle 3.2°
Batteries (Sold separately) 5350-023 (2.5Ah), 5350-011 (4Ah), 5350-012
(5Ah)
Charger (Sold separately) 5350-010 2.4Amp 5350-022 6A Fast Charger
Weight 1.9 lb (0.88 kg)
NEED ASSISTANCE?
Call us on our toll-free customer support line:
1-866-349-8665 (Monday through Friday 9am – 5pm Eastern Standard Time)
• Technical questions
• Replacement parts
• Parts missing from package

1280-001
20V MAX OSCILLATING MULTI-TOOL KIT
2
TABLE OF CONTENTS
Product Specifications .................................................................................. 1
Table of Contents .......................................................................................... 2
General Safety Warnings ............................................................................ 3-5
Specific Safety Rules for 20v Max Oscillating Tool ....................................... 6-8

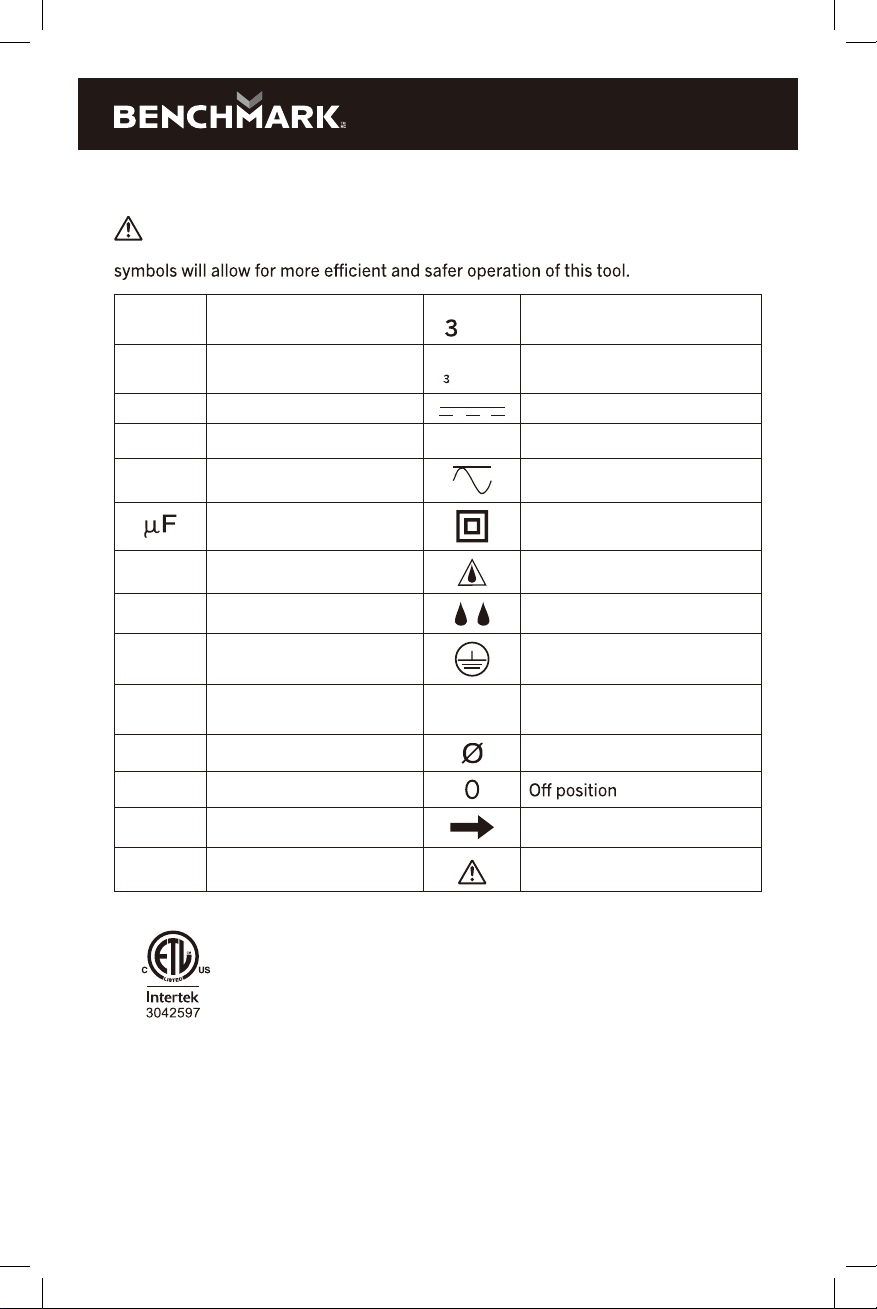

Symbols ........................................................................................................ 9
Know your Oscillating Tool ........................................................................... 10
Assembly and Operating ......................................................................... 11-13
Maintenance ............................................................................................... 13

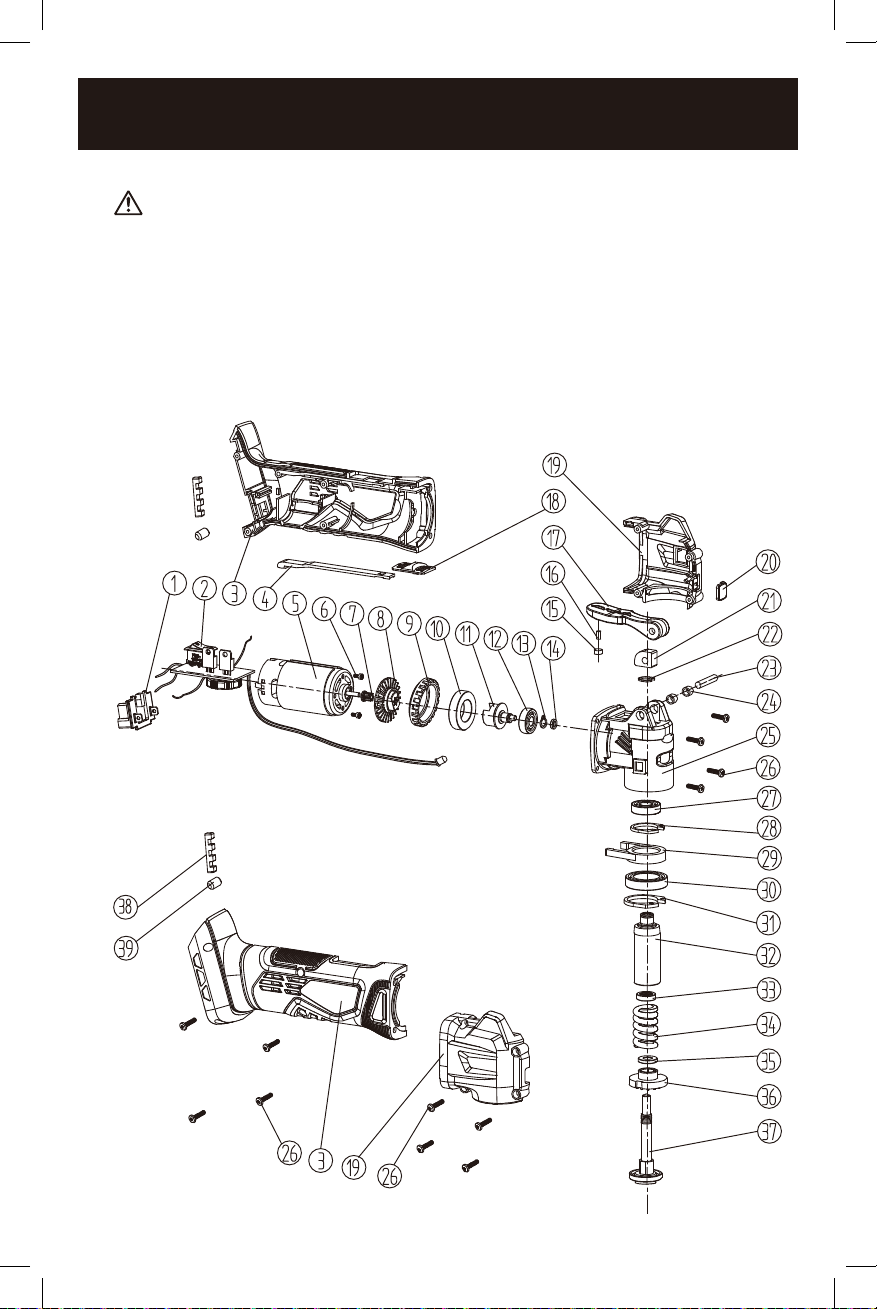

Exploded View ............................................................................................ 14
Parts List ................................................................................................ 15-16
Warranty ..................................................................................................... 16

3

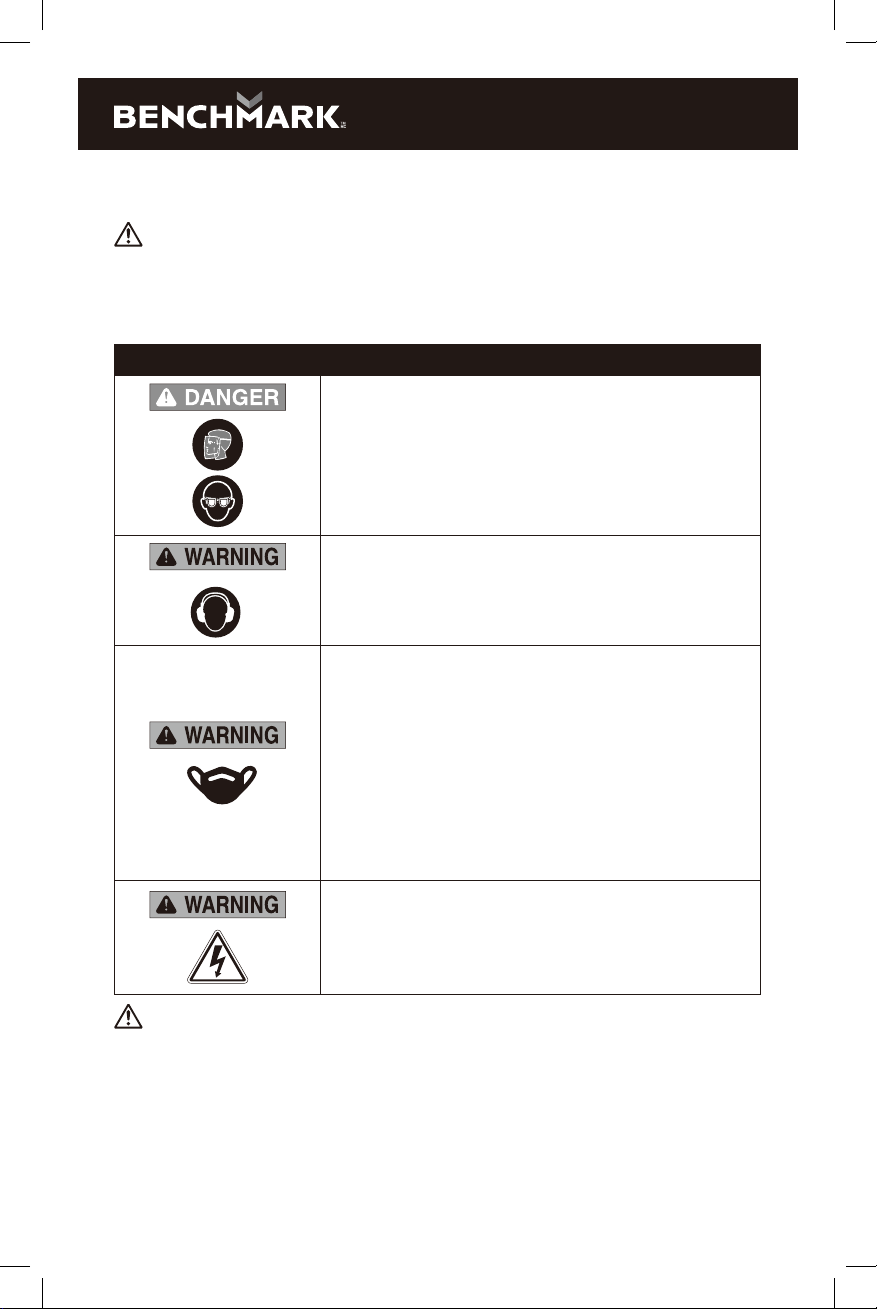

GENERAL SAFETY WARNINGS
CAUTION:
Before using this tool or any of its accessories, read this manual and follow all Safety
Rules and Operating Instructions.
EYE, EAR & LUNG PROTECTION
SYMBOL MEANING
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
Z94.3 or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription
eyeglasses ARE NOT a replacement for proper eye protection.
Non-compliant eyewear can cause serious injury if broken during
the operation of a power tool.
Use hearing protection, particularly during extended periods of
operation of the tool, or if the operation is noisy.
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
Dust that is created by power sanding, sawing, grinding, drilling, and
other construction activities may contain chemicals that are known
to cause cancer, birth defects, or other genetic abnormalities. These
chemicals include:
• Lead from lead-based paints
• Crystalline silica from bricks, cement, and other masonry products
• Arsenic and chromium from chemically treated lumber.
The level of risk from exposure to these chemicals varies, according to
how often this type of work is performed. In order to reduce exposure
to these chemicals, work in a well-ventilated area, and use approved
safety equipment, such as a dust mask that is specifically designed to
filter out microscopic particles.
To avoid electrical hazards, fire hazards or damage to the tool,
use proper circuit protection.
This tool is wired at the factory for 120 Volts AC operation. It must be
connected to a 120 Volts AC, 15 Amps circuit that is protected by a
time-delayed fuse or circuit breaker. To avoid shock or fire, replace
power cord immediately if it is worn, cut or damaged in any way.
WARNING:
Read and understand all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious personal injury.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas invite accidents.

1280-001
20V MAX OSCILLATING MULTI-TOOL KIT
4
Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
Keep bystanders, children, and visitors away while operating the tool. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
Double insulated tools are equipped with a polarized plug (one blade is wider than
the other). This plug will only fit into a polarized plug one way.
If the plug does not fit into the outlet properly, reverse the plug. If it still does not
fit, contact a qualified electrician to install a polarized outlet. Do not alter the plug
in any way. Double insulation eliminates the need for the three-pronged grounded
power cord and grounded power supply system.
Avoid contact between the operator's body and grounded surfaces such as pipes,
radiators, ranges, and refrigerators. There is an increased risk of electric shock if the
operator's body is grounded.
Do not expose power tools to rain or wet conditions. Water entering the power tool
will increase the risk of electric shock.
Do not abuse the cord. Do not use the power cord to carry the tool or to pull the
plug out of the outlet. Keep the power cord away from heat, oil, sharp edges, and
moving parts. Replace a damaged power cord immediately. A damaged power cord
increases the risk of electric shock.
When operating a power tool outdoors, use an outdoor-rated extension cord type
“W-A” or “W”. These cords are rated for outdoor use and they reduce the risk of
electric shock.
PERSONAL SAFETY
Stay alert, be aware of the surroundings, and use common sense when operating
a power tool. Do not use a power tool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while operating a power tool may
result in serious personal injury.
Dress properly. Do not wear loose clothing or jewellery.
Contain long hair. Keep hair, clothing, and gloves away from moving parts. Loose
clothing, jewellery, or long hair can get caught in moving parts.
Avoid accidental start-ups. Verify that the switch is in the OFF position before
plugging in the tool. Carrying a power tool with a finger on the switch or plugging in a
tool that has the switch in the ON position invites accidents.
Remove adjusting keys and wrenches before turning the tool ON. A wrench or key
that is left attached to a rotating part of the tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance allows the operator to maintain better control of the tool in
unexpected situations.
Use safety equipment. Always wear eye protection.

5
Use a dust mask, non-skid safety shoes, a hardhat, or hearing protection
when appropriate.
USE AND CARE OF POWER TOOLS
Use clamps or another practical means to secure and support the workpiece to a
stable platform. Holding the work in a hand or against the body is not stable and
may lead to loss of control.
Do not force the tool. Use the correct tool for the application. The correct tool will do
the job better and safer when used at the rate that it was designed to work at.
Do not use a power tool if it cannot be turned ON or OFF using the power switch. A
tool that cannot be controlled using the switch is dangerous and must be repaired.
Disconnect the plug from the outlet before making any adjustments, changing
accessories, or storing the tool. Such preventive safety measures reduce the risk of
accidental start-ups.
When power tools are not in use, store them out of the reach of children or
untrained persons. Tools are dangerous in the hands of untrained users.
Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind and are easier to control.
Inspect the tool for misalignment or binding of moving parts, broken parts, and any
tool serviced before using it. Many accidents are caused by poorly maintained tools.
Use only accessories that are recommended by the manufacturer for this model.
Accessories that are suitable for one tool may become hazardous when used with
another tool.
SERVICE
Tools servicing must be performed by qualified personnel. Service or maintenance
performed by non-qualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow the instructions
in the Maintenance section of this Manual. The use of unauthorized parts or failure
to follow the instructions in the Maintenance section of this Manual may create a
risk of electric shock or injury.
SPECIFIC SAFETY RULES
WARNING:
Know your oscillating tool. Do not plug in the charger or install the battery in
the tool until you have read and understand this Instruction Manual. Learn the
tool’s applications and limitations, as well as the specific potential hazards
related to this tool. Following this rule will reduce the risk of electric shock, fire, or
serious injury.

1280-001
20V MAX OSCILLATING MULTI-TOOL KIT
6
Always wear eye protection. Any power tool can throw foreign objects
into your eyes and cause permanent eye damage. ALWAYS wear safety
goggles (not glasses) that comply with ANSI safety standard Z87.1.
Everyday glasses have only impact resistant lenses. They ARE NOT
safety glasses.
WARNING:
Glasses or goggles not in compliance with ANSI Z87.1 could cause serious
injury when they break.
Always keep hands out of the path of the saw blade. Avoid awkward hand positions
where a sudden slip could cause your hand to move into the path of the saw blade.
Secure workpiece. Use clamps or a vice to hold the workpiece. It is safer than using
your hand and it frees both hands to operate the tool.
Make sure there are no nails or foreign objects in the part of the workpiece to be cut
or sanded.
To avoid injury from accidental starting, always remove the battery from the tool
before installing or removing an accessory.
Never use dull blades in the tool. They will cut slower, leave rough cuts, and break
easily due to added pressure and excessive heat. They will also overload the motor
and cause premature failure of the tool.
Never use damaged or bent blades. They will be brittle and break easily possibly
causing injury to the operator.
Never touch a saw blade immediately afterusing the tool. The blade will be extremely
hot and will burn your hand.
Only use accessories designed for use with this tool.

7
BATTERY & CHARGER SAFETY
WARNING:
Only use the diagnostic charger available for this tool to charge the 20V Li-ion
battery. Charging any other batteries may damage the charger and possibly
cause serious injury.
Do not store or carry the battery in a manner in which metal objects could contact
the exposed metal end. Do not place the battery in aprons, pockets, drawers, etc.
with loose nails, screws, keys etc. The battery could short circuit causing a fire,
personal injury, or damage to the battery.
Never attempt to open the battery for any reason. If the housing of the battery
breaks or cracks, immediately discontinue use and do not recharge.
Do not charge the battery if it is wet or shows any evidence of corrosion.
A small leakage from the battery may occur under extreme usage, charging or
temperature conditions. This does not indicate a failure. However, if the outer seal is
broken and this leakage gets on your skin, follow these steps:
1. Wash immediately with soap and water.
2. Neutralize with a mild acid such as lemon juice or vinegar.
3. If liquid gets into your eyes, flush immediately with clean water for a minimum of
10 minutes and seek medical attention.
NOTE: The battery liquid is slightly acidic.
Do not incinerate the battery. It can explode in a fire.
Do not use an extension cord. Plug the charger cord directly into an electrical outlet.
Use the charger only in a standard 120 V AC, 60 Hz electrical outlet.
Do not use the charger in wet or damp conditions. It is intended for indoor use only.
Do not use the charger near sinks or tubs. Do not immerse the charger in water.
Do not allow the cord to hang over the edge of a table or counter or touch hot
surfaces. The charger should be placed away from sinks and hot surfaces.
Do not use the charger to charge any batteries other than the oscillating tool
batteries. Other batteries may explode.
Do not operate the charger if the cord or plug is damaged. Replace the damaged
cord and plug immediately.
Do not operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Have a qualified technician examine the charger
and repair it if necessary. Do not disassemble the charger.
Do NOT charge the batteries when the work area or the battery temperature is at or
below 0° C (32° F) or above 45° C (113° F).
Unplug the charger when not in use and before cleaning or maintenance.

1280-001
20V MAX OSCILLATING MULTI-TOOL KIT
8
BATTERY PACK RECYCLING
To preserve our natural resources, please recycle or dispose
of batteries properly.
The batteries charged by this charger may contain chemicals
and metals that are harmful to the environment. Never
dispose of re-chargeable batteries in your normal household
garbage or in landfill sites as they will add to the pollution of
the environment.
Please call 1-800-822-8837 for the location of your nearest
RBRC battery recycling location.

9
SYMBOLS
WARNING: Some of the following symbols may appear on the oscillating
tool. Study these symbols and learn their meaning. Proper interpretation of these
V Volts
~
Three-phase alternating
current
A Amperes n
~
Three-phase alternating
current with neutral
Hz Hertz Direct current
W Watts noNo load speed
kW Kilowatts Alternating or direct current
Microfarads Class II construction
L Liters Splash-proof construction
kg Kilograms Watertight construction
H Hours Protective grounding at
terminal, Class I tools
N/cm² Newtons per square
centimetre .../min Revolutions or reciprocations
per minute
Pa Pascals Diameter
Min Minutes
S Seconds Directional arrow
~or AC Alternating current Warning symbol
This symbol designates that this tool is listed with U.S.
requirements by ETL Testing Laboratories, Inc. Conforms to
UL 60745-1, 60745-2-3.
Certified to CAN/CSA STD C22.2 No. 60745-1, 60745-2-3.
JD512220

1280-001
20V MAX OSCILLATING MULTI-TOOL KIT
10
KNOW YOUR OSCILLATING TOOL
Tool less quick release
accessory lever
LED Work light
Accessory holder
Air vents Speed control dial
Battery port
(battery sold
separately)
AB
C
OSCILLATING TOOL COMPONENTS
KEY DESCRIPTION QTY
A 1-1/8" bi-metal plunge blade 1
B Triangular sanding base 1
C Triangular sandpaper
60 grit
80 grit
120 grit
3
3
3

11
ASSEMBLY AND OPERATING
INSTALLING ACCESSORIES
All accessories are installed on this Oscillating tool in a similar manner. For the
purposes of describing the accessory installation, the triangular sanding pad has
been illustrated.
DANGER: Always remove the battery from the tool before installing or
removing accessories or sandpaper. Failing to remove the battery may result
in the tool accidentally being started and causing serious injury to the operator.

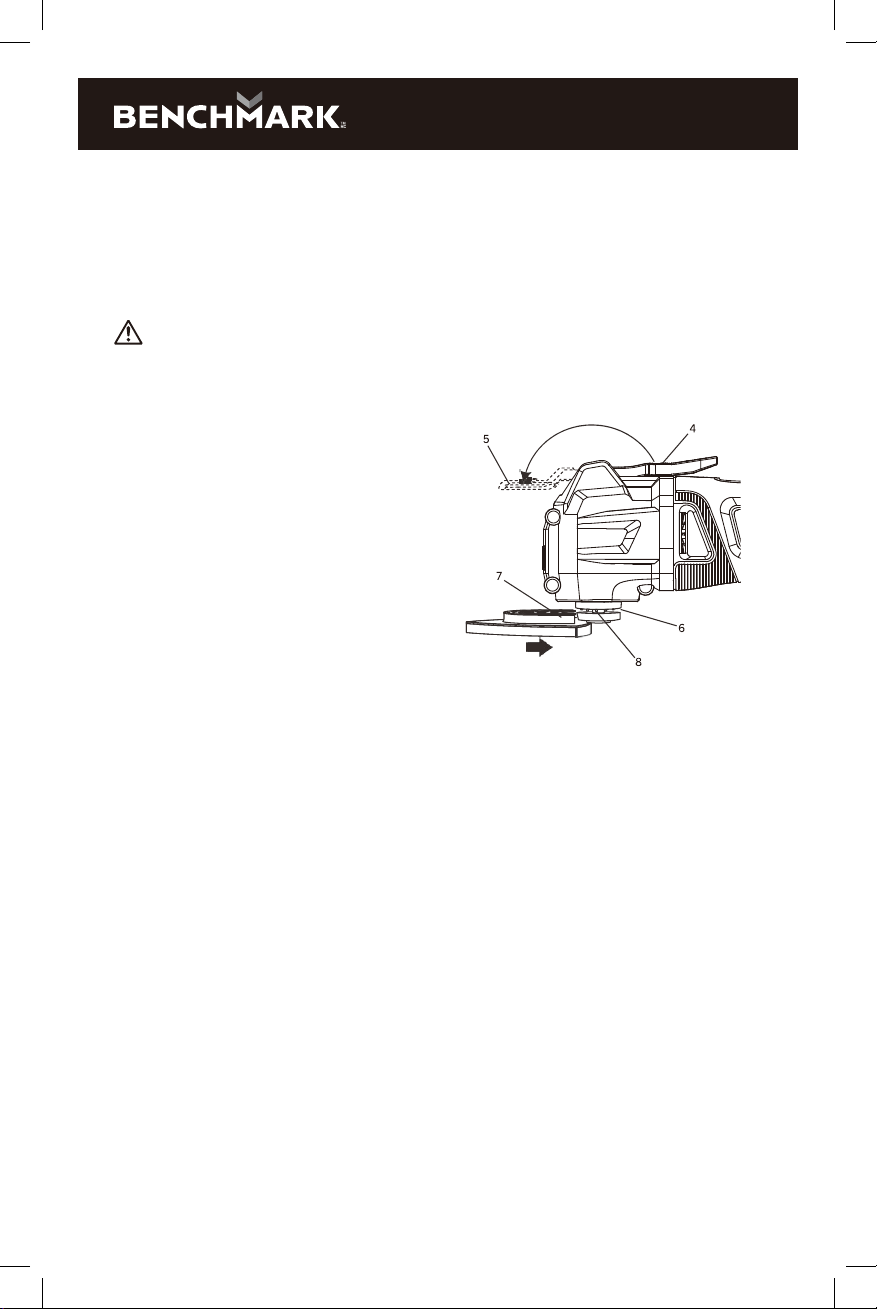

1. Lift the tool less accessory holder
release lever and rotate 180° (4)
up and toward the front of the tool
as far as it will go (5) (Fig. 1).
NOTE: This will open the tool less
blade holder (6) to accept the
accessory.
2. Insert the accessory mount (7) into
the opened accessory holder. 4.
3. Align the accessory mounting
slots and holes with the accessory
mounting teeth (8) in the
accessory mount. Fig. 1
NOTE: The slots and holes in the accessory must be engaged with the matching
teeth on the accessory holder to allow the accessory to be secured within the
accessory holder.
4. Move the tool less accessory release lever back to its original position (4) to
clamp the accessory into the accessory holder.
NOTE: Check to make sure the accessory mounting pins are still aligned with
the slots and holes in the accessory mount.
INSTALLING SANDPAPER
1. Install the hook & loop sanding pad on to the tool.
2. Firmly press the sandpaper onto the hook & loop pad.
NOTE: Press the sandpaper firmly onto the hook & loop pad.
3. To remove the sandpaper, simply peel the sandpaper away from the hook & loop
pad.
ON/OFF SWITCH
1. To turnthe tool ON, slide the ON/OFF switch (1) toward the front of the tool (Fig. 2).
2. To turn the tool OFF, slide the ON/OFF switch toward the rear of the tool.

1280-001
20V MAX OSCILLATING MULTI-TOOL KIT
12
Fig. 2
Fig. 3
LED WORK LIGHT
This tool is equipped with an LED work light (Fig. 3). The work light (1) will
automatically turn ON when the tool is turned on and will turn OFF when the tool is
SPEED CONTROL WHEEL
The speed of the tool can be adjusted to run at speeds varying between 8,000 OPM
and 18,000 OPM by rotating the speed control wheel located toward the rear of the
tool housing.
1. To increase the speed, rotate the speed control wheel to the rear of the tool.
2. To decrease the speed, rotate the speed control wheeltoward the front of the tool.
NOTE: Speed #1 is the lowest speed. “MAX” is the highest speed.
The optimal speed setting will vary depending upon the type of accessory being
used, the surface being worked and the complexity of the project. For general
recommendations, see the chart on the following page.
Project Accessory Speed
Balsa wood Wood blade Low
Drywall Half circle blade Maximum
Restoring windows Half circle blade Medium
Door jamb Wood blade Maximum
Door casing Wood blade Med / max
Wood dowels Wood blade Maximum
Floor vent Wood blade Med / max
PVC pipe Wood blade Medium
Glued flooring Scraper Medium
Sanding Sander Med / max

13
USING THE DETAIL SANDER ATTACHMENT
1. Install the sanding pad on the oscillating tool.
2. Install the sandpaper on the sanding pad.
3. Set the speed control wheel between #5 and MAX.
4. Turn the switch ON.
This tool is designed for detail sanding on small surface areas. Place the sandpaper
surface of the sanding pad on the workpiece to be sanded. Keep the tool moving to
avoid gouging the surface. Use coarse sandpaper and lower speeds when sanding
rough surfaces and for removing previous finishes. Use fine sandpaper and higher
speeds to produce the smoothest surface.
MAINTENANCE
GENERAL
WARNING: When servicing, use only identical replacement parts. The use
of any other part may create a hazard or cause product damage.
DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to
damage from various types of commercial solvents and may be damaged by their
use. Use a clean cloth to remove dirt, dust, oil, grease etc.
WARNING: Do not allow brake fluids, gasoline, petroleum-based products,
penetrating oils, etc. to come into contact with plastic parts. They contain
chemicals that can damage, weaken, or destroy plastic.
DO NOT abuse power tools. Abusive practices can damage the tool and the
workpiece.
WARNING: DO NOT attempt to modify tools or create accessories. Any
such alteration or modification is misuse and could result in a hazardous
condition leading to possible serious injury. It will also void the warranty.
LUBRICATION
of high-grade lubricant for the life of the tool under normal conditions. No further
lubrication is required.
BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING
To preserve our natural resources, please recycle or dispose of batteries properly.
The batteries accompanying this tool may contain chemicals and metals that are
harmful to the environment. Never dispose of rechargeable batteries in your normal
household garbage or in landfill sites because they will add to the pollution of the
environment.
Consult your local waste authority for information regarding available recycling and
disposal options.

1280-001
20V MAX OSCILLATING MULTI-TOOL KIT
14
WARNING: Upon removal of the battery pack, cover the terminals of the
battery pack with electrical tape or heavy-duty adhesive tape. Never touch
both terminals with metal objects or body parts because a short circuit may
result. Keep away from children. Do not attempt to destroy or disassemble
battery pack or remove any of its components. Rechargeable batteries must be
recycled or disposed of properly. Failure to comply with these warnings could
result in fire and serious injury.
EXPLODED VIEW

15
PARTS LIST
WARNING When servicing, use only original equipment replacement parts. The
use of any other parts may create a safety hazard or cause damage to the tool. Any
attempt to repair or replace electrical parts on this tool may create a safety hazard
unless repairs are performed by a qualified technician. For more information, call
the Toll-free Helpline, at 1-866-349-8665.
Always order by PART NUMBER, not by key number.
Key # Part # Part Name Quantity
1 3150170016 electrode plates 1
2 1130030048 circuit board assembly 1
3 3010170005 housing 1
4 3120110069 lever 1
5 1030050009 580 motor 1
6 4020080062 SCREW M3x4 2
7 2010180052 motor spline 1
8 3150010112 fan 1
9 3150210019 plastic block 1
10 4010010145 bearing 6903Z 1
11 2040050151 eccentric shaft 1
12 4010050001 bearing S607 1
13 4100020018 ring 7 1
14 4010010142 Bearing 628/4 1
15 2010170030 magnetic block 6x4 1
16 4110070003 Pin 4.5X6 1
17 3120100057 wrench 1
18 3120110068 button 1
19 3160100014 plastic shell 1
20 3160060089 led cover 1
21 2010160028 eccentric 1
22 4100020012 ring 10 1
23 2040160178 pin 5X26 1
24 2040310038 Shaft sleeve 2
25 2020050081 Aluminum head shell 1
26 4030010034 Screw ST2.9X16 12
27 4010010022 bearing 6900-2Z 1
28 4100010007 ring 22 1
29 2040250028 fork 1

1280-001
20V MAX OSCILLATING MULTI-TOOL KIT
16
30 4010010146 bearing6804Z 1
31 4100010005 ring 32 1
32 2040290093 output shaft 1
33 2030240006 nut 1
34 2050060251 spring 8.2x2.5x38 1
35 2030020354 washer 14.5x8.2x2 1
36 2040310049 adapter sleeve 1
37 2040290079 pin-lift 1
38 3140060080 slazenger 2
39 3140060076 rubber column 2
WARRANTY
BENCHMARK 20V MAX OSCILLATING TOOL
If this Benchmark tool fails due to a defect in material or workmanship within five
years from the date of purchase, return it to any Home Hardware store with the
original bill of sale for exchange. 3-year warranty for the battery and charger. This
warranty does not include expendable parts including but not limited to blades,
brushes, belts, light bulbs.
This warranty covers defects in material or workmanship only. It does not cover
normal wear and tear, failure due to abuse/misuse, or defects caused by careless or
accidental mishandling. If this Benchmark product is used for commercial or rental
purposes, this warranty does not apply.

5 Year Limited Warranty on tool
Battery and charger sold separately
20V MAX OSCILLATING
MULTI-TOOL KIT
WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR A
FACE MASK
Made in China
1280-001
BENCHMARK TOOLS CANADA
ST. JACOBS, ONTARIO N0B 2N0
©2021 Home Hardware Stores Limited
TM
MC
CUSTOMER SERVICE/TECH SUPPORT
1-866-349-8665
3042597
JD512220
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Maximum initial battery voltage (measured without a load)
is 20 volts. Nominal voltage is 18 volts.
* This BenchmarkTM product carries a five (5) year LIMITED warranty against defects
in workmanship and materials. The charger and batteries carry a three (3) year
LIMITED warranty. See Owner’s Manual for full details.
