BenQ DC E53+ User manual

Welcome
DC E53+ Digital Camera
User’s Manual
Downloaded From camera-usermanual.com BenQ Manuals

Copyright
Copyright 2005 by BenQ Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chem-
ical, manual or otherwise, without the prior written permission of this company.
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or implied, with
respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness
for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication
and to make changes from time to time in the contents hereof without obligation of this company
to notify any person of such revision or changes.
*Windows, Internet Explorer and Outlook Express are trademarks of Microsoft Corporation. Oth-
ers are copyrights of their respective companies or organizations.
Taking care of your camera
• Do not use your camera in the following environmental range: temperature below 0°C or above
40°C.
• Do not use or store your camera in the environments listed below:
- Direct sunlight
- High and dusty places
- Next to an air conditioner, electric heater or other heat sources
- In a closed car that is in direct sunlight
- Unstable locations
• If your camera becomes wet, wipe it with a dry cloth as soon as possible.
• Salt or seawater may cause severe camera damage.
• Do not use organic solvents such as alcohol, etc., to clean your camera.
• If the lens is dirty, use a lens brush or soft cloth to clean the lens. Do not touch the lens with your
fingers.
• To prevent electric shock, do not attempt to disassemble or repair your camera by yourself.
• Water may cause a fire or electric shock. Therefore, store your camera in a dry place.
• Do not use your camera outdoors when it is raining or snowing.
• Do not use your camera in or near water.
• If a foreign substance or water gets in your camera, please turn the power off immediately and dis-
connect the batteries and the power adapter. Remove the foreign substance or water, and send it
to the maintenance center.
• Transfer the data to the computer as soon as possible to avoid losing your images and/or video
clips.
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
I
1. Touring your DC E53+ ........................................................ 1
1.1 Checking the Package Contents ....................................... 1
1.2 DC E53+ Components .................................................... 1
1.2.1 Front View........................................................... 1
1.2.2 Rear View ............................................................ 2
1.2.3 Status LED Indicator ............................................. 2
2. Preparing Your DC E53+ for Use........................................ 3
2.1 Installing the Battery ....................................................... 3
2.2 Charging the battery........................................................ 3
2.3 Using an AC power adapter............................................. 4
2.4 Inserting and Removing an SD Memory Card
(Optional Accessory)4
3. Using the DC E53+............................................................... 5
3.1 Capture Mode................................................................. 5
3.1.1 Capture Mode LCD Monitor Information................ 6
3.1.2 Changing Camera Settings...................................... 7
3.1.2.1 Setting the Scene Mode ................................... 7
3.1.2.2 Using the Flash .............................................. 8
3.1.2.3 Using the Self-Timer....................................... 9
3.1.2.4 Using the Optical Zoom .................................. 9
3.1.2.5 Deleting Images ........................................... 10
3.1.3 Capture Mode Menus Settings .............................. 10
3.1.3.1 Capture Mode Picture Menu.......................... 10
3.1.3.2 Capture Mode Function Menu ....................... 11
3.2 Video Mode.................................................................. 13
3.2.1 Movie Mode LCD Monitor Information ................. 13
3.2.2 Movie Mode Menu Settings.................................. 14
3.3 Playback Mode.............................................................. 14
3.3.1 Playback Mode LCD Monitor Information (Image).. 15
3.3.2 Viewing Images .................................................. 15
3.3.2.1 Rotating Images ........................................... 15
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
II
English
3.3.2.2 Magnifying Images ....................................... 15
3.3.2.3 Thumbnail Display (Index Playback)............... 16
3.3.3 Playback Mode Menu Settings............................... 16
3.3.4 Playback Mode LCD Monitor Information (Video) .. 17
3.3.5 Playing Back Video Clips...................................... 17
3.4 Audio Mode................................................................. 18
3.4.1 Recording Voice Files .......................................... 18
3.4.2 Audio Mode LCD Menu...................................... 18
3.4.3 Playing Back a Voice File...................................... 18
3.4.4 Deleting Voice Files............................................. 19
3.5 Setup Mode.................................................................. 19
3.5.1 Setup Menus in Camera and Movie Mode............... 19
3.5.2 Setup Menus in Playback Mode............................. 20
4. PC DEPENDENT FEATURES........................................... 21
4.1 Bundled Software.......................................................... 21
4.2 USB Mode .................................................................... 21
4.3 Printer Mode ................................................................ 22
5. Troubleshooting ................................................................. 25
6. Specifications ...................................................................... 27
7. Service information ............................................................ 28
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Touring your DC E53+ 1
1TOURING YOUR DC E53+
1.1 Checking the Package Contents
Carefully unpack your kit box and ensure that you have the following items. In the event that
any item is missing or if you find any mismatch or damage, promptly contact your dealer.
If any of the items are missing or appear to be damaged, contact your dealer. Save the
packaging in the event you need to ship your camera for service.
1.2 DC E53+ Components
1.2.1 Front View
User Manual
1
2
3
5
4
6
7
8
9
B
1. User manual
2. DC E53+ digital
camera
3. USB cable
4. Battery
5. Hand strap
6. DC E53+ software
CD-ROM
7. Camera pouch
8. Conversion adapter
9. AC adapter
1 2 4
7
8
9
6
5
3
10
1. Shutter button
2. Power button
3. Built-in flash
4. Mode switch
– Playback
– Movie
– Still picture
5. Self-timer LED (AF auxiliary
light)
6. Speaker
7. Lens/Lens cover
8. Conversion adapter terminal
9. Tripod mount
10. Microphone
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Touring your DC E53+
2
1.2.2 Rear View
1.2.3 Status LED Indicator
Color State During Power Off
Status
LED
Solid red 1. The digital still camera is powering up.
2. The digital still camera is in the process of battery charge.
Blinking red Image is being processed and stored to memory
Solid green USB communication is in progress
Self-timer LED Blinking red The self-timer function is activated.
1 2 3
6
7
4
5
8
9
10
1. LCD monitor
2. Display / Audio mode
button
3. Status LED
4. TZoom in button
WZoom out button
5. Menu button
6. Delete button
7. Strap eyelet
8. Control and Set buttons
9. Battery / SD memory card cover
10. Tripod socket
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Preparing Your DC E53+ for Use 3
2PREPARING YOUR DC E53+ FOR USE
2.1 Installing the Battery
We highly recommend you to use the specified rechargeable
lithium-ion battery to realize the full capability of your digital
still camera. Make sure that the power of the digital still camera is
off before inserting or removing the battery.
1. Open the battery/SD memory card cover (A).
2. Insert the battery in the correct orientation shown (B).
Tilt the battery lock lever in the direction of the arrow and
orient the battery so that its label is facing to the rear side of
the camera, and then insert the battery.
3. Close the battery/SD memory card cover (C).
To remove the battery
Open the battery/SD memory card cover and then release the
battery lock lever. When the battery has come out a little, slowly
pull it out the rest of the way.
2.2 Charging the battery
The state-of-charge of the battery will affect the performance of the
digital still camera. To maximize battery performance and lifetime, it
is recommended that you fully charge the battery using the optional
AC power adapter and then fully discharge it (through normal use) at
least one time. Make sure that the power of the digital still camera is
off and then insert the battery before starting.
1. Insert the conversion adapter into the conversion adapter
terminal of the camera as shown in the illustration.
2. Connect one end of the AC power adapter to the DC IN terminal
of the conversion adapter.
3. Connect the other end of the AC power adapter to a wall outlet.
Charging time differs depending on the ambient temperature and the status of battery.
Notes
• The digital still camera must be used with the specified AC power adapter. Dam-
age caused by the use of an incorrect adapter is not covered under the warranty.
• Always make sure that the digital still camera is off before removing the battery.
• The battery may feel warm after it has been charged or immediately after being
used. This is normal and not a malfunction.
• When using the digital still camera in cold environments, keep the digital still
camera and its battery warm by holding it inside your jacket or other warm pro-
tective environment.
A
B
C
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Preparing Your DC E53+ for Use
4
2.3 Using an AC power adapter
Using an AC power adapter prevents the digital still camera from automatically powering off
while transferring files to your computer.
Perform the steps in the preceding section "Charging the Battery".
2.4 Inserting and Removing an SD Memory Card
(Optional Accessory)
The digital still camera comes with internal memory, allowing you to record video clips,
captured images, or voice files in the digital still camera. However, you can also expand the
memory capacity by using an optional SD (Secure Digital) memory card so that you can store
more files.
1. Always make sure the digital still camera is turned off before
inserting or removing a memory card.
2. Insert an SD memory card in the correct orientation as
shown in the illustration.
3. Close the battery/SD memory card cover.
To remove the SD memory card, make sure the camera is
turned off. Press lightly on the edge of the memory card and
it will eject.
Note
Make sure to use only the AC power adapter specified for the camera. Damage caused
by the use of an incorrect adapter is not covered under the warranty.
Notes
• Be sure to format an SD memory card with
this digital still camera before using it.
• To prevent valuable data from being acci-
dentally erased from an SD card, you can
slide the write protect tab (on the side of the
SD memory card) to “LOCK”.
• To save, edit, or erase data on an SD memory card, you must unlock the card.
• You should format an SD memory card with the camera before using it for the
first time.
• To format the internal memory, do not insert a memory card into the camera.
Otherwise, you will format the memory card.
• Formatting is an irreversible action and data cannot be recovered at a later time.
• An SD memory card having any problem cannot be properly formatted.
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+ 5
3USING THE DC E53+
3.1 Capture Mode
1. Press the POWER button to turn on the camera.
2. Slide the mode switch to [ ].
3. Compose your image in the LCD monitor.
4. Press the shutter button down halfway (1), then press it
down fully (2).
•Pressing the shutter button down halfway automati-
cally focuses and adjusts the exposure.
•The focus-area frame turns blue when the camera is
focused and the exposure is determined.
•When the focus or exposure is not suitable, the frame
of the focus area turns yellow.
•If the photographic preview is set to "ON", the captured image will be displayed while
the image is being recorded onto the memory.
Notes
• The LCD monitor darkens in strong sunlight or bright light. This is not
a malfunction.
• To prevent your images from being blurred while pressing the shutter
button, always hold it carefully. This is especially important when you
are shooting under low lighting conditions, which your camera may
decelerate the shutter speed to ensure your images are properly exposed.
• Pressing the button changes the LCD display in the sequence of:
Standard Display →Simplified Display →No Information.
• To review the last-captured image, press the button. Press the
button again to return to the camera mode.
1
Press down halfway
2
Press down fully
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+
6
3.1.1 Capture Mode LCD Monitor Information
1. Camera mode
2. Image quality
[]SUPERFINE
[]FINE
[]NORMAL
3. Image size (resolution)
[ ] 2560 x 1920
[ ] 2048 x 1536
[ ] 1280 x 960
[ ] 640 x 480
[ ] TIFF IMAGE
4. Available number of shots
5. SD memory card indicator
(if present)
6. Battery power indicator
[ ] Full battery power
[ ] Medium battery power
[]Lowbatterypower
[ ] Virtually no battery power
7. Scene mode
[]AUTO
[]BACKLIGHT
[]PORTRAIT
[]LANDSCAPE
[]NIGHTSCENE
[]SPORTS
[]MACRO
8. Flash mode
[] REDEYE
[] NOFLASH
[] AUTOFLASH
[ ] FORCED FLASH
9. Self-timer icon (if used)
[ ] 3-second delay
[ ] 10-second delay
10. White balance
[AUTO]AUTO
[]DAYLIGHT
[]CLOUDY
[]SUNSET
[] TUNGSTEN
[]FLUORESCENT
11. Capture mode icon
[]SINGLE
[ ] CONTINUOUS
[]AEB
12. Time
13. Date
14. Focus area
15. Exposure value
(no indication with 0EV)
16. Zoom status
T
W
1 2 3 6
7
4
5
8
9
10
12
13
16
14
11
15
5M
3M
M
1.2
M
0.3
S
A
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+ 7
3.1.2 Changing Camera Settings
Camera settings can be changed with the five-way button.
1. Up/Flash: Scrolls upwards in menus and enables you to
choose the appropriate flash setting.
2. Left/Quick View: Scrolls left in menus and enables you to
view the last picture that was captured.
3. Down/Scene: Scrolls downwards in menus and enables you
to choose the scene.
4. Right / Self-Timer: Scrolls right in menus and toggles
through the self-timer settings.
5. OK: Enters the menu page and confirms the chosen setting.
3.1.2.1 Setting the Scene Mode
This sets the scene mode for capturing images.
1. Press the POWER button to turn on the camera. Make
sure the camera is in [ ] mode.
2. Press the SCN button.
The screen of scene mode menu is displayed.
3. Use the S/T/W/ Xbuttons to select the desired scene
mode, then press the OK button to confirm.
The table below will help you choose the appropriate scene
mode:
Icon Scene mode Description
Auto Select this mode when you want to leave the settings up to the camera to
capture images with ease.
Backlight Select this mode while capturing images with the light coming from behind
the subject.
The flash is fixed at [ ]
Portrait Select this mode when you want to capture an image that makes the person
stand out against a defocused (blurred) background. The default flash
mode is set to [ ] which is effective in reducing the red-eye phenomenon.
Landscape Select this mode to enhance color, saturation shown in mountains, forests
and other landscape scenery or to take portraits that feature a landmark in
the background. The flash is fixed at [ ].
Night Scene Select this mode when you want to photograph people with an evening or
night scene background.
Sports Select this mode when you want to capture fast-moving subjects.
Macro Select this mode to capture close-up subject.
The flash is fixed at [ ]
Notes
• The description of each scene serves as a general guide. Set the digital
still camera to suit your own preferences.
• The scene mode can be set only in [ ] mode.
1
2
3
4
5
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+
8
3.1.2.2 Using the Flash
The flash is designed to function automatically when lighting conditions warrant the use of
flash. You can capture an image using a flash mode suitable to your circumstances.
1. Press the POWER button to turn on the camera.
2. Slide the mode switch to [ ].
3. Press the button.
The screen of flash mode menu is displayed.
4. Use the S/T/W/Xbuttons to select the desired flash
mode, then press the OK button.
The flash mode you set will be displayed on the LCD
monitor.
5. Compose your scene and press the shutter button.
The table below will help you to choose the appropriate flash mode:
Icon Flash Mode Description
RED EYE Use this mode to reduce the red-eye phenomenon when you want to cap-
ture natural-looking images of people and animals in low-light conditions.
When capturing images, the red-eye phenomenon can be reduced by asking
the subject (person) to look at the digital still camera or get as close to the
digital still camera as possible.
NO FLASH Use this mode in the environment that the flash use is prohibited or under
the situation that the distance to the subject is too far away for the flash to
have any effect.
AUTO FLASH The flash fires automatically according to the photographic conditions.
FORCED
FLASH
The flash will always fire regardless of the surrounding brightness. Select
this mode for recording images with high contrast (backlighting) and deep
shadows.
Notes
• In [ ] backlight mode, the flash is fixed at [ ].
• In [ ] landscape and [ ] macro modes, the flash is fixed at [ ].
• In the capture mode [ ] continuous and [ ] AEB, the flash is fixed
at [ ].
• The flash cannot be used in the [ ] mode.
A
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+ 9
3.1.2.3 Using the Self-Timer
The self-timer can be set in [ ] mode. This feature is useful for situations where you may
wish to join into the scene when taking group shots.
1. Secure the camera to a tripod or place it on a stable surface.
2. Press the POWER button to turn on the camera.
3. Slide the mode switch to [ ].
4. Toggle the button to select the desired self-timer mode.
5. Compose your image and press the shutter button.
•The self-timer function is activated and the sta-
tus of countdown is displayed on the LCD moni-
tor.
•The self-timer LED flashes and the image will be
captured after the preset time has elapsed.
•To cancel the self-timer during operation, press
the button.
3.1.2.4 Using the Optical Zoom
Zoom photography allows you to capture images magnified up to 3 times or wide-angle
photography depending on the distance up to the subject. You can further enlarge the center
of the screen and capture images using the digital zoom.
1. Slide the mode switch to [ ] or [ ].
2. Compose the image with the zoom button.
•Pressing the Tbutton zooms in on the subject, and
enlarges the subject on the LCD monitor.
•Pressing the Wbutton provides a wider-angle
image.
•The lens position moves according to the zoom but-
ton setting.
3. Press the shutter button down halfway to set the focus and exposure, then press it down
fully to capture the image.
Note
The self-timer setting is automatically cancelled after an image is captured.
Note
Zoom function cannot be used while a video clip is recording.
OFF
[NO INDICATION]
07
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+
10

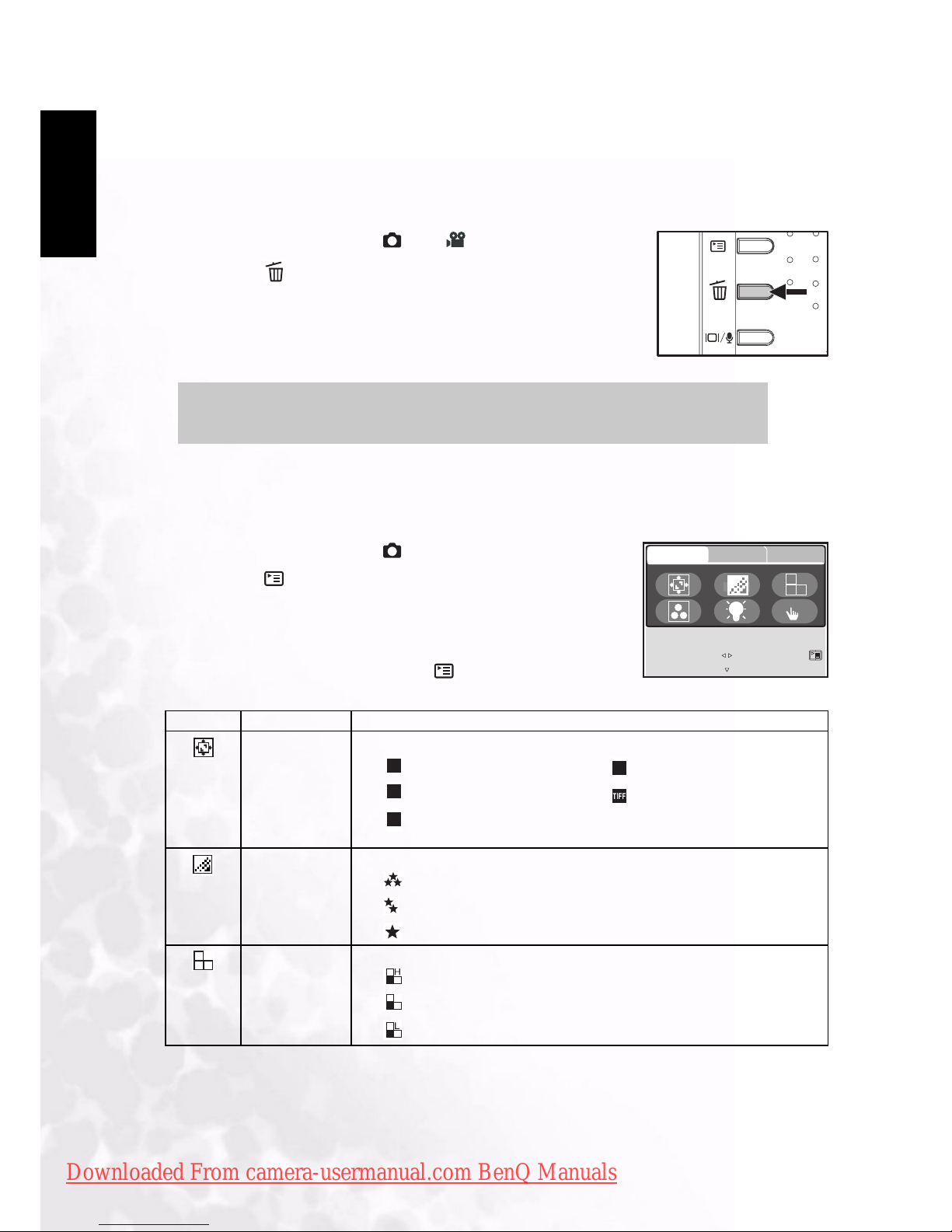

3.1.2.5 Deleting Images
Use this function to delete one or all images/video clips stored in the internal memory or
memory card. Please note that the deleted images or video clips cannot be recovered.
Immediate Erasure (Quick Delete Function)
The quick delete function enables you to delete the last image during capture.
1. Slide the mode switch to [ ] or [ ].
2. Press the button.
The last image and delete message appears on the screen.
3. Use the W/Xbuttons to select [YES], then press the OK
button.
If you wish to cancel the deletion, select [NO].
3.1.3 Capture Mode Menus Settings
3.1.3.1 Capture Mode Picture Menu
1. Slide the mode switch to [ ].
2. Press the button to access in Camera menu, then use the
W/Xbuttons to select [PICTURE] menu.
3. Use the S/T/W/Xbuttons to select the desired item in
[PICTURE] menu, then press the OK button.
4. To exit from the menu, press the button.
Note
Protected images cannot be deleted
Icon Item Functional Description
SIZE Sets the size of the image that will be captured.
QUALITY Sets the quality (compression rate) at which the image is captured.
SUPER FINE
FINE
NORMAL
SHARPNESS Sets the level of image sharpness.
HIGH
NORMAL
LOW
SELECT ITEM:
EXIT:
PICTURE FUNCTION SETUP
Q
R
GB
SELECT PAGE:
WB
WB
2560 x 1920
2048 x 1536
1280 x 960
640 x 480
TIFF IMAGE
5M
3M
M
1.2
M
0.3
Q
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+ 11
3.1.3.1.1 Setting the White Balance
The human eye adapts to changes in light so that white objects still appear white even when
the light changes. With a digital camera, however, the color of the subject is influenced by the
color of the light surrounding it. This color adjustment is called "white balance adjustment".
This setting allows you to set the white balance when capturing images under specific lighting
conditions.
3.1.3.1.2 Adjusting the White Balance Manually
Manual white balance lets you configure the digital still camera for a particular light source
and other conditions. Note that you must perform manual white balance under the same
conditions you will be shooting. You must also have a piece of white paper or other similar
object on hand in order to perform this function.
3.1.3.2 Capture Mode Function Menu
1. Slide the mode switch to [ ].
2. Press the button to access in Camera menu, then use
the W/Xbuttons to select [FUNCTION] menu.
3. Use the S/T/W/Xbuttons to select the desired item in
[FUNCTION] menu, then press the OK button.
4. To exit from the menu, press the button.
COLOR Sets the color of the image that will be captured.
NORMAL
B&W
SEPIA
WHITE
BALANCE
Sets the white balance when capturing images under specific lighting con-
ditions.
AUTO AUTO
DAYLIGHT
CLOUDY
SUNSET
TUNGSTEN
FLUORESCENT
MANUAL WB Allows for manually setting the white balance. Manual WB is convenient
when the white balance presets do not offer a good match to your specific
lighting conditions.
Before selecting [EXECUTE], select a white subject (such as a white paper)
that will be used to set the white balance.
– EXECUTE/CANCEL
Icon Item Functional Description
CAPTURE
MODE
Sets the recording method at the time of capturing images.
SINGLE
CONTINUOUS
AEB
Icon Item Functional Description
R
GB
WB
WB
SELECT ITEM:
EXIT:
PICTURE FUNCTION SETUP
SELECT PAGE:
QUICK
VIEW
EV
ISO
S
A
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+
12
3.1.3.2.1 Continuous Capture
In continuous capture mode, you can capture a rapid sequence of images with one press of
the shutter button. This function is very useful for photographing objects in motion where it
is difficult to determine the precise moment of capture. Afterwards, you may review the
sequence of images to select the best one.
1. Use the S/Tbuttons to select [CONTINUOUS ], then
press the OK button.
2. To exit from the menu, press the button.
The indicator is displayed on the monitor screen.
3. Press the shutter button down halfway to lock the focus.
4. Press the shutter button down all the way to capture images.
Capturing will stop when the shutter button is released.
3.1.3.2.2 Auto-Exposure Bracketing (AEB)
Auto-exposure bracketing is an effective technique when it is difficult to determine the precise
exposure of a scene. Using AEB the camera will capture a sequential burst of three images at
three different exposure settings. Afterwards, you may review the sequence of images to select
the best exposure.
LCD
BRIGHTNESS
Selects a brightness level for the LCD monitor.
The adjustment range is from –5 to +5.
DIGITAL
ZOOM
Enables or disables digital zoom.
–ON/OFF
QUICK VIEW Sets to display a captured image on LCD monitor immediately after you
have captured the image.
–ON/OFF
EXPOSURE Sets to obtain the correct exposure when the subject is much brighter or
darker than the background.
The exposure compensation value can be set in the range from –2.0EV to
+2.0EV in 0.5EV intervals.
ISO Sets the light sensitivity for capturing images. When the sensitivity is raised
(the ISO figure is increased), the camera sensitivity is enhanced for low-
lighting, but your images will appear more pixilated (grainy).
– AUTO/100/200
Notes
• Maximum number of continuous shots: 5.
• In CONTINUOUS mode, the flash mode will be set to NO FLASH auto-
matically.
Note
In AEB mode, the flash mode will be set to NO FLASH automatically.
Icon Item Functional Description
QUICK
VIEW
ISO
CAPTURE MODE
BACK : SET :
SINGLE
CONTINUOUS
AEB
S
A
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+ 13
3.1.3.2.3 Using the Digital Zoom
Using a combination of 3 times optical zoom and 4 times digital zoom permits zoom
photography up to 12 times to suit the subject and the distance. Digital zoom is a compelling
feature, however, the more an image is enlarged (zoomed), the more pixilated (grainer) the
image will appear.
3.2 Video Mode
1. Press the POWER button to turn on the camera.
2. Slide the mode switch to [ ].
3. Compose the image with the zoom button, if desired.
•Optical zoom should be set while composing the
scene.
•Optical zoom cannot be used during movie capture.
4. Press the shutter button to start recording.
5. Press the shutter button again to stop recording.
3.2.1 Movie Mode LCD Monitor Information
1. Movie mode
2. Available recording time/Elapsed time
3. Video size
[ ] 640 x 480
[ ] 320 x 240
4. SD memory card indicator (if present)
5. Battery power indicator
6. Time
7. Date
8. Zoom status
Note
The zoom setting is automatically cancelled by either turning the camera
off or the activation of the Auto Power Off function.
Notes
• The flash and self-timer cannot be used in [ ] mode.
• While a video is being recorded to an SD card, do not open the bat-
tery/SD card cover, nor remove the battery or SD card. Doing so might
damage the SD card or destroy the data.
1 2 4 5
8
T
W
6
7
VGA
3
VGA
QVGA
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+
14
3.2.2 Movie Mode Menu Settings
1. Slide the mode switch to [ ].
2. Press the button to access in Camera menu, then use the
W/Xbuttons to select [FUNCTION] menu.
3. Use the S/T/W/Xbuttons to select the desired item in
[FUNCTION] menu, then press the OK button.
4. To exit from the menu, press the button.
3.3 Playback Mode
In the playback mode, you can view, magnify, delete images, play video clips, or run a slide
show. This mode also provides a thumbnail image display, allowing you to quickly search for
the desired image.
1. Press the POWER button to turn on the
camera.
2. Slide the mode switch to [ ].
3. Use the W/Xbuttons to select the desired
images.
•To view the previous image, press the W
button.
•To view the next image, press the X
button.
Icon Item Functional Description
SIZE Sets the size of the image that will be recorded.
– 640 x 480
– 320 x 240
Color Sets the color of the image that will be copied.
–NORMAL
–B&W
–SEPIA
LCD BRIGHT Selects a brightness level for the LCD monitor.
The adjustment range is from -5 to +5.
EXPOSURE Sets the correct exposure when the subject is much brighter or darker than
the background.
The exposure compensation value can be set in the range from -2.0EV to
+2.0EV in 0.5EV intervals.
SELECT ITEM:
MOVIE SETUP
SELECT PAGE:
EXPOSURE
ENTRY:
0.0EV
EXIT:
EV
R
GB
R
GB
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+ 15
3.3.1 Playback Mode LCD Monitor Information (Image)
1. Playback mode
2. Frame number
3. SD memory card indicator (if present)
4. Battery power indicator
5. Image size (resolution)
6. Camera mode
3.3.2 Viewing Images
3.3.2.1 Rotating Images
Pressing the S/Tbuttons during image playback will rotate the image 90 degrees.
The Sbutton
rotates the image
clockwise,
whereas the T
button rotates the
counterclockwise.
3.3.2.2 Magnifying Images
While reviewing your images, you may enlarge a selected portion of an image. This
magnification allows you to view the details. Images that are being displayed can be enlarged
in 8 times enlargement.
1. Adjust the zoom ratio by using the zoom button.
•To enlarge the selected image, press the T button.
•To return to normal magnification, press the W
button.
•The magnification factor is displayed on the LCD
monitor.
2. To view different portion of the images, press the
S/T/W/Xbuttons to adjust the display area.
You will see a white frame with a pink box inside. The white frame indicates the entire
image, while the pink box shows the location of the currently enlarged area.
3. To return to regular display, toggle the Wbutton until the regular display appears on the
screen.
Notes
• If there is no image stored in the internal memory or memory card,
[NO PICTURE] message will appear on the monitor.
• Pressing the button while playing back images changes the LCD
display in the sequence of: Standard display →Detailed display →No
information.
1 2 3
6
4
5
90 Counterclockwise
o0 (Original) o90 Clockwise o
3x
Downloaded From camera-usermanual.com BenQ Manuals

BenQ DC 5530 User’s Manual
English
Using the DC E53+
16
3.3.2.3 Thumbnail Display (Index Playback)
This function allows you to view four or nine thumbnail images on the LCD monitor
simultaneously so you may search for a particular image.
1. Press the Wbutton.
Four or nine thumbnail images are displayed simultaneously.
2. Use the S/T/W/Xbuttons to select the image to be
displayed at regular size, then press the OK button to display
the selected image on full screen.
3.3.3 Playback Mode Menu Settings
1. Slide the mode switch to [ ].
2. Press the button to access in PLAY menu.
3. Use the S/T/W/Xbuttons to select the desired setting, then press the OK button.
4. To exit from the menu, press the button.
Note
The range of magnification factor is: 1.5x, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x,
5.0x, 5.5x, 6.0x, 6.5x, 7.0x, 7.5x and 8.0x.
Note
As appropriate, the [ ] or [ ] icon will be displayed in a thumbnail dis-
play.
Icon Item Functional Description
SLIDESHOW This function enables you to play back your images automatically in
sequential order as a slide show. This is a very useful and entertaining fea-
ture for reviewing recorded images and for presentations.
– 3SEC/5SEC/7SEC/9SEC
PROTECT Set the data to read-only to prevent images from being erased by mistake.
– YES/NO
DELETE ALL Delete all files
– YES/NO
SLIDE
SHOW
COPY
R
Index
SETUP
SELECT ITEM:
EXIT: SELECT PAGE:
PLAY
LOGO
DPOF
PLAY SETUP
SELECT ITEM:
EXIT:
ENTRY:
CHANGE LOGO
EXECUTE
SLIDE
SHOW
Downloaded From camera-usermanual.com BenQ Manuals
