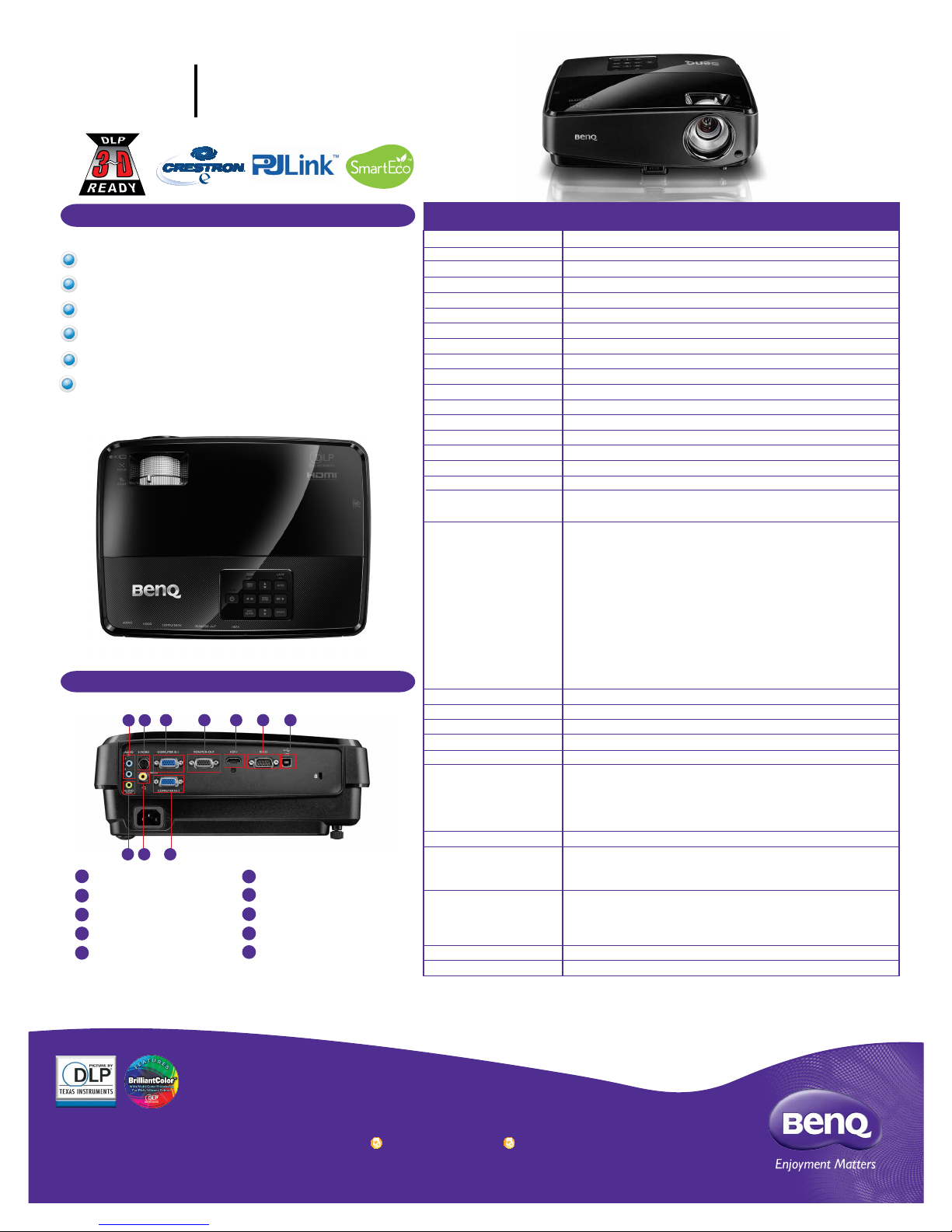

BenQ MX518 User manual

BenQ America Corp.
15375 Barranca Parkway. Suite A-205. Irvine, CA 92618 Tel: [phone] www.BenQ.us
BenQ is a registered trademark of BenQ Corp. DLP®is a registered trademark of Texas Instruments. All rights reserved.
Product names, logos, brands, and other trademarks featured or referred to in this materials are the property of their respective trademark holders.
Specifications subject to change without notice.
10
MX518
DIGITAL
PROJECTOR
Features Specications
Native XGA Resolution (1024x768)
2800 ANSI Lumens; 13,000:1 Contrast Ratio
SmartEco™ Power Saving Technology
Up to 6500 Hours Long Lamp Life
Instant Restart & HDMI
Various 3D Format for Entertainment
Projection System
Native Resolution
Brightness
Contrast Ratio
Display Color
Lens
Aspect Ratio
Throw Ratio
Image Size Diagonal
Zoom Ratio
Lamp Type
Lamp Life*
Keystone Adjustment
Projection Offset
Resolution Support
Horizontal Frequency
Vertical Scan Rate
Compatibility
Interface
Dimensions (WxHxD)
Weight
Power Supply
Power Consumption
Audible Noise
On-Screen Display
Languages
Picture Mode
Accessories (Standard)
Accessories (Optional)
UPC Code
Limited Warranty
DLP
XGA (1024 x 768)
2800AL
13,000:1
1.07 Billion Colors
F=2.51~2.69 f=21.95mm~24.18mm
Native 4:3 (5 aspect ratio selectable)
1.97-2.17 (50”@ 2m)
37”~300”
1.1:1
190W
4500/6000/6500 hours
1D, Vertical +/- 40 degrees
130% ±5%
VGA(640 x 480) to UXGA(1600 x 1200)
15~102KHz
23~120Hz
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Computer In (D-Sub 15pin) x2 (shared with Component)
Monitor Out (D-Sub 15 pin) x1
Composite Video In (RCA) x1
S-Video In (Mini DIN 4pin) x1
HDMI x 1
Audio In (Mini Jack) x2
Audio Out (Mini Jack) x1
Speaker 2W x1
USB (Type B) x1 (Download & page up/down)
RS232 (DB-9Pin) x1
IR Receiver x 1 (Front)
11.9 x 4.4 x 8.7 inch
5.06 lbs (2.3kg)
AC100 to 240 V, 50 to 60 Hz
245W (typical), Standby<0.5W
32/30 dBA (Normal/Economic mode)
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/
French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/
Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/
Russian/ Simplied Chinese/Spanish/ Swedish/ Turkish/ Thai/
Traditional Chinese (28 Languages)
Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Lens Cover, Remote Control w/ Battery, Power Cord (by region)
User Manual CD, Quick Start Guide, Warranty Card (by region)
VGA(D-sub 15pin) Cable
Spare Lamp Kit 5J.J6L05.001
Ceiling Mount 5J.J4N10.001
3D Glasses 5J.J7K25.001
Carry bag 5J.J4R09.001
8400460-2531-1
1 year parts & labor; 180 days / 500 hours of lamp life
MX518 09-13-12-BQus
*Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and specications
are subject to change without notice.
1
2
3
4
5
6
7
8
9
Input and Output Terminals
Audio In 1&2 (Mini Jack)
Audio Out (Mini Jack)
S-Video (Mini DIN 4-pin)
Video Out (RCA Jack)
Computer-1 (D-sub 15pin)
Computer-2 (D-sub 15pin)
Monitor Out (D-sub 15pin)
HDMI
RS232 (DB-9pin)
USB (Mini-B)
135789
246
10

Screen Size Distance from screen (inch) Vertical
offset
(inch)
Diagonal W
(inch)
H
(inch)
Min length Average Max length
Inch mm (Max zoom) (Min. zoom)
30 762 24 18 47.2 49.6 51.9 2.7
40 1016 32 24 62.9 66.1 69.2 3.5
50 1270 40 30 78.7 82.6 86.6 4.4
60 1524 48 36 94.4 99.2 103.9 5.3
80 2032 64 48 125.9 132.2 138.5 7.2
100 2540 80 60 157.4 165.3 173.2 9.0
120 3048 96 72 188.9 198.4 207.8 10.7
150 3810 120 90 236.2 248.0 259.8 13.5
200 5080 160 120 314.9 330.7 346.4 17.9
220 5588 176 132 346.4 363.7 381.1 19.8
250 6350 200 150 393.7 413.3 433.0 22.5
300 7320 240 180 472.4 496.0 519.6 27.0
Units: inch
7.7
7.1
7.7
11.8 2.2 6.38
3.1
3.18
.82
2.83
8.7
4.4
11.9
Distance Chart
Ceiling Mount Chart
Dimensions
MX518 Digital Projector
