Bentone B40 MF Technical specifications

Providing sustainable energy solutions worldwide
178 129 53-4 P93783 2022-11-07
Installation- and maintenance instruction
B 40 MF
LMO24.255C2E
E4NC-1069
Translation of the original instructions.

2Bentone
example Beispielexempel
352011030141
Designation
Type
Model
Serial no.
Motor supply
Main supply
MADE IN SWEDEN BY
LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar
BF 1 KS 76-24
BF 1
BF 1 KS 76-24
1234567
1~230V 1,0A 50Hz IP 20
Man.Year 2019
Cap. Min-Max
3
?
1
-sv
1. Manualer på övriga språk
2. www.bentone.com\
nedladdning eller scanna
QR-koden.
3. Skriv in brännarens
artikelnummer som  nns på
din typskylt (se bild) och välj
ditt språk.
Detaljerad ecodesign
information kan laddas ner
på: www.bentone.com/
ecodesign.
-en
1. Manuals in other languages
2. www.bentone.com\
download or scan QR-code.
3. Enter the burner`s article
number on your data plate
(see picture) and select
language.
Detailed ecodesign
information can be
downloaded at:
www.bentone.com/
ecodesign.
-da
1. Manualer på andre sprog
2. www.bentone.com\
download eller scan
QR-koden.
3. Indtast brænderens
artikelnummer, der  ndes
på typeskiltet (se billede), og
vælg dit sprog.
Detaljerede oplysninger om
ecodesign kan downloades
på: www.bentone.com/
ecodesign.
-fr
1. Manuels dans d’autres
langues
2. www.bentone.com\
download ou scannez le
code QR.
3. Saisir le numéro d’article
du brûleur sur votre plaque
signalétique (consultez
l’illustration) et sélectionnez
la langue.
Des informations détaillées
sur l’écodesign peuvent être
téléchargées à l’adresse:
www.bentone.com/
ecodesign.
-de
1. Gebrauchsanweisungen in
anderen Sprachen
2. www.bentone.com\
download oder scannen Sie
den QR-Code.
3. Geben Sie die
Artikelnummer des Brenners
auf Ihrem Typenschild ein,
(siehe Bild) und wählen Sie
die Sprache aus.
Detaillierte Informationen
zum Ecodesign können unter
www.bentone.com/ecodesign
heruntergeladen werden.
2

3Bentone
Table of contents
1. Allmän information .............................................................4
1.1 Leveranskontroll............................................................................ 4
1.2 Säkerhet.......................................................................................... 4
2. Technical data.......................................................................6
2.1 Dimensions B 40 MF..................................................................... 6
2.2 Burner installation ........................................................................ 6
2.3 Workingeld.................................................................................. 7
2.4 Settingfornozzleassemblyandairdamper ......................... 7
2.6 Settingofignitionelectrodesandbrakeplate ....................... 8
2.7 Nozzleandpumppressure......................................................... 8
2.5 Technicalspecication ................................................................. 8
2.8 Oilgrades........................................................................................ 9
2.9 Nozzle for bio oils, 20-28 bar....................................................10
2.10 Nozzle for fossil oils, 22-28 bar................................................ 11

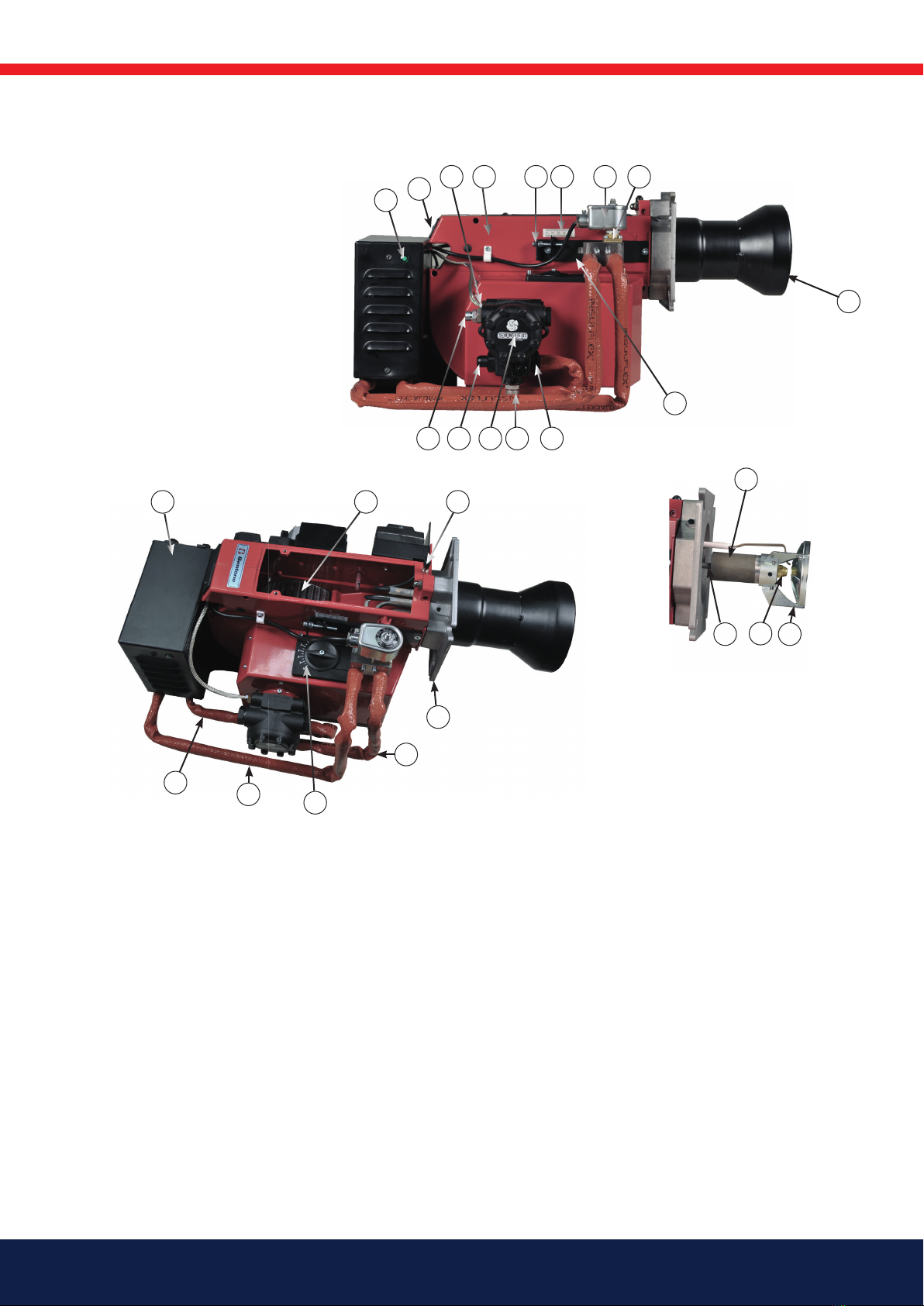

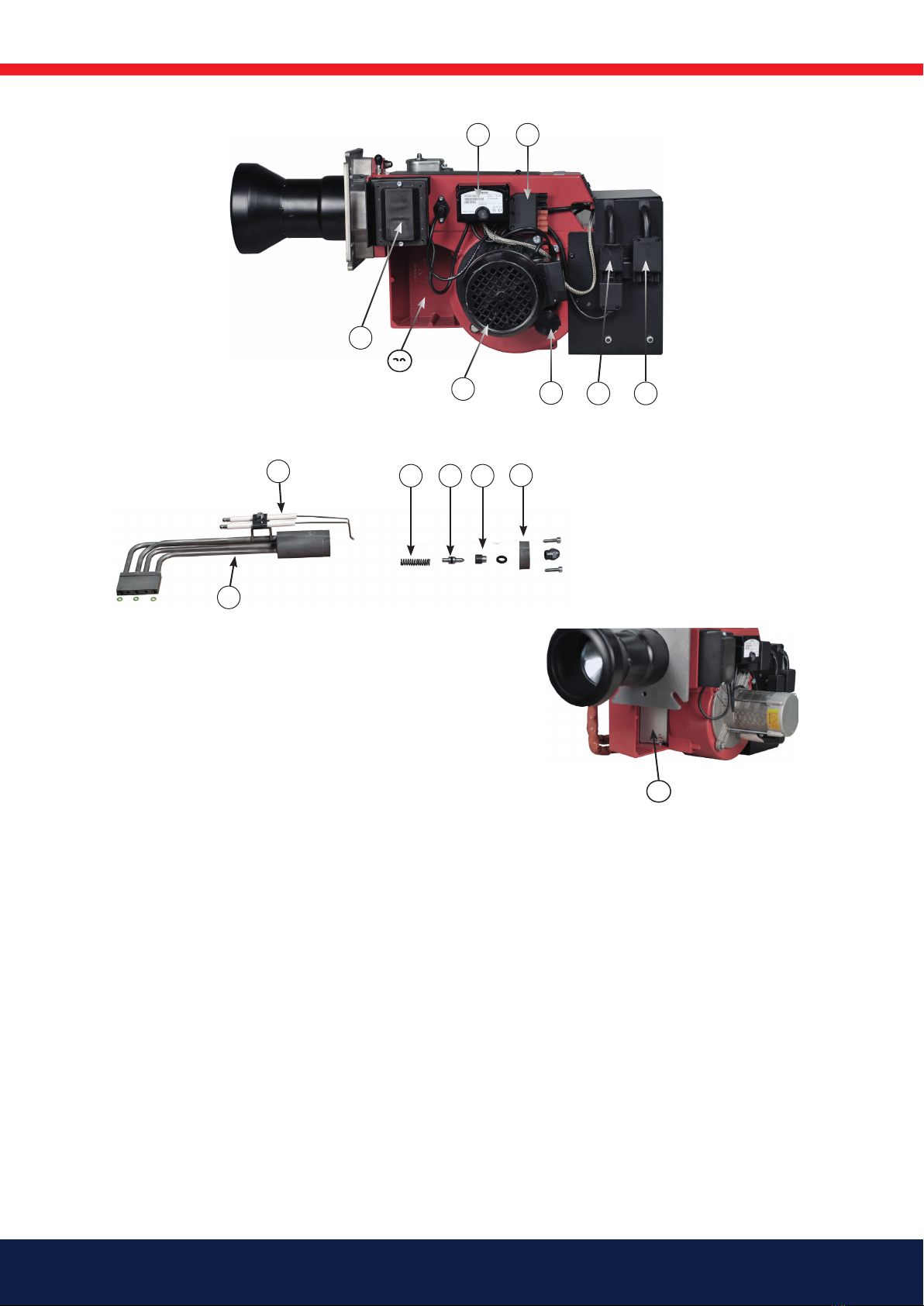

2.11 Components.................................................................................12
3. Electric equipment.............................................................14
3.1 Safety system ..............................................................................14
3.2 Wiringdiagram..........................................................................14
3.3 Function LMO14/24.................................................................... 15
3.4 ColourcodesLMO14/24............................................................16
3.5 FaultcodesLMO14/24............................................................... 16
4. Installation..........................................................................17
4.1 General instructions...................................................................17
4.2 Inspectionandmaintenance....................................................17
4.3 Start-up .........................................................................................17
4.4 Deliveryinspection......................................................................17
4.5 Preparingforinstallation...........................................................17

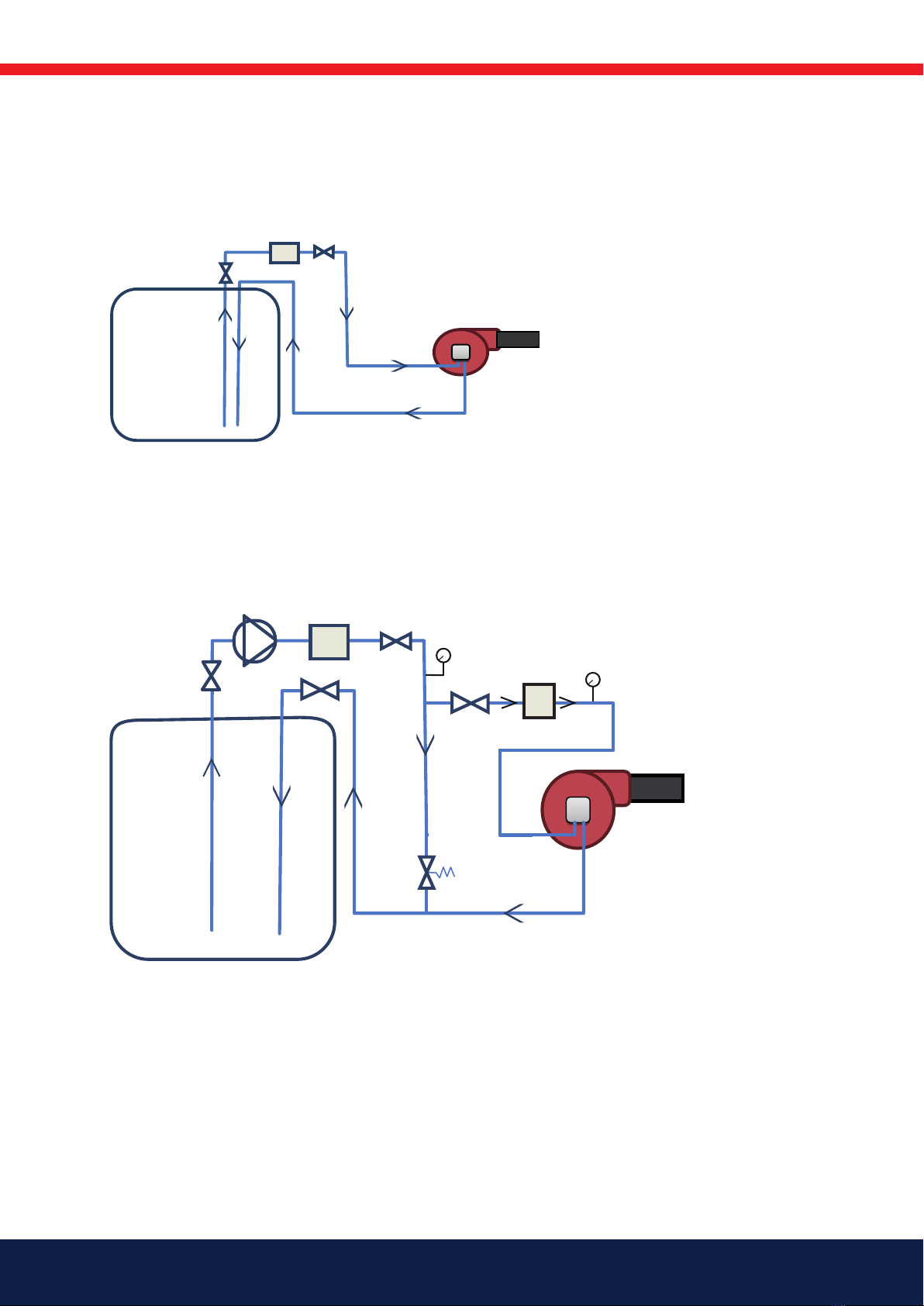

4.6 Oildistribution.............................................................................18
4.7 Electrical connection ..................................................................18
5. Mounting ............................................................................19
5.1 Check oil line seals......................................................................19
5.2 Functiondescription................................................................... 21
5.3 ExampleofBasicsettings..........................................................22
5.4 Air setting ..................................................................................... 23
5.5 Brakeplateadjustment .............................................................23
5.6 Return Oil Pressure Switch........................................................ 24
6. Preheater ............................................................................25
6.1 Technicaldata ..............................................................................25
6.2 Adjustmentofpreheateroperatingthermostat ..................26
7. Pump E4NC-1069................................................................27
7.1 Technicaldata ..............................................................................27
7.2 Components.................................................................................27
7.3 Oil connection..............................................................................27
7.4 Changingthelter......................................................................27
7.5 Function ........................................................................................28
7.6 Preheatingpump ........................................................................28
8. Service .................................................................................29
8.1 BurnerServiceSchedule,Oil ....................................................29
8.2 Componentreplacementintervals..........................................29
8.3 Combustiondevice .....................................................................30
8.4 Airdamper....................................................................................31
8.5 Replacementofoilpump ..........................................................32
8.6 Replacementofpreheaters ......................................................33
8.7 Replacementofpreheateroverheatingprotector............... 34
8.8 Check oil line seals......................................................................35
8.9 Checkpressurepistonnozzleholderseals ...........................35
8.10 Replacementofpressurepistonandseat.............................36
8.11 Immersionheatersforextrapreheating ............................... 37
8.12 Check/serviceoilpre-lter.........................................................39
8.13 Replacementofelectricalcomponents..................................40
9. Fault Location.....................................................................41
9.1 Burner will not start....................................................................41
9.2 Burner will not start after normal use.................................... 41
9.3 Delayedignition ..........................................................................42
9.4 Noiseinpump .............................................................................42
9.5 Pumppressure ............................................................................43
 .....................................................44

4Bentone
165 101 01-2 2021-12-07
1. Allmän information
Brännaren får endast användas till avsett ändamål i enlighet med produktens
tekniska data.
Vi förbehåller oss rätten till konstruktionsändringar och reserverar oss för
eventuella tryckfel eller felskrivningar.
Det är ej tillåtet att ändra konstruktionen eller använda komponenter och
tillbehör som ej skriftligt godkänts av Enertech.
Denna installations- och skötselanvisning:
• är att betrakta som en del av brännaren och skall alltid förvaras i
närheten av montageplatsen.
• skall läsas före installation.
• vänder sig till behörig personal.
1.1 Leveranskontroll
• Kontrollera att allt är levererat och att godset inte är transportskadat.
Transportskador anmäls till speditions rman.
• Om något är fel i leveransen, anmäls detta till leverantören.
1.2 Säkerhet
- före installation:
• Installation och arbeten med brännaren och tillhörande systemdelar
får endast genomföras av personer som har genomgått relevant
utbildning.
• Produkten är emballerad för att förhindra att skador kan uppstå vid
hanteringen - Hantera produkten varsamt! För att  ytta större kollin
krävs lyfthjälpmedel.
• Produkten skall transporteras/lagras på ett plant underlag i en torr
miljö, max 80% relativ luftfuktighet, ingen kondens.
Temperatur -20 … +60 °C.
- installation:
• Brännaren skall installeras enligt lokala föreskrifter vad gäller
brandsäkerhet, elsäkerhet och bränsledistribution.
• Lokalen skall uppfylla lokala bestämmelser för ändamålet och vara
försedd med adekvat lufttillförsel.
• Kemikalier nära installationen får ej förekomma.
• Brandsläckare med klass BE rekommenderas.
• Se till att brännaren monteras med ett fritt serviceutrymme.
• Den elektriska installationen skall utföras enligt gällande
starkströmsföreskrifter och på ett fackmannamässigt sätt,
• Säkerställ att brännaren är anpassad för applikationen, se Tekniska
data.
• Alla komponenter ska monteras utan att böjas, vridas eller utsättas
för mekaniska eller termiska krafter som påverkar komponenterna.
• Noggrannhet ska iakttas av installatören så att inga elledningar och
bränsleledningar kläms eller skadas vid installation eller service.
• Vassa kanter kan förekomma på till exempel: brännarrör,  äkthjul och
luftspjäll.

5Bentone
- före första start:
• Brännaren får inte driftsättas utan fungerande säkerhets- och skydds-
anordningar.
• Tillåten omgivningstemperatur vid drift -10 … +60 °C. Relativ
luftfuktighet max 80%, ingen kondens.
• Yttemperaturen på brännarens komponenter kan överstiga 60 °C.
• Iaktta försiktighet, brännaren har rörliga delar, klämrisk kan
förekomma.
• Täthetskontroll ska utföras vid installation och service för att undvika
läckage.
• montage- och installationsarbeten är avslutade och godkända.
• elinstallation är korrekt utförd.
• rökgasvägar och förbränningsluftvägar är fria.
• alla regler-, styr- och säkerhetsanordningar är funktionsdugliga och
korrekt inställda.
• Om pannan är försedd med öppningsbar lucka, ska denna vara
utrustad med lucköppningsbrytare kopplad till brännarens
säkerhetssystem.
• Under drift kan brännarens ljudnivå överskrida 85 dBA - Använd
hörselskydd!
- Drift:
• Genomför alla föreskrivna inställnings-, service- och
inspektionsarbeten inom utsatt tid.
• Vid fast rött sken på eldningsautomaten, kontakta din installatör.

6Bentone
165 205 77-3
2. Technical data
The burner is intended for:
• Operation in installations according to EN 303 and EN 267.
When operating with a hot air boiler, the LMO24.255 or LMO44.255 control unit must be used.
Fuels:
• FAME/RME according to EN 14214.
• Fuel oil according to DIN 51603-1.
• Fuel oil A Bio 10 according to DIN 51603-6.
• Rapeseed oil DIN 51605:2010–10
2.1 Dimensions B 40 MF
I
H
AD
E
F
G
B
C
* Min. recommended distance to  oor.
A Ø B Ø C D E F G H I * J
202 160 114 527 262 316 362 202 451 200
d1
d2
d3
d1 d2 d3
ø 115 (165) 14 ø 200-250
2.2 Burner installation
2.2.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner  ange.

7Bentone
2.3 Working eld
* Used lower caloric value of 10.00 kWh/kg for apeseed
oil in accordance with DIN 51605:2010-10
-
1,0
0,0
1,0
2,0
3,0
4,0
50 100 150 200 250 300
mbar
kW
6.5-29.5 kg/h
65-300 kW
160303-224
2.4 Setting for nozzle assembly and air damper
0
10
20
30
50 100 150 200 250 300
160303-225
kW
Air settings
Nozzle assembly
Scale
Burner output
!Do not exceed working


8Bentone
a
b
e
c
d
a b c d e
2.5-3.0 2.0 6.5-7.0 2.0 5.0
!

2.6 Setting of ignition electrodes and brake
plate
Measurements according to EN 15036-1:2006
Alt.1 The noise level of the burner can be reduced by equipping the burner with
silencer. Installation must be done so it does not prevent air supply to the
burner.
Alt.2 The burner’s noise level can be reduced by connecting the burner’s air
intake to the air duct that opens into an appropriate location. Installation
must be done so it does not prevent air supply to the burner.
B 40 MF
Main supply 230V, 1~, 5.0A, 50Hz, IP20
Max fuse rating 8A
Elmin preheater excluded 2.44A, 496W
Elmax preheater excluded 2.95A, 610W
PSB 0
NOX-class 2
Noise level 83dBA
!*NB It is important that the spark
does not strike against the brake
plate or nozzle.
2.5 Technical speci cation
Nozzle: 45° Solid/semisolid
60° Solid/semisolid
80° Solid/semisolid
Pump pressure: 10 bar (8-25 bar) depending on pump model
2.7 Nozzle and pump pressure
Due to different furnace geometries and capacities, it is not possible to
recommend a nozzle model.

9Bentone
2.8 Oil grades
The burner is tested and approved for pure rapeseed oil that complies with
standard DIN 51605:2010-10.
The burner is designed to be able to burn oils with a higher viscosity, both
of biological and fossil origin. The maximum viscosity with which the burner
is tested is 75 mm²/s, 0–130°c. Another way of dening which kind of oil
the burner can handle is that the oil must be of such a nature that it can be
pumped by the burner pump at the temperature the oil has at the point of
access to the pump.
The burner, without the pump, is designed to withstand the more corrosive
environment often created by oils of biological origin.
The Suntec E1069 pump is NOT designed for aggressive oils.
The burner pump has a service life of approx. 3–5 years if the oil is of a grade
that complies with standard DIN 51605:2010-10. If oil of a different grade
is used, especially if the oil contains contaminants such as particles, press
residue, metal swarf etc., or has chemical aggression, the pump may be
expected to have a signicantly shorter service life.
The pump is considered to be a wearing part and is not covered by the
warranty.
Pressure at the pump inlet must be -0.30 to max 2.0 bar. If there is a noise
from the pump, the oil is not pumpable at the current temperature or ow.
A transport oil pump combined with preheater is then needed to supply the
burner’s pump with oil for trouble-free operation.
The oil distribution system must be designed with the required equipment
such as lters, transport oil pump, preheater and reduction valve to provide
trouble -free operation. Max lter size is 120 µm and the oil may need to be
ltered in several steps.
In the case of a standstill in which the oil can be expected to change structure,
for example aging or phase transitions due to temperature and storage, the
burner must be ushed with fuel oil after the standstill. This procedure ensures
a good start after standstill.
!Ændringer i strukturen af olien kan give anledning til
ændringer i viskositet, pumpbarhed og antændelse. Dette kan


10 Bentone
2.9 Nozzle for bio oils, 20-28 bar
Gph 20 22 24 26 28
kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW
1,00 4,9 49 5,2 51 5,4 53 5,6 56 5,8 58
1,50 7,4 73 7,7 77 8,1 80 8,4 84 8,7 87
2,00 9,8 98 10,3 103 10,8 107 11,2 112 11,6 116
2,50 12,3 122 12,9 128 13,5 134 14,0 140 14,5 145
3,00 14,8 147 15,5 154 16,2 161 16,8 168 17,5 174
3,50 17,2 172 18,0 180 18,9 188 19,6 196 20,4 203
4,00 19,7 196 20,6 206 21,5 215 22,4 224 23,3 232
4,50 22,1 221 23,2 232 24,2 242 25,2 252 26,2 261
5,00 24,6 245 25,8 257 26,9 269 28,0 280 29,1 290
5,50 27,0 270 28,4 283 29,6 296 30,8 308 32,0 320
6,00 29,5 295 30,9 309 32,3 323 33,6 336 34,9 349
6,50 32,0 319 33,5 335 35,0 350 36,4 364 37,8 378
7,00 34,4 344 36,1 361 37,7 377 39,2 392 40,7 407
7,50 36,9 368 38,7 386 40,4 404 42,0 420 43,6 436
8,00 39,3 393 41,3 412 43,1 430 44,9 448 46,5 465
8,50 41,8 418 43,8 438 45,8 457 47,7 476 49,5 494
9,00 44,3 442 46,4 464 48,5 484 50,5 504 52,4 523
9,50 46,7 467 49,0 489 51,2 511 53,3 532 55,3 552
10,00 49,2 491 51,6 515 53,9 538 56,1 560 58,2 581
10,50 51,6 516 54,1 541 56,6 565 58,9 588 61,1 610
11,00 54,1 540 56,7 567 59,3 592 61,7 616 64,0 640
11,50 56,5 565 59,3 593 61,9 619 64,5 644 66,9 669
12,00 59,0 590 61,9 618 64,6 646 67,3 672 69,8 698
Pump pressure bar
Rapeseed oil compliant with DIN 51605:2010-10 Viscosity: 36.0 mm2/ s, at 40 °C preheater 160 °C

11Bentone
2.10 Nozzle for fossil oils, 22-28 bar
Pump pressure bar
The table applies to oil with a viscosity of 4.4 mm 2/s at a density of 830 kg/m 3.
Gph 22 24 26 28
kg/h kW kg/h kW kg/h kW kg/h kW
1,00 5,52 65,44 5,76 68,35 6 71,14 6,22 73,83
1,50 8,66 102,73 9,05 107,3 9,42 111,68 9,77 115,9
2,00 11,01 130,53 11,5 136,33 11,96 141,9 12,42 147,25
2,50 13,78 163,42 14,39 170,69 14,98 117,66 15,55 184,37
3,00 17,21 204,06 17,97 213,13 18,7 221,83 19,41 230,21
3,50 19,13 226,93 19,89 237,02 20,8 246,7 21,59 256,01
4,00 21,06 249,8 22 260,9 22,9 271,56 23,76 281,81
4,50 23,88 283,22 24,94 295,81 25,96 307,89 26,94 319,51
5,00 27,44 325,44 28,66 339,91 29,83 353,79 30,96 367,14
5,50 31 367,66 32,38 384 33,7 399,68 34,97 414,77
6,00 34,71 411,63 36,25 429,94 37,73 447,49 39,16 464,39
6,50 38,71 459,13 40,43 479,55 42,08 499,13 43,67 517,97
7,00 41,38 490,8 43,22 512,62 44,99 533,55 46,69 553,69
7,50 44,2 524,22 46,17 547,53 48,05 569,89 49,86 591,4
8,00 46,72 554,12 48,8 578,76 50,79 602,4 52,71 625,14
8,50 49,1 582,27 51,28 608,16 53,37 632,99 55,39 656,89
9,00 52,51 622,73 54,84 650,42 57,08 676,98 59,24 702,53
10,00 55,92 663,19 58,4 692,68 60,79 720,96 63,08 748,18
11,00 63,04 747,63 65,84 780,87 68,53 812,76 71,12 843,44
12,00 70,75 839,1 73,9 876,41 76,91 912,2 79,82 946,63

12 Bentone
13
4
9
65 873
10
2
15 12 1114
1
17
18
19
16
21
23
27
24
26 25
2220

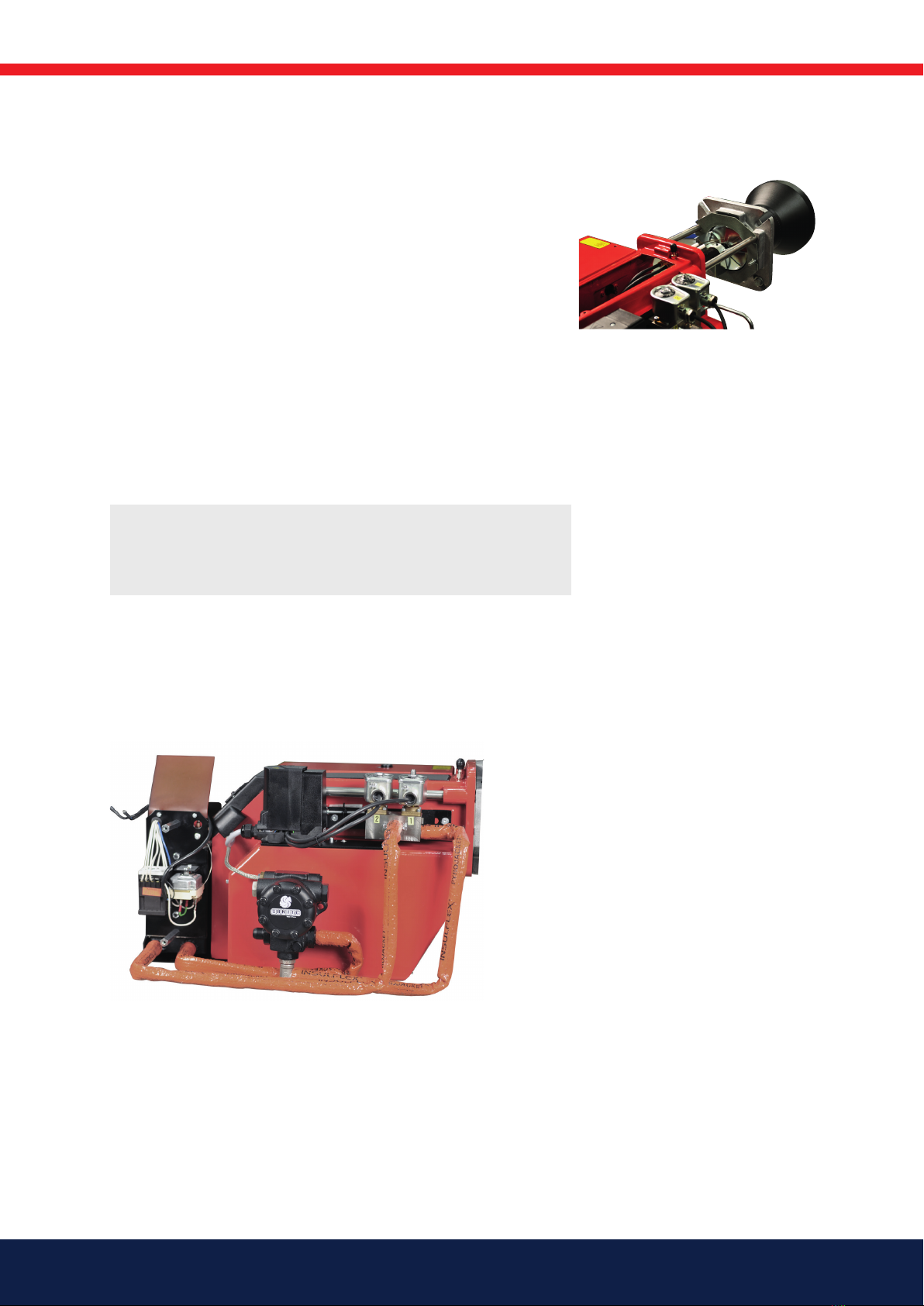

2.11 Components
1. Indicator lamp, preheater ON
2. Inspection glass
3. Immersion heater, pump
4. Fan housing
5. Nozzle assembly control
6. Scale, nozzle assembly control
7. Solenoid valve NO
8. Valve block
9. Burner tube
10. Cavity immersion heater valve block
11. Pressure outlet pump
12. Return pump
13. Pump
14. Pressure control pump
15. Inlet pump
16. Nozzle assembly
17. Brake plate
18. Nozzle
19. Cavity immersion heater nozzle holder
20. Preheater

13Bentone
39
38
40
37 3536
33 34
41
16
28 29 30 31 32
21. Fan wheel
22. Measuring nipple, fan pressure
23. Burner  ange
24. Connecting pipe, valve block return
25. Damper motor
26. Connecting pipe, preheater valve block
27. Connecting pipe, pump preheater
28. Ignition electrodes
29. Spring pressure piston
30. Preheater
31. Valve seat
32. Front nozzle holder
33. Relay box
34. 7-pole Europlug (feed)
35. 5-pole Euro plug (feed preheater)
36. 4-pole Euro plug (control signal preheater)
37. Capacitor
38. Motor
39. Air intake
40. Ignition transformer
41. Air damper

14 Bentone
165 205 75-2
3. Electric equipment
3.1 Safety system
The safety system (safety switch for hatches, doors, water level, pressure,
temperature and other safety devices) must be installed in the safety circuit in
accordance with current regulations for the system.
The cables of the safety system must be separated so that the outgoing signal
is not placed in the same cable as the incoming signal.§
3.2 Wiring diagram
Bn Brown
Bu Blue
Gn Green
Ye Yellow
Gn/Ye Green/Yellow
Bk Black
Gy Grey
Rd Red
Wh White
Og Orange
Vt Violet
E106301

15Bentone
3.2.1 Components
A1 Burner control
B1 Photoresistor
E1 Preheater
F1 Operating fuse
H1 Lamp, low capacity
H4 indication preheater
K4 Directional relay
M1 Motor
S3 Control thermostat
S4 Temperature limiter
S5 Micro switch for hinged door
S7 Main switch
T1 Ignition transformer
X3 Plug-in contact, burner
X4 Plug-in contact, boiler
X29 3-phase supply heater, burner
X30 3-phase supply preheater, boiler
X31 Preheater control, burner
X32 Preheater control, boiler
V1 Element 1
V2 Element 2
V3 Element 3
V4 Element 4
3.3 Function LMO14/24
1 Switch on operating switch and twin thermostat
A spark is formed. The air damper motor opens the damper to low load
position. The burner motor starts, the prepurge goes on till the prepurge
period expires and the solenoid valve 1 opens (2).
2. Solenoid valve 1 opens
Oil mist is formed and ignited. The photocell indicates a ame. The
ignition spark goes out after ame indication (See Technical data oil
burner control).
3.
a
b
The safety time expires
If no ame is established before this time limit the control cuts out.
If for some reasons the ame disappears after this time limit, the burner
will make an attempt to re-start.
4 High/Low thermostat ON
The burner is in operating position and can now change between full load
and low load.
4-5 Operating position
If the burner operation is interrupted by means of the main switch or the
thermostat, a new start takes place when the conditions in accordance
with point 1 are fullled.
The oil burner control cuts out
A red lamp in the control is lit. Press the reset button and the burner
re-starts.
Svart
-
+
QRB
12
11
Black Schwarz Noir
A1
DC μA
!Mains connection and fuse
in accordance with local
regulations.
3.3.1 Technical data
LMO14.113... LMO24.255...
15 s 25 s
16 s 26 s
3 s 5 s
< 10 s < 5 s
< 1 s < 1 s
< 1 s < 1 s
-5 - +60°C -20 - +60°C
45 µA dc 45 µA dc
5.5 µA dc 5.5 µA dc
160303-333
Preiginition time
Prepurge time
Postignition time
Safety lockout time
Reset time after lockout
Reaction time on  ame failure
Ambient temperature
Min detector current required (with  ame)
Max perm. detector current (without  ame)

16 Bentone
3.4 Colour codes LMO14/24
When the burner starts, the light in the reset switch indicates the normal
sequence, and also indicates whether something abnormal is happening as
per the following table:
Preheater in operation Solid yellow
Ignition switched on Flashing yellow
Normal operation Solid green
Operation, poor ame signal Flashing green
Undervoltage Flashing yellow-red
Fault, alarm Solid red
False light Flashing red-green
Communication mode Fluttering red
3.5 Fault codes LMO14/24
When the red light for a blocked relay box comes on, you can get information
about what has caused the problem by pressing and holding the reset button
for 3 seconds.
The number of ashes below is repeated with a pause in between.
2 ashes No ame signal when safety time expires
4 ashes False light during start
7 ashes 3 x Losses of ame during operation
8 ashes Time-out for preheater *
10 ashes Incorrect wiring, internal fault or simultaneous occurrence of two
faults
* In order for this fault code to occur, the preheater shall not reach its cut-off
temperature within 10 mins. from switch on.
To return to normal operation: Press the reset button for 1 second.
If the reset button is instead kept pressed a second time for at least 3 seconds,
you can, via an interface, obtain the corresponding information on a computer
or ue gas analyser.
To return to normal operation: Press the reset button for 1 second.

17Bentone
165 405 34
4. Installation
4.1 General instructions
Oil burners must be installed in accordance with local regulations. The installer
must therefore be knowledgeable of the regulations pertaining to oil and
combustion.
Only oil suitable for the burner must be used and then in combination with a
suitable oil lter installed before the burner’s oil pump.
If the burner is replacing an existing burner, ensure that the oil lter is
replaced or cleaned. Installation may only be performed by qualied
personnel.
Care should be taken by the installer to ensure that electrical cables and oil
lines are not pinched or otherwise damaged during installation or servicing.
4.2 Inspection and maintenance
The system must be maintained at the interval specied in the service
schedule. If the burner is in a dirty environment, service should be done at
more frequent intervals.
4.3 Start-up
In order to obtain the correct setting, a ue gas analysis and temperature
measurement must be carried out. Otherwise, there is a risk of soot build up,
poor eciency or condensation in the chimney. The system must be ne-tuned
at start-up. The temperature in the chimney at a depth of 0.5 m must be at
least 60 °C to prevent condensation.
4.4 Delivery inspection
Make sure everything is delivered and the goods have not been damaged
during transit. If something is wrong with a delivery, report it to the supplier.
Transport damage must be reported to the shipping company.
4.5 Preparing for installation
Check that the burner’s dimensions and capacity range are suitable for the
relevant boiler. The power data on the rating plate refers to the burner’s
minimum and maximum power.

18 Bentone
!


4.6 Oil distribution
In order to achieve good reliability, it is important that the oil distribution
system is designed correctly.
Take the following into account:
• Selection of pipe diameter, pipe length and height difference; see
Pump instruction.
• Pipelines are to be laid with a minimal number of glands.
• The pipes are to be laid so that the oil supply hoses are not subjected
to tensile stresses or are excessively bent when the burner is swung
out or removed for service.
• The ½ ” oil lter should be installed so that the lter cartridge can
easily be replaced or cleaned. Self-cleaning lters are recommended
for oils of a higher viscosity or oils that contain signicant impurities.
• Oil-affected parts shall be selected in materials that are capable of
withstanding the medium’s physical properties.
• When installing oil hoses, check that the inlet and return hoses are
tted to the appropriate connection on the oil pump. The hoses shall
be located so that they do not bend or become subject to tensile load.
To the suction line on the pump (see paragraph 7.2 pos. 3) should the
supplied oil hose with 90° bend be connected.
• Bleed the oil system. The oil pump/oil preheater may be damaged
if run dry. The vacuum should not fall below 0 bar in the suction line
during start-up.
4.7 Electrical connection
Before work on the electrical connection, the current must be disconnected so
that the installation is isolated.

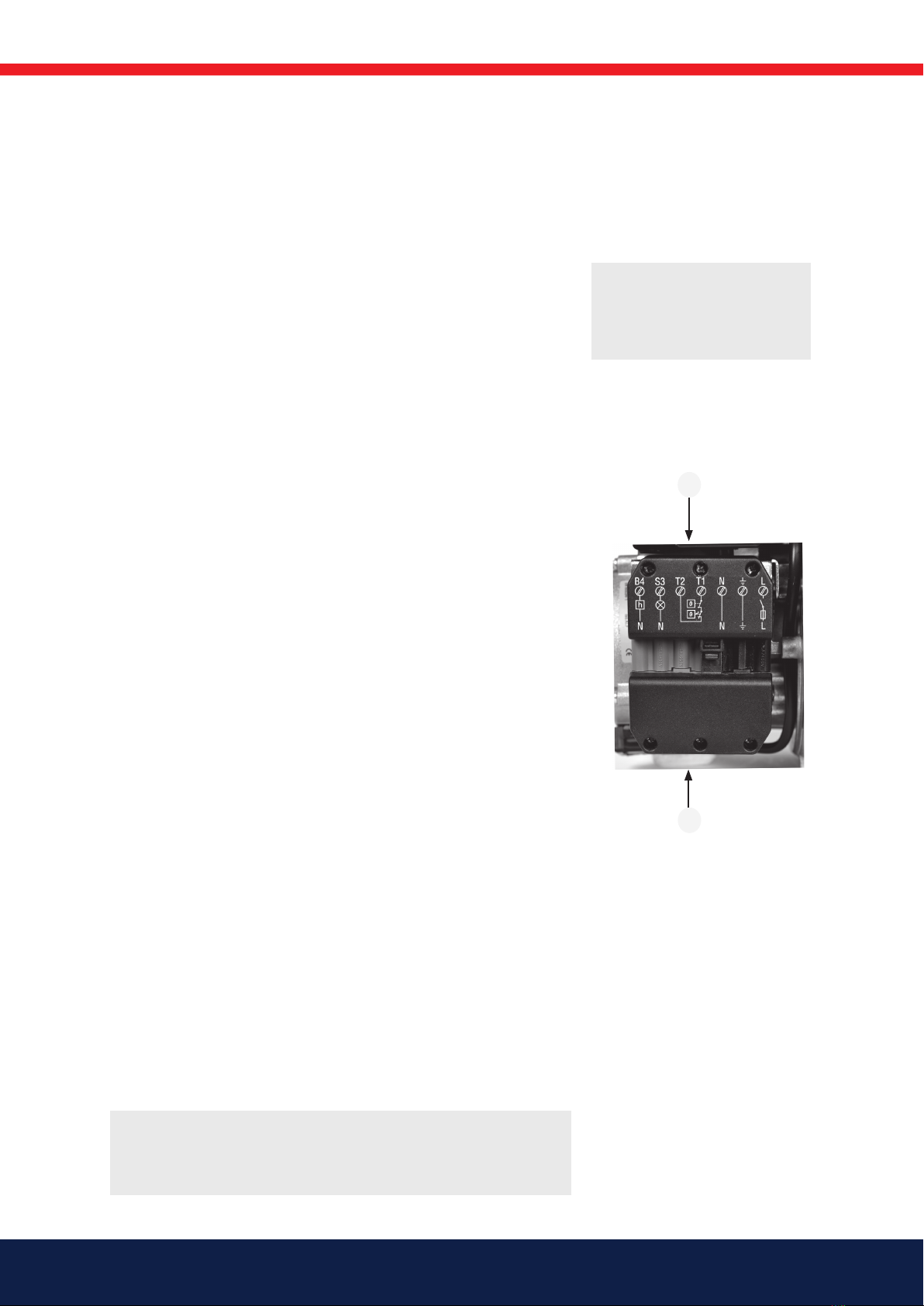

If the boiler has a 7-pole and a 4-pole Euro plug connector, they will usually
connect directly to the burner. Otherwise, use the supplied connectors. The
5-pole connector supplies the burner preheater with a separate 3-phase
supply. See connection under Electrical equipment.
1. Switch off the main switch.
2. Connect the Euro plugs, (see Electrical equipment).
3. Make sure the burner operations switch (S1) is off.
4. Turn on the main switch.
!

before starting it for the

X3
X4

19Bentone
5. Mounting
1. Remove fan housing from  xing  ange.
2. Remove the brake plate from the oil line.
3. Install the selected nozzles, (see Technical data).
4. Install the brake plate on the oil line.
5. Remove the  ame tube from the  ange.
6. Install the  ange with gasket on the boiler.
7. Install  ame tube, be sure to install the drainage hole downwards
(not available on all  ame tubes) so that any oil spills can drain out.
8. Insulate between  ame tube and boiler door for reduced heat
radiation.
9. Install the fan housing on the  ange and lock with nuts.
10. Connect oil lines to the pump.
11. Connect the burner electrically.
5.1 Check oil line seals
When the burner has been installed and put into operation, the tightness
of the various coupling elements should be checked, in case of leakage -
retighten the coupling elements.
!Because the burner tube must be installed from the inside the
boiler, it must be possible to open the boiler or have a hinged
 ange that is designed so that it can be reconnected with the
burner tube installed.
165 205 78-2

20 Bentone
1
5.1.1 Proposed pipe routing for oil distribution systems
without transport pump
This type of connection should be used only when the oil has a viscosity less
than 30 mm²/s.
1. Self-cleaning  lter
1. Transport oil  lter
2. Basket  lter
3. Over ow valve 0.5 – 2.0 bar
4. Seal  lter
5. Pressure gauge 1
6. Pressure gauge 2
3
2
1 Transport oil pump / Transportoljepump
4
5
6
1
5.1.2 Proposed pipe routing for oil distribution systems
with transport pump, basket  lter and seal  lter
