Bentone B45A 2.2 Technical specifications

Providing sustainable energy solutions worldwide
178 108 56-1 2019-08-28
Installation- and maintenance instruction
B45A 2.2

2Bentone
example Beispielexempel

3Bentone
General
Table of contents
1. General Information _____________________________________________ 4
2. Technical data B 45A 2,2 _________________________________________ 7
2.1 Dimensions B 45_____________________________________________ 7
2.2 Working field B 45____________________________________________ 8
2.3 Setting of brake plate and air flow ______________________________ 9
2.4 Recommended nozzle and pressure ____________________________ 9
2.5 Burner installation ____________________________________________ 9
2.6 Nozzle table________________________________________________ 10
2.7 Description B 45A 2.2 _______________________________________ 12
3. General instructions ____________________________________________ 14
3.1 General rules _______________________________________________ 14
4. Installation ____________________________________________________ 15
4.1 Handling and lifting instruktion ________________________________ 15
4.2 Acceptance inspection_______________________________________ 16
4.3 Preparations for installation ___________________________________ 16
4.4 Distribution of oil ____________________________________________ 16
4.5 Electrical connection_________________________________________ 16
4.6 Mount the burner on the boiler ________________________________ 17
4.7 Check oil line seals __________________________________________ 17
4.8 Air adjustment with damper motor _____________________________ 18
5. Burner installation______________________________________________ 19
5.1 Examples of basic setting B 45A2,2____________________________ 19
6. Burner servicing _______________________________________________ 21
6.1 Servicing the combustion assembly ___________________________ 21
6.2 Servicing air dampers _______________________________________ 22
6.3 Replacement of damper motor ________________________________ 23
6.4 Servicing the fan ____________________________________________ 24
6.5 Replacement of oil pump_____________________________________ 25
6.6 Vibration___________________________________________________ 26
7. Instructions Pump _____________________________________________ 27
7.1 SUNTEC A2L 65C - 75C ____________________________________ 27
8. Replacement of electrical components ___________________________ 33
9. Oil burner control ______________________________________________ 34
9.1 Wiring diagram ____________________________________________ 34
9.2 List of components__________________________________________ 35
9.3 Colour codes LMO14/24 _____________________________________ 36
9.4 Fault codes LMO14/24 ______________________________________ 36
10. Fault Location _______________________________________________ 37
10.1 Burner will not start__________________________________________ 37
10.2 Burner will not start after normal use ___________________________ 37
10.3 Delayed ignition_____________________________________________ 38
10.4 Noise in pump ______________________________________________ 38
10.5 Pump pressure _____________________________________________ 38
11. Log of flue gas analysis_______________________________________ 39
12. Oil burners maintenance instructions __________________________ 40

4Bentone
1. General Information
This Installation and Maintenance manual:
• is to be regarded as part of the burner and must always be kept near
the installation site
• is intended for use by authorised personnel
• must be read prior to installation
• must be observed by all who work with the burner and associated
system components
• work with the burner may only be carried out by certified installers/
personnel
• Enertech AB is not liable for any typographical errors and reserves the
right to make design changes without prior notice.
• The burner may only be used for its intended purpose in accordance
with the product’s technical data.
• The burner may only be installed and operated by authorised
personnel.
• The product is packaged to prevent damage from occurring during
handling. Handle the product with care. Lifting equipment must be
used to lift larger packages.
• The products must be transported/stored on a level surface in a dry
environment, max. 80% relative humidity, no condensation.
Temperature -20 to +60 °C.
• Check that the burner is compatible with the boiler’s output range.
• The label information on the rating plate refers to the burner’s minimum
and maximum power.
• The power data on the type sign refers to the burner’s min. and max.
power.
• All components must be installed without being bent, twisted or
subjected to mechanical or thermal forces which can affect the
components.
• The burner must be installed so that it complies with local regulations
for fire safety, electrical safety, and fuel distribution.
• Make sure when installing the equipment that there is enough space to
service the burner.
• Permitted ambient temperature during operation -0 to +60 °C. Max
80% relative humidity, no condensation.
• The installer must ensure that the room has adequate air supply.
• The room must comply with local regulations pertaining to its intended
use.
• The installation site must be free of chemicals.
• Burner pipes, fan wheels and air dampers may contain sharp edges.
• The surface temperature of the burner’s components can exceed 60
°C.
• Caution: The burner has moving parts, and there is risk of crushing
injuries.
165 105 01

5Bentone
• The electrical installation must be professionally carried out in
accordance with applicable high voltage regulations, as per Enertech’s
recommendations.
• Before servicing, shut off the fuel supply and turn off the power to the
burner.
• Leak checks must be performed during installation and servicing to
prevent fuel leakage.
• Care should be taken by the installer to ensure that no electrical cables
or fuel lines are crushed or otherwise damaged during installation or
servicing.
• If the boiler is equipped with an access hatch, this must be equipped
with a hatch opening switch connected to the burner's safety system.
• When in operation, the burner’s noise level can exceed 85 dBA.
Use hearing protection.
• The burner must not be put into operation without proper safety and
protection devices.
• A Class BE fire extinguisher is recommended.
• It is forbidden to alter thedesign or use accessories which have not
been approved by Enertech in writing.
• Prior to operation, the following points must be checked:
-fitting and installation work has been completed and approved
-electrical installation has been correctly performed
-flue gas ducts and combustion air ducts are not blocked
-all actuators and control and safety devices are in working order and
correctly set

6Bentone
Components Service life – Recommended
replacement
Service life – Recommended
replacement Operating cycles
Control system 10 years 250,000 cycles
Pressure switch 10 years 250,000 cycles
Flame guard 10 years 250,000 cycles
UV flame sensor 10000 hrs N/A
Damper motor 500 000 cycles
Contaktor 10 years 500,000 cycles
Burner 1 year 3000 hrs
Filter 1 year 3000 h Change
Oilhose 1 year control/change
Nozzle 1 year change 3000h Change
Electrods 1 Year Change /cleaning 3000h Change /cleaning
Brake plate 1 Year Change /cleaning 3000h Change /cleaning
Motor 1 year 3000 hrs
Cuppling chaft 1 year control/change 3000h control/change
Fan wheel “1 Year Change when dirty /
unbalance”
“3000h Change when dirty /
unbalance”
The burner and its components must be recycled according to applicable regulations.
Burner servicing schedule
Servicing must be carried out once a year or after 3000 hours of operation
Component replacement intervals
Delivery check
• Make sure everything is delivered and the goods have not been
damaged during transit.
• If something is wrong with a delivery, report it to the supplier.
• Transport damage must be reported to the shipping company.

7Bentone
165 105 77
* Min. recommended distance to floor.
2. Technical data B 45A 2,2
The burner is intended for:
• Light oil, B10 heating oil/biofuel blend (as defined in DIN V51603-6)
and is used for:
• Water heating generators
• Hot air generators (these require LMO 24 255 C2E)
2.1 Dimensions B 45
A Ø B Ø C D E F G H I *J
B 45A2 240/340 159 134 480 252 328 335 262 515 200
H
IAD
øB
øC
E
G
F
*J

8Bentone

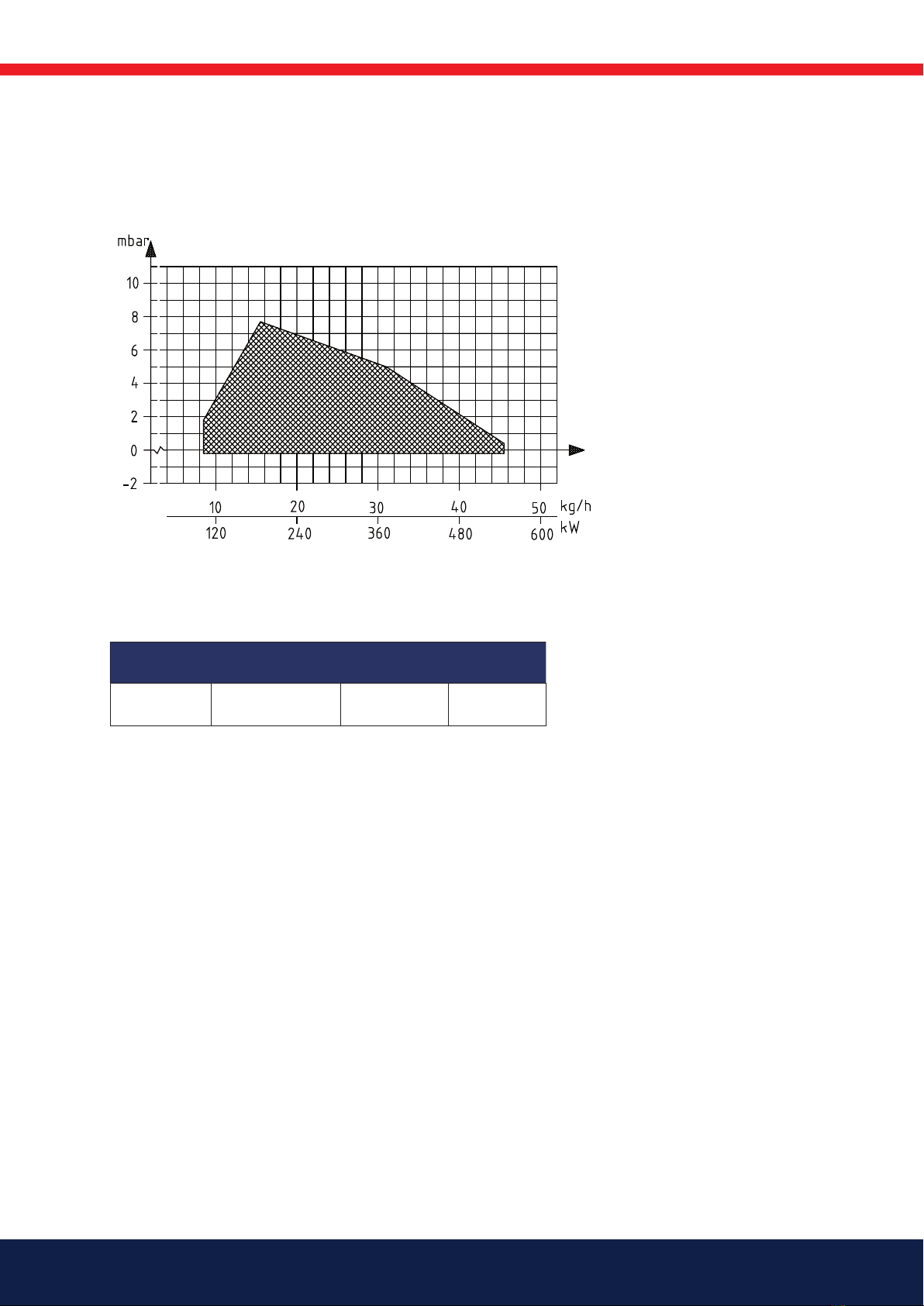

2.2 Working field B 45
8,5-45,5 kg/h
101-540 kW
2.2.1 Electric Specification
Burner correspond to IP 20
Type Motor Complete
burner
Sound
B 45 450W 230V
50/60Hz 10µF
230V 3,3 A
50Hz
84 dBA ± 0,5
dBA

9Bentone
2.4 Recommended nozzle and pressure
Nozzle: 45° Solid/semisolid
60° Solid/semisolid
80° Solid/semisolid
Pump pressure 10 bar (8-25 bar) depending on pump model
2.5 Burner installation

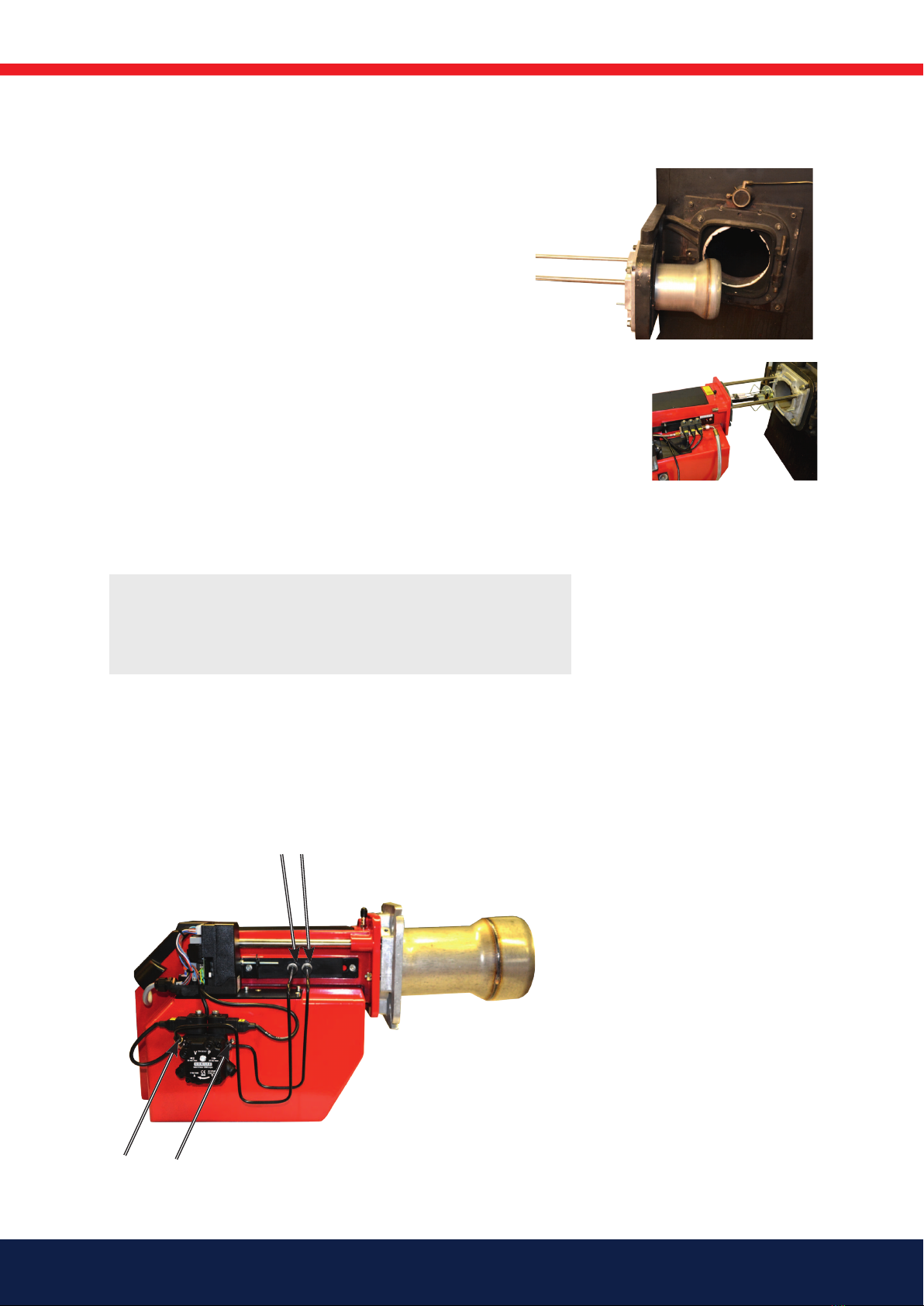

2.5.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner flange.
Combustion
device
d1d2d3
B 45A 2 ø (135) 165 M14 ø (200) 224-270
Because of the various boiler types with varying furnace geometries and
furnace loads, it is impossible to commit to a certain scattering angle or a
specific distribution pattern.
It should be noted that the scattering angle and distribution pattern changes
with pump pressure.
d1
d2
d3
!*NB It is important that
the spark does not strike
against the brake plate or
nozzle
2.3 Setting of brake plate and air flow
a b c d
B45A 2 3,5-4,0 7,0-9,0 2,0-3,0 5,0-6,0
D
A
B
C

10 Bentone
Pump pressure bar
The table applies to oil with a viscosity of 4.4 mm 2/s at a density of 830 kg/m 3..
Gph 9 11
kg/h kW Mcal/h kg/h kW Mcal/h
0,85 3,00 36 31 3,32 39 34
1,00 3,53 42 36 3,90 46 40
1,10 3,88 46 39 4,29 51 44
1,20 4,24 50 43 4,68 55 48
1,25 4,40 52 45 4,88 58 50
1,35 4,76 56 48 5,27 62 54
1,50 5,29 63 54 5,85 69 60
1,65 5,82 69 59 6,44 76 66
1,75 6,18 73 63 6,83 81 70
2,00 7,06 84 72 7,81 93 80
2,25 7,94 94 81 8,78 104 89
2,50 8,82 105 90 9,76 116 99
2,75 9,71 115 99 10,73 127 109
3,00 10,59 126 108 11,71 139 119
3,50 12,35 146 126 13,66 162 139
4,00 14,12 167 144 15,62 185 159
4,50 15,88 188 162 17,57 208 179
5,00 17,65 209 180 19,52 231 199
5,50 19,42 230 198 21,47 255 219
6,00 21,18 251 216 23,42 278 239
6,50 22,94 272 234 25,37 301 259
7,00 24,71 293 252 27,33 324 279
7,50 26,47 314 270 29,28 347 298
8,00 28,24 335 288 31,23 370 318
8,50 30,00 356 306 33,18 393 338
9,00 31,77 377 324 35,14 417 358
13
kg/h kW Mcal/h
3,61 43 37
4,24 50 43
4,67 55 48
5,09 60 52
5,30 63 54
5,73 68 58
6,36 75 65
7,00 83 71
7,42 88 76
8,49 101 86
9,55 113 97
10,61 126 108
11,67 138 119
12,73 151 130
14,85 176 151
16,97 201 173
19,10 226 195
21,22 251 216
23,34 277 238
25,46 302 260
27,58 327 281
29,70 352 303
31,83 377 324
33,95 403 346
36,07 428 368
38,19 453 389
15
kg/h kW Mcal/h
3,87 46 39
4,56 54 46
5,01 59 51
5,47 65 56
5,70 68 58
6,15 73 63
6,83 81 70
7,52 89 77
7,97 94 81
9,12 108 93
10,26 122 105
11,39 135 116
12,53 148 128
13,67 162 139
15,95 189 163
18,23 216 186
20,51 243 209
22,79 270 232
25,07 297 256
27,49 326 280
29,63 351 302
31,91 378 325
34,19 405 349
36,47 432 372
38,74 459 395
41,02 486 418
2.6 Nozzle table

11Bentone
Pump pressure bar
The table applies to oil with a viscosity of 4.4 mm 2/s at a density of 830 kg/m 3..
Gph 17 19 21 23 25
kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h
1,00 4.85 57 49 5,13 61 52 5,40 64 55 5,65 67 58 5,89 70 60
1,10 534 63 54 5,64 67 57 5,93 70 60 6,21 74 63 6,47 77 66
1,20 5,82 69 59 6,16 73 63 6,47 77 66 6,77 80 69 7,06 84 72
1,25 6,07 72 62 6,41 76 65 6,74 80 69 7,05 84 72 7,35 87 75
1,35 6,55 78 67 6,93 82 71 7,28 86 74 7,62 90 78 7,94 94 81
1,50 7,27 86 74 7,69 91 78 8,08 96 82 8,46 100 86 8,82 105 90
1,65 8,01 95 82 8,47 100 86 8,90 105 91 9,31 110 95 9,71 115 99
1,75 8,49 101 87 8,98 106 92 9,44 112 96 9,88 117 101 10,30 122 105
2,00 9,71 115 99 10,26 122 105 10,79 128 110 11,29 134 115 11,77 140 120
2,25 10,92 130 111 11,55 137 118 12,14 144 124 12,70 151 129 13,25 157 135
2,50 12,13 144 124 12,83 152 131 13,49 160 138 14,12 167 144 14,72 175 150
2,75 13,35 158 136 14,11 167 144 14,84 176 151 15,53 184 158 16,19 192 165
3,00 14,56 173 148 15,39 182 157 16,18 192 165 16,93 201 173 17,65 209 180
3,50 16,99 201 173 17,96 213 183 18,89 224 193 19,77 234 202 20,61 244 210
4,00 19,42 230 198 20,53 243 209 21,59 256 220 22,59 268 230 23,56 279 240
4,50 21,84 259 223 23,09 274 235 24,28 288 248 25,41 301 259 26,49 314 270
5,00 24,27 288 247 25,65 304 262 26,98 320 275 28,24 335 288 29,44 349 300
5,50 26,70 317 272 28,22 335 288 29,68 352 303 31,06 368 317 32,38 384 330
6,00 29,13 345 292 30,79 365 314 32,38 384 330 33,89 402 346 35,33 419 360
6,50 31,55 374 322 33,35 395 340 35,07 416 358 36,70 435 374 38,26 454 390
7,00 33,98 403 347 35,92 426 366 37,77 448 385 39,53 469 403 41,21 489 420
7,50 36,41 432 371 38,49 456 392 40,47 480 413 42,35 504 434 44,16 524 450
8,00 38,80 460 396 41,05 487 419 43,17 512 440 45,18 536 461 47,10 559 480
8,50 41,26 489 421 43,62 517 445 45,87 544 468 48,00 569 489 50,05 594 510
9,00 43,69 518 446 46,18 548 471 48,57 576 495 50,83 603 518 52,99 628 540
9,50 46,11 547 470 48,75 578 497 51,26 608 523 53,65 636 547 55,93 663 570
10,00 47,11 559 480 51,32 609 523 53,96 640 550 56,47 670 576 58,88 698 600
11,00 53,40 633 545 56,45 669 576 59,36 704 605 62,12 737 633 64,77 768 660
12,00 58,25 691 594 61,58 730 628 64,76 768 660 67,77 804 691 70,66 838 721
14,00 67,96 806 693 71,84 852 733 75,55 896 770 79,09 938 806 82,43 978 841
16,00 77,67 921 792 82,11 974 837 86,34 1024 880 90,36 1072 921 94,20 1117 961

12 Bentone

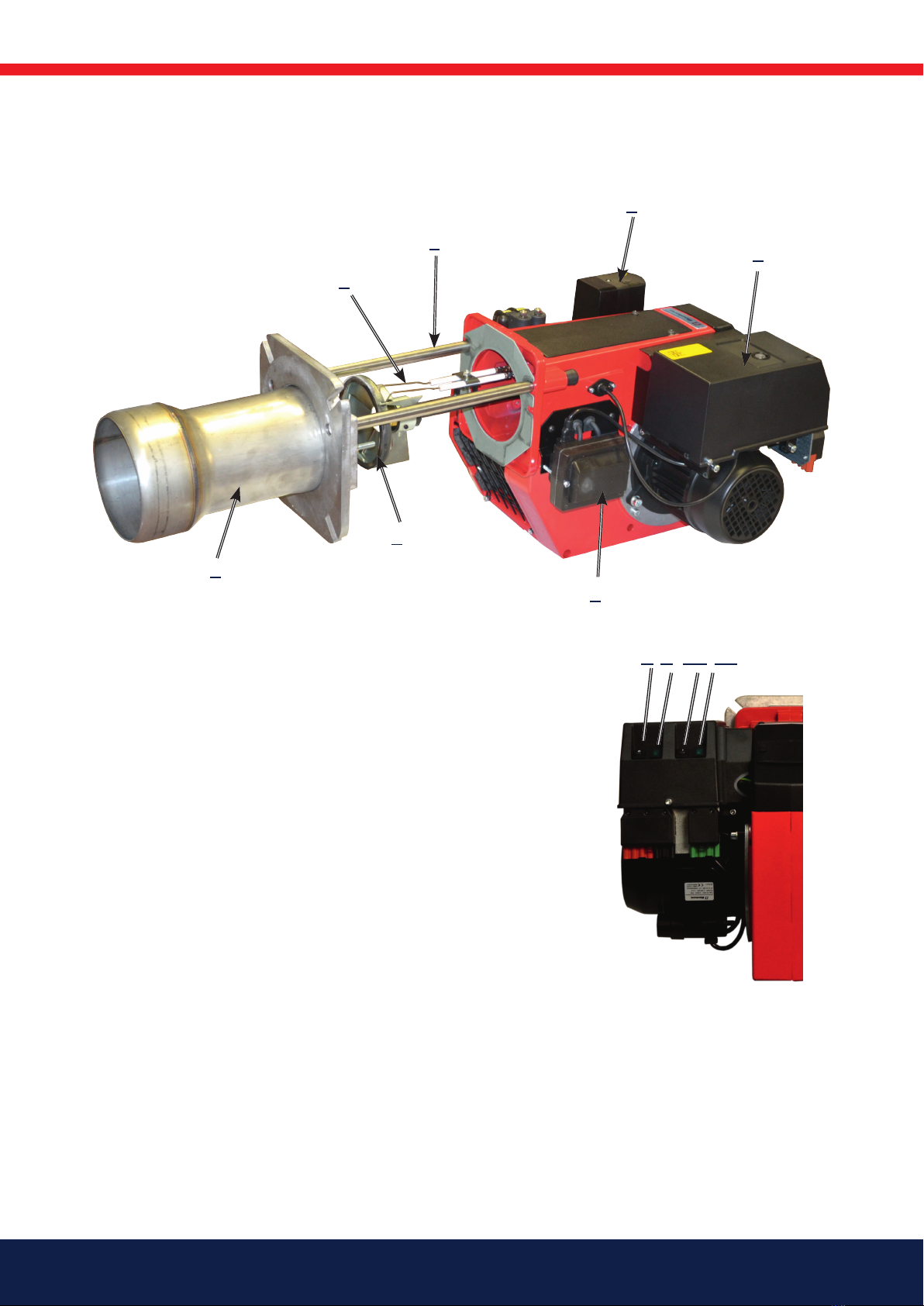

2.7 Description B 45A 2.2
8 9 10 11
3
2
1
4
7
6
5
1. Blast tube
2. Brake plate
3. Ignition electrodes
4. Gejder
5. Damper motor
6. Electric box
7. Ignition transformer
8. Switch I-0
9. Indicator lamp Stage 1
10. Switch I-II
11. Indicator lamp Stage 2
12. Valve Stage 1
13. Valve Stage 2
14. Fan wheel
15. Nozzle
16. Pump
17. Air intake
18. Air damper
19. Safety valve

13Bentone
17
18
15
16
14
13
12
19

14 Bentone
165 105 65
3. General instructions
3.1 General rules
The installation of an oil burner should be carried out in accordance with
local regulations. The installer of the burner must therefore be aware of all
regulations relating to oil and combustion.
Only oil suitable for the burner should be used and then in combination with
a suitable oil filter before the oil pump of the burner.
If the burner is replacing an existing burner make sure that the oil filter
is replaced or cleaned. The installation must only be undertaken by
experienced personnel. Care should be taken by the installer to ensure
that no electrical cables or fuel/gas pipes are trapped or damaged during
installation or service/maintenance.
3.1.1 Installation and maintenance instructions
The maintenance instructions supplied with the burner must be kept at an
easily accessible location in the boiler room.
3.1.2 Instructions
The user must be receive detailed instructions concerning the functionality
of the oil burner and entire system. It is the responsibility of the supplier to
provide the user with instructions.
3.1.3 Inspection and maintenance
The boiler/burner should be examined regularly for any signs of malfunction
or oil leakage. (See service schedule)
3.1.4 Start up
In order to obtain the correct setting, a flue gas analysis and temperature
measurement must be carried out. Otherwise, there is a risk of soot build
up, poor efficiency or condensation precipitation in the chimney. The system
must be fine-tuned at start-up. The temperature in the chimney must be at
least 60 °C at 0.5 m down in the chimney to prevent condensation.

15Bentone
4. Installation
4.1 Handling and lifting instruktion
figure 1
!Option
The lifting aid we used here are
available as spare parts, Figure 1.

16 Bentone
4.2 Acceptance inspection
Make sure everything is delivered and the goods have not been damaged
during transit. If something is wrong with the delivery, report it to the supplier.
Transport damage must be reported to the shipping company.
4.3 Preparations for installation
Check that the burner’s dimensions and capacity range are suitable for the
boiler in question. The power data on the type sign refers to the burner’s min.
and max. power.
4.4 Distribution of oil
In order to achieve good reliability, it is important that the oil distribution
system is designed correctly.
Take the following into account:
-Selection of pipe diameter, pipe length and height difference; see
Pump instruction.
-Pipelines are to be laid with a minimal number of glands.
-The pipes are to be laid so that the oil supply hoses are not subjected
to tensile stresses or are excessively bent when the burner is swung
out or removed for service.
-The oil filter should be installed so that the filter cartridge can easily be
replaced or cleaned. Self-cleaning filters are recommended for oils of
a higher viscosity or oils that contain significant impurities.
-Oil-affected parts shall be selected in materials that are capable of
withstanding the medium’s physical properties.
-When installing oil hoses, check that the inlet and return hoses are fit-
ted to the appropriate connection on the oil pump. The hoses shall be
located so that they do not bend or become subject to tensile load.
-Bleed the oil system. The oil pump/oil preheater may be damaged if
run dry. The vacuum should not fall below 0.3 bar in the suction line
during start-up.
!Be sure to fill the
burner oil system
before starting it for
the first time.
!If any electrical connection is used other than that recommended by Bentone, there may be a danger of
damage to property and personal injury.
4.5 Electrical connection
• Before work on the electrical connection, the current should be disconnected so that the installation
is isolated.
• Electrical connection must be done in accordance with the applicable regulations.
• Burners should be connected to an isolator switch.
• The connection should be made in accordance with the wiring diagram.
• Fuse rating is as required
!The oil filter must
be installed befo-
re the burner’s oil
pump.

17Bentone
165 105 78
4.6 Mount the burner on the boiler
1. Separate the burner body and the flange.
2. Remove the brake disc from the oil pipe.
3. Install the selected nozzle. (See Technical data)
4. Install the brake disc on the oil pipe
5. Remove the burner pipe from the flange.
6. Install the flange with gasket on the boiler.
7. Install the burner pipe on the flange. Make sure that the holes in the
front edge of the burner pipe are pointing down (not on all burner
pipes). This allows any drops of oil to run out.
8. Insulate between the burner and boiler door to reduce radiated heat.
9. Install the burner body on the flange.
10. Lock the burner body using with the nut/nuts.
11. Connect the oil pipes to the pump, refer to the chapter - servicing of
burners
12. Connect the burner electrically, refer to the chapter - servicing of
burners
!If the burner tube must be installed from the inside of the boiler,
this means that the boiler must be opened or have a spectacle
flange that is designed so that it can be reconnected with the
burner tube mounted.
AA
A
4.7 Check oil line seals
Once the burner has been installed and commissioned, the seals of the
various coupling elements should be checked (A).
When a leak is detected, it is usually sufficient to tighten the coupling element
that is leaking.

18 Bentone
165 105 05

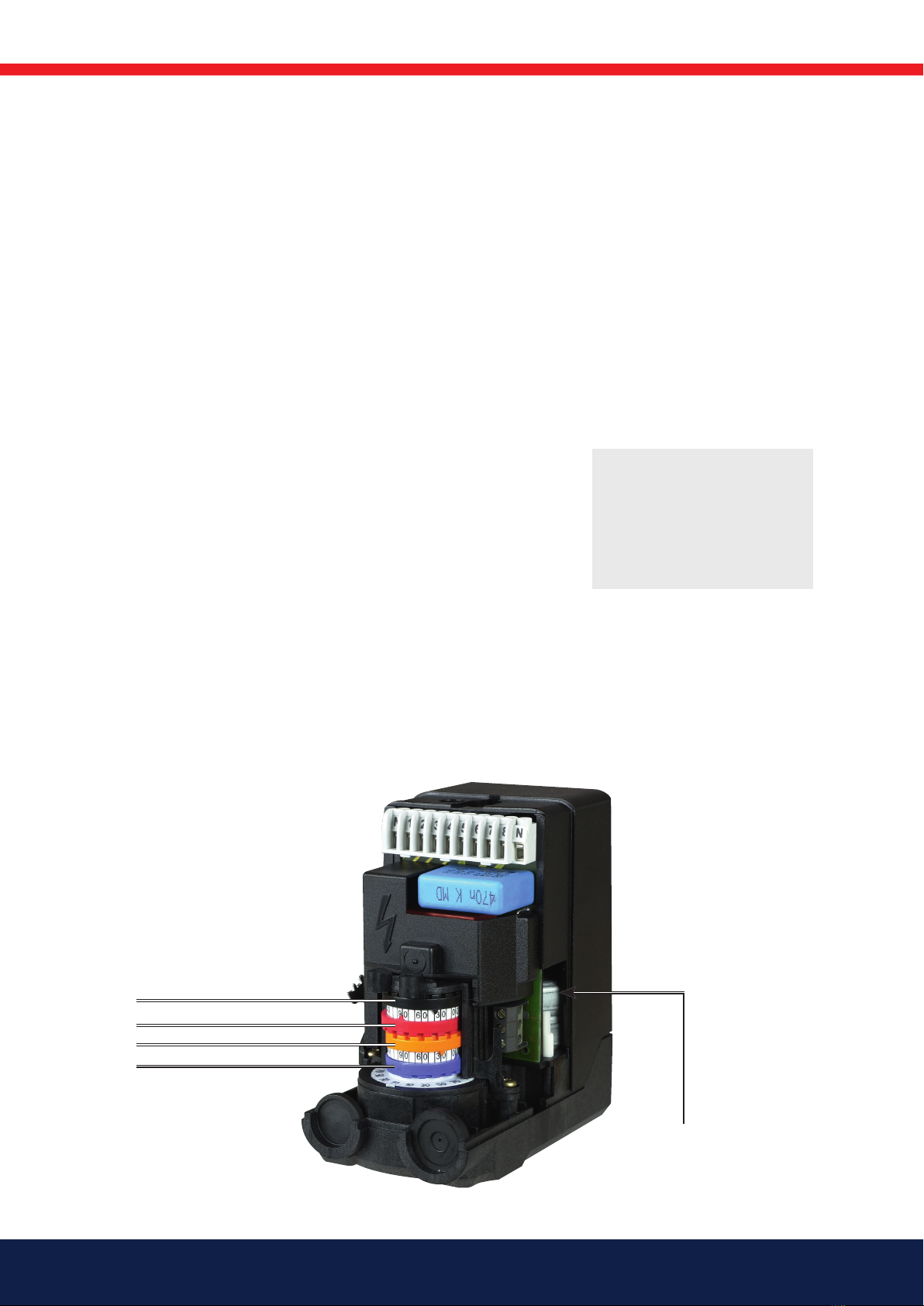

4.8 Air adjustment with damper motor
4.8.1 Air setting
The damper motor turns the damper between 3 preset positions: fully
closed, low capacity and high capa-city. These positions are controlled in
the motor by cams which are set by means of the coloured disks. In addition
there is a black disk controlling the connection of solenoid valve 2.
If the air volume needs changing: Remove the cover from the damper motor
and change the position of the cams by turning them by hand. See fig
Low capacity:
Adjust the operating switch to high capacity (II).
-Reduce the air volume:
Turn orange cam towards 0°.
-Increase the air volume:
Turn orange cam towards 90°.
Adjust the operating switch back to low capacity and check.
Full capacity:
Adjust the operating switch to low capacity (I).
-Reduce the air volume:
Turn red cam towards 0°.
-Increase the air volume:
Turn red cam towards 90°
If the red cam is moved, the black one must also be moved.
Reset the control switch to High Load and make sure the correct air quantity
is reached.
Releasing button:
By pressing the button and
snapping it down, the motor will be
released and the damper can easily
be turned. This function facilitates an
exchange of damper motor.
!The blue cam is
the limit position for
fully closed damper
and it is normally
not necessary to
change it
Releasing button
N.B. The upper position is the
standard position
Solenoid valve High capacity (black)
High capacity (red)
Low capacity (orange)
Closed damper (blue)

19Bentone
165 105 63
5. Burner installation
Burner output 400kW
Estimated nozzle output 400 kW/11,86 kWh/kg*= 33,8 kg/h
Nozzle selection in accordance with the table. (See technical data) Nozzle
selection is based on the selected pump pressure and the desired effect.
According to the nozzle table, this provides the following nozzle.
Selected pump
pressure
10,0 bar
Nozzle 9,00 gph 9,00 gph distributed to two nozzles,
e.g. 6.0 gph at stage-1 and 3,0 gph at
stage-2
Basic settings should only be seen as setting values to get burner to start
and establish a flame. Once the burner has started and established a flame,
it will be necessary to adjust the settings so that they are adapted to the
installation in question and the fuel used at the time.
Basic settings
The setting value for 400 kW in accordance with basic setting tables. For the
correct procedure when implementing settings, see below Nozzle assembly
control, brake plate B 45-2. Air setting see below.
5.1 Examples of basic setting B 45A2,2
Nozzle B45-2
Burner output 400 kW
400 / 11,86 = 33,8 kg/h 10bar
According to the nozzle table, this provides the following nozzle.
Step 1 6,00 Gph = 265kW
Step 2 3,00 Gph = 132kW
Basic setting B45-2
The values are available in the tables for setting values of inserts or air
dampers.
Insert 400kW = 22
Low load air damper, orange =55°
MV2 Open, black =65°
Air damper step 2, red =80°
These are the default settings and controlling the combustion will take place
during operation.
Selection of power and connection between the different power stages must
be selected and adjusted so that the system achieves good functionality

20 Bentone
Prior to commissioning, the basic settings of the burner can be set
in accordance with the diagram. See under Basic settings Note that
it is simply a matter of a basic setting that should be adjusted
retrospectively once the burner has started. A flue gas analysis and
soot quantity measurement must be carried out when fine-tuning the burner.
Recomended exsess air
Grade of Oil Excess air flue gases Max. % CO2
% O2% CO2Lambda 1.2
Light oil, B10 heating oil/
biofuel blend (as defined in
DIN V51603-6)
3–5 ≈12,5 15,4
