Beretta BREVA IN 9000 User guide

Installer manual
BREVA IN
EN

BREVA IN
2
Dear Technician,
We would like to congratulate you on having recommended a unit: a modern product that is capable of ensuring maximum comfort at
length, with a high degree of reliability, efficiency, quality and safety.
While your technical skills and knowledge will certainly be more than sufficient, this booklet contains all the information that we have deemed
necessary for the device's correct and easy installation.
Thank you again, and keep up the good work.
BERETTA
Compliance
BREVA IN heat pumps are compliant with the following European Directives:
–Low Voltage Directive 2014/35/EU
–Electromagnetic Compatibility Directive 2014/30/EU
–RoHS Directive 2011/65/EU
–ErP Directive 2009/125/EC and Regulation 2012/206/EC
–WEEE Directive 2012/19/EU
–F-Gas Regulation 2014/517/EU
Range
model Code
BREVA IN 9000 20171580
BREVA IN 12000 20171582
BREVA IN 18000 20171584
BREVA IN 24000 20177623

BREVA IN
3
TABLE OF CONTENTS
1 GENERAL INFORMATION..................................
1.1 General Notices..............................................................
1.2 Safety precautions..........................................................
1.3 Unit description...............................................................
1.4 Safety and adjustment devices......................................
1.5 Identification....................................................................
1.6 Layout.............................................................................
1.7 Technical specifications..................................................
1.8 Cooling circuit.................................................................
2 INSTALLATION....................................................
2.1 Receiving the product.....................................................
2.2 Labels positioning...........................................................
2.3 Dimensions and weight..................................................
2.4 Storage...........................................................................
2.5 Handling and removal of the packing.............................
2.6 Place of installation.........................................................
2.7 Recommended distances...............................................
2.8 Installation on old systems or systems in need of.........
upgrading.......................................................................
2.9 Positioning......................................................................
2.10 Condensate discharge position......................................
2.11 Refrigerating connection................................................
2.12 Condensate discharge connection.................................
2.13 wiring diagram................................................................
2.14 Electrical connection.......................................................
2.15 Remote control...............................................................
2.16 Unit display.....................................................................
3 COMMISSIONING AND MAINTENANCE...........
3.1 Preparation for first commissioning................................
3.2 Putting into service.........................................................
3.3 Temporary shutdown......................................................
3.4 Stop for an extended period of time...............................
3.5 Ordinary maintenance....................................................
3.6 Extraordinary maintenance............................................
3.7 Alarms.............................................................................
The following symbols are used on the product:
The R32 refrigerant gas is slightly inflammable and
odourless. Avoid proximity to sources of ignition in con-
tinuous operation (open flames, gas household appliances,
electric stoves, lit cigarettes, etc).
For more information, see the installation and technical
service instructions.
Before performing maintenance and service tasks, read the
installation and technical service instructions.
Before the installation, read the installation and technical
service instructions.
The following symbols are used in this publication:
WARNING = actions requiring special care and appropriate
training.
DO NOT = actions that MUST ON NO ACCOUNT be carried
out. This booklet cod. 0097012_EN rev.1 (09/2021) consists of pages.
4
4
4
4
4
6
6
7
7
8
8
8
8
9
9
9
10
10
10
12
12
15
17
17
18
20
21
21
22
22
22
23
24
24
25

1 | General information
4
1General information
1.1 General Notices
When you get the product, check immediately that the contents are
all present and undamaged. Contact the dealer if you
notice any problems.
The product' s installation must be carried out by an authorised
company that will issue a declaration of the installation's
conformity to the product's owner once the work has been
completed, indicating that the work has been carried out in
accordance with the standards of good practice, current National
and Local regulations, and the indications provided by in
the instruction booklet accompanying the device.
The R32 refrigerant gas is slightly inflammable and odourless.
Carefully read the safety data sheet available from the dealer and
see table .
The product must be used for its intended purpose, as stated by
for which it has been expressly manufactured.
shall bear no responsibility, whether of a contractual or
non-contractual nature, for any damage caused to people,
animals, or property due to incorrect installation, adjustments, or
maintenance, or improper use.
Suitable clothing, instrumentation, and accident-prevention devices
must be utilized during the installation and/or maintenance
operations. shall bear no responsibility for any failure to
comply with current safety and accident-prevention regulations.
During installation and/or service operations, keep the area around
the unit tidy and clean.
Comply with the legislation in force on the country of deployment
with regard to the use and disposal of packaging, of cleaning and
maintenance products and for the management of the unit's
decommissioning.
Any repair and maintenance interventions must be carried out by
Technical Support Service, in accordance with the
provisions contained in this publication. Do not modify or tamper
with the unit as dangerous situations may arise and the unit
manufacturer will not be liable for any damage caused.
In the event of any functional anomalies or fluid leaks, set the
system's main switch to its "off" position. Promptly contact your
local Technical Support Service, and do not perform any
interventions upon the device on your own.
The units contain refrigerant gas: operate carefully so as to avoid
damaging the gas circuit and the fin bank.
Any gas leaks indoors can generate toxic gases if they come into
contact with naked flames or high temperature bodies, in case of
leaks, please air the rooms thoroughly.
Do not place any inflammable object (spray cans) within a 1 metre
radius from the air expulsion.
According to EU Regulation no. 517/2014 regarding certain
fluorinated greenhouse gases, the total amount of refrigerant
contained within the installed system must be indicated. This
information can be found on the unit technical data plate.
This unit contains fluorinated greenhouse gases covered by the
Kyoto protocol. Maintenance and disposal activities must be
carried out exclusively by skilled personnel.
This booklet is an integral part of the device, and must therefore be
carefully preserved, and must ALWAYS accompany it, even in the
event that it is sold to another Owner or User, or is transferred to
another system. If it is damaged or lost, another copy can be
requested to Technical Support Service in your Area.
1.2 Safety precautions
It should be noted that the use of products that utilize electric energy
requires certain essential safety regulations to be respected, including
the following:
Do not allow children or unassisted disabled people to use the unit.
Do not touch the unit while barefoot and/or partially wet.
Do not spray or throw water directly on the unit.
It is strictly forbidden to touch the coil fins, the moving parts, to
place any body parts between them, or to insert pointy objects into
the grilles.
It is forbidden to perform any technical interventions or cleaning
operations before having disconnected the device from its
electrical power supply, by setting the system's main switch to its
"OFF" position.
It is forbidden to modify the safety or regulation devices without the
authorisation of the manufacturer.
Do not pull, detach or twist the electrical wires coming out of the
unit, even when the unit is disconnected from the power grid.
The packing material must not be disposed of in the surrounding
environment and must be kept out of children reach, as it can be
dangerous. It must be disposed of according to the regulations in
force.
1.3 Unit description
BREVA IN is an indoor unit for ceiling installation, suitable for
use in residential and light commercial premises in combination with
the outdoor unit. The multiple-speed fan DC motor improves
performance and sound comfort.
Control, regulation and programming of the unit are carried out by
means of the infra-red remote control, whose functions and use are
detailed in the user manual.
1.4 Safety and adjustment devices
The device safety and setting are achieved thanks to
–heat exchanger temperature sensor transmitting the detected
value to the control panel, which is trigged in case of abnormal
temperature with regard to the operating mode
–room air temperature sensor transmitting the detected value to
the control panel in order to control the operation of the outdoor
unit and regulate the room temperature
Safety device replacement must be carried out by
Technical Support Service, using only original components.
Please refer to the spare parts catalogue.
IT IS FORBIDDEN to operate the device with faulty safety
systems.

1 | General information
5

1 | General information
6
1.5 Identification
The unit can be identified through the technical data plate:
Technical data plate
Contains the device's technical and performance data.
The tampering, removal, or absence of the identification plates will
not allow the product to be properly identified by its serial number.
1.6 Layout
1Air intake 4Front panel 7Motor-driven deflectors
2Metal cabinet 5Air filter 8Remote control
3Air outlet 6Electric panel cover

1 | General information
7
1.7 Technical specifications
model 9000 12000 18000 24000
Electrical characteristics
Power supply V/Ph/Hz 230/1/50 230/1/50 230/1/50 230/1/50
Protection factor IPX0 IPX0 IPX0 IPX0
Fan
Quantity no. 1 1 1 1
Nominal power input kW 0,02 0,02 0,04 0,04
Nominal current consumption A 0,10 0,10 0,20 0,20
Maximum air flow m³/h 500 550 900 1200
Medium air flow m³/h 400 450 800 1000
Minimum air flow m³/h 350 400 600 850
Superminimum air flow m³/h 250 250 400 750
Maximum speed Rpm 1150 1200 1050 1100
Medium speed Rpm 1000 1050 900 950
Minimum speed Rpm 850 900 750 800
Super minimum speed Rpm 650 650 610 700
Cooling sound levels
Superminimum sound pressure dB(A) 20 21 28 30
Minimum sound pressure dB(A) 28 29 35 37
Medium sound pressure dB(A) 32 33 40 43
Maximum sound pressure dB(A) 37 38 44 47
Maximum sound power dB(A) 53 55 57 60
Heating sound levels
Superminimum sound pressure dB(A) 20 21 28 30
Minimum sound pressure dB(A) 28 29 35 37
Medium sound pressure dB(A) 32 33 40 43
Maximum sound pressure dB(A) 37 38 44 47
Maximum sound power dB(A) 53 55 57 60
Performance data are indicated in the matching outdoor unit manual.
1.8 Cooling circuit
AOutdoor unit 2Room air probe 5Electric fan
BIndoor unit 3Heat exchanger 6Connection pipes
1Refrigerant connections 4Heat exchanger sensor

2 | Installation
8
2Installation
Ensure that the installation and operation sites are properly
ventilated in order to disperse any gas leaks that could cause
flames during activities with intense heat generation and high
temperature.
Avoid proximity to sources of ignition in continuous operation (open
flames, gas household appliances, electric stoves, lit cigarettes,
etc).
Use equipment suitable for the system refrigerant.
Use an electronic leak finder properly calibrated for the system
refrigerant.
It is forbidden to use leak finders with halogen lamps.
2.1 Receiving the product
BREVA IN is supplied in a single pack, protected by a
cardboard box and by polystyrene elements.
The following material is placed inside the packaging, below the unit
Document envelope:
–Instruction's book for the installer and for the Technical Service
in Italian
–Instruction's book for the installer and for the Technical Service
in English
–user instruction booklet in Italian
–user instruction booklet in English
–Warranty/Spare parts labels.
–contact sheets
It is also supplied as kit:
–Remote control
–no. 2 AAA batteries
–support for remote control
–no. 2 screws for remote control support
–no. 1 antibacterial filter (green)
–no. 1 photocatalytic filter (black)
–no. 10 screws and anchor bolts
–flare nut for liquid pipe
–flare nut for gas pipe
–protective insert for gas passageway hole
–condensate discharge pipe
The Instruction book comes with the equipment and it should be
taken, read and kept carefully.
The document envelope must be kept in a safe place. Any
duplicate must be requested from BERETTA which reserves to
charge the cost.
2.2 Labels positioning
APackage label
2.3 Dimensions and weight
model 9000 12000 18000 24000
Packaging dimensions
h mm 355 355 403 418
L mm 909 909 1085 1206
P mm 279 279 329 342
Weight kg 10,50 10,50 14,40 17,50
model 9000 12000 18000 24000
Product dimensions
h mm 280 280 318 335
L mm 820 820 1008 1125
P mm 195 195 225 240
Weight kg 8,40 8,40 11,60 14

2 | Installation
9
2.4 Storage
The product must be stored of according to the regulations in
force.
2.5 Handling and removal of the packing
Before unpacking, personal protective clothing should be worn and
used transport means and tools suitable for the size and weight of
the unit.
The product can be handled manually.
1Handles
1Document envelope and material supplied as kit
2Polystyrene elements
Follow the below instructions for packing removal and product handling:
–transport the equipment in the installation place
–open the cardboard packaging
–remove the document envelope
–take out the device by lifting it up
–remove the polystyrene elements
–remove the polyethylene bag
In manual operation it is compulsory to respect always the
maximum weight per person provided for by the national laws and
standards.
Handle with care
The packing material must not be disposed of in the surrounding
environment and must be kept out of children reach, as it can be
dangerous. It must be disposed of according to the regulations in
force.
2.6 Place of installation
The location of BREVA IN devices must be determined by
the system's designer or by another competent person, and must take
into account the technical requirements, as well as any current local
regulations.
The product uses R32 refrigerant gas and must be installed in
rooms with a minimum floor area, as indicated in the following
table, depending on the total refrigerant charge of the system
(given by the sum of the factory charge of the outdoor unit and, if
appicable, the additional charge).
The amount of refrigerant charged inside the unit refer to the
INSTALLATION AND TECHNICAL SERVICE INSTRUCTIONS of
outdoor unit used.
Minimum floor area for wall installation
mc A min mc A min
kg
m² kg m²
0.2
No requirements
2.1 4.2
0.6
2.2 4.61
0.8
2.3 5.04
1
2.4 5.49
1.1
2.5 5.96
1.22
2.6 6.44
1.225
1.43 2.8 7.47
1.3
1.61 3 8.58
1.4
1.87 3.4 11.02
1.5
2.15 3.8 13.77
1.6
2.44 4.2 16.82
1.7
2.76 4.6 20.17
1.8
3.09 5 23.83
1.9
3.44 5.4 27.8
2
3.81 5.8 32.07
mc: refrigerant charge of the system
A min: minimum floor area for indoor unit
BREVA IN is designed for indoor wall installation:
–install the indoor unit in the room to be air-conditioned
–its position must allow for the circulation of treated air in the
whole room
–consider an area where there are no obstacles to the regular air
delivery and intake
Check that:
–the installation site area is at least 3 sq.m
–the support wall is able to support the device weight
–the wall section does not feature building supporting elements,
pipes or power lines
–the supplied wall plugs are suitable for the chosen support wall
Avoid:
–installing the device in hallways or passageways
–any obstacles or barriers that will cause the expelled air to
recirculate
–locations with aggressive or explosive atmospheres or with
inflammable fluids
–direct exposure to sunlight and proximity to heat sources
–humid locations or positions where the unit could come into
contact with water
–environment containing oil vapours
–locations with high frequency contamination

2 | Installation
10
Avoid placing the unit less than 1 metre away from radio and video
systems.

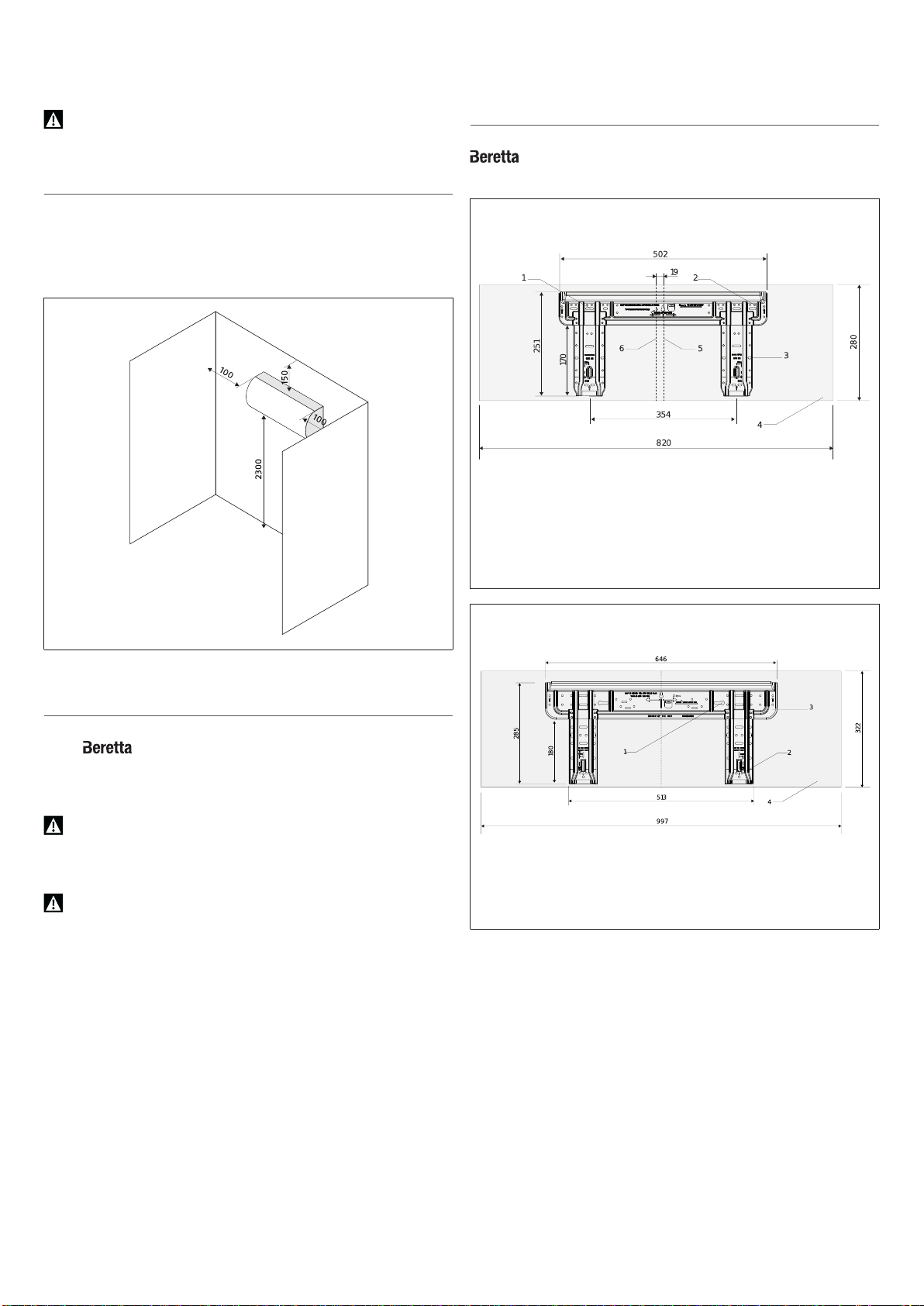

2.7 Recommended distances
The distances for the device installation and maintenance are shown in
the figure. The indicated spaces are necessary in order to prevent the
airflow from being blocked, as well as to allow normal cleaning and
maintenance operations to be carried out.
2.8 Installation on old systems or systems in
need of upgrading
When BREVA IN is installed on old systems or systems in
need of upgrading, it is recommended to ensure that:
–the electrical system is compliant with the applicable regulations
and has been installed by qualified professionals
In the event of a replacement, the system must be inspected by
the designer or by another competent person, and must be
compliant with the technical requirements, as well as the current
legislations and regulations.
The manufacturer shall bear no responsibility for any damages
caused by incorrect system installation.
2.9 Positioning
BREVA IN devices are supplied with a metallic support to fix
them to the wall:
MODEL 9000 - 12000
1Fastening slots
2Fastening holes
3Metal support
4Equipment overall dimensions
5Metal support central axis
6Equipment central axis
MODEL 18000
1Fastening slots
2Fastening holes
3Metal support
4Equipment overall dimensions

2 | Installation
11
MODEL 24000
1Fastening slots
2Fastening holes
3Metal support
4Equipment overall dimensions
Place the metallic support on a level surface that is capable of
supporting its weight
Fixing the metallic support to the wall:
1Metal support
2Spirit level
3Fixing screw
4Support wall
5Wall plug
–remove the metallic support from the unit rear side
–mark the position of the fixing holes using the metallic support
as a template
–drill holes in the marked positions
–fix the metallic support with the screws and the wall plugs
Check that the installation is horizontal using a water level.
Drilling into the wall:
AInner side
BOuter side
1Hole protective insert, supplied
2Plastic tube
–drill the through hole into the wall
–keep a downward inclination toward the external side
–insert a plastic tube in the hole in order to protect the
connections
–introduce the supplied hole protection insert on the internal side
of the wall
–seal with stucco
In case of connections on the rear side of the unit, refer to chapter
for the position of the hole.
Leak test:
The unit is supplied as pre-charged with nitrogen.
1Liquid pipe
2Gas pipe
3Gas connection plug
4Pressure presence indicator
5Fluid connection plug
–ensure that pressure presence indicator is protruding
–partially loosen one fitting plug
–check for nitrogen leaks to verify that there is pressure inside
the device

2 | Installation
12
If pressure indicator is not protruding, do not continue installation
and check for leakage inside the unit.
If the fault occurs again, an accurate check of the device
components is required. Contact Technical Support
Service.

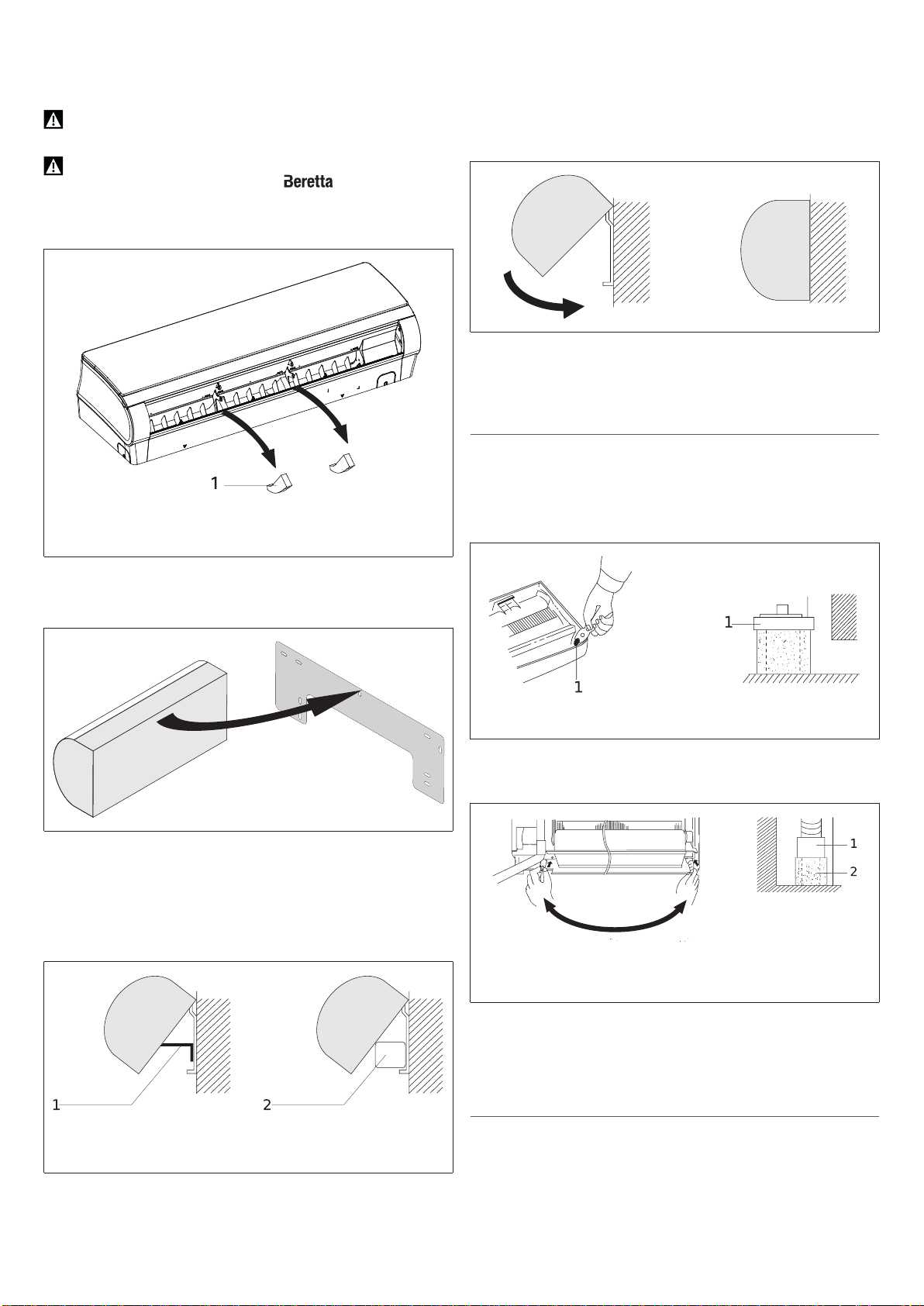

Device preparation:
1Motor-driven deflector locking insert (model 18000 - 24000
only)
–remove the motor-driven deflector locking inserts
Assembly:
–fasten the unit to the upper part of the metallic support
–check that the unit is correctly hooked by moving it to the left
and to the right
–place the unit in the middle of the metallic support
To ease the connections:
1Pipe locking bracket
2Packaging polystyrene protection
–use the pipe locking bracket to space the unit lower side from
the metallic support
If there is a connection box:
–use one of the polystyrene protections from the packaging
After performing the connections:
–hook the unit lower part
–by pushing it perpendicularly toward the metallic support
2.10 Condensate discharge position
The hole for the condensate drain is provided as standard on the left
side looking back on the unit.
It is possible to move it to the right-hand side. To do so, proceed as
follows:
1Protective cap
–remove the protection plug from the prearranged connection on
the right-hand side
1Drainage pipe
2Condensation discharge
–remove the drainage pipe on the left-hand side and place it on
the right-hand side
–fit the protection plug on the spare hole on the left-hand side
2.11 Refrigerating connection
The dimensions and positions of cooling connections are shown
hereunder.

2 | Installation
13
1Gas line connection
2Liquid line connection
model 9000 12000 18000 24000
Connections
Liquid line
connection Inches 1/4 1/4 1/4 1/4
Gas line connection Inches 3/8 3/8 1/2 1/2
Liquid line
connection mm 6,35 6,35 6,35 6,35
Gas line connection mm 9,52 9,52 12,70 12,70
Connection outlet directions are indicated below.
In case of connection in directions A:
–remove the relevant pre-trimmed part on the cover cabinet
In case of connection in directions B:
MODEL 9000-12000
MODEL 18000
MODEL 24000
–mark the through hole as shown in the illustration
AInner side
BOuter side
1Plastic tube
2Connections
–drill the through hole into the wall
–keep a downward inclination toward the external side
–insert a plastic tube in the hole in order to protect the
connections
–introduce the supplied hole protection insert on the internal side
of the wall
–seal with stucco
For indications concerning distances and differences in height of
connection pipes, refer to the matching outdoor unit manual.
Use clean hoses. Make sure the inside is free of dust, residues,
water.
Avoid the entry of uncondensable gases (air) in the circuit,
otherwise, with the unit in operation, high pressures with the risk of
damages might ensue.
Use copper pipes for cooling systems.
It is forbidden to use second-hand cooling lines since their flare
connection seal is not guaranteed.

2 | Installation
14
It is forbidden to use pre-charged cooling lines.
It is forbidden to carry out welding operations with refrigerant inside
the cooling circuit. If necessary, the refrigerant must be recovered
and the circuit must be cleaned with nitrogen without oxygen.
Connections
–position the connecting pipes
Before threading the lines through the hole in the wall, close the
lines ends.
–cut the pipe end square using a pipe cutter
–remove burrs keeping the cut edge facing down
–remove the flare nut on the unit connection
–insert it into the connection pipe
–flare the tube
Pipe Ø A
mm
Inches mm
6.35
1/4 9.1
9.52
3/8 13.2
12.7
1/2 16.6
15.88
5/8 19.7
1Key
2Torque wrench
3Flare nut
Pipe Ø Tightening torque
mm
Inches Nm
6.35
1/4 18
9.52
3/8 42
12.7
1/2 55
15.88
5/8 60
Pipe Ø A
mm
Inches mm
6.35
1/4 17
9.52
3/8 22
12.7
1/2 26
15.88
5/8 29
–bring line ends with flare connection close to their coupling on
the unit
–manually rotate the flare nuts by 3 - 4 turns
–tighten the connections using a spanner and a counter spanner
Use a torque wrench to tighten so as to prevent damage to flare
nuts and gas leaks.
Use equipment suitable for the system refrigerant.
During the connection, keep the leak finder on and close to the unit
so that it signals any refrigerant leak.
Avoid using the refrigerant oil on the external part of the flaring.
Avoid proximity to sources of ignition in continuous operation (open
flames, gas household appliances, electric stoves, lit cigarettes,
etc).
After connecting the cooling pipes:
–create a vacuum inside the pipes
–check for refrigerant leaks
–apply thermal insulating material on the joints

2 | Installation
15
Pipe insulation
Connection pipes must be thermally insulated to prevent dispersions of
heat or formation of condensate.
1Gas pipe
2Condensation discharge
3Liquid pipe
4Heat insulation
5Adhesive tape
–insulate the liquid and gas pipes separately
–use insulating material that is thicker than 15 mm
–ensure that the insulating material adheres to the pipe without
gaps
–fix using adhesive tape
Do not tighten the adhesive tape too much, so as to avoid
damaging the insulation.
Avoid partial insulation of the pipes.
In case of use with outdoor temperature above 30 °C and relative
humidity above 80%, increase wall thickness up to 20 mm.
For gas pipes:
–ensure that the material used resists to temperatures up to
120°C
For liquid pipes:
–ensure that the material used resists to temperatures up to
70°C
2.12 Condensate discharge connection
is provided with a tray that collects condensate generated
during the cooling operation, which must be conveyed into a suitable
place for discharge. Sizes and position of the discharge pipe are
indicated below.
1Condensate discharge pipe
model 9000 12000 18000 24000
Connections
Condensate drain
connection mm 16 16 16 16
1Condensate discharge pipe
2Drainage pipe
3Insulating material
–connect a rubber drainage pipe
–direct it toward a suitable place for discharge
–insulate the joints
The discharge system must feature a suitable syphon in order to
prevent air from entering the vacuum system. The syphon also
prevents odours and insects from entering the system.
The syphon must feature a plug in its lower part or must otherwise
allow for a quick disassembly for cleaning purposes.
Ensure that all joints are properly sealed so as to prevent water
leaks.
The drainage pipe must be insulated for sections running inside
houses in order to prevent condensate formation on its surface.
Drainage check:

2 | Installation
16
1Mesh filters
–open the front panel
–take out the mesh filter by grabbing the relevant fins
–pour water into the condensate tray
–check that it flows out correctly through the drainage pipe
–reposition the filters
–close the panel

2 | Installation
17
2.13 wiring diagram
The dotted parts are optional.
2.14 Electrical connection
BREVA IN it leaves the factory completely wired, and only requires a
connection to the outdoor unit.
–position the system's main switch in the "OFF" position.
To access the terminal board:
1Electric panel access panel
2Connection cable
3Terminal board cover panel
4Terminal blocks
–lift the front panel
–unscrew the fastening screw
–remove the electric panel access panel

2 | Installation
18
The electric panel access panel is wired to the electronic board, so
it must not be completely removed. Pay particular attention not to
disconnect or tear off the wire.
–unscrew the fastening screws
–remove the terminal board cover panel
1Connection cable to outdoor unit
2Wire retainer
3Terminal
–remove the wire retainer
–make the electric connections according to the diagrams on the
installation booklet of the matching outdoor unit
It is compulsory to use ring crimp terminals to connect to the
terminal board.
Refer to the manual of the matching outdoor unit when sizing the
connection cable.
–fasten the wires with the wire retainer
–complete the electric connections and refit all components by
performing the described operations in reverse order
Mandatory items:
–connect the device to a properly functioning earthing system
–for any electrical intervention, always refer to the wiring
diagrams contained within this booklet
–take anti-static precautions in case of weather conditions where
humidity is less than 40%
Electric connections shall be made in compliance with national
regulations.
Avoid placing the connection cables less than 1 metre away from
radio and video systems.
Avoid using mobile phones.
It is forbidden to earth the device together with pipes, lightning
conductors or the earthing system of a telephone line. Using an
improper earthing system can cause electric shocks.
2.15 Remote control
Control, setting and programming operations are carried out with the IR
remote control.
The electronics modulates the device operation according to the
temperatures detected by the probes inside the indoor and outdoor
units.
Battery insertion
The remote control is powered by two 1.5V AAA batteries that must be
inserted into its rear side and protected by a cover.
To insert the batteries:
–remove the cover by pressing it down and lifting it up
–insert the batteries respecting the polarities
–put the cover back in place
Two 1.5V AAA batteries are supplied with the unit for its first
set-up.
Function keys
The remote control features a small door in the key area:

2 | Installation
19
1Display
2On- Off key
3Quick function keys
When the door is closed, you can activate the quick functions, such as
choosing the operating mode and setting the desired temperature.
Ensure that the door is fully closed. If this is not the case, the
external keys will not work.
Function keys with door closed
It switches the device on and off
It increases or decreases the selected parameter value
Select required ventilation speed: minimum, medium,
maximum or automatic
It activates the Quiet mode
It activates the Cooling mode
It activates the Heating mode
It activates the Dehumidification mode
It activates the Smart mode
It enables the Maximum Power function
1Door
2Advanced function keys
When the door is open, you can access the advanced functions, e.g.
time scheduling and motor-driven deflector settings.
Function keys with door open
It activates and deactivates the automatic movement of
the horizontal deflector or stops it in a specific position
Function not available
It selects the Ventilation operating mode
It activates the Sleep function
Function not available
It enables the Health Air Flow function
If pressed at the same time, they lock and unlock the
remote control keys
Not available
Switch on or off the unit display
It gives access to current time change settings
It gives access to Timer settings
It increases or decreases the selected parameter value
It allows to change the remote control transmission
channel A - b with the unit (recommended to select A =
factory setting)
It confirms settings
It switches the temperature scale from Celsius to
Fahrenheit and vice versa
Remote control display
The remote control display shows the settings as changed by the user
and the detected weather conditions.
The display is divided into uniform areas according to function type.

2 | Installation
20
1Remote control status
2Operating mode
3Functions
4Timer settings
5Motor-driven deflector settings
6Fan settings
7Climatic settings
Remote control status
Signal transmission upon pressing the keys
WiFi connection enabled
Remote control keys locked
Operating mode
Cooling mode enabled
Heating mode enabled
Dehumidification mode enabled
Ventilation mode enabled
Functions
Sleep function enabled
Not available
Smart mode enabled
Timer settings
Timer setting value or current time display
Switch on timer enabled
Icon timer
off.eps Switch off timer enabled
Motor-driven deflector settings
Horizontal deflector position
Function not available
Deflector automatic operation
Fan settings
Fan speed set
Automatic speed enabled
Climatic settings
1. Detected ambient temperature
2. Required temperature when using the
button
2.16 Unit display
The unit display shows the active functioning mode, the temperature
and the alarms, if any.
1Display
1Temperature indication
2WiFi
3Compressor run light indicator
1. Detected ambient temperature
2. Required temperature when using the
button
3. Alarm code
