(GB) Users MANUAL

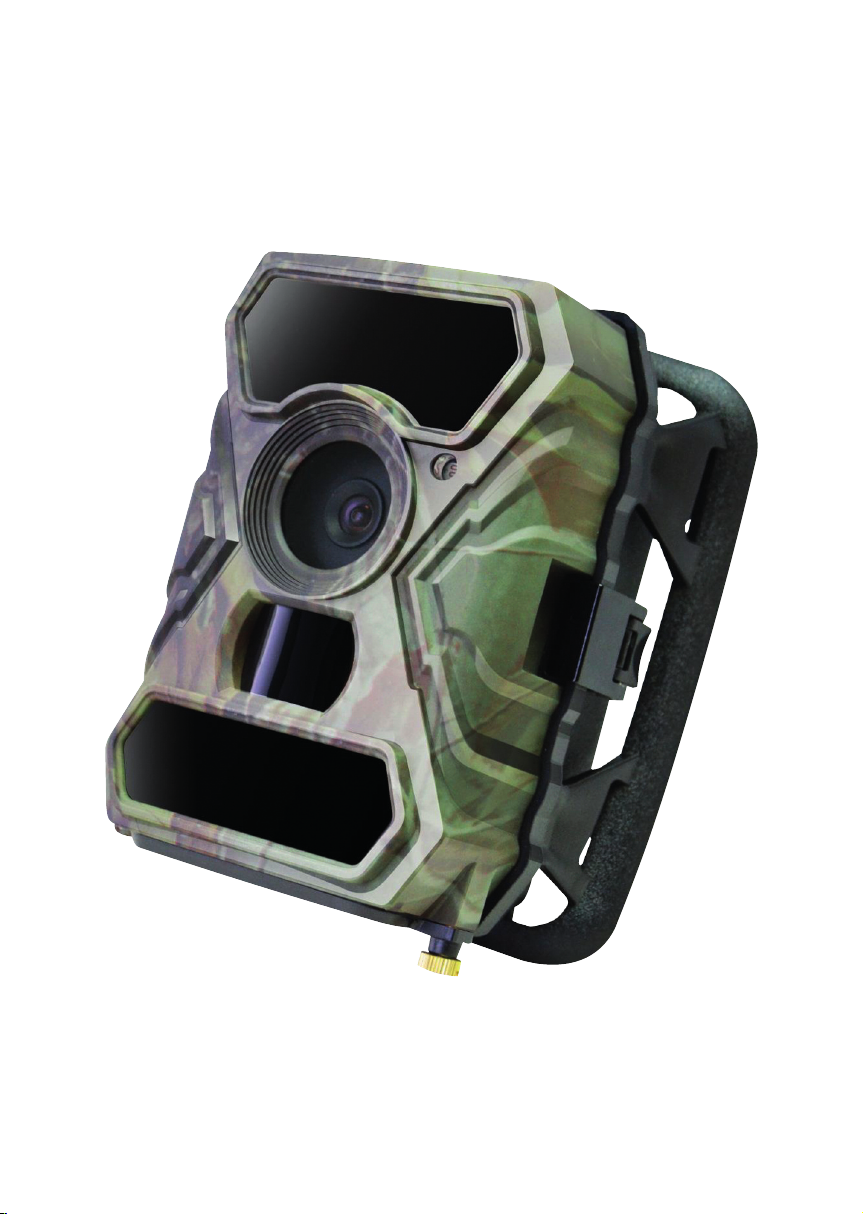

12 MP X-trail HD 3.0C Trail Camera
Item No. 31487

18
Contents
1. Introduction .............................................................................................. - 19 -
1.1 Fully Functionality Introduction ................................................................. - 19 -
1.2 Application ................................................................................................ - 19 -
1.3 Power Supply ........................................................................................... - 19 -
1.4 SD ard Selection..................................................................................... - 20 -
1.5 USB onnection ....................................................................................... - 21 -
1.6 Attention.................................................................................................... - 21 -
1.7 Key Features ............................................................................................. - 21 -
2. Whole View and Details of Camera......................................................... - 22 -
2.1 Figure 1: Front View of amera;................................................................ - 22 -
2.2 Figure 2: Bottom View of amera; ............................................................ - 22 -
2.3 Figure 3: Internal, Side and Back View of amera ................................... - 23 -
2.4 Function Keys & Other Details .................................................................. - 24 -
3. Quick Start ................................................................................................ - 25 -
3.1 How to Start the amera? ....................................................................... - 25 -
3.2 How to Set the Functions? ....................................................................... - 25 -
3.3 amera Default Settings in Red Letters .................................................. - 25 -
4. Operation List ........................................................................................... - 26 -
4.1 Video/Photo Playback ............................................................................... - 26 -
4.2 Delete ....................................................................................................... - 26 -
4.3 Format of SD ard ................................................................................... - 26 -
4.4 PIRTest ...................................................................................................... - 26 -
4.5 Auto Power Off ......................................................................................... - 26 -
4.6 Operation Menu .................................................................................. - 27-29 -
5. Specification ....................................................................................... - 30-31 -
6. Trouble Shooting ........................................................................................ - 31 -
6.1 Photos Do Not apture Subject of Interest ............................................. - 31 -
6.2 amera Stops Taking Images or Won’t Take Images ................................ - 31 -
6.3 Night Vision Flash Range Doesn’t Meet Expectation........................... - 31-32 -
6.4 Photos Do Not apture Subject of Interest.............................................. - 32 -
7. Warranty .................................................................................................... - 32 -

19
1. Introduction
Thank you for choosing one of our easy operation highly qualified products. You
now may enjoy the excellences reflected on this series product. This 12MP FHD di-
gital camera was totally R&D by our diligent and smart engineers based on feed-
backs and requirements from customers globally. May you also enjoy and adore
this product as we do. And our company is always open-minded with willing to
adopt creative ideas from you.
1.1 Fully Functionality Introduction
Besides all the functions you may experience from any other similar products. This
digital camera is aimed to offer user the most friendly using experience with many
extraordinary features, like 100° FOV lens, 56pcs 60° IR LEDs, 0.4 seconds trigger
time, and 1 burst within 1second multi-shot, user friendly operational menu, etc.
1.2 Application
This digital camera is an ideal product for housing security, warehouse surveillance,
and monitoring wild animals with its camouflage appearance and nice shape. It is
convenient to install or fasten, could be used to take photographs manually and
carry on long-time videos in Test mode.
a. Instant surveillance camera for home, office, construction site, and warehouse,
etc
b. Motion-triggered infra-red night vision surveillance;
c. Animal observation and hunting;
1.3 Power Supply
A. Batteries
amera runs on 8 AA size batteries (12V power supply to ensure camera well per-
formance of all functions); can work with alkaline, high-quality NiMH, and Lithium
rechargeable batteries. But we suggest to run camera with NiMH and Lithium bat-
teries only as performance of alkaline batteries is much poorer than either NiMH
or Lithium batteries.
Batteries should be inserted as indicated inside the battery case. Upside down
batteries electrode may cause device malfunction. Also, we strongly recommend
changing the batteries when power icon on camera screen or photo stamp is
empty.
Note: Don’t mix batteries types! Different batteries to be used in camera may
cause permanent damage which also violates warranty policy!
Due to different settings, objects activities within camera detection zone, different
brands and quality of batteries, and using environment, etc; we’re not able to list
out exact number of photos and videos that camera can achieve. So given table
below only shows approximate number of photos or videos camera can take with
8AA alkaline batteries; better performance can be given by 8 AA rechargeable NiMH
and Lithium batteries.

20
Test ondition: L D screen off. Mode: Power On _PIR intelligent automatically monitoring
8AA Alkaline Batteries
Photos shot per day Working time Video clips shot per day Working time
IR LEDs On
Max.Range 100 pics 36 days
Balanced 100 pics 31 days 10secs video clips 10 clips 37 days
Min. Blur 100 pics 21 days
IR LEDs Off
Photo 100 pics 89 days 10secs video clips 10 clips 179 days
B. SolarPanel
To bring users better using experience, our engineers designed this camera to be
able to work with most standard 12V/1~2 A lithium battery build-in solar panels.
However, as rechargeable AA NiMH or lithium batteries need higher voltage for
charging that solar panel can’t charge the batteries in using in camera batteries
cases.
C. PowerAdaptor—Security Surveillance Purpose
This camera can also be powered by an external 12V/ 1~2A D adapter. Recom-
mend to remove the AA size batteries when power adapter is used. Electrical power
is recommended for security purposes.
1.4 SD Card Selection
Using a memory card is required to operate the camera. When the camera is "ON"
and no memory card is used, the screen displays "Pls insert memory card". The
SD slot of the camera has a 32 GB memory capacity. Before inserting or removing
the memory card, the camera must be turned "OFF". Failing to do so may cause
loss of or damage the pictures already recorded from the memory card. When the
SD card is full, the viewing screen indicates "Memory Full". The following data
shows an approximate quantity of photos which can be recorded by the camera
depending on the memory card capacity.
hart below will show you the approximate capacity of different size SD cards. Pls
check to see which size card can fit your needs best.
SD
Size
Capacity 1 GB 2 GB 4 GB 8 GB 16 GB 32 GB
Photo (pictures)
5 MP 869 1631 3585 7492 15307 30936
8 MP 556 1041 2294 4798 9794 19795
12MP 391 733 1613 3371 6887 13919
Video (hours)
640x480 00:05:27 00:10:13 00:22:28 00:46:57 01:35:56 03:13:52
HD 00:03:56 00:07:23 00:16:13 00:33:53 01:09:14 02:19:56
FHD 00:02:04 00:03:53 00:08:31 00:17:48 00:36:20 01:13:21

21
1.5 USB Connection
When camera is connected via USB cable; screen display “MSD “, press “Menu“once,
“MSD “turns to “P am“, camera now can be used as a P camera; press 2Menu“
again, camera exits P camera mode.
1.6 Attention
1. Insert the SD memory card correctly, camera does not support SD card hot swap (inser-
tion).
2. Please use high-quality AA batteries in order to prevent battery cells from corrosion of
leaked acid.
3. Use right adaptor (12V/1A or 2A) of this camera to supply power, and do not invert the
electrode when put in batteries.
4. In Test mode, camera will automatically enter PIR Auto mode if no keypad touching within
60 sec. Please manually turn ON it as if you want to do some further configuration.
5. Don’t interrupt power supply during system upgrade, please deliver it back to factory if
the device doesn’t work after upgrading.
6. Do not frequently insert or pull out SD card and battery or plug in and out the adaptor
when the camera is on.
7. Do not have any floating objects, such as leaves, strings, or ribbons in the 3M motion de-
tection zone of cameras, to avoid mistaking photograph or videos.
8. Do not keep camera next to hot irrelevant objects, air conditioner exhaust vents, and light,
etc. to avoid mistaking photos or videos.
9. amera is with a 100° FOV lens which means more flash is needed to get better night
time images than the average 52° FOV lens from market; that’s why 56pcs 60° IR LEDs are
used on this camera. But to ensure these 56pcs IR LEDs can give enough flash to back the
wide angle lens up that high qualified AA batteries must be applied accordingly to deliver
enough amperage to power the illuminator consistently in dark environments.
10. Programmed Date/Time can be saved in camera for 12 hours once camera was powered
1 hour above.
1.7 Key Features
1. 0.4 seconds trigger speed;
2. Wide lens model: 100 degree FOV lens; 110 degree PIR angle;
3. Regular lens model: 52 degree FOV lens; 52 degree PIR angle;
4. 12MP/ 1080P@30FPS;
5. Programmable 5/8/12 Megapixel high-quality resolution;
6. 56pcs invisible IR LEDs offer 15 meters (50 feet) real night vision distance;
7. crystal clear day & night photo/video quality;
8. 1 photos burst within 1 second;
9. Support multiple functions: adjustable PIR sensitivity, Multi-shot (1~5 photos per trigger),
programmable delay between motions, Time Lapse, Timer, Audio Recording, TV out,
stamp of (camera ID, date/time, temperature, moon phase) on every single photo;
10. Available operation temperature: -30° to 60° ;
11. Built-in 2.0" TFT color screen;

22
2. Whole View and Details of Camera

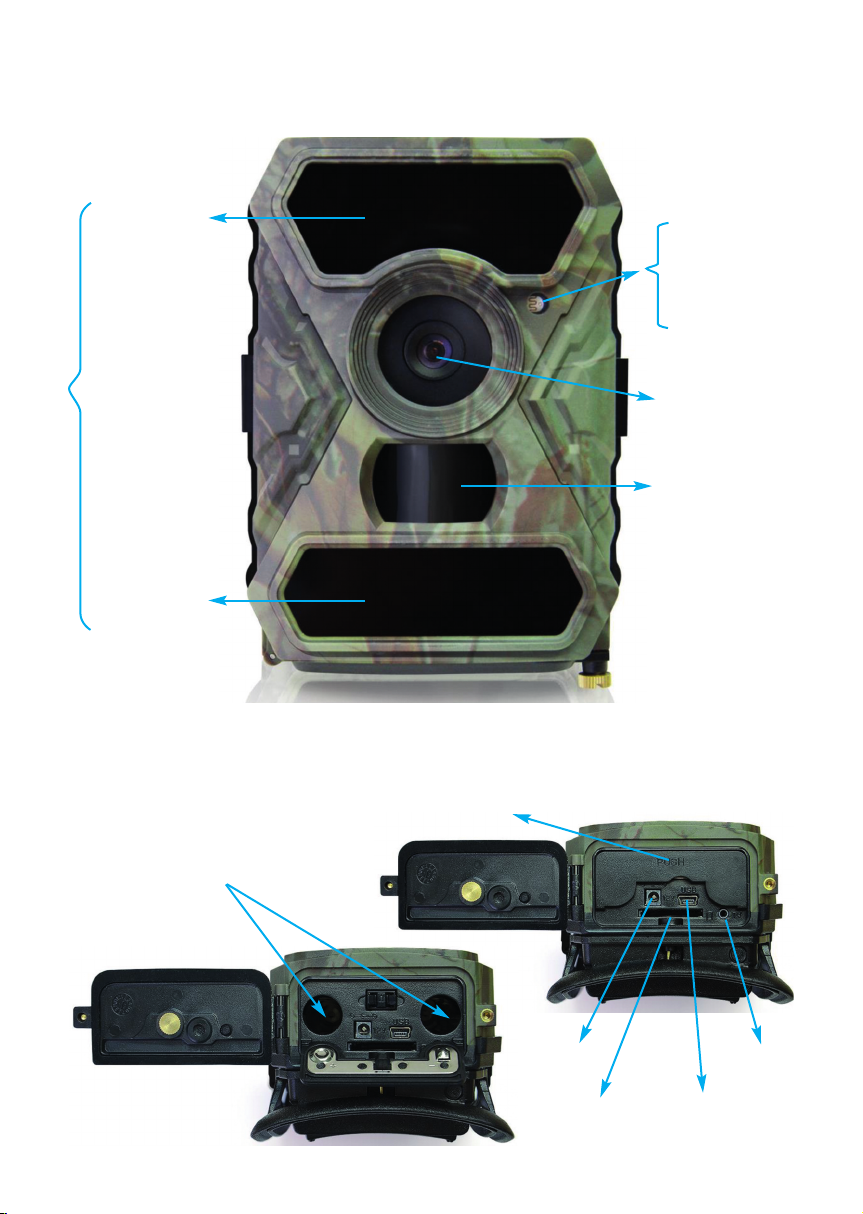

2.1 Figure 1: Front View of Camera;
25 IR LEDs
Lens
56 IR LEDs
in Total
31 IR LEDs
( an be
turned off)
Indicator Light
Light Sensor
(day/night)
PIR Sensor
2.2 Figure 2: Bottom View of Camera;
USB Port
D in
SD ard Slot
Push slightly to open this cover
TV Out
Battery Slot

23

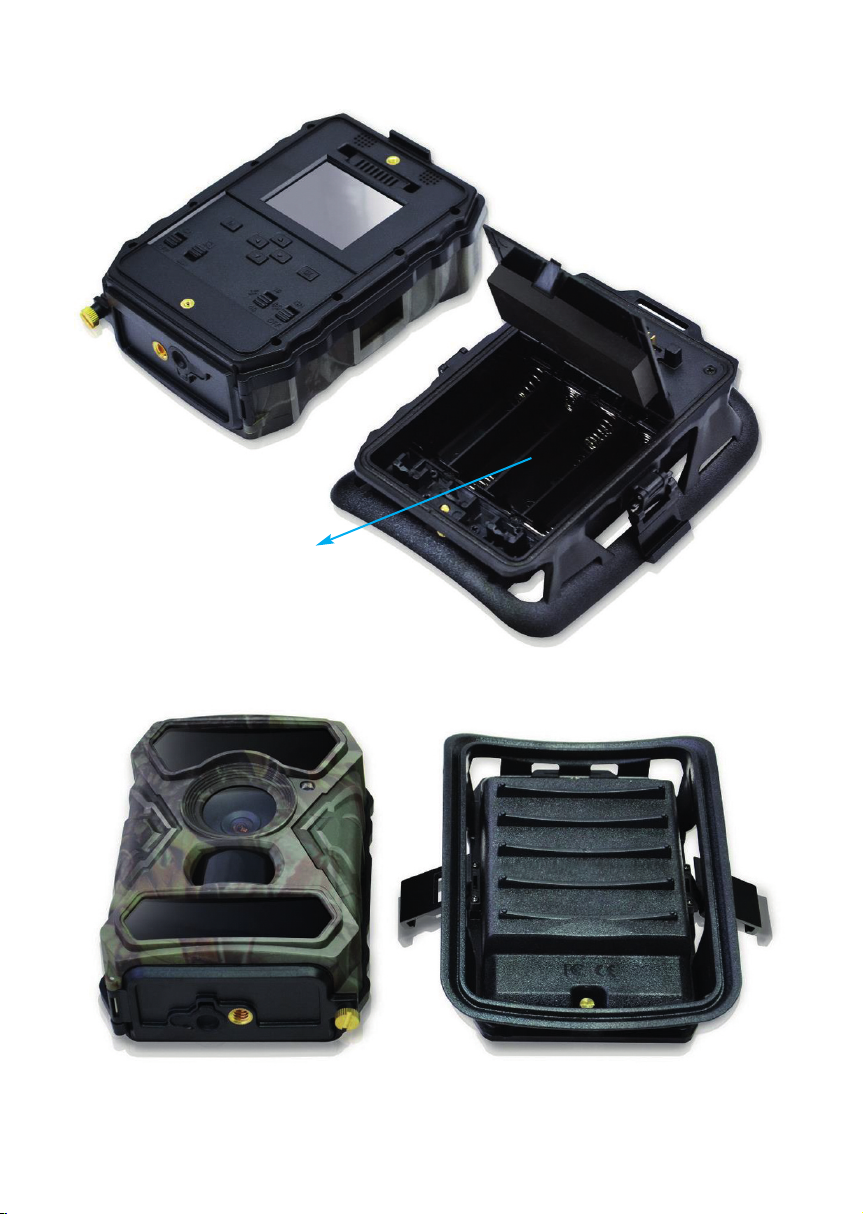

2.3 Figure 3: Internal Side and Back View of Camera
Battery Slot

24

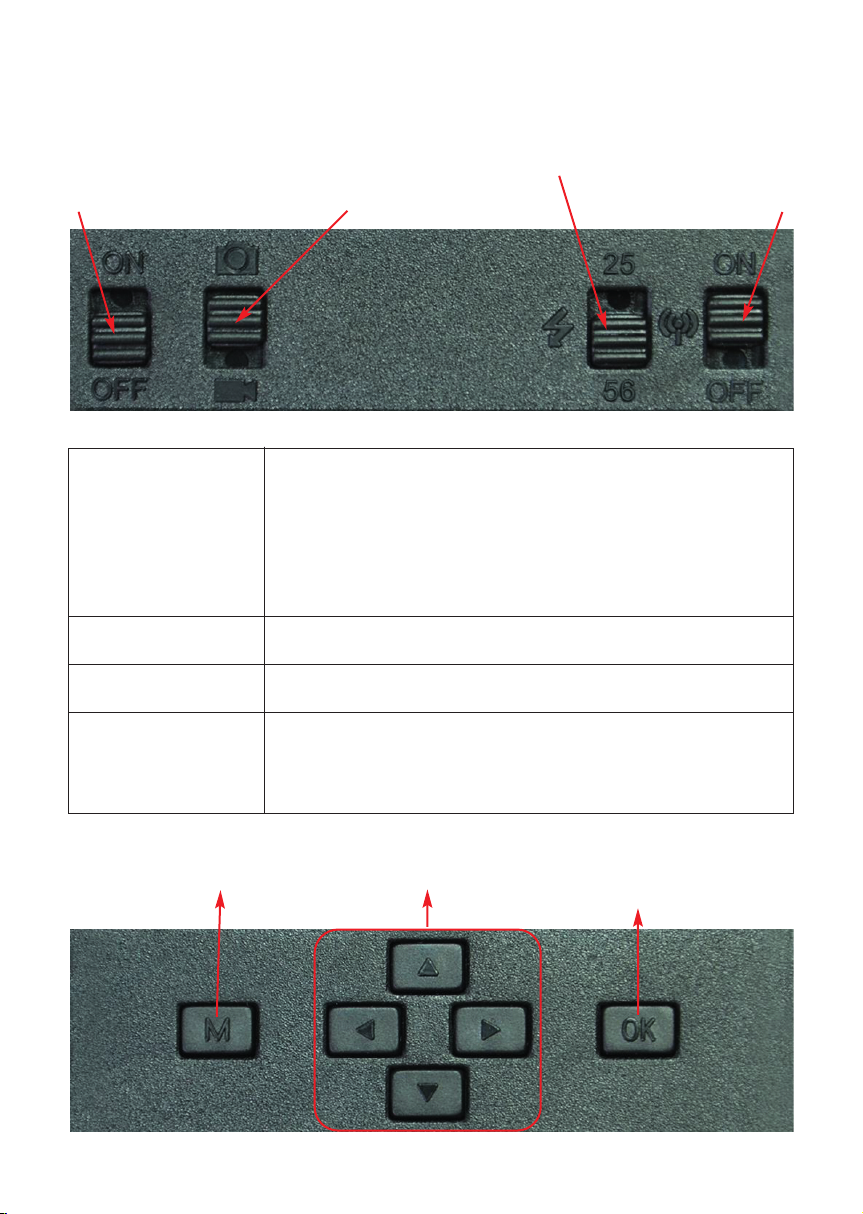

2.4 Function Keys & Other Details
A. Switch Buttons
amera/Video Switch
Power Switch
IR LEDs Group Switch
GPRS Switch
Power Switch 1) Switch ON to enable camera to work;
Note: indicator light flashes 5 times before camera starts to work on
PIR (PIR Auto Mode)
2) Switch ON, then press OK once to wake up camera L D screen
to enter TEST Mode;
3) Press and hold button OK for 3 sec to get back to PIR Auto Mode
4) Switch OFF— amera stops working.
Video/Photo Switch Switch ON to Pic icon—Photographing mode, or PI + Video mode
Switch Down to Video icon—Video Recording mode
IR LEDs Group Switch Switch up: 25—up side 25 pcs IR LEDs work
Switch down: 56—all 56 pcs IR LEDs work
GPRS Switch Switch up: On—GPRS function enabled; Switch down: Off—GPRS
(3.0CG only, function disabled.
not available) Note: When user wants to configure camera settings, suggest
disabling GPRS function to quick wake up L D screen.
B. Buttons
Navigation
Menu OK/ Photo & Video
Record/ TEST Mode

25
3. Quick Start
3.1 How to Start in Camera?
Switch ON ”Power Switch”
Note: Camera comes pre-programmed with factory default settings. So for test pur-
pose user only needs insert a SD card and batteries to start test by powering on.
3.2 How to Set the Functions?
a Switch ON ”Power Switch”, Press ”OK” once to enter Test mode; then press button
”Menu” once to enter camera setting menu;
Use navigation buttons ” ← ”, ” ↑ ”, ” → ”, or ” ↓ ” to obtain favored settings, press ”OK” for con-
firmation and save the preferred change, press ”Menu” to exit current page; c. Exit main
menu, then press button ”OK” for 3 secs to enable camera to work on PIR.
Note: For some settings user needs to press ”Menu” to save & exit the configuratin
after pressing ”OK” to confirm; (Cam ID Deley Time Lapse Timer Password).

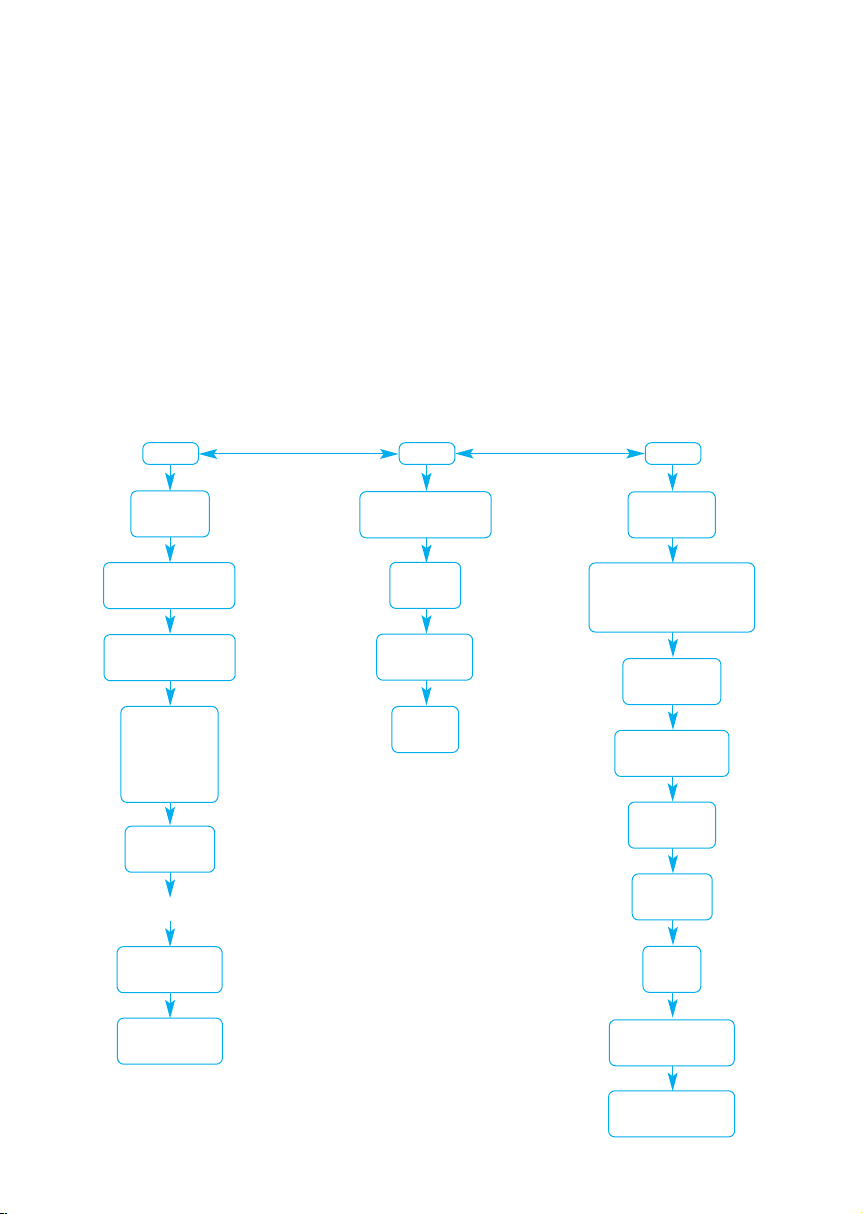

3.3 Camera Default Settings in Red Letters
Cam Pir Other
Cam ID Sensitivity Language
OFF/ON High/Middle/Low English...
Cam Mode Delay Date/Time
Photo/PI +Video OFF/ON Month : date : year
hour : minute : second
Resolution Time Lapse
5MP/8MP/12MP OFF/ON Time Stamp
OFF/ON
Night Mode Timer
Balanced OFF/On Battery Type
Min. Blur Alkaline/NI-MH
Max Range
Frequency
Multi-shot 50Hz/60Hz
IP/2/3/4/5P
SD Cycle
PIC+Video/Video ON OFF/ON
Video Size Reset
1080/720P/D1 Yes/No
Video Lenght Password
0,5-60Secs OFF/ON (6digits)
About
Firmware version

26
4. Operation List
4.1 Video/Photo Playback
Switch ON ”Power Switch”, Press ”OK” once to enter Test mode, press arrow but-
ton ” ↑ ”, to enter Playback; press ” ← ” and ” → ” for selection, ”OK” to play photo/video.
1) Press button ” ↑ ” again to exit.
2) In Playback Mode, press ”Menu” button to delete files, or format SD card; press
”Menu” again to exit.
4.2 Delete
a. Delete one: delete selected photo/video;
b. Delete All.
Press ”OK” to choose, press ” ↑ ” and ” ↓ ” for selection, ”Yes” to confirm, ”No” to
exit to previous page.
4.3 Format of SD Card
a. No
b. Yes: to format SD card via camera.
Press ” ← ” and ” → ” for selection, ”Yes” to confirm, ”No” to exit to previous page.
4.4 PIR Test
Switch ON ”Power Switch”, Press ”OK” once to enter Test mode, press arrow but-
ton ” ↓ ” to enter PIR Test mode; screen display ”DETE TING” when camera is in
this mode.
Red indicator of camera flashes when PIR sensor detects anything in front of ca-
mera; but no photos or videos will be recorded. Press ”OK” to exit PIR Test Mode.
Note: no matter camera detects anything or not camera enters PIR AUTO
MODE 5mins later.
4.5 Auto Power Off
In Test mode, camera will automatically enter PIR Auto mode if no keypad touching
within 60 sec. Please manually turn ON it as if you want to do some further confi-
gurations.
Note: camera stay in ”Test” mode if camera is in Menu configuration pages.
4.6 Operation Menu
Test mode, Press ”Menu” once to enter camera setting menu; to navigate setting
interface by pressing
” ← ” , ” ↑ ”, ” → ”, or ” ↓ ” , press ”OK” for selection, and ”Menu” to
exit to previous page.
Note: For some settings user needs to press “Menu” to save & exit the con-
figuration after pressing “OK” to confirm; (Cam ID Deley Time Lapse Timer
Password)

27

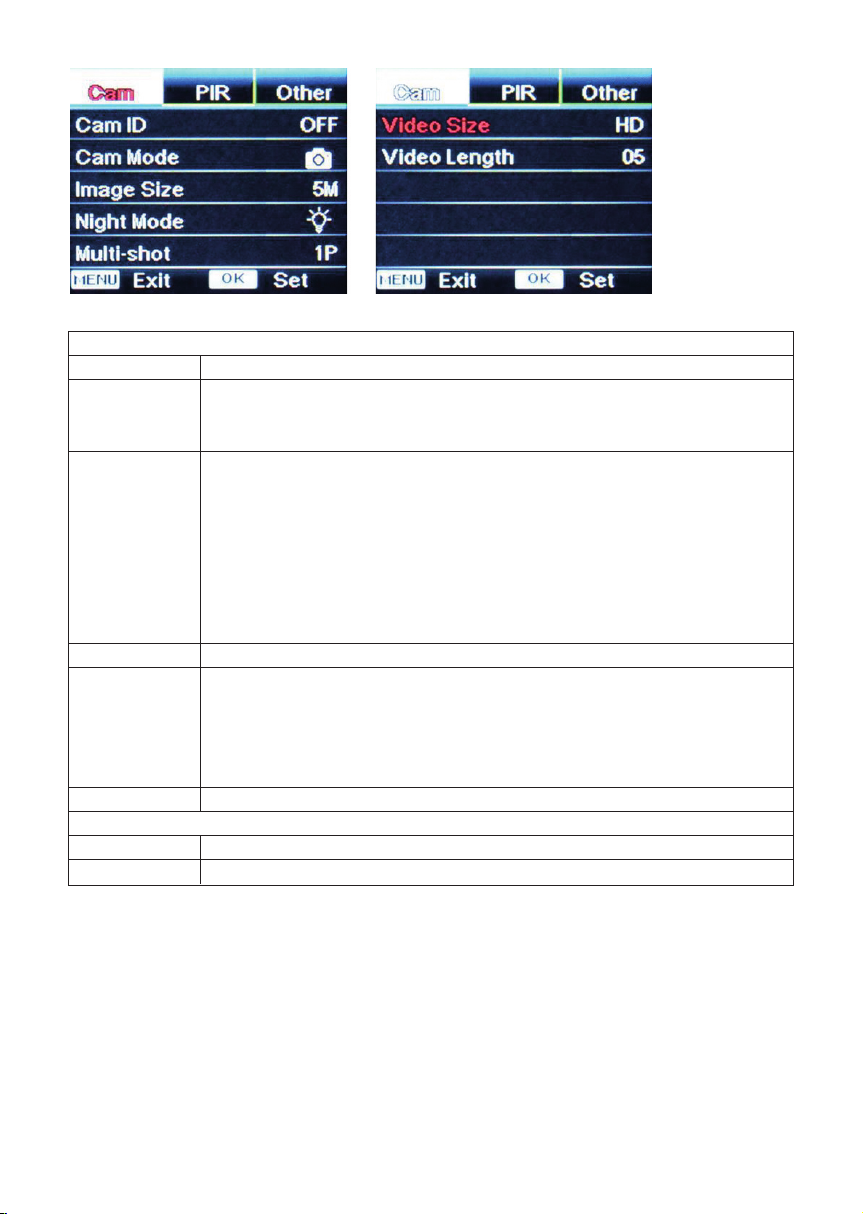

Cam
Settings Programmable Options
Cam ID Select ON, press OK, to set 4 digits/ alphabets for
each camera. Such function can help user to identify
photos are from where and which camera.
Cam Mode Photo, PI +VIDEO, Video
1) Switch ON Photo/Video Switch to Pic icon—Photographing
mode, or PI + Video mode;
2) Select PI +VIDEO, camera shoots photo(s) first, then video
upon same trigger event based on Video Length and Multi-shot
user configured.
3) Switch Down Photo/Video Switch to Video icon—Video
Recording mode
Image Size 5MP, 8MP, 12MP
Night Mode 1) Min. Blur: Short exposure time to minimize motion blur for
better image quality; shortened IR flash range;
2) Max. Range: Longer exposure time to extend IR flash range
for better night vision; lower image quality;
3) Balanced: combination of above 2 options;
Multi-shot Programmable 1~7 photos per trigger
Video On
Video Size FHD1080P: 1920*1080, HD720P: 1280*720, 640*480
Video length 5~60 Secs

28

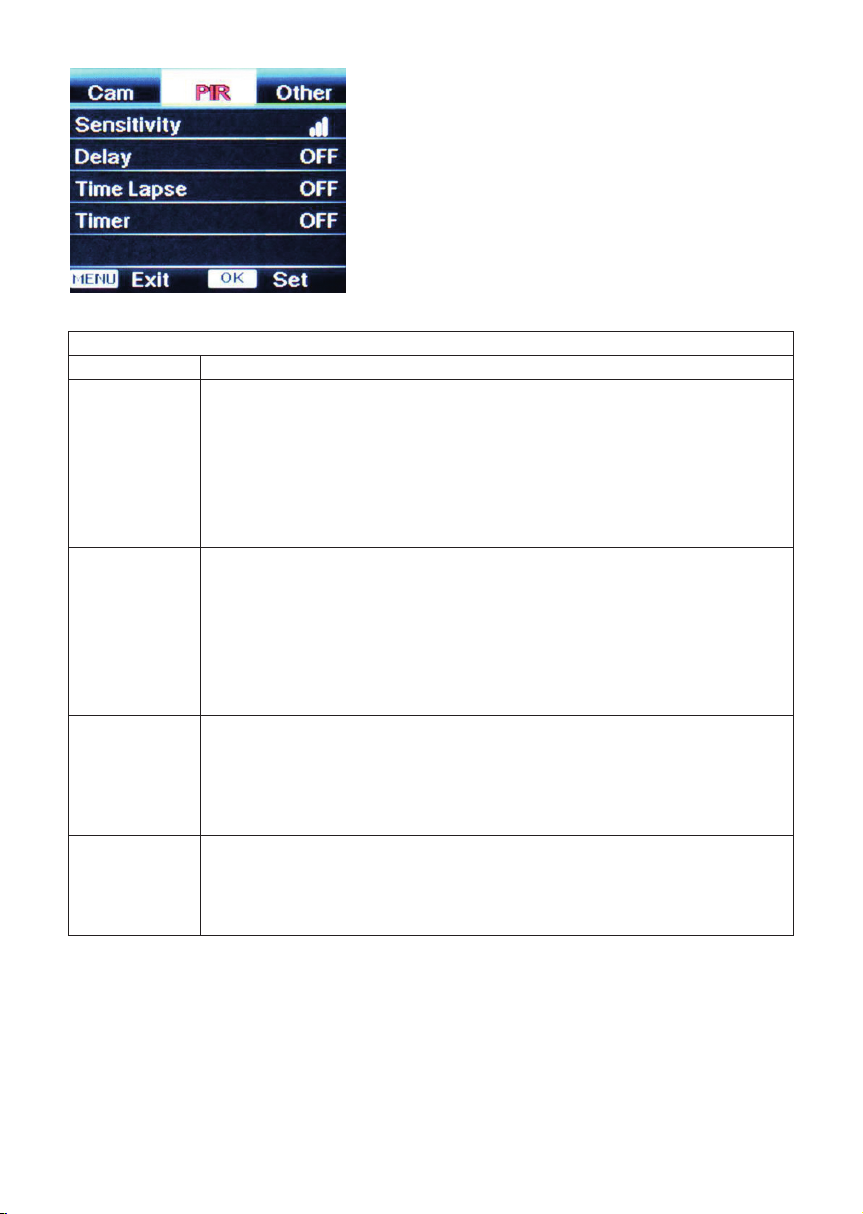

PIR
Settings Programmable Options
Sensitivity High, Middle, Low
Higher sensitivity is 1) more sensitive to movements by smaller
subjects; 2) longer detection distance; 3) easier for sensor to
detect difference between body heat and outdoor temperature;
4) easier to trigger camera to record. In high temperature
environment, body heat of subjects and environment
temperature is hard to tell by camera, suggest setting High.
Delay Select ”ON”, press ”OK”, to set a time interval that you desire
between photos/videos upon motion. This option avoid camera
taking too many photos or videos.
Example: amera will wait 1 minute between photo/video
recordings with motion if pre-set time interval is 00:01:00
Configurable delay time: 3 second to 24 hours.
Note: Pls don’t turn ON Time Lapse and Delay simultaneously!
Time Lapse Select ”ON”, press ”OK”, to set the interval; PIR sensor of
camera will be turned off; camera will shoot pics or video clips
automatically upon the interval user set.
Configurable interval: 3 seconds to 24 hours.
Note: Pls don’t turn ON Time Lapse and Delay simultaneously!
Timer Select ”ON”, press ”OK”, to set the beginning time and end time
(hour/minute); camera will only work during the time period user
set.
i.e.: 15:00 – 18:00; camera only works during 15:00 – 18:00

29

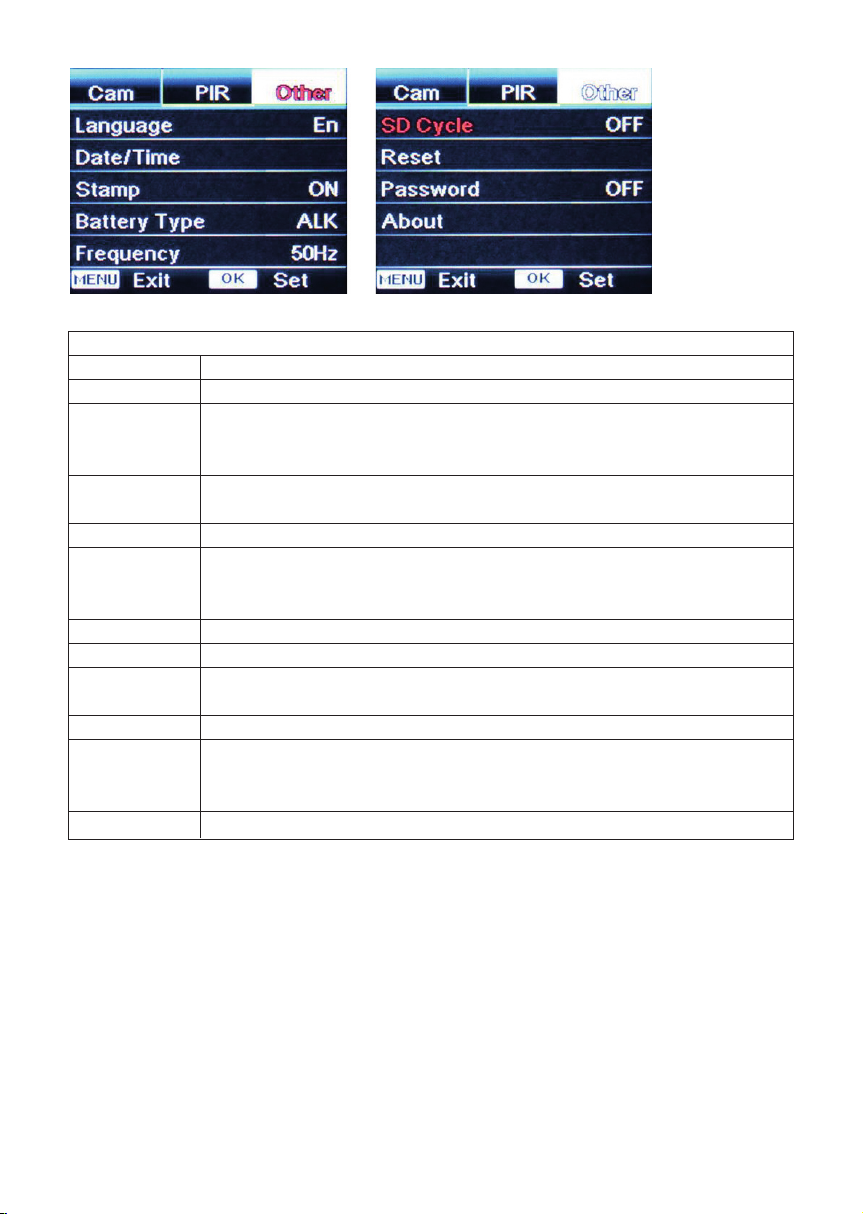

Other
Settings Programmable Options
Language English...
Date/Time Month : date : year; hour : minute : second
Note: Pls adjust camera date/time to ensure some functions
work as expected.
Time Stamp Imprints of programmed camera ID, moon phase, temperature,
date, and time on photo
Beep Select ”OFF” to turn off camera speaker.
Battery Type Alkaline/NI-MH
hoose correct battery type of used batteries in camera makes
camera perform better.
TV Out NTS , PAL
Frequency 50HZ, 60HZ; improper setting may cause camera screen flicker
SD ycle Select ”ON”, press ”OK”, camera will continue to record
photos/videos by deleting earliest photos or video clips.
Reset Select Yes to reset camera back to factory default settings.
Password Select ”ON”, press ”OK”, to enable password protection for your
camera; support totally 6 digits/ alphabets long password
access.
About Firmware version in camera

30
Image Sensor 5 Mega Pixels olors MOS
Effective Pixels 2560x1920
Day/Night Mode Yes
R range 20m
IR Setting Top: 25 LEDs, Foot: 31LEDs
Memory SD ard (8MB – 32 GB)
Operating keys 10
Lens (Wide lens model) F=3.0; FOV=100° ; Auto IR- ut-Remove (at night)
Lens (Regular lens model) F=3.0; FOV=52° ; Auto IR- ut-Remove (at night)
L D Screen 2 TFT, RGB, 262k
PIR Sensitivity 3 sensitive levels: High / Normal / Low
PIR distance 12m – 15m
PIR Angle Wide lens model: 110° ; Regular lens model: 52°
Picture size 5MP/8MP/12MP =2560x1920/3264x2448/4000x3000
Picture Format JPEG
Video resolution 1080P (1920x1080): 30FPS, 720P (1280x720), 640x480
Video Format AVI
Video Length 5-60sec. programmable
Shooting Numbers 1-5
Trigger Time 0.35~0.45s
Trigger Interval 4s-7s
amera + Video Yes
Playback Zoom in 2x, 3x, 4x
Device Serial No. Yes
Time Lapse Yes
Beep Sound ON/OFF
SD ard cycle ON/OFF
Trigger Logs (PIR Log Recording) Yes (Unique Feature)
Operation Power Battery: 12V; D : 12V
Battery Type 8AA
External D 12V
Stand-by urrent 0.173mA
Stand-by Time 4~6 months (4× AA~8× AA)
Auto Power Off auto switch to mode ”ON” in 60s without any operations
IR LEDs Off Photo: 120mA; Video: 110mA
Regular lens Photo:
Max. Range: 670mA
Balanced: 850mA
Power onsumption IR LEDs On Min.Blur: 1050mA; Video: 670mA
Wide lens Photo:
Max.Range: 850mA
Balanced: 1050mA
Min.Blur: 1250mA; Video: 670mA
5. Specification

31
Low battery Alert 8.8V (8.8V: alert; 8.6V: power off)
Interface TV out/USB/SD ard/D Port
MountinG Strap; Tripod
Operating Temperature -30° to 60°
Storage temperature -30 ° to 70°
Operation Humidity 5%-90%
Waterproof spec IP54
Dimensions 131.42 x98.72 x77.44mm
Weight 404g
ertification E F RoHs
6. Trouble Shooting
6.1 Photos Do Not Capture Subject of Interest
1. heck the ”Sensor Level” (PIR sensitivity) parameter setting. For warm environ-
mental conditions, set the Sensor Level to ”High” and for cold weather use, set the
sensor for ”Low”.
2. Try to set your camera up in an area where no heat resources are in the camera’s
field of view.
3. In some cases, set the camera near water will make the camera take images
with no subject in them. Try to aim the camera over ground.
4. Try to set camera on stable and immovable objects, i.e.: large trees.
5. At night, motion detector may detect beyond range of the IR illumination. Reduce
distance setting by adjusting sensor sensitivity.
7. Rising sun or sunset can trigger sensor. amera must be reoriented.
8. If person/animal moves quickly, it may move out of the camera’s field of view be-
fore photo is taken. Move camera further back or redirect camera.
6.2 Camera Stops Taking Images or Won’t Take Images
1. Please make sure that the SD card is not full. If the card is full, camera will stop
taking images. Or user can turn on ycle Recording to avoid such problem.
2. heck batteries to make sure that alkaline, NiMH or lithium AA batteries left
power is enough for camera to work.
3. Make sure that the camera power switch is in the ”On” position and not in the
”Off” or ”Test” modes.
4. When GPRS function is on, there will be around 1 minute interval for camera to
send out photo before camera shooting the next photo. Turn off the GPRS, camera
can shoot photos continuously.
5. Please format the SD card with camera before using or when camera stops ta-
king images.
6.3 Night Vision Flash Range Doesn’t Meet Expectation
1. 4pcs AA batteries is not able to support camera night vision ability; please install
8 pcs AA batteries;
2. Please check to make sure that batteries are fully charged or left power is
enough;

32
3. Max Range offers better IR flash range. Given IR flash range values are based
on Max Range setting; so please adjust Night Mode to Max Range for better night
vision flash range;
4. High-quality 1.5V NiMH or Lithium rechargeable AA batteries can also offer much
better IR flash range; alkaline batteries cannot deliver enough amperage to power
the illuminator consistently at night;
5. To ensure accuracy and quality of night time image, please mount camera to dark
environment without any obvious light sources;
6. A certain surroundings (like trees, walls, ground, etc.) within flash range can get
you better night time images; please do not aim camera to total open field where
there is nothing within IR flash range to reflect flash back; it’s like shinning a flash-
light into sky in night, you just can’t see anything; same does camera;
6.4 Photos Do Not Capture Subject of Interest
1. heck the ”Sensor Level” (PIR sensitivity) parameter setting. For warm environ-
mental conditions, set the Sensor Level to ”High” and for cold weather use, set the
sensor for ”Low”.
2. Try to set your camera up in an area where there is not a heat source in the ca-
mera’s line of sight.
3. In some cases, set the camera near water will make the camera take images
with no subject in them. Try aiming the camera over ground.
4. Try to avoid setting the camera up on small trees that are prone to being moved
by strong winds.
5. Remove any limbs which are right in front of the camera lens.
7. Warranty
We grant on this product a guarantee of 24 months, according to the pertinent
statutory regulations, from the date of the purchase by the initial user.
This guarantee covers all material or production defects; however, it does not
cover the following: Faults and defects resulting from normal wear, including we-
aring parts, seals etc.; damages or defects arising or as a result of alteration.
We reserve the right to reject a guarantee claim if the purchase cannot be proven,
or if the product was improperly serviced or was obviously erroneously maintai-
ned (not or insufficiently maintained; cleaning and servicing).
Please retain the proof of purchase documentation because this is valid as proof
of date of purchase.
In case of a guarantee claim, the machine must be returned to the dealer in a
clean state, and in its original packaging if possible, and not disassembled in any
way. Proof of purchase must also be included.
