Bergman M852596 User manual

1
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Product Code: M852596
Short and Tall Hedge Trimmer
INSTRUCTION MANUAL
Please retain for reference

2
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Contents
I. Technical Data...................................................................................... 3
II. Intended Use....................................................................................... 3
III. Explanation of Symbols on your product........................................... 4
IV. Safety Instructions............................................................................. 4-9
V. Part Identification............................................................................... 10
VI. Assembly........................................................................................... 11-13
VII.
A
Ap pp pl li ic ca at ti io on n R Ra an ng ge e
............................................................................ 14
VIII. Connection…................................................................................... 14
IX. Operation.......................................................................................... 14-17
X. Maintenance and Servicing................................................................ 18
XI. Guarantee......................................................................................... 18

3
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
I. Technical Data
Model
M852596
Voltage/Frequency
230V-240V～/50Hz
Input Power
550W
No load speed (Hedge
trimmer)
1600/min
Overall Length
2.80m
Length of cutter blade
460mm
Maximum Diameter Cut of
The reciprocating Hedge
Trimmer blade
15mm/1/2”
Minimum reach of hedge
trimmer
2.21M
II. Intended Use
This Short and Tall Hedge Trimmer is intended for the cutting of hedges, shrubs, branches and grass
coverings in private domestic gardens and allotments. If used for purposes other than those
intended, this will invalidate your guarantee.

4
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
III. Explanation of Symbols on your product
WARNING !
Read the user instructions carefully to make sure you understand all the
controls and what they do.
Remove plug from the mains immediately if the cable is damaged or cut.
Do not expose to rain.
Do not leave the product outdoors while it is raining.
The use of eye protection is recommended.
IV. Safety Instructions
If this product is not used properly it can be dangerous. The warnings and
safety instructions must be followed to ensure reasonable safety and
efficiency in using this product. The operator is responsible for following
the warnings and instructions in this manual and on the product. Never
use the product unless the guards provided by the manufacturer are in the
correct position.

5
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
For safety reasons, children under the age of 16 and people not familiar with
these operating instructions must not use this Short and Tall Hedge
Trimmer. Persons with reduced physical or mental abilities may use the
Short and Tall Hedge Trimmer only if they are supervised or instructed by
a responsible person.
General Power Tool Safety Warnings
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and /or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery
operated (cordless) power tool.
Work area safety
a) Keep work area clean and well lit- Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust- Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool- Distractions may cause an
accident.
Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adaptor plugs with earthed (grounded) power tools- Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators- There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions- Water entering a power tool will increase
the risk electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts- Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use- Use of a
cord suitable for outdoor use reduces the risk of electric shock.

6
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply- Use of an RCD reduces the risk of electric shock.
Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication- A
moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection- Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool- Carrying power tools with your
finger on the switch or energising power tools that have the switch on can cause an accident.
d) Remove any adjusting key or wrench before turning the power tool on- A spanner or an allen
key left attached to a rotating part of the power tools may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times- This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts- Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used- Use of dust collection can reduce dust-related hazards.
Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application- The correct power
tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off- Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools- Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool- Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use- Many accidents are caused by poorly maintained power tools.

7
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
f) Keep cutting tools sharp and clean- Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed- Use of the power tool for
operations different from those intended could result in a hazardous situation.
Service
Have your power tool serviced by a qualified repair person using only identical replacement
parts- This will ensure that the safety of the power tool is maintained.
Short and Tall Hedge Trimmer safety warnings
• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold
material to be cut when blades are moving. Make sure the machine is unplugged from the power
supply when clearing jammed material- A moment of inattention while operating the trimmer may
result in serious personal injury.
• Carry the Short and Tall Hedge Trimmer by the handle with the cutter blade stopped. When
transporting or storing the Short and Tall Hedge Trimmer always fit the cutting device cover-
Proper handling of the pole hedge trimmer and branch lopper will reduce possible personal injury
from the cutter blades.

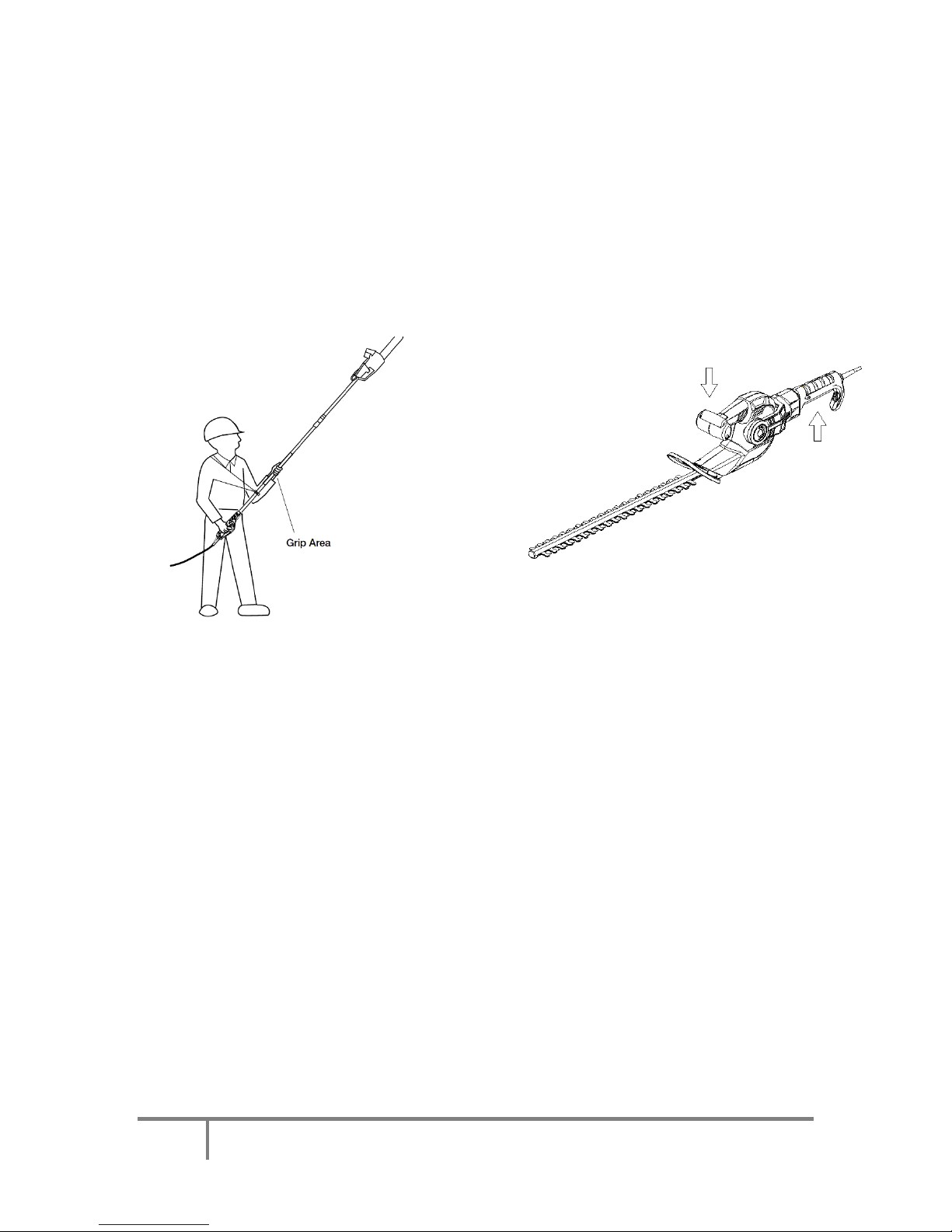

• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact
hidden wiring or its own cord- Cutter blades contacting a “live” wire may make exposed metal parts
of the power tool “live” and could give the operator an electric shock.
• Keep cable away from the cutting area- During operation the cable may be hidden in shrubs and
can be accidentally cut by the blade.
Additional Safety Recommendations
Work area safety
Only use the product in the manner and for the functions described in these instructions. The
operator or user is responsible for accidents or hazards occurring to other people or their property.
Electrical safety
The British Standards Institute recommends the use of a Residual Current Device (R.C.D.) with a
tripping current of not more than 30mA. Check your R.C.D. every time you use it. Before use,
examine the mains power cable for damage –if it is damaged do not use it.
Do not use the product if the electric cables are damaged or worn.

8
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is
damaged. Do not touch the electric cable until the electrical supply has been disconnected.
Your electric cable must be untangled. Tangled cables can overheat and reduce the efficiency of
your product.
Always switch off at the mains before disconnecting any plug, cable connector or extension cable.
Switch off, remove plug from mains and examine electric supply cable for damage or ageing before
winding cable for storage. Do not repair a damaged cable. Replace it with a new one.
Always wind cable carefully, avoiding kinking.
Use only on AC mains supply voltage shown on the product rating label.
Under no circumstances should an earth be connected to any part of the product. This product is
double insulated and does not require an earth.
Cables
Use only permitted extension cables as per HD 516. →Ask your electrical specialist.
Personal safety
Always wear suitable clothing, gloves, and shoes.
Thoroughly inspect the area where the product is to be used and remove all wires and other
foreign objects.

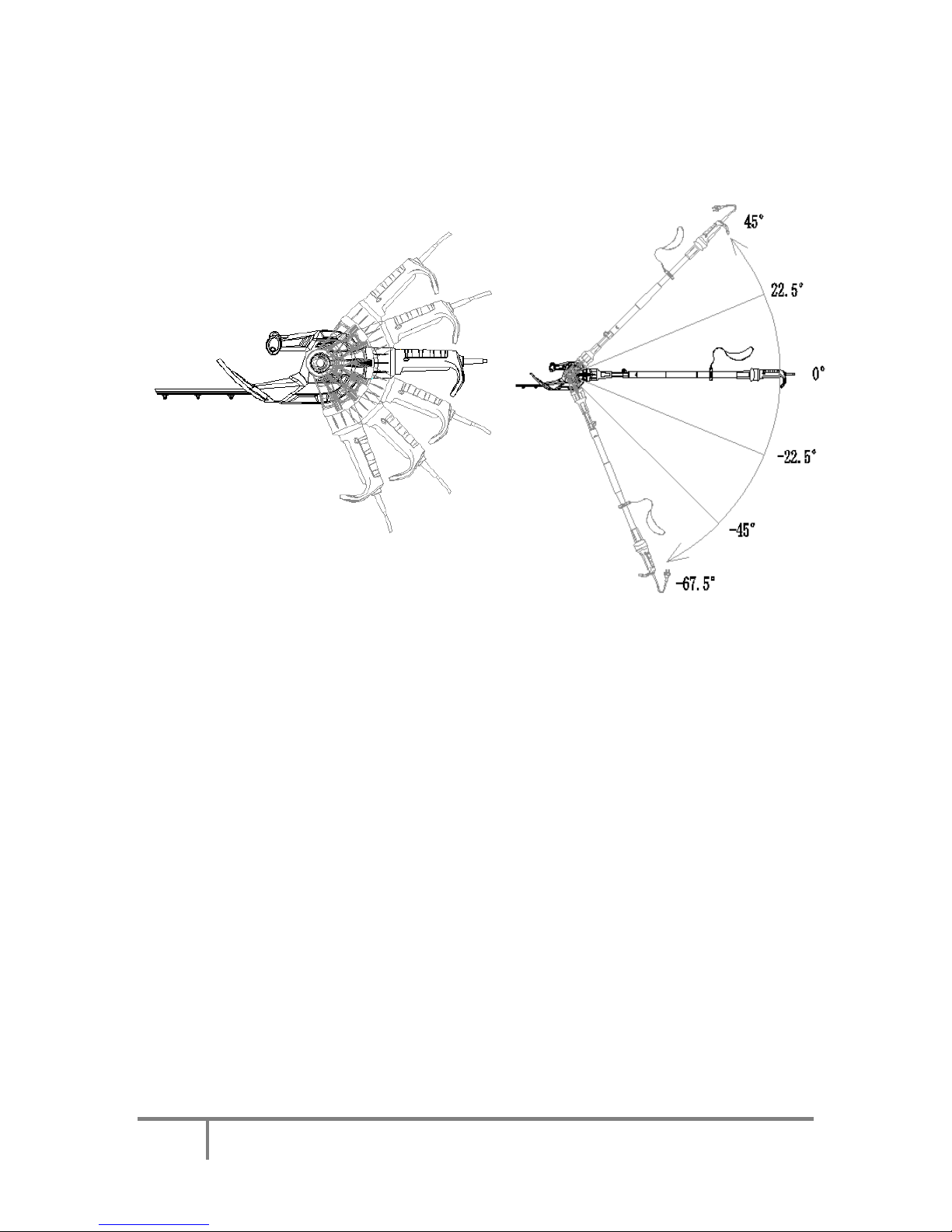

All adjustments (turning the blade unit, inclining the blade head) should be made with protective
sheath in place, and the Hedge Trimmer must not rest on the blade in the process.
Before using the product and after any impact, check for signs of wear or damage and repair as
necessary.
Before using the Short and Tall Hedge Trimmer, always make sure that the hand guard provided is
fitted.
Never attempt to use an incomplete product or one with an unauthorised modification.
Incomplete or modified products are potentially dangerous and will invalidate your guarantee.
Power tool use and care
Know how to stop the product quickly in an emergency.
Never hold the product by the guard.
Do not use the product if the protection equipment (hand protection, 2-hand safety switch,
protection cover, quick blade-stop) are damaged.
Do not use ladders whilst operating the product.

9
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Remove the plug from the mains:
Before leaving the product unattended for any period.
Before clearing a blockage.
Before checking, cleaning or working on the appliance.
If you hit an object. Do not use your product until you are sure that the entire product is in a safe
operating condition.
If the product starts to vibrate abnormally, check immediately. Excessive vibration can cause
injury.
Before passing to another person.
Maintenance and storage
RISK OF INJURY!
Do not touch blades.
When finishing or interrupting work fit protective cover.
Keep all nuts, bolts and screws secure to be sure the Short and Tall Hedge Trimmer is in a safe
working condition.
Store disconnected, in a safe dry environment out of the reach of children.

10
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
V. Part Identification

11
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
VI. Assembly
Unpacking
This product requires assembly.
Carefully remove the product from the box.
Inspect the product carefully to make sure no breakage or damage has occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily operated
the product.
BEFORE ASSEMBLY Firstly unpack and check all parts have been supplied. If you think any parts are
missing, first check the packaging again before calling the Scotts and Co helpline on 0344 482 1107.
WARNING:
If any parts are damaged or missing, do not operate this product until the parts are
replaced. Failure to follow this warning could result in serious personal injury.
WARNING:
Do not attempt to modify this product or create accessories not recommended for use
with this product. Any such alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal injury.
WARNING:
Do not connect to power supply until assembly is complete. Failure to comply could
result in accidental starting and possible serious personal injury.
Note: The Short and Tall Hedge Trimmer can be used with or without the telescopic extension
handle. See below for both assembly methods.
Fig.1
1. Insert the Rear handle(A) into the trimmer head (B)(see Fig. 1)

12
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
2. Screw with locking knob. Make sure that connection is secured tightly. (see Fig. 2).
Fig.2
3. Insert the guard (8) into the socket as illustrated in Fig.3, and use the two screws to fix the guard
in place (see Fig. 3).
Fig.3
4. Alternatively you can use the Short and Tall Hedge Trimmer with the telescopic extension handle.
Insert the rear handle (A) into the telescopic extension handle (C), then insert the telescopic
extension handle into the trimmer head (B) (see Fig. 4).
Fig.4

13
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
4. Screw with locking knob. Make sure that connection is secured tightly (see Fig. 5).
Fig.5
5. Screw with locking knob. Make sure that connection is secured tightly (see Fig. 6).
Fig.6

14
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
VII.
A Ap pp pl li ic ca at ti io on n R Ra an ng ge e
The Short and Tall Hedge Trimmer is designed for cutting and trimming hedges, branches, bushes
and shrubs around your house or allotment. Any other usage will invalidate your guarantee.
The Short and Tall Hedge Trimmer is designed for use by adults. Adolescents over 16 years may
use it only under supervision. DO NOT USE this machine in the rain or damp conditions.
The operator or user is responsible for accidents or damage to other people or their property. The
manufacturer is not liable for any damage caused due to incorrect operation.
VIII. Connection
This machine may only be connected to single-phase 230V AC 50Hz UK Mains outlet. Ensure that
the mains voltage is the same as the operating voltage indicated on the rating plate.
IX. Operation
WARNING:
Do not allow familiarity with this product to make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious injury.
WARNING:
Always wear CE approved safety goggles or safety glasses with side shields when operating
power tools. Failure to do so could result in objects being thrown into your eyes, resulting in
possible serious injury. Wear head protection when using the trimmer.
WARNING:
Do not use any attachments or accessories not recommended by the manufacturer of this
product. The use of attachments or accessories not recommended can result in serious
personal injury.

15
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Adjusting the Pivoting Head
1. The angle of power head can be set to 6 different working positions.
2. Push the Adjust button (there is a "PUSH" on it) with one hand and turn round the power head to
suitable position. The Adjust button can lock the handle automatically (see Fig. 7).
Fig.7
Adjusting the Telescopic Extension Handle Length
The Short and Tall Hedge Trimmer has a telescopic extension handle that will extend from 2.08
meters (fully retracted) to 2.5 meters (fully extended). The locking knob is used to hold the pole in
position at any extended length.
1. To extend the handle, loosen the locking knob (see Fig.8). The handle will slide freely.
2. Pull the inner handle section out to desired length of extension. Note: Only extend pole to
minimum length required to reach the branch or stem that is being cut.

16
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
3. To lock handle in position, tighten the locking knob (see Fig.8).
Fig.8
Starting the Pole Hedge Trimmer
1. Remove the blade sheath (7) from the blade(6) (See Fig. 9).
Fig.9

17
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
2. There are two switch levers fitted on your hedge trimmer (1&9). Both switch levers need to be
depressed for the product to start. Depress and hold the front switch lever (9) and press the switch
lever (1). Move the hedge trimmer away from cutting area before stopping. To stop, release one of
the switch levers.
3. Adjust the power head and the pole length to suitable position.
4. Connect the power cord to the power supply.
5. Use both hands to grip the trimmer. Use designated grip areas and the strap when operating the
trimmer (See Fig. 10). Use a firm grip. Thumbs and fingers must wrap around trimmer handle and the
extension handle.
6. Make sure your footing is firm, keep feet apart, and divide your weight evenly on both feet.
Fig. 10
7. When starting a cut, place moving trimmer against branch. Hold the trimmer firmly in place.
8. Remove the trimmer from a cut with running at full speed. Stop the trimmer by releasing trigger.
Make sure the trimmer has stopped before setting pole trimmer down.

18
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
VIII. Maintenance and Servicing
Before carrying out any checks or maintenance operations, disconnect the plug from the electric
power supply.
Check your Short and Tall Hedge Trimmer regularly before starting the work.
Damaged cutting blades have to be repaired or exchanged by a qualified service engineer before
working with the Short and Tall Hedge Trimmer.
After each cutting operation, clean the cutting blade with a soft brush and cloth with lubricating
fluid oil and spray a thin layer of fluid protective oil
Always keep the ventilation slots in motor housing clean
Never clean or spray the Short and Tall Hedge Trimmer with water. Clean the motor housing only
with a moist cloth and never use detergents or solvents. These could ruin the plastic parts of the
Short and Tall Hedge Trimmer. Finally, dry the motor housing carefully.
Store the Short and Tall Hedge Trimmer with the supplied protection blade covers.
The Short and Tall Hedge Trimmer must be stored out of the reach of children.
Store the Short and Tall Hedge Trimmer in a dry, frost free place.
X. Guarantee
This product is guaranteed against faulty workmanship for a period of 12 months from date of
purchase.
Your guarantee will be invalidated if the machine is modified in any way, used for purposes outside
the parameters of this instruction manual or wilfully damaged or abused.
Your statutory rights remain unaffected.

19
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
*DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
The crossed out Wheelie Bin logo is used to highlight electrical products that should not be
disposed of with normal household waste. Scotts Ltd. Has contributed to the funding of an
alternative network of UK recycling facilities. Please visit www.recycle-more.co.uk to find where
your nearest recycling point is and recycle this product at the end of its life.
回
Made in China
for
Scotts Ltd.
