OWNERS MANUAL
INSTALLATION AND OPERATING INSTRUCTIONS
REPAIR PARTS LIST
Engine Driven Fire Pump
IMPORTANT
For best possible performance and continuous, satisfactory operation,
read these instructions before installing your new pump.
Should service be required, this manual can be a valuable guide.
It should be kept near the installation for ready reference.
Record nameplate data from pump on blank nameplate inside this
manual for future reference.
Berkeley Pumps / 293 Wright Street / Delavan, WI 53115
PRINTED IN U.S.A. F00650 (Rev. 11/3/97)
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its constituents
are known to the State of California to cause
cancer, birth defects, and other reproductive harm.
Model B1-1/2XQBS-11
B54728S: w/11 H.P. B & S Gas Engine
B07536S: w/11 H.P. B & S Gas Engine; USFS Spec 5100-273d
Model B1-1/2XQBS-18
B56514S: w/18 H.P. B & S Gas Engine
B06162S: w/18 H.P. Wisconsin Gas Engine; California Forestry P-75-01
B06172S: w/18 H.P. Wisconsin Gas Engine; USFS Spec 5100-273d
Model B1-1/2XQBS-26
B58603S: w/26 H.P. Lombardini Diesel; California Forestry P-85-01

Table of Contents
BERKELEY/WICOR CANADA WARRANTY
Berkeley/Wicor Canada, Inc. (“Wicor”) warrants to the original consumer purchaser (“Purchaser”) of its products that they
are free from defects in material or workmanship.
If within twelve (12) months from the date of installation or twenty-four (24) months from the date of manufacture any such
product shall prove to be defective, it shall be repaired or replaced at Berkeley’s/Wicor’s option, subject to the terms and
conditions set forth below.
General Terms and Conditions
Purchaser must pay all labor and shipping charges necessary to replace product covered by this warranty. This warranty
shall not apply to products which, in the sole judgement of Berkeley/Wicor, have been subject to negligence, abuse,
accident, misapplication, tampering, alteration; nor due to improper installation, operation, maintenance or storage; nor to
other than normal application, use or service, including but not limited to, operational failures caused by corrosion, rust or
other foreign materials in the system, or operation at pressures in excess of recommended maximums.
Requests for service under this warranty shall be made by contacting the installing Berkeley/Wicor dealer as soon as
possible after the discovery of any alleged defect. Berkeley/Wicor will subsequently take corrective action as promptly as
reasonably possible. No requests for service under this warranty will be accepted if received more than 30 days after the
term of the warranty.
The warranty on all three phase submersible motors is void if three-leg overload protection of recommended size is not
used.
This warranty sets forth Berkeley’s/Wicor’s sole obligation and purchaser’s exclusive remedy for defective products.
BERKELEY/WICOR SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES
WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE DURATION OF THE APPLICABLE
EXPRESS WARRANTIES PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which vary from state to state.
In the U.S.: Berkeley, 293 Wright St., Delavan, WI 53115
In Canada: Wicor Canada, Inc., 1800 Courtney Park Drive East, Unit 5-7, Mississauga, Ontario L5T 1W1
Wicor Canada, Inc., 200-E, Rue St-Louis, St-Jean-Sur-Richelieu, Québec J3B 1Y1
Page 2 F00650
• SAFETY.................................................................................................................................................................3
• DIMENSIONS.................................................................................................................................................. 4, 5
• INSTALLATION / OPERATION......................................................................................................................6
• MAINTENANCE ..................................................................................................................................................7
• DISASSEMBLY / ASSEMBLY...................................................................................................................8-10
• REPAIR PARTS............................................................................................................................................11-15
Page

F00650 Page 3
Safety First
READ AND FOLLOW
SAFETY INSTRUCTIONS!
This is the safety alert symbol. When you see
this symbol on your pump or in this manual, look for
one of the following signal words and be alert to the
potential for personal injury:
warns about hazards that will cause
serious personal injury, death or major property
damage if ignored.
warns about hazards that will or can
cause serious personal injury, death or major property
damage if ignored.
warns about hazards that will or can
cause minor personal injury or property damage if
ignored.
The label NOTICE indicates special instructions which
are important but not related to hazards.
Carefully read and follow all safety instructions in
this manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
General Safety
Do not allow pump, piping, or any other system
component containing water to freeze. Freezing may
damage system, leading to injury or flooding. Allowing
pump or system components to freeze will void
warranty.
Pump approved liquids only with this pump.
Periodically inspect pump and system components.
Wear safety glasses at all times when working on
pumps.
Keep work area clean, uncluttered and properly
lighted; store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.
Make workshops childproof; use padlocks and master
switches; remove starter keys.

Page 4 F00650
Dimensions
19.9687
(507)
16.4375
(417.5)
7.6875
(195.3)
10.3125
(258.8)
15.5
(393.7)
16.8125
(427)
6.7812
(172)
3.75
(95.3)
3.375
(85.7)
3.3125
(84.1) 4
(101.6)
9.8125
(249.2)
13.125
(333.4)
16.875
(428.7)
23.3437
(593)
Oil Drain
Both Sides
3039 0997
27.3125
(694)
28.9375
(735)
26.0937
(663)
20.2187
(513.6)
22.2812
(566)
15.562
(395.3)
21.25
(539.8)
22.875
(581)
6.7812
(172)
20.125
(511.1) 14
(255.6)
21.6875
(551)
14.8125
(276.2)
18.4375
(468.3)
10.625
(270) 8.625
(219) 1.625
(41.3)
3040 0997
Figure 1: Model B06172S Dimensions
Figure 2: Model B054728S Dimensions

F00650 Page 5
Dimensions
21.3
(541)
22.83
(580)
8.94
(227) 16.61
(422)
7.8
(198) 6.61
(168) 1.14
(29)
31.5
(800) 23.23
(590)
6.7
(172)
24.72
(628)
8.15
(207) 6.3
(160)
1.18
(30)
3042 0997
4.016
(102)
6.7812
(172)
18.75
(476.25)
16.916
(430)
16.102
(409)
17.235
(438)
10.079
(256)
12.41
(315)
2.331
(59.2)
.25
(6.35)
18.5
(470)
7.677
(195)
Exhaust Pipes
To Suit Installation
3041 0997
Figure 3: Model B56514S Dimensions
Figure 4: Model B58603S Dimensions

Installation
The unit is shipped completely assembled and ready for
installation. However, before installing, inspect it for
shipping damage. If any damage is found, notify carrier
immediately.
Hoses
System hoses must be at least as large as pump ports (2”
suction, 1-1/2” discharge).
Priming
Without Exhaust Primer: Close discharge valve and fill
pump with water to completely cover the eye of the
impeller.
With Exhaust Primer (see Figure 5, below):
1. Close Clack Valve (Key No. 1, ).
2. Close Bronze Shutoff Valve (Key No. 2).
3. Close valve on discharge side of pump.
4. Start engine.
5. Open Bronze Shutoff Valve (Key No. 2).
6. When water runs out of ejector (Key No. 3), close
Bronze Shutoff Valve.
7. Open Clack Valve for normal engine exhaust.
8. Slowly open discharge valve on pump.
9. When shutting down engine, close Clack Valve to
protect exhaust primer from weather.
Operation
NOTICE: Never run pump dry for more than a few sec-
onds. Water is required in the case to cool and lubricate
the mechanical shaft seal.
Engine Break-in
Follow engine manufacturer’s instructions for engine
break-in. The pump needs no break-in period.
Engine Speed
The standard engine governor setting may not be ade-
quate for your pumping application. If so, follow engine
manufacturer’s instructions for adjusting engine operating
speed and setting the engine speed control device.
Starting
Start engine with pump discharge valve closed. Follow
engine manufacturer’s starting instructions. As soon as
engine starts, gradually open discharge valve until desired
flow rate is reached and set throttle control according to
operating conditions.
Stopping
The pump stops when the engine stops. To avoid “diesel-
ing” or “running on”, let the engine idle for a few minutes
before switching it off.
Continuous Operation
Pressure, flow, and engine speed should not exceed that
shown on performance curve for continuous operation.
This performance is based on 80% of engine’s rated
power.
Page 6 F00650
Installation / Operation
1
3
2
From
Engine
From
Pump
Ejector
3107 1097
Figure 5

Maintenance
The pump does not require any oil or grease for lubrica-
tion. The sealed double row ball bearing is lubricated for
the life of the bearing.
The Mechanical Shaft Seal is lubricated and cooled by
the liquid being pumped. DO NOT RUN DRY. The seal
requires no further maintenance.
The Engine should be stopped and the crankcase oil
level checked at least once every 8 hours of operation. If
necessary, add oil to bring the level up to the Full mark.
Follow engine manufacturer’s recommendations as to
grades of oil to use.
The Timing Belt requires no lubrication. It has a fiber-
glass core, but severe operating conditions may cause it
to stretch. Check the timing belt tension with a belt tension
tester. The belt tension is correct when applying a
midspan 10-lb. load to the belt causes a deflection of 1/4”
(see Figure 6).
Check belt tension as follows:
1. Insert tension tester through 1/2” hole in drive case (at
belt midspan) until it just touches belt. Record the
depth shown on the tester (Figure 6).
2. Depress tension tester until 10 lbs load has been
reached and record new depth (Figure 6).
3. The difference between the two readings should be
1/4” when belt tension is correct.
4. If deflection is more than 1/4”, tighten belt as follows:
A. Loosen (DO NOT REMOVE) the nuts on the four
studs that hold the pump to the drive case.
B. Turn the jackscrew nut clockwise, and retighten
the stud nuts.
There is a wear ring pressed into the bearing bracket
(Models B054728S and B07536S have another one
pressed into the diffuser). The radial clearance at the
factory is .010” (both sides - .005” per side). When the
total clearance increases to .020”, replace the wear
ring(s).
F00650 Page 7
Maintenance
Loosen 4 nuts before
making belt adjustment
Belt tension tester:
read belt position
with no deflection
To tighten belt,
turn nut clockwise
Belt tension tester:
should read 1/4"
deflection at
10# load.
3043 0997

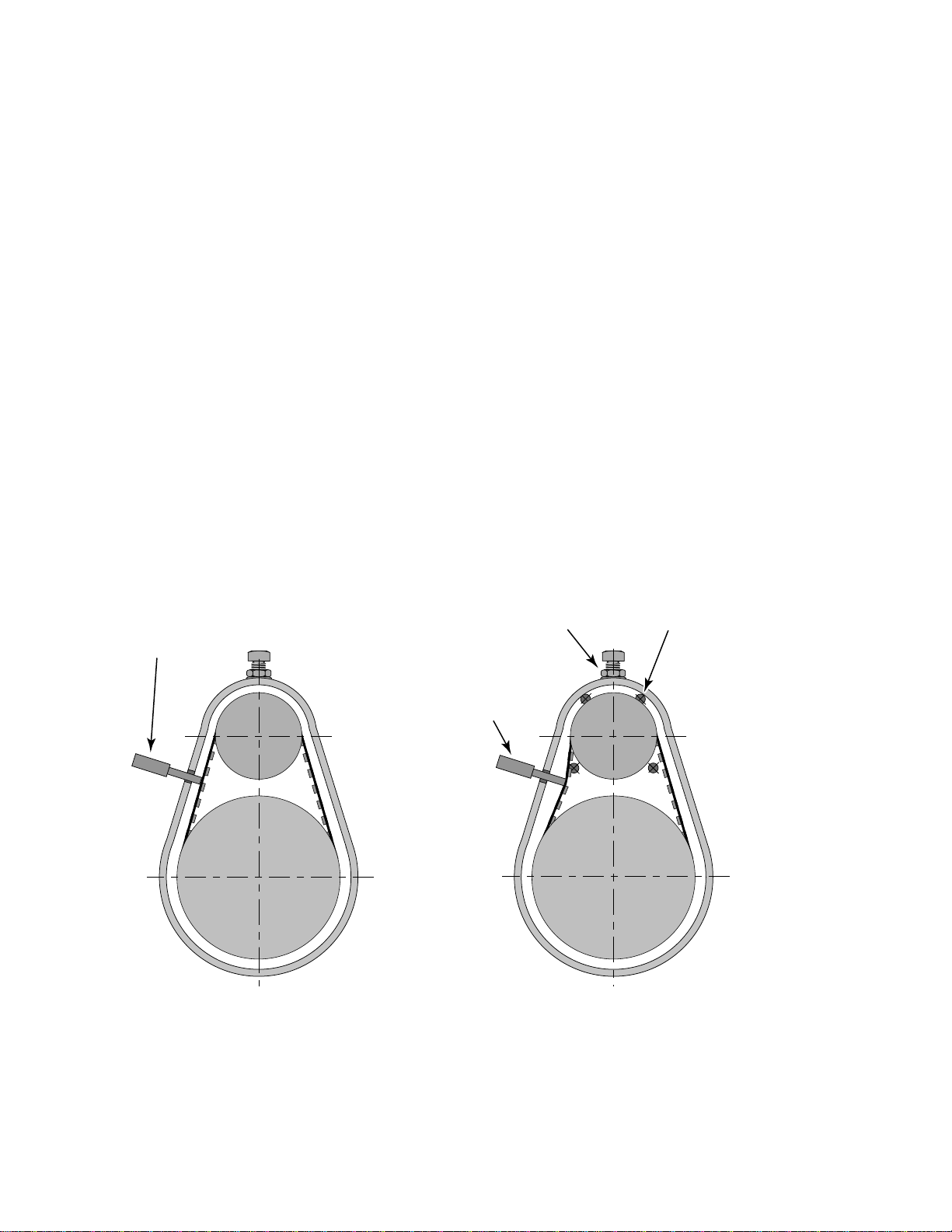

Figure 6: Setting Timing Belt Tension

Fire Pump
Disassembly/Assembly
The complete fire pump consists of the power unit, timing
belt drive, and pump assembly. The disassembly/
assembly of the pump itself and the timing belt drive will
be dealt with here. For instructions concerning disas-
sembly/assembly of the power unit, consult the engine
manufacturer or the engine owner’s service manual.

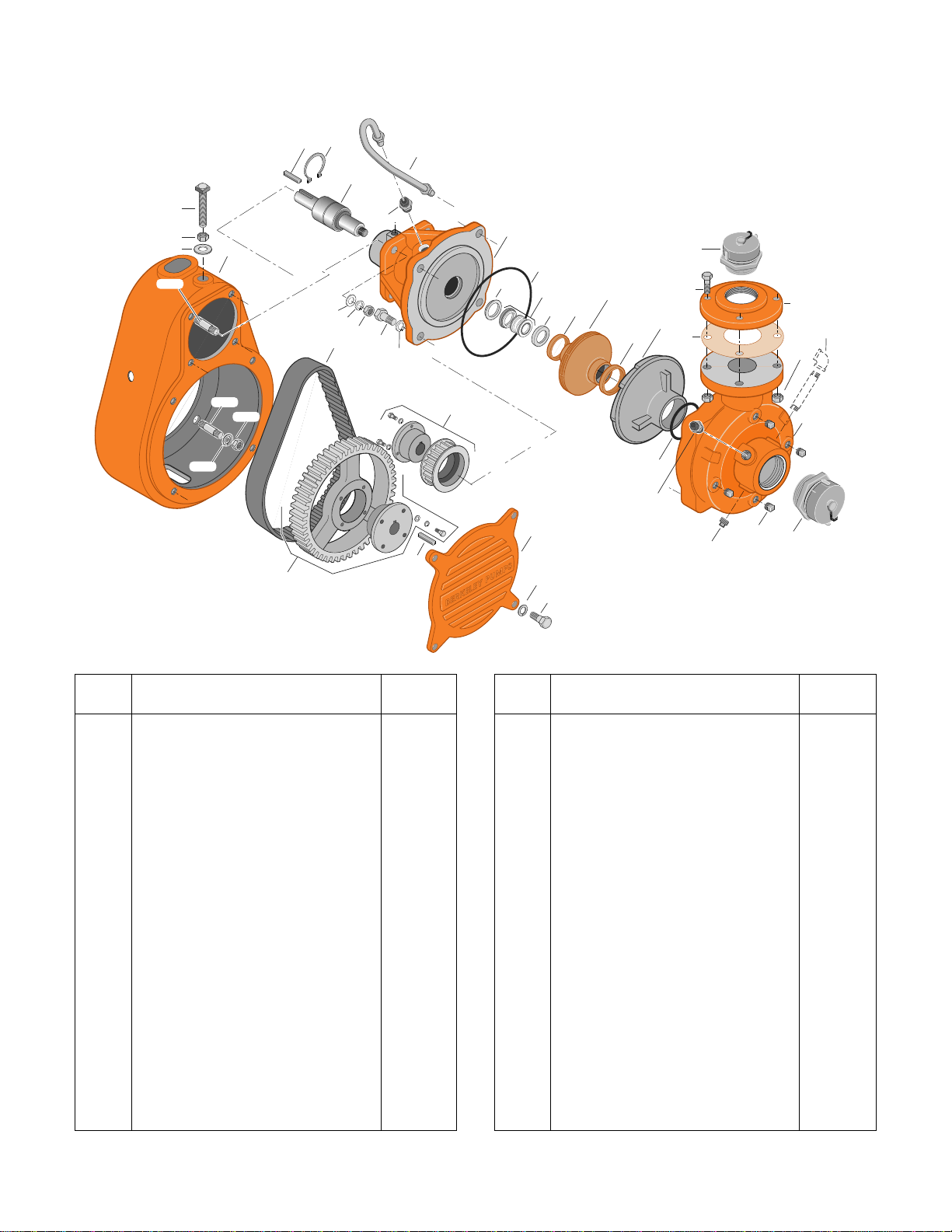

The numbers in parenthesis correspond to the Exploded
View (Figure 7).
All capscrews and studs must have Loctite AV 10-10 and
lockwashers.
Pump Disassembly
1. Disconnect and remove the exhaust primer (if used).
2. Disconnect and remove the seal flush line and fittings
(822, 820).
3. Remove the four capscrews holding the pump volute
case (1) to the bearing housing (19). Remove the
pump volute case.
4. Remove the diffuser (5) and quadring (119A) from the
pump volute case.
5. Unscrew the impeller from the pump shaft (turn
CLOCKWISE – left-hand thread).
6. Remove the Impeller spacer washer (69) from the
shaft.
7. With two screwdrivers, carefully remove the rotating
half of the seal (89) from the bearing housing. Be
careful not to scratch or mar the shaft.
8. Loosen the three capscrews in the small taper hub
(833A) and remove the hub and sprocket from the
shaft.
9. Reach into the bearing housing from the sprocket end
of the housing with snap ring pliers and remove the
internal retaining ring (817).
Page 8 F00650
Disassembly/Assembly
T
r
u
a
r
c
800D
838
6
817
836
802B
804A
19
805A
119B
69
2
89
7A
7B
800B
32A
802A
815
801A
801A
802A
805A
800A
833B 805A
800A
32B
822
848A
820
848B
820
119A
1
810
810
5
850
73
802B
800C
804B
805B
For Exhaust
Primer Parts,
See Page 11
837
833A
3044 0997
Figure 7: Assembly View

10. Tap the shaft and bearing assembly out of the
bearing housing from the impeller end of the housing.
NOTICE: Be sure to protect the shaft threads!
11. Check the fit of the wear ring (7 or 7A) to the impeller
sleeve (all models) and of the diffuser wear ring (7B)
to the impeller hub (Models B054728S and B07536S
only). If clearance of either wear ring is more than
.020” total (sum of both sides), press out the wear
ring(s) and replace it.
Timing Belt Drive Disassembly
1. Disconnect and remove the exhaust primer (if used).
2. Loosen the 1/2” locknut (802B) and remove the
jackscrew (800D).
3. Loosen the nuts that hold the pump and bearing
housing to the timing belt drive case (836).
4. Slide the pump down to relieve the tension on the
timing belt. Remove the nuts and the pump.
5. Remove the cover (837) from the drive case.
6. Remove the three bolts from the taper hub in the large
sprocket (the engine shaft sprocket). Remove the hub
and sprocket.
7. Remove the timing belt from the case and inspect it
closely. Replace it if it shows any signs of deteriorar-
tion, cracks, breaks, or tears.
8. If you are removing the complete case, remove the
nuts from the studs inside the case and remove the
case.
Pump Assembly
1. Press the wear ring (7A) into the bearing housing (19).
2. Insert the shaft and bearing unit (6) into the bearing
housing (19), making sure that it butts against the
inside shoulder. Use Loctite AV 10-10 on the outside
diameter of the outer ball bearing race.
3. Install the internal retaining ring (817) in the bearing
housing groove.
4. Insert the seal retaining washer (815) in the bearing
housing.
5. Lubricate the shaft and the sealing surfaces of the
mechanical shaft seal (89) with a soap solution; then
slip the seal onto the shaft, rubber drive ring first.
6. Slide the spacer (67) over the shaft thread and locate
it against the shaft shoulder.
7. Thread the impeller (2) onto the shaft until it is seated
against the shaft shoulder. Check for free rotation and
for eye concentricity (eccentricity must not exceed
.002” T.I.R.). Use Loctite AV 10-10 on threads.
8. Oil the “O”-Ring (119B) and insert it around the fit of
the bearing housing .
9. Install the quadring (119A) around the inside boss of
the pump body (1).
10. Press the wear ring (7B - Models B5478S and
B07536 only) into the diffuser (2);
11. Install the diffuser in the pump body (1 – all models).
12. Install the pump volute case (1) on the bearing
housing and tighten the capscrews.
13. Assemble the shaft key (32A) and small timing belt
sprocket (833A) (with the split taper bushing) on the
free end of the pump shaft. After making sure that the
bushing clears the bearing housing, tighten the three
capscrews provided on the taper bushing. Measure
and record the distance between the small sprocket
and the face of the bearing housing flange (it should
be approximately 1-3/16”).
14. Install the seal flush line and fittings (820-822) on the
pump.
15. Plug the drainage and priming holes with 1/4” NPT
plugs (810).
16. Place the gasket (73) (5” O.D. x 1-1/2” I.D. x 1/32”)
and 1-1/2” NPT x 5” Companion flange (850) on the
case discharge and fasten with nuts and bolts.
Timing Belt Drive Assembly
1. Thread the four 7/16” Studs (801B) into the engine
bolting face (Models B054728S and B07536S use 3/8”
studs, 801A).
2. Install the drive case (836) on the engine crankcase
bolting face and tighten the four 7/16” nuts (802C) or
3/8” nuts (802A).
3. Install the four 3/8” studs (801A) in the drive case face
to which pump will be attached.
F00650 Page 9
Disassembly/Assembly

Exhaust Primer Assembly
1. Assemble the canister (3), clack (2), and clack lever (1)
using the clevis pins (18,20) and cotter pins (19).
2. Install the pipe plug (8) in the bottom of the canister.
3. Assemble the exhaust piping (Model B06160 – 4,5;
Model B06591 – 4,5,6,7) on the engine exhaust port.
Tighten all components into the position required
except the last elbow. Tighten the last elbow snug,
making sure that it can be adjusted to accommodate
the canister location.
4. Attach the canister assembly to the exhaust piping,
tightening the canister connection and the last elbow of
the exhaust piping.
5. Attach the coupling (9A) or bushing (9B) and ejector
(10A or 10B) to the bottom of the canister. Make sure
that the ejector connection is pointed toward the pump.
6. Thread the adapter (11 – Model B06591 only), valve
(12), and compression fitting (13) onto the ejector
canister assembly.
7. Assemble the pump piping (15,16,17) and the second
compression fitting (13) to the pump
suction, making sure that the compression
fitting (13) is pointed toward the ejector
canister assembly.
8. Carefully bend and cut the copper tubing to make the
connection between the ejector canister assembly
connector and the pump piping connector.
9. Place fittings over each end of the copper tubing,
install the tubing, and tighten the compression fittings.
Page 10 F00650
Disassembly/Assembly
1
2
34
4
567
8
9A 9B
11
10B
10A
12
13
14
15 13
16 17
18 19
19
20
Figure 7: Exhaust Primer Assembly View

Repair Parts – Exhaust Primer
F00650 Page 11
1
2
34
4
567
8
9A 9B
11
10B
10A
12
13
14
15 13
16 17
18 19
19
20
Key Model
No. Part Description Qty. B06160 B06591
1 Clack Lever 1 M05224 M05224
2 Clack 1 S14092 S15815
3 Primer Canister 1 H02303 H02735
4 1” FPT Galv. Iron 90° Str El 2 S25381 –
4 1-1/4” FPT Galv. Iron Str El 1 – S25382
5 1” NPT x 2-1/2” Pipe Nipple 1 S22967 –
5 1-1/4” NPT x 2” Pipe Nipple 1 – S35058
6 1” NPT x 3-1/2” Pipe Nipple 1 S34721 –
7 1” x 13/16” Conduit Locknut 1 S27573 –
8 1/2” NPT Pipe Plug 1 S23717 S23717
9A 1/2” NPT Pipe Coupling 1 S24264 –
9B 3/4 MPT x 1/2 FPT Galv. Steel Bushing 1 – S24606
10A Ejector 1 S14332 –
10B Ejector 1 – S15817
11 3/8 MPT x 1/4 Galv. Steel Bushing 1 – S24601
12 1/4 FPT x 1/4 MPT Bronze Shutoff Valve 1 S34720 S34720
13 3/8” Male Compression Fitting 2 S24017 S24017
14 3/8” Copper Tubing 1 S22480 S22480
15 1/4” NPT x 3-1/2” Tube Steel Nipple 1 S27136 S27136
16 1/4 FPT Galv. Iron 90° Str El 1 S25377 S25377
17 1/4 FPT Galv. Iron 45° Str El 1 S25422 S25392
18 1/4” x 3/4” Clevis Pin 1 S28075 S28075
19 1/16” x 1/2” Cotter Pin 2 S26606 S26606
20 1/4” x 1” Clevis Pin 1 S28078 S28078

Repair Parts – Model B56514S
Page 12 F00650
T
r
u
a
r
c
800D
833A
838
6
817
836
802B
804A
19
805A
119B
69
2
89
7
800B
32A
802A
815
801B
801A
802C
805F
800A
833B 805A
800A
32B
822
820
834
820
119A
1
810
810
5
850
73
802B
800C
804B
805B
837
3045 0997
Item Part
No. Part Description Number
1 Case, Volute L03030
2 Impeller H05527
5 Diffuser L07986
6 Shaft and Bearing Assembly S11862
7 Ring, Wear M10891
19 Housing, Bearing M04520
32A Key, 3/16 x 1” S24151
32B Key, 1/4” x 2” S24172
69 Washer, Impeller S15051
73 Gasket, Flange S10361
89 Seal, Mechanical Shaft S22380
119A Quadring S13933
119B O-Ring S13932
800A Capscrew, 3/8 - 16 x 1” (5 Req.) S26826
800B Capscrew, 1/2 - 13 x 1-1/4” (4 Req.) S26914
800C Capscrew. 1/2 - 13 x 2” (4 Req.) S26920
800D Screw, Set, 1/2 - 13 x 3” S32407
801A Stud 3/8-16 x 1-3/8 (4 Req.) S09942
801 B Stud 7/16 - 14 x 1-1/2 (4 Req.) S24002
802A Nut, Hex, 3/8-16 (4 Req.) S23103
802B Nut, Hex, 1/2-13 (5 Req.) S23107
802C Nut, 7/16 x 14 (4 Req.) S23105
Item Part
No. Part Description Number
804A Washer, Flat 1/2 ID X 1-1/16 OD S23052
805A Washer, Lock, 3/8 (8 Req.) S23076
805B Washer, Lock, 1/2 (4 Req.) S23091
805F Washer, Lock, 7/16 (4 Req.) S23077
810 Plug, Pipe, 1/4 NPT (7 Req.) S23715
815 Ring, Seal Retaining S11894
817 Ring, Retaining, Internal S23022
820 Connector, Tubing (2 Req.) S24017
822 Tubing, 3/8” S17553
833A Sprocket, Timing Belt, Small
(Includes Taper Bushing) S11895
833B Sprocket, Timing Belt, Large
Taper Bushing)(w/o Bushing) S11901
834 Bushing, Split Taper
(for Key No. 833B) S31420
836 Case, Drive H03759
837 Cover, Drive Case S11892
838 Timing Belt S11902
850 Flange, Companion S11785
• Plate, Sound Level Warning S19086
• Arrestor, Spark, Assembly S35596
• Engine (B & S 18 HP) S31449
• Not Illustrated

Repair Parts – Models B54728S, B07536S
F00650 Page 13
• Not Illustrated
T
r
u
a
r
c
800D
838
6
817
836
802B
804A
19
805A
119B
69
2
89
7A
7B
800B
32A
802A
815
801A
801A
802A
805A
800A
833B 805A
800A
32B
822
848A
820
848B
820
119A
1
810
810
5
850
73
802B
800C
804B
805B
For Exhaust
Primer Parts,
See Page 11
837
833A
3044 0997
Item Part
No. Part Description Number
1 Case, Volute L03030
2 Impeller H05526
5 Diffuser L07986
6 Shaft and Bearing Assembly S11862
7A Ring, Wear M10911
7B Ring, Wear M10891
19 Housing, Bearing M04520
32A Key, 3/16 x 1” S24151
32B Key, 1/4” x 2” S24172
67 Spacer, Impeller S00512
73 Gasket, Flange S10361
89 Seal, Mechanical Shaft S22380
119A Quadring S13933
119B O-Ring S13932
800A Capscrew, 3/8 - 16 x 1” (4 Req.) S26826
800B Capscrew, 1/2 - 13 x 1-1/4” (4 Req.) S26914
800C Capscrew. 1/2 - 13 x 2” (4 Req.) S26920
800D Screw, Set, 1/2 - 13 x 3” S32407
801 Stud, 3/8 - 16 x 1-3/8” (8 Req.) S09942
802A Nut, Hex, 3/8-16 (8 Req.) S23103
802B Nut, Hex, 1/2-13 (4 Req.) S23107
804A Washer, Flat 1/2 ID X 1-1/16 OD S23052
805A Washer, Lock, 3/8 (12 Req.) S23076
805E Washer, Lock, 1/2 (4 Req.) S23091
Item Part
No. Part Description Number
810 Plug, Pipe, 1/4 NPT (6 or 7 Req.) S23715
815 Ring, Seal Retaining S11894
817 Ring, Retaining, Internal S23022
820 Connector, Tubing (2 Req.) S24017
822 Tubing, 3/8” S17553
833A Sprocket, Timing Belt, Small
(w/Bushing) S12694
833B Sprocket, Timing Belt, Large
(w/ Bushing) S12692
836 Case, Drive L05397
837 Cover, Drive Case M04689
838 Timing Belt S12691
848A Nipple, Hose, Hex
1-1/2”NPT x 1-1/2”-9NH
(Model B07536S Only) M05666
848B Nipple, Hose. Hex, Increasing,
2” NPT x 1-1/2”-9 NH
(Model B07536S Only) M05668
0850 Flange, Companion S11785
• Engine (B & S 11 HP) S19836
• Primer and Spark Arrester
(B07536S Only) See Page 11
For Primer/Spark Arrestor Parts B06160
• Plate, Sound Level Warning S19086

Repair Parts – Models B06162S, B06172S
Page 14 F00650
T
r
u
a
r
c
800D
838
6
817
836
802B
804A
19
805A
119B
69 2
89
7
800B
32A
802A
815
801B
801A
802C
805C
800A
833B 805A
800A
32B
822
848A
820
848B
820
119A
1
810
810
5
850
73
802B
800C
804B
805B
For Exhaust
Primer Parts,
See Page 11
837
833A
834
3046 0997
Item Part
No. Part Description Number
1 Case, Volute L03030
2 Impeller H05528
5 Diffuser L07986
6 Shaft and Bearing Assembly S11862
7 Ring, Wear M10891
19 Housing, Bearing M04520
32A Key, 3/16 x 1” S24151
32B Key, 3/8” x 2” S24189
69 Washer, Impeller S15051
73 Gasket, Flange S10361
89 Seal, Mechanical Shaft S22380
119A Quadring S13933
119B O-Ring S13932
800A Capscrew, 3/8 - 16 x 1” (4 Req.) S26826
800B Capscrew, 1/2 - 13 x 1-1/4” (4 Req.) S26914
800C Capscrew. 1/2 - 13 x 2” (4 Req.) S26920
800D Screw, Set, 1/2 - 13 x 3” S32407
801A Stud, 3/8 - 16 x 1-3/8” (4 Req.) S09942
801B Stud, 7/16 - 14 x 2-1/2” (4 Req.) S24006
802A Nut, Hex, 3/8-16 (4 Req.) S23103
802B Nut, Hex, 1/2-13 (5 Req.) S23107
802C Nut, 7/16 - 14 (4 Req.) S23105
804A Washer, Flat 1/2 ID X 1-1/16 OD S23052
805A Washer, Lock, 3/8 (8 Req.) S23076
805B Washer, Lock, 1/2 (4 Req.) S23091
Item Part
No. Part Description Number
805C Washer, Lock 7/16 (4 Req.) S23077
810 Plug, Pipe, 1/4 NPT (6 or 7 Req.) S23715
815 Ring, Seal Retaining S11894
817 Ring, Retaining, Internal S23022
820 Connector, Tubing (2 Req.) S24017
822 Tubing, 3/8” S17553
833A Sprocket, Timing Belt S11895
833B Sprocket, Timing Belt S11901
834 Bushing, Split Taper
(for Key No. 833B) S35598
836 Case, Drive H01879
837 Cover, Drive Case S11892
838 Timing Belt S11902
848A Nipple, Hose, Hex
1-1/2” NPT x 1-1/2”-9 NH
(Model B06172S Only) M05666
848B Nipple, Hose. Hex, Increasing,
2” NPT x 2-1/2”-7-1/2 NH
(Model B06172S Only) M05668
850 Flange, Companion S11785
• Primer and Spark Arrester
(B07536S Only) See Page 11
For Primer/Spark Arrestor Parts B06591
• Plate, Sound Level Warning S19086
• Engine (Wisconsin 18 HP) S28668
• Not Illustrated

Repair Parts – Model B58603S
F00650 Page 15
• Not Illustrated
T
r
u
a
r
c
800D
833A
838
6
817
836
802B
804A
19
805A
119B
69
2
89
7
800B
32A
802A
815
801B
801A
802C
805C
800A
833B 805A
800A
32B
822
820
834
820
119A
1
810
810
5
850
73
802B
800C
804B
805B
837
3047 0997
Item Part
No. Part Description Number
1 Case, Volute L03030
2 Impeller H05528
5 Diffuser L07986
6 Shaft and Bearing Assembly S11862
7 Ring, Wear M10891
19 Housing, Bearing M04520
32A Key, 3/16 x 1” S24151
32B Key, 3/8” x 2” S24189
69 Washer, Impeller S15051
73 Gasket, Flange S10361
89 Seal, Mechanical Shaft S22380
119A Quadring S13933
119B O-Ring S13932
800A Capscrew, 3/8 - 16 x 1” (5 Req.) S26826
800B Capscrew, 1/2 - 13 x 1-1/4” (4 Req.) S26914
800C Capscrew. 1/2 - 13 x 2” (4 Req.) S26920
800D Screw, Set, 1/2 - 13 x 3” S32407
801A Stud, 3/8 - 16 x 1-3/8” (4 Req.) S09942
801B Stud, 7/16 - 14 x 2-1/2 (4 Req.) S24006
802A Nut, Hex, 3/8-16 (4 Req.) S23103
802B Nut, Hex, 1/2-13 (5 Req.) S23107
Item Part
No. Part Description Number
802C Nut, 7/16 - 14 (4 Req.) S23105
804A Washer, Flat 1/2 ID X 1-1/16 OD S23052
805A Washer, Lock, 3/8 (8 Req.) S23076
805B Washer, Lock, 1/2 (4 Req.) S23091
805C Washer, Lock, 7/16 (4 Req.) S23077
810 Plug, Pipe, 1/4 NPT (6 Req.) S23715
815 Ring, Seal Retaining S11894
817 Ring, Retaining, Internal S23022
820 Connector, Tubing (2 Req.) S24017
822 Tubing, 3/8” S17553
833A Sprocket, Timing Belt S11895
833B Sprocket, Timing Belt S11901
834 Bushing, Split Taper
(for Key No. 833B) S35598
836 Case, Drive H01879
837 Cover, Drive Case S11892
838 Timing Belt S11902
850 Flange, Companion S11785
• Plate, Sound Level Warning S19086
• Engine (Lombardini 26 HP Diesel) S32859
