Berkeley 7LT2 User manual

OWNERS MANUAL
INSTALLATION AND OPERATING INSTRUCTIONS
REPAIR PARTS LIST
Horizontal Multi-Stage Jet Pumps
MODELS
IMPORTANT
For best possible performance. . .continuous, satisfactory
operation, read these instructions before installing your new
pump. Should service be required, this manual can be a valuable guide. It
should be kept near the pump installation for ready reference.
U1002 (Rev. 3/19/09)
3/4 HP 1 HP 1-1/2 HP
7LT2 10LT2 15LT2

Deep Well Installation
Under certain conditions, horizontal multi-
stage pumps can develop extremely high
pressure. Install a pressure relief valve
capable of passing entire pump flow at 75 PSI.
Do not allow pump, pressure tank, piping, or any
other system component containing water to freeze.
Freezing may damage system, leading to injury or flood-
ing. Allowing pump or system components to freeze will
void warranty.
NOTICE: Support pump base to avoid strain on casing adapter
or pump. Lack of support can damage adapter or pump.
Figure 2 shows casing adapter bolted directly to pump body.
Shallow Well Installation
NOTICE: If no foot valve is used, install 1” check valve in
horizontal line.
Priming the Deep Well Pump
To prime pump, completely close the priming valve located
just below the suction opening by turning screw clockwise.
This valve will be left closed during operation in a deep well
installation. See Figure 1.
Close regulator adjusting valve, located on end of regulator,
by turning stem clockwise. See Figure 1.
Remove priming plug from top of regulator valve, see Figure
1, and fill with clean water. Replace plug.
Start pump and run a few moments.
If pressure does not build up, remove priming plug and refill
with more water. All of the trapped air in pump body was not
removed.
Restart pump.
When pump is completely primed and builds up pressure,
slowly open the regulator valve, (turn counter-clockwise), and
observe the pressure reading on the pressure gauge.
When the pump reaches a point where it will lose prime, cavi-
tation noise can be heard.
The best, or correct, pressure gauge setting is approximately
3 pounds higher than the pressure gauge reading was when
the pump started to lose prime.
If pump loses prime, repeat the priming procedure above and
this time open regulator valve only until the correct pressure
reading is reached.
If a vacuum gauge is available, screw it into the 1/8” AVC
tapping on front of tank body. Adjust regulator until 20” of
vacuum is registered on the gauge. Tighten locknut on regu-
lator. This method will give maximum performance of the
unit.
Pumps come equipped with 30-50 PSI pressure switches.
When pump is used with precharged tank in system, set tank
pre-charge at 28 PSI. Check tank pre-charge annually with
an ordinary tire gauge. Pre-charge is set with no water pres-
sure on system.
2
Priming
Valve
Pipe fittings not furnished
Drain
Plug
Drive Line
Suction
Line
Plastic Pipe
Adapter (2)
Plastic Hose
(2)
Hose Clamp
(2)
To Service
Regulator Adjusting
Valve
Priming Plug
Regulator
Valve
1" Close nipple &
90 Elbow
2781093
To Service
Priming Plug Regulator
Val v e
279 1093

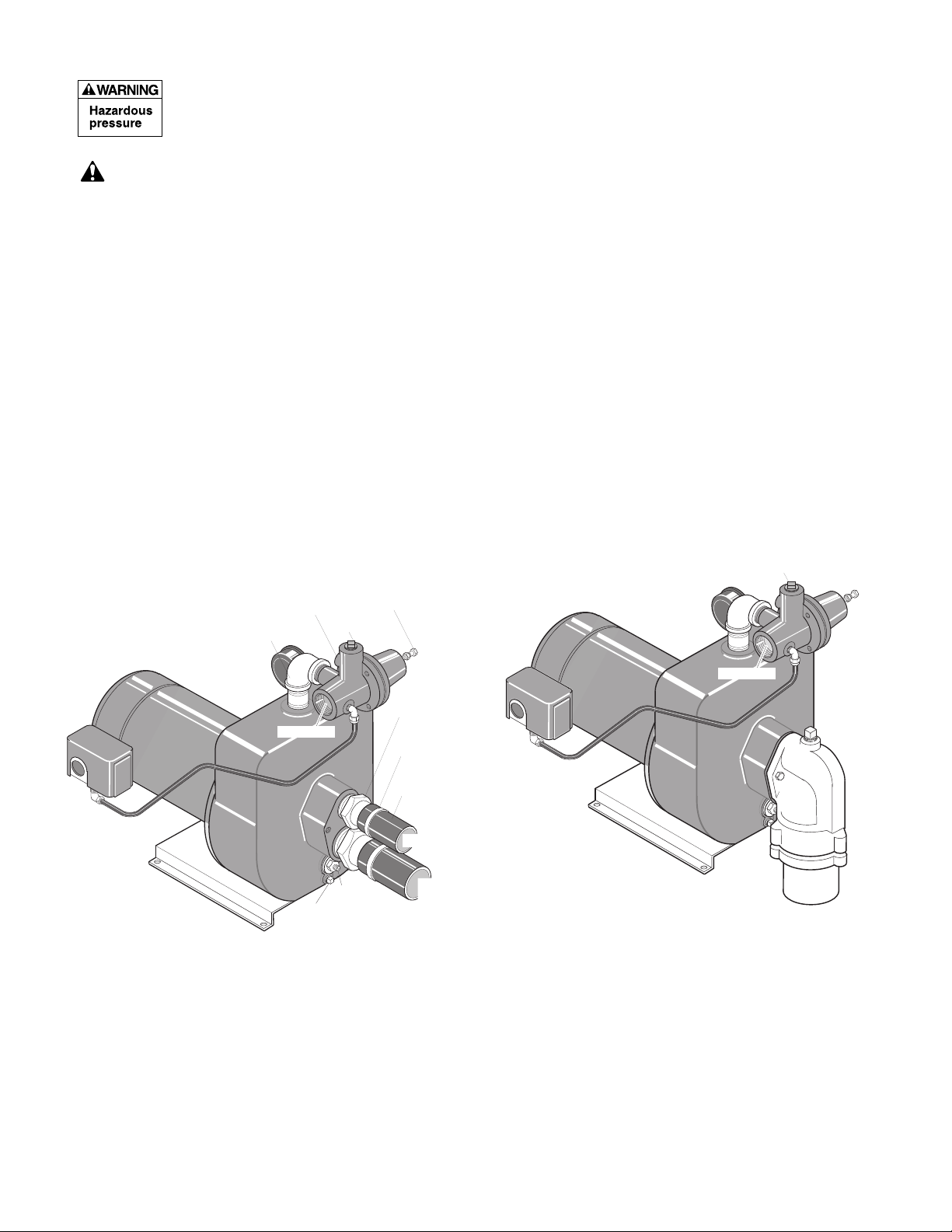

Figure 1 – Deep Well Installation
Figure 2 – Well Casing Adapter bolted directly
to pump

Priming the Shallow Well Pump
Never run pump dry. Running pump without
water may cause pump to overheat, damaging seal and pos-
sibly causing burns to persons handling pump. Fill pump with
water before starting.
Never run pump against closed discharge.
To do so can boil water inside pump, causing hazardous
pressure in unit, risk of explosion and possibly scalding per-
sons handling pump.
To prime the pump, completely open the priming valve locat-
ed just below the suction opening on the tank body by turning
the valve stem counter-clockwise all the way until it stops.
This valve may be left open during operation as a shallow
well pump with no jet. See Figure 3 and “NOTICE” below.
Remove priming plug from top of elbow (see Figure 3), and
fill with clean water. Replace plug.
Start pump and between 45-60 seconds. If water is not being
pumped, turn off pump and repeat priming process.
NOTICE: If a bolt-on jet is being used, after pump is primed,
close the priming valve during operation as a shallow well
pump.
Service – Draining for Winter
Do not touch an operating motor. Modern
motors are designed to operate at high temperatures. To
avoid burns when servicing pump, allow it to cool for 20 min-
utes after shut-down before handling.
When the pump is to be disconnected from service, or is in
danger of freezing, it should be drained. The pump has a
drain plug which must be removed. Remove the priming plug
to vent the pump.
3
To Service
Priming
Valve
From
Well
1"Pipe Plug
Plastic Pipe
Adapter
Hose Clamp
Plastic
Hose
Pipe fittings not furnished
PrimingPlug &
1/2"Street Elbow
240 1093
Figure 3 – Shallow Well Installation
TABLE I
Recommended Fusing and Wiring Data – 60 Cycle Motors
DISTANCE IN FEET FROM MOTOR TO METER
BRANCH 0’ 101’ 201’ 301’ 401’
MAX. FUSE* to to to to to
MOTOR LOAD RATING 100’ 200’ 300’ 400’ 500’
HP VOLTS AMPERES AMPS WIRE SIZE
3/4 115 14.8 20 12 8 6 6 4
3/4 230 7.4 15 14 14 14 12 10
1 115 19.2 25 10 8 6 4 4
1 230 9.6 15 14 14 12 10 10
1-1/2 115 24.0 30 10 6 6 4 3
1-1/2 230 12.0 15 14 14 12 10 10
*Fusetrons are recommended instead of fuses on all motor circuits.

4
Motor Switch Settings
Dual-voltage motors (motors that can operate at either 115 or
230 volts), are set at the factory to 230 volts. Do not change
motor voltage setting if line voltage is 230 volts, or if you have
a single voltage motor.
NOTE: Never wire a 115 volt motor to a 230 volt line.
Remove Motor End Cover
If you have a dual-voltage motor, and will connect it to 115
volts, follow the procedure below.
You will need to remove the motor end cover to change the
voltage setting.
Your motor terminal board (located under the motor end
cover) should look like that shown below.
To change to 115 volts:
1. Make sure power is off.
2. Turn the dial counter-clockwise until 115 shows in the dial
window.
3. The wires from the pressure switch should already be
attached to to power lead terminals.
4. Reinstall the Motor end cover.
Pressure Switch Wiring
Step 5. Go to Wiring Connections below.
Hazardous voltage. Can shock, burn, or kill.
Connect ground wire before connecting power supply
wires. Use the wire size (including the ground wire) speci-
fied in the wiring chart. If possible, connect the pump to a
separate branch circuit with no other appliances on it.
Explosion hazard. Do not ground to a gas
supply line.
Electrical
Disconnect power before working on pump, motor, pressure switch, or wiring.

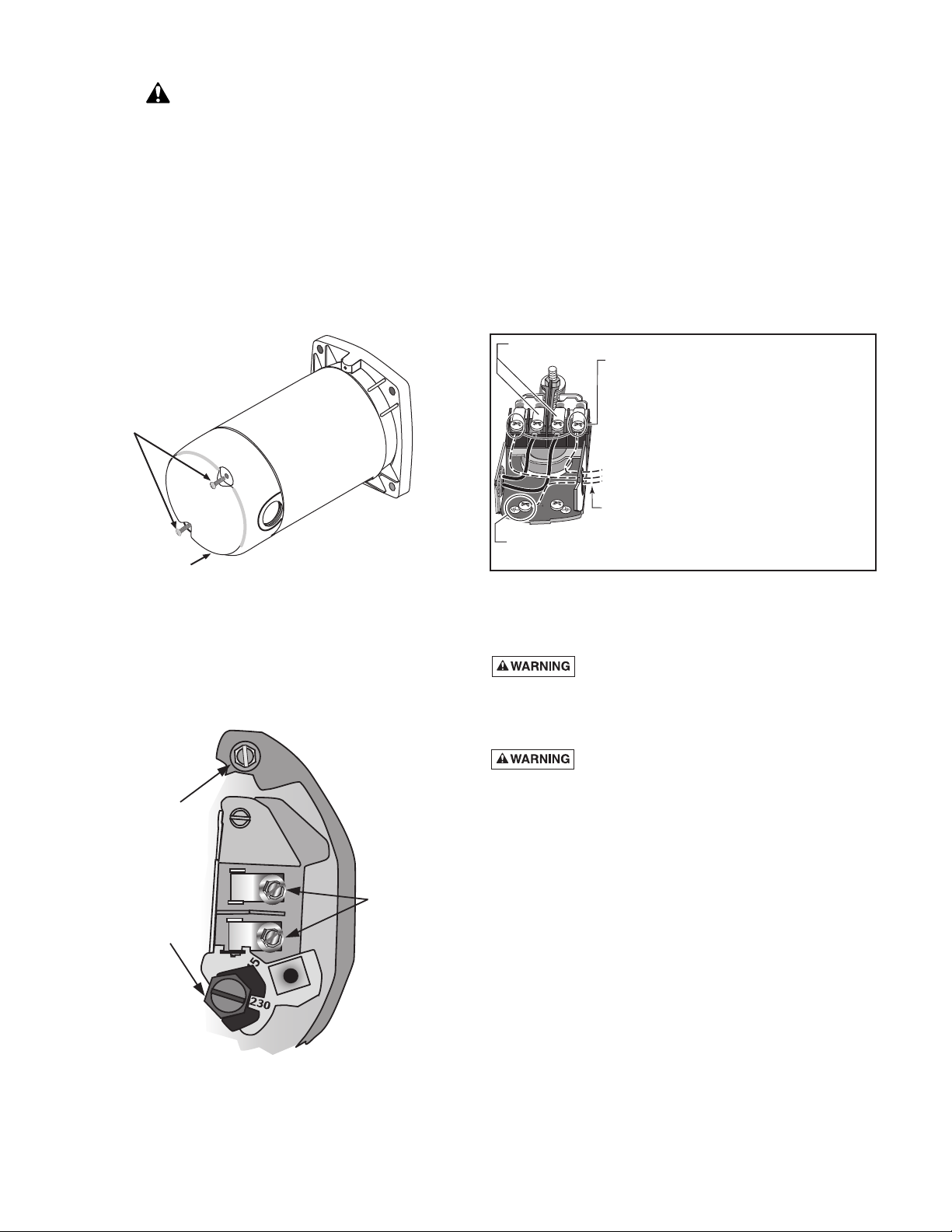

Figure 4 – Removing Motor End Cover
Motor
End Cover
End Cover Screws
Figure 6 – Pressure Switch Wiring
Clamp the power cable to prevent strain
on the terminal screws.
Connect the green (or bare copper) ground wire
to the green ground screw.
Motor wires connect here.
3187 0704H
Power supply wires connect here.
230 Volt: Connect 2 hot wires (black and red)
here and cap the white (neutral) wire. It does
not matter which wire goes to which screw.
115 Volt: Connect one hot wire (black or red)
to one of these screws (it doesn't matter
which one). Connect the white (neutral) wire
to the other screw. Cap any remaining
black or red wires.
Figure 5 – Voltage set to 230 volts, Dial Type
Voltage
Change Dial
Ground
Screw
Power Lead
Terminals

Wiring Connections
Fire hazard. Incorrect voltage can cause a fire
or seriously damage the motor and voids the warranty. The
supply voltage must be within ±10% of the motor nameplate
voltage.
NOTICE: Dual-voltage motors are factory wired for 230 volts.
If necessary, reconnect the motor for 115 volts, as shown. Do
not alter the wiring in single voltage motors.
Install, ground, wire, and maintain your pump in compliance
with the National Electrical Code (NEC) or the Canadian
Electrical Code (CEC), as applicable, and with all local codes
and ordinances that apply. Consult your local building inspec-
tor for code information.
Connection Procedure:
1. Connect the ground wire first as shown in Figure 6. The
ground wire must be a solid copper wire at least as large
as the power supply wires.
2. There must be a solid metal connection between the pres-
sure switch and the motor for motor grounding protection.
If the pressure switch is not connected to the motor, con-
nect the green ground screw in the switch to the green
ground screw under the motor end cover. Use a solid cop-
per wire at least as large as the power supply wires.
3. Connect the ground wire to a grounded lead in a service
panel, to a metal underground water pipe, to a metal well
casing at least ten feet (3M) long, or to a ground electrode
provided by the power company or the hydro authority.
4. Connect the power supply wires to the pressure switch as
shown in Figure 6.
5

6
1
2
4
5
67
8
9
10
10A
10B
22
25
23
24
3
225 0993
8
11
12
12A
12B
13
14
15 16
17
18
18A
19
20
21
26
27

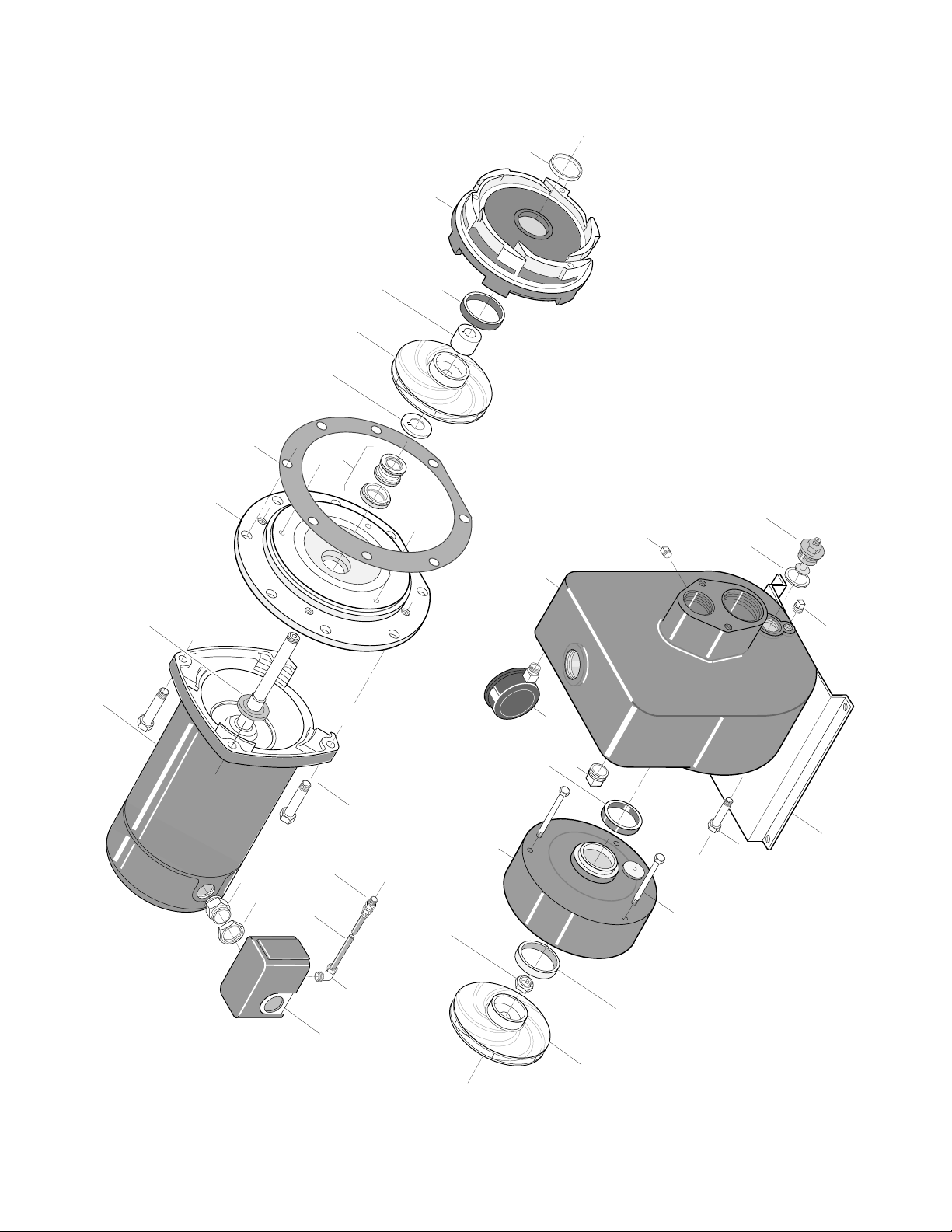

EXPLODED VIEW

7
REPAIR PARTS
KEY PART NO. 7LT2 10LT2 15LT2
NO. DESCRIPTION W/KIT USED 3/4 HP 1 HP 1-1/2 HP
1 Motor, 60 Hz, 115/230V - Single Phase 1 A700DH A700EH A700FH
•1A Key - Shaft OH 2 U65-15SS U65-15SS U65-15SS
2 Water Slinger 1 17351-0009 17351-0009 17351-0009
3 Stud - 3/8” - 16 x 1” Hex Head 4 U30-74ZP U30-74ZP U30-74ZP
4 Seal Plate 1 L3-26 L3-26 L3-26
5 Gasket - Seal Plate OH/SG 1 L20-43 L20-43 L20-43
6 Shaft Seal OH/SG 1 U109-267 U109-267 U109-267
7 Spring Holder Washer OH/SG 1 J24-11 J24-11 J24-11
8 Impeller OH 2 L105-2PC L105-2PB L105-2P
9 Spacer - Impeller 1 J43-23 J43-23 J43-23
10 Diffuser Assembly w/Wear Rings 1 L101-45 L101-45 L101-45
10A Wear Ring OH (1) L23-9 L23-9 L23-9
10B Wear Ring OH (1) P23-19 P23-19 P23-19
11 Stop Nut - Shaft OH 1 U36-175SSW U36-175SSW U36-175SSW
12 Diffuser Cover w/Wear Ring 1 L103-27 L103-27 L103-27
12A Wear Ring (1) L23-9 L23-9 L23-9
12B Capscrew - 1/4” - 20 x 3” Lg. 3 U30-528SS U30-528SS U30-528SS
13 Diffuser Ring OH/SG 1 L21-1 L21-1 L21-1
14 Pipe Plug - 1/2” NPT 1 U78-59ZPS U78-59ZPS U78-59ZPS
15 Pressure Gauge 1 U239-8 U239-8 U239-8
16 Pump Body 1 L76-36 L76-36 L76-36
17 Pipe Plug - 1/8” NPT 1 U78-56ZPS U78-56ZPS U78-56ZPS
18 Valve Assembly 1 01322 01322 01322
18A Gasket 1 L20-39 L20-39 L20-39
19 Plug - 1/4” NPT 1 U78-941ZPV U78-941ZPV U78-941ZPV
20 Base 1 U4-5 U4-5 U4-5
•20A Lockwasher - 3/8” 2 U43-12ZP U43-12ZP U43-12ZP
•20B Capscrew - 3/8” - 16 x 5/8” Lg. 2 U30-71ZP U30-71ZP U30-71ZP
21 Capscrew - 3/8” - 16 x 7/8” Hex Head 8 U30-73ZP U30-73ZP U30-73ZP
22 Connector 1 L43-5C L43-5C L43-5C
23 Locknut - 1/2” 1 U36-112ZP U36-112ZP U36-112ZP
24 Pressure Switch 1 U217-1219 U217-1219 U217-1219
25 Compression Fitting - Elbow - 1/4” 1 U111-86T U111-86T U111-86T
26 Tube - Pressure Switch 1 U37-217P U37-217P U37-217P
27 Compression Fitting - Straight - 1/4” 1 U111-100T U111-100T U111-100T
SERVICE KITS
Seal and Gasket Kit 1 PP1625 PP1625 PP1625
Overhaul Kit 1 PP1631 PP1632 PP1633
NOTE: SG Included in Seal and Gasket Kit. OH Included in Overhaul Kit.
• Not shown.

8
1
1A
2D
2A
2B
2C
2G
2E
2F
2
3
4
5
6
7
8
9
229 1093

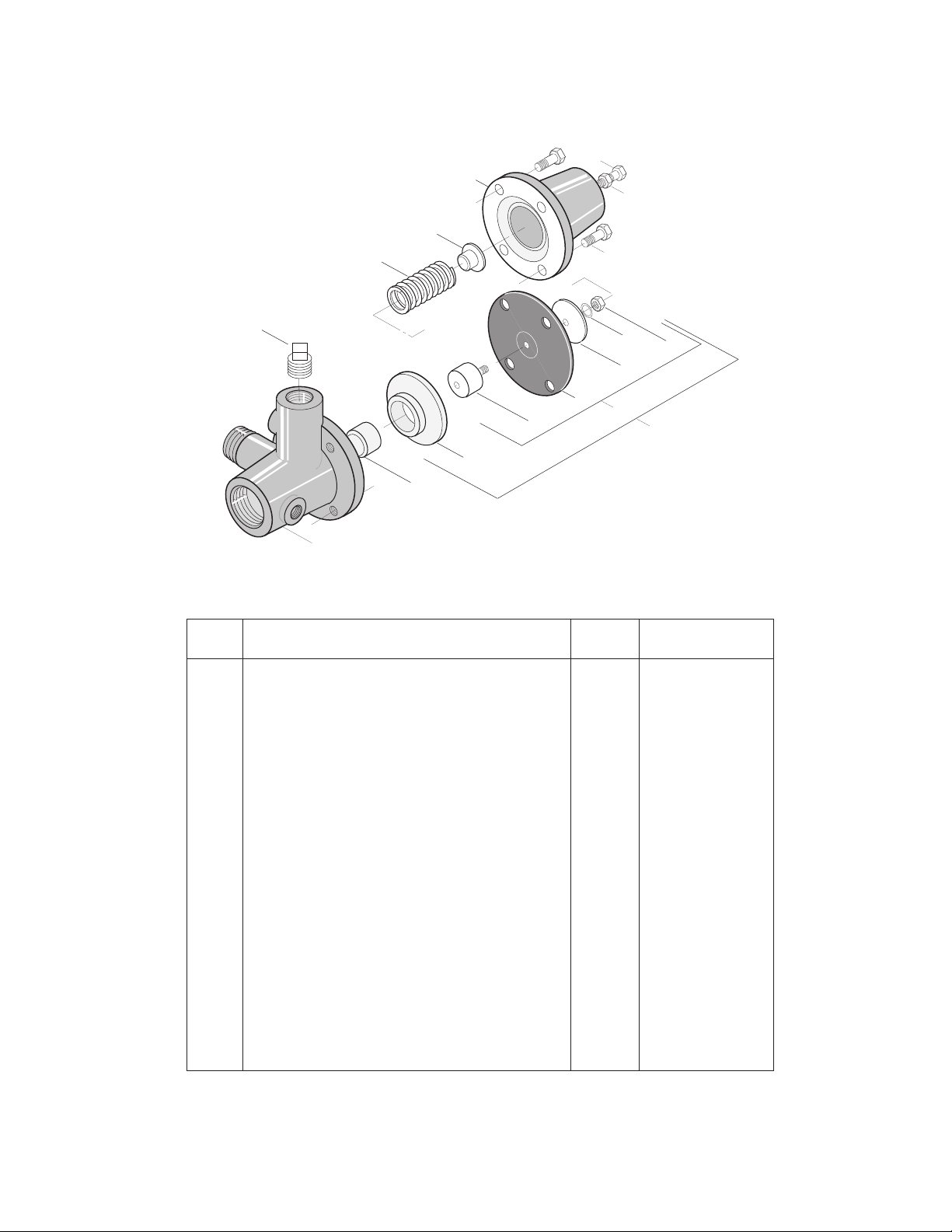

J212-24H Regulator Valve
EXPLODED VIEW
KEY PART PART
NO. DESCRIPTION QTY. NUMBER
Pressure Regulator – Complete 1 Pkg. 107
1 Regulator Body w/Seat 1 J112-14
1A Seat 1 J66-16
2 Diaphragm Assembly w/Guide (Incl. 2A, 2B) 1 J220-16B
2A Guide 1 J42-5
2B Diaphragm Assembly (Incl. 2C, 2D, 2E, 2F, 2G) 1 J120-16
2C Stem 1 J62-9
2D Diaphragm 1 J20-16
2E Spring Follower 1 J43-31
2F Ext. Tooth Washer 1 U43-23ZP
2G Nut, Hex Head 1/4-20 1 U36-36ZP
3 Spring 1 J24-13
4 Spring Guide 1 J61-5
5 Bonnet 1 J52-9
6 Capscrew 5/16-18 x 3/4” 4 U30-60ZP
7 Nut, Hex Flanged 5/16-18 1 U36-205ZP
8 Capscrew 5/16-18 x 2” 1 U30-69FTZP
9 Pipe Plug 1/2 NPT 1 U78-59ZPS
• Compression Fitting 1/4” 90°EL 1 U111-212T
• Tubing - Pressure Switch 1 U37-678P
REPAIR PARTS
• Not shown
