Berner BFSNK1 User manual

Originaluser manual
Fryers
from - Y.O.M. 2019
Be sure to read the instructions for use and assembly
before installation - installation - commissioning.
This protects you and prevents damage.
Berner- Kochsysteme GmbH & Co. KG
Sudetenstrasse 5 - D-87471 Durach
Tel. [phone]; Fax. - 15
Email: [e-mail] | www.induktion.de

Page 1 Of 23 26.08.2014
Ver. 2.1 Copyright Berner Cooking Systems 2019
Table
Table ....................................................................................................................................... 1
Safety...................................................................................................................................... 3
Safety regulations ..................................................................................................................... 4
Description of Hazard Symbols ................................................................................................. 4
Dangers in case of non-compliance with safety regulations .......................................................... 4
Safe use................................................................................................................................ 4
Safety regulations for operators ............................................................................................... 4
Improper operation................................................................................................................. 5
Changes / use of spare parts ................................................................................................... 5
General.................................................................................................................................... 5
Application ............................................................................................................................ 5
Product .................................................................................................................................... 5
Products................................................................................................................................ 5
Technical data........................................................................................................................ 5
Operation and control ( devices with thermostat ).................................................................. 5
Operation and control (devices with sensor keypad)............................................................... 5
Technical device data ........................................................................................................... 6
Functional conditions............................................................................................................ 6
Installation ............................................................................................................................... 7
Electrical data of the devices.................................................................................................... 7
Devices by power ( 3.2 kW - table appliances ) ...................................................................... 7
Devices by power (6,0 -20 kW -tabletop devices, System60/20 )........................................ 7
Devices by performance ....................................................................................................... 7
(7.5 -16.5 kW - built-in appliances, stand-by devices, system 70 - thermostat control ) .......... 7
Devices by performance ....................................................................................................... 7
(7.5 - 16.5 kW -built-in appliances, stand-by devices, system 70 - electronic control ) ............. 7
Devices by performance ....................................................................................................... 7
( 15.0 - 24.0 kW - built-in appliances, stand-by devices, system 70 - thermostat control ) ........... 7
Devices by performance ....................................................................................................... 7
( 15.0 - 24.0 kW - built-in appliances, stand-by devices, system 70 - electronic control ) ............. 7
Optional filter system ( 0.12 kW - BEPSF1, BEPSF2 ) ............................................................... 7
Installation pre-conditions ....................................................................................................... 8
Installation regulations............................................................................................................ 8
Commissioning ......................................................................................................................... 9
Assembly .............................................................................................................................. 9
Control with rotary gag ( devices with thermostat control )......................................................... 9
Touch control panel for temperature control ( electronic control ) ........................................... 10
Melting stage ....................................................................................................................... 10
Standby function .................................................................................................................. 10
Cooking process ................................................................................................................... 11
Automatic corbleging ............................................................................................................... 11
Operating instructions Fritteusen Timer Motor Control (installation andstand units ): ................. 11

Page 2 Of 23 26.08.2014
Ver. 2.1 Copyright Berner Cooking Systems 2019
Touch control panel for automatic corbeanlifting....................................................................... 11
Functional .............................................................................................................................. 12
Operation............................................................................................................................... 12
Cooking process (BFEM, BFEE)............................................................................................... 12
Cooking process (SFOE) ........................................................................................................ 12
Error detection........................................................................................................................ 13
Troubleshooting ...................................................................................................................... 13
Overview Display of faults in the display.................................................................................. 13
Cleaning ................................................................................................................................ 14
Replacement of the frying fat or oil......................................................................................... 15
Cleaning the fryer (BFEM, BFEE)............................................................................................. 15
Cleaning the fryer (SFOE)...................................................................................................... 15
Fryingn (Info material)............................................................................................................ 16
Maintenance ........................................................................................................................... 16
Decommissioning .................................................................................................................... 16
Disposal ................................................................................................................................. 16
Guarantee ........................................................................................................................... 16
Repair during the warranty period .......................................................................................... 16
Technical documentation.......................................................................................................... 16
Device view(Example: BFEM50/2) ......................................................................................... 16
Installation example ............................................................................................................. 17
Installation instructions for the installation of Berner ................................................................... 17
Sensor keypads with support frame (Ver. A) ............................................................................ 17
Installation instructions for flush-mounted installation ................................................................. 19
(Ver. A2) by Berner Sensor keypads ....................................................................................... 19
Installation instructions for flush-mounted installation ................................................................. 20
(Ver. B) by Berner Sensor keypads ......................................................................................... 20
Technical documents............................................................................................................ 21

Page 3 Of 23 26.08.2014
Ver. 2.1 Copyright Berner Cooking Systems 2019
Safety
Read this guide carefully. Keep the instructions for use and assembly for later use
or for subsequent owners. Check the device after unpacking. Do not connect in
the event of transport damage. Record the damage in writing and call the
customer service, otherwise the warranty claim will not be waived. The
installation or installation of the device must be carried out in accordance with
the attached installation instructions. Use the device only for preparing food. Supervise the
device during operation. Use the device only indoors. Do not use hob covers. They can lead
to accidents, e.B. due to overheating, inflammation or cracking materials. Do not use
unsuitable protective devices or child protection screens. They can lead to accidents. This
device is not intended for operation with an external timer or remote control.
Fire hazard !
-Hot oil and fat ignite quickly. Never leave hot oil and grease unattended. Never extinguish
a fire with water. Switch off the cooking place. Carefully suffocate flames with lid,
extinguishing blanket or similar.
-The basins (heaters) get very hot. Never place or store flammable objects in or on the
basin.
-The device gets hot. Keep non-flammable objects or spray cans in drawers directly under
the device.
-If the minimum oil level is below the minimum oil level, there is a risk of fire!
Incineration hazard !
-The fryers and their surroundings, in particular a possible cooking hob frame, become hot.
Never touch the hot surfaces. Keep children away.
-The fryer heats, but the display does not work. Switch off the fuse in the fuse box. Call
customer service.
-Metal objects get hot very quickly in the basin. Never place metal objects, such as .B
knives, forks, spoons and lids in the basin.
Risk of electric shock !
-Improper repairs are dangerous. Only a customer service technician trained by us is
allowed to carry out repairs and replace damaged connecting lines. If the device is
defective, pull the power plug or switch off the fuse in the fuse box. Call customer service.
-Invading moisture can cause an electric shock. Do not use a high-pressure cleaner or
steam cleaner.
-A defective device can cause an electric shock. Never turn on a defective device. Pull the
power plug or turn off fuse in the fuse box. Call customer service.
-Jumps or fractures on the heating or basin can cause electric shocks. Switch off the fuse in
the fuse box. Call customer service.
Damage!
-The device is equipped with thermostats or safety thermostats. Do not damage capillary
tubes of these thermostats.
Attention!
-Rough detergents and sponges scratch the basin or heating.
-Never pour water into the hot fat or oil. Risk of combustion!
-Do not place hot pots or pans on the control panel, displays or hobs. This could lead to
damage.
-If hard and pointed objects act on the heating system, damage can occur.
-Aluminum foil and plastic vessels melt on the hot heater.

Page 4 Of 23 26.08.2014
Ver. 2.1 Copyright Berner Cooking Systems 2019
Safety regulations
Description of Hazard Symbols
General danger symbol
Failure to comply with safety regulations means danger (injuries)
This symbol warns of dangerous tension.
(Figurine 5036 of IEC 60417-1)
Danger symbols directly attached to the device must be followed and readability
must be ensured at all times.
Dangers in case of non-compliance with safety regulations
Failure to comply with the safety regulations can endanger people, the environment and the
device itself. In the event of non-compliance with the safety regulations, there is no right to
claim any damages.
In detail, failure to observe can lead to the following risks (examples):
-Danger to persons due to electrical causes
-Danger to people from hot fat
-Danger to people due to hot components
Safe use
The safety regulations of this manual, the existing national regulations on electricity to
prevent accidents and any internal working, application and safety regulations must be
followed.
Safety regulations for operators
-The fryer must not be put into operation under any circumstances without grease or oil.
Should this happen, the safety thermostat switches off the device after a short time.
Nevertheless, there is a risk of burning due to hot heating!
-By entering too large quantities and too wet fryinggut, the foaming of the oil is intensified.
-Never fight oil / or fat fire with water (risk of explosion)!
-In the case of grease or oil fires, the device cover must be used to fight the fire. Place the
device lid on the vessel, turn off the device, pull out the plug.
-For this reason, suitable equipment must be in place: e.B. extinguishing blankets or
suitable fire extinguishers for the extinguishing of burning grease.
-Never leave the device in operation unattended. Thus, unattended heating is avoided, i.e.
a person who wants to use the device must start the heating process by turning the power
controller to 'ON'.
-Do not use the fryer as a shelf!
-Do not place paper, cardboard, fabric, etc. on the fryer.
-Avoid the entry of liquids into the device and overflow of grease or oil. Do not clean the
device with a water jet.
-Avoid the entry of liquids into the hot fat or oil. Fire!
-Old, polluted oil (contaminated with cooking material) is more easily flammable.
-Allow it to cool to room temperature to replace the oil.
-PLEASE NOTE: Warning of possibly slippery ground in the vicinity of the device. This can
lead to injuries.
-ATTENTION: When installing the device, the local safety regulations and the installation
method must be observed.
-Avoid the entry of liquids into the pool and the device. Do not clean the device with a
water jet.
Attention
In case of improper use
may cause minor injuries or
damage to property!
Attention
The user manual must be read before using or
maintaining the device.

Page 5 Of 23 26.08.2014
Ver. 2.1 Copyright Berner Cooking Systems 2019
Improper operation
The functionality of the device can only be guaranteed if used correctly. The limit values in
accordance with the technical data may not be exceeded or exceeded under any
circumstances.
Changes / use of spare parts
Contact the manufacturer if you intend to make changes to the device. To ensure safety, use
only original spare parts and accessories approved by the manufacturer. When using non-
original components, all liability for follow-up costs expires. When disassembly, testing or
repairs, pay attention to the stability of the device.
Attention! When exchangingspare parts, the device must be "visibly disconnected" from the
power supply.
General
This manual contains basic information that must be observed during assembly, application
and maintenance. It must be read completely by the installer and the operating personnel
before installation and commissioning and must always be located near the cooking station
for a look-up.
Application
The fryers are used to prepare meals.
Product
Products
Table appliances: BFSNK1, BFSNK1S, BFSNK1SG, BFSSNK1G, BFSSNK1, BFSNK2, BFSSNK2,
BFSNK2G, BFSSNK2G
System 60/20: BFKTT, BFKTTS, BF2KTT, BF2KTTS
System 70: BHF1KTD, BHFS1KTD, BHF2KTD, BHFS2KTD, BF40KTD, BFS40KTD,
BF60KTD, BFS60KTD
Stand devices: BFHM20, BFHE20, BFHM30, BFHE30, BFHM40, BFHE40, BFHM40/2,
BFHE40/2, BFHM50/2, BFHE50/2, BFHM60/2, BFHE60/2

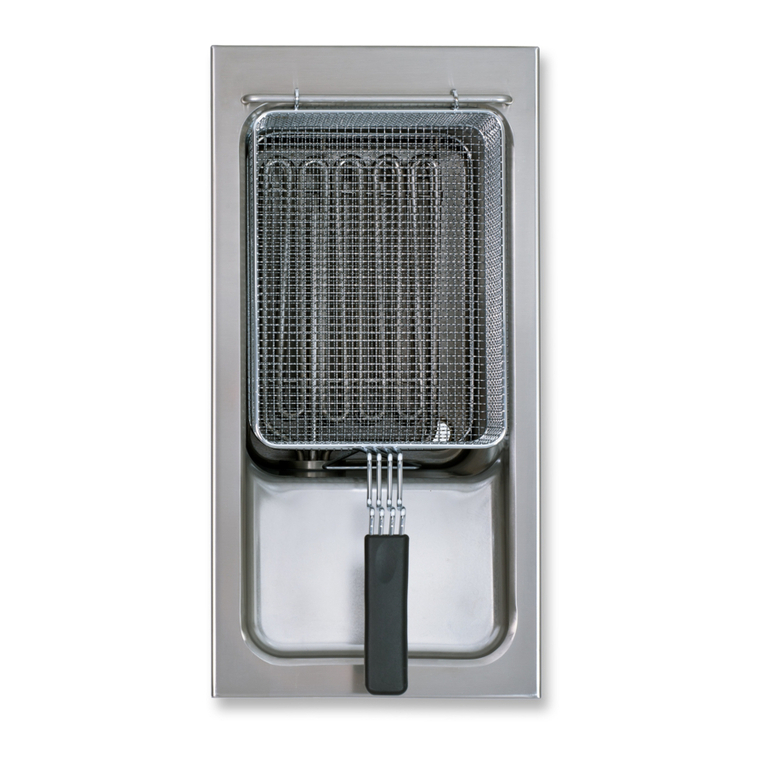

Built-in devices: BFEM20, BFEM30, BFEM40, BFEM40/2, BfEM50/2, BfEM60/2
BFEE20, BFEE30, BFEE40, BFEE40/2, BFEE50/2, SFOEE60/2
BFE30, BFE40, BFE60, BFES30, BFES40, BFES60
*BFEM1H, *BFEM2H, *BEPFS1, *BEPFS2, *optional extension
-Service-friendly
-Easy operation by thermostat (BFEM, BfE) or electronics (BFEE)
-Expandable with retrofit kit (* Automatic basket lifting for BFEM/BFEE, *filter system)
Technical data
Operation and control ( devices with thermostat )
Lampoperation"Device AN"green (H1)
Lamp heating in operation"Heating AN"yellow (H2)
Lamp (BFEM) Safety thermostat "triggered"red (H3)
(only for built-in fryers)
Operation and control (devices with sensor keypad)
Electronic control with sensor keypad

Page 6 Of 23 26.08.2014
Ver. 2.1 Copyright Berner Cooking Systems 2019
Technical device data
Type Weight Useful ContentTotal Content
in kg in litre inlitre
BFSNK1, BFSNK1S, 1468
BFSSNK1
BFSNK1SG, BFSSNK1G16810
BFSNK2, BFSSNK2202 x 6each 8
BFSNK2G, BFSSNK2G 22 2 x 8each 10
BFKTT, BFKTTS 24 810.5
BF2KTT, BF2KTTS 33 2 x 8each10.5
BHF1KTD, BHFS1KTD 33 1013
BHF2KTD, BHFS2KTD 50 2 x 10 each 13
BF40KTD, BFS40KTD 30 1013
BF60KTD, BFS60KTD 40 2 x 10each 13
BFHM20, BFHE2027.68 10.5
BFEM20, BFEE20 19.5 8 10.5
BFHM30, BFHE30 30 12,5 16
BFEM30, BFEE30 22 12.5 16
BFHM40, BFHE40 33 17 22
BFEM40, BFEE40 24.5 17 22
BFHM40/2, BFHE40/2 43 2 x 8each 10.5
BFEM40/2, BFEE40/2 34.5 2 x 8each 10.5
BFHM50/2, BFHE50/2 45.5 1 x 8, 1 x 12,5 10.5; 16
BFEM50/2, BFEE50/2 37 1 x 8,1 x 12,5 10.5; 16
BFHM60/2, BFHE60/2 50 2 x 12,5 each 16
BFEM60/2, BFEE60/2 41 2 x 12,5 each 16
BFE30, BFES30 13 10 13
BFE40, BFES40 13.5 10 13
BFE60, BFES60 24.22 x 10 each 13
Functional conditions
-max. tolerance of mains voltage nominal voltage+5%/-10%
-Frequency50 / 60 Hz
-Protection class (in delivery state) IP 11

Page 7 Of 23 26.08.2014
Ver. 2.1 Copyright Berner Cooking Systems 2019
Installation
Electrical data of the devices
Devices by power ( 3.2 kW - table appliances )
1-phasig (voltage 230Volt +5% / -10%)
Connection
Color
Frequency
Tax security
Phase
Brown, Black or 1
50 Hz / 60 Hz
N
Blue or 2
Pe
Yellow/Green
Devices by power (6,0 - 20 kW - tabletop devices, System60/20 )
3-phasig (voltage 400Volt +5% / -10%)
Connection
Color
Frequency
Tax security
Phase
Brown, Black, Grey
or 1,2,3
50 Hz / 60 Hz
N
Blue or 4
Pe
Yellow/Green
Devices by performance
(7.5 - 16.5 kW - built-in appliances, stand-by devices, system 70 - thermostat control )
3-phase (voltage 400Volt +5% / -10%)
Connection
Color
Frequency
Tax security
Phase
Brown, Black, Grey
or 1,2,3
50 Hz / 60 Hz
F1= T6,3A
F2=T1A
N
Blue or 4
Pe
Yellow/Green
Devices by performance
(7.5 - 16.5 kW - built-in appliances, stand-by devices, system 70 - electronic control )
3-phase (voltage 400Volt +5% / -10%)
Connection
Color
Frequency
Tax security
Phase
Brown, Black, Grey
or 1,2,3
50 Hz / 60 Hz
F1=F6.3A
N
Blue or 4
Pe
Yellow/Green
Devices by performance
( 15.0 - 24.0 kW - built-in appliances, stand-by devices, system 70 - thermostat control )
3-phase (voltage 400Volt +5% / -10%)
Connection
Color
Frequency
Tax security
Phase
Brown, Black, Grey
or 1,2,3
50 Hz / 60 Hz
F1,F3
=
T6,3A
F2,F4=T1A
N
Blue or 4
Pe
Yellow/Green
Devices by performance
( 15.0 - 24.0 kW - built-in appliances, stand-by devices, system 70 - electronic control )
3-phase (voltage 400Volt +5% / -10%)
Connection
Color
Frequency
Tax security
Phase
Brown, Black, Grey
or 1,2,3
50 Hz / 60 Hz
F1,F2=F6.3A
N
Blue or 4
Pe
Yellow/Green
Optional filter system ( 0.12 kW - BEPSF1, BEPSF2 )
1-phasig (voltage 230volts +5% / -10%)
Connection
Color
Frequency
Tax security
Phase
Brown, Black
or 1
50 Hz / 60 Hz
-
N
Blue or 2
Pe
Yellow/Green

Page 8 Of 23 26.08.2014
Ver. 2.1 Copyright Berner Cooking Systems 2019
Installation pre-conditions
The device must be installed in a straight surface. The installation area must allow a weight
of at least 100 kg. The mains disconnector must be easily accessible. Never install the fryer
near or areas of water.
Installation regulations
The following points must be observed:
Abottom plate shall be fitted under the device and the suppliednsafety thermostatemust
be attached tothis sheet. It is essential that the floor plate is removable in order to ensure
access to the equipment for the service technician in the event of service. If this is not
possible due to the design, other built-in devices must be checked. We are ready to provide
support in this regard.
The switch panel is not included, but is available as an option.
In order to ensure proper functioning, it is essential to follow the instructions.
The mounting frame of the built-in device must be sealed downwards (Silicon-Pactan 6076)
to prevent the penetration of liquids.
The penetration of liquids leads to damage.
-Check and make sure that the voltage of the main supply line matches that of
the type plate.
The device must be connected to a PA line on the connection screw and
the site-side potential equalization point of the stove system.
The PE line must beconnected to the PE of the electrical supplyline.
-Do not install, install or install near water sources.
-never install the device flush into a cover.
-The installation must be checked for practicality.
-The device is equipped with a power cord. The electrical installations must comply with
local building installation regulations. The applicable national regulations of the electricity
authorities must be complied with.
-If fault current circuit breakers (FI) are used, they must be designed for a fault current of
at least 30mA.
-Avoid transporting hot ambient air to the device (several devices are standing side by side,
devices are standing one after the other, near frying buckets or ovens).
-The device must not be installed near a hot surface.
-Operators must ensure that all installation, maintenance and inspection work is carried out
by approved personnel.
-The devices are equipped with an installation box. In the event of service, this must be
accessible in the substructure or similar.
-disconnecting device.
Attention points with sensor keypad
-It is essential to route ad cables separately from other cables.
For the electrical connection of the Device the
Regulations of the respective country!
Attention
Incorrect voltage can damage the
device
Attention
Theectric connections must be made
by a specialist
"I'm not here.
The safety thermostat is
accessible e.B. to be installed in
the substructure.

Page 9 Of 23 26.08.2014
Ver. 2.1 Copyright Berner Cooking Systems 2019
Commissioning
Assembly
The device is equipped with a power cord. It must be connected to a wall socket. If no cable
is already installed, run the connectors according to installation instructions. The electrical
installations must be carried out by approved installers in compliance with specific national
and local regulations. The installers are responsible for the correct design and installation in
accordance with the safety regulations. The warning and type plates must be strictly
followed.
Check and make sure that the voltage of the mains current and the device
(according to the name plate) match.
When installing this device, in the
immediate vicinity of awall, partition
walls, kitchen furniture, decorative
cladding, etc., it is recommended
that they are made of non-
combustiblenmaterial; otherwise
they must be clad with suitable
material and the fire protection
regulations must be observed to the
best of the day!
Turn the power knob to the OFF position
(0) before
connect the device to the mains.
Before performing the functional test, the user must know how to operate the
devices.
Control with rotary gag ( devices with thermostat control )
The number that shows for marking marks the current selected temperature.
Position OFF: Position ON:
'0' indicates the marking ()Each position that is used to markο
(). 100 (min. to ο180°C| (Max.)
Operating lampgreen, heating lamp yellow operating lamp green and heating lamp
yellow
and warning lamp red are off. light up.
yellow heating lamp goes off when the set
temperature is reached.
For built-infryers:
Warnlamp red
"Safety thermostattriggered".
Warnlamp red
"Safety thermostattriggered" a,
when STB has triggered
(e.B. in dry running).
Device is out of function
