BEROTEC CUMPAN FANTIC Caballero 500 User manual

FANTIC Caballero 500
CUMPAN
BEROTECBEROTEC
Benutzerhandbuch
User Guide
Manuel d‘utilisation
Manuale d‘uso
Manual del usuario
Öldrucksensor
Oil pressure sensor
Capteur de pression d‘huile
Sensore di pressione dell‘olio
Sensor de presión de aceite
4
BEROTEC
CUMPAN
I n s t a l l a t i o n FANTIC Caballero 500
1. Overview of the connections
2. Fitting the oil filter cover
12
12
» Remove original oil filter cover, collect
leaking oil
» Install oil pressure sensor (2) with BERO-
TEC oil filter cover (1)
» Route the power cable (1) under the bench
seat to the battery
» Route the sensor cable (2, black and
white) to the analog input of the CUMPAN
and fix it (red)
15Nm
Tightening torque
5
English
4. Connect signal cable
32
1
5. Setting in the CUMPAN menu
» Connect the signal cable (black/white)
(2) to the analog input (3) of the CUMPAN
using the butt connector (1):
» Analog input 1 → black/white cable
» Analog input 2 → black/blue cable (selec-
ted in this case)

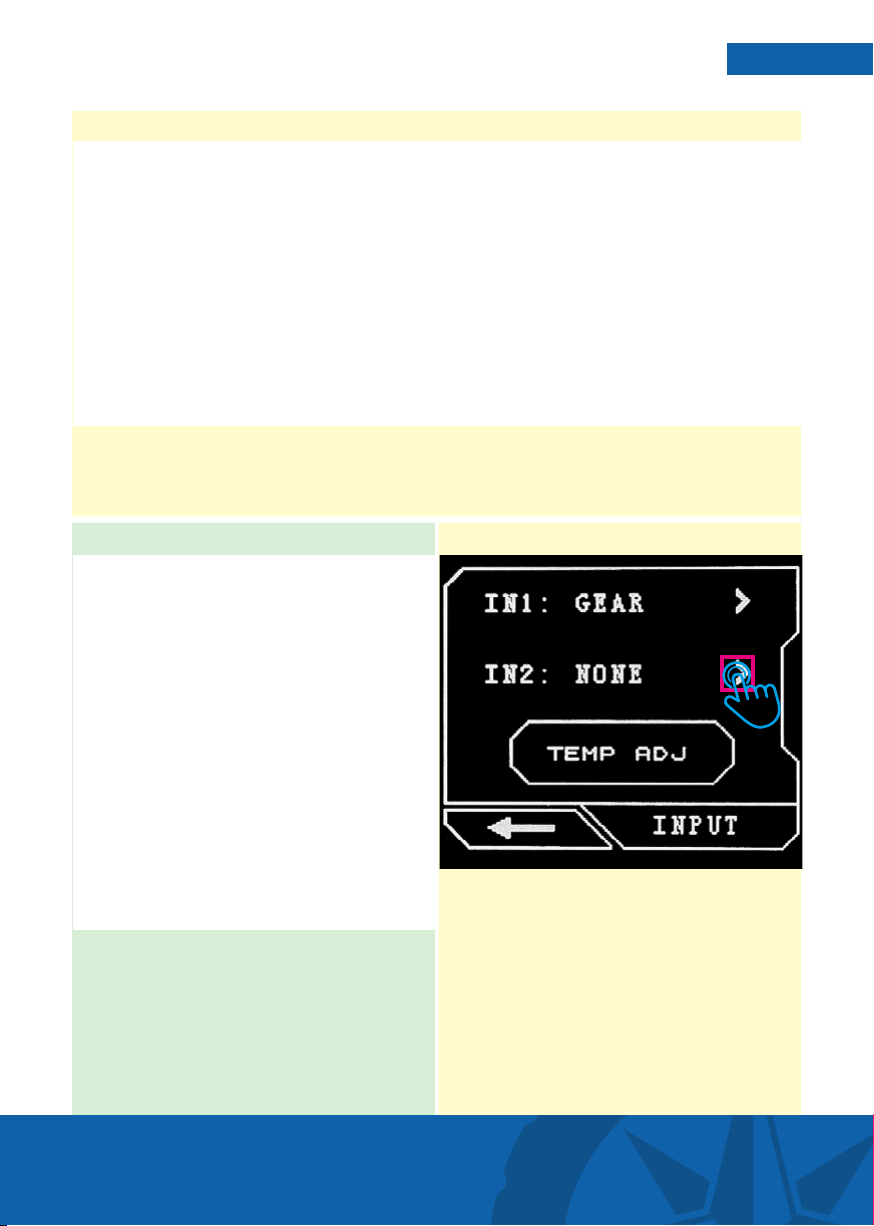

» [MENU] / [INPUT] / [IN2]
» Since analog input 2 was selected in this
case, „IN2“ →„PRESSURE“ must be selec-
ted
Important:
The installation must be checked for leakage after
completion and with the engine running. A further visual
inspection should be carried out after the first 50km in
driving operation.
3. Power connection
14
3
212
3
4
5
» Install 12 V connections (1) on the fuse branch from the CUMPAN (2) and on the ground
connection of the battery (3)
» Insulate plug connection between (1) and (2) to avoid short circuit
» (4) Oil pressure sensor, (5) Gear sensor
+49 7262-6168573
info@berotec.de
www.berotec.de
BEROTEC GmbH
Georg-Schlatter-Straße 10
75031 Eppingen
