Bertazzoni H48 6G GGV VI Manual

Installation, Service and User Instructions
FREESTANDING GAS-ELECTRIC RANGES
BERTAZZONI
DIMENSIONS: 48’’ (1216 mm) (W) x 25 1/8’’ (640 mm)(D) x 36"(911 mm)(H)
MODELS:
H48 6G GGV CR MTYKQZU4D(2,5)A
H48 6G GGV NE MTYKQZU4N(2,5)A
H48 6G GGV VI MTYKQZU4L(2,5)A
310324

2
IMPORTANT - PLEASE READ AND FOLLOW
-Before beginning installation, please read these instructions completely and carefully.
-Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty. -Please observe all local
and national codes and ordinances.
-Please ensure that this product is properly grounded.
-The installer should leave these instructions with the consumer who should retain for local inspector's use and for
future reference.
-The electrical plug should always be accessible.
Installation must conform with local codes or in the absence of codes, the National Fuel Gas Code ANSIZ223.1-latest edition. Electrical
installation must be in accordance with the National Electrical Code, ANIS/NFPA70 - latest edition and/or local codes. IN CANADA:
Installation must be in accordance with the current CAN/CGA-B149.1 National Gas Installation Code or CAN/CGA-B 149.2, Propane
Installation Code and/or local codes. Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
Installation of any gas-fired equipment should be made by a licensed plumber. A manual gas shut-off valve must be installed in the gas
supply line ahead of the oven in the gas flow for safety and ease of service.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR’S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
OBSERVE ALL GOVERNING CODES AND ORDINANCES.
WARNING: If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury
or death.
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
- Do not light any appliance.
- Do not touch any electrical switch.
- Do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
- If you cannot reach your gas suppliers, call the fire department.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
Warning!
- This range can tip. Injury to persons could result.
- Install anti-tip device shipped with range.
- See Installation Instructions

3
WARNING
Read this instruction booklet before installing and using the appliance.
The manufacturer will not be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
The manufacturer reserves the right to make changes to its products when considered necessary and useful,
without affecting the essential safety and operating characteristics.
This appliance has been designed for non-professional, domestic use only.
Warning: do not use this appliance to heat a room.
Warning: do not place any pot or pan on the open oven door. The door is made of glass and it can
break if loaded with a weight.
Warning: this appliance must be used only with base feet properly installed. See installation
instruction for details.
Installation instructions
This appliance shall only be installed by an authorized person. This appliance shall be installed in
accordance with the manufacturer’s installation instructions, IMPORTANT: this appliance must be
installed in accordance with the norms & standards of the country where it will be installed.
The installation of this appliance must conform to local codes and ordinances. In the absence of
local codes, Installations must conforms to American National Standards, National Fuel Gas Code
ANSI Z223.1 – latest edition** or B149.1.
If local codes permit, a flexible metal appliance connection with the new AGA or CGA certified
design, max. 5 feet (1,5 m) long, ½” I.D. is recommended for connecting this appliance to the gas
supply line. Do not bend or damage the flexible connector when moving the appliance. The pressure
regulator has ½” female pipe thread. The appropriate fitting must be determined based on the size of
your gas supply line, the flexible metal connector and the shutoff valve.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in
the absence of local codes, with the National Electrical Code, ANSI/NFPA 70.
The appliance must be isolated from the gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of the gas supply piping system at test pressures equal
to or less than ½ psi (3.5 kPa).
For use with a pressure regulator. The regulator supplied must be used with this appliance; it shall
be properly installed in order to be accessible when appliance is installed in its final location.
The gas appliance pressure regulator must be set for the gas with which the appliance is used.
This appliance can be used with Natural Gas and LP Gas. It is shipped from the factory adjusted for
use with Natural Gas: CONVERSION FIXED ORIFICES ARE LOCATED IN THE LITERATURE PACK
SUPPLIED WITH THE UNIT.
A gas nozzle kit for the change of type of gas are contained inside the package together with the
gas appliance installation kit and instruction booklet.
The maximum inlet gas supply pressure incoming to the gas appliance pressure regulator is 20’’
water column (5 kPa) .
The minimum gas supply pressure for checking the regulator setting shall be at least 1“ w.c. (249 Pa)
above the inlet specified manifold pressure to the appliance (this operating pressure is 4” w.c.
(1.00 kPa) for Natural Gas and 11” w.c. (2.75 kPa for LP Gas).
All opening and holes in the wall and floor, back and under the appliance shall be sealed before
installation of the appliance.
To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space
located above the surface units should be avoided. If cabinet storage is to be provided, the risk can

4
be reduced by installing a rabge hood that projects horizontally a minimum of 5 inches beyond the
bottom of the cabinets
It’s always compulsory to install the riser even for an island installation
ATTENTION: A manual valve shall be installed in an accessible location in the gas line external to the
appliance for the purpose of turning on or shutting off gas to the appliance
WARNING: Do not use aerosol sprays in the vicinity of this appliance while it is in operation
Requirements
Room ventilation – Location and venting.
ATTENTION: An exhaust fan may be used with the appliance; in each case it shall be installed in
conformity with the appropriate national and local standards.
ATTENTION: Exhaust hood operation may affect other vented appliances; in each case it shall be
installed in conformity with the appropriate national and local standards.
INSTALLATION MANUAL
ANTI-TIP STABILlTY DEVICE INSTALLATION INSTRUCTIONS
1. The anti-tip bracket have to be installed to the rear wall as shown. The height for the bracket location from
the floor has to be determined after the range legs have been adjusted to the proper installation height - as
shown in the installation instructions – and after the range has been leveled.
2. Measure from the floor to the bottom of the anti-tip bracket location on the back of the range.
3. Position the two anti-tip brackets on the wall at the measured dimension plus 1/8" (0.32 cm). The brackets
have to be placed at 2”5/16 (6,0 cm) from the side of the range. The distance between the two bracket is
43”1/4 (109,8 cm) clearance. Secure with suitable inserts.
4. Slide the range against the wall until the brackets are fully inserted into the holes on the backside of the
range..

5
Height adjustable legs:
1. Legs are packed in the top box.
2. Legs should be installed with the appliance being near the location of final installation, they are not secure
for long transport. After unpacking the range, raise it about a foot to insert the legs in their bases assembled
on the lower part of the cooker and lower the range gently to keep any undue strain from legs and mounting
hardware. It is recommended to use a pallet or lift jack instead of tilting the unit.
BACKGUARD INSTALLATION INSTRUCTION
It’s always compulsory to install the riser even for an island installation
1) Remove n°2 screws fixing worktop as shown in fig.1
2) Place front part of the backguard and attach it from bottom side with the two removed screws (point 2) as shown in
fig .2
3) Fix the front part of the backguard with the screws supplied with the backguard kit (fig.3)
4) Assemble back part with front part of the backguard and fix them with a screws supplied with the backguard kit
(fig.4)
12
34

6

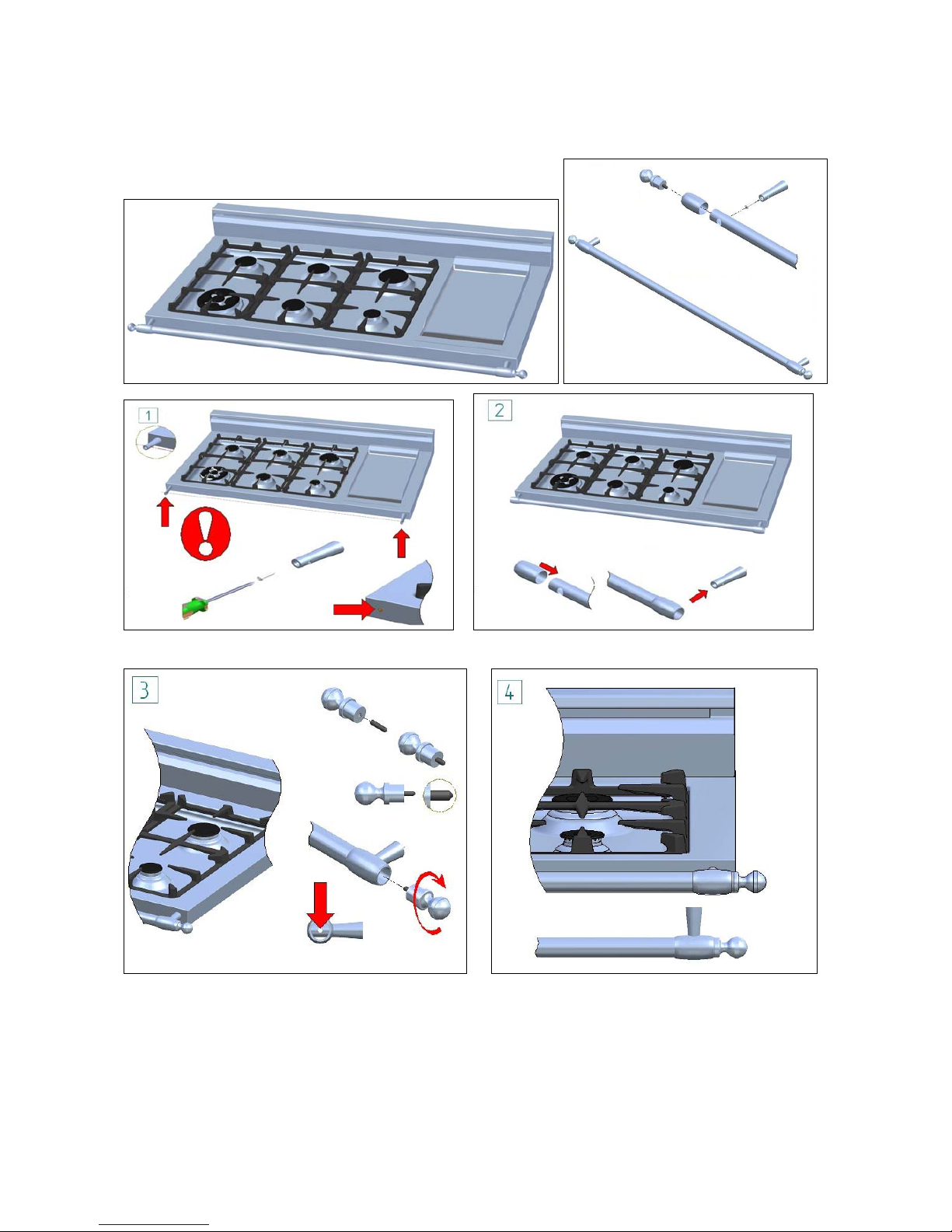

WORKTOP FRONTGUARD INSTALLATION INSTRUCTIONS
In order to increase the clearance between front edge of the worktop and the burners for your safety it is
recomended to install the worktop frontguard supplied with the appliance. For installation instructions follow
the instructions indicated in the following figures

7

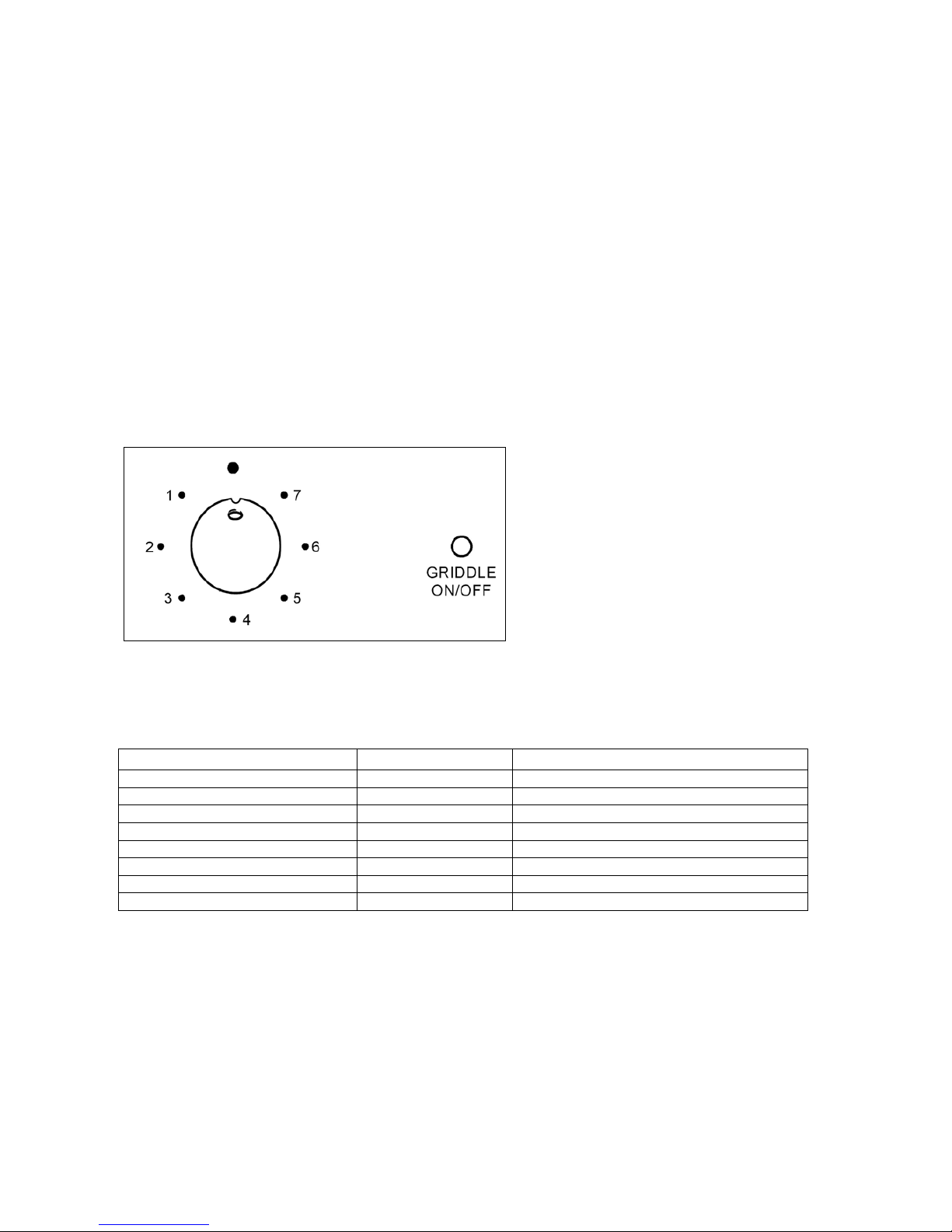

ELECTRIC GRIDDLE INSTALLATION INSTRUCTIONS
For installation the electric griddle, see the instructions indicated in the figure
INSTALLATION SIDE-BY-SIDE TO KITCHEN CABINET
1. This range may be installed directly adjacent to existing 36" (91.5 cm) high cabinets. IMPORTANT: The
top border of the worktop should be at the same level of the adjacent cabinet countertop. This can be
accomplished by raising the unit using the adjustment spindles on the legs.
2. The range CANNOT be installed directly adjacent to sidewalls, tall cabinets, tall appliances, or other vertical surfaces
above 36" (91.4 cm) high. There must be a minimum of 6" (15.2 cm) side clearance.
3. Within the side clearance to combustible vertical surfaces above 36" (91.5 cm) , the maximum wall cabinet depth must
be 13" (33.0 cm) and wall cabinets within this side clearance must be 18" (45.7 cm) above countertop level and
countertop hightness shall be from 35”1/2(90,2 cm) to 37” ¼ (94,6 cm).
A 48” (122 cm)
B 36” (91,5 cm)
C 13” (33,0 cm)
D 18” (45,7 cm)
E 35”1/2(90,2 cm) / 37” ¼ (94,6 cm)
F 6” (15,2 cm)

8

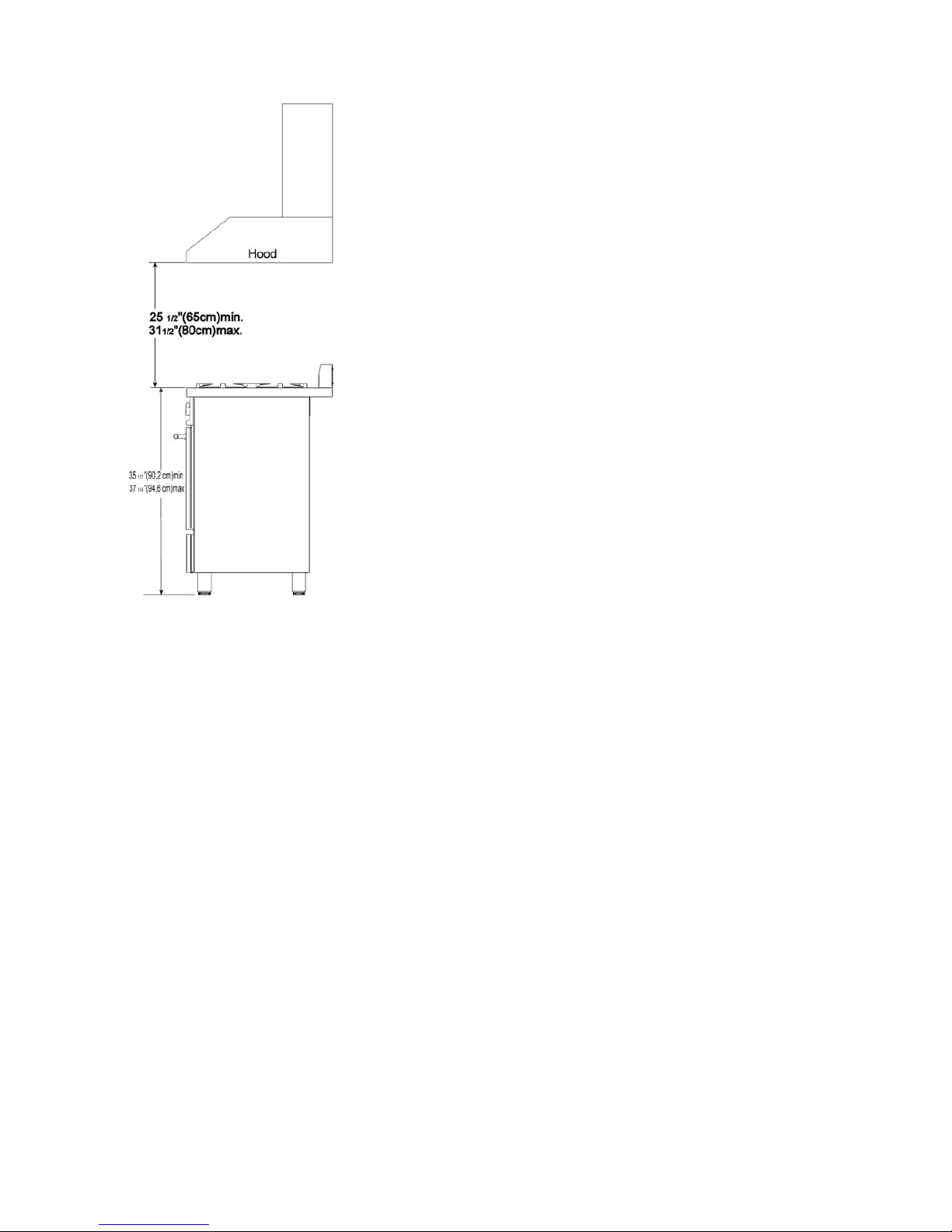

COOKER HOOD INSTALLATION
The bottom of the hood should be 25 1/2" (65 cm) min. to 31 1/2" (80 cm) above the countertop. This would
typically result in the bottom of the hood being 61 1/2" (156.2 cm) to 67 1/2" (171.5 cm) above the floor. Check
for other minimum clearance requirements mandated by specific local or regional installation codes. Refer to
the rangehood installation instructions for additional information. These dimensions provide for safe and
efficient operation of the hood.

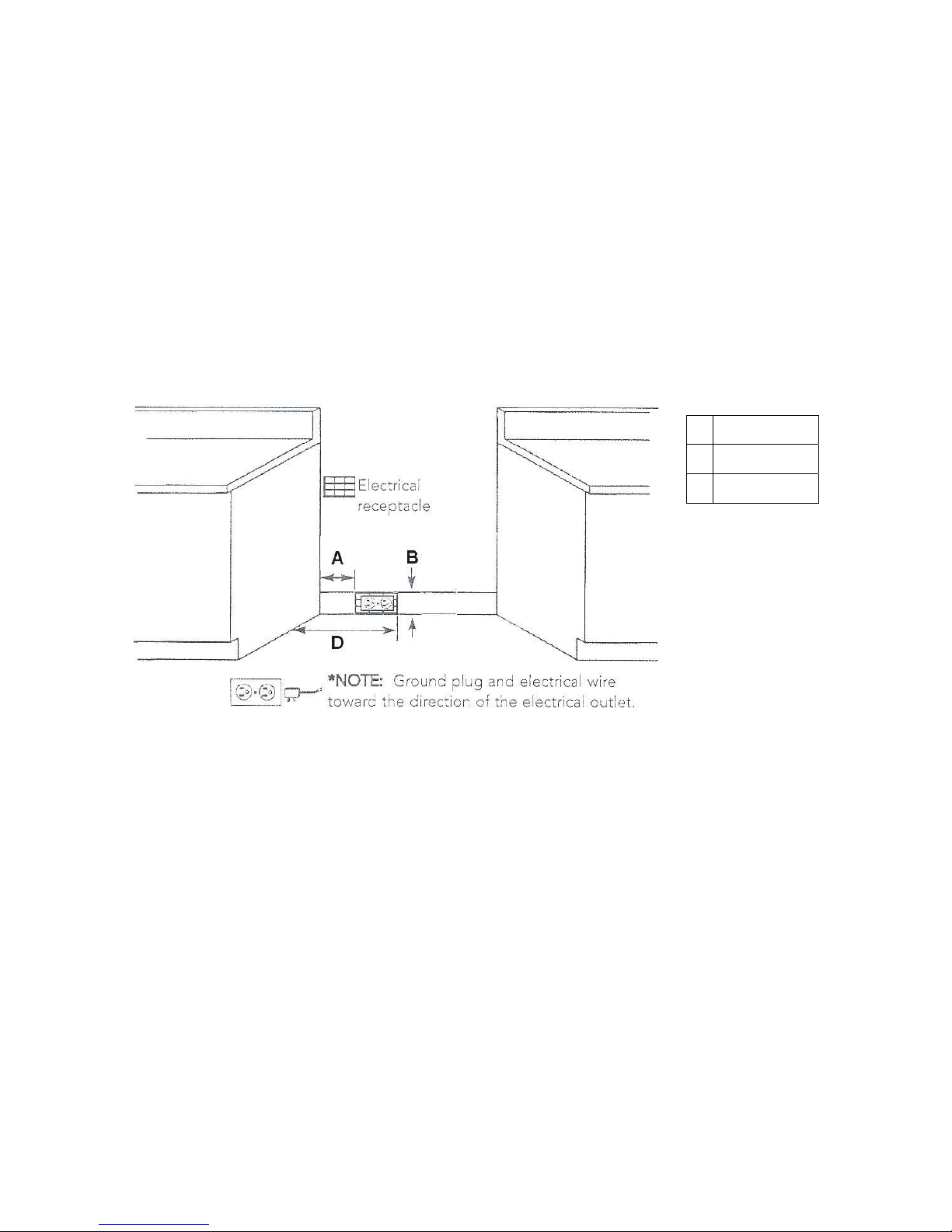

ELECTRICAL CONNECTION
This unit is manufactured for a polarized, grounded 120 volt/60 Hz, 16 amp system. Electric power
consumption is about 1200 W. The minimum of 102 VAC is required for proper operation of gas ignition
systems. This circuit must be grounded and properly polarized. The unit is equipped witth a SJT power cord.
In case of replacement, the cable shall be replaced with one of the same type, size and length.
WARNING
The cooling fan starts every time the oven is activated or when the oven reaches determined temperature,
and it continues to work until the appliance has cooled down, also in case the oven is switched off; this in
order to guarantee the cooling as it happens also for the cars
Cooling fan failure.
In case of a cooling fan failure the frontal red indicator "Fan Failure" will light up. If this happens, please turn
off the appliance immediately, call the nearest after sale assistance service center and do not use the
appliance until the cooling fan system of the appliance has been properly repaired by a qualified technician.
WARNING
Electrical Grounding Instructions
This appliance is equipped with a three-prong plug for your protection against shock hazard and should be
plugged directly into a properly grounded socket. Do not cut or remove the grounding prong from this plug.

9
WARNING
ELECTRICAL SHOCK HAZARD
• Disconnect electrical power at the circuit breaker box or fuse box before installing the gas cooker
• Electrically ground gas cooker
• Use copper conductors only. Failure to follow these instructions could resul in serious injury or death
Wiring diagram
For freestanding gas range model MTYKQZV4(L,N,D)(2, 5)A
CAUTION: label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
Verify proper operation after servicing.
GAS CONNECTION
All gas connections must be made according to national and local codes. The gas supply (service) line must be the same
size or greater than the inlet line of the appliance. This range uses a 1/2" NPT inlet (see fig. in this chapter for details of
gas connections installations).On all pipe joints use sealant resistant to LP gas.
1. Manual Shut-off Valve:
This installer-supplied valve must be installed in the gas service line ahead of the appliance in the gas flow and in a
position where it can be reached quickly in the event of an emergency. The manual shut-off valve shall be installed
properly in order to be accessible when the appliance is installed.

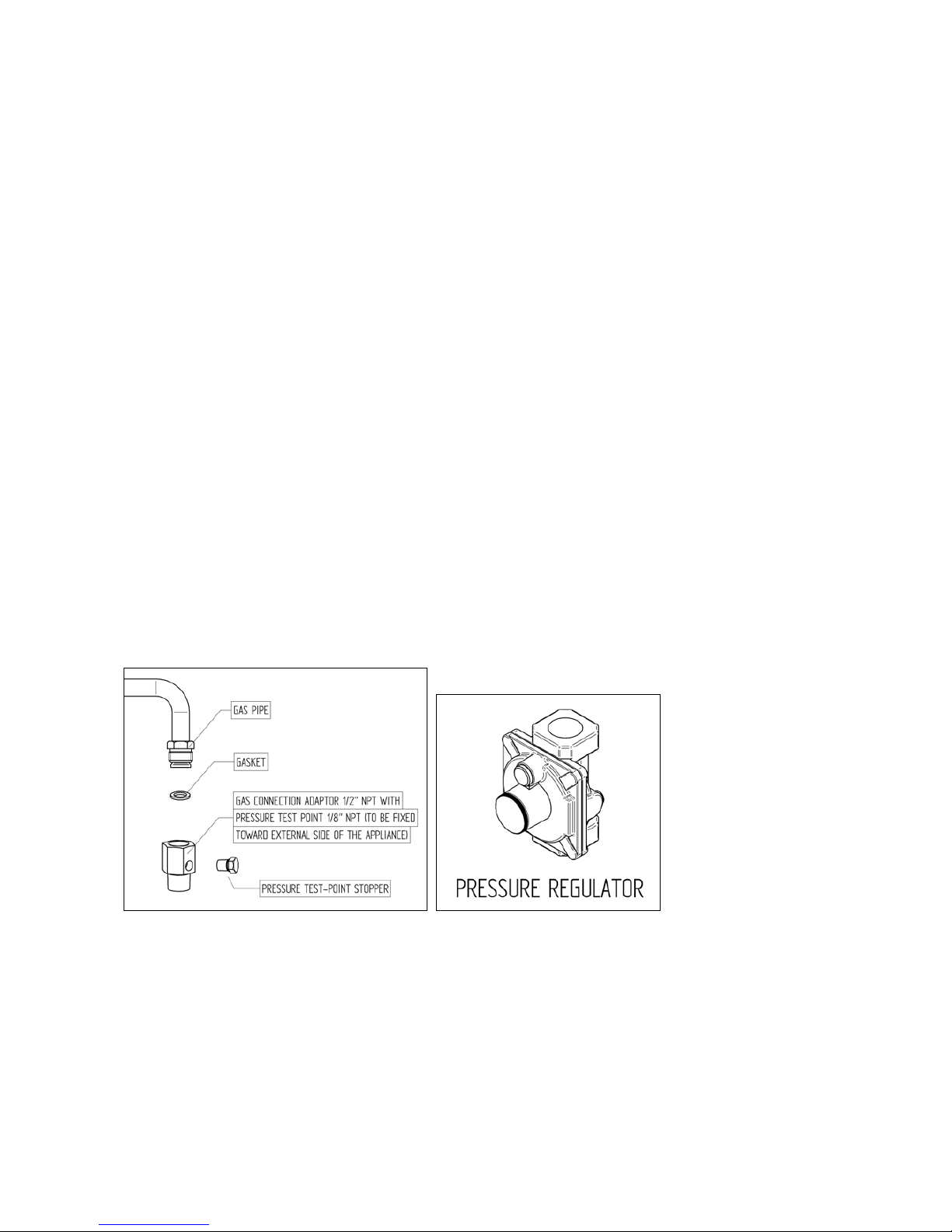

2. Pressure Regulator(see fig. in this chapter)
a) All cooking equipment must have a pressure regulator on the incoming service line for safe and efficient
operation, since service pressure may fluctuate with local demand. The pressure regulator is supplied
separately with the appliance; regulator has two female threads ½” NPT; it shall be installed properly in order
to be accessible when appliance is installed in final position.
b) Any conversion required must be performed by your dealer or a qualified licensed plumber or gas service
company. Please provide the service person with this manual before work is started on the range. (Gas
conversions are the responsibility of the dealer or end user.)
c) This range can be used with Natural or LP/Propane gas. It is shipped from the factory adjusted for use with
natural gas.
d) Manifold pressure should be checked with a manometer, natural gas requires 4.0" W.c.P. and LP/Propane

10
requires 11.0" W.C.P. Incoming line pressure upstream from the regulator must be 1" W.c.P. higher than the
manifold pressure in order to check the regulator. The regulator used on this range can withstand a
maximum input pressure of 1/2 PSI (14.0" W.c.P.) If the line pressure is in excess of that amount, a step-
down regulator will be required.
e) The appliance, its individuai shut-off valve, and pressure regulator must be disconnected from the gas
supply piping system during any pressure testing of that system at pressures in excess of 1/2 psig (3.45
kPa).
f) The appliance must be isolated from the gas supply piping system by closing its individuai manual shut-off
valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2
psig (3.45 kPa).
3. Flexible Connections:
a) If the unit is to be installed with flexible couplings and/or quick disconnect fittings, the installer must use a
heavy-duty, AGA design-certified commerciai flexible connector of at least 1/2" (1.3 cm) ID NPT (with
suitable strain reliefs) in compliance with ANSI Z21.41 and Z21.69 standards.
b) In Canada: CAN 1-6.10-88 metal connectors for gas appliances and CAN 1-6.9 M79 quick disconnect
device for use with gas fuel.
CAUTlON: Leak testing of the appliance shall be conducted according to the manufacturer's instructions. Before placing
the oven into operation, always check for leaks with a soapy water solution or other acceptable method. DO NOT USE
AN OPEN FLAME TO CHECK FOR LEAKS!
A properly-grounded horizontally- mounted electrical receptacle should be installed no higher than 3" (7.6 cm) above the
floor, no less than 2”( 5 cm) and no more than 8”(20,3 cm) from the right side (facing product). Check all local code
requirements.
An agency-approved, properly-sized manual shut-off valve should be installed no higher than 3" (7.6 cm) above the floor
and no less than 2”( 5 cm) and no more than 8”(20,3 cm) from the left side (facing product). To connect gas between
shut-off valve and regulator, use agency-approved, properly sized flexible or rigid pipe. Check all local code
requirements.
PERFORMANCE CHECKLlST
All burners are tested before leaving the factory. There are no adjustments for the burners if connected according to the
information on the rating plate. Check each burner for proper operations. Flames should be blue in all settings. If service
is required, contact your dealer for the name of their authorized service agency. Gas conversions and initial installation
are not the responsibility of the manufacturer.
The installer should carry out the following performance checks. Refer to instructions below.
1. Check surface burner ignition.
2. Check air shutter adjustment (only for oven and broiler burner)- sharp blue flame, no yellow tipping, sooting or flame
lifting
3. Check low flame adjustment
4. Check broiler and oven ignition - all burner ports.
5. Check for gas leaks (odors) at all gas connections.
6. Check oven bake and convection bake function.
A 2”( 5 cm)
B 3”(7,6 cm)
D 8”(20,3 cm)

11
FINAL PREPARATION
1. Some stainless steel parts may have a plastic protective wrap which must be removed. The interior of the oven
should be washed thoroughly with hot soapy water to remove film residues and any installation dust or debris
before using it for food preparation, then rinsed and wiped dry. Solutions stronger than soap and water are rarely
needed.
2. All stainless steel body parts should be wiped with hot, soapy water and with a liquid cleaner recommended for
use with stainless steel If buildup occurs, do not use steel wool, abrasive cloths, cleaners, or powders! If it is
necessary to scrape stainless steel to remove encrusted materials, soak with hot, wet cloths to loosen the
material, then use a wood or nylon scraper. Do not use a metal knife, spatula, or any other metal tool to scrape
stainless steel! Scratches are almost impossible to remove.
NOTE: These installation instructions should remain with the unit for future reference. The electrical diagram is located in
the backside or the appliance.
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing service on the appliance. Replacement parts are available
from factory authorized parts distributors.
Conversion to different types of gas
Before carrying out any maintenance work, disconnect the appliance from the gas and electric
supply. For Natural Gas fit regulator assembly described in Fig.
Adaptation of the pressure regulator for use with different type of gas
The pressure regulator supplied with the appliance is a convertible type pressure regulator for use with Natural Gas at a
nominal outlet pressure of 4” w.c. or LP gas at a nominal outlet pressure of 11” w.c. and it is pre-arranged from the
factory to operate with one of these gas/pressure as indicated in the labels affixed on the appliance, package and
Instruction booklet.
To convert the regulator for use with other types of gas follow these instructions:
1) Unscrew by hand the upper metal stopper of the regulator.
2) Unscrew by hand the white plastic piece screwed under the above mentioned metal stopper, afterward screw it again
in opposite way under the metal stopper (for gas reference see the written “LP” and “NAT” with relative indicating arrows
on the white piece).
3) Screw again by hand the metal stopper in the original position on the regulator.
Following these exact instructions the gas regulator is converted for use with the other gas/pressure.
It is essential that the gasket and the pressure test point stopper are properly installed to avoid gas leakage

12
- CHANGING THE NOZZLES FOR USE WITH OTHER TYPES OF GAS:
To change the nozzles of the burners use the following procedure:
Lift up the burners and unscrew the nozzles ( Fig.) using an adjustable spanner of 7 mm and change the nozzles with
those designed for the new gas supply according to the information given in TABLE shown below.
Follow the instructions below to change the oven burner nozzle:
1) Remove the oven door (Fig. 9)
2) Remove the lower frontal cavity gasket and the enamelled cavity base plate (Fig. 9)
3) Loosen and the screw V and pull out the burner from the support being careful not to damage the ignition plug and
the thermocouple (Fig. 10)
4) Unscrew the nozzle R (Fig. 10) using a 7 mm. spanner and replace it with the nozzle for the new type of gas
according to what is indicate in the table below
5) Re-install all the parts in revers sequence from 3 to 1
fig.9
fig.10

13
Follow the instructions below to change the broiler burner nozzle:
1) Loosen the screw and pull out the burner from the support being careful not to damage the ignition plug and the
thermocouple (Fig. 11).
2) Unscrew the nozzle C(Fig. 11) using a 7 mm spanner and replace it with the nozzle needed for the new type of gas
according to what is indicated in TABLE shown below.
Fig. 11
Models MTYKQZV4(L,N,D)(2, 5)A
Adapting to different types of gas
Burner Position Injector Gas Pressure Max Rate Min Rate By-pass
diam. [mm.] Type [i.w.c.] [BTU/h] [W] [BTU/h] [W] diam. [mm]
Auxiliary Front R 0,90 NG 4” 3400 996 900 264 Regulated
0,54 LP (Propane) 11” 3400 996 900 264 0,29
Semi-Rapid Rear L & C 1,18 NG 4” 6100 1787 1500 439 Regulated
Front C 0,70 LP (Propane) 11” 6100 1787 1500 439 0,36
Rapid Rear R 1,55 NG 4” 10400 3047 2500 732 Regulated
0,92 LP (Propane) 11” 10400 3047 2500 732 0,47
Front L Inner 0,80 NG 4” 2800 820 900 264 Regulated
Dual Burner 0,49 LP (Propane) 11” 2800 820 900 264 0,29
Front L Outer N°2 x 1,15 NG 4” 12000 3516 4500 1318 Regulated
N°2 x 0,70 LP (Propane) 11” 12000 3516 4500 1318 0,65
Oven Oven Left 1,85 NG 4” 14500 4248 3500 1025 Regulated
(left cavity) downside 1,10 LP (Propane) 11” 14500 4248 3500 1025 0,54
Broiler Oven Left 1,70 NG 4” 12000 3516 Only Max Only Max No by-pass
(left cavity) upside 0,98 LP (Propane) 11” 12000 3516 Only Max Only Max No by-pass
Oven Oven Right 1,25 NG 4” 7000 2051 2400 703 Regulated
(right cavity) downside 0,75 LP (Propane) 11” 7000 2051 2400 703 0,48
CAUTION: save the orifices removed from the appliance for future use

14
REGULATION OF BURNERS
Primary air adjustment:
Broiler burner adjustment: to adjust the broiler burner loosen screw P and adjust the position Xof the Venturi cone
according to the measurements indicated in table 4.
TABLE N°4: Burner primary air regulation (indicative)
Burner
Type of gas Broiler
Inches (mm)
NG (Natural Gas) fully open
LP (Propane Gas) fully open
Work surface burner adjustment: follow the instructions below to adjust the work surface burner minimum:
1) Light the burner and set the knob to the MINIMUM position (small flame).
2) Remove the knob of the valve that is press fit on the rod of that valve.
3) The cooker is equipped with safety valves, use a small slotted screwdriver the choke valve located on the valve body
and turn the choke screw to the right or left until the burner flame is adjusted to minimum
4) Make sure that the flame does not go out when switching quickly from the MAXIMUM to the MINIMUM position.
Oven burner adjustment: follow the instructions below to adjust the minimum:
1) Light the burner setting the knob to the MAXIMUM position.
2) Close the oven door and operate the oven for at least 10 minutes.
3) Set the knob to the MINIMUM position (corresponding to 250°F/120°C) and then remove it.
4) With a slotted screwdriver turn the choking screw (by-pass screw at the left side of the thermostat bar) and, while
observing the flame at the same time through the cooker porthole, evaluate the consistency of the flame so it remains on
when switching quickly from the MINIMUM to the MAXIMUM position.
WARNING: The above-mentioned adjustment should be made only for natural gas, while for operation with
liquid gas the screw must be locked at the end in a clockwise direction. The broiler burner always
operates at maximum and therefore no minimum adjustment is required.

15
SERVICE & MAINTENANCE INSTRUCTIONS
Service and maintenance only to be carried out by an authorised person
To replace parts such as burners, valves and electric components, the appliance must be open removing the worktop.
Note: if the valves must be replaced, first disassemble the ignitions switches wires.
It is recommended to replace the valve gaskets each time the valve is replaced, thus ensuring a perfect seal between the
body and the gas train.
WARNING: After first installation of the appliance or after any service intervention concerning main gas parts of
the appliance, make the leak test using water with soap on the gas connections in order to verify the correct
installation. Do not use fire for gas leak testing.

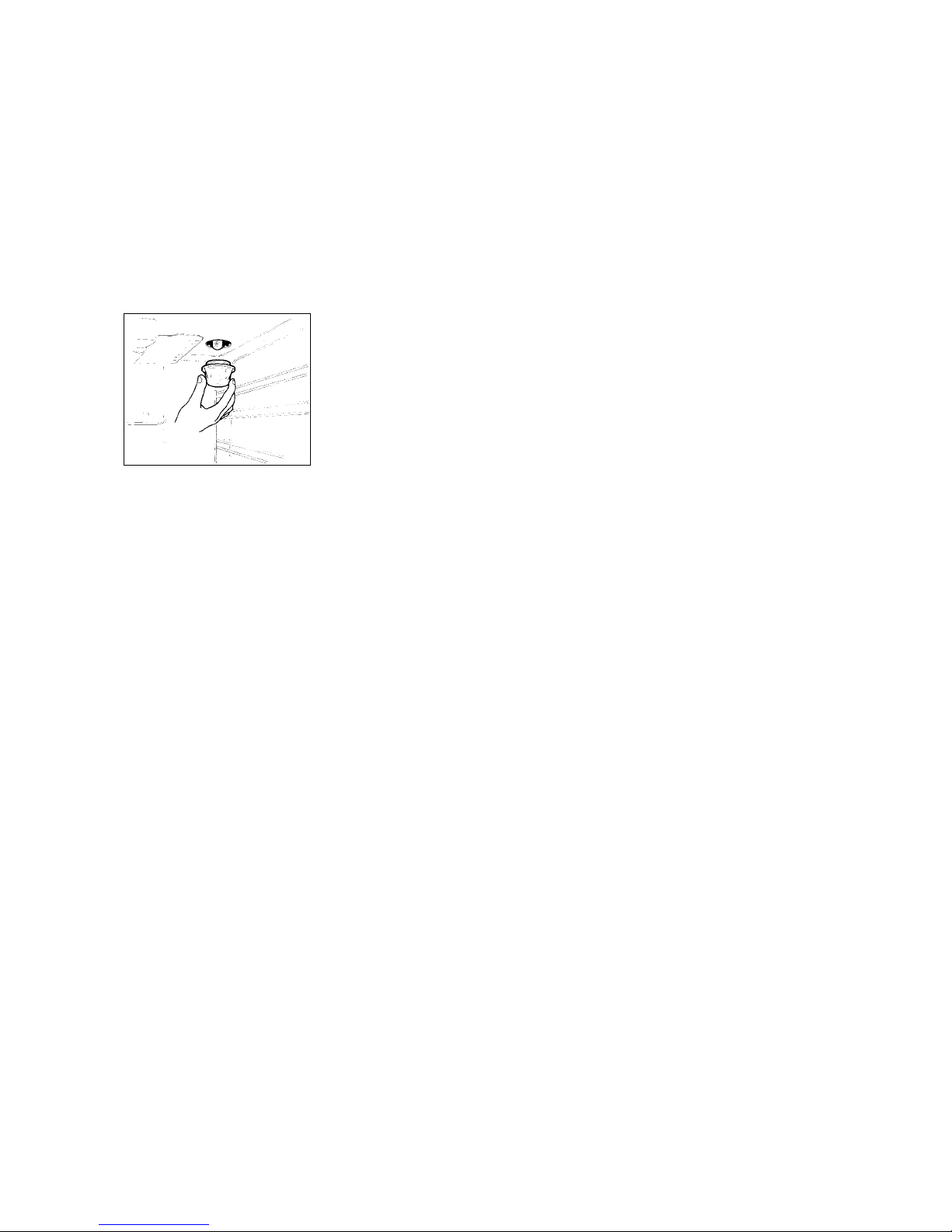

To replace the oven bulb, just unscrew the protection cap that projects out inside the oven. (Fig.19) WARNING:
Disconnect power before servicing unit.
In order to remove the oven door make sure to block the ihinges with a screw driver.
Call an autorised service person for this operation that can be dangerous

16
USER MANUAL
IMPORTANT INSTRUCTION
WARNINGS:
Proper installation. Be sure your appliance is properly installed and grounded by a qualified technician
Never Use Your Appliance for Warming or heating the Room.
Do Not Leave Children Alone – Children should not be left alone or unattended in area where appliance is in
use. They should never be allowed to sit or stand on any part of the appliance.
Wear Proper Apparel –Loose fitting or hanging garments should never be worn while using the appliance
User Servicing - Do not repair or replace any part of the applilance unless specifically recommended in the
manual. All other servicing should be referred to a qualified technician.
Appliance – Flammable materials should not be stored in an oven or near surface units.
Do Not Use Water in Grease Fires- Smother fire or flame or use dry chemical or foam-type extinguisher.
Use Only Dry Potholders Moist or damp potholderrs on hot surface may result in burns from steam. Do not
let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
Never Leave Surface Units Unattended at High Heat Setting – Boilover causes smoking and greasy
spillovers that may ignite
Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these pans or bowls during cooking may
subject wiring or components undernearth to damage.
Protective Liners – Do not use aluminium foil to line surface unit drip bowls or oven bottoms, except as
suggested in the manual, Improper installation of these liners may result in a risk of electric shock, or fire.
Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the risk
of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the
handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent
surface units.
Do not to cover the holes inside the oven with aluminium paper
Do not to cover the burners of cooktop with aluminium paper
Do not store any flammable objects or objects under pressure in the storage compartment
Keeping appliance area clear and free from combustible materials, gasoline and other flammable
vapors and liquid.
Do not store dangerous or flammable material in the cabinet areas above appliance; store them in a
safe place in order to avoid potential hazards.
CAUTION
Do not store items or interest to children in cabinets above a range or on the backguard of a range-
children climbing on the range to reach items could be seriously injured
DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACE OF OVEN- heating elements may be
hot even though they are dark in color. Interior surface of an oven become hot enough to cause
burns. During and after use, do not touch, or let clothing or other flammable materials contact
surface units or areas near units until they have had sufficient time to cool.
WARNING
TO REDUCE THE RISK OF TIPPING OF THE APPLIANCE, THE APPLIANCE MUST BE SECURED BY
PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED
PROPERLY, VERIFY THAT THE ANTI-TIP DEVICES ARE ENGAGED.

17
For safe use of appliance, do not use it for space heating.
Do not use aerosol sprays in the vicinity of this appliance while it is in operation
Do not use oven doors as support or for sit-down.
Do not use oven cavity as storage compartment.
DESCRIPTIONS
DESCRIPTIVE CAPTION FOR HOB DESCRIPTION OF HOBS
1. Small Burner Model MTYKQZU4(X,L,I,N,R,U,V,W,D)(2, 5)A fig. A
2. Medium burner
3. Rapid burner
4. Dual burner
5. Griddle
fig.A
CONTROL PANEL DESCRIPTION
On the control panel, small symbols show the function of each knob or key. Here as follows are the several
controls that a cooker can have:
the symbol shows the disposition of burners on the worktop, the full dot identifies the burner in
object (in this case the front burner on the right).
the symbol shows the disposition of burners and the griddle on the worktop, the full dot
identifies the element in object (in this case the electric griddle).
the symbol shows the running of left or right oven and the left broiler
the symbol shows the swicth for the oven fan and oven light
the symbol shows the swicth for the oven light

18
USING BURNERS
A diagram is etched on the control panel above each knob which indicates which burner corresponds to that
knob.
(flame)
Manual ignition:
Manual ignition is always possible even when the power is cut off or in the event of prolonged power failure.
Turn the knob that corresponds to the burner selected counterclockwise to the MAXIMUM position at the etched star
(large flame) and place a lit match up to the burner.
Automatic electric ignition:
Turn the knob that corresponds to the burner selected anticlockwise direction to the MAXIMUM position at the etched
star (large flame) and then press the knob down to activate the spark ignition. Once ignited, keep pressing the knob for
about 10 seconds to allow the flame to heat the thermocouple. If the burner does not remain alight after releasing the
knob repeat the above procedure,
Note: It is recommended not to try to ignite the burner if the relative flame cap is not in the correct position
Note: Dual burner is composed by two burner (inside and outside); each one operates under the relative gas valve
indipendently from the other one.
Instructions for the ignition of the dual wok burner: turn on the central burner first, then turn on the external ring.
Tips for using burners correctly:
WARNING: During use of each gas burner(s) adjust the burner flame size properly so it does not extend beyond
the edge of the cooking utensil. This is an instruction based on safety considerations
- Use suitable pots for each burner (see Fig. and Table )
- When the liquid is boiling, turn down the knob to the MINIMUM position.
- Always use pots with a cover.
Correct flame aspect: verify that aspect flame of the worktop burners be completely blue and with an aspect as
indicated in figure(flame)
Table
Burner Recommended pan diameters inches (mm)
Small 3½”-51/2”(90 – 140)
Medium 51/2”- 101/4”(140 – 260)
Large 71/8”- 101/4” (180 – 260)
Dual burner 82/3”-101/4” (220 – 260)
WARNING: check the position of the burner caps before operation.
Correct usage of pans:
- Dry the bottom of the pan before placing it on the hotplate.
- Use pots with a flat, thick bottom, except for wok cooking.
- When using the burners, ensure that the handles of the pans are correctly positioned. Keep children away from the
appliance.
- When cooking foods with oil and fat, which are very flammable, the user should not leave the appliance unattended.
WOK PAN: To use the wok pan, please utilize a suitable wok adaptor grid; wok pan external diameter shall not be less
than 10” (25cm) and not more than 16”(40cm).
WARNING: If the power is cut off, the burners can be lit with matches.
The burners equipped with a safety thermocouple can only be lit when the knob is in the MAXIMUM position (large flame
etching).

19
USING THE ELECTRIC GRIDDLE
WARNING
The griddle element is hot after use. Allow sufficient time for griddle components cool before cleaning.
The electric griddle element is rated 120 volts AC 1100 watts.
Seasoning the griddle
Before using the griddle for the first time, it must be seasoned.
If the griddle has not been used for a period of time, it should be reseasoned.
To season the gridlle:
1. clean the griddle thoroughly with hot, soapy water to remove any protective coating.
2. rinse with a mixture of 1 quart water and 1 cup white vinegar. Dry thoroughly.
3. Pour 1 teaspoon vegetable oil into the center of the griddle. Do not use corn oil as it gets sticky. Rub the
oil over the entire surface of the griddle using a heavy cloth.
4. Turn the control knob to a maximum setting (7). Turn the heat off when the oil begins to smoke. Allow the
griddle to cool.
5. Repeat step 3. Be sure to cover the entiresurface with the oil
6. Repeat step 4. Allow the griddle to cool. Wipe the entire surface of the griddle using a heavy cloth. Apply a
very thin layer of vegetable oil. The griddle is now ready to use.
Use
Press and turn the knob anti-clockwise to the selected position
Pre-heat at the maximum temperature, ( 7 position) for 15 minutes, then place the food on the griddle and
cook to the desired temperature.
The activation of the griddle is shown by the indicator light which is also found on the front panel of the
appliance.
Griddle cooking recommendations
FOOD KNOB POSITION SETTING
Eggs 5-6 300°F to 325°F (150°C to 160°C)
Bacon; Breakfast Sausage 6 350°F to 375°F (177°C to 190°C)
Toasted Sandwiches 5-6 325°F to 350°F (160°C to 177°C)
Boneless Chicken Breasts 6 350°F to 375°F (177°C to 190°C)
Boneless Pork Chops, ½” thick 6 350°F to 375°F (177°C to 190°C)
Ham Slices, ½” thick 6 350°F to 375°F (177°C to 190°C)
Pancakes; French Toast 6 350°F to 375°F (177°C to 190°C)
Potatoes; Hash Browns 7 375°F to 400°F (190°C to 205°C)

20
USING THE LEFT GAS OVEN
All the gas oven cookers are equipped with a thermostat and safety device to adjust the cooking temperature. The oven
temperature is set by turning the knob counterclockwise to match the indicator with the temperature selected. The gas
oven is combined with a gas broiler. See the specific pages for use information.
WARNING: If the burner flames are extinguished accidentally, turn off the control knob and do not try to relight
the oven until after at least 1 minute.
TABLE N°7
THERMOSTAT SETTING TEMPERATURE °F TEMPERATURE °C
MIN. 285 140
MED-LOW 320 160
MED. 350 175
MED-HI 425 220
MAX. 500 260
The oven burner can be ignited in different ways:
- Manual lighting (it is always possible even when the power is cut off):
To light the oven, open the oven door and turn the knob at maximum position . At the same time put a lit match next to
the ignition tube that is visible on the oven level . Then press the thermostat knob (this makes the gas start to flow) and
keep it pressed, after the burner has been completely lit, for 10 seconds. Release the knob and make sure that the
burner remains on, otherwise repeat the operation.
- Electric ignition
In this case, first open the oven door, then turn the knob to the maximum temperature setting. Then press the thermostat
knob to start the gas flow and the ignition spark. Wait about 10 seconds after the burner has been completely lit and then
release the knob. Make sure that the burner remains on, otherwise repeat the operation.
The ignition device should not be used for more than 15 seconds. If after that period the burner still has not
been lit, do not use the device and open the door of the room or wait at least 60 seconds before trying to light
the oven again.
WARNING: when trying to light the oven, the door must always be open.
The gas oven operation is indicated by a blue light
Verify that aspect flame of the oven burner be completely blue and with an aspect as indicated in figure
NOTICE: when using the oven for the first time it should be operated for 15-30 minutes at a temperature of
about 500°F/260°C without cooking anything inside in order to eliminate any moisture and odours from the
internal insulation.
During normal oven use, after lighting the burner and setting the desired temperature, wait about 15 minutes before
putting in any food to preheat the oven.
The oven is equipped with 4 guides at different heights level which can be used to insert shelves or the tray. To keep the
oven as clean as possible it is recommended to cook meat on the tray or on the shelf that has been inserted inside the
tray. The table below lists the general cooking times and the position of the tray for different types of foods. Personal
experience will help to determine any variations in the values reported in the table. In any case, it is recommended to
follow the instructions of the specific recipe being used.
This type of oven is equipped with a fan. The fan convection creates forced-air circulation in the horizontal direction.
Thanks to this type of operation, the ventilated oven can be used for different types of cooking at the same time, without
changing the taste of each food. Hot-air circulation guarantees a uniform distribution of heat. Pre-heating the oven is not
necessary, but for very delicate pastries, it is recommended to heat the oven before inserting the trays.
