INSTALLATION AND USER MANUAL
ISLAND T-SHAPE DESIGN HOODS
KTI..XT

2
CONTENTS
Section Page
IMPORTANT SAFETY INSTRUCTIONS 3
RANGE HOOD DIMENSIONS 6
INSTALLATION HEIGHT REQUIREMENTS 7
PARTS 8
TOOLS NEEDED 10
VENTING METHOD 11
COMPONENTS FOR INSTALLATION TO THE CEILING 12
INSTALLING 12
OPERATING THE CONTROLS 24
CLEANING STAINLESS STEEL 26
CARING FOR FILTERS 26
REPLACING ACTIVATED CHARCOAL FILTER 27
REPLACING BULBS 27
WIRING DIAGRAM 28
WARRANTY 29

3
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS BEFORE YOU START INSTALLING
THIS Range Hood
WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium setting.
b) AlwaysturnhoodONwhencookingathighheatorwhenambeingfood(i.e.CrepesSuzette,
CherriesJubilee,PeppercornBeefFlambé).
c) Cleanventilatingfansfrequently.Greaseshouldnotbeallowedtoaccumulateonfanorlter.
d)Useproperpansize.Alwaysusecookwareappropriateforthesizeofthesurfaceelement.
WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASEFIRE,OBSERVETHEFOLLOWING*:
a) SMOTHERFLAMESwithaclose-ttinglid,cookiesheet,ormetaltray,thenturno󰀨theburner.
BECAREFULTOPREVENTBURNS.IftheamesdonotgooutimmediatelyEVACUATEAND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DONOTUSEWATER,includingwetdishclothsortowels-aviolentsteamexplosionwillresult.
d) UseanextinguisherONLYif:
1. YouknowyouhaveaClassABCextinguisher,andyoualreadyknowhowtooperateit.
2. Thereissmallandcontainedintheareawhereitstarted.
3. Theredepartmentisbeingcalled.
4. Youcanghttherewithyourbacktoanexit.
* Based on "Kitchen Firesafety Tips" published by NFPA
WARNING-TOREDUCETHERISKOFFIREORELECTRICSHOCK,donotusethisfanwithany
solid-state speed control device.
WARNING-TOREDUCETHERISKOFFIRE,ELECTRICALSHOCK,ORINJURYTOPERSONS,
OBSERVE THE FOLLOWING:
1. Usethisunitonlyinthemannerintendedbythemanufacturer.Ifyouhaveanyquestions,
contact the manufacturer.
2. Beforeservicingorcleaningunit,switchpowero󰀨atservicepanelandlocktheservicedi-
sconnecting means to prevent power from being switched on accidentally. When the service
disconnectingmeanscannotbelocked,securelyfastenaprominentwarningdevice,such
asatag,totheservicepanel.
CAUTION:ForGeneralVentilatingUseOnly.DoNotUseToExhaustHazardousorExplosive
Materials and Vapors.
WARNING-TOREDUCETHERISKOFFIRE,ELECTRICALSHOCK,ORINJURYTOPERSONS,
OBSERVE THE FOLLOWING:
1. InstallationWorkAndElectricalWiringMustBeDoneByQualiedPerson(s)InAccordance
WithAllApplicableCodesAndStandards,IncludingFire-RatedConstruction.
2. Su󰀩cientairisneededforpropercombustionandexhaustingofgasesthroughtheue
(chimney)offuelburningequipmenttopreventbackdrafting.Followtheheatingequipment
manufacturer's guideline and safety standards such as those published by the National Fire
ProtectionAssociation(NFPA),andtheAmericanSocietyforHeating,RefrigerationandAir
ConditioningEngineers(ASHRAE),andthelocalcodeauthorities.
3. Whencuttingordrillingintowallorceiling,donotdamageelectricalwiringandotherhidden
utilities.
4. Ducted fans must always be vented to the outdoors.

4
ALL WALL AND FLOOR OPENINGS WHERE THE Range Hood IS INSTALLED MUST BE
SEALED.
This Range Hood requires at least 24" of clearance between the bottom of the Range Hood and the
cooking surface or countertop. This hood has been approved by ULat this distance from the cooktop.
This minimum clearance may be higher depending on local building codes. For gas cooktops and
combination ranges, a minimum of 30" is recommended and may be required.
Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking surface
or countertop. Consult the cooktop or range installation instructions given by the manufacturer before
making any cutouts.
MOBILEHOMEINSTALLATIONTheinstallationofthisRangeHood mustconformtotheManufactured
HomeConstructionandSafetyStandards,Title24CFR,Part3280(formerlyFederalStandardforMobile
Home Construction and Safety, Title 24, HUD, Part 280). See Electrical Requirements"
• Venting system MUST terminate outside the home.
• DO NOT terminate the ductwork in an attic or other enclosed space.
• DO NOT use 4" laundry-type wall caps.
• Flexible-type ductwork is not recommended.
• DO NOT obstruct the ow of combustion and ventilation air.
• Failure to follow venting requirements may result in a re.
WARNING
!
VENTING REQUIREMENTS
Determine which venting method is best for your application. Ductwork can extend either through the
wall or the roof.
The length of the ductwork and the number of elbows should be kept to a minimum to provide e󰀩cient
performance. Thesize oftheductwork shouldbeuniform. Do notinstalltwo elbowstogether. Use duct
tape to seal all joints in the ductwork system. Use caulking to seal exterior wall or oor opening around
the cap.
Flexibleductworkisnotrecommended.Flexibleductworkcreatesbackpressureandairturbu-
lence that greatly reduces performance.
Make sure there is proper clearance within the wall or oor for exhaust duct before making cutouts. Do
not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame
must be constructed.
WARNING-ToReduceTheRiskOfFire,UseOnlyMetalDuctwork.
CAUTION-Toreduceriskofreandtoproperlyexhaustair,besuretoductairoutside–Do
notventexhaustairintospaceswithinwallsorceilingsorintoattics,crawlspaces,orgarages.
Cold Weather installations
An additional back draft damper should be installed to minimize backward cold air ow and a nonmetallic thermal
break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper
should be on the cold air side of the thermal break. The break should be as close as possible to where the vent
system enters the heated portion of the house.

5
ELECTRICAL REQUIREMENTS
A120volt,60 HzAC-only electricalsupplyisrequiredon aseparate15ampfusedcircuit. Atime-delay
fuse or circuit breaker is recommended. The fuse must be sized per local codes in accordance with
the electrical rating of this unit as specied on the serial/rating plate located inside the unit near the
eld wiring compartment.
• Electrical ground is required on this Range Hood.
• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO
NOT use for grounding.
• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or
grounding circuit could result in electrical shock.
• Check with a qualied electrician if you are in doubt as to whether the Range Hood is
properly grounded.
• Failure to follow electrical requirements may result in a re.
WARNING
!
StateofCaliforniaProposition65Warning(USonly)
WARNING
This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov

6
RANGE HOOD DIMENSIONS
0LQ´
0D[´
0LQ´
0D[´

7
INSTALLATION HEIGHT REQUIREMENTS
MIN. 24" OVER ELECTRIC
MIN. 30" OVER GAS
Min. 24" Min. 30"

8
PARTS
REF. PART QTY
1Hood body 1
2Telescopic Chimney comprising: 1
2.1 Upper Section 1
2.2 Lower Section 1
7.1 Telescopic frame complete with extractor, consisting of: 1
7.1a Upper frame 1
7.1b Lower frame 1
10 Flaps 2
25 Remote control 1
T1-T3 Air Outlet Connector Extension 2
T2 Air Outlet Connector 1
T4 Air Outlet Connector xing bracket 1
REF PART
12q Torx Screws 1/4" x 3 1/8" 4
12f Torx Screws 1/4" x 9/16" 4
21 Drilling template 1
22 1/4" int. dia washers 4
23 1/4" Nuts 4
A2 Pozi Screws 1/8" x 1/4" 2
A3 Pozi Screws 1/8" x 3/8" 2
PARTS INCLUDED

9
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)
10
1
2.2
21
7.1
12f
22
12q
7.1a
7.1b






















23
25
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)
2.1
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)

10
PARTS NEEDED
PARTS(cont.)
PART
6" Round Metal Ductwork
Drywall plugs or other suitable wall fasteners based on your instal-
lation.
TOOLS NEEDED
TOOL
Tape Measure
Pencil
Electric Drill with 5/16" Drill Bit
Phillips Screwdriver
Torx Screwdriver
Metal sheers
Work gloves
ACCESSORIES AVAILABLE
ACCESSORY SKU#
Replacement Activated Charcoal Filter # 901497
Ba󰀪e lter Kit # 901581
Duct cover kit installation up to 10' # 901585

11
VENTING METHOD
Ducted Venting Installation
Non ducted - recirculation
1
Requires purchase of
Activated Charcoal
Accessory kit.
6 "

12
COMPONENTS FOR INSTALLATION TO THE CEILING
T


OK!
3/16 ”
OK!
3/16 ”
These fasteners may need to be purchased separately depending on your installation.
INSTALLING
Do not make any cutouts until you have decided whether this installation will be
ducted or non-duct and then plan accordingly.
1
K

OK!
3/16 ”

13
Put a thick, protective covering over cooktop,
set-in range or countertop to protect from damage or dirt.

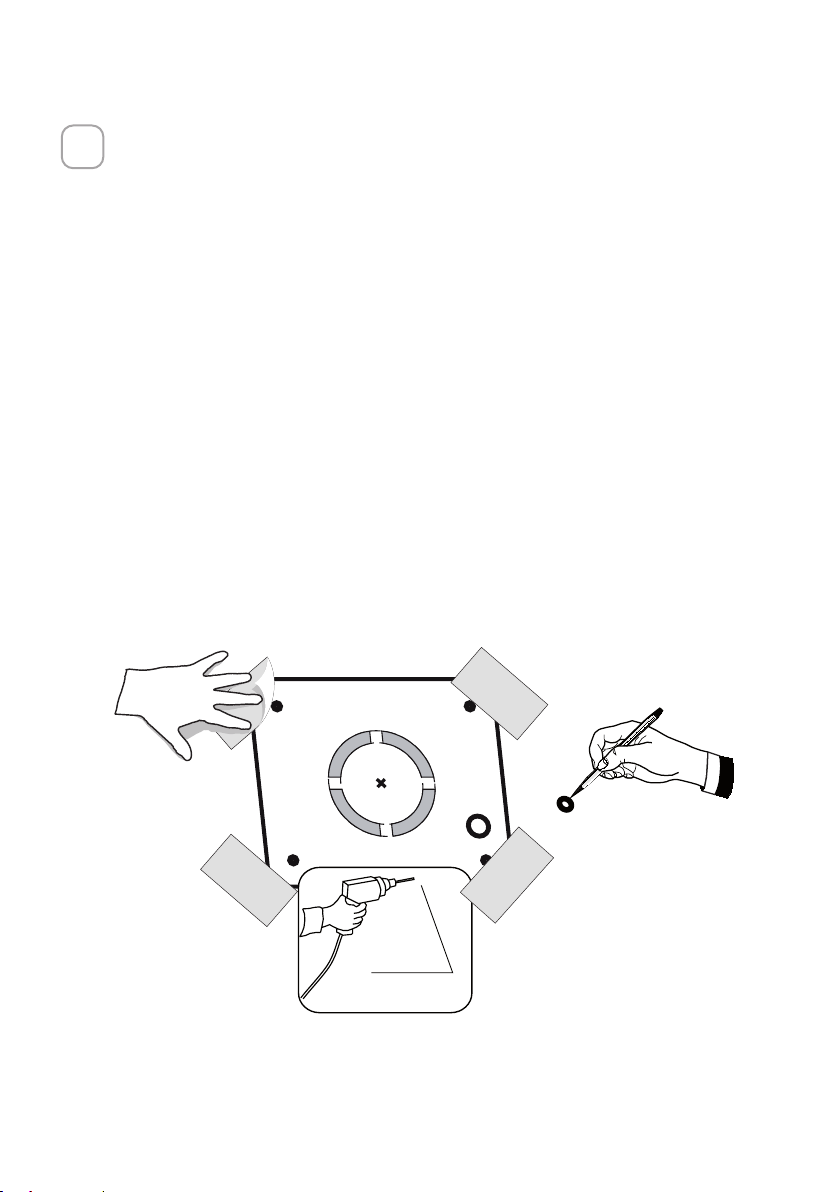

Determine and clearly mark with a pencil on the ceiling where the rangehood will
be installed.
A template 21 for mounting the support is supplied in the carton with the support.
Use this template to mark holes for
support on the ceiling.
Determine and make necessary cuts for the ductwork. The duct opening is shown
on the mounting template. Install
ductwork before mounting the hood.
Determine the proper location for the Power Supply Cable as indicated on the
template. Use a 1 1/4" Drill Bit to make this hole. Run the Power Supply Cable.
Use caulking to seal around the hole.
A knockout for threading through the Power Supply from the ceiling is located on
the top of the frame. Do not connect the Power Cable to the Wiring Box or power
up the hood at this time. Run enough power cable from the ceiling to reach the
wiring box on the hood.
2
Ø10 mm
x4
21
1 1/4"

14
3























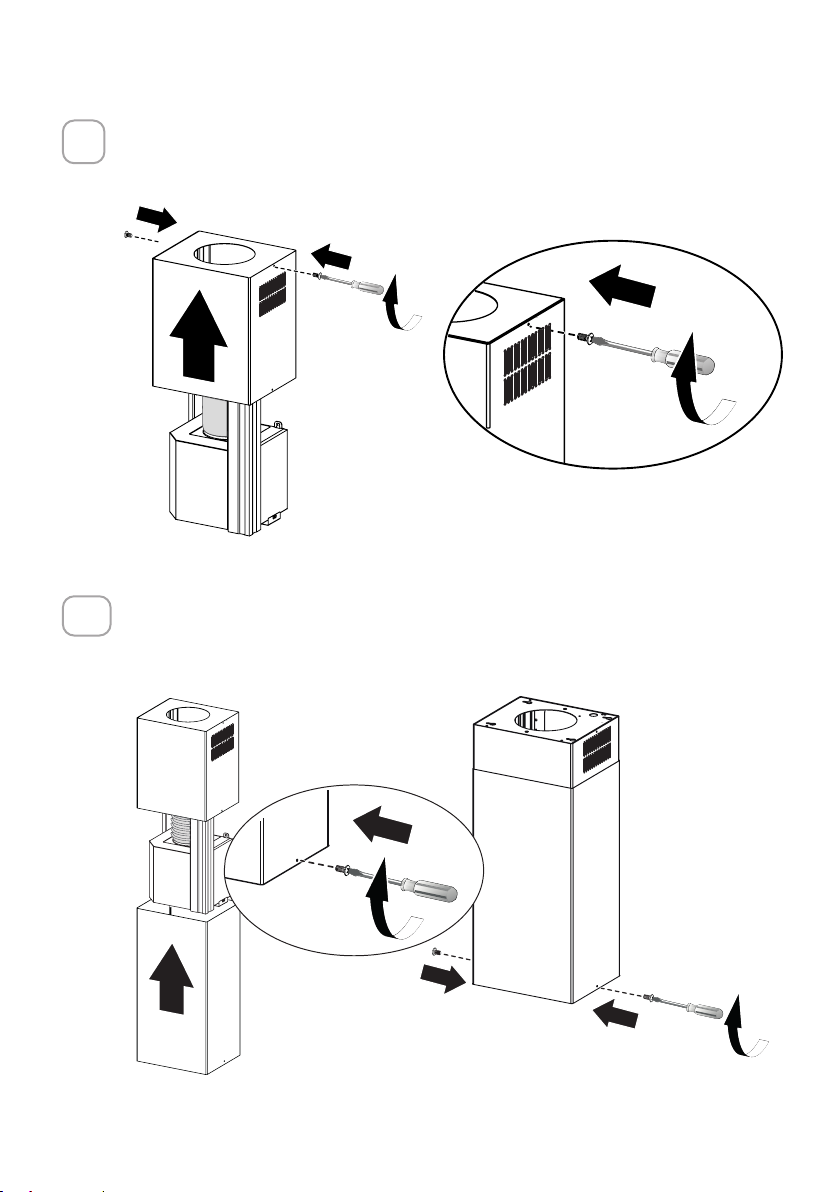

Chimney Flues Must Be Removed Before Installing the Hood
Loosenthetwoscrewsfasteningthelowerchimneyandremovethisfromthelowerframe.
Loosenthetwoscrewsfasteningtheupperchimneyandremovethisfromtheupperframe.
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)

15

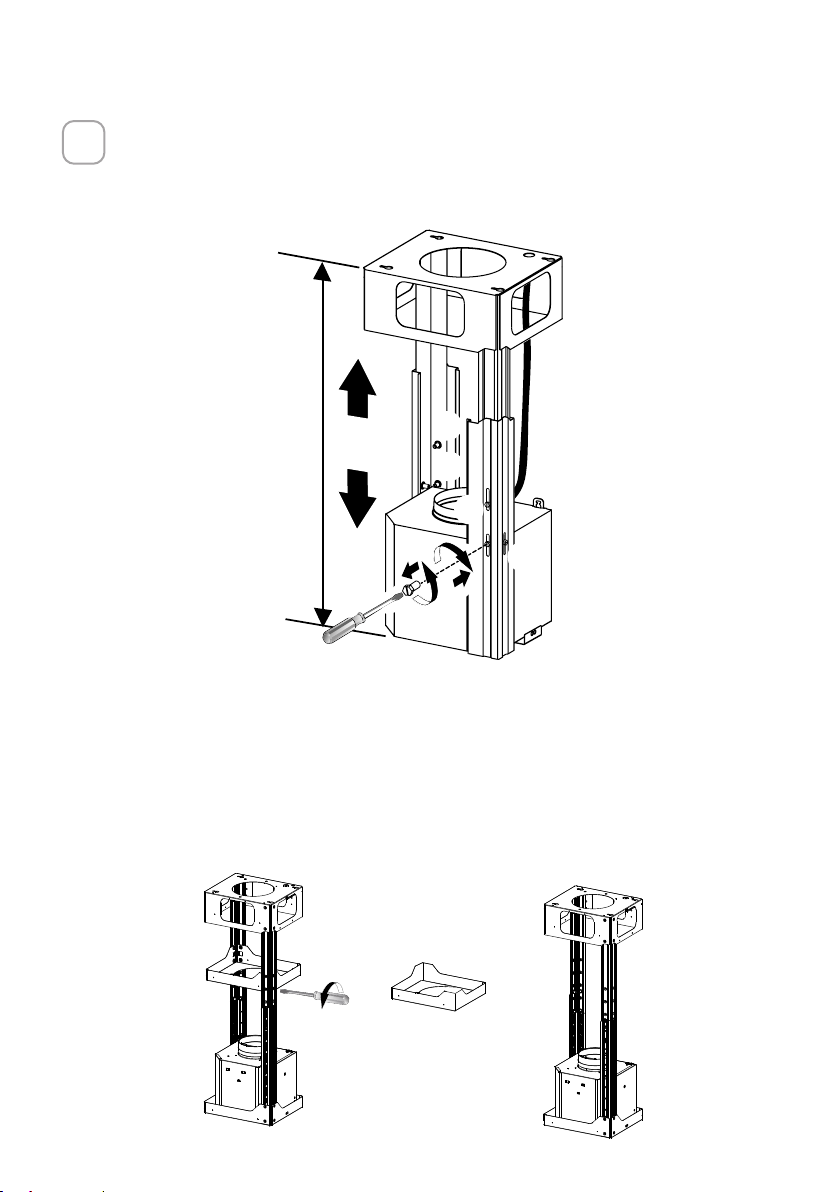

4If you need to adjust the height of the frame, proceed as follows:
• Unfastenthemetricscrewsjoiningthetwocolumns,locatedatthesidesoftheframe
(1,2,3,4,5,6).
• Adjust the frame to the height required, then ret all the screws removed as above.
NOTE: The chimney structure can reduce down to a 27 " minimum height. To
reduce the height, the middle section of the support structure needs to be removed.
Out of the box, the minimum chimney length is 32 ". Insure the the installation
process outlined in the U&C is followed and there is su󰀩cient stability with the
middle section removed.






REMOVING THE MIDDLE TRESTLE COMPONENT
14.REMOVING THE MIDDLE TRESTLE COMPONENT
NOTE: The chimney structure can reduce down to a 27 " minimum height. To reduce the height,
the middle section of the support structure needs to be removed.
Out of the box, the minimum chimney length is 32 ".
Insure the the installation process outlined in the U&C is followed and there is sufficient stability with the
middle section removed.

16
5
6

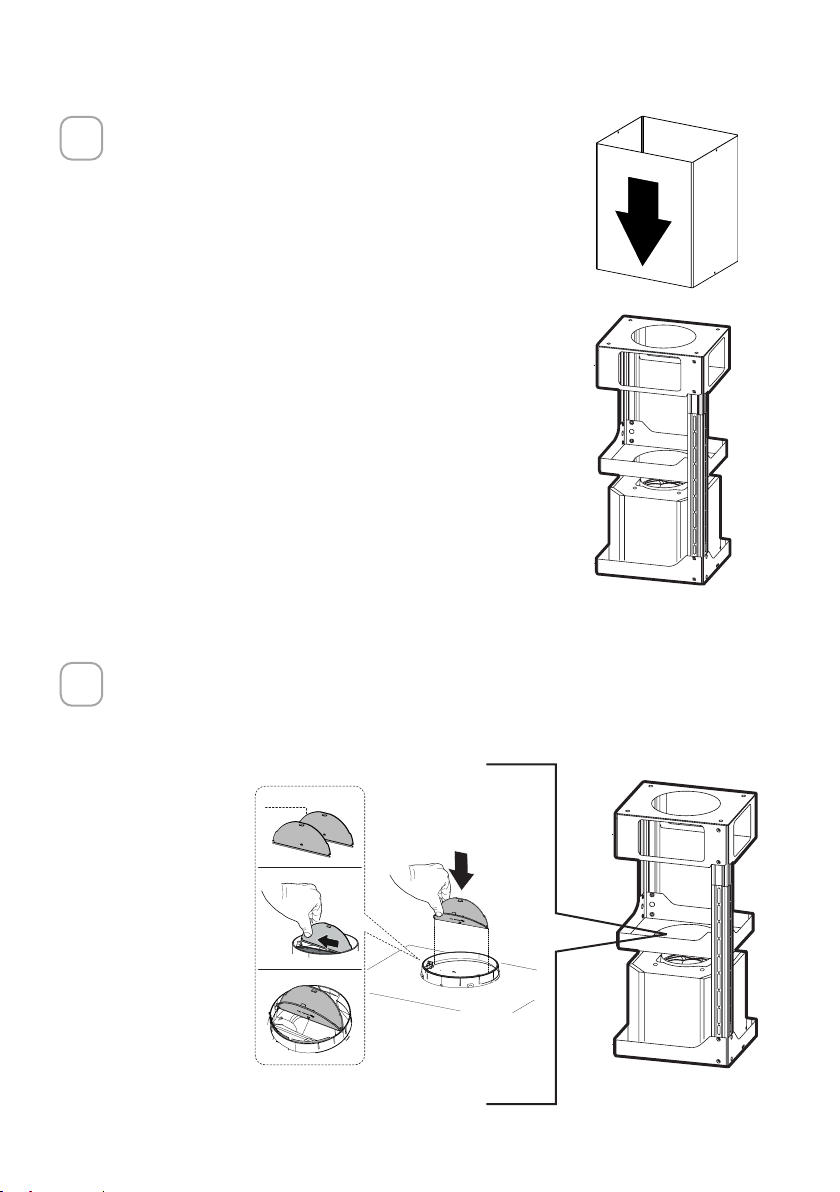

Upper Flue Must Be In Place Before Proceeding
After the regulation for height adjustment, insert the upper
chimney stack from above, and leave it running free on the
frame.
Only for Ducted Venting Installation
Install the Flaps included 10 with the Hood
before connecting to the ductwork.












































10

17
7Now take either your wood screws or bolts depending on your set-up and screw all four
into the pilot holes and leave 1/4" of the heads exposed.
Next install a UL or CSA listed strain relief in the wiring box so that the screws can be
tightened after the chimney support is attached to the ceiling.
Now lift the chimney support into it's nal position and feed the electrical supply through
the strain relief.
Next position the chimney support so that the large end of the keyhole slots are over
the ceiling attachment screws or bolts. Then push the chimney support so that the bolts
are in the neck of the slots. Tighten all four screws or bolts securely.
• The frame mountings must be secure to withstand the weight of the hood and any
stresses caused by the occasional side thrust applied to the device. On completion,
check that the base is stable, even if the frame is subjected to bending.
• Inallcaseswheretheceilingisnotstrongenoughatthesuspensionpoint,theinstaller
must provide strengthening using suitable plates and backing pieces anchored to the
structurally sound parts.



12q

18
8
Installation of wiring connection
Remove the cover from the eld wiring compartment.
DO NOT turn on the power until installation is complete!
Connect the Power Supply Cable to the rangehood.
Connect the Green (Green and Yellow) ground wire under the Green grounding
screw. Attach the White lead of the power supply to the White lead of the rangehood
with a twist-on type wire connector.
Attach the Black lead of the power supply to the Black lead of the rangehood with a
twist-on type wire connector.
Replace the eld wiring compartment cover and the grease lters.
A. Home power supply cable
B. Black wires
C. UL listed wire connectors
D. White wires
E.Green(orbare)groundwirefromhomepowersupplyconnectedtogreengroundscrew
F. Range hood power supply cable
G. Range hood power supply cable connected to green ground screw






















Version 02/12 - Page 8
FIGURE 13
MAKE THE ELECTRICAL CONNECTION
Remove the cover from the eld wiring compartment. (SEE
FIGURE 11) DO NOT turn on the power until installation is
complete! Connect the Power Supply Cable to the rangehood.
Connect the Green (Green and Yellow) ground wire under the
Green grounding screw. Attach the White lead of the power
supply to the White lead of the rangehood with a twist-on type
wire connector. Attach the Black lead of the power supply
to the Black lead of the rangehood with a twist-on type wire
connector.
1. The UPPER CHIMNEY
COVER (C in FIGURE 13)
attaches to the top of the
support structure using two
screwsprovided(G in FIGURE
13). If using the High Ceiling
Chimney Kit, use the UPPER
CHIMNEY COVER supplied
with the kit. Slide up and
attach the UPPER CHIMNEY
COVER.
2. Attach the duct work to the
DAMPER (M in FIGURE 1).
Make sure to seal all joints with
duct tape to prevent leaks.
3. The LOWER CHIMNEY
COVER (B in FIGURE 13)
attaches using two screws
provided (G in FIGURE 13).
Install the LOWER CHIMNEY
COVER by sliding it up over
the support and the UPPER
CHIMNEY COVER.
For ductless installations, line up the DUCTLESS DIVERTER
EXTENSIONS HORIZONTAL (B in FIGURE 12) with the holes
in the LOWER CHIMNEY COVER (D in FIGURE 12) and snap
in the VENT GRIDS (C in FIGURE 12).
INSTALLING THE RANGEHOOD
A. Home power supply cable
B. Black wires
C. UL listed wire connectors
D.White wires
E. Green (or bare) ground wire from home power supply
connected to green ground screw
F. Range hood power supply cable
G.Range hood power supply cable connected to green
ground screw
FIGURE 11
Ductless installations require
a Ductless Conversion
Kit whose components are
pictured in FIGURE 12. Do
not use the DAMPER (M
in FIGURE 1) for ductless
installations. The LOWER
CHIMNEY COVER ( B
in FIGURE 1) should be
discarded and replaced by
the new one with holes from
the Ductless Conversion Kit
(D in FIGURE 12).
As indicated in FIGURE
12, place the DUCTLESS
DIVERTER (A) over the
exhaust opening of the EASY
CUBE (E). Fit the DUCTLESS
DIVERTER EXTENSIONS
HORIZONTAL (B) into the
DIVERTER (A). FIGURE 12
FOR DUCTLESS INSTALLATIONS

19
9Position the upper chimney section and x the upper part to the frame using
the 2 screws removed previously.
10 Similarly, position the lower chimney section and x the lower part to the frame
using the 2 screws removed previously.
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)
B
8x
(6,4x16x1)
C
4x
(M6)
L
4x
I
4x
(6x70)
O
K
4x
(M6x80)
T1 T2 T3
T4
Y1
2x
(M4x15)
A
4x
(3,5x9,5)
A3
2x
(2,9x9,5)
A2
2x
(2,9x6,5)

20
11
Only for non ducted recirculating installations
Insert the Connector extensions T1 and T3 into the side of the Connector T2.
Insert the Connector T2 into the Support bracket T4 and x it with the screws.
1
2
T1 T2 T3
T4
A3
2x
A2
2x
Fasten the Support bracket T4 xing it to the upper part with the Screws.
