Bertini HILTON DA1901B5-GR User manual

Graphite
Gray
White
HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
Graphite
Gray
White
Graphite
Gray
White
INSTRUCTION MANUAL
Model No:
NOTE:
DA1901B5-GR
DA1901B5-G
DA1901B5-W
39119119
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
0-65857-21305-8
0-65857-21304-1
0-65857-21303-4
SKU code:
39119121
39119107
UPC code:
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
_______ / _______ / _______
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
Lot number:
DO NOT RETURN PRODUCT TO THE RETAILERS.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Tel #: [phone]
E-Mail: [e-mail]

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*NEVER use bed with children under 15 months or over 50 lbs.
*ALWAYS follow assembly instructions.
*
*NEVER suspend strings over a bed.
*
*CAUTION
*
*
*
Canada H1G 3L1
DHP Consumer Services
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
CUSTOMER SERVICE
You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed
description of the part.
[email protected]
If refinishing, use a non-toxic finish specified for children's products.
WARNING
Failure to follow these warnings and assembly instructions could result in serious injury or death.
Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE.
Check this product for damaged hardware, loose joints, loose bolts or other fasteners, missing parts or sharp
edges before assembly and frequently during use. Securely tighten loose bolts and other fasteners. DO NOT
use crib if any parts are missing, damaged or broken. Contact a customer service representative at 1-800-267-
1739 for replacement parts and instructional literature if needed. DO NOT substitute parts.
Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under
an infant.
Stop using the crib when child begins to climb out or reaches the height of 35 inches (89 cm).
To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless
otherwise advised by your physician.
DO NOT place crib near window where cords from blinds or drapes may strangle a child.
Strings can cause strangulation! DO NOT place items with a string around a child's neck, such as hood strings
or pacifier cords. DO NOT suspend strings over a crib or attach strings to toys.
To help prevent strangulation tighten all fasteners. A child can trap parts of the body or clothing on loose
fasteners.
Ensure all parts and components are present before beginning assembly.
When child is able to pull to standing position, set mattress to lowest position and remove bumper pads, large
toys and other objects that could serve as steps for climbing out.
Never use plastic shipping bags or other plastic film as mattress covers because they can cause suffocation.
Replace teething rail if damaged or loose (if teething rail is provided for this model).
CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES
(69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15CM).
Infants can suffocate in gaps between crib sides and a mattress that is too small.
Follow warnings on all products in a crib.
INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT. Openings in and between bed parts can
entrap head and neck of a small child.
STRANGULATION HAZARD. NEVER place bed near windows where cords from blinds or drapes may
strangle a child.
NEVER place items with a string, cord, or ribbon around a child's neck, such as hood strings or pacifier cords.
These items can catch on bed parts.
ENTRAPMENT HAZARD. To avoid dangerous gaps, any mattress used on this bed shall be a full-size crib
mattress at least 51-5/8 inches (1310 mm) in length, 27-1/4 inches (690 mm) in width, and a max thickness of
6 inches (150 mm).
NOTES
Assemble on a soft, smooth surface to prevent damage to product finish.
DO NOT use power tools.

*
*
*
WARNING: Should this product become
damaged, and/or components are broken or
missing, DO NOT USE.
CAUTION: Adult assembly required.
Assembly will require two people.
Estimated assembly time: 60 minutes.
CARE AND CLEANING
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage finish.
Excessive exposure to sunlight and extreme changes in temperature and moisture can damage
wood furniture.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to
remedy any such defect. This warranty covers 1 year from the date of original purchase from
authorized retailers. This warranty is valid only upon presentation of proof of purchase. This is
solely limited to the repair or replacement of defective furniture components and no assembly
labor is included. This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in any way. The
warranty does not cover wearing, fading or tearing of the fabric (where applicable). This warranty
gives you specific legal rights and you may also have other rights which vary from State to State
and from Province to Province.

HARDWARE LIST
1 2
3 4
5 6
HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
DA1901B5-GR / DA1901B5-G / DA1901B5-W
Ø1/4" X 15mm X 40mm
Ø1/4" X 15mm X 15mm
BOLT
14 PCS
MATTRESS SUPPORT BOLT
16 PCS
Ø1/4" X 11 X 1.2mmT
ALLEN KEY
1 PC
SPRING WASHER
16 PCS
Ø5/16" X 13 X 1.5mmT
Ø8mm X 30mm
SPRING WASHER
14 PCS
WOOD DOWEL
2 PCS

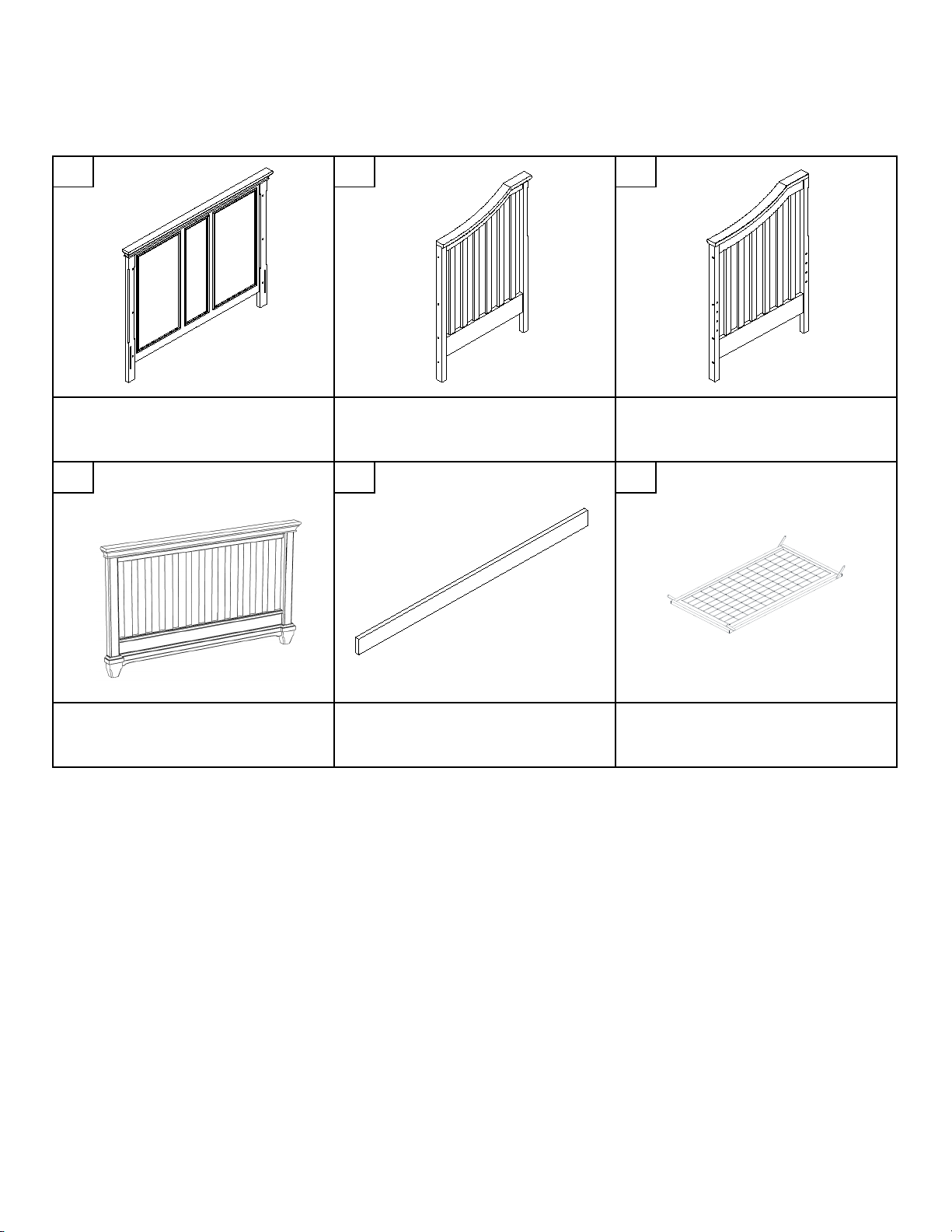

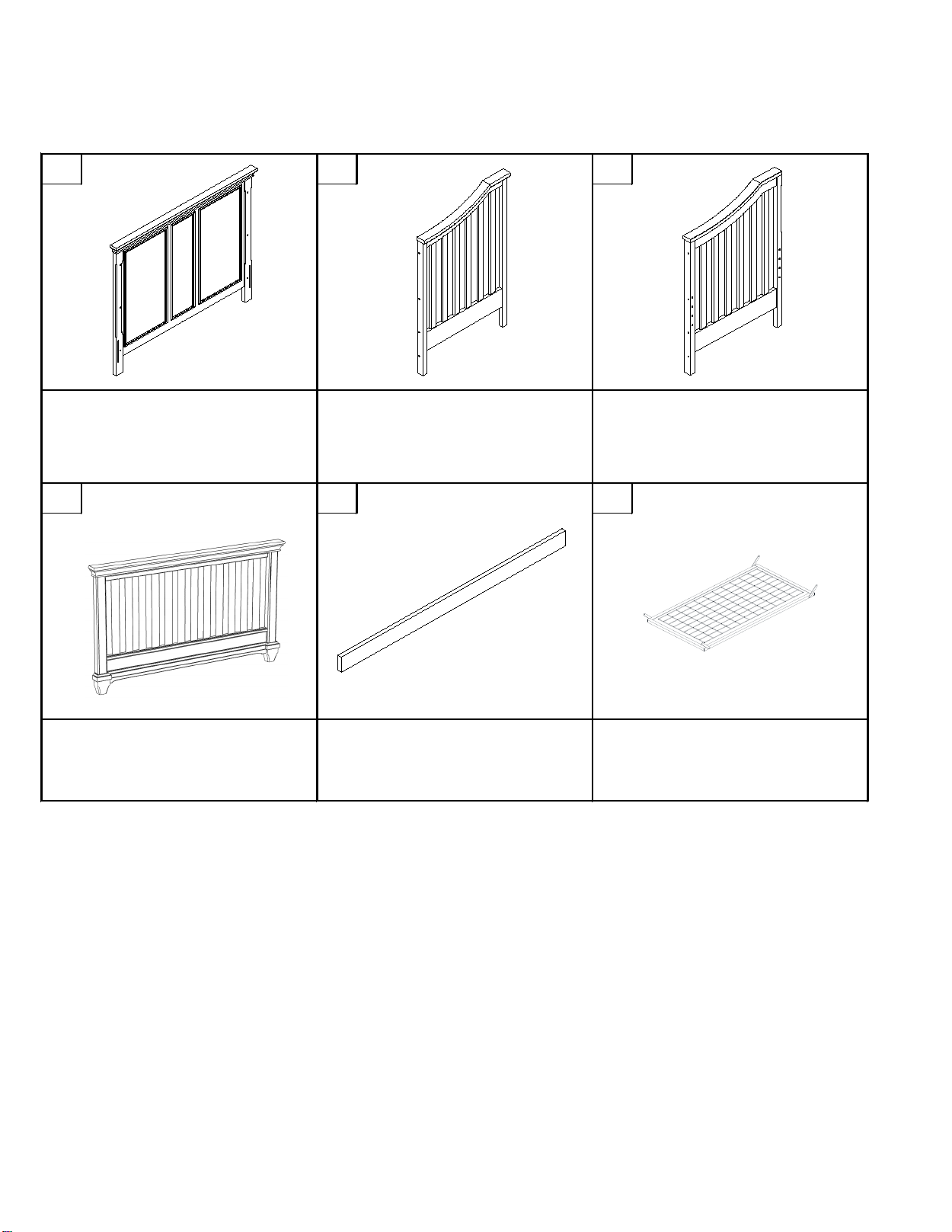

PARTS LIST
A B C
D E F
HEADBOARD
1 PC
LEFT SIDE PANEL
1 PC
RIGHT SIDE PANEL
1 PC
HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
DA1901B5-GR / DA1901B5-G / DA1901B5-W
FRONT PANEL
1 PC
BOTTOM RAIL
1 PC
MATTRESS SUPPORT
1 PC

NOTE: When inserting bolts, turn clockwise until tight. Then loosen 1/2 - 3/4
of a turn. After crib is completely assembled, return to each bolt and
tighten. Use wax or soap on all bolts to facilitate assembly.
HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
DA1901B5-GR / DA1901B5-G / DA1901B5-W
CRIB ASSEMBLY INSTRUCTION

STEP 1
HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
DA1901B5-GR / DA1901B5-G / DA1901B5-W

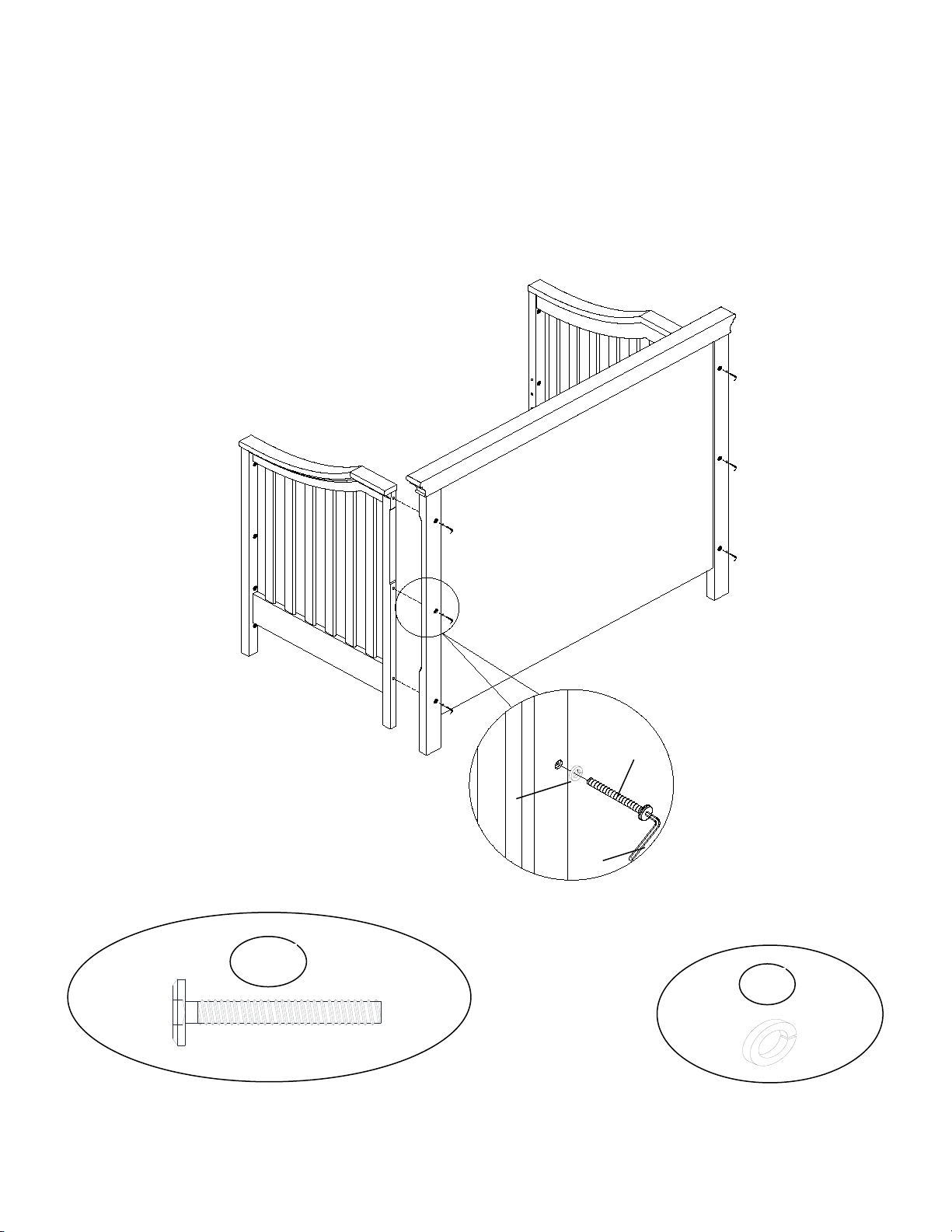

Attach the left side panel (B) and right side panel (C) to the headboard (A) with bolts (1)
and spring washers (5). Use Allen Key (3) to tighten all bolts.
5
1
A
B
C
1
3
5

STEP 2
HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
DA1901B5-GR / DA1901B5-G / DA1901B5-W

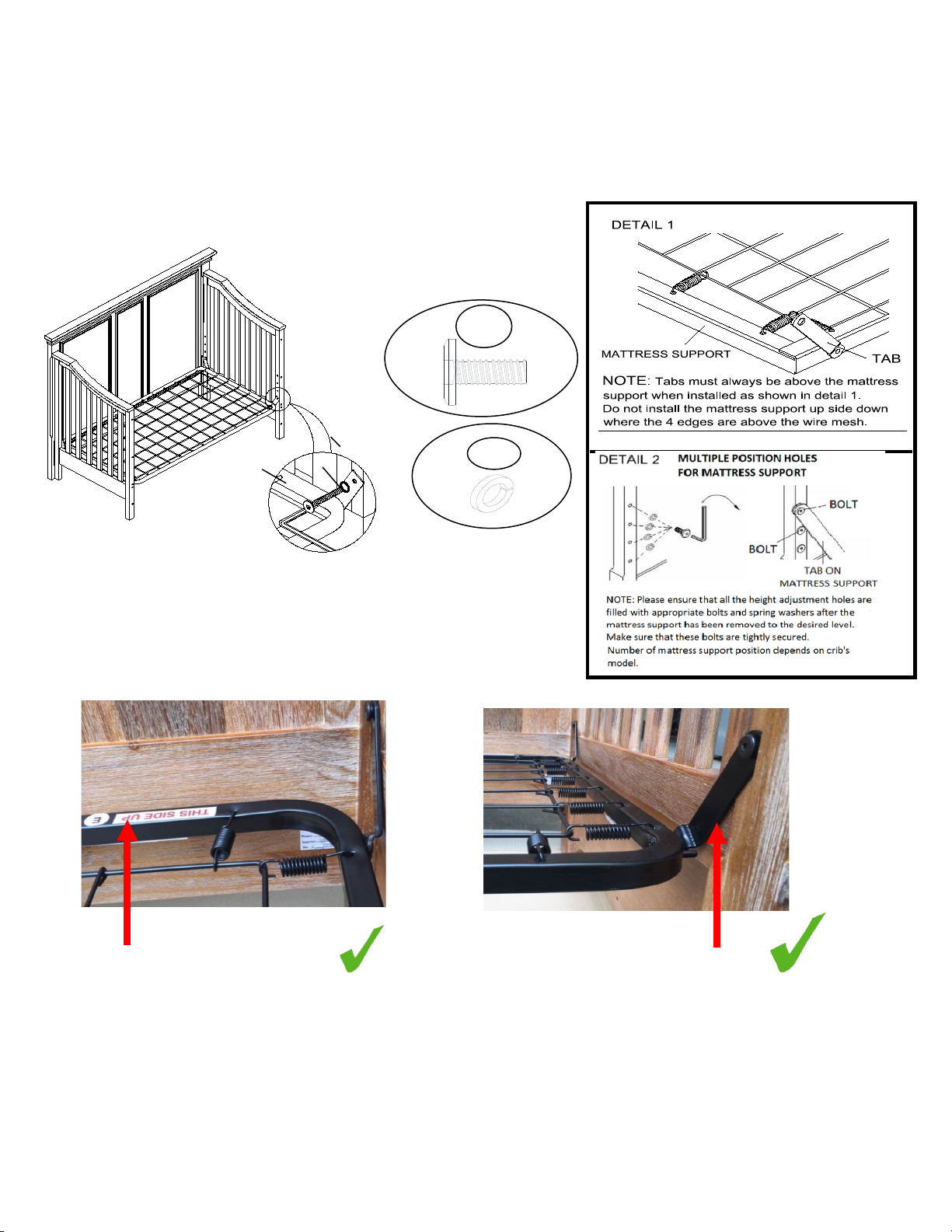

Attach mattress support (F) to the side panels (B & C) with mattress support bolts (2) and
spring washers (4).
Use Allen key (3) to tighten the bolts (2).
2
NOTE: The above photos and drawings showing how to properly attach the mattress
support are for reference only. Crib styles and colors will vary.
`
2
4
3
CORRECT
"THIS SIDE UP"
label shows which
side to face
CORRECT
*Tabs on corners of
mattress support should
point up.
4

STEP 3
HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
DA1901B5-GR / DA1901B5-G / DA1901B5-W

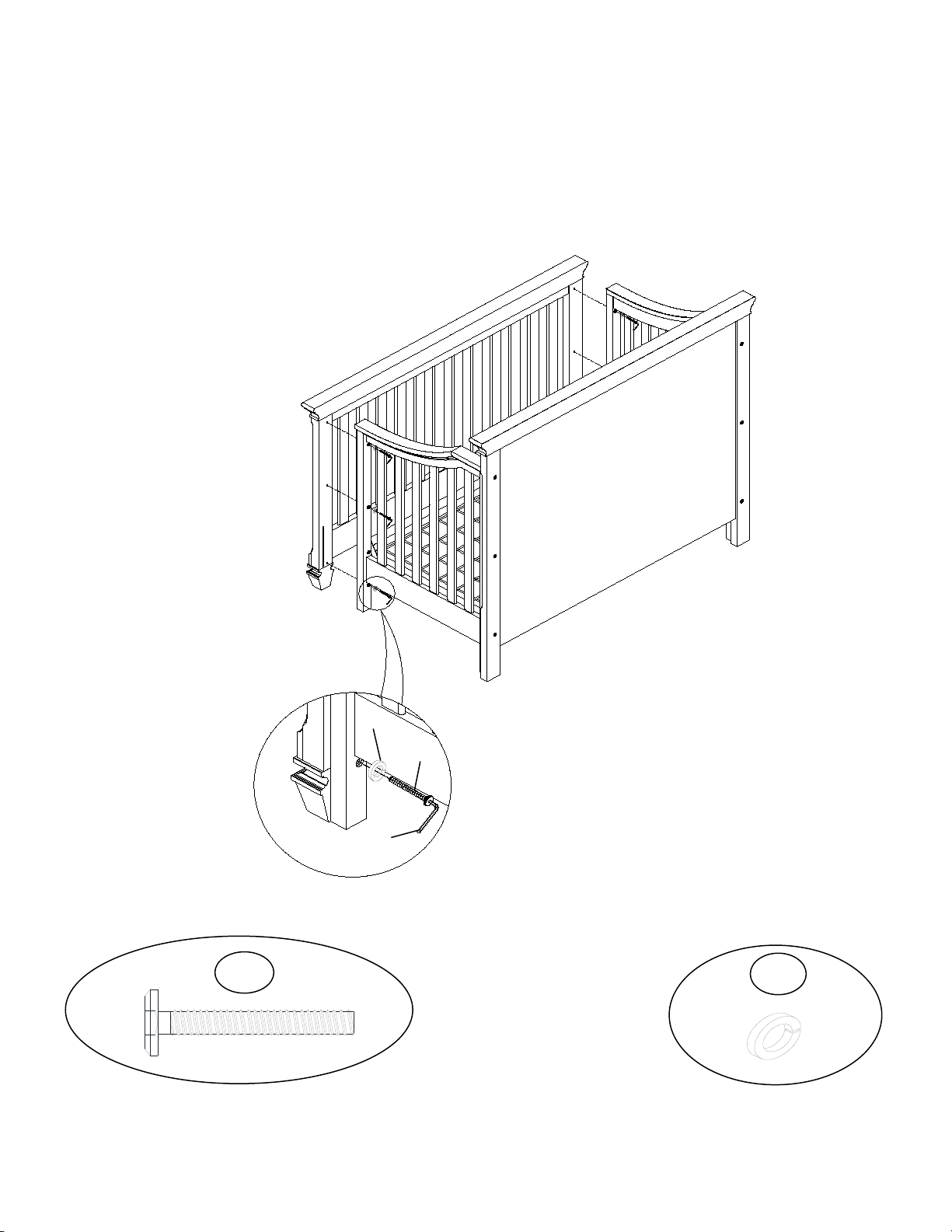

Attach front panel (D) to the left and right side panels (B) & (C) with bolts (1) and spring
washers (5) as shown.
Use Allen key (3) to tighten bolts (1).
1
5
A
B
C
D
1
5
3

WARNINGS:
*
ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY
*The toddler bed or day bed is not intended for children under 15 months of age or over
50 lbs (22.7 kgs).

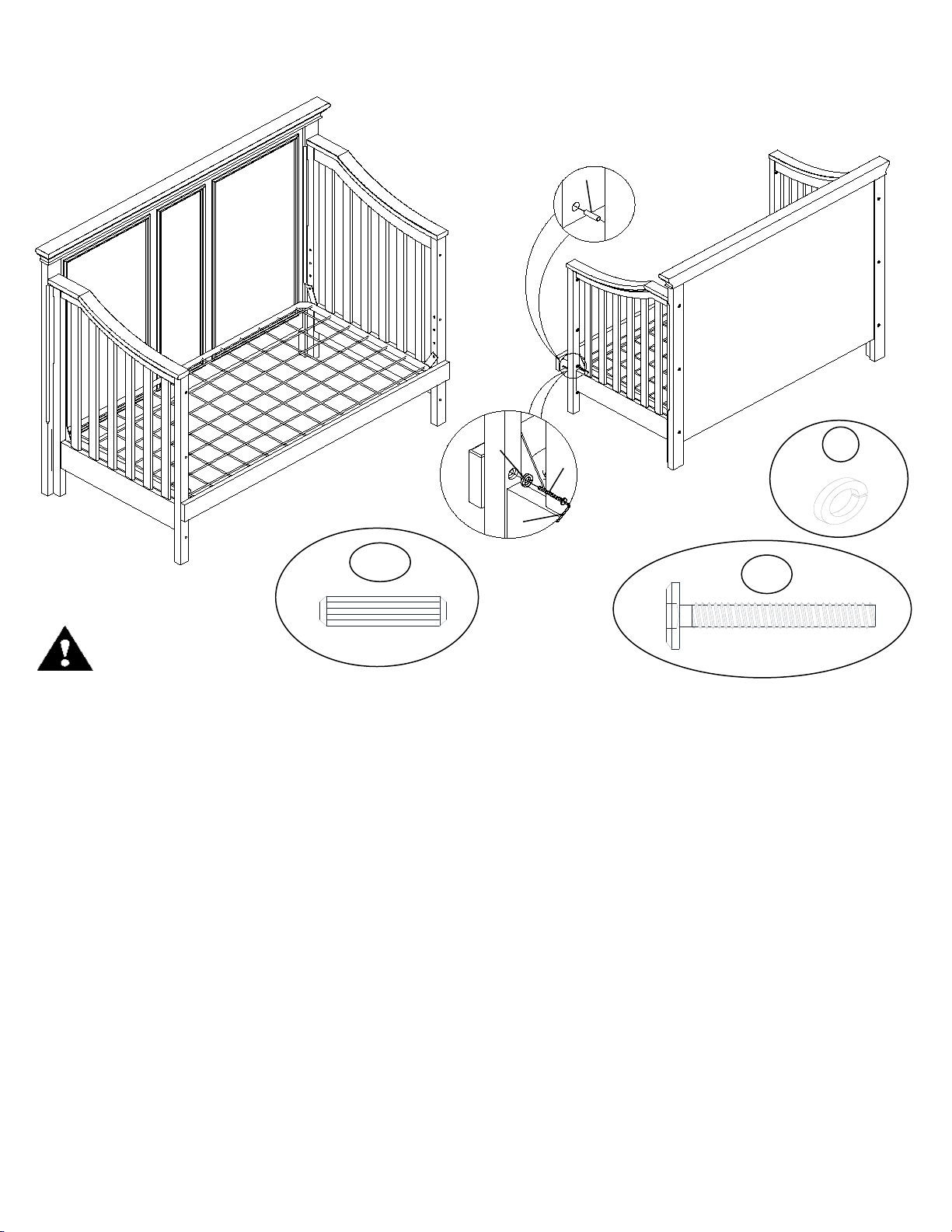

STEP 1: Detach the front panel (D) from the side panels (B & C) with Allen Key (3).
STEP 2: If mattress support (F) is not in the lowest position, unscrew bolts (1) from left & right
side panels (B & C) and move to the lowest position.
STEP 3: Attach bottom rail (E) to side panels (B & C) using wood dowel (6). bolts (1) and
spring washers (5). Use Allen Key (3) to tighten all bolts.
STEP 4: Ensure all bolts are tightly secured.
STEP 1: Follow steps 1 to 2 of the crib assembly instruction.
STEP 2: Follow steps 2 to 3 for the day bed assembly instruction located above (starting from crib).
HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
DA1901B5-GR / DA1901B5-G / DA1901B5-W
51-5/8 INCHES (69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES
(15CM).
TODDLER BED & DAY BED ASSEMBLY: STARTING FROM CRIB
TODDLER BED & DAY BED ASSEMBLY: STARTING FROM SCRATCH
5
1
6
1
5
3
A
B
C
6
E

HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
FULL SIZE BED ASSEMBLY INSTRUCTION
(HEADBOARD ONLY)
DA1901B5-GR / DA1901B5-G / DA1901B5-W
NOTE: FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAMS ARE
FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION.
IMPORTANT: STORE ALL EXTRA PARTS THAT YOU ARE NOT USING FOR
POSSIBLE FUTURE USE AS YOU MAY WISH TO CONVERT AGAIN. ALWAYS
STORE THE ASSEMBLY INSTRUCTIONS IN THE POUCH ATTACHED TO THE
MATTRESS SUPPORT (F).
STEP 1
Attach a metal bedframe (not included) to the headboard (A) to convert your crib into
a full size bed using the headboard only.
A

HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
FULL SIZE BED ASSEMBLY INSTRUCTION
(HEADBOARD AND FOOTBOARD)
DA1901B5-GR / DA1901B5-G / DA1901B5-W
NOTE: FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAMS ARE
FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION.
IMPORTANT: STORE ALL EXTRA PARTS THAT YOU ARE NOT USING FOR
POSSIBLE FUTURE USE AS YOU MAY WISH TO CONVERT AGAIN. ALWAYS
STORE THE ASSEMBLY INSTRUCTIONS IN THE POUCH ATTACHED TO THE
STEP 1

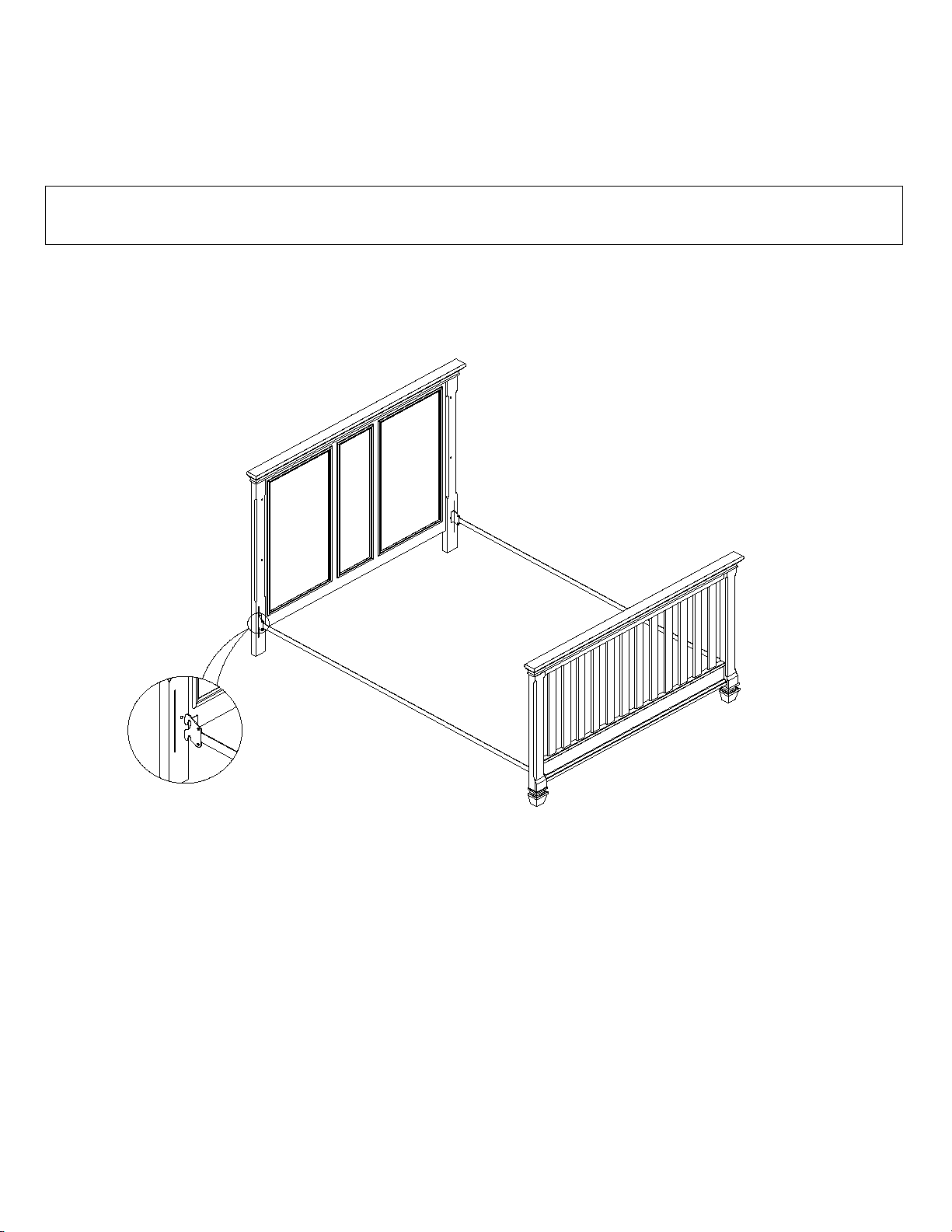

Attach standard size metal bedrails (not included) to headboard (A) and front panel
(D) to convert your crib into a full size bed.
NOTE: Purchase the matching
Wooden Bedrails for a
coordinated look. See next
page for details!
A
D
X10AO

HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
Convert your crib into a toddler bed with the Hilton Head Toddler Rail (model # /
SKU # : DA1901-5-GR / 39219123 (Graphite), DA1901-5-G / 39219109 (Gray)
or DA1901-5-W / 39219111 (White)), sold separately.
DA1901B5-GR / DA1901B5-G / DA1901B5-W
Convert your crib into a full size bed with the Hilton Head Full - Size Bed
Conversion Rails (model # : DA1901-8-GR / 39319125 (Graphite), DA1901-8-
G / 39319101 (Gray) or DA1901-8-W / 39319113 (White)), sold separately.

That's it ! You've finished assembling your 5 in 1 convertible crib!
HILTON HEAD 5 IN 1 CONVERTIBLE CRIB
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
DA1901B5-GR / DA1901B5-G / DA1901B5-W
Stop using crib when child begins
to climb out or reaches the height
of 35 inches (89 cm).
The TODDLER BED or DAY BED
is not intended for children under
15 months of age or over 50
pounds (22.7 kgs).
ANY MATTRESS USED IN THIS
CRIB MUST BE AT LEAST 27-1/4
INCHES BY 51-5/8 INCHES (69CM
BY 131CM) WITH A THICKNESS
NOT EXCEEDING 6 INCHES (15CM).
DO NOT RETURN PRODUCT TO THE RETAILERS.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Tel #: [phone]
E-Mail: [e-mail]

Graphite
Gris
Blanco
CUNA CONVERTIBLE 5 IN 1 HILTON HEAD
Graphite
Gris
Blanco
Graphite
Gris
Blanco
PARA REFERENCIA FUTURA.
POR FAVOR LÉALO Y CONSÉRVELO
_______ / _______ / _______
Numero de lote:
(UBICADO EN EL CARTÓN)
_____________________________________
Fecha de compra:
SEGURIDAD IMPORTANTE.
0-65857-21305-8
0-65857-21304-1
0-65857-21303-4
Código SKU:
39119121
39119107
39119119
CONTIENE INFORMACIÓN DE
INSTRUCTION MANUAL
Modelo No:
DA1901B5-GR
DA1901B5-G
DA1901B5-W
NOTA:
ESTE MANUEL DE INSTRUCCIONES
Código UPC:
NO DEVUELVA EL PRODUCTO A LA TIENDA
. Si falta un
pieza o está dañada, contacte nuestro departamento d
servicio a la clientela. Reemplazaremos la pieza SIN cargo
Tel #: [phone]-
173
Correo electrónico : [e-mail]

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*NUNCA utilizar la cama para un niño menor de 15 meses o que pese más de 50 lbs.
*SIEMPRE siga las instrucciones de ensamblaje.
*
*NUNCA cuelgue cordones por encima de una cama.
*
Cuando el niño pueda pararse o llegue a 35" (89 cm) de altura, no debe seguir usando esta cuna.
SERVICIO AL CLIENTE
También puede contactarnos escribiendo a la dirección que figura a continuación. Por favor incluya el número de modelo del
producto, el color y una descripción detallada de su pregunta.
DHP Consumer Services
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
ADVERTENCIA
Si no se siguen estas advertencias e instrucciones al armar la cuna, el niño podría sufrir lesiones graves o
morir.
Lea todas las instrucciones antes de armar la cuna. CONSERVE LAS INSTRUCCIONES PARA USO
FUTURO.
Antes de cada uso o de armarla, inspeccione la cuna y asegúrese de que no hayan piezas dañadas,
uniones flojas, piezas que falten o bordes filosos. NO use la cuna si faltan piezas o están rotas. Pida al
vendedor o escriba a nuestro representante de servicio al cliente (1-800-295-1980) para obtener piezas de
recambio e instrucciones si es necesario. NO substituya piezas.
Los bebés pueden asfixiarse con accesorios blandos. Nunca agregue almohadas, edredones o relleno.
ALGUNOS NIÑOS HAN MUERTO EN LA CAMA PORQUE QUEDARON ATRAPADOS. La cabeza o el
cuello de un niño pueden quedar atrapados en espacios entre las partes de la cama.
Para reducir el riesgo de SMSL, los pediatras recomiendan que los bebés con buena salud duerman
boca arriba, a menos que su médico le dé otras recomendaciones.
NO coloque la cuna cerca de una ventana donde el niño podría ahorcarse con los cordones de persianas
o cortinas.
¡Los cordones pueden causar estrangulamiento! NO coloque objetos con un cordón al cuello del niño,
como el cordón de una capucha o de un chupete. NO cuelgue cordones sobre la cuna ni ate juguetes con
Para prevenir el riesgo de estrangulación ajuste todas las uniones. La ropa o partes del cuerpo del niño
pueden quedar atrapados en uniones flojas.
Si cambia la terminación de la cuna, utilice un material no tóxico recomendado para productos para niños.
Nunca use bolsas ni películas plásticas como cobertura para el colchón, porque pueden causar asfixia.
Remplazar la barandilla para dentición si está dañada o floja (si una barandilla de dentición está incluida
con este modelo)
PRECAUCIÓN: TODO COLCHÓN UTILIZADO EN ESTA CUNA DEBE SER DE POR LO MENOS 27-
1/4 PULGADAS POR 51-5/8 PULGADAS (69CM POR 131CM) CON UN ESPESOR NO MAS DE 6
PULGADAS (15CM).
Los niños pueden asfixiarse si quedan atrapados en espacios entre los lados de la cuna y un colchón
demasiado pequeño.
Siga las advertencias en todos los productos en una cuna.
PELIGRO DE ESTRANGULACIÓN. NUNCA coloque la cama cerca de una ventana donde los cordones
de persianas o cortinas podrían estrangular al niño.
NUNCA cuelgue objetos con un cordón, cuerda o cinta al cuello del niño, tales como capuchas con
cordón o chupetes. Estos objetos pueden quedar atrapados entre las partes de la cama.

*
*
*
*
*
*
*
*
CUIDADO, LIMPIEZA Y MANTENIMIENTO
PRECAUCIÓN
PELIGRO DE BLOQUEO. Para evitar los espacios peligrosos, todo colchón utilizado con esta cama
debe ser un colchón de tamaño normal de por lo menos 51-5/8 pulgadas (1310 mm) de largo, 27-1/4
pulgadas (690 mm) de ancho y un máximo de 6 pulgadas (150 mm).
NOTAS E INSTALACIÓN
Asegúrese de tener todas las piezas y componentes antes de comenzar a armarla.
Ármela sobre superficies blandas y suaves para evitar dañar el pulido del producto.
El destornillador de cabeza Phillips no está incluido.
No use herramientas eléctricas.
Precaución: Un adulto debe armarla.
Se necesitan dos personas para armarla.
Tiempo estimado para armarla: 30 minutos.
Quítele el polvo regularmente con un paño limpio y seco para evitar que haya acumulación. De vez en cuando
se puede usar un paño húmedo para limpiar la superficie. Séquelo inmediatamente. No utilice productos
abrasivos que puedan dañar el lustre. La exposición excesiva a la luz solar y a cambios extremos de
temperatura y humedad puede dañar la madera del mueble.
Verifique los pernos y tornillos periódicamente y ajústelos si es necesario.
GARANTÍA LIMITADA DE 1 AÑO
Dorel garantiza que este producto está libre de defectos de material y mano de obra y se
compromete a remediar cualquier defecto de este tipo. Esta garantía cubre 1 año a partir de la
fecha de compra original. Esta garantía es válida solamente con presentación de una prueba de
compra. Esto se limita a la reparación o reemplazo de componentes defectuosos del mueble y
no se incluye ningún trabajo de ensamblaje. Esta garantía no se aplica a ningún producto que
haya sido mal ensamblado, sujeto a mal uso o abuso, o que haya sido alterado o reparado de
cualquier manera. Cualquier uso, rotura o pérdida de color de la tela no están incluidos en esta
garantía (donde corresponda). Esta garantía le da derechos legales específicas y usted puede
también tener otros derechos que varían de estado a estado o de provincia a provincia.
ADVERTENCIA: Si este producto está dañado y/o
ciertas piezas faltan o están rotas, NO LO USE.

LISTA DE ACCESORIOS
1 2
3 4
5 6
CUNA CONVERTIBLE 5 IN 1 HILTON HEAD
DA1901B5-GR / DA1901B5-G / DA1901B5-W
Ø1/4" X 15mm X 40mm
Ø1/4" X 15mm X 15mm
PERNO
14 PZAS
PERNO DEL SUPPORTE DE COLCHÓN
16 PZAS
Ø1/4" X 11 X 1.2mmT
LLAVE ALLEN
1 PZA
ARANDELA DE RESORTE
16 PZAS
Ø5/16" X 13 X 1.5mmT
Ø8mm X 30mm
ARANDELA DE RESORTE
14 PZAS
PERNO DE MADERA
2 PZAS

LISTA DE PIEZAS
A B C
D E F
CABECERA
1 PZA
PANEL LATERAL
IZQUIERDO
1 PZA
PANEL LATERAL
DERECHO
1 PZA
CUNA CONVERTIBLE 5 IN 1 HILTON HEAD
DA1901B5-GR / DA1901B5-G / DA1901B5-W
PANEL FRONTAL
1 PZA
RIEL INFERIOR
1 PZA
SOPORTE DE COLCHÓN
1 PZA
X16AO
X16AO
X16AO
X16AO

CUNA CONVERTIBLE 5 IN 1 HILTON HEAD
DA1901B5-GR / DA1901B5-G / DA1901B5-W
INSTRUCCIONES DE ENSAMBLAJE DE LA CUNA
NOTA: Cuando inserte pernos, gire en sentido horario hasta que estén
ajustados. Luego vuelva a aflojarlos de 1/2 a 3/4 de vuelta. Una vez que la
cuna esté totalmente ensamblada, vuelva a ajustar cada perno. Utilice cera
o jabón en todos los pernos para facilitar la tarea.
