Beyond Lighting BY-P14 User manual

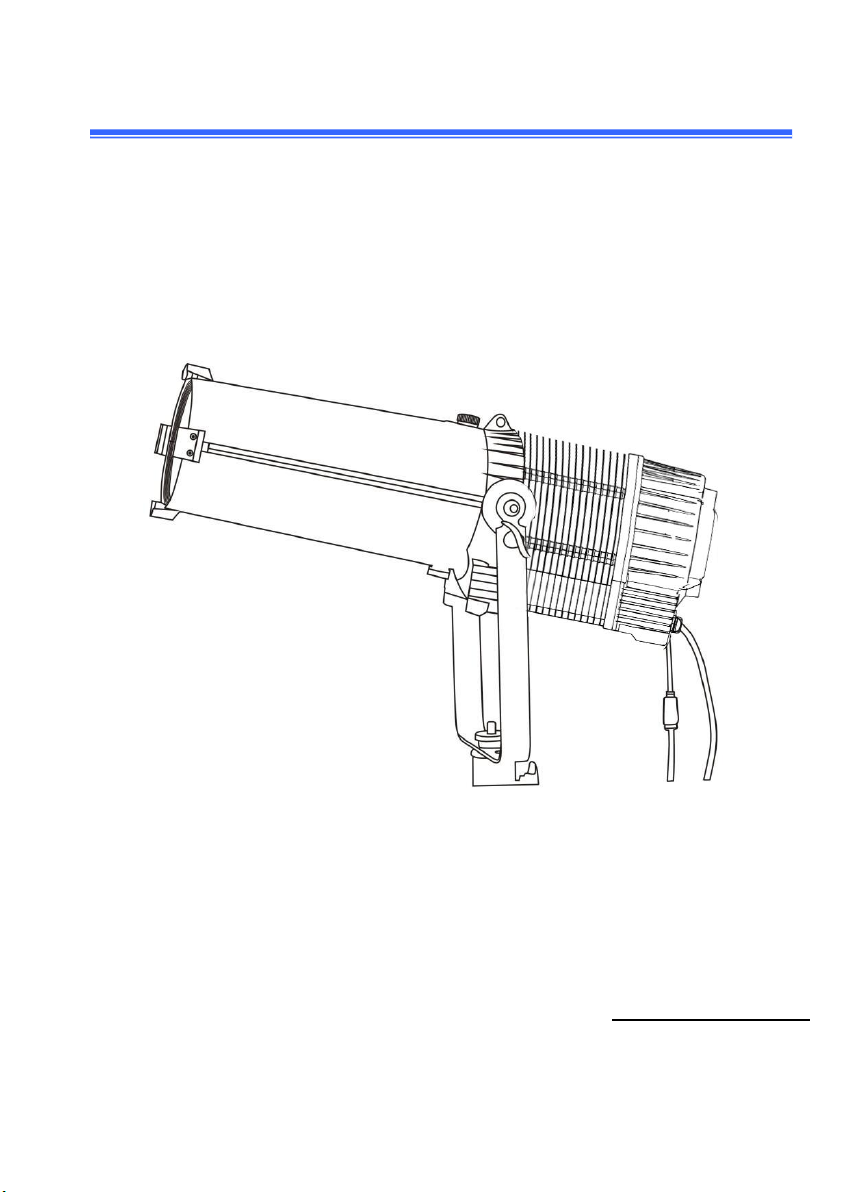

BY-P14 LED Ellipsoidal Light
300W Single CW or WW LED IP65 Ellipsoidal Light
(With Auto zoom/Auto cutting)
User manual
P le ase rea d t he ins t r u ction s ca refu ll y before use

2
TABLE OF CONTENTS
1. Technical Specifications ............................................................3-4
2. Description ................................................................................4-5
3. Unpacking .................................................................................5-6
4. Main Menu.....................................................................................7
5. Vice Menu .................................................................................7-9
6. DMX Channels................. ........................................................9-10
7. Size................. ............................................................................11
8. Fixture Cleaning ..........................................................................12
9. Warning .......................................................................................12
Statement
This New IP rated LED fixture - an ellipsoidal comes with IP65 waterproof
housing, warm white or cool white with high CRI make it an ideal LED
replacement for aging incandescent light. This model offers everything should
come to expect, including auto zoom from 15°-30° and auto focus, smooth
shutter cuts by DMX, electronic strobe , 16bit dimming and selectable
dimming curve modes, PWM from 500HZ to 25000HZ for matching any
camera type.

3
1. Technical Specifications
Light Source:
LED POWER: 300W
LED Color: Single warm white or cool white
Color Rendering Index(CRI): Ra≥90
LED Life Time: over 50,000 hours
Power supply:
Voltage: AC100-240V
Max.power: 300W
Optics:
Beam Angle: 15°-30°
Zoom Function: Auto zoom
Focus: Auto
Shutter controlled by DMX (auto cutting to any shapes)
Iris: optional
Gobo holder: optional
Features:
Dimming Curve: 4 kinds dimming curve
PWM: 500HZ - 25000HZ optional
Strobe :1-25times/sec
Light body feature:
Technology: High-quality optical system , glass reflector
Light body: Die casting Aluminum
Touch screen: LCD with touch screen
Feature of housing: High quality fireproof ,corrosion-resistance, Oxidation

4
resistance
Control:
Control Protocol: RDM / DMX
Control System: DMX, Auto run and Master/Slave
DMX Channels: 1/16CH (Two kinds of channel modes optional)
Working Environment :
Working Temperature: -30~40℃
Cooling system: Fan-less no noise
IP Grade: IP65
Package :
Production size: 76.76*29.73*27.37CM
Net Weight: 16.5kgs
Gross Weight: 20kgs
Packing size: 86*37*35cm(1pc/carton)
2. Descriptions
·Warm or cool white ERS style fixture for theatre, film and production
·Fully IP65 rated for seasonal use indoors or out
·Electronic auto zoom from 15°-30°
·Electronic auto cutting which you can control the shutters to cut any shapes
by DMX controller
·Ultra smooth 16-bit dimming of master dimmer and individual colors
·Flat, even field of light with superior color mixing
·High brightness with high CRI

5
·RDM (Remote Device Management) for added flexibility
·Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
·Selectable dimming curve: Standard mode, Incandescent mode, quick mode
and linear mode
·Fanless(no any noise) operation for use in studio and theatre applications
3. Unpacking
Thank you for choosing our IP65 P14. For your own safety, please read this
manual before installing the device. This manual covers the important information
on installation and applications. Please install and operate the fixture with
following instructions. Meanwhile, please keep this manual well for future needs.
The IP65 P14 is made of a new type of high temperature strength of die cast
aluminum casing with nice outlook. The fixture is designed and manufactured
strictly following CE&RoHS standards, complying with international standard
DMX512 protocol. It's available independently controlled and linkable with each
other for operation. And it is applicable for large-scale live performances, theater,
studio, nightclubs and discos.
The IP65 P14 adopts 1PCS 300W COB LED (available for cool white or warm
white) which features high brightness and stability. Please carefully unpack it
when you receive the fixture and check whether it is damaged during the
transportation. And please check whether the following items are included inside
the box:

6

7
4.Main Menu
Operation Status
Mode
Displ
ay
Description
DMX Mode
Master-slav
e
Axxx
“A”stand for standard channel mode, “xxx”stand for ID
address, Auto identify controller signals or host signals
Dxxx
“D”stand for basic channel mode, “xxx”stand for ID address,
Auto identify controller signals or master signals
Manual
S-MC
“S”stand for Stand-alone，“MC”stand for “Mixed Colort”
5.Vice Menu
DMX Settings
Menu
Operation
Option
Description
DMX Start
Address
Press key of “OK”
enter to edit mode,
1~512

8
press “UP”
and ”down” to edit
the DMX address
DMX Profile
Press key of “OK”
change the DMX
channel mode
16CH
Standard Channel Mode
1 CH
Basic Channel Mode
Single Mode Choice
Menu
Operation
Vice Menu description
Mixed Color
Press Key of “OK” to
choose mode
Choose the color and strobe setting
Motor Control
Same as above
Can control the Motor
Status
Menu
Description
Software
Name of software
Version
Version
Temperature
Show the temperature of lighting fixture
DMX Status
With“OK”（Slave mode，with signal），“NONE”（Slave mode，no
signal）、 “Alone”
Settings
Menu
Operation
Option
Description
Touch Screen
Calibration
Touch screen adjust
Reset
Calibratioin
Reset correction
Dimmer
Frequency
Change the dimmer
frequency
500Hz
......
25000Hz
Dimmer Curve
Change dimmer
curve
Standard
Incandescent

9
Linear
Quick
Over
Temperature
Temperature setting
45-95
Each 5 for increase
or decrease
Backlight
Adjust the display
brightness
10%~100%
Each 5% for
increase or
decrease
Backlight
Timeout
Screen protect
setting
No screen protect
or black screen
from 0~ 60 second
Each 5 for increase
or decrease
Load Factory
Settings
Reset
6. DMX Channels
Standard channel mode(16CH)
Ch
an
nel
Data
Function
Remark
1
0~255
Dimmer
2
0~10
No function
11~255
Strobe Speed(255 fastest)
3
0~255
M1, M2 position control
4
0~63
M1, M2 Control straight up and down by
channel 3
64~127
M1, M2 Angle adjustment(big data, big
angle)
128~191
M1, M2 back to original position

10
192~255
M1,M2 Reverse angle adjustment,(big data,
big angle)
5
0~255
M3,M4 position control
6
M3,M4 position control(refer to channel 4)
7
0~255
M5,M6, position control
8
M5,M6, position control (refer to channel 4)
9
0~255
M7,M8 position control
10
M7,M8 position control (refer to channel 4)
11
0~255
Auto Zoom
12
0~255
Focus adjustment
13
0~255
Gobo control-optional
Reserve channel for
gobo control
14
0~255
Iris control-optional
Reserve channel for
iris control
15
0~63
No function
64~255
Built-in shape cutting
16
0~249
No function
250~255
Motor reset
Basic channel mode(1CH)
Channel
Data
Function
1
0~255
Color 1

11
7.Size
Size of the fixture: 767.6(D)*297.3(W)*273.7(H)mm

12
8. Fixture Cleaning
Before disconnecting the lighter or starting maintenance work, ensure that
the power supply of the light is turned off to maintain the maximum brightness
output of the light, and it can also prolong its service life. It is recommended to
use high-quality professional glass cleaner and to clean it with cloth. Alcohol or
chemical solvents are not allowed under any circumstances. The interior of the
lamp is vacuum-cleaned at least once a year.
9.Warning
Do not disassemble or modify light fixtures
Do not expose the fixture to water or any other kind of liquids and metals
Do not install the lamp in a hot environment
Do not shoot the light beam on flammable materials. The distance between
the light fixture and flammable material should be at least 2 meters.
The distance between the lamp and the surface of the adjacent object should
be at least 0.5 meters.
Do not look directly at the beam of the follower lamp, as it may cause eye
damage
Before opening the chasing light product or want to repair work, please make
sure that the power is off
