Hayward AquaRite+ AU Master Manual

USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
Hayward Pool Products (Australia) Pty Ltd.
Melbourne-Sydney-Brisbane-Perth
Email: [email protected] | Website: www.hayward-pool.com.au
PO Box 4384 | Dandenong South VIC 3164
ABN 66 083 413 414
Sales Contact Ph: 1300POOLS1 Fax: 1300POOLS2
PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE
AquaRite™+ AU Master and Slave Installation and Setup
To prevent potential injury and to avoid unnecessary service
calls, read this manual carefully and completely.
Addional Resource Manual
For Pools over 150,000 L in Cool Climates and 110,000 L for Tropical Climates
30-LITINSD012RB
Master Slave

Page 2
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
WARNING: Electrical hazard.
Failure to comply with these instructions can result in
serious injuries or death.
THE EQUIPMENT IS INTENDED TO BE USED ONLY ON
PERMANENTLY CONSTRUCTED POOLS AND SPAS
WARNING – Disconnect/isolate the equipment from the electricity supply before any
installation/service/repair.
WARNING – All electrical wiring must be performed by a qualified and licensed electrical
contractor in accordance with all Local/State/Federal Government electrical regulations and
the latest edition of the AS/NZS 3000 Wiring Rules.
WARNING – Ensure that the device is plugged into a power outlet that is protected against
short-circuits. The device must also be powered via an isolating transformer or through a
residual current device (RCD) with a fixed residual operating current not exceeding 30 mA.
WARNING – Check that the supply voltage required by the product corresponds to the
voltage of the distribution network.
WARNING – To reduce the risk of electric shock, do not use an extension cord to connect the
device to the mains. Use a suitably rated GPO as per the standard AS/NZS 3000.
WARNING – Chemicals can cause internal and external burns. To avoid death, serious injury
and/or damage to equipment, wear personal protective equipment (gloves, goggles, mask,
etc.) when servicing or maintaining this device. This device must be installed in an adequately
ventilated place when equipped with the chemical feed options.
WARNING – Carefully read the instructions that appear in this manual and on the device.
Failure to comply with the instructions can cause injuries. This document must be given to the
pool owner who should keep it in a safe place.
WARNING – The appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, if they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
WARNING – Use only genuine Hayward replacement parts.
WARNING –If the power supply cord is damaged the device must not be used. The power
supply cord must be replaced by the manufacturer or similarly qualified persons to avoid any
danger.

Page 3
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
INTRODUCTION
The use of a Master and Slave AquaRite+ AU setup allows the system to better meet the chlorine demand requirements
of the pool. It is ideal in pools that exceed 150,000 litres in cool climates and 110,000 litres in tropical climates. By
controlling one AquaRite+ AU unit with another, the first unit acts as the Master unit and is installed with the pH and ORP
Upgrade Kits, while the second unit acts as the Slave unit and will produce chlorine when instructed to by the Master unit.
In instances where the Master unit cannot keep up with the chlorine demand of the pool, it will signal for the Slave
chlorinatior to be turned on once the ORP level falls to 2% below the ORP/Redox set point. The Slave unit will then begin
to produce chlorine until the ORP/Redox set point has been reached.
NOTE: Before installing this product as part of a salt water purification system in a pool or spa using natural stone for coping or for immediately
adjacent patios/decking, a qualified stone installation specialist should be consulted regarding the appropriate type, installation, sealant (if any) and
maintenance of stone used around a saline pool with an electronic chlorine generator in your particular location and circumstances.
NOTE: The use of dry acid (sodium bisulfate) to adjust pool pH is discouraged especially in arid regions where pool water is subject to excessive
evaporation and is not commonly diluted with fresh water. Dry acid can cause a buildup of by-products that can damage your chlorinator cell.

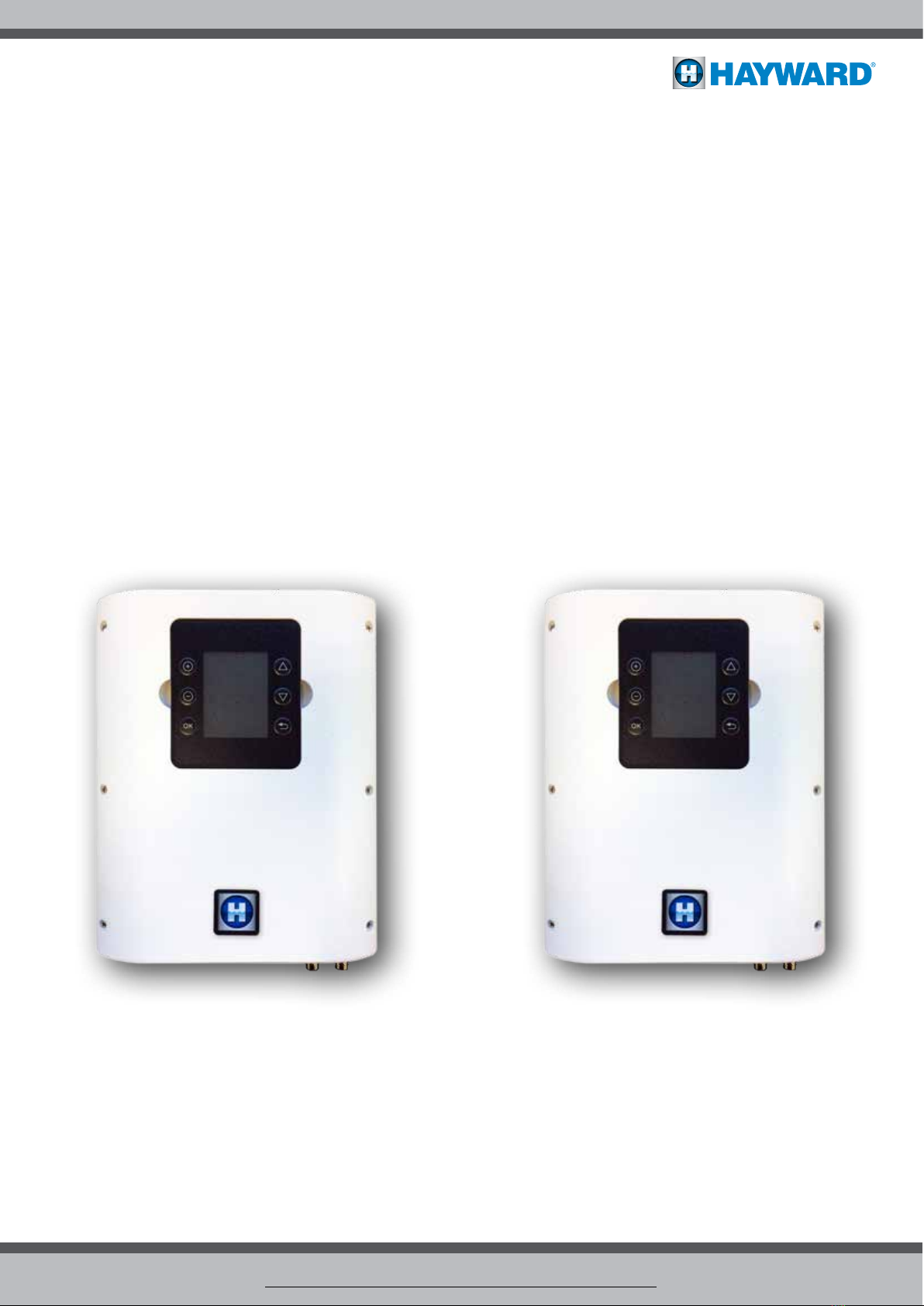

COMPONENTS
Master Unit Slave Unit

Page 4
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
INSTALLATION

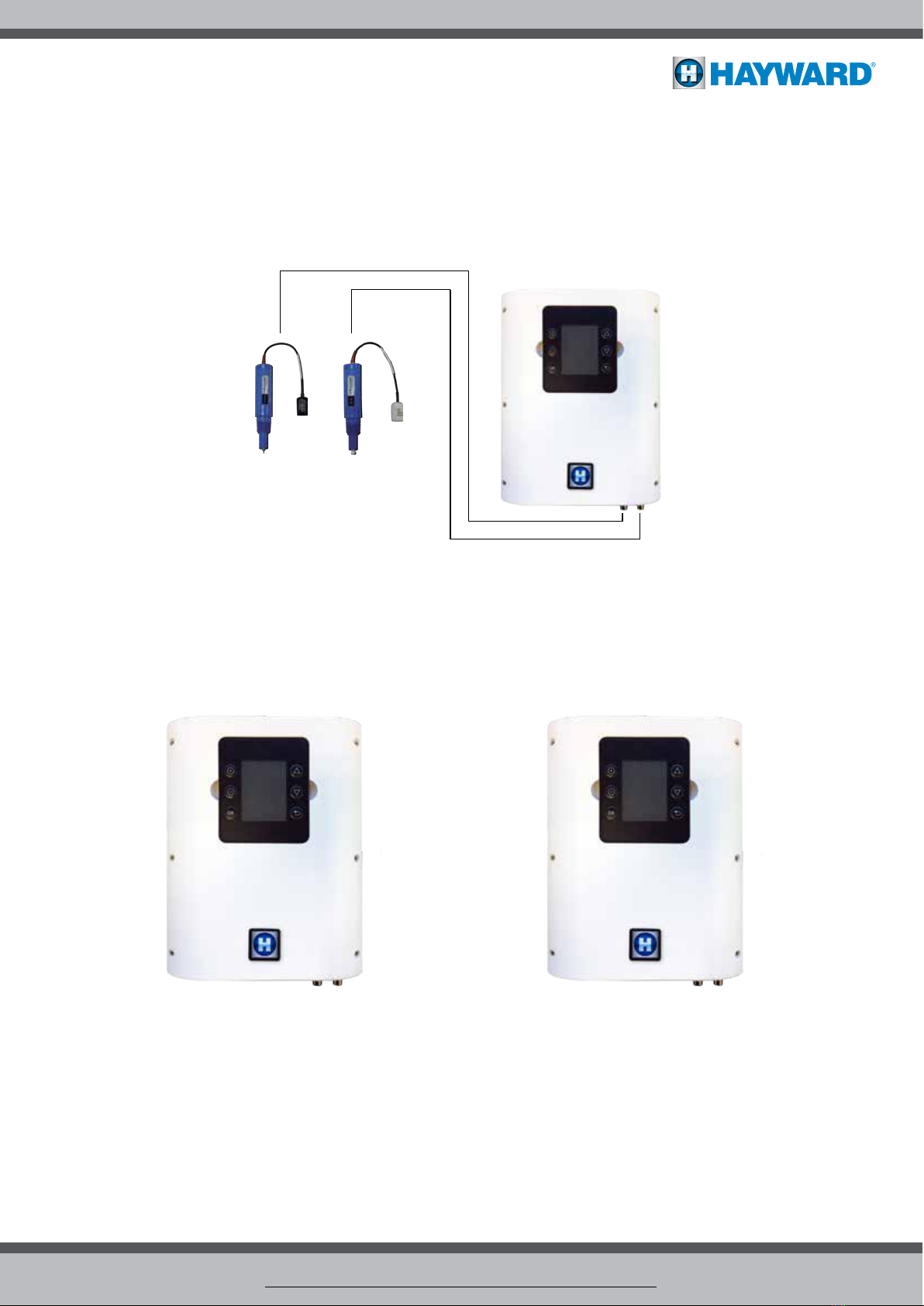

Master Unit
The Master unit is to be installed with the pH and ORP Upgrade Kits.
The Slave unit is to be installed next to the Master unit.
When installing a Master and Slave set up, both units must be installed on the same body of water.
They can have separate filtration systems or share a common filter with a singular filtration pump.
Each unit must have its own Flow Switch installed as per the diagrams on pages 5 and 7.
pH Probe
ORP Probe
Master Unit
pH
rX
Master Unit Slave Unit

Page 5
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
SHARED FILTER INSTALLATION (HORIZONTAL)
SHARED FILTER INSTALLATION (VERTICAL)
Pool
Spa
Master Cell
Slave Cell
Master
Flow Switch
Slave
Flow Switch
From the Filter
and Heater
Chemical
Injection Tee
From the Filter
and Heater
Master
Flow Switch
Master Cell
Slave
Flow Switch
Slave Cell
Spa
Pool
Chemical
Injection Tee
IMPORTANT: There must be at least 30 cm of straight pipe run before (upstream) the Flow Switch. If mounted
before the Flow Switch, the T-Cell can count as the 30 cm of straight pipe.

Page 6
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS

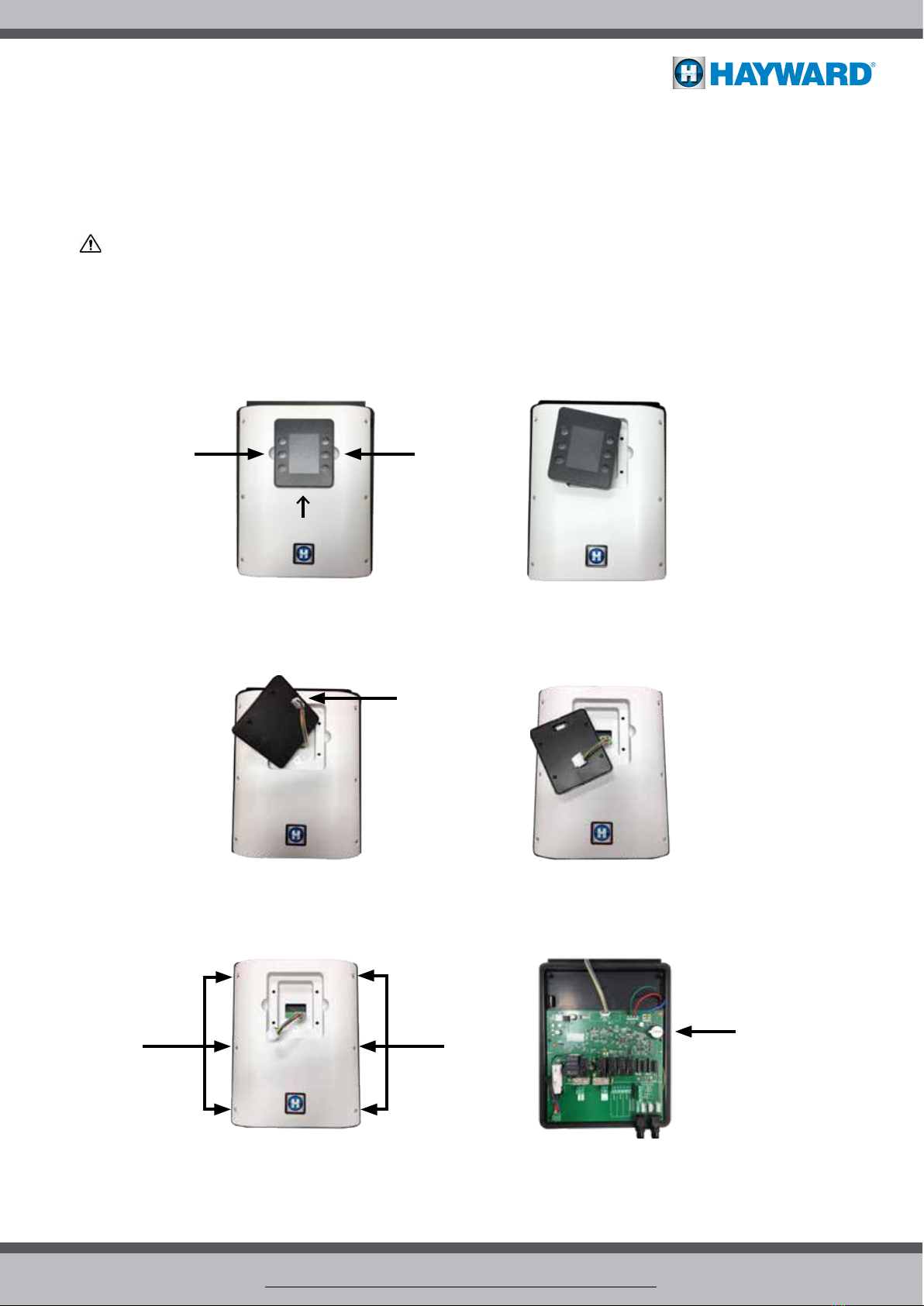

Removing the Dead Front Panel
To access the internal circuity of the AquaRite+ AU, the Dead Front Panel needs to be carefully removed. Follow the
instructions below to avoid damaging the device and/or its casing.
Caution - Risk of Electric Shock.
Ensure that the unit has been disconnected from all power supplies before removing the Display and Dead
Front Panel. Only a suitably qualified person should remove the Dead Front Panel in accordance with Local/
State/Federal Government regulations and the latest edition of the AS/NZS 3000 Wiring Rules.
Lift Out Interactive Display Module:
Remove display module from its compartment. Use the grooves on either side to pry it out by hand. Take care to
not use excessive force as the module is still wired to the PCB at this stage.
Detach Interactive Display Module:
Turn over the display module and remove the wired plug from the port on the back of the unit. Store the Display
Module where it will not get damaged until it is re-installed.
Unscrew Dead Front Panel:
Remove the six (6) screws fastening the panel to the unit. Once all loose, lift the panel off the unit to access the
PCB.
Lift Lift
Display Module
Pull
Unscrew Unscrew
PCB
1.
3.
5.
2.
4.
6.

Page 7
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
Electrical Installaon and Wiring
Wiring Schematic Only
7 8
Flow Switch
Flow Switch
12+
Master Unit
Slave Unit
1 2 3 4 67 108 9
5
FL1 FL1
12+
Master Unit Slave Unit
NOTE - Ensure that only 0.5 mm² to 0.75 mm² double insulated cable is used to bridge between the Master
and Slave units. The Slave unit flow switch cable is to be connected/joined to the bridging cable and
terminals inside the Slave Control unit.
The above diagram is a schematic only, and the flow switch wire is not to be pulled apart into to seperate
single insulated conductors further than what is required to make the joins/connections inside the Slave
unit housing.

Page 8
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
Cable Gland Installaon
In order to ensure watertight wire connections to the PCB through the AquaRite+ AU enclosure, wire cables are to be
secured with the black cable glands supplied. The two (2) cable glands supplied with the chlorinator are for the Cell Flow
Switch and any Light connections or Master/Slave requirements.
3.
Tighten the gland with a spanner
whilst still holding the nut to secure
the gland in place.
4.
Pull the cord through the gland
until the intended input point can be
reached. Secure and seal the cord in
place by fastening the domed cap with
a spanner until firm.
1.
Insert the cable into the domed end of
the gland and pull it through.
2.
Hold the nut against the hole on the
inside of the mounting frame. Push
the cable and gland into the hole
whilst simultaneously rotating to
screw the nut on to the thread.
Cable
Nut
Mounting
Frame
Gland
Tighten
Tighten
Note: Use the gland location holes in the bottom of the unit before the sides to ensure all cables are pointing downward.
The AquaRite+ AU is to be connected to a GPO with a permanent power supply only.
CAUTION - This circuit must be protected by a residual current device (RCD) with a fixed residual
_________operating current not exceeding 30 mA.
Power Supply

Page 9
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
SPA
Pol 1
Low
22gr/h
electrolysis
measures
man
off
man
off
12:30 25º
13 4
pH
7.4
rX
mV
700
Sal
g/l
15/01/16
3.2 25°C
7.5
7.5
FL1
650
3.2
25°C
15/01/16
man
aut
smt
7.5
ON/OFF
AL3
Pol 1
Flow
LOW
---
Pol 2
SPA
650
FL1
7.0
man aut
Pol 1
SPA
Pol 1 Low
22gr/h
electrolysis
measures
man
off
man
off
12:30 25º
13 4
Sal
g/l
15/01/16
3.2 25°C
3.2
25°C
15/01/16
man
aut
smt
Pol 1
Flow
LOW
---
Pol 2
SPA
man aut
Time
Chlorine production rate in gr/h
Displays manual
salt level measurement
Filtration relay state
Manual
Automatic
Smart
Communication
Red = Communication fault
Current water temperature at T-Cell
Polarity 1 Polarity 2
Production automatically reduced
to % selected (20% by default)
Wait time
Insufcient salt / cell scaled up or the
water temperature is very low (<15°C)
Filtration stopped or insufcient ow
Lighting relay state
Manual Automatic
State of auxiliary relays
(On/Off)
Date of the last salinity measurement
Salt concentration
Water temperature (when measurement taken)
OK
+
Enter Main Menu/
Select & Save
BUTTONS KEY
Go Back
Navigate
Up & Down
Through Lists
Make Adjustments/
Scroll Through
Opons
OK
+
Current water temperature at T-Cell
Production automatically reduced
to % selected (20% by default)
Polarity 1 Polarity 2
Wait time
Insufcient salt / cell scaled up or the
water temperature is very low (<15°C)
Filtration stopped or insufcient ow
Lighting relay state
Date of the last salinity measurement
Manual Automatic
Salt concentration
Water temperature (when measurement taken)
Time
State of auxiliary relays
(On/Off)
Chlorine production rate in gr/h
Displays manual
salt level measurement
Filtration relay state
Manual
Automatic
Smart
Communication
Red = Communication fault
pH set point
Peristaltic pump operation
Max. injection time reached
Insufcient ow
ORP/Redox set point
If the Master unit does not want the Slave unit to produce chlorine, the slave unit will display “FLOW” alert on the
display until it is called into action at which point it will display Pol 1 or Pol 2.
OPERATION
Home Screen Display MASTER
SLAVE

Page 10
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
OPERATION CONTINUED
Conguring Master Unit
Relay config.
Filter pump
Extra settings
Reset counters


2WKHUSXPSV
 2WKHUSXPSV 
3XPSRQ
3XPSRII 
VHFV
PLQV 
S+SULPDU\

5HGR[
S+
$X[
Filtraon Sengs for Master and Slave Units
NOTE:
-It is recommended that the salinity level for each unit is calibrated to read the same value to limit confusion.
-The temperature reading on each unit should be calibrated to read the same value to limit confusion. If the
Master unit is controlling a heater, ensure that the heater is not running when calibrating the two temperature
readings to be the same. When the heater will be running there will be a differential reading between the two
units due to the different points of measurement in the plumbing.
Relay config.
Filter pump
Extra settings
Reset counters


2WKHUSXPSV
 2WKHUSXPSV 
3XPSRQ
3XPSRII 
VHFV
PLQV 
S+SULPDU\

5HGR[
S+
$X[
Relay config.
Filter pump
Extra settings
Reset counters


2WKHUSXPSV
 2WKHUSXPSV 
3XPSRQ
3XPSRII 
VHFV
PLQV 
S+SULPDU\

5HGR[
S+
$X[
Relay config.
Filter pump
Extra settings
Reset counters


2WKHUSXPSV
 2WKHUSXPSV 
3XPSRQ
3XPSRII 
VHFV
PLQV 
S+SULPDU\

5HGR[
S+
$X[
Relay config.
Filter pump
Extra settings
Reset counters


2WKHUSXPSV
 2WKHUSXPSV 
3XPSRQ
3XPSRII 
VHFV
PLQV 
S+SULPDU\

5HGR[
S+
$X[
1. Enter System settings from the Main Menu.
2. Enter the Service menu from the System Settings.
3. Enter the Password:
4. Select the Relay config. tab.
5. Scroll down to Redox and select Aux 3.
6. Exit the Relay config. menu and select the Dos. pumps tab in the
Service menu.
7. Select Other pumps.
8. Change the “Pump On” time to 999 minutes and the “Pump Off” time
to 2 seconds.
OK OK OK OK
OK
1246
8
OK
1 2
Master
1. Enter Filtration from the Main Menu.
2. Either select the Auto or Smart Mode if the Master unit is not
controlling a heater and if it is, then Heating or Intelligent Modes can
be selected.
3. Set he desired daily run times and schedules for all modes apart
from Intelligent mode that is based on a 24 hour schedule.
Slave
1. Enter Filtration from the Main Menu.
2. Set the Slave unit to run in Auto Mode ONLY.
3. If the Master unit is set to operate in Auto, Smart, or Heating
modes, set the time schedules on the Slave unit to mirror those of
the Master unit.
4. If the Master unit is set to operate in Intelligent mode, set the time
schedule of the Slave unit to turn on at 00:01 and off at 23:59
(In this scenario the Slave unit will run a filter pump if connected,
for 24 hours per day). The reason to have the Slave unit standing by
ready to chlorinate for 24 hours, is because the Intelligent Mode that
the Master unit is running, is based on automatic on and off times
and depending on the water temperature, the run times will vary.
+
+
+
+
+
+
+
Relay config.
Filter pump
Extra settings
Reset counters
 2WKHUSXPSV 
3XPSRQ
3XPSRII 
VHFV
PLQV 
5
Relay config.
Filter pump
Extra settings
Reset counters
 2WKHUSXPSV 
3XPSRQ
3XPSRII 
VHFV
PLQV 
7
+

Page 11
USE ONLY HAYWARD®GENUINE REPLACEMENT PARTS
OPERATION CONTINUED
With the Master and Slave units both turned on and operating, the Master unit will be trying to keep the ORP level of the
pool on the set point. If the Master unit cannot keep up with the chlorine demand it will call for the Slave chlorinator to be
turned on by closing the Aux 3 relay once the ORP level reaches 2% below the ORP set point. Once the Aux 3 relay closes,
and if the Flow Switch for the Slave unit is also closed, the Slave unit will begin to produce chlorine.
This is evident because on the Master unit display, there will be an “ON” next to the Redox level, and on the Slave unit the
display will change from a FLOW ALERT to a Polarity Informative Display (Pol 1 or Pol 2) with the actual chlorine production
rate being shown on the display.
Once the ORP/Redox set point has been met on the Master unit, it will then turn off the Slave unit by opening the Aux 3
relay.
The Slave unit is effectively a Master unit just being controlled differently so the chlorine output for this unit can still be
adjusted between 1-30 gr/hr as per the Owner’s Manual supplied with the unit.
If a Master/Slave configuration is being installed on a pool/spa combo; using the Spa Flow Switch on the Master unit will
still allow for the chlorine output to automatically reduce to the set percentage. In this situation the Slave unit would still be
called to come on if the ORP/Redox level fell below 2% of the set point but would only be for a very short period of time.

Hayward Pool Products (Australia) Pty Ltd.
Melbourne-Sydney-Brisbane-Perth
Email: [email protected] | Website: www.hayward-pool.com.au
PO Box 4384 | Dandenong South VIC 3164
ABN 66 083 413 414
Sales Contact Ph: 1300POOLS1 Fax: 1300POOLS2
Hayward and AquaRite are registered
trademarks of Hayward Industries, Inc.
© 2018 Hayward Industries, Inc.
