BG CARDIO Elite RB Guide

Elite RB Recumbent Bike Starting Resistance Adjustment
Step 1
Unplug the Elite RB Recumbent Bike.
Step 2
Remove (7) Phillips screws from user RIGHT SIDE rear shroud. The location of the 7 screws are
marked green in the picture below – there is one false hole with no screw inside (marked in red).
3GCardio.com [e-mail] @3GCardio
[phone]

Elite RB Recumbent Bike Starting Resistance Adjustment
Step 3

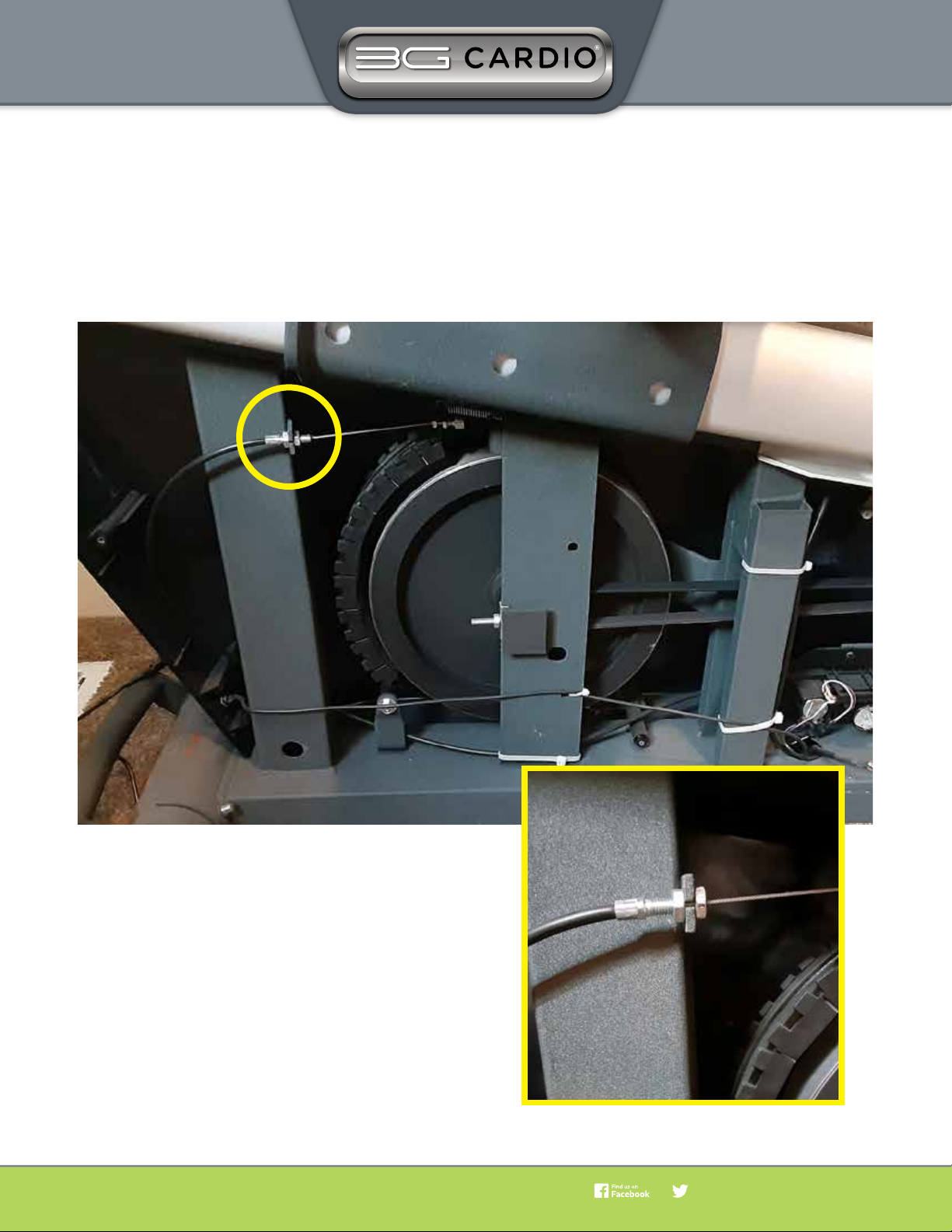

Locate adjustment cable (circled in yellow below)
You will see two nuts, with a frame piece in
between. Start by turning the right-side nut
counter clockwise (loosen) until the
threading is flush with the nut. Now you will
be able to tighten the left side nut by turning
it clockwise until it is snug against the frame
piece. Once adjusted, your bike should look
like the picture. Your bike will now have a
lower starting resistance.
3GCardio.com [e-mail] @3GCardio
[phone]

Elite RB Recumbent Bike Starting Resistance Adjustment
Example
Higher starting resistanceLower starting resistance
3GCardio.com [e-mail] @3GCardio
[phone]
{ {
Threading on the right Threading on the left
