Bg PF7 Technical Document

Equipment Guide
R00
©copyright 2021 BG Products, Inc. • Wichita, Kansas 67213 • www.bgprod.com
BRAKE SERVICE SYSTEM

10
20
30
P
PRESSURE RELEASE
V1
TANK PRESSURE
G
GAUGE
–
CLOSE
lON
OFF
+
OPEN
S
SUCTION
40
50
60
R00 ©copyright 2021 BG Products, Inc. • Wichita, Kansas 67213 • www.bgprod.com

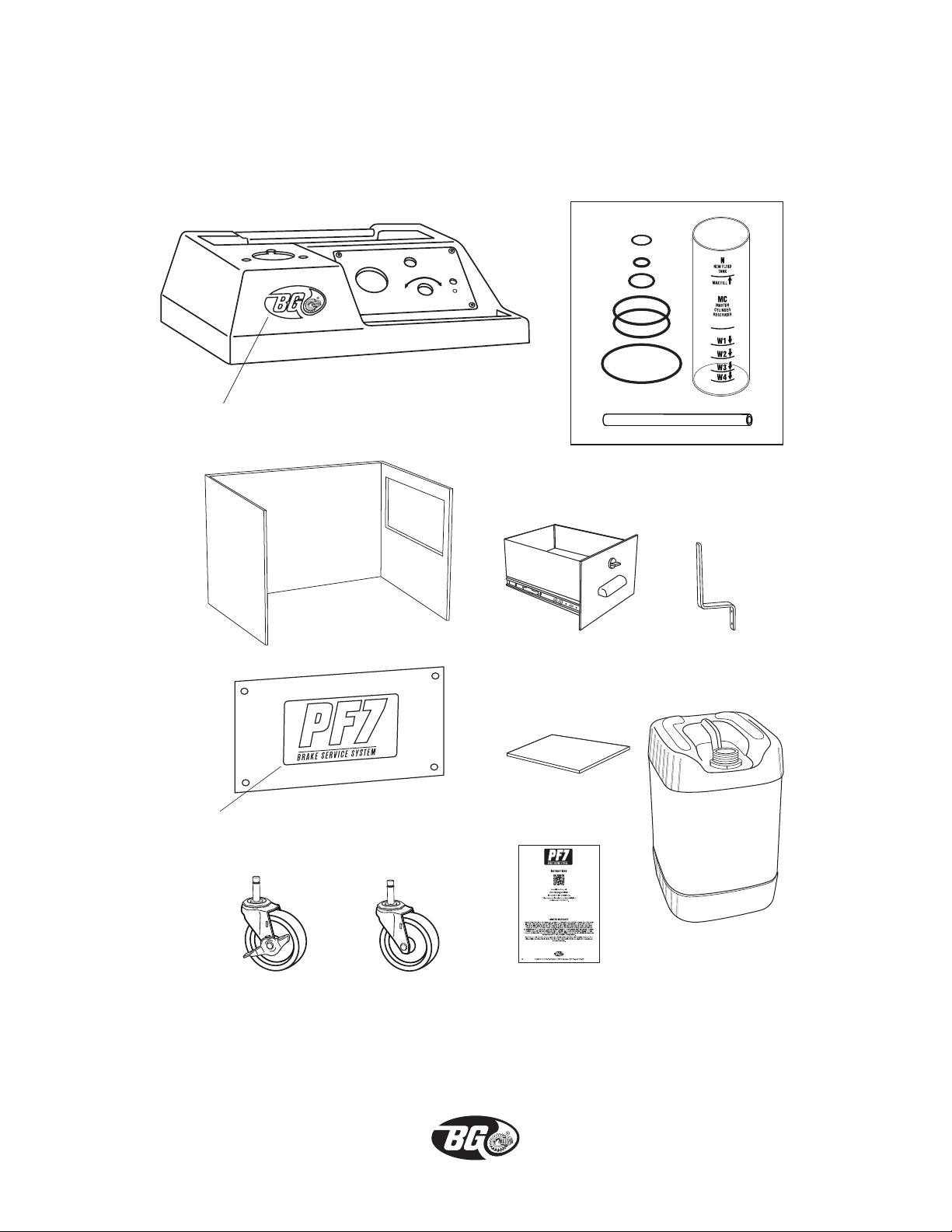

PF7 Brake Service System
PN PF7

PF7-021
PF7 console top
(without canister & hardware)
PF7-022
PF7 ˝U˝ skin
PF7-023
PF7 front cover panel
939-014
5-gallon square jug
PF7-040
Drawer assembly w/insert
PF7-038
Locking caster
PF152NG
Hose hanger for PF5
New Generation
SBNN-EN05
PF7 QR code and CE
certificate sheet
PF7-034
drawer insert
G0159-06
Engraved BG logo - 6˝
PF7-020
Drawer assembly, PF7
939-015
Lid for 5-gallon square jug
(optional)
E100-2589
PF7 logo label
937-021
4˝ friction ring
stem caster
P
PRESSURE RELEASE
V1
TANK PRESSURE
–
CLOSE
lON
OFF
+
OPEN
S
SUCTION
PF7-043
PF7 2 QT canister retrofit set
(not shown)
E101-3062
PF7 1 QT canister retrofit set
R00 ©copyright 2021 BG Products, Inc. • Wichita, Kansas 67213 • www.bgprod.com
PF7 Brake Service System

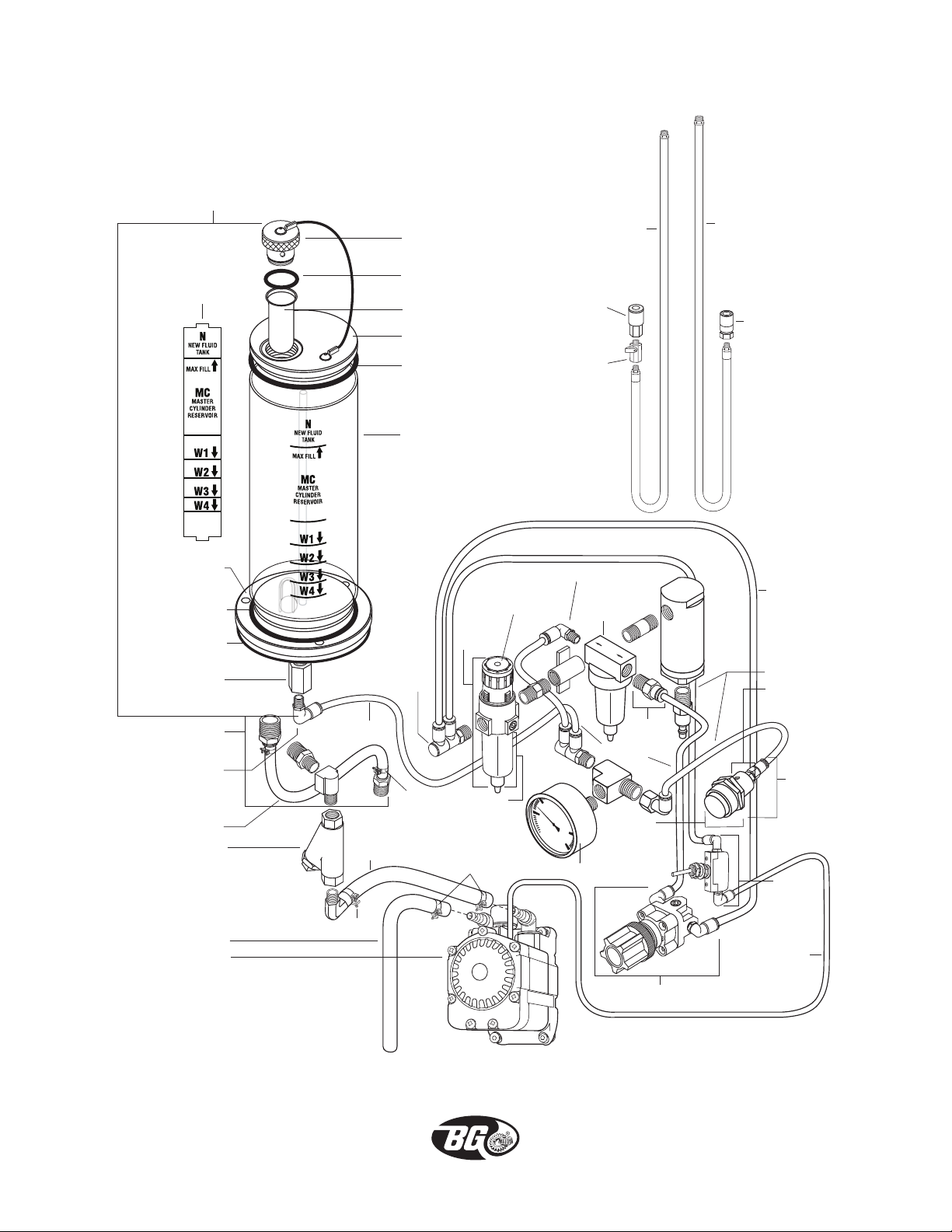

REPLACEMENT PARTS

FLOW
G0170
2-way
MVM12
switch
G0003-156
EPDM O-ring #156
G0100-04250
25´roll 1/4˝
nylon tubing
PF7-004
Canister bottom
E101-2640
Brake canister body-
printed
Also available unprinted:
PF7-005
Console canister body
PF7-016
100 PSI
regulator
CT304
11/16˝ band clamp (17mm)
3/8˝ EPDM
3/8˝ EPDM hose
G0003-153
EPDM O-ring #153
G0003-153
EPDM O-ring #153
PF7-003 E100-2605
Canister top w/fill cap
PF7-009
Filter screen
PF7-014
Fluid level
plate
PF7-019
1-quart canister
assembly
G0003-120
EPDM O-ring #120
PF7-008
Fill cap w/lanyard
PF9101
1/4˝ Y-strainer
PF9102P
Air pump for PF9
(replaces PF7-015)
PF91021-25
25´roll 3/8˝black hose
PF91020-25
25´roll 1/4˝black hose
G0100-04250
25´roll 1/4˝ nylon tubing
1/4˝ EPDM hose
G0100-04250
G0100-04250
G0100-04250
G0100-04250
25´roll 1/4˝
nylon tubing
PF91018
Female QC
for suction
hose
PF505
1/4˝ chrome
ball valve
PF9111
Female QC
for pressure
hose
PF91017
Pressure hose
assembly includes
PF9111, PF505
PF91016
Suction hose
assembly
Includes
PF91018
CT304
PF7-037
Regulator
adjustment
knob for PF7
PF7-032
3-way poppet
valve
PF7-027
Pressure
release
PF7-029
1-quart regulator
(panel regulator)
PF7-017
Coalescing
filter
PF7-031
PF7-039
New fluid hose
retrofit kit
PF7-041
PF7
pressure
release
assembly
G0181-0404
PF7-001
Canister nut
G0055-014
14MM
screw-type
band clamp
PF9104
G0184 -0404
Push to connect,
1/4˝ MNPT x 1/4˝ tube,
double elbow, brass
PF9105-1
Replacement
filter bowl
for PF9105
and PF7-016
G0181-0404
Push to connect,
1/4˝ MNPT x 1/4˝ tube,
90° elbow, brass
R00 ©copyright 2021 BG Products, Inc. • Wichita, Kansas 67213 • www.bgprod.com
PF7 Brake Service System
PLUMBING

R00 ©copyright 2021 BG Products, Inc. • Wichita, Kansas 67213 • www.bgprod.com
PF7 Brake Service System
TROUBLESHOOTING
Unit will not run pump or pressure up on gauge.
Check regulator on inside of machine. Regulator should be adjusted all the way open. Turn adjuster
clockwise until it stops.
The vacuum pump runs but no new fluid will dispense.
Check the safety check ball in the bottom of the reservoir. Use shop air to back-flush new fluid hose
to dislodge check ball.
Air pump is pulsing and air is rushing out the exhaust on the pump.
The diaphragm in the pump has failed. Disassemble pump and replace diaphragm with BG rebuild kit
Part No. PF91020D.
Pump runs but doesn’t pull vacuum.
Y-strainer is plugged. Remove cap from Y-strainer, remove and clean the screen. Remove the barb
from suction side of pump.
Inspect O-ring for damage. If damaged, replace with EPDM O-ring.
To check the pump for vacuum put finger in the port and turn the pump on. If there is no suction the
pump is bad and needs to be replaced. If there is suction then the pump is good.
There is a blockage in the suction hose.
Remove parts from the suction side of the pump starting at the furthermost point from the suction
side of the pump. Check the vacuum after each part has been removed. When vacuum is present the
last part taken off contains the blockage. Replace or clean the plugged part.

R00 ©copyright 2021 BG Products, Inc. • Wichita, Kansas 67213 • www.bgprod.com
PF7 Brake Service System
INSTRUCTIONS
©copyright 2019 BG Products, Inc. •Wichita, Kansas 67213 •www.bgprod.com •MADE IN U.S.A. •PN SBNN-EN05
R00
Scan this code or visit
http://bgfor.me/pf7ref
to access service instructions.
This code can also be found on the serial plate
on the back of the BG PF7.
INSTRUCTIONS
LIMITED WARRANTY
This product is warranted by BG Products, Inc., to be free of defects in workmanship and materials for a period of one
(1) year from the date of purchase by original purchaser. If the product fails within this period, it will be repaired or
replaced at seller’s option, provided (1) the product is submitted with proof of purchase date and (2) transportation
charges are prepaid to the nearest Service Center. Liability under this warranty is expressly limited to repairing or
replacing the product or parts thereof. This warranty does not apply to product or parts broken by accident, negligence,
overload, abuse, or if they have been tampered with or altered in any way. This warranty does not apply to service
hoses and adaptors which may need replacing due to normal wear. If this warranty does not apply, then the purchaser
shall pay all costs for labor, material and transportation.
Note: The use of this apparatus for any purpose other than the services described will render this warranty null and
void, as will the use of any chemicals other than the BG products described in this manual. No other warranties are
expressed or implied.
BRAKE SERVICE SYSTEM
