BGH GMV6 User manual

Technical Sales Guide
E SERIES MODULAR TYPE
SCROLL CHILLERS
Capacity range: 22.4~272.0kW
Super High Ambient Operation: to 55ºC
Technical Sales Guide:
(GC201910-1)
50Hz & 60Hz
GMV6 DC INVERTER
VRF UNITS

CONTENTS
1 UNIT CHARACTERISTICS .............................................................................1
2 UNIT PARAMETERS ......................................................................................8
3 ELECTRICAL SPECIFICATIONS....................................................................14
4 PRODUCT CAPACITY RECTIFICATION........................................................15
5 UNIT NOISE CURVES ..............................................................................108
6 UNIT GRAVITY CENTER DIAGRAMS .........................................................110
7 UNIT INSTALLATION SPACE REQUIREMENTS ...........................................112
8 PIPING MODEL SELECTION.....................................................................120
9 COMMUNICATION SYSTEM INTRODUCTION..........................................126
10 EXTERNAL ELECTRICAL WIRING DIAGRAM.............................................132
11 CALCULATION METHOD ON ADDING QUANTITY OF PIPING REFRIGERANT
...................................................................................................................134
12 NOTICES...............................................................................................135
13 OPTIONAL COMPONENTS....................................................................136

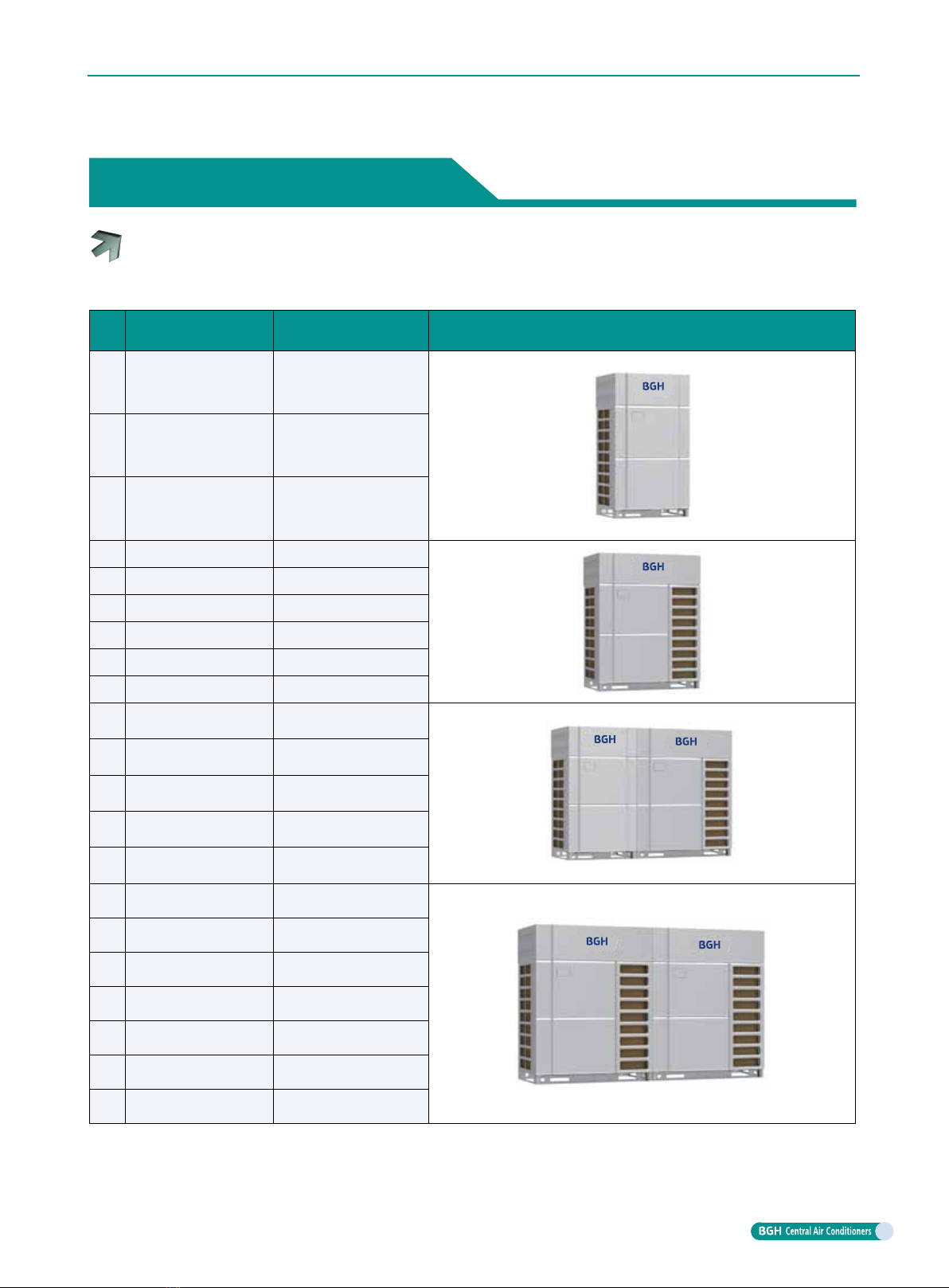

1.1Lineup of Outdoor Unit
GMV6 DC Inverter VRF system: basic models of the full series are 8HP, 10HP, 12HP, 14HP, 16HP, 18HP,
20HP, 22HP and 24HP, integrated model is 26HP-96HP.
HP Model Integration methodExternal view
8 GMV-224WM/G-X /
10 GMV-280WM/G-X /
12 GMV-335WM/G-X /
14 GMV-400WM/G-X /
16 GMV-450WM/G-X /
18 GMV-504WM/G-X /
20 GMV-560WM/G-X /
22 GMV-615WM/G-X /
24 GMV-680WM/G-X /
26 GMV-735WM/G-X GMV-335WM/G-X+
GMV-400WM/G-X
28 GMV-785WM/G-X GMV-335WM/G-X+
GMV-450WM/G-X
30 GMV-839WM/G-X GMV-335WM/G-X+
GMV-504WM/G-X
32 GMV-895WM/G-X GMV-280WM/G-X+
GMV-615WM/G-X
34 GMV-950WM/G-X GMV-335WM/G-X+
GMV-615WM/G-X
36 GMV-1015WM/G-X GMV-400WM/G-X+
GMV-615WM/G-X
38 GMV-1064WM/G-X GMV-504WM/G-X+
GMV-560WM/G-X
40 GMV-1119WM/G-X GMV-504WM/G-X+
GMV-615WM/G-X
42 GMV-1175WM/G-X GMV-560WM/G-X+
GMV-615WM/G-X
44 GMV-1230WM/G-X GMV-615WM/G-X+
GMV-615WM/G-X
46 GMV-1295WM/G-X GMV-615WM/G-X+
GMV-680WM/G-X
48 GMV-1360WM/G-X GMV-680WM/G-X+
GMV-680WM/G-X
1 UNIT CHARACTERISTICS
GMV6 DC Inverter VRF Units Technical Sales Guide
1

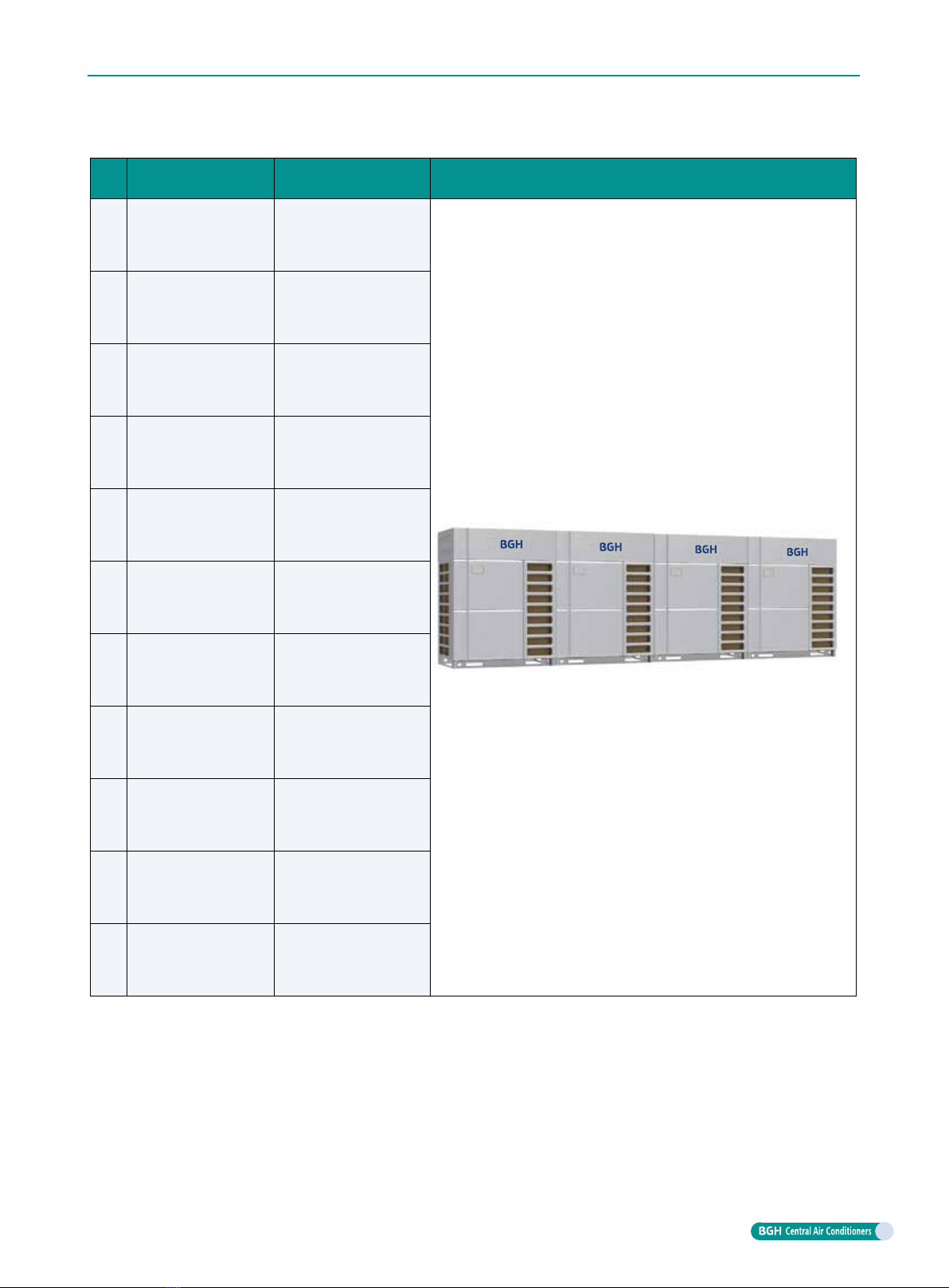

HP Model Integrationmethod Externalview
50 GMV-1399WM/G-X
GMV-335WM/G-X+
GMV-504WM/G-X+
GMV-560WM/G-X
52 GMV-1455WM/G-X
GMV-280WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X
54 GMV-1510WM/G-X
GMV-280WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
56 GMV-1565WM/G-X
GMV-335WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
58 GMV-1623WM/G-X
GMV-504WM/G-X+
GMV-504WM/G-X+
GMV-615WM/G-X
60 GMV-1679WM/G-X
GMV-504WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X
62 GMV-1734WM/G-X
GMV-504WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
64 GMV-1790WM/G-X
GMV-560WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
66 GMV-1845WM/G-X
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
68 GMV-1910WM/G-X
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X
70 GMV-1975WM/G-X
GMV-615WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
72 GMV-2040WM/G-X
GMV-680WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
74 GMV-2069WM/G-X
GMV-335WM/G-X+
GMV-504WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
2

HP Model Integration methodExternal view
76 GMV-2129WM/G-X
GMV-450WM/G-X+
GMV-504WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X
78 GMV-2190WM/G-X
GMV-400WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
80 GMV-2245WM/G-X
GMV-400WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
82 GMV-2295WM/G-X
GMV-560WM/G-X+
GMV-560WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X
84 GMV-2350WM/G-X
GMV-560WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
86 GMV-2414WM/G-X
GMV-504WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X
88 GMV-2470WM/G-X
GMV-560WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X
90 GMV-2525WM/G-X
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X
92 GMV-2590WM/G-X
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
94 GMV-2655WM/G-X
GMV-615WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
96 GMV-2720WM/G-X
GMV-680WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
GMV6 DC Inverter VRF Units Technical Sales Guide
3

1.2 Product Functions and Features
Gree GMV6 DC inverter multi VRF system adopts the advanced technologies such as efficient low-
temperature enthalpy-adding system, partition heat exchange flow path, subcooling design, integrated
aluminium electronic control, reliable operation control under ultra low temperature and so on, so
the unit can operate smoothly between -30 ℃ ～ 55 ℃. It provides comfortable environment for the
user no matter in severe cold or intense heat. The capacity range of GMV6 is 22.4kW ～272kW, from
8HP ～96HP, 45 models in total. Wide capacity range and flexible combination. It can be applied to the
commercial occasions like large office building, production factory, large malls or residential villa.
Compared with GMV5, GMV6 series can not only realize low temperature heating function, operation
range under low and high temperature is wider, but also has all the functions of GMV5.
Energy-efficient
Thanks to the advanced full DC inverter technology, optimized AC system design and precise intelligent
control technology.
Efficient DC inverter low temperature enthalpy-adding scroll compressor
The compressor adopts the high pressure chamber of excellent performance. It inhales directly and
reduce the overheat loss to improve compression efficiency.
Adopting the high-efficiency permanent synchronous motor, its rotor is permanent magnet, the stator is
intertwined centrally and the efficiency is higher than the normal DC inverter compressor.
Sensorless DC inverter fan motor
The DC inverter motor adopts the electromotive force to realize electrodeless speed regulation between
5Hz-90Hz. Compared with normal DC inverter motor, its operation current is smaller, input motor
power is lower and efficiency is greatly enhanced.
Leading torque control technology
It processes minimum current and maximum torue control technology
Utilize DC inverter compressor rotor magnetic resistance torque effectively, allowing the minimum
current to output the maximum torque, reducing motor winding loss and realizing higher efficiency.
Directly control the motor torque to realize ultra low speed operation of DC inverter fan motor, torque
pulsation is small, satisfying system demand while achieving comfort of higher requirement.
Quiet
Gree DC inverter multi VRF system fully considers comfort requirement, the humanized technology
upgrade the comfort perfectly. The wider operation range of the unit ensures normal operation under
severe cold or intense heat; quiet effect is better, creating a quiet working and living environment.
Quiet mode of ODU
Quiet at night
The system will memorize and judge the highest outdoor temperature. When the system is operating at
night in low load, it will enter quiet mode automatically. Based on actual application occasion, 9 kinds
of quiet mode can be set.
For example, it will enter night operation mode automatically after operating for 8h, then it enters
normal mode after 9h.
Compulsory quiet
When the unit is installed in the locations with lower noise requirement, quiet operation is necessary
no matter in the daytime or evening, at this time, you can have three kinds of compulsory quiet mode
setting to ensure that the unit is operated under low noise mode at any time. The lowest noise value is
as low as 40dB（A）.
Quiet mode of IDU
IDU also adopts DC inverter motor to realize the electrodeless adjustment of speed regulation, reduce
noise value greatly, sets auto quiet mode for IDU through wired controller. Start auto quiet function
according to indoor temperature and people activity, the noise is as low as 22dB（A）.
4

Leading technology ensures stable reliability
Gree DC inverter multi VRF system is famous in the industry with the advanced technology. After ten
years of research and experiment, the technology of DC inverter multi system is more mature. From
electrical component to mechanical assembly and control technology to communication technology,
Gree DC inverter multi VRF has been upgraded comprehensively. The continued technology innovation
will surely bring more reliable and efficient services for the user.
Oil return control technology
Gree has two exclusive oil return control technologies.
New generation of oil return control
Gree new generation of oil return control technology has implanted pressure control oil return
technology, through pressure control, it controls system oil return and oil storage status of each
compressor effectively, thus improving the service life of compressor greatly.
Exclusive oil storage technoloy of compressor
Gree DC inverter unit has exclusive compressor oil storage technology and it controls the minimum oil
level required when operating the compressor by judging the parameter.
Refrigerant storage and distribution technology
Adopt non-accumulator system circuit, reduce refrigerant charge drastically and improve system
refrigerant control precision, then store the surplus refrigerant in the pipe.
Balancing oil control technology
Balancing oil technology among modules
Change the defect of traditional timer oil return; it’s needless to turn off the unit to balance the oil, judge
the operation status of each module and compressor, calculate the oil reserve capacity of compressor,
adjust the operation status of compressor to realize oil balance among modules. The non-balancing oil
pipe design ensures the reliability and will not affect the capacity output of the system to maintain AC
comfort.
Oil balance technology among compressor
The refrigerant has a suction pipe in the compression working chamber of the compressor, and is
compressed and discharged into the cavity of the totally enclosed compressor, and then flows through
the refrigeration system through the exhaust pipe. According to the principle of motion fluid mechanics
and the actual amount of oil required in the working process of the compressor, the height of the oil
balance pipe is determined, the oil level of the oil pool is controlled; the minimum oil quantity required
for each compressor during operation is ensured to realize the oil balance among the compressors.
Cooling adopts the subcooling control technology to reduce cooling capacity substantially
New generation of efficient plate subcooler and condensate depression control method is adopted, the
maximum condensate depression is 35℃, AC effect is more obvious.
Unique comfort control
ODU adopts dual electronic expansion valve for adjustment, the grade of main electronic expansion
valve is 3,000 and the subcooling electronic expansion valve is 480, precisely controlling the flow of
modules in IDU and ODU.
Considering the installation characteristic (IDU type, pipe length, fall etc.), actual startup rate of IDU,
ambient indoor and outdoor temperature, diversified system startup is realized under different ambient
temperature and installation condition, the fastest startup is completed in 75s.
Humanized operation
Auto address allocation and non-polarity communication;
Auto debugging and error detection
Five kinds of auto debugging function
Auto allocation of IDU and ODU address
Auto detection of IDU and ODU quantity
Auto detection of internal error of the unit
GMV6 DC Inverter VRF Units Technical Sales Guide
5

Start operation debugging automatically
Real-time judgment of pieline abnormality
The unit has three emergency functions of module, compressor and fan;
The unit has two methods of recycling refrigerant.
Intelligent management
Dual energy saving operation mode;
With the deepening of energy conservation and emission reduction and the stricter national
requirements to urban electricity consumption, especially in summer, the peak season of electricity
consumption, many cities will introduce corresponding power-limiting measures. Gree DC inverter multi
VRF system has two energy-saving modes for users to choose freely to meet the requirement on peak
power consumption and power-limiting.
Energy saving mode 1: When the unit is set in auto energy saving operaiton, the system will adjust
the control target parameter automatically, which greatly reduces the power consumption quanity of the
unit, energy saving rate is as high as 15%.
Energy saving mode 2: When the unit is set in compulsory energy saving operation, the system will
realize 20% of energy conservation at the most through limiting electric quantity output compulsorily.
Energy consumption analysis and solution
Emergency stop
Long distance monitoring is needless, ODU will introduce the fire alarm linkage signal directly, under
emergency situation, it will stop the unit for operation immediately to avoid bigger losses.
Partition management
Super-long piping distance design, the maximum length of total pipe is 1,000m
Compared with traditional screw chiller, the advantage of DC inverter multi VRF system is the easy and
convenient piping. Gree DC inverter multi VRF system is more outstanding in the aspect of actual piping,
enabling the AC system to be applied to all kinds of architecture, reducing installation cost of the user.
Cooling only system, the maximum attachable quantity of IDU is 100 sets
The attachable quantity of single system of most of the multi VRF systems in current market is 64 sets,
whiel Gree DC inverter multi VRF system is integrated with several modular unit and can connect 100
sets of IDUs at the most, which is more applicable for large commercial office buildings, apartment or
hotels.
* The 100 sets of unit can be custom made.
Wide operation range
Operation range of temperature: cooling -5 ～55℃and heating -30 ～24℃.
New modular load allocation control
Choose unit module according to the operation status to realize efficient operation among modular
unit, reduce energy consumption loss and improve energy efficiency of operation, which will enhance
the reliability of the unit.
ODU high static pressure design with flexible choice
ODU will choose the corresponding static pressure according to architectural form, the maximum can
be 110Pa, especially for the occasions which need to place the ODU inside the house.
6

1.3 Nomenclature
GMV -W/()
1 2 3 4 5 6 7 8 9 10 11 12
No.MeaningRemark
1 Codeof multi VRF system GMV-Gree Multi VRF Units
2 Climate type
T1-omit
T2-lowtemperature
T3-high temperature
3 RAC or CAC Rensidential-H
Commercial-omit
4 Unit type DC inverter-omit
5 Function code
Q-heat recovery model, S-water heater, W-water cooled unit
G-high sensibleheat unit, V-lowtemperatureheat pump unit, XR-thermal storageunit
No codeif the above functions are missing
6 Cooling capacitycodeNominal cooling capacity/100(W)
7ODU W-outdoor unit
8
M-Modular (top discharge)
L-Non-modular sidedischarge
P-Non-modular TTW
No code-Non-modular top discharge
9RefrigerantOmit-R410A
R32-Nh
10 Design No. A, B, Cor 1, 2, 3…
11 Power supply Within therangeof 7,000~18,000W, single-phasepower-omit; three-phasepower-S
12 Power supplement codeAC electricity——omit
DC electricity—— （Z）
GMV6 DC Inverter VRF Units Technical Sales Guide
7

2 UNIT PARAMETERS
Model(integrated unit)────
Model(singleunit) GMV-224WM/G-X GMV-280WM/G-X GMV-335WM/G-X GMV-400WM/G-X
Cooling capacity kW 22.428.0 33.5 40.0
Heating capacity kW 25.0 31.5 37.5 45.0
NoisedB(A) 58 60 63 63
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Compressor quantity set 1 1 1 1
Refrigeration oil No. of
compressor-FV68HFV68HFV68HFV68H
Refrigeration
oil charge
Gross L 4.64.64.66.1
Compressor
chargeL1.11.11.11.1
Theothers L 3.53.53.5 5
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 5.006.207.709.20
Heating kW 4.805.907.809.50
Size(W×D×H) mm 930×775×1690930×775×1690930×775×16901340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ19.05Φ22.2Φ25.4Φ25.4
Liquid pipe mm Φ9.52Φ9.52Φ12.7Φ12.7
Connection method Welding connectionWelding connection Welding connection Welding connection
Net weight kg 215215220290
Max. power kW 11.1012.5013.0215.25
Minimum circuit current A 19.922.423.327.3
Max. fusecurrent A 20 25 25 32
Model (integrated unit)────
Model (singleunit) GMV-450WM/G-X GMV-504WM/G-X GMV-560WM/G-X GMV-615WM/G-X
Cooling capacity kW 45.0 50.4 56.0 61.5
Heating capacity kW 50.0 56.5 63.0 69.0
NoisedB(A) 63 63 63 64
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Compressor quantity Set1122
Refrigeration oil No. of
compressor-FV68HFV68HFV68HFV68H
Refrigeration
oil charge
Gross L 6.16.17.27.2
Compressor
chargeL1.11.12.22.2
Theothers L 5 5 5 5
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Rated powerCooling kW 10.8012.3013.8016.20
Heating kW 10.7012.9013.1016.90
Size(W×D×H) mm 1340×775×16901340×775×16901340×775×16901340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ28.6Φ28.6Φ28.6Φ28.6
Liquid pipe mm Φ12.7Φ15.9Φ15.9Φ15.9
Connection method Welding connection Welding connection Welding connection Welding connection
Net weight kg 290295350350
Max. power kW 16.89 17.36 21.78 23.48
Minimum circuitcurrent A 30.231.038.942.0
Max. fusecurrent A 32 40 40 50
8

Model (integrated unit)─GMV-735WM/G-X GMV-785WM/G-X GMV-839WM/G-X
Model (singleunit) GMV-680WM/G-X
GMV-335WM/
G-X+GMV-400WM/
G-X
GMV-335WM/
G-X+GMV-450WM/
G-X
GMV-335WM/
G-X+GMV-504WM/
G-X
Cooling capacity kW 68.0 73.578.583.9
Heating capacity kW 76.5 82.587.594.0
NoisedB(A) 65 64 64 65
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Compressor quantitySet 2 / / /
Refrigeration oil No. of
compressor -FV68H / / /
Refrigeration
oil charge
Gross L 7.2 / / /
Compressor
chargeL2.2 / / /
Theothers L 5 / / /
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 20.507.70+9.207.70+10.807.70+12.3
Heating kW 20.107.80+9.507.80+10.707.80+12.9
Size(W×D×H) mm 1340×775×1690930×775×1690+
1340×775×1690
930×775×1690+
1340×775×1690
930×775×1690+
1340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ28.6Φ31.8Φ31.8Φ31.8
Liquid pipe mm Φ15.9Φ19.05Φ19.05Φ19.05
Connection method Welding connection Welding connection Welding connection Welding connection
Net weight kg 355220+290220+290220+295
Max. power kW 26.47 13.02+15.2513.02+16.8913.02+17.36
Minimum circuit current A 47.323.3+27.323.3+30.223.3+31.0
Max. fusecurrent A 50 25+3225+3225+40
Model (integrated unit) GMV-895WM/G-X GMV-950WM/G-X GMV-1015WM/G-X GMV-1064WM/G-X
Model (singleunit)GMV-280WM/G-X+
GMV-615WM/G-X
GMV-335WM/G-X+
GMV-615WM/G-X
GMV-400WM/G-X+
GMV-615WM/G-X
GMV-504WM/G-X+
GMV-560WM/G-X
Cooling capacity kW 89.5 95.0 101.5 106.4
Heating capacity kW 100.5 106.5 114.0 119.5
NoisedB(A) 65 66 66 66
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 6.2+16.27.7+16.29.2+16.212.3+13.8
Heating kW 5.9+16.97.8+16.99.5+16.912.9+13.1
Size(S×D×H) mm 930×775×1690+
1340×775×1690
930×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ31.8Φ31.8Φ38.1Φ38.1
Liquid pipe mm Φ19.05Φ19.05Φ19.05Φ19.05
Connection method Welding connection Welding connection Welding connection Welding connection
Net weightkg 215+350220+350290+350295+350
Max. power kW 12.5+23.4813.02+23.4815.25+23.4817.36+21.78
Min. circuit current A 22.4+42.023.3+42.027.3+42.031.0+38.9
Max. fusecurrent A 25+5025+5032+5040+40
GMV6 DC Inverter VRF Units Technical Sales Guide
9

Model (integrated unit) GMV-1119WM/G-X GMV-1175WM/G-X GMV-1230WM/G-X GMV-1295WM/G-X
Model (singleunit)GMV-504WM/G-X+
GMV-615WM/G-X
GMV-560WM/G-X+
GMV-615WM/G-X
GMV-615WM/G-X+
GMV-615WM/G-X
GMV-615WM/G-X+
GMV-680WM/G-X
Cooling capacity kW 111.9 117.5 123.0129.5
Heating capacity kW 125.5 132.0 138.0145.5
NoisedB(A) 66 66 66 66
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 12.3+16.213.8+16.216.2+16.216.2+20.5
Heating kW 12.9+16.913.1+16.916.9+16.916.9+20.1
Size(W×D×H) mm 1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ38.1Φ38.1Φ38.1Φ38.1
Liquid pipe mm Φ19.05Φ19.05Φ19.05Φ19.05
Connection method Welding connection Welding connection Welding connection Welding connection
Net weight kg 295+350350+350350+350350+355
Max. power kW 17.36+23.4821.78+23.4823.48+23.4823.48+26.47
Minimum circuitcurrent A 31.0+42.038.9+42.042.0+42.042.0+47.3
Max. fusecurrent A 40+5040+50 50+5050+50
Model (integrated unit) GMV-1360WM/G-X GMV-1399WM/G-X GMV-1455WM/G-X GMV-1510WM/G-X
Model (singleunit)GMV-680WM/G-X+
GMV-680WM/G-X
GMV-335WM/G-X+
GMV-504WM/G-X+
GMV-560WM/G-X
GMV-280WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X
GMV-280WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
Cooling capacity kW 136.0139.9145.5151.0
Heating capacity kW 153.0157.0163.5169.5
NoisedB(A) 66 67 67 68
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 20.5+20.57.7+12.3+13.86.2+13.8+16.26.2+16.2+16.2
Heating kW 20.1+20.17.8+12.9+13.15.9+13.1+16.95.9+16.9+16.9
Size
(W×D×H)mm 1340×775×1690+ 1340×775×1690
930×775×1690+
1340×775×1690+
1340×775×1690
930×775×1690+
1340×775×1690+
1340×775×1690
930×775×1690+
1340×775×1690+
1340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ41.3Φ41.3Φ41.3Φ41.3
Liquid pipe mm Φ19.05Φ19.05Φ19.05Φ19.05
Connection method Welding connection Welding connection Welding connection Welding connection
Net weight kg 355+355220+295+350215+350+350215+350+350
Max. power kW 26.47+26.4713.02+17.36+21.7812.5+21.78+23.4812.5+23.48+23.48
Minimum circuit current A 47.3+47.323.3+31.0+38.922.4+38.9+42.022.4+42.0+42.0
Max. fusecurrent A 50+5025+40+4025+40+5025+50+50
10

Model (integrated unit) GMV-1565WM/G-X GMV-1623WM/G-X GMV-1679WM/G-X GMV-1734WM/G-X
Model (singleunit)
GMV-335WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
GMV-504WM/G-X+
GMV-504WM/G-X+
GMV-615WM/G-X
GMV-504WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X
GMV-504WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
Cooling capacity kW 156.5162.3167.9173.4
Heating capacity kW 175.5182.0188.5194.5
NoisedB(A) 68 68 68 68
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 7.7+16.2+16.212.3+12.3+16.212.3+13.8+16.212.3+16.2+16.2
Heating kW 7.8+16.9+16.912.9+12.9+16.912.3+13.1+16.912.9+16.9+16.9
Size(W×D×H) mm
930×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ41.3Φ41.3Φ41.3Φ41.3
Liquid pipe mm Φ19.05Φ19.05Φ19.05Φ19.05
Connection
methodWelding connection Welding connection Welding connection Welding connection
Net weight kg 220+350+350295+295+350295+350+350295+350+350
Max. power kW 13.02+23.48+23.4817.36+17.36+23.4817.36+21.78+23.4817.36+23.48+23.48
Minimum circuitcurrent A 23.3+42.0+42.031.0+31.0+42.031.0+38.9+42.031.0+42.0+42.0
Max. fusecurrent A 25+50+5040+40+5040+40+5040+50+50
Model (integrated unit) GMV-1790WM/G-X GMV-1845WM/G-X GMV-1910WM/G-X GMV-1975WM/G-X
Model (singleunit)
GMV-560WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X
GMV-615WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
Cooling capacity kW 179.0184.5191.0197.5
Heating capacity kW 201.0207.0214.5222.0
NoisedB(A) 69 69 70 70
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 13.8+16.2+16.216.2+16.2+16.216.2+16.2+20.516.2+20.5+20.5
Heating kW 13.1+16.9+16.916.9+16.9+16.916.9+16.9+20.116.9+20.1+20.1
Size(W×D×H) mm
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ41.3Φ41.3Φ44.5Φ44.5
Liquid pipe mm Φ19.05Φ19.05Φ22.2Φ22.2
Connection
methodWelding connection Welding connection Welding connection Welding connection
Net weight kg 350+350+350350+350+350350+350+355350+355+355
Max. power kW 21.78+23.48+23.4823.48+23.48+23.4823.48+23.48+26.4723.48+26.47+26.47
Minimum circuit current A 38.9+42.0+42.042.0+42.0+42.042.0+42.0+47.342.0+47.3+47.3
Max. fusecurrent A 40+50+5050+50+5050+50+5050+50+50
GMV6 DC Inverter VRF Units Technical Sales Guide
11

Model (integrated unit) GMV-2040WM/G-X GMV-2069WM/G-X GMV-2129WM/G-X GMV-2190WM/G-X
Model (singleunit)
GMV-680WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
GMV-335WM/G-X+
GMV-504WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
GMV-450WM/G-X+
GMV-504WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X
GMV-400WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
Cooling capacity kW 204.0206.9212.9219.0
Heating capacity kW 229.5232.0238.5246.0
NoisedB(A) 70 71 71 71
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 20.5+20.5+20.57.7+12.3+
16.2+16.2
10.8+12.3+
13.8+16.2
9.2+13.8+
16.2+16.2
Heating kW 20.1+20.1+20.17.8+12.9+
16.9+16.9
10.7+12.9+
13.1+16.9
9.5+13.1+
16.9+16.9
Size(W×D×H) mm
1340×775×1690+
1340×775×1690+
1340×775×1690
930×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ44.5Φ44.5Φ44.5Φ44.5
Liquid pipe mm Φ22.2Φ22.2Φ22.2Φ22.2
Connection method Welding connection Welding connection Welding connection Welding connection
Net weight kg 355+355+355220+295+350+350290+295+350+350290+350+350+350
Max. power kW 26.47+26.47+26.4713.02+17.36+
23.48+23.48
16.89+17.36+
21.78+23.48
15.25+21.78+
23.48+23.48
Minimum circuit current A 47.3+47.3+47.323.3+31.0+
42.0+42.0
30.2+31.0+
38.9+42.0
27.3+38.9+
42.0+42.0
Max. fusecurrent A 50+50+5025+40+50+5032+40+40+5032+40+50+50
Model (integrated unit) GMV-2245WM/G-X GMV-2295WM/G-X GMV-2350WM/G-X GMV-2414WM/G-X
Model (singleunit)
GMV-400WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
GMV-560WM/G-X+
GMV-560WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X
GMV-560WM/G-X+
GMV-560WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X
GMV-504WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X
Cooling capacity kW 224.5229.5235.0241.4
Heating capacity kW 252.0258.0264.0271.0
NoisedB(A) 71 71 71 72
Outdoor static pressure Pa 0/110 0/110 0/110 0/110
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 9.2+16.2+
16.2+16.2
13.8+13.8+
13.8+16.2
13.8+13.8+
16.2+16.2
12.3+16.2+
16.2+20.5
Heating kW 9.5+16.9+
16.9+16.9
13.1+13.1+
13.1+16.9
13.1+13.1+
16.9+16.9
12.9+16.9+
16.9+20.1
Size(W×D×H) mm
1340×775×1690+134
0×775×1690+1340×
775×1690+1340×775
×1690
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4
Connection
pipe
Gas pipe mm Φ44.5Φ44.5Φ44.5Φ44.5
Liquid pipe mm Φ22.2Φ22.2Φ22.2Φ22.2
Connection
methodWelding connection Welding connection Welding connection Welding connection
Net weight kg 290+350+350+350350+350+350+350350+350+350+350295+350+350+355
Max. power kW 15.25+23.48+
23.48+23.48
21.78+21.78+
21.78+23.48
21.78+21.78+
23.48+23.48
17.36+23.48+
23.48+26.47
Minimum circuitcurrent A 27.3+42.0+
42.0+42.0
38.9+38.9+
38.9+42.0
38.9+38.9+
42.0+42.0
31.0+42.0+
42.0+47.3
Max. fusecurrent A 32+50+50+5040+40+40+5040+40+50+5040+50+50+50
12

Model (integrated unit) GMV-2470WM/G-X GMV-2525WM/G-X GMV-2590WM/G-X GMV-2655WM/G-X GMV-2720WM/G-X
Model (singleunit)
GMV-560WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X
GMV-615WM/G-X+
GMV-615WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
GMV-615WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
GMV-680WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X+
GMV-680WM/G-X
Cooling capacity kW 247.0252.5259.0265.5272.0
Heating capacity kW 277.5283.5291.0298.5306.0
NoisedB(A) 72 72 74 74 74
Outdoor static pressure Pa 0/110 0/110 0/110 0/110 0/110
Power380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
380V-415V3N~
50Hz/60Hz
Power
comsumption
Cooling kW 13.8+16.2+
16.2+20.5
16.2+16.2+
16.2+20.5
16.2+16.2+
20.5+20.5
16.2+20.5+
20.5+20.5
20.5+20.5+
20.5+20.5
Heating kW 13.1+16.9+
16.9+20.1
16.9+16.9+
16.9+20.1
16.9+16.9+
20.1+20.1
16.9+20.1+
20.1+20.1
20.1+20.1+
20.1+20.1
Size(W×D×H) mm
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
1340×775×1690+
1340×775×1690+
1340×775×1690+
1340×775×1690
Waterproof level IPX4 IPX4 IPX4 IPX4 IPX4
Connection
pipe
Liquid
pipemm Φ44.5Φ44.5Φ44.5Φ44.5Φ44.5
Gas
pipemm Φ22.2Φ22.2Φ22.2Φ22.2Φ22.2
Connection
method
Welding
connection
Welding
connection
Welding
connection
Welding
connection
Welding
connection
Net weight kg 350+350+
350+355
350+350+
350+355
350+350+
355+355
350+355+
355+355
355+355+
355+355
Max. power kW 21.78+23.48+
23.48+26.47
23.48+23.48+
23.48+26.47
23.48+23.48+
26.47+26.47
23.48+26.47+
26.47+26.47
26.47+26.47+
26.47+26.47
Minimum circuit current A 38.9+42.0+
42.0+47.3
42.0+42.0+
42.0+47.3
42.0+42.0+
47.3+47.3
42.0+47.3+
47.3+47.3
47.3+47.3+
47.3+47.3
Max. fusecurrent A 40+50+50+5050+50+50+5050+50+50+5050+50+50+5050+50+50+50
NOTES:
a. Rated cooling capacity test conditions: indoor 27°C DB/19°C WB, outdoor 35°C DB; connection pipe
length: 5m, without height drop between units.
b. Rated heating capacity test conditions: indoor 20°C DB, outdoor 7°C DB/6 °C WB; connection pipe
length: 5m, without height drop between units.
c. The total capacity of connected indoor units must be in the range of 50%~135% of the outdoor unit
capacity. The relevant parameters can be corrected by referring to the unit capacity correction table.
d. The above parameters are tested based on the standard connection pipe length. In the actual project,
the parameters should be corrected referring to the capacity correction for the long connection pipe of
units.
GMV6 DC Inverter VRF Units Technical Sales Guide
13

3 ELECTRICAL SPECIFICATIONS
Model Combination method
Circuit breaker
capacity (A) of each
combined module
Minimum sectional area of
ground lead(mm2)
Recommended wire (sectional area
mm2 ×quantity)
GMV-224WM/G-X - 20 2.52.5×5
GMV-280WM/G-X - 25 2.52.5×5
GMV-335WM/G-X - 25 4.04.0×5
GMV-400WM/G-X - 32 4.04.0×5
GMV-450WM/G-X - 32 4.04.0×5
GMV-504WM/G-X - 40 6.06.0×5
GMV-560WM/G-X - 40 6.06.0×5
GMV-615WM/G-X - 50 10.010.0×5
GMV-680WM/G-X - 50 10.010.0×5
GMV-735WM/G-X 335+40025+324.0+4.04.0×5+4.0×5
GMV-785WM/G-X 335+45025+324.0+4.04.0×5+4.0×5
GMV-839WM/G-X 335+50425+404.0+6.04.0×5+6.0×5
GMV-895WM/G-X 280+61525+502.5+10.02.5×5+10.0×5
GMV-950WM/G-X 335+61525+504.0+10.04.0×5+10.0×5
GMV-1015WM/G-X 400+61532+504.0+10.04.0×5+10.0×5
GMV-1064WM/G-X 504+56040+406.0+6.06.0×5+6.0×5
GMV-1119WM/G-X 504+61540+506.0+10.06.0×5+10.0×5
GMV-1175WM/G-X 560+61540+506.0+10.06.0×5+10.0×5
GMV-1230WM/G-X 615+61550+5010.0+10.010.0×5+10.0×5
GMV-1295WM/G-X 615+68050+5010.0+10.010.0×5+10.0×5
GMV-1360WM/G-X680+68050+5010.0+10.010.0×5+10.0×5
GMV-1399WM/G-X 335+504+56025+40+404.0+6.0+6.04.0×5+6.0×5+6.0×5
GMV-1455WM/G-X 280+560+61525+40+502.5+6.0+10.02.5×5+6.0×5+10.0×5
GMV-1510WM/G-X 280+615+61525+50+502.5+10.0+10.02.5×5+10.0×5+10.0×5
GMV-1565WM/G-X 335+615+61525+50+504.0+10.0+10.04.0×5+10.0×5+10.0×5
GMV-1623WM/G-X 504+504+61540+40+506.0+6.0+10.06.0×5+6.0×5+10.0×5
GMV-1679WM/G-X 504+560+61540+40+506.0+6.0+10.06.0×5+6.0×5+10.0×5
GMV-1734WM/G-X 504+615+61540+50+506.0+10.0+10.06.0×5+10.0×5+10.0×5
GMV-1790WM/G-X 560+615+61540+50+506.0+10.0+10.06.0×5+10.0×5+10.0×5
GMV-1845WM/G-X 615+615+61550+50+5010.0+10.0+10.010.0×5+10.0×5+10.0×5
GMV-1910WM/G-X 615+615+68050+50+5010.0+10.0+10.010.0×5+10.0×5+10.0×5
GMV-1975WM/G-X 615+680+68050+50+5010.0+10.0+10.010.0×5+10.0×5+10.0×5
GMV-2040WM/G-X 680+680+68050+50+5010.0+10.0+10.010.0×5+10.0×5+10.0×5
GMV-2069WM/G-X 335+504+615+61525+40+50+504.0+6.0+10.0+10.04.0×5+6.0×5+10.0×5+10.0×5
GMV-2129WM/G-X 450+504+560+61532+40+40+504.0+6.0+6.0+10.04.0×5+6.0×5+6.0×5+10.0×5
GMV-2190WM/G-X 400+560+615+61532+40+50+504.0+6.0+10.0+10.04.0×5+6.0×5+10.0×5+10.0×5
GMV-2245WM/G-X 450+615+615+61532+50+50+504.0+10.0+10.0+10.04.0×5+10.0×5+10.0×5+10.0×5
GMV-2295WM/G-X 560+560+560+61540+40+40+506.0+6.0+6.0+10.06.0×5+6.0×5+6.0×5+10.0×5
GMV-2350WM/G-X 560+560+615+61540+40+50+506.0+6.0+10.0+10.06.0×5+6.0×5+10.0×5+10.0×5
GMV-2414WM/G-X 504+615+615+68040+50+50+506.0+10.0+10.0+10.06.0×5+10.0×5+10.0×5+10.0×5
GMV-2470WM/G-X 560+615+615+68040+50+50+506.0+10.0+10.0+10.06.0×5+10.0×5+10.0×5+10.0×5
GMV-2525WM/G-X 615+615+615+68050+50+50+5010.0+10.0+10.0+10.010.0×5+10.0×5+10.0×5+10.0×5
GMV-2590WM/G-X 615+615+680+68050+50+50+5010.0+10.0+10.0+10.010.0×5+10.0×5+10.0×5+10.0×5
GMV-2655WM/G-X 615+680+680+68050+50+50+5010.0+10.0+10.0+10.010.0×5+10.0×5+10.0×5+10.0×5
GMV-2720WM/G-X 680+680+680+68050+50+50+5010.0+10.0+10.0+10.010.0×5+10.0×5+10.0×5+10.0×5
14

NOTES:
a. The circuit breaker and power cable specifications are selected according to the maximum unit power
(maximum current).
b. The power cable specifications are obtained under the condition that the multi-copper core cable
(such as YJV copper-core XLPE insulated PVC sheathed power cable) is laid in the wire trough in an
exposed manner (the ambient temperature of use is 40°C and the cable operating temperature is 90°C)
(IEC60364-5-523). If the use condition is different, calculate and adjust the specification according to
the corresponding national standard.
c. The copper core cable must be used.
d. The sectional area of lead applies to the maximum distance of 15 m. If the distance exceeds 5 m,
the sectional area of lead must be increased accordingly to prevent burnout of the lead or a fire due to
current overload.
e. The circuit breaker specification is obtained under the condition that the ambient temperature is
40°C when the circuit breaker is operating. If the use condition is different, calculate and adjust the
specification according to the instructions on circuit breaker specifications.
f. The circuit breaker should provide the magnetic trip and thermal trip functions at the same time to
ensure protection in the cases of short circuit and overload.
4 PRODUCT CAPACITY RECTIFICATION
4.1 Capacity code
IDU capacity code=IDU rated cooling capacity value (W) ×0.01
ODU capacity code=ODU rated cooling capacity value (W) ×0.01
E.g: Rated cooling capacity of GMV-224WM/G-X is 22400W, its capacity code is 22.4kW;
Rated cooling capacity of duct type IDU GMV-ND22PHS/B is 2,200W, its capacity code is 2.2kW.
4.2 Capacity rectification method for IDU and ODU
Actual capacity of each IDU=Actual capacity of ODU×IDU capacity/Max. IDU capacity operating at the
same time
Actual capacity of ODU=Rectified capacity based on the configuration rate of IDU and ODU and the
indoor and outside temperature condition×pipe distance and the rectification coefficient of fall of IDU
and ODU×rectification factor of heating and defrosting
NOTES:
a. Rectified capacity based on the configuration rate of IDU and ODU and the indoor and outside
temperature condition——inquire according to the capacity rectification table
b. Rectification factor of heating and defrosting——rectify the factor if the model selection is based on
heating load.
GMV6 DC Inverter VRF Units Technical Sales Guide
15

4.3 Correction of capacity along with ambient temperature and
configuration ratio
Rectification of cooling capacity：
GMV-224WM/G-X
TC—Total capacity of outdoor unit; PI—Power input of outdoor unit
Combination
Outdoor
air temp
（℃ DB ）
Indoor air temp
14.0℃WB 17.0℃WB 18.0℃WB 19.0℃WB 20.0℃WB 22.0℃WB 24.0℃WB
20.0℃DB 24.0℃DB 26.0℃DB 27.0℃DB 28.0℃DB 30.0℃DB 32.0℃DB
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
135%
-5 19.82 2.22 23.60 2.70 28.01 2.74 28.44 2.74 28.95 2.76 30.67 2.80 30.43 2.83
019.82 2.22 23.60 2.71 28.01 2.74 28.44 2.74 28.95 2.77 30.67 2.80 30.43 2.83
419.82 2.23 23.60 2.72 28.01 2.75 28.44 2.75 28.95 2.78 30.67 2.81 30.43 2.84
719.82 2.27 23.60 2.77 28.01 2.80 28.44 2.81 28.95 2.83 30.41 2.86 30.43 2.89
10 19.82 2.31 23.60 2.83 28.01 3.36 28.44 3.42 28.76 3.37 29.50 3.23 30.21 3.08
12 19.82 2.35 23.60 2.88 28.01 3.43 28.03 3.40 28.44 3.35 29.09 3.20 29.81 3.15
14 19.82 2.40 23.60 2.94 27.93 3.47 27.71 3.39 28.03 3.33 28.77 3.30 29.48 3.34
16 19.82 2.44 23.60 3.00 27.60 3.46 27.31 3.42 27.63 3.44 28.36 3.48 29.08 3.51
18 19.82 2.49 23.60 3.06 27.19 3.59 26.91 3.59 27.31 3.63 28.03 3.66 28.76 3.69
20 19.82 2.54 23.60 3.25 26.78 3.76 26.58 3.77 26.91 3.80 27.63 3.84 28.36 3.88
21 19.82 2.61 23.60 3.37 26.61 3.85 26.42 3.85 26.75 3.89 27.47 3.93 28.20 3.96
23 19.82 2.80 23.60 3.61 26.28 4.03 26.02 4.03 26.34 4.07 27.07 4.11 27.79 4.15
25 19.82 2.99 23.60 3.87 25.87 4.20 25.70 4.20 26.02 4.25 26.75 4.29 27.47 4.33
27 19.82 3.19 23.60 4.14 25.54 3.70 25.30 4.39 25.62 4.42 26.34 4.47 27.07 4.52
29 19.82 3.41 23.60 4.42 25.13 4.55 24.89 4.56 25.30 4.61 26.02 4.65 26.75 4.70
31 19.82 3.64 23.52 4.68 24.72 4.74 24.57 4.74 24.89 4.78 25.62 4.84 26.34 4.89
33 19.82 3.88 23.12 4.86 24.39 4.90 24.17 4.92 24.57 4.97 25.30 5.02 25.94 5.08
35 19.82 4.13 22.72 5.03 23.98 5.09 23.85 5.10 24.17 5.15 24.89 5.21 25.62 5.26
37 19.82 4.40 22.40 5.22 23.65 5.28 23.87 5.28 23.89 5.34 24.49 5.40 25.22 5.46
39 19.82 4.68 21.99 5.39 23.23 5.45 23.87 5.46 24.07 5.52 24.17 5.58 24.89 5.65
41 19.82 5.21 22.72 6.34 23.98 6.42 23.85 5.92 23.91 5.97 24.05 6.04 24.41 6.11
43 19.82 5.43 23.47 6.61 24.08 6.77 23.82 6.29 23.76 6.20 24.10 6.19 23.93 6.26
44 19.19 5.66 22.31 6.90 23.09 7.13 23.42 6.18 23.74 6.43 23.97 6.35 24.08 6.42
46 18.20 7.33 21.37 8.22 22.49 7.37 22.63 6.58 23.12 6.71 23.34 6.67 23.56 6.74
47 17.71 8.16 20.90 8.89 22.19 7.49 22.23 6.78 22.80 6.85 23.02 6.82 23.30 6.89
50 15.10 7.91 18.28 8.76 19.77 7.90 20.18 7.35 20.92 7.31 21.73 7.29 22.18 7.21
52 9.62 4.76 12.94 5.93 16.01 6.67 17.63 7.00 17.71 6.77 18.14 6.68 19.16 6.86
53 8.01 3.96 10.65 4.87 13.97 5.82 15.24 6.05 15.50 5.92 16.10 5.93 16.69 5.97
55 7.49 3.71 9.71 4.44 12.69 5.28 13.46 5.34 14.05 5.37 14.73 5.42 15.41 5.52
16

Combination
Outdoor
air temp
（℃ DB ）
Indoor air temp
14.0℃WB 17.0℃WB 18.0℃WB 19.0℃WB 20.0℃WB 22.0℃WB 24.0℃WB
20.0℃DB 24.0℃DB 26.0℃DB 27.0℃DB 28.0℃DB 30.0℃DB 32.0℃DB
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
120%
-5 18.29 1.98 21.75 2.56 25.87 2.72 27.07 2.72 28.47 2.75 30.08 2.78 29.76 2.80
018.29 1.98 21.75 2.56 25.87 2.72 27.07 2.73 28.47 2.75 30.08 2.78 29.76 2.81
418.29 1.99 21.75 2.57 25.87 2.73 27.07 2.74 28.47 2.76 30.08 2.79 29.76 2.82
718.29 2.02 21.75 2.62 25.87 2.78 27.07 2.79 28.47 2.81 29.82 2.84 29.76 2.87
10 18.29 2.11 21.75 2.58 25.87 3.06 27.07 3.30 28.36 3.46 29.01 3.32 29.65 3.19
12 18.29 2.15 21.75 2.62 25.87 3.13 27.07 3.36 27.95 3.44 28.61 3.31 29.24 3.17
14 18.29 2.19 21.75 2.68 25.87 3.19 27.07 3.43 27.55 3.42 28.29 3.29 28.92 3.31
16 18.29 2.23 21.75 2.73 25.87 3.25 26.91 3.46 27.23 3.42 27.87 3.46 28.52 3.48
18 18.29 2.27 21.75 2.79 25.87 3.36 26.50 3.57 26.83 3.60 27.47 3.63 28.20 3.67
20 18.29 2.32 21.75 2.90 25.87 3.61 26.18 3.75 26.50 3.77 27.15 3.81 27.79 3.84
21 18.29 2.34 21.75 3.00 25.87 3.74 25.94 3.83 26.26 3.86 26.99 3.90 27.63 3.94
23 18.29 2.50 21.75 3.21 25.87 4.00 25.62 4.00 25.94 4.04 26.58 4.08 27.23 4.11
25 18.29 2.67 21.75 3.44 25.46 4.18 25.22 4.18 25.54 4.21 26.26 4.26 26.91 4.30
27 18.29 2.85 21.75 3.67 25.13 4.35 24.89 4.36 25.22 4.40 25.86 4.44 26.50 4.48
29 18.29 3.04 21.75 3.92 24.72 4.53 24.49 4.54 24.81 4.57 25.46 4.62 26.18 4.66
31 18.29 3.25 21.75 4.19 24.39 4.71 24.17 4.71 24.49 4.76 25.13 4.80 25.78 4.85
33 18.29 3.46 21.75 4.47 23.98 4.88 23.77 4.89 24.09 4.93 24.73 4.99 25.38 5.03
35 18.29 3.68 21.75 4.76 23.56 5.06 23.36 5.07 23.77 5.11 24.41 5.17 25.05 5.22
37 18.29 3.92 21.75 5.07 23.23 5.24 23.46 5.25 23.41 5.30 24.01 5.35 24.65 5.41
39 18.29 4.17 21.67 5.36 22.82 5.42 23.37 5.43 23.57 5.48 23.68 5.54 24.33 5.59
41 18.29 4.64 21.75 6.00 23.56 6.38 23.36 5.88 23.51 5.93 23.58 6.00 23.88 6.06
43 18.29 4.83 21.83 6.25 23.68 6.72 23.36 6.25 23.45 6.16 23.65 6.15 23.42 6.21
44 17.71 5.04 21.36 6.52 22.69 7.08 22.95 6.14 23.35 6.39 23.50 6.31 23.55 6.37
46 16.80 6.52 20.46 7.78 22.10 7.32 22.17 6.54 22.73 6.67 22.88 6.62 23.05 6.68
47 16.34 7.27 20.01 8.41 21.81 7.44 21.78 6.74 22.42 6.80 22.57 6.77 22.79 6.84
50 13.93 7.05 17.50 8.29 19.43 7.84 19.77 7.30 20.57 7.26 21.31 7.24 21.69 7.15
52 9.43 4.73 12.68 5.89 15.69 6.62 17.27 6.95 17.35 6.73 17.77 6.63 18.77 6.81
53 7.84 3.93 10.43 4.84 13.68 5.78 14.94 6.01 15.19 5.88 15.77 5.89 16.35 5.93
55 7.34 3.68 9.51 4.41 12.43 5.25 13.18 5.31 13.77 5.34 14.43 5.39 15.10 5.48
110%
-5 16.76 1.75 19.98 2.25 23.73 2.70 24.81 2.70 26.42 2.73 29.41 2.75 29.07 2.78
016.76 1.75 19.98 2.25 23.73 2.70 24.81 2.71 26.42 2.73 29.41 2.76 29.07 2.78
416.76 1.76 19.98 2.26 23.73 2.71 24.81 2.72 26.42 2.74 29.41 2.77 29.07 2.79
716.76 1.79 19.98 2.30 23.73 2.76 24.81 2.77 26.42 2.79 29.16 2.82 29.07 2.85
10 16.76 1.91 19.98 2.33 23.73 2.77 24.81 2.99 26.42 3.23 28.45 3.42 29.08 3.31
12 16.76 1.96 19.98 2.38 23.73 2.83 24.81 3.05 26.42 3.29 28.13 3.41 28.68 3.29
14 16.76 1.99 19.98 2.42 23.73 2.88 24.81 3.10 26.42 3.35 27.72 3.41 28.36 3.28
16 16.76 2.02 19.98 2.47 23.73 2.94 24.81 3.16 26.42 3.42 27.39 3.43 27.95 3.46
18 16.76 2.06 19.98 2.52 23.73 3.00 24.81 3.25 26.42 3.58 26.99 3.61 27.63 3.64
20 16.76 2.10 19.98 2.57 23.73 3.17 24.81 3.49 26.02 3.75 26.67 3.78 27.23 3.82
21 16.76 2.12 19.98 2.65 23.73 3.29 24.81 3.62 25.86 3.84 26.42 3.87 27.07 3.90
23 16.76 2.23 19.98 2.83 23.73 3.52 24.81 3.88 25.46 4.01 26.10 4.05 26.67 4.09
25 16.76 2.37 19.98 3.03 23.73 3.77 24.81 4.16 25.13 4.19 25.70 4.23 26.34 4.26
27 16.76 2.53 19.98 3.24 23.73 4.03 24.41 4.33 24.73 4.36 25.38 4.40 25.94 4.44
29 16.76 2.70 19.98 3.46 23.73 4.31 24.09 4.51 24.41 4.55 24.97 4.59 25.62 4.63
31 16.76 2.88 19.98 3.69 23.73 4.60 23.68 4.68 24.01 4.72 24.65 4.76 25.22 4.81
33 16.76 3.06 19.98 3.93 23.56 4.85 23.36 4.86 23.68 4.90 24.25 4.95 24.89 4.99
35 16.76 3.25 19.98 4.19 23.23 5.03 22.96 5.03 23.28 5.08 23.85 5.13 24.49 5.18
37 16.76 3.46 19.98 4.46 22.82 5.21 23.05 5.21 22.92 5.26 23.52 5.31 24.09 5.36
39 16.76 3.68 19.98 4.75 22.41 5.38 22.95 5.39 23.16 5.44 23.12 5.49 23.77 5.55
41 16.76 4.10 19.98 5.28 23.23 6.33 22.96 5.84 23.04 5.89 23.04 5.95 23.34 6.00
43 16.76 4.28 19.98 5.50 23.45 6.68 22.97 6.21 22.91 6.12 23.12 6.10 22.91 6.15
44 16.22 4.46 19.62 5.74 22.37 7.04 22.55 6.10 22.87 6.35 22.96 6.26 23.02 6.31
46 15.39 5.77 18.79 6.84 21.79 7.27 21.78 6.50 22.27 6.62 22.35 6.56 22.53 6.62
47 14.97 6.42 18.38 7.39 21.50 7.39 21.40 6.69 21.97 6.76 22.05 6.72 22.28 6.78
50 12.77 6.23 16.07 7.29 19.16 7.79 19.43 7.25 20.16 7.21 20.82 7.18 21.21 7.09
52 9.27 4.70 12.46 5.85 15.42 6.58 16.97 6.91 17.06 6.68 17.47 6.59 18.45 6.77
53 7.71 3.91 10.25 4.81 13.45 5.74 14.68 5.97 14.92 5.85 15.50 5.85 16.07 5.89
55 7.22 3.66 9.35 4.39 12.22 5.21 12.96 5.27 13.53 5.30 14.19 5.35 14.84 5.44
GMV6 DC Inverter VRF Units Technical Sales Guide
17

Combination
Outdoor
air temp
（℃ DB ）
Indoor air temp
14.0℃WB 17.0℃WB 18.0℃WB 19.0℃WB 20.0℃WB 22.0℃WB 24.0℃WB
20.0℃DB 24.0℃DB 26.0℃DB 27.0℃DB 28.0℃DB 30.0℃DB 32.0℃DB
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
100%
-5 15.23 1.53 18.13 1.96 21.59 2.44 22.40 2.69 24.01 2.71 27.87 2.73 28.50 2.76
015.23 1.53 18.13 1.96 21.59 2.44 22.40 2.69 24.01 2.71 27.87 2.74 28.50 2.76
415.23 1.54 18.13 1.97 21.59 2.45 22.40 2.70 24.01 2.72 27.87 2.75 28.50 2.77
715.23 1.56 18.13 2.00 21.59 2.50 22.40 2.75 24.01 2.77 27.63 2.80 28.50 2.82
10 15.23 1.73 18.13 2.10 21.59 2.49 22.40 2.68 24.00 2.90 26.99 3.28 28.51 3.41
12 15.23 1.75 18.13 2.13 21.59 2.52 22.40 2.71 24.00 2.96 26.99 3.34 28.11 3.39
14 15.23 1.79 18.13 2.17 21.59 2.56 22.40 2.76 24.00 3.01 26.99 3.40 27.79 3.36
16 15.23 1.83 18.13 2.22 21.59 2.62 22.40 2.82 24.00 3.08 26.89 3.47 27.38 3.43
18 15.23 1.87 18.13 2.27 21.59 2.67 22.40 2.88 24.00 3.14 26.50 3.54 27.07 3.60
20 15.23 1.89 18.13 2.30 21.59 2.76 22.40 3.03 24.00 3.34 26.10 3.73 26.66 3.79
21 15.23 1.91 18.13 2.33 21.59 2.86 22.40 3.13 24.00 3.45 25.94 3.86 26.50 3.89
23 15.23 1.96 18.13 2.48 21.59 3.07 22.40 3.37 24.00 3.71 25.62 4.08 26.10 4.12
25 15.23 2.09 18.13 2.64 21.59 3.27 22.40 3.58 24.00 3.97 25.21 4.23 25.78 4.27
27 15.23 2.23 18.13 2.82 21.59 3.51 22.40 3.85 24.00 4.26 24.81 4.38 25.38 4.42
29 15.23 2.36 18.13 3.02 21.59 3.75 22.40 4.11 23.93 4.51 24.47 4.59 25.04 4.63
31 15.23 2.51 18.13 3.21 21.59 4.00 22.40 4.43 23.63 4.70 23.91 4.77 24.65 4.82
33 15.23 2.67 18.13 3.42 21.59 4.26 22.40 4.69 23.20 4.87 23.80 4.91 24.32 4.96
35 15.23 2.85 18.13 3.64 21.59 4.54 22.40 5.00 22.80 5.04 23.35 5.09 23.91 5.14
37 15.23 3.03 18.13 3.88 21.59 4.84 22.40 5.18 22.56 5.23 23.01 5.26 23.57 5.31
39 15.23 3.23 18.13 4.13 21.59 5.15 22.40 5.35 22.56 5.40 22.71 5.44 23.01 5.49
41 15.23 3.59 18.13 4.59 21.59 5.72 22.40 5.80 22.56 5.85 22.56 5.90 22.79 5.96
43 15.23 3.74 18.13 4.79 21.59 6.03 22.40 6.17 22.56 6.07 22.56 6.06 22.56 6.11
44 14.74 3.90 17.80 4.99 20.78 6.36 22.15 6.05 22.40 6.31 22.48 6.21 22.48 6.27
46 13.99 5.04 17.05 5.95 20.25 6.57 21.40 6.45 21.80 6.57 21.89 6.52 21.99 6.57
47 13.61 5.62 16.68 6.43 19.98 6.68 21.03 6.65 21.51 6.71 21.59 6.67 21.75 6.73
50 11.60 5.45 14.58 6.34 17.80 7.04 19.09 7.20 19.74 7.16 20.38 7.13 20.70 7.04
52 9.10 4.28 12.25 5.32 15.15 5.99 16.68 6.29 16.76 6.08 17.16 6.00 18.13 6.16
53 7.57 3.56 10.07 4.38 13.21 5.22 14.42 5.44 14.66 5.32 15.23 5.32 15.79 5.37
55 7.09 3.33 9.18 3.99 12.00 4.75 12.73 4.80 13.29 4.82 13.94 4.87 14.58 4.96
90%
-5 13.70 1.33 16.31 1.69 19.43 2.08 20.30 2.29 21.59 2.53 25.04 2.71 26.91 2.73
013.70 1.34 16.31 1.69 19.43 2.09 20.30 2.30 21.59 2.54 25.04 2.71 26.91 2.74
413.70 1.34 16.31 1.70 19.43 2.09 20.30 2.31 21.59 2.55 25.04 2.72 26.91 2.75
713.70 1.37 16.31 1.73 19.43 2.13 20.30 2.35 21.59 2.59 24.83 2.77 26.91 2.80
10 13.70 1.51 16.31 1.81 19.43 2.13 20.30 2.38 21.60 2.55 24.29 2.92 26.90 3.31
12 13.70 1.53 16.31 1.84 19.43 2.15 20.30 2.42 21.60 2.60 24.29 2.97 26.90 3.35
14 13.70 1.56 16.31 1.87 19.43 2.19 20.30 2.45 21.60 2.64 24.29 3.02 26.90 3.41
16 13.70 1.59 16.31 1.91 19.43 2.24 20.30 2.51 21.60 2.70 24.28 3.09 26.82 3.47
18 13.70 1.63 16.31 1.96 19.43 2.28 20.30 2.56 21.60 2.76 24.28 3.16 26.58 3.60
20 13.70 1.65 16.31 1.99 19.43 2.36 20.30 2.61 21.60 2.87 24.28 3.40 26.10 3.75
21 13.70 1.67 16.31 2.01 19.43 2.44 20.30 2.70 21.60 2.97 24.28 3.51 25.94 3.83
23 13.70 1.71 16.31 2.14 19.43 2.62 20.30 2.90 21.60 3.18 24.28 3.77 25.54 4.03
25 13.70 1.82 16.31 2.28 19.43 2.79 20.30 3.09 21.60 3.40 24.28 4.04 25.22 4.19
27 13.70 1.95 16.31 2.44 19.43 2.99 20.30 3.30 21.60 3.64 24.28 4.31 24.81 4.38
29 13.70 2.06 16.31 2.60 19.43 3.20 20.30 3.53 21.60 3.88 24.01 4.52 24.49 4.56
31 13.70 2.19 16.31 2.77 19.43 3.41 20.30 3.76 21.60 4.14 23.60 4.68 24.09 4.74
33 13.70 2.33 16.31 2.95 19.43 3.64 20.30 4.01 21.60 4.41 23.28 4.87 23.77 4.91
35 13.70 2.48 16.31 3.14 19.43 3.88 20.30 4.27 21.60 4.72 22.88 5.05 23.36 5.09
37 13.70 2.64 16.31 3.35 19.43 4.13 20.30 4.42 21.65 5.05 22.48 5.23 23.04 5.21
39 13.70 2.82 16.31 3.56 19.43 4.40 20.30 4.57 22.18 5.35 22.15 5.42 22.64 5.41
41 13.70 3.13 16.31 3.96 19.43 4.89 20.30 4.95 21.38 5.47 22.11 5.85 22.26 5.91
43 13.70 3.26 16.31 4.12 19.37 5.16 20.30 5.26 21.23 5.68 22.21 6.00 21.89 6.07
44 13.27 3.40 16.02 4.30 18.71 5.43 19.94 5.17 21.22 5.89 22.03 6.16 21.96 6.21
46 12.59 4.40 15.35 5.13 18.22 5.61 19.26 5.51 20.66 6.15 21.45 6.46 21.49 6.52
47 12.25 4.90 15.01 5.55 17.98 5.70 18.92 5.68 20.38 6.27 21.16 6.61 21.25 6.67
50 10.44 4.75 13.12 5.47 16.02 6.01 17.18 6.15 18.70 6.70 19.97 7.06 20.23 6.97
52 8.19 3.99 11.02 4.96 13.63 5.58 15.01 5.86 15.08 5.67 15.63 5.59 16.31 5.74
53 6.82 3.32 9.06 4.08 11.89 4.87 12.98 5.07 13.20 4.96 13.87 4.96 14.21 5.00
55 6.38 3.10 8.27 3.72 10.80 4.43 11.46 4.48 11.96 4.50 12.69 4.54 13.12 4.62
18
