Yamaha EF4500iSE - Inverter Generator User manual

EF4500iSE Remote control kit
INSTALLATION AND OPERATION MANUAL
Congratulations on your purchase of your new Yamaha.
This manual will provide you with a good basic understanding of the operation and installation of this
product.
If you have any questions regarding the installation or operation of your machine, please consult a Yamaha
dealer.
Particularly important information is distinguished in this manual by the following notations.
w
8This kit can be used for wireless remote control of Yamaha's EF4500iSE Generator only. Do not
use this product for any other purposes.
8Before using the remote control kit, carefully read and understand this manual, the generator's
owner's manual and warning labels attached to the generator. Also, become familiar with the
generator operations, safety information and important information.
8Keep this manual together with the generator's owner's manual, and use them if you have any
questions or problems during operation. If you resell or transfer your generator to another person,
remember to attach this manual to it.
cC
Do not use this product in other countries, as doing so may be illegal.
NOTE:
8The remote control can be used approximately 20 meters away from the generator if there are no
obstacles between them.
8This communication distance depends on the ambient environment and the situation in which you use
the remote control. The communication distance becomes shorter if there are any obstacles between
you and the generator. Also, if you use the remote control near the radio transmitter facility, the radio
communication distance may be reduced greatly or the communication itself may fail.
8If the remote control has a delay in responding or it does not respond at all, the service life of the cells
of remote control may have expired, or the generator battery may have discharged. Replace dry cell
batteries of the remote control, or recharge the generator battery.
7XF-2819W-10
QThe Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
wFailure to follow WARNING instructions could result in severe injury or death to the
engine operator, a bystander or a person inspecting or repairing the engine.
cCA CAUTION indicates special precautions that must be taken to avoid damage to the
engine.
NOTE: A NOTE provides key information to make procedures easier or clearer.
7XF-2819W-100409.indd17XF-2819W-100409.indd1 2008/04/109:17:322008/04/109:17:32

page 2
w
Do not touch parts inside the generator when it is
operating or after it has stopped. Otherwise an electric
shock or burns may occur.
Before installing the kit, turn off the engine and wait until
the engine and internal parts of the generator have cooled
down.
1. Remove two screws and remove the front panel a.
2. Remove nine screws and pull out the control panel b.
cC
During removing the control panel, take care not to hang it
by its wire leads. It may damage the wire leads and cause
damage to the generator. After the screws have been
removed from the control panel, pass a wire through a
screw hole of the control panel and tie it to the handle. The
control panel should be held by the wire.

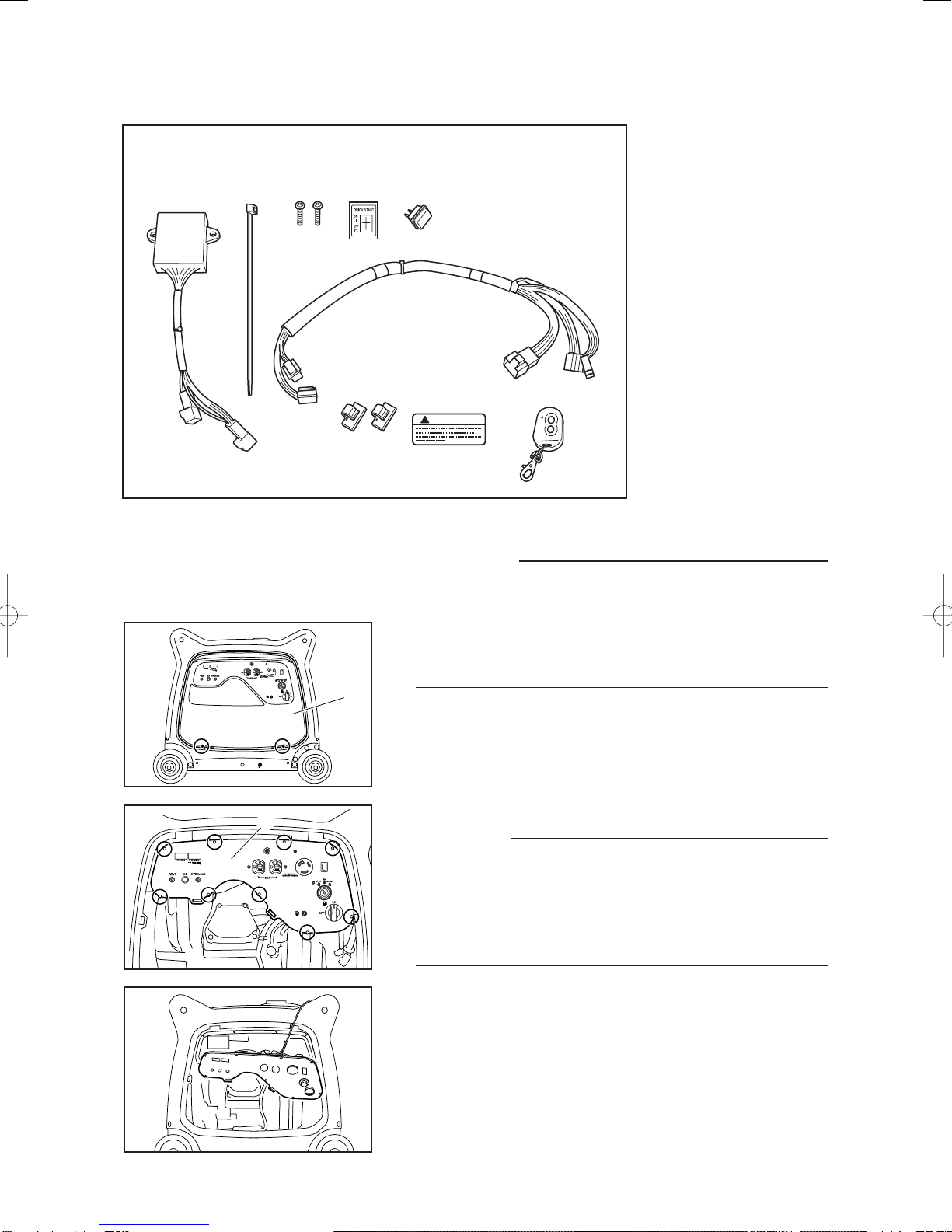

INSTALLING
Parts of remote control kit
Installing procedure
123
4
6
5
78 9
WARNING
!
a
b
Receiver unit1×1
Band 2×1
Screw 3×2
Switch label 4×1
Remote control switch 5×1
Wire harness 6×1
Clamp 7×2
Warning label 8×1
Remote control transmitter 9
(with dry cell batteries)×1
7XF-2819W-100409.indd27XF-2819W-100409.indd2 2008/04/109:18:102008/04/109:18:10

page 3
3. Remove four screws and remove the meter unit c.
cC
To avoid parts becoming damaged by static electricity,
discharge the electricity from your body by touching the
engine or other metal surface before servicing the meter
unit.
4. Disconnect the engine switch coupler d.
e..... engine switch
5. Return the harness of receiver unit 1, and secure the
harness using band 2.
6. Remove grommet ftemporarily, and pass the receiver
unit harness through the grommet.
7. After passing the harness through the hole where the
grommet fhas been installed, install the receiver unit 1
by screws 3. Install the grommet fin its original position.
cC
Make sure that grommet fis secured to its original
position.
8. Remove cap gfrom the control panel, and attach switch
label 4to the panel.
NOTE:
Remove cap gby pressing its top and bottom hooks and by
pulling the cap outward.
9. Install remote control switch 5by facing its terminal
downward.
10. Connect the coupler of wire harness 6to the coupler of
receiver unit (2 couplers), engine switch (2 couplers), and
remote control switch (1 coupler).
c
d
e
f
f
112
f
13
UP
g
5
4
6
6
to receiver unit
(4P)
to receiver unit
(6P) to remote control switch
to engine switch
to engine switch coupler
(wire harness end)
white tape
7XF-2819W-100409.indd37XF-2819W-100409.indd3 2008/04/109:18:122008/04/109:18:12

page 4
HOW TO USE THE REMOTE CONTROL
lNSTRUCTION TO THE USER
This device complies with Part 15 of the FCC Rules
Operation of this device is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)this device must accept any interference received including interference that may cause undesired
operation.
This equipment has been tested and found to compIy with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

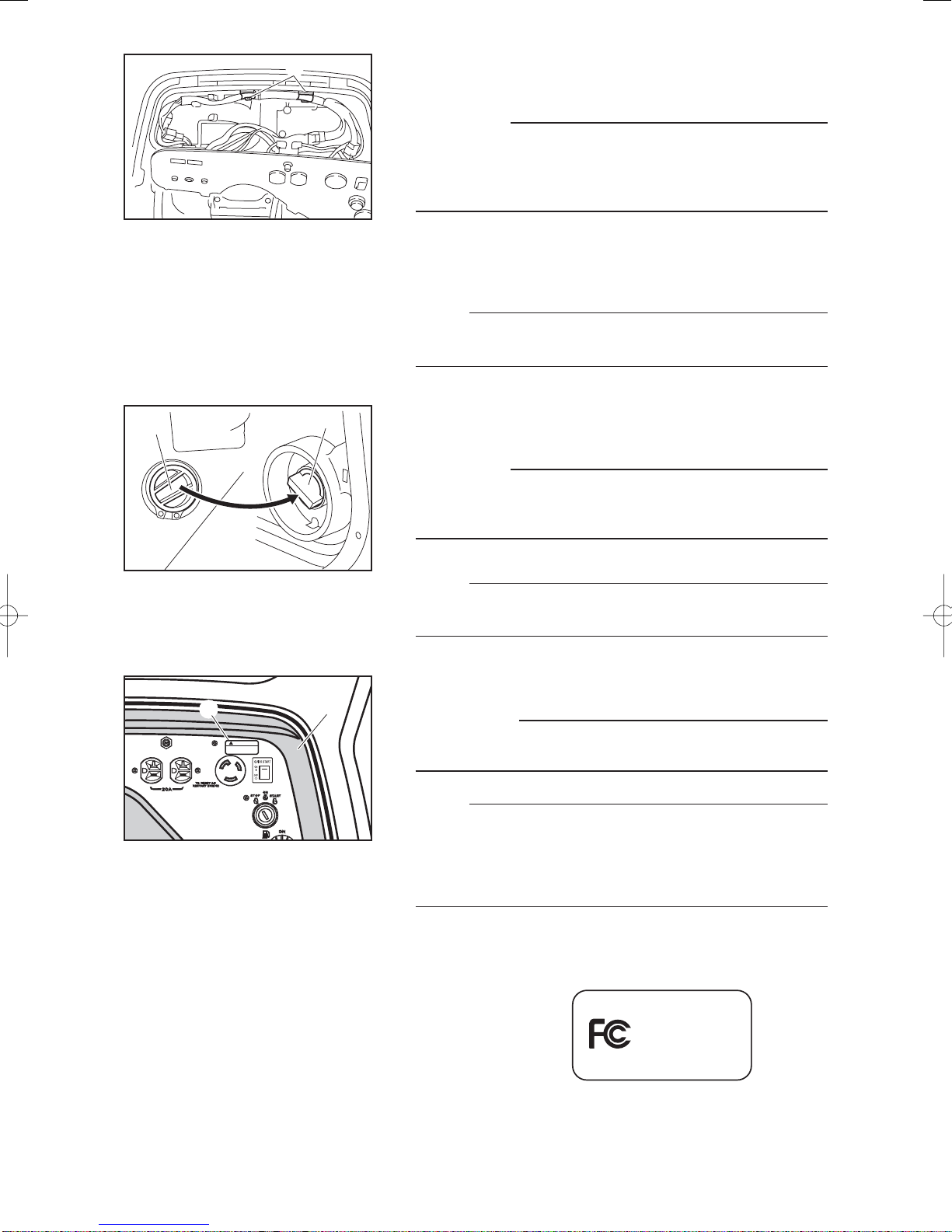

11. Mount clamps
7in the white marker tape positions of wire
harness 6, and secure them in the control box as shown.
cC
Do not mount clamps 7in any position other than the
white marker tape positions of wire harness 6. If doing so,
the wire harness may be damaged when the control panel
is installed again.
12. Check the operation of remote control. (See "How to use
the remote control" page 4.)
NOTE:
If the remote control does not operate normally, check the
connectors for poor or incorrect connection.
13. Reassemble the meter unit, control panel, and front panel
correctly.
cC
Take care not to clinch wire leads and wire harness. If so,
the wire leads or wire harness may be damaged and it may
cause the generator to fail.
NOTE:
Make sure that projection hof the fuel cock can engage with
slot iof the fuel cock knob, and install the control panel.
14. Attach warning label
8to the position as shown.
w
Do not remove the warning label. Also, keep the label
clean.
NOTE:
8When attaching warning label 8, wipe, clean and degrease
the surface to be pasted.
8Attach label 8 to the suitable position where it is not hidden by
front panel a.
a
Ifyou do not use the remote control, always
turnthe remote control switch 4 to "OFF". If
thisswitch is left "ON", the generator may start
accidentally.
WARNING
!
8
7
h
i
Model ACCGNRST3001
IC: 740D-GNRST3001
Yamaha Motor Corporation USA
7XF-2819W-100409.indd47XF-2819W-100409.indd4 2008/04/109:18:142008/04/109:18:14

page 5
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
dose cause harmful interference to radio or television reception, which can be determinde by turning
the equipment off and on, the user in encouraged to try to correct the interference by one or more of the
following measures:
8Reorient or relocate the receiving antenna.
8Increase the separation between the equipment and receiver.
8Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
8Consult the dealer or an experienced radio/TV technician for help.
The user is cautioned that changes and
modifications made to the equipment without the approval of manufacture
could void the user's authority to operate this equipment.
w
Keep the remote control transmitter away from children and pets.
cC
8Do not give the remote control transmitter any physical impact. Take care not to drop.
8Do not place the heavy objects on the remote control transmitter.
8Do not leave the remote control transmitter in hot places or in direct sunlight.
8Do not wet the remote control transmitter or place it on any wet object.
8Do not modify the remote control transmitter.

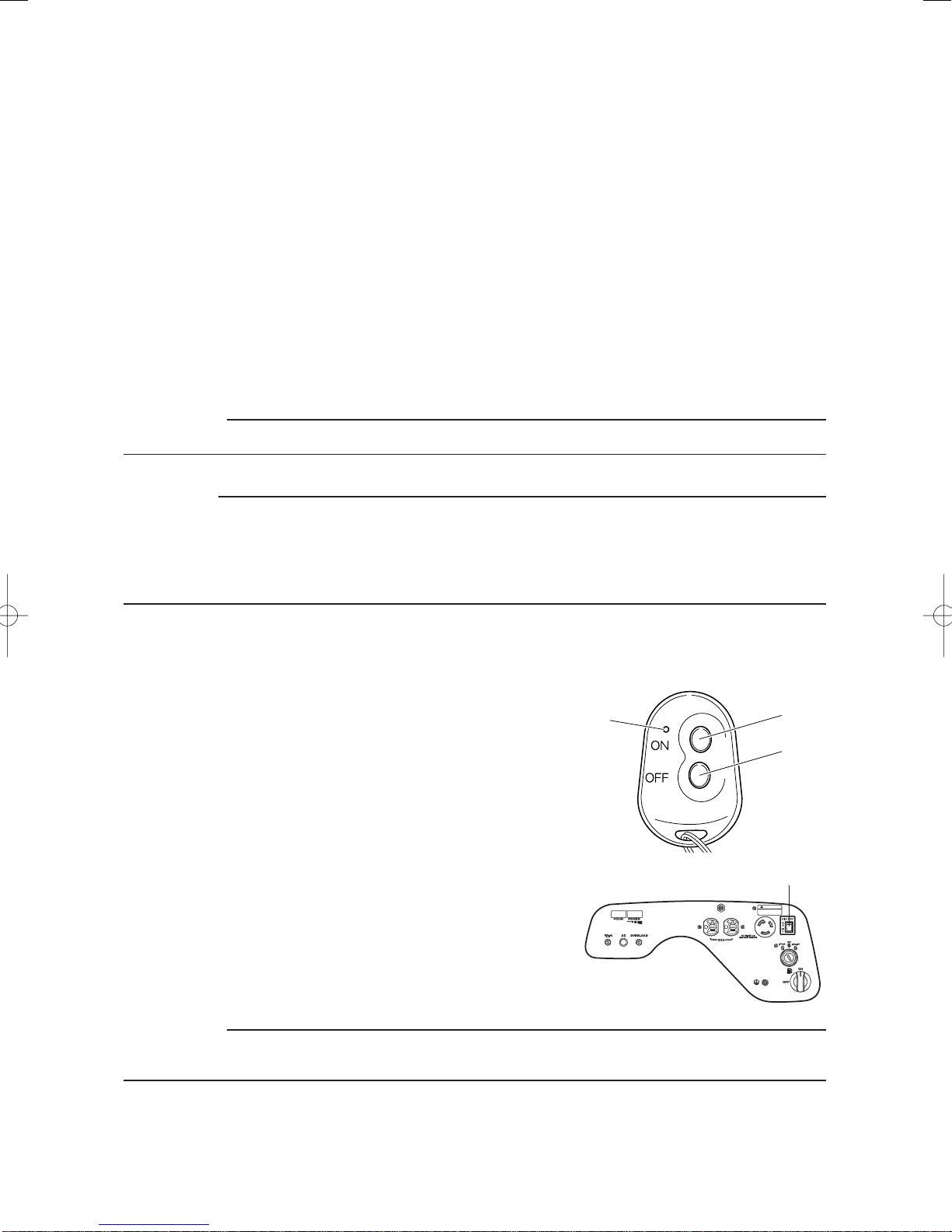

Control functions
w
If you do not use the remote control, always turn the remote control switch 4to "OFF". If this switch
is left "ON", the generator may start accidentally.
<Remote control transmitter>
"ON" button 1This button starts the generator by
pushing twice in a row.
"OFF" button 2This button stops the generator.
Indicator lamp 3This lamp lights in a short time when
you press the "ON" button or "OFF"
button. Also, it lights for approximately
1 second when the start and stop
buttons are operated correctly.
<Generator>
Remote control switch 4Turn this switch to "ON" when you
operate the generator using the
remote control.
2
1
3
4
Ifyou do not use the remote control, always
turnthe remote control switch 4 to "OFF". If
thisswitch is left "ON", the generator may start
accidentally.
WARNING
!
7XF-2819W-100409.indd57XF-2819W-100409.indd5 2008/04/109:18:152008/04/109:18:15

page 6
NOTE:
When both the engine switch of generator and the remote control switch 4are in "ON" position, the
generator becomes ready to receive signals from the remote control transmitter and you can operate the
generator by remote control.

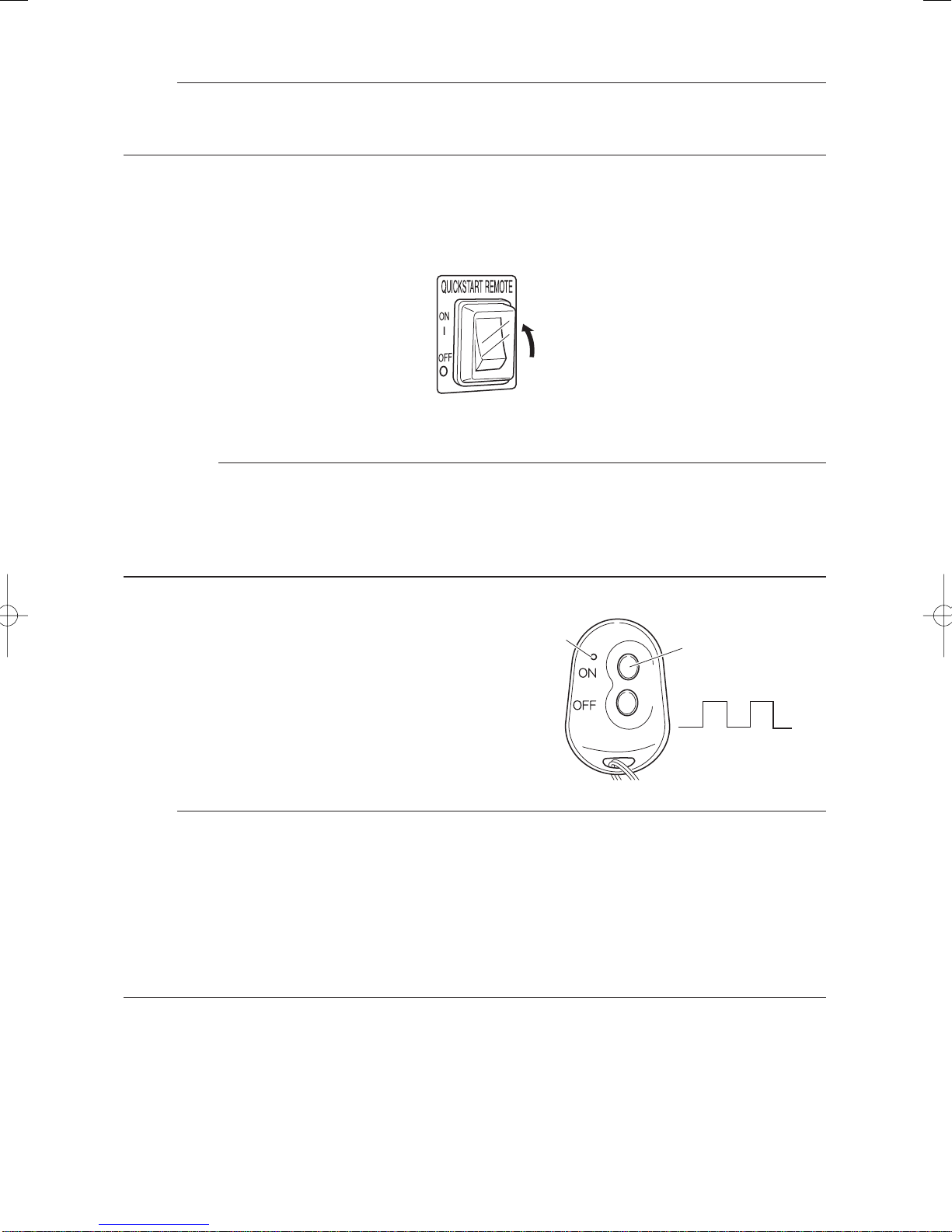

Preparing the remote control of generator
1. Turn the fuel cock knob to "ON".
2. Turn the engine switch to "7" (ON).
3. Turn the remote control switch to "ON".
4. Connect any electric devices to the generator.
cC
8Be sure all electric devices including the lines and plug connections are in good condition before
connection to the generator.
8Be sure any electric devices are turned off before plugging it in.
8Be sure the total load is within generator rated output.
8Be sure the receptacle load current is within receptacle rated current.
Starting the generator by remote control
Push "ON" button 1of remote control transmitter twice at the
0.5 second-interval.
When this operation is correct, indicator lamp 2of the remote
control transmitter lights for approximately 1 second. And, the
startup signal is sent to the generator.
NOTE:
8To prevent an unintentional startup of generator, this model is designed to require to push the "ON" button
twice in a row when starting the generator.
8When the button is pushed correctly, the indicator lights for approximately 1 second. However, the lighting
up of the indicator lamp does not mean the generator has started.
8When the generator receives a startup signal, the starter motor of the generator is rotated. If the engine of
the generator fails to start, the generator automatically retries to start two more times. If the generator did
not start after retries, the motor can not be started by remote control. In this case, turn the engine switch
of the generator to "OFF". After checking the generator to find out and solve the cause of start failure, turn
the engine switch of generator to "ON" again and start the motor by remote control.
Push 0.5
sec. 0.5 sec.
0.5
sec.
1
2
ON
7XF-2819W-100409.indd67XF-2819W-100409.indd6 2008/04/109:18:162008/04/109:18:16

page 7
Stopping the generator by remote control
Push "OFF" button 1of the remote control transmitter for
longer than 0.5 seconds.
When this operation is correct, indicator lamp 2of the remote
control transmitter lights for approximately 1 second. And, the
stop signal is sent to the generator.
w
When you stopped the generator by remote control, make sure that the generator has stopped
completely.
NOTE:
When the button is pushed correctly, the indicator lamp stays lit for approximately 1 second. However, the
lighting up of the indicator lamp does not mean the generator has stopped.
Canceling the remote control of generator
1. Disconnect any electric devices.
2. Turn the remote control switch to "OFF".
w
If you do not use the remote control, always turn the remote control switch to "OFF". If this switch is
left "ON", the generator may start accidentally.
3. Turn the engine switch to "5" (STOP).
4. Turn the fuel cock knob to "OFF".
Checking the voltage level of dry cell batteries
When the generator is stopped, hold down "OFF" button 1
of the remote control transmitter for longer than 0.5 seconds.
Indicator lamp 2lights up twice.
If the indicator lamp is dark when lighting or if the lamp does not
light up, replace the dry cell batteries.
Also, if the remote control does not respond sharply or if it does
not respond at all, replace its dry cell batteries.
How to replace dry cell batteries
w
8Use only the specified dry cell batteries with this remote control transmitter. Also, do not mix new
and old dry cell batteries. This could cause dry cell battery cracking or leakage, which could result
in fire or personal injury.
8When loading the dry cell battery, make sure the plus and minus terminals are correctly oriented.
Incorrect orientation could cause dry cell battery cracking or leakage, which could result in
personal injury or pollution of the surrounding environment.
8When you dispose the dry cell battery, you should obey the law in the relative area or country.
8Keep the dry cell battery away from children and pets.
OFF
1
2
1
2
7XF-2819W-100409.indd77XF-2819W-100409.indd7 2008/04/109:18:172008/04/109:18:17

page 8
1. Remove the screws from remote control transmitter, and
disassemble it.
2. Take out the dry cell batteries in the direction of a.
3. Insert new dry cell batteries from the direction of b.
Specified dry cell battery : CR2032 (3.0 V) button cell battery
Quantity : 2
a
b
Transmit ID to the receiver unit
For the user who purchased only the remote control transmitter, need to transmit ID to the receiver after
"Installing procedure" page 4.
1
2
1. Remove the front panel and pull out the control panel .
(See "Installing procedure" page 2.)
2. Disconnect the short harness coupler.
3. Turn the engine switch to "ON".
4. Push "OFF" button 1of the remote control transmitter
for longer than 0.5 seconds within 10 seconds. When this
operation is correct, indicator lamp 2of the remote control
transmitter lights for approximately 1 second. And, the
startup signal is sent to the generator.
7XF-2819W-100409.indd87XF-2819W-100409.indd8 2008/04/109:18:182008/04/109:18:18

page 9
TROUBLESHOOTING
●The generator does not start by remote control. (But the generator can be started
by turning the engine switch to "START".)
8The operation of "ON" button of remote control transmitter is incorrect.
→Push the "ON" button twice at the 0.5-second interval. (See “Starting the generator by remote control“
page 6.)
8The remote control switch of the generator is in "OFF" position.
→Turn the remote control switch of the generator to "ON" position. (See “Preparing the remote control of
generator“ page 6.)
8The dry cell batteries of remote control transmitter have discharged.
→Replace the dry cell batteries. (See “How to replace dry cell batteries“ page 7.)
8The radio waves do not reach the generator.
→Move to another location and try the remote control.
●The remote control transmitter is lost.
Please consult a Yamaha dealer.
5. Turn the engine switch to "STOP".
6. Reconnect the short harness coupler as it was.
7. Check the operation of remote control. (See "How to use
the remote control" page 4.)
NOTE:
If the remote control does not operate normally, turn the engine
switch to "STOP" and repeat procedure from 2 to 7.
8. Reassemble the control panel and front panel correctly.
(See "Installing procedure" page 2.)
7XF-2819W-100409.indd97XF-2819W-100409.indd9 2008/04/109:18:192008/04/109:18:19

page 10
EF4500iSE remote control kit INSTALLATION AND OPERATION MANUAL
© 2008 by Yamaha Motor Corporation, U.S.A.
Printed in Japan.
7XF-2819W-100409.indd107XF-2819W-100409.indd10 2008/04/109:18:192008/04/109:18:19
