Biamp Vocia VOIP-1-2 User manual

Biamp Systems, 9300 SW Gemini Drive, Beaverton, Oregon 97008 U.S.A. [phone] www.biamp.com
Vocia®
VOIP-1-2
&
VOIP-1-4
Operation Manual
April 2014

2
TABLE OF CONTENTS
VOCIA VOICE OVER IP INTERFACE (VOIP-1). ....................................4
FEATURES ..............................................................................4
SETUP AND USE ............................................................5
FRONT PANEL INFORMATION..............................................................5
Power ................................................................................5
Power (Chassis Indicator).................................................................5
Fault (Chassis Indicator)..................................................................5
Activity (Chassis Indicator) ................................................................6
Status (Chassis Indicator).................................................................6
Status ................................................................................6
In Use ................................................................................6
REAR PANEL INFORMATION...............................................................7
Power ................................................................................7
Device ID .............................................................................7
Network...............................................................................8
VOCIA VOIP-1 SPECIFICATIONS ...............................................9
WARRANTY ...............................................................10
COMPLIANCE .............................................................11
EC DECLARATION OF CONFORMITY ..........................................13
ROHS COMPLIANCE AND HAZARDOUS SUBSTANCE TABLE .....................14

3
IMPORTANT SAFETY INSTRUCTIONS
Lightning Bolt: Hazardous Live voltages present when this unit is in operation. Do not touch terminals marked with
this symbol while the unit is connected to live power.
Exclamation Point: Replace components (i.e. fuses) only with the values specied by the manufacturer. Failure to
do so will compromise safe operation of this unit
Hazardous Moving Fan Blades: Remove power before servicing and keep away from moving fan blades.
WARNING - To reduce the risk of re or electric shock, do not expose these products to rain or moisture. These products must
not be exposed to dripping or splashing and no objects lled with liquids, such as vases, shall be placed on these products.
WARNING – 100 Volt Speaker terminals marked with the symbol are Hazardous Live. External wiring connected to these
terminals requires installation by a Skilled or Instructed Person.
WARNING – MAINS Powered Products employ Safety Grounding and must be connected to a MAINS socket that is properly
grounded to provide a protective earthing connection.
Disconnect Device - The MAINS plug is used to disconnect MAINS power and must remain readily operable.
CAUTION – When POTS Telephone Interface options are provided, connections to the telecom circuits of this device must
be made by qualied, trained personnel. To reduce the risk of re, use only No. 26 AWG solid copper wire for telecom circuit
connections.
Intended for Installation and Service by Skilled Personnel Only:
CAUTION – To reduce the Risk of Electric Shock, Installation and Service of Biamp Products should be conducted only by
Skilled Persons who are Biamp Qualied Audio Installation Professionals.
Do not perform any servicing other than that contained in the Operating Instructions unless you are a Skilled Person qualied
to do so.
Skilled Persons must disconnect AC MAINS Power before opening product.
CAUTION - The Installation steps for ‘Auxiliary Power’ are for use by Skilled Personnel only and must comply with all local
codes.
• National Electrical Code, ANSI/NFPA 70 for United States.
• Canadian Electrical Code, Part 1, CSA C22.1, Sections 2-128, 12-010(3) and 12-100 for Canada.
Wall Mounting Instructions – Wall mounted products must be securely fastened to drywall or similar surface using a
minimum of 4 wood screws (2 screws for product with only two mounting holes). Alternate fasteners which may be used
include drywall anchors, self-tapping sheet metal screws located in metal studs or wood screws extending a minimum of ½
inch into wood studs.
Explanation of Graphical Symbols:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this product near water.
6) Clean only with dry cloth.
7) Do not block ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other products
(including ampliers) that produce heat.
9) Do not defeat the safety purpose of the grounding-
type plug. A grounding type plug has two blades and a
third grounding prong.
The third prong is provided for your safety. If the
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched, particularly at plugs, convenience receptacles
and the point where they exit from the product.
11) Only use attachments/accessories specied by the
manufacturer.
12) Use only with equipment rack,
cart, stand or table designed to provide
adequate mechanical strength, heat
dissipation and securement to the
building structure.
When a cart is used, use caution when moving the cart
and product combination to avoid injury from tip-over.
13) Unplug this product during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualied service personnel.
Servicing is required when the product has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have
fallen into the product, the product has been exposed to
rain or moisture, does not operate normally, or has been
dropped.

4
VOCIA VOICE OVER IP INTERFACE (VOIP-1)
The Vocia Voice over IP Interface (VOIP-1) facilitates a direct connection from SIP-based VoIP extensions. The interface permits live, real-
time paging using any Page Code within the Vocia system. When calling into a VoIP line, a number of software congurable voice prompt
functions are available including Page Code selection, Zone status indication and Page Now indication. A DTMF sequence of tones can
also be programmed in the software to be associated with a Vocia Control Input Event.
The VOIP-1-2 features support for up to two VoIP lines and the VOIP-1-4 supports up to four lines.
In the event of a busy Zone status, the VOIP-1 supports page stacking and Store-and-Forward message queuing.
The VOIP-1 supports Pre-recorded Messages when a Message Server (MS-1) is present in the system. The VOIP-1 also supports
Emergency Paging functions when a Vocia Life Safety Interface (LSI-16 or LSI-16e) is present in the system.
Features
• Provision for two or four VoIP lines (model dependent)
• Device monitoring
• Power via 24V DC supply (dual redundant inputs)
• Software-congurable signal processing
• CobraNet®audio and control over a single Ethernet cable
• Dual CobraNet Ports for redundancy
• Rotary switches for device identication
• IP30 Compliant
• CE marked, UL listed and RoHS compliant
• Covered by Biamp Systems 5-year warranty

5
VOCIA VOICE OVER IP INTERFACE (VOIP-1) FRONT PANEL
Setup and Use
The Vocia software provides the interface for conguring and programming the VOIP-1. The information supplied by this manual relates to
hardware installation, physical connections, and device information. For more details on software setup, please consult the Vocia Software
Help File.
Front Panel Information
The VOIP-1 LEDs are as follows (from left to right when viewing the front of the chassis):
1. 24V DC power 1
2. 24V DC power 2
3. Fault
4. Activity
5. Status
6. Line 1 Status
7. Line 1 In Use
8. Line 2 Status
9. Line 2 In Use
10. Line 3 Status (functional for VOIP-1-4 model only)
11. Line 3 In Use (functional for VOIP-1-4 model only)
12. Line 4 Status (functional for VOIP-1-4 model only)
13. Line 4 In Use (functional for VOIP-1-4 model only)
Power (Chassis Indicator)
The VOIP-1 has two power indicators. If power is applied to one or both 24V DC power connectors, the corresponding LED will be on.
• Off – The corresponding power connection is not in the working voltage range.
• Solid green – The corresponding power connection is receiving 24V DC power.
Fault (Chassis Indicator)
There are two types of chassis faults that will be reported, depending on the severity of the problem. Audio may still be passing, but if the
condition causing the warning is not corrected, a failure may occur.
• Off – Normal operation.
• Flashing – A warning has occurred, meaning some aspect of the unit chassis is not performing within normal specication.
• Solid – A Fault has occurred, meaning some aspect of the unit has failed and audio may not be passing.

6
VOCIA VOICE OVER IP INTERFACE (VOIP-1) FRONT PANEL
Activity (Chassis Indicator)
The VOIP-1 has an Activity LED that will illuminate to show the conguration status of the unit.
• Off – The unit is not congured.
• Solid green – The unit is congured
Status (Chassis Indicator)
The VOIP-1 has a tri-color Status LED that indicates the health of the hardware.
• Solid green – Unit is powered-up and working normally.
• Flashing amber – Will be shown briey during the power-up self-test and will turn steady green upon a successful start.
• Solid red – The unit experienced a problem during the power-on self-test.
Status
• Flashing green – When trying to complete SIP registration.
• Solid green – When SIP registration is complete and the VoIP line is available.
In Use
• Off – No incoming call activity.
• Solid green – Incoming call or connected call.
Note: The third and fourth ‘Status’ LEDs and ‘In Use’ LEDs will remain extinguished at all times on the VOIP-1-2 model.

7
VOCIA VOICE OVER IP INTERFACE (VOIP-1) REAR PANEL
Rear Panel Information
Power
The VOIP-1 requires a 24V DC power source to operate, and is capable of accepting dual 24V DC inputs for redundancy. Both power
sources may be connected concurrently, however each must be capable of supporting the full 30-Watt load of the unit (inputs are not
intended to load-share). Loss or return of either power source will not result in an interruption to normal operation as long as one of these
power sources remains functional. Monitoring of power sources is selectable via the Vocia Software.
The power connector is a four-way 5.08mm standard header with mating pluggable screw terminal block with cable restraint. When power
is present the corresponding front panel green power LED will illuminate.
Pin Function
1 DC Power 1 24V(+)
2 DC Power 1 24V(-)
3 DC Power 2 24V(+)
4 DC Power 2 24V(-)
Device ID
The rotary ID switches on the VOIP-1 give the unit a unique Device ID. The switches are in hexadecimal format. All
VOIP-1 units must have a unique Device ID to function within a Vocia Paging World (i.e. it is not possible to have
two VOIP-1 units with the same Device ID of hex 07). To assign a Device ID of hex 07, turn the MSB switch on 0 and
leave the LSB switch to 7. To create an ID of hex B7, turn the MSB switch to B and turn the LSB switch to 7. Device
ID switches should be set using a 0.1 inch (2.5mm) to 0.12 inch (3.0mm) at blade screwdriver. More information on setting IDs and the
hexadecimal numbering scheme used in Vocia can be found in the Vocia Help File.
Please note: changes made to the Device ID while connected to the network require a power cycle in order to take effect.
Caution – Due to potential energy hazard, connections to the Aux Power 24V DC inputs must be
made by qualied electrician or other qualied person as required to conform with all local codes.
851.0386.900

8
VOCIA VOICE OVER IP INTERFACE (VOIP-1) REAR PANEL
Network
The VOIP-1 is designed to be used in a single Vocia World and utilizes the Vocia CobraNet LAN to communicate with the rest of the Vocia system.
The unit has two monitored RJ-45 Ethernet network connectors that allow a redundant connection to be utilized if required. The primary connection
will always have priority over the Secondary connection. The secondary connection can be disabled in Vocia software if not required. The RJ-45
connectors use two LEDs to indicate Ethernet link and network activity (see table below).
Left LED Right LED Description
None None No Data Connectivity or CobraNet activity
None Flashing green Link established
Solid amber Flashing green Link established and CobraNet activity detected. The unit is acting as a CobraNet Performer.
Flashing amber Flashing green Link established and CobraNet activity detected. The unit is acting as a CobraNet Conductor.
Flashing amber None CobraNet fault. Check cabling and conguration for errors.
The maximum distance between any unit and an Ethernet switch is 328 feet (100 meters) when using copper cabling. Additional Ethernet
switches and/or ber-optic cable can be used to further extend distances between units on a network. Please note that CobraNet limits
network extensions to seven hops (one-way transmissions) within a network.

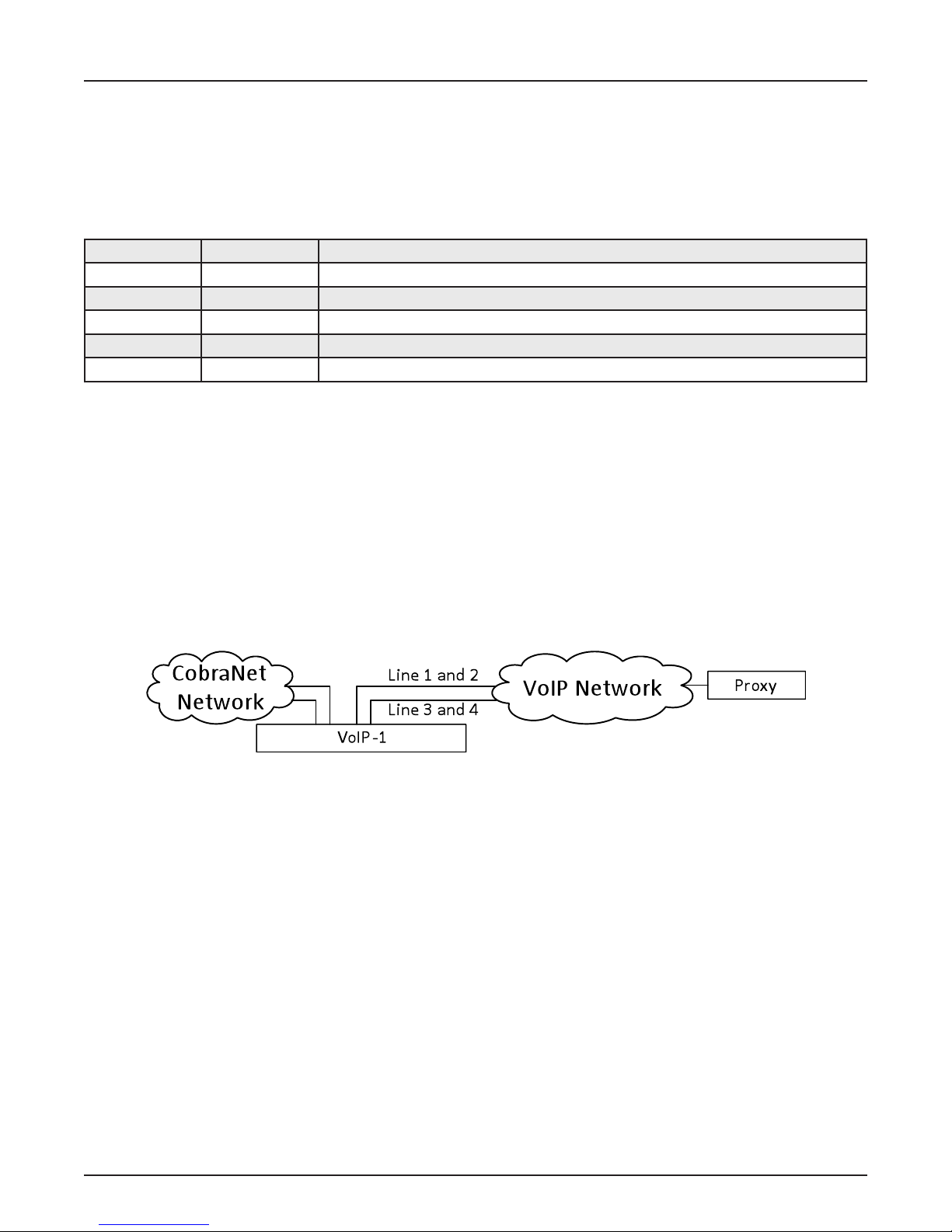

VoIP Connections
Each RJ-45 VoIP connection will support up to two lines. The connection will act as a third-party SIP endpoint.
The VOIP-1-2 unit can support up to two VoIP lines via 1 RJ-45 connector.
The VOIP-1-4 unit can support up to four VoIP lines via 2 RJ-45 connectors.

9
VOCIA VOICE OVER IP INTERFACE (VOIP-1) SPECIFICATIONS
Vocia VOIP-1 SPECIFICATIONS
Network Audio 20-bits, 48kHz, 5-1/3ms (fixed) Power:
Network Connection: Dual RJ45 with shielded Ethernet cable
(CAT5, CAT5e, CAT6, or CAT7)
DC Power:Network Audio
20-bits, 48kHz, 5-1/3ms
(fixed)
24V DC; <100mV Ripple (Max 30W)
VoIP Card Overall Dimensions:
Supported Codecs G.711μ
G.711A
G.722
G.729AB
G.723.1
Height:
Width
Depth:
Weight:
1.75 Inches (44mm)
19 Inches (482mm)
9 Inches (228mm)
2.4lbs (1.1kg)
Sample Rate
Frequency response
8kHz –16kHz
Codec Dependent
Environment:
Ambient Operating Temperature Range:
Altitude:
Humidity:
18-108 degrees F
(-8 – 42° C)
0-10,000 Feet (0-3000 Meters) MSL
0 – 100% non-condensing
VoIP Features SIP v2 (RFC 3261 and companion RFCs)
SIP Authentication
Network Features Compliance: FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA & Canada)
RCM (Australia)
EAC (Eurasian Customs Union)
RoHS Directive (Europe)
IP Address Assignment
QoS
Static or DHCP
Tos (RFC 791)
802.1 p/q

101010
BIAMP SYSTEMS IS PLEASED TO EXTEND THE FOLLOWING 5-YEAR LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF
THE PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL
1. Biamp Systems warrants to the original purchaser of new products that the product will be free from defects in material and workman-
ship for a period of 5 YEARS from the date of purchase from an authorized Biamp Systems dealer, subject to the terms and conditions
set forth below.
2. If you notify Biamp Systems during the warranty period that a Biamp Systems product fails to comply with the warranty, Biamp
Systems will repair or replace, at Biamp Systems’ option, the nonconforming product. As a condition to receiving the benets of this
warranty, you must provide Biamp Systems with documentation that establishes that you were the original purchaser of the products.
Such evidence may consist of your sales receipt from an authorized Biamp Systems dealer. Transportation and insurance charges to
and from the Biamp Systems factory for warranty service shall be your responsibility.
3. This warranty will be VOID if the serial number has been removed or defaced; or if the product has been altered, subjected to damage,
abuse or rental usage, repaired by any person not authorized by Biamp Systems to make repairs; or installed in any manner that does
not comply with Biamp Systems’ recommendations.
4. Electro-mechanical fans, electrolytic capacitors, gooseneck microphones, cords connecting handheld microphones, hard-drives,
displays, and normal wear and tear of items such as paint, knobs, handles, keypads and covers are not covered under this warranty.
All server-based devices are warranted for 3 years only.
5. This warranty is in lieu of all other warranties, expressed or implied. Biamp Systems disclaims all other warranties, expressed or
implied, including, but not limited to, implied warranties of merchantability and tness for a particular purpose.
6. The remedies set forth herein shall be the purchaser’s sole and exclusive remedies with respect to any defective product.
7. No agent, employee, distributor or dealer of Biamp Systems is authorized to modify this warranty or to make additional warranties on
behalf of Biamp Systems. Statements, representations or warranties made by any dealer do not constitute warranties by Biamp Systems.
Biamp Systems shall not be responsible or liable for any statement, representation or warranty made by any dealer or other person.
8. No action for breach of this warranty may be commenced more than one year after the expiration of this warranty.
9. Biamp Systems shall not be liable for special, indirect, incidental, or consequential damages, including lost prots or loss of use arising
out of the purchase, sale, or use of the products, even if Biamp Systems was advised of the possibility of such damages.
WARRANTY
585.0386.90A

1111111111
FCC COMPLIANCE
FCC Notice - Class A digital device - This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at
own expense.
TELECOM COMPLIANCE
CAUTION – For protection against overvoltage on telecommunication circuits, for example from power line crosses; use minimum No. 26
AWG telecommunication line cord.
Telephone Interface Information - This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.
On the rear panel of this equipment are markings that contain, among other information, telecom product identier US:6RMBR00BSTC-2.
If requested, this number must be provided to the telephone company.
This equipment is designed for modular connection with Universal Service Order Codes (USOC) RJ-11C, RJ-11W, RJ-14C, RJ-14W.
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part
68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed
to be connected to a compatible modular jack that is also compliant. See installation instructions for details.
Ringer Equivalency Number (REN) - The REN is used to determine the number of devices that may be connected to a telephone line.
Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the
sum of RENs should not exceed ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by the
total RENs, contact the local telephone company. The REN for this product is 0.0 as indicated by part of the product identier that has the
format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 00 is a REN of 0.0).
Alarms connected to telephone line - If your facility has specially wired Alarm equipment connected to the telephone line, ensure the
installation of this US:6RMBR00BSTC-2 does not disable your Alarm equipment. If you have questions about what will disable Alarm
equipment, consult your telephone company or a qualied installer.
Automatic Dialer - WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:
1. Remain on the line and briey explain to the dispatcher the reason for the call.
2. Perform such activities in the off-peak hours, such as early morning or late evenings.
Electrical Safety Advisory - Telephone companies report that electrical surges, typically lightning transients, are very destructive
to customer terminal equipment connected to AC power sources. The use of a surge arrestor on the telephone line is recommended,
particularly in areas that are prone to lightning strikes.
Service - This equipment is not user serviceable. If trouble is experienced with this equipment US:6RMBR00BSTC-2, for repair or warranty
information, please contact Biamp Systems Corporation, phone number 503.641.7287. If the equipment is causing harm to the telephone
network, the telephone company may request that you disconnect the equipment until the problem is resolved.
If this equipment US:6RMBR00BSTC-2 causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer
as soon as possible. Also, you will be advised of your right to le a complaint with the FCC if you believe it is necessary.
COMPLIANCE

1212121212
COMPLIANCE
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the
equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modications to
maintain uninterrupted service.
Party Lines - Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service
commission or corporation commission for information.
New Zealand Telecom Notice
New Zealand Telepermit - The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item
complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide
any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted
equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom’s network services
This equipment shall not be set up to make automatic calls to the Telecom ‘111’ Emergency Service
IMPORTANT NOTICE - Under power failure conditions, this telephone may not operate. Please ensure that a separate telephone, not
dependent on local power, is available for emergency use.

13131313
COMPLIANCE
DoC VVOIP201311

EC Declaration of Conformity
Biamp Systems Corporation, as manufacturer having sole responsibility, hereby declares
that our delivered version the following described product complies with the applicable
provisions of the DIRECTIVES below except as noted herein. Any alterations to the product
not agreed upon and directed by Biamp Systems Corporation will invalidate this declaration.
Brand Name: Vocia®
Product Description: VoIP Telephone Interface Expander
Model: Vocia VoIP-1
Applicable EC Directives: Applicable Harmonized Standards:
LVD Directive (2006/95/EC) Safety EN 60065:2002, + A1:2006,
+ A11:2008, + A2:2010, + A12:2011
EMC Directive (2004/108/EC) Emissions EN 55103-1:2009, Environment E2
Immunity EN 55103-2:2009, Environment E2
RoHS Directive (2011/65/EU) RoHS Recast
Special Considerations for Product Environment or Compliance:
Use only CE marked Power over Ethernet (PoE) power supply and/or DC power supply.
Shielded cabling must be used for system connections.
Technical Construction File, Location and Contact:
Biamp Systems Corporation phone: [phone]
9300 S.W. Gemini Drive fax: [phone]
Beaverton, OR USA 97008 e-mail: [email protected]
Authorized Representative: Larry Copley, Compliance Engineer
Authorized Signature:
Date and Place Issued: November 2013, Beaverton, Oregon USA

14141414
COMPLIANCE
EU RoHS COMPLIANT
This Biamp product, including all attendant cables and accessories supplied by
Biamp, meets all requirements of EU Directives 2011/65/EU.
The information below is presented in accordance with similar requirements of
Chinese law SJ/T11363-2006.
有害物质表 (Hazardous Substances Table)
Biamp Systems Corporation
音频输入设备 (Audio Input Device)
型号 VOIP-1-2, VOIP-1-4
在正常使用情况下，中国环保使用期限为 10 年，条件是：
• 环境温度为 (Ambient Temperature) 0-40C (32-104°F)
• 湿度为 0-95%，无凝结
• 海拔高度为 0-10,000 英尺
• 气流不受阻碍
• 没有水或其他液体进入任何部件
• 电源为 (Power Supply) 100-240 Vac, 50/60 Hz, 1.7A
• 部件没有损坏（损坏部件应立即修理）
• 由工厂授权人员使用批准的材料进行所有维修
0：表示该部件所有均质材料中的这种有毒有害物质低于 SJ/T11363-2006 的限制要求.
X：表示该部件中至少有一种均质材料所含的这种有毒有害物质高于 SJ/T11363-2006 的限制要求.
在电触头和（或）镀镉所含的均质材料中，镉及其化合物的含量可以超过 0.01%，但欧盟指令 91/338/EEC（根据欧
盟指令 76/769/EEC）限制销售和使用某些危险物质和制剂部分中所禁止的用途除外
部件名称 (Part Name)
有毒有害物质或元素 (Substances)
Pb
铅
Hg
汞
Cd
镉
Cr+6
六价铬
PBB PBDE
设备机箱 (Equipment Chassis) X O X O O O
插拔式接线端子 (Plug-in Terminal Blocks) O O O O O O
交直流电源适配器 (AC-DC Power Supply Adaptor) X O X O O O
电源线 (Power Cord) O O O O O O
手册和其他书面文档 (Manual and Paper Documents) O O O O O O
包装箱和所有包装材料 (Box and Packing Materials) O O O O O O
在以下一种或多种物质所含的均质材料中，铅及其化合物的含量可以超过 0.1%:
1. 电子元器件中玻璃内所含的铅
2. 铅在钢材中是作为一种合金元素，含量可达 0.35%
3. 铅在铝材中是作为一种合金元素，含量可达 0.4%
4. 铅在铜材中是作为一种合金元素，含量可达 4%
5. 高熔点类焊料中的铅（即铅料合金，铅含量超过 85%）
6. 电子陶瓷部件内的铅
7. 由两种以上元素组成的焊料中所含的铅，用于连接针脚和微处理器包装，其中铅
的含量超过 80% 但低于 85%
8. 顺应针连接系统内的铅
9. 倒装芯片封装中半导体芯片及载体之间形成可靠连接所用焊料中的

15151515
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
Rayo: Voltajes activos peligrosos mientras la unidad está en funcionamiento. No toque las terminales marcadas
con este símbolo mientras la unidad se encuentre conectada a una salida activa de energía.
Signo de exclamación: Reemplace los componentes (es decir, los fusibles) solo de acuerdo con los valores
indicados por el fabricante. De no hacerlo, se pondrá en riesgo el funcionamiento seguro de esta unidad.
Aspas de ventilador en movimiento peligrosas Desenchufe el producto antes de realizar reparaciones y aléjelo de
las aspas en movimiento de los ventiladores.
Explicación de los símbolos grácos:
1) Lea estas instrucciones.
2) Guarde estas instrucciones.
3) Preste atención a todas las advertencias.
4) Siga todas las instrucciones.
5) No utilice este producto cerca del agua.
6) Limpie solo con un paño seco.
7) No obstruya los oricios de ventilación. Instale el
producto según las instrucciones del fabricante.
8) No lo instale cerca de ninguna fuente de calor como
radiadores, rejillas de calefacción, estufas u otros
productos (incluidos amplicadores) que produzcan
calor.
9) No anule el propósito de seguridad del enchufe con
conexión a tierra. Un enchufe con conexión a tierra
tiene dos clavijas y una tercera punta con conexión a
tierra.
La tercera punta se provee para su seguridad. Si el
enchufe suministrado no se adapta a su tomacorriente,
recurra a un electricista para reemplazar la toma
obsoleta.
10) Proteja el cable de alimentación eléctrica para
evitar que sea pisado o aplastado, en especial en los
enchufes, receptáculos convenientes y el punto donde
salen del producto.
11) Solo utilice complementos/accesorios indicados por
el fabricante.
12) Utilice solo con el soporte,
carro, base o mesa diseñados para
proporcionar fuerza mecánica adecuada,
disipación del calor y seguridad a la
estructura del edicio.
Cuando se utiliza un carro, tenga cuidado al mover
la combinación del carro con el producto para evitar
lesiones en caso de una caída.
13) Desenchufe este producto durante tormentas
eléctricas o si no va a utilizarlo por largos períodos de
tiempo.
14) Todas las reparaciones deben ser realizadas por
personal calicado. La reparación es necesaria cuando
el producto presenta cualquier tipo de daño como,
por ejemplo, si se deteriora el cable de alimentación
eléctrica o enchufe, si se derraman líquidos o caen
objetos dentro del producto, si se expone el producto a
la lluvia o humedad, si no funciona normalmente o si se
ha caído.

16161616
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
ADVERTENCIA – Para reducir el riesgo de incendio o descarga eléctrica, no exponga estos productos a la lluvia o humedad.
Estos productos no deben exponerse a goteos o salpicaduras ni deben posarse sobre ellos objetos que contengan líquidos
como, por ejemplo, jarrones.
ADVERTENCIA – Las terminales de altavoces de 100 voltios que aparecen marcadas con el símbolo están activas y
son peligrosas. La conexión externa de cables a estas terminales requiere la instalación a cargo de una persona calicada o
debidamente instruida.
ADVERTENCIA – Los productos con alimentación eléctrica utilizan conexión a tierra de seguridad y deben conectarse a
tomacorrientes que funcionen correctamente para brindar una conexión a tierra de protección.
Desconexión del dispositivo – El enchufe de alimentación eléctrica se utiliza para desconectar esta alimentación y deberá
poder accionarse fácilmente.
PRECAUCIÓN – Cuando se proporcionan las opciones de interfaz telefónica POTS, las conexiones a los circuitos de
telecomunicaciones de este dispositivo deber ser realizadas por personal calicado y entrenado. Para reducir el riesgo de
incendio, use solo cables de cobre sólido N.° 26 AWG para las conexiones de los circuitos de telecomunicaciones.
Para la instalación y mantenimiento solo por parte de personal calicado:
PRECAUCIÓN – Para reducir el riesgo de descarga eléctrica, la instalación y el mantenimiento de los productos Biamp deben
ser realizados por personas calicados que formen parte de los Profesionales capacitados en la instalación de audio de
Biamp.
No realice ninguna reparación que no se encuentre en las Instrucciones de uso, a menos que sea una persona calicada para
hacerlo.
Las personas calicadas deben desenchufar la alimentación eléctrica de CA antes de abrir el producto.
PRECAUCIÓN – Los pasos para la instalación de una “energía auxiliar” están dirigidos solo al personal calicado y deben
cumplir con todos los códigos locales.
• Código eléctrico nacional: ANSI/NFPA 70 para los Estados Unidos.
• Código eléctrico canadiense: parte 1, CSA C22.1, secciones 2-128, 12-010(3) y 12-100 para Canadá.
Instrucciones para el montaje sobre la pared – Los productos que sean montados sobre la pared deben estar bien
ajustados al yeso u otra supercie con el uso de, al menos, 4 tornillos para madera (2 tornillos para los productos con solo
dos oricios de montaje). Los enganches alternativos que pueden utilizarse incluyen pernos de anclaje para paredes de yeso,
tornillos de metal laminado con rosca cortante los cuales se ubican en montantes de metal o tornillos para madera que se
prolongan poco más de 1,5 cm dentro de los montantes de madera.

17171717
CONSIGNES DE SÉCURITÉ IMPORTANTES
Éclair : tensions dangereuses présentes lorsque l’appareil est en fonctionnement. Ne touchez pas les parties de
l’appareil portant ce pictogramme tant qu’il est branché sur une ligne électrique.
Point d’exclamation : remplacez les composants (fusibles, par exemple) uniquement par des composants possédant
les caractéristiques spéciées par le fabricant sous peine d’altérer le bon fonctionnement de l’appareil.
Danger : pales de ventilateur en mouvement. Coupez l’alimentation avant toute intervention et restez à distance des
pales en mouvement.
Signication des pictogrammes:
1) Lisez attentivement les présentes instructions.
2) Conservez les présentes instructions.
3) Prêtez une extrême attention aux avertissements.
4) Respectez toutes les consignes données.
5) N’utilisez pas ce produit à proximité d’eau.
6) Nettoyez uniquement avec un chiffon sec.
7) Ne bouchez pas les ouvertures destinées à la
ventilation. Suivez les instructions d’installation du
fabricant.
8) Tenez le produit à l’écart des sources de chaleur,
comme les radiateurs, les grilles d’air chaud, les
cuisinières ou autres produits (dont amplicateurs) qui
émettent de la chaleur.
9) Préservez la protection offerte par le branchement de
mise à la terre. Le connecteur est reconnaissable par
ses deux broches accompagnées d’un contact de mise
à la terre.
Ce troisième contact est fourni pour votre sécurité. Si
le connecteur fourni ne correspond pas à votre prise,
renseignez-vous auprès d’un électricien.
10) Placez le cordon à l’écart des zones de passage
et veillez à ce qu’il ne soit pas pincé, en particulier au
niveau des prises, des multiprises et de la sortie de
l’appareil.
11) Utilisez exclusivement les xations/accessoires
spéciés par le fabricant.
12) Utilisez uniquement des tables,
supports, étagères ou chariots capables
de supporter le poids du produit et
d’offrir la dissipation de chaleur et la
sécurité requises (xation à la structure
du bâtiment).
Si vous placez le produit sur un chariot, déplacez-le avec
précaution pour éviter de le renverser.
13) Débranchez le produit pendant les orages ou les
périodes d’inutilisation prolongées.
14) Conez toutes les interventions à un personnel
qualié. Ces interventions peuvent s’avérer nécessaire
dans certaines situations : détérioration du produit
(connecteur ou cordon d’alimentation endommagé, par
exemple), liquide renversé sur le produit, objets tombés
dans le produit, exposition du produit à l’humidité ou à
la pluie, fonctionnement anormal du produit, chute du
produit, etc.

18181818
CONSIGNES DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT – Pour limiter les risques d’incendie ou d’électrocution, n’exposez pas ce produit à l’humidité ou à la pluie.
Mettez-le à l’abri des projections et écoulements, et veillez à ne placer aucun objet rempli de liquide (vases, par exemple) à
proximité.
AVERTISSEMENT – Les bornes des haut-parleurs 100 V comportent le pictogramme signalant une tension dangereuse.
Toute connexion externe à ces bornes doit être effectuée par un technicien qualié ou compétent.
AVERTISSEMENT – Le raccordement du produit au secteur doit être réalisé par le biais d’un câble et d’une prise offrant une
mise à la terre adéquate.
Débranchement de l’appareil – La prise secteur doit être accessible pour que l’appareil puisse être débranché dès que
l’utilisateur souhaite couper l’alimentation.
MISE EN GARDE – En présence d’un service téléphonique traditionnel, les connexions aux circuits de télécommunication
de l’appareil doivent être effectuées par un personnel qualié et compétent. Pour limiter les risques d’incendie, utilisez
uniquement des ls de cuivre solides de calibre AWG 26 (0,129 mm2).
Installation et interventions réservées au personnel compétent :
MISE EN GARDE – Pour limiter les risques d’électrocution, l’installation des produits Biamp et les interventions sur ces
produits doivent être réalisées uniquement par du personnel compétent faisant partie des professionnels d’installation audio
qualiés de Biamp.
Seul le personnel compétent est habilité à exécuter des opérations d’entretien ou de maintenance autres que celles indiquées
dans les instructions d’utilisation.
Le personnel compétent doit débrancher l’alimentation secteur avant toute tentative d’accès à l’intérieur du produit.
MISE EN GARDE – Les instructions d’installation qui se rapportent à l’alimentation auxiliaire sont exclusivement destinées au
personnel compétent. Cette installation doit être effectuée conformément aux réglementations locales.
• National Electrical Code, ANSI/NFPA 70 pour les États-Unis
• Canadian Electrical Code, partie 1, CSA C22.1, sections 2-128, 12-010(3) et 12-100 pour le Canada
Consignes pour le montage mural – Dans tout montage mural, le produit doit être solidement xé à une cloison sèche ou
autre surface similaire au moyen de quatre vis à bois au minimum (deux vis s’il s’agit d’un produit comportant uniquement
deux trous de montage). D’autres xations peuvent être utilisées, comme des chevilles pour cloison sèche, des vis à tôle en
cas de poteau métallique ou des vis à bois s’enfonçant au moins sur 1,5 cm (0,5 po) dans la structure bois.

19191919
WICHTIGE SICHERHEITSHINWEISE
Blitz: Beim Betrieb dieses Geräts entstehen lebensgefährliche Spannungen. Berühren Sie keine Anschlüsse mit
diesem Symbol, während das Gerät an ein Netzteil mit eingeschalteter Spannungsversorgung angeschlossen ist.
Ausrufezeichen: Ersetzen Sie Bauteile (z. B. Sicherungen) nur entsprechend den vom Hersteller angegebenen
Werten. Bei Missachtung ist die Sicherheit dieses Geräts nicht mehr gewährleistet.
Rotierende Lüfterügel: Vor Wartungsarbeiten Stromversorgung unterbrechen und von beweglichen Lüfterügeln
fernhalten.
Erklärung grascher Symbole:
1) Lesen Sie diese Hinweise.
2) Bewahren Sie diese Hinweise auf.
3) Beachten Sie die Warnhinweise.
4) Befolgen Sie die Hinweise.
5) Verwenden Sie dieses Produkt nicht in der Nähe von
Wasser.
6) Nur mit einem trockenen Tuch reinigen.
7) Ventil- und Lüftungsöffnungen nicht abdecken.
Produkte gemäß den Hinweisen des Herstellers
installieren.
8) Nicht in der Nähe von Wärmequellen wie Radiatoren,
Wärmespeichern, Kochächen oder sonstigen
Produkten (einschließlich Verstärker), die Wärme
produzieren, installieren.
9) Sicherheitsfunktion des geerdeten Steckers
nicht umgehen. Ein geerdeter Stecker hat zwei
Stromkontakte und einen dritten Erdungskontakt.
Der dritte Erdungskontakt dient Ihrer Sicherheit. Passt
der mitgelieferte Stecker nicht in die Steckdose, lassen
Sie diese von einem Elektriker austauschen.
10) Schützen Sie das Netzkabel vor Beschädigungen,
besonders am Stecker, an Mehrfachsteckdosen und am
Ausgang vom Gerät.
11) Verwenden Sie ausschließlich die vom Hersteller
angegebenen Befestigungen/Zubehörteile.
12) Nur mit Geräteträger, Rollwagen,
Ständer oder Tisch verwenden, wobei
eine ausreichende mechanische
Festigkeit, Wärmeableitung und
Absicherung mit der Gebäudestruktur
geboten ist.
Wenn ein Rollwagen verwendet wird, beim Bewegen der
Rollwagen-Gerät-Kombination vorsichtig vorgehen, um
Verletzungen durch Umkippen zu vermeiden.
13) Trennen Sie das Gerät während eines Gewitters
oder bei längerer Nichtbenutzung vom Stromnetz.
14) Überlassen Sie jegliche Wartung qualiziertem
Personal. Wartungsarbeiten oder Reparaturen sind
erforderlich, wenn das Netzkabel oder der Stecker
beschädigt ist, wenn Flüssigkeit oder Gegenstände in
das Geräteinnere eingedrungen sind, wenn das Gerät im
Regen oder in feuchter Umgebung gestanden ist, sich
nicht erwartungsgemäß verhält oder wenn es gefallen
ist.

20202020
WICHTIGE SICHERHEITSHINWEISE
ACHTUNG – Um das Risiko eines Brandes oder eines elektrischen Schlages zu vermeiden, das Gerät vor Regen und
Feuchtigkeit schützen. Das Gerät vor Tropfen oder Wasserspritzern schützen. Keine mit Flüssigkeit befüllten Behälter, wie
Blumenvasen oder ähnliche Gegenstände, auf das Gerät stellen.
ACHTUNG – 100-Volt-Lautsprecherklemmen mit dem Symbol bedeuten Lebensgefahr. Die externe Verkabelung an
diesen Anschlüssen darf nur von geschulten oder beaufsichtigten Personen vorgenommen werden.
ACHTUNG – An das Netzteil angeschlossene Geräte verfügen über eine Sicherheitserdung und müssen an eine
ordnungsgemäß geerdete Buchse angeschlossen werden, um eine sichere Erdverbindung zu gewährleisten.
Trennen des Geräts – Der Netzstecker wird verwendet, um das Gerät von der Netzsteckdose zu trennen und muss jederzeit
betriebsbereit sein.
VORSICHT – Wenn Telefonschnittstellenoptionen angeboten werden, sind die Verbindungen zum Netz des Telefonanbieters
von einer qualizierten und geschulten Person vorzunehmen. Verwenden Sie für Telekomverbindungen ausschließlich 26
AWG feste Kupferdrahtanschlüsse, um das Brandrisiko zu reduzieren.
Ausschließlich für Einbau und Wartung durch geschultes Personal vorgesehen:
VORSICHT – Zur Verringerung der Stromschlaggefahr sind Einbau und Wartung von Biamp-Geräten ausschließlich durch
geschulte Personen, bei denen es sich um von Biamp geschulte Audio-Fachleute handelt, vorzunehmen.
Führen Sie keine anderen als die in der Betriebsanleitung angegebenen Wartungsarbeiten aus, vorausgesetzt, Sie wurden
hierfür geschult.
Vor dem Öffnen des Geräts ist das Gerät von einer geschulten Person von der AC-Netzspannung zu trennen.
VORSICHT – Die Installationsschritte für die Hilfsspannungsversorgung sind nur zur Verwendung durch geschulte Personen
vorgesehen und müssen mit den örtlichen Bestimmungen übereinstimmen.
• National Electrical Code, ANSI/NFPA 70 für die USA.
• Canadian Electrical Code, Part 1, CSA C22.1, Kapitel 2-128, 12-010(3) und 12-100 für Kanada.
Anweisungen zur Wandmontage – Geräte zur Wandmontage sind mit mindestens 4 Holzschrauben sicher an einer
Trockenbauwand oder an einer ähnlichen Oberäche zu befestigen (2 Schrauben für Geräte mit nur zwei Befestigungsösen).
Alternativ verwendete Befestigungselemente umfassen Dübel für Trockenwände, selbstschneidende Schrauben in
Metallrohlingen oder Holzschrauben, die mindestens 1,5 cm in die Holzrohlinge eingedreht werden können.
