Confidentiality Notice
This manual is provided solely as an installation, operation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third
party.
Product Overview
RED ALERT®Hands-free VoIP (Voice over Internet Protocol) telephones connect to a 10/100 BaseT
Ethernet network. These telephones operate from PoE (Power-over-Ethernet) or an external 24 to 48-volt
dc power source. VoIP telephones provide direct point-to-point communication between personnel over
an existing LAN and can also be utilized for multicast broadcasts. All models have a 3R (rainproof)
weatherproof rating.
RED ALERT VoIP telephones feature real-time alarm reporting. System supervisors monitor each
telephone’s activity and address caller needs or maintenance issues immediately. The telephones have
four user-configurable inputs and two outputs for customer use.
Features and Functions
RED ALERT VoIP (Voice-over-Internet Protocol) hands-free telephones include the following features:
•SIP compatible (RFC3261)
•automatic call diversion (memory list)
•weather and vandal-resistant
•real-time alarm reporting via SNMP, syslog, or TMA software
•PoE (Power over Ethernet) compatible
•configurable via web page, serial link, or download
•four auxiliary inputs, two dry-contact outputs
•multicast capability, up to eight addresses
•ADA (Americans with Disabilities Act) compliant
Table 1 lists the RED ALERT VoIP telephones detailed in this manual:

Pub. 42004-541A
Hands-free VoIP Telephone Manual Page 4 of 24
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-541A.docx
02/20
Table 1. Model Chart
Model
Description
393-710
Surface-Mount VoIP Telephone, weatherproof, yellow engineered plastic enclosure,
HELP auto-dial push button, and CALL RECEIVED WHEN LIT LED.
393AL-
710
Surface-Mount VoIP Telephone, weatherproof, cast-aluminum enclosure painted safety
yellow, HELP auto-dial push button, and CALL RECEIVED WHEN LIT LED.
394AL-
712
Surface-Mount VoIP Telephone, weatherproof, cast-aluminum enclosure painted safety
yellow, HELPauto-dial push button, CALL (off-hook) button, 12-button Braille keypad, and
CALL RECEIVED WHEN LIT LED.

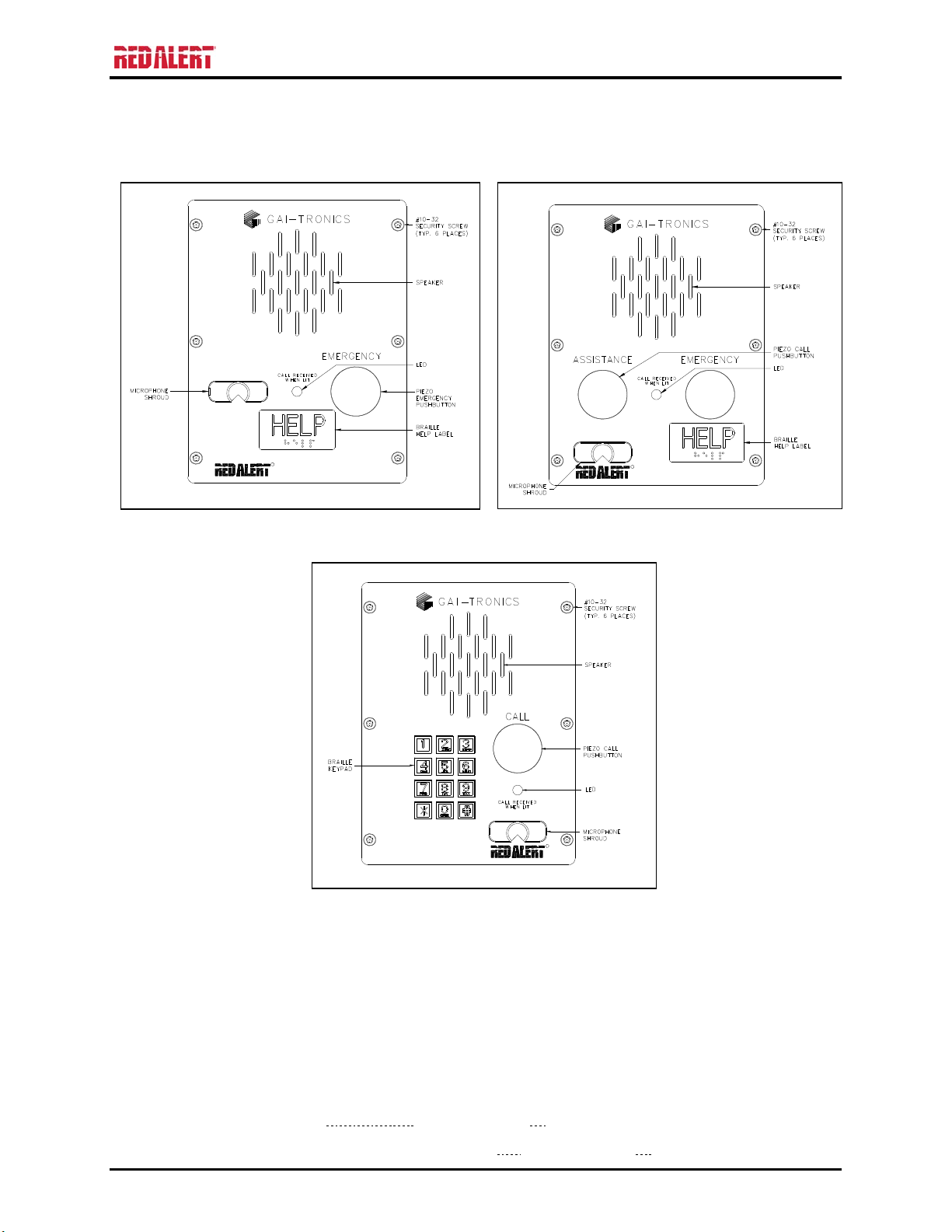

397-710
Flush-Mount VoIP Telephone, weatherproof, brushed stainless steel front panel, HELP
auto-dial push button, and CALL RECEIVED WHEN LIT LED.
397-
710FS
Flush-Mount Compact VoIP Telephone, weatherproof, brushed stainless steel front panel,
HELP auto-dial push button, and CALL RECEIVED WHEN LIT LED. This telephone is
functionally identical to Model 397-710.
397-711
Flush-Mount VoIP Telephone, weatherproof, brushed stainless steel front panel, HELP
auto-dial push button, ASSISTANCE auto-dial push button, and CALL RECEIVED WHEN
LIT LED.
397-
711FS
Flush-Mount Compact VoIP Telephone, weatherproof, brushed stainless steel front panel,
HELP auto-dial push button, ASSISTANCE auto-dial push button, and CALL RECEIVED
WHEN LIT LED. This telephone is functionally identical to Model 397-711.
398-711
Flush-Mount VoIP Telephone, weatherproof, brushed stainless steel front panel, CALL
(off-hook) push button, 12-button Braille keypad, and CALL RECEIVED WHEN LIT LED.
This telephone is simply a rugged, hands-free telephone, which is not intended for
emergency use.
398-
711FS
Flush-Mount Compact VoIP Telephone, weatherproof, brushed stainless steel front panel,
CALL (off-hook) push button, 12-button Braille keypad, and CALL RECEIVED WHEN LIT
LED. This telephone is simply a rugged, hands-free telephone, which is not intended
for emergency use. This telephone is functionally identical to Model 398-711.
398-712
Flush-Mount VoIP Telephone, weatherproof, brushed stainless steel front panel, HELP
auto-dial push button, CALL (off-hook) button, 12-button Braille keypad, and CALL
RECEIVED WHEN LIT LED.
System Requirements and Limitations
RED ALERT VoIP telephones require PoE (Power-over-Ethernet) or a local 24 to 48-volt dc power
source for operation. Two VoIP telephones can be connected in a peer-to-peer configuration without the
need for a LAN. A 10/100 BaseT Ethernet network with a SIP (Session Initiation Protocol) server is
required for systems containing three or more VoIP telephones. Conferences are limited by the
customer’s LAN media capabilities and the services available at each end point.
These telephones also receive multicast broadcasts. A multicast audio stream is sent to multiple end
points simultaneously to achieve multi-point paging or public address functionality over IP. Multicast
requires the use of a SIP server that specifically supports multicast functionality and each telephone must
be configured (enabled) to receive multicast packets.

Pub. 42004-541A
Hands-free VoIP Telephone Manual Page 5 of 24
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-541A.docx
02/20
VoIP Subscriber Tips
New and existing subscriptions to an interconnected VoIP service provider should address the following
points:
•Provide accurate physical address information to the VoIP service provider to ensure that emergency
services can quickly be dispatched to the location.
•Be familiar with the VoIP service provider’s procedures for updating the address and promptly update
address information in the event of a change.
•Have a clear understanding of any limitations of the local 911 service.
•Be aware that VoIP telephone services may not work if the power is out or the Internet connection is
down. Consider installing a backup power supply, maintaining a traditional telephone line, or having
a wireless telephone as a backup.
•For questions about interconnected VoIP and 911, or VoIP in general, see
http://www.fcc.gov/cgb/consumerfacts/voip.html.
Operation
Auto-dial Emergency Calls
Models 393-710, 393AL-710, 394AL-712, 397-710, 397-710FS, 397-711, 397-711FS, and 398-712
To place an emergency call:
Press the HELP push button to immediately call the preprogrammed emergency number; typically, a
security office or 911.
•The CALL RECEIVED WHEN LIT LED illuminates steadily in accordance with the ADA
(Americans with Disabilities Act) when the call is answered.
•The call cannot be terminated by the initiator.
•The call is terminated by any of the following:
•the receiving caller hangs up
•the defined call-duration timeout is exceeded
•the SIP server disconnects the call
Auto-dial Non-Emergency Calls
Models 397-711 and 397-711FS
To place a non-emergency call:
Press the ASSISTANCE push button to immediately call the preprogrammed non-emergency number
(garage, dorm, etc.).
•The CALL RECEIVED WHEN LIT LED illuminates steadily in accordance with the ADA
(Americans with Disabilities Act) when the call is answered.
•The call is terminated by the any of the following:
•pressing the ASSISTANCE push button again
•the receiving caller hangs up

Pub. 42004-541A
Hands-free VoIP Telephone Manual Page 6 of 24
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-541A.docx
02/20
•the defined call-duration timeout is exceeded
•the SIP server disconnects the call
General Telephone Calls
Models 394AL-712, 398-711, 398-711FS, and 398-712
To place a general telephone call:
1. Press the CALL push button.
2. Wait for the dial tone.
3. Use the keypad to dial the desired number.
•The CALL RECEIVED WHEN LIT LED illuminates steadily in accordance with the ADA when
the call is answered.
•The call is terminated by any of the following:
•pressing the CALL push button again
•the receiving caller hangs up
•the defined call-duration timeout is exceeded
•the SIP server disconnects the call.
Receive a Call
RED ALERT VoIP emergency telephones automatically go off-hook (auto-answer) when called. A
conversation can then take place.
Multicast Broadcast
When making a multicast call, the SIP server sends the page request to a specific IP address and multiple
telephones accept and play the subsequent audio. GAI-Tronics’VoIP telephones can be programmed for
up to eight multicast addresses to permit the receipt of multicast broadcasts from different sources or to
enable zoning of broadcasts. Each multicast address can be assigned a priority (via programming) to
define broadcast override. A telephone with multicast enabled can still make and receive normal calls
(peer-to-peer or SIP server). Normal calls can be assigned a priority level, defining whether calls can
override multicasts or vice versa.
Monitoring and Reporting
Each telephone can recognize and generate several hardware and configuration fault condition alarms.
These alarms can be signaled to a remote site using three methods:
•Syslog output over TCP
•SNMP (Simple Network Management Protocol)
•TMA (Telephone Management Application) software (purchased separately)
NOTE:The TMA software permits system monitoring and data collection/reporting from a central
location.
Available alarms are:
•handset integrity loop (if applicable)
•configuration error
•cold reset (power cycle)

Pub. 42004-541A
Hands-free VoIP Telephone Manual Page 7 of 24
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-541A.docx
02/20
•warm reset (internal command)
•keypad error (if applicable)
•key hook (off hook status, if applicable)
•register fail (unsuccessful SIP registration)
•audio path test (speaker/microphone test)
Status Indication
Power

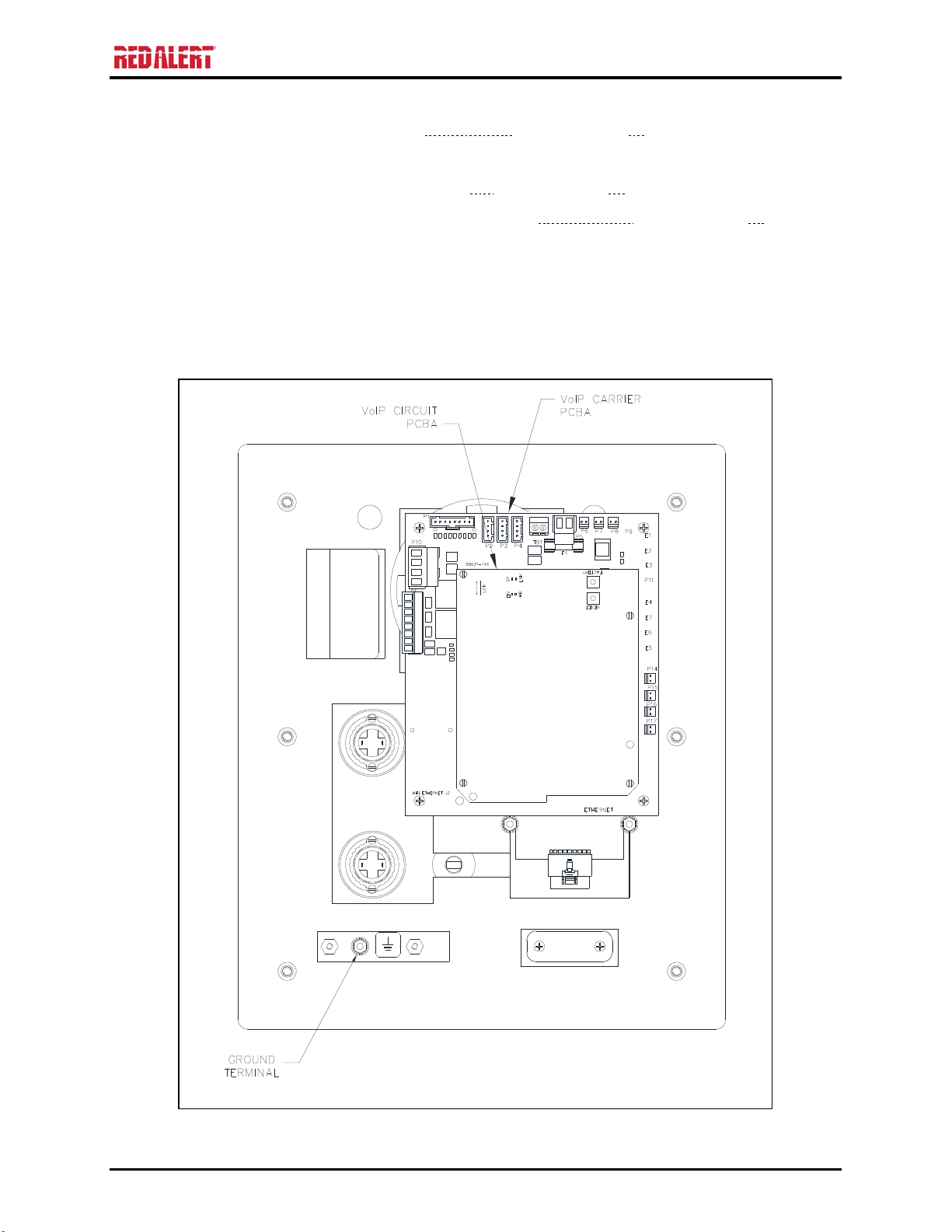

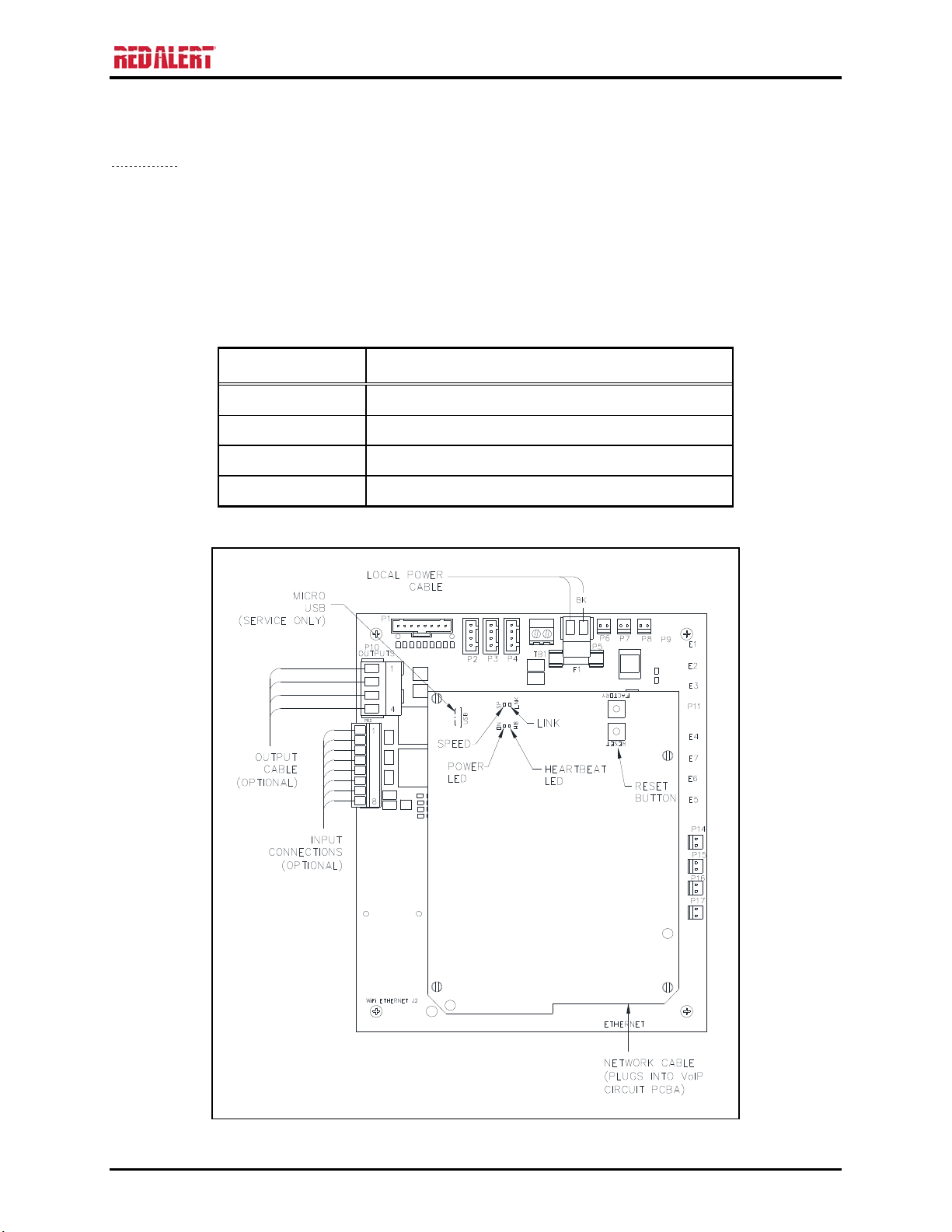

The ON LED, located on the VoIP PCBA (see Figure 21 on Page 18), illuminates when power is applied
to the telephone.
Heartbeat
The HB LED, located on the VoIP PCBA (see Figure 21 on Page 18), flashes when communication over
the LAN is established.
Link
The LNK LED, located on the VoIP PCBA (see Figure 21 on Page 18), indicates an active network
connection when illuminated.
Speed
The SP LED, located on the VoIP PCBA, (see Figure 21 on Page 18) indicates a 100 Mbps network
connection when illuminated or a10 Mbps connection when off.
VoIP Circuit PCBA Pushbuttons
Reset
Press the RESET button (see Figure 21 on Page 18) momentarily to warm reboot the telephone. The
telephone maintains the current configuration.
Factory
Use the FACTORY button (see Figure 21 on Page 18) to erase the current configuration and restore the
factory default settings as follows:
1. Press and release the RESET button.
2. Press and hold the FACTORY button for 10 seconds while the telephone is rebooting.
The telephone will reboot again with the factory default settings configured.

Pub. 42004-541A
Hands-free VoIP Telephone Manual Page 8 of 24
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-541A.docx
02/20
Installation
General Information
WARNING
—This product can contain hazardous voltages. Always remove power to this
station and any associated equipment before beginning any installation.
CAUTION
—Do not install this equipment in areas other than those indicated on the approval
listing in the Approvals section of this manual. Such installation may cause a
safety hazard and consequent injury or property damage.
Install equipment without modification and according to all applicable local and national electrical codes.
Consult the National Electrical Code (NFPA 70), Canadian Standards Association (CSA 22.1), and local
codes for specific requirements regarding your installation. Class 2 circuit wiring must be performed in
accordance with the NEC.
Safety Guidelines
When installing any GAI-Tronics equipment, please adhere to the following guidelines to ensure the
safety of all personnel:
•Do not install wiring during a lightning storm.
•Electrostatic Discharge (ESD) Protection: VoIP telephones may have an earth ground terminal
provision. If so, ensure that it is connected to ground in accordance with all local safety regulations
and the National Electrical Code (NEC). Grounding must be ensured for safe and stable
communications. Do not use long and coiled ground wires. Trim ground wires to the required
length. Use a star configuration whenever possible. Please note; proper grounding does not eliminate
the need for lightning protection for the telephone or the telephone system. A category 5 data line
lightning surge protector is recommended for telephones subject to any electrostatic discharge (e.g.
lightning).
•Do not install jacks in wet locations unless the jack is specifically designed for wet locations.
Station Placement
Consider station placement and volume levels to prevent feedback problems in the system. To reduce
unpleasant feedback problems:
•point each telephone away from other nearby telephones
•reduce the volume levels
Security Hardware
The telephones described in this manual are vandal resistant. The front panel of each telephone covered
in this manual is attached to its enclosure with security screws. A GAI-Tronics Model 233-001 security
screwdriver or Torx T-25 security head tip (sold separately) is required to install the telephone.

Pub. 42004-541A
Hands-free VoIP Telephone Manual Page 9 of 24
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-541A.docx
02/20
Conduit Installation Details (Surface-Mount Models)
GAI-Tronics recommends installing Ethernet and power lines in conduit to protect against accidental
damage and vandalism. To prevent moisture from entering the enclosure, the following is recommended:
• Conduit should enter the enclosure from the bottom.
• Sealed fittings should be installed at all cable entry points.
• Silicone sealant or equivalent should be applied around and inside all conduit entries.
Please refer to the examples below for the recommended conduit installation details.

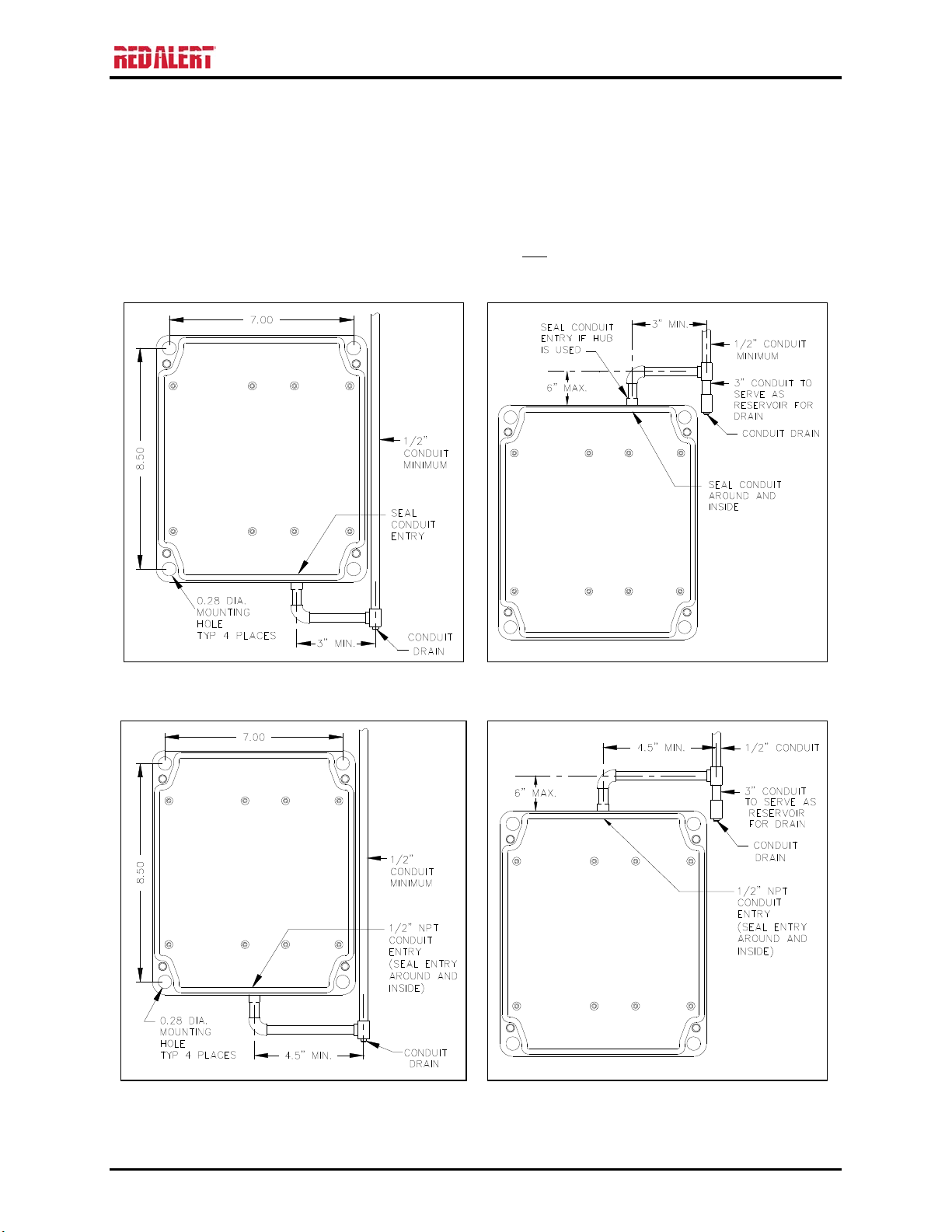

Figure 1. Bottom entry conduit recommended for
non-metallic enclosures
Figure 2. Top entry conduit installation for non-
metallic enclosures (NOT recommended)
Figure 3. Bottom entry conduit installation details
for metallic enclosures
Figure 4. Top entry conduit installation details for
metallic enclosures (NOT recommended)

Pub. 42004-541A
Hands-free VoIP Telephone Manual Page 10 of 24
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-541A.docx
02/20
Models 393-710, 393AL-710, and 394AL-712 (Surface Mount
Applications)
1. Remove the four security screws from the
front panel.
2. Position the enclosure on the mounting
surface.
The enclosure has four 0.28-inch diameter
mounting holes in a 7.0 × 8.5-inch hole
pattern.
3. Secure the enclosure to its mounting surface
with four ¼-inch diameter bolts of the
appropriate length for the surface.
NOTE: When using the GAI-Tronics Model 231-
001 Pole Mounting Kit: follow the
mounting instructions provided in the
kit.
NOTE: Installation of a (customer-supplied)
surge suppresser is recommended on the
Ethernet cable for outdoor installations.
4. For Model 393-710 only: Create a conduit access hole using a hole punch equivalent in size to the
conduit diameter.
• Bottom entry is strongly recommended.
• Insert a conduit fitting in the access hole.
5. Install conduit as required (see the Conduit Installation Details (Surface-Mount Models) section on
Page 9).
6. Use silicone sealant or equivalent around and inside all conduit entries.
7. Pull the Ethernet cable through the conduit and terminate the cable (see the Field Wiring section on
Page 18).
8. Connect any desired peripheral devices (see the I/O section on Page 19)
9. Perform the initial programming of the telephone (see the Programming section on Page 21).
10. Verify telephone operation by calling to and from another telephone.
11. Verify operation of peripheral equipment.
12. Attach the front panel assembly to the rear enclosure using the four security screws.
13. Torque the screws to 10–12 in·lb.

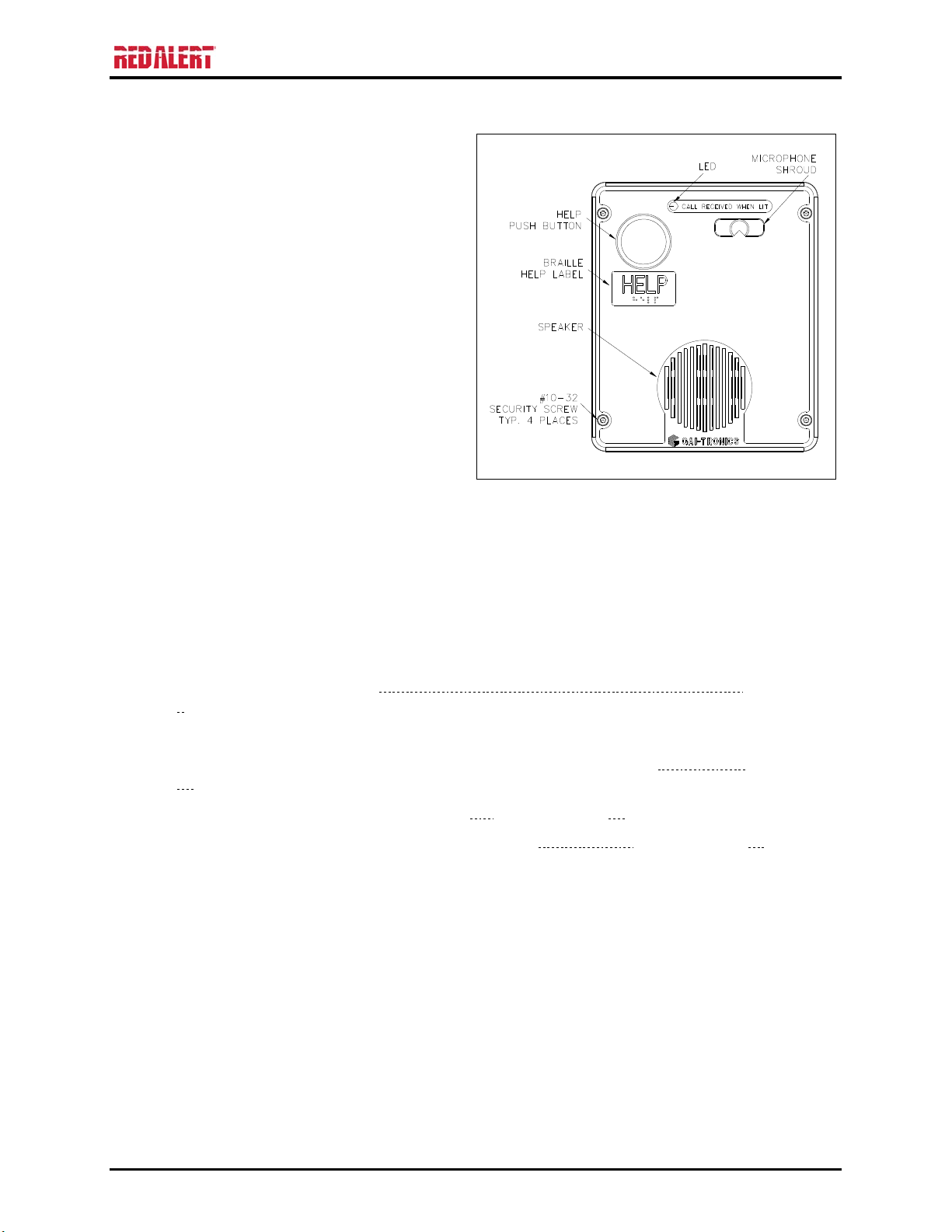

Figure 5. Model 393-710 VoIP Telephone
in a Non-metallic Enclosure
