Big Backyard F24068 User manual

INSTALLATION AND OPERATING INSTRUCTIONS
PARKSIDE PLAY SYSTEM – F24068
4 - 8 Hrs
To reduce the risk of serious injury or death, you must read and
follow these instructions. Keep and refer to these instructions
often and give them to any future owner of this play system. Manufacturer contact information provided below.
OBSTACLE FREE SAFETY ZONE - 22’6” x 28’ (6.9 x 8.5 m) area requires Protective Surfacing. See page 3.
MAXIMUM VERTICAL FALL HEIGHT - 6’6” (2.3 m)
CAPACITY - 4Users Maximum, Ages 3to 10; Weight Limit 110 lbs. (49.9 kg) per child.
RESIDENTIAL HOME USE ONLY. Not intended for public areas such as schools, churches, nurseries,
day cares or parks
Rev 12/16/2009
3404068
Two person
assembly
Table of Contents
Warnings and Safe Play Instructions . . . . . . . . . . pg. 2
Protective Surfacing Guidelines . . . . . . . . . . . . . . pg. 3
Instructions for Proper Maintenance . . . . . . . . . . pg. 4
About Our Wood – Limited Warranty. . . . . . . . . . pg. 5
Keys to Assembly Success. . . . . . . . . . . . . . . . . . pg. 6
PartID.................................. pg.7
Installation of I.D./Warning Plaque. . . . . . . . Final Step
WARNING
18’ 8” (5.7 m)
14’ 5” (4.4 m)
Solowave Design
375 Sligo Rd. West, PO Box 10
Mount Forest, ON Canada N0G 2L1
General Inquiries:
8:00am - 4:30pm EST
Toll Free: 1-877-966-3738
[email protected]
10’6”
22’6”
10’ 28’

Warnings and Safe Play Instructions
CONTINUOUS ADULT SUPERVISION REQUIRED. Most serious injuries and deaths on playground equipment have occurred
while children were unsupervised! Our products are designed to meet mandatory and voluntary safety standards. Complying
with all warnings and recommendations in these instructions will reduce the risk of serious or fatal injury to children using
this play system. Go over the warnings and safe play instructions regularly with your children and make certain that they
understand and follow them. Remember on-site adult supervision is required for children of all ages.
Observe capacity limitations of your play-set. See
front cover.
Dress children with well fitting and full foot enclosing
footwear.
Teach children to sit with their full weight in the center
of the swing seat to prevent erratic swing motion or
falling off.
Check for splintered, broken or cracked wood; missing,
loose, or sharp edged hardware. Replace, tighten and or
sand smooth as required prior to playing.
Verify that suspended climbing ropes, rope ladders, chain
or cable are secured at both ends and cannot be looped
back on itself as to create an entanglement hazard.
On sunny and or hot days, check the slide and other
plastic rides to assure that they are not very hot as to
cause burns. Cool hot slide and rides with water and wipe
dry prior to using.
Do not allow children to wear open toe or heel footwear
like sandals, flip–flops or clogs.
Do not allow children to walk, in front, between, behind
or close to moving rides.
Do not let children twist swing chains or ropes or loop
them over the top support bar. This may reduce the
strength of the chain or rope and cause premature failure.
Do not let children get off rides while they are in motion.
Do not permit climbing on equipment when it is wet.
Do not permit rough play or use of equipment in a
manner for which it was not intended. Standing on or
jumping from the roof, elevated platforms, swings,
climbers, ladders or slide can be dangerous.
Do not allow children to swing empty rides or seats.
Do not allow children to go down slide head first or
run up slide.
WARNING
WARNING – Safe Play Instructions
2
SERIOUS HEAD INJURY HAZARD
Installation over concrete, asphalt, dirt, grass, carpet
and other hard surface creates a risk of serious injury
or death from falls to the ground. Install and maintain
shock absorbing material under and around play-set as
recommended on page 3 of these instructions.
COLLISION HAZARD
Place play-set on level ground at least 6 feet from any
obstruction such as a garage or house, fences, poles,
trees, sidewalks, walls, landscape timbers, rocks,
pavement, planters, garden borders, overhanging
branches, laundry lines, and electrical wires. (See
OBSTACLE FREE SAFETY ZONE on cover)
CHOKING HAZARD
Prior to assembly, this product contains small parts.
DO NOT allow children less than 5 years of age near or
around loose nuts, screws, washers, plastic bags and
other small parts.
STRANGULATION HAZARD
• NEVER allow children to play with ropes, clotheslines,
pet leashes, cables, chains or cord-like items when using
this play-set or to attach these items to play-set.
• NEVER allow children to wear loose fitting clothing,
ponchos, hoods, scarves, capes, necklaces, items with
draw-strings, cords or ties when using this play-set.
• NEVER allow children to wear bike or sport helmets
when using this play-set.
Failure to prohibit these items, even helmets with chin
straps, increases the risk of serious injury and death to
children from entanglement and strangulation.
TIP OVER HAZARD
DO NOT allow children to play on the play-set until the
assembly is complete and the unit is properly anchored.

One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing
protective surfacing under and around your play equipment. The protective surfacing should be applied to a depth that is suitable
for the equipment height in accordance with ASTM F1292. There are different types of surfacing to choose from; whichever
product you select, follow these guidelines:
Loose-Fill Materials
• Maintain a minimum depth of 9 inches of loose-fill materials such as wood mulch/chips, engineered wood fiber (EWF), or
shredded/recycled rubber mulch for equipment up to 8 feet high; and 9 inches of sand or pea gravel for equipment up to 5 feet
high. NOTE: An initial fill level of 12 inches will compress to about a 9-inch depth of surfacing over time. The surfacing will also
compact, displace, and settle, and should be periodically raked and refilled to maintain at least a 9-inch depth.
• Use a minimum of 6 inches of protective surfacing for play equipment less than 4 feet in height. If maintained properly, this
should be adequate. (At depths less than 6 inches, the protective material is too easily displaced or compacted.)
NOTE: Do not install home playground equipment over concrete, asphalt, or any other hard surface. A fall onto a hard surface
can result in serious injury to the equipment user. Grass and dirt are not considered protective surfacing because wear and
environmental factors can reduce their shock absorbing effectiveness. Carpeting and thin mats are not adequate protective
surfacing. Ground level equipment -- such as a sandbox, activity wall, playhouse or other equipment that has no elevated play
surface -- does not need any protective surfacing.
• Use containment, such as digging out around the perimeter and/or lining the perimeter with landscape edging. Don’t forget to
account for water drainage.
• Periodically rake, check and maintain the depth of the loose-fill surfacing material. Marking the correct depth on the play
equipment support posts will help you to see when the material has settled and needs to be raked and or replenished. Be sure to
rake and evenly redistribute the surfacing in heavily used areas.
• Do not install loose fill surfacing over hard surfaces such as concrete or asphalt.
Poured-In-Place Surfaces or Pre-Manufactured Rubber Tiles
You may be interested in using surfacing other than loose-fill materials - like rubber tiles or poured-in-place surfaces.
• Installations of these surfaces generally require a professional and are not “do-it yourself” projects.
• Review surface specifications before purchasing this type of surfacing. Ask the installer/manufacturer for a report showing that
the product has been tested to the following safety standard: ASTM F1292 Standard Specification for Impact Attenuation of
Surfacing Materials within the Use Zone of Playground Equipment. This report should show the specific height for which the
surface is intended to protect against serious head injury. This height should be equal to or greater than the fall height - vertical
distance between a designated play surface (elevated surface for standing, sitting, or climbing) and the protective surfacing
below - of your play equipment.
• Check the protective surfacing frequently for wear.
Placement
Proper placement and maintenance of protective surfacing is essential. Refer to diagram on front cover. Be sure to;
• Extend surfacing at least 6 feet from the equipment in all directions.
• For to-fro swings, extend protective surfacing in front of and behind the swing to a distance equal to twice the height of the top
bar from which the swing is suspended.
• For tire swings, extend surfacing in a circle whose radius is equal to the height of the suspending chain or rope, plus 6 feet in all directions.
From the CPSC Outdoor Home Playground Safety Handbook. At www.cpsc.gov/CPSCPUB/PUBS/324.pdf
H
2H 2H
Denotes Use Zone with Protective Surfacing
Denotes Use Zone with Protective Surfacing
6 ft.
6 ft.
6 ft.
Use Zone for Single-Axis Swings
6 ft.
6 ft. 6 ft.
6 ft.
L
Use Zone for Multi-Axis Swings
Protective Surfacing - Reducing Risk of Serious Head Injury From Falls.
3

Instructions for Proper Maintenance
Your Big Backyard Play System is designed and constructed of quality materials with your child’s safety in mind. As with all
outdoor products used by children, it will weather and wear. To maximize the enjoyment, safety and life of your Play Set, it is
important that you, the owner, properly maintain it.
HARDWARE:
Check metal parts for rust. If found,
sand and repaint using a non-lead
paint complying with 16 CFR 1303.
Inspect and tighten all hardware. On
wood assemblies DO NOT OVER-
TIGHTEN as to cause crushing and
splintering of wood.
Check for sharp edges or protruding screw threads, add
washers if required.
SHOCK ABSORBING SURFACING:
Check for foreign objects. Rake and check depth of loose
fill protective surfacing materials to prevent compaction
and maintain appropriate depth. Replace as necessary.
(See Protective Surfacing, page 3)
GROUND STAKES (ANCHORS):
Check for looseness, damage or deterioration. Should
firmly anchor unit to ground during use. Re-secure and
or replace, if necessary.
SWING HANGERS:
Check that they are secure and orientated correctly. Hook
should rotate freely and perpendicular to support beam.
If squeaking occurs lubricate bushings with oil or WD-40®.
SWINGS, ROPES AND RIDES:
Reinstall if removed during cold season. Check all
moving parts including swing seats, ropes, chains and
attachments for wear, rust and other deterioration.
Replace as needed.
Check that ropes are tight, secure at both ends and
cannot loop back as to create an entrapment.
WOOD PARTS:
Check all wood members for deterioration, structural
damage and splintering. Sand down splinters and replace
deteriorated wood members. As with all wood, some
checking and small cracks in grain is normal.
Unprotected, they will appear weathered over time.
Periodic application of an exterior water repellent or stain
(water-based) will help improve appearance and life.
Check the following at the beginning of the play season:
HARDWARE:
Inspect for tightness. Must be firmly against, but not
crushing the wood. DO NOT OVER-TIGHTEN.
This will cause splintering of wood.
Check for sharp edges or protruding screw threads.
Add washers if required.
SHOCK ABSORBING SURFACING:
Rake and check depth of loose fill protective surfacing
materials to prevent compaction and maintain appropriate
depth. Replace as necessary.
(See Protective Surfacing, page 3)
Check twice a month during play season:
SWING HANGERS:
Check that they are secure and orientated correctly. Hook
should rotate freely and perpendicular to support beam.
If squeaking occurs lubricate bushings with oil or WD-40®.
SWINGS AND RIDES:
Check swing seats, all ropes, chains and attachments for
fraying, wear, excessive corrosion or damage.
Replace if structurally damaged or deteriorated.
Check once a month during play season:
SWINGS AND RIDES:
To prolong their life, remove swings and store inside
when outside temperature is below 32°F/0°C. Below
freezing, plastic parts may become more brittle.
SHOCK ABSORBING SURFACING:
Rake and check depth of loose fill protective surfacing
materials to prevent compaction and maintain appropriate
depth. Replace as necessary.
(See Protective Surfacing, page 3)
Check at the end of the play season:
If you dispose of your play set: Please disassemble and dispose of your unit so that it does not create any unreasonable hazards
at the time it is discarded. Be sure to follow your local waste ordinances.
If Bolt protrudes
beyond T-Nut
Use an extra
Flat Washer
4
Proper Orientation

About Our Wood
Solowave Design™ uses only premium playset lumber, ensuring the safest product for your children’s use. Although great care has
been taken in selecting the best quality lumber available, wood is a product of nature and susceptible to weathering (changes in the
aesthetics of the wood). A light sanding may be required to remove minor splinters. For your information, we have described some
changes that may occur as a result of weathering:
1. Checking Checks are surface cracks in the wood along the grain. 4” x 4” material will experience more checking than 2”, 1-1/4” or 1”
material be cause the surface and interior moisture content will vary more widely than in thinner wood.
2. Warping Warping refers to any distortion (twisting, cupping) from the true plane that may take place during weathering.
3. Fading Wood exposed to sunlight, will over time, turn a grey color.
Note: The above changes will not affect the strength of the product.
What causes weathering?
One of the main reasons for weathering is the effects of water (moisture); the moisture content of the wood at the surface is different
than the interior of the wood. As the moisture moves in or out of the wood (result of climate changes), the different moisture content
causes tension in the wood, which can result in checking and or warping.
How can I reduce the amount of weathering to my Play System?
At the factory we have added water repellent to the stain. This water repellent decreases the amount of water absorption during rain or
snow thus decreasing the tension in the wood. Sunlight will break down the water repellent, so we recommend applying a water repellent
on a yearly basis (see your local stain and paint supplier for a recommended product). Also if storing the product before installation, make
sure you store out of direct sunlight in a cool dry place.
Will weathering affect the strength of my Play System?
Most weathering is just the normal result of nature and will not affect safe play and enjoyment for your child. However if you are concerned
that a part has experienced a severe weathering problem please call our consumer relations department for further assistance.
Complete and mail registration card to receive important product notications and assure prompt
warranty service.
10 Year Limited Warranty
Solowave Design warrants that this product is free from defect in materials and workmanship for a
period of one year from the original date of purchase. In addition, lumber is warranted for 10 years
against structural failure due to rot and insect damage. All other parts, such as hardware, swings, rides,
accessories, and slides carry a one-year warranty only.
This warranty applies to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your Play System. This warranty does not
cover any inspection cost.
This Limited Warranty does not cover:
• Labor for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not affect performance or integrity;
• Vandalism; improper use or installation; acts of nature;
• Minor twisting, warping, checking, or any other natural occurring properties of wood that do not
affect performance or integrity.
Solowave Design products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the unit leading to failure and possible
injury. Solowave Design Inc. cannot assume any responsibility for modied products. Furthermore,
modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Under no circumstance should a
Solowave Design Play System be used in public settings such as schools, churches, playgrounds,
parks, day cares and the like. Such use may lead to product failure and potential injury. Any and all
public use will void this warranty.
Solowave Design disclaims all other representations and warranties of any kind, express or implied.
This Warranty gives you specific legal rights. You may have other rights as well which vary from state to state or
province to province. This warranty excludes all consequential damages, however, some states do not allow the
limitation or exclusion of consequential damages, and therefore this limitation may not apply to you.
5

Keys to Assembly Success
Part Identification Key
On each page, you will find the parts and
quantities required to complete the assembly
step illustrated on that page. Here is a sample.
Symbols
Throughout these instructions symbols are provided as important reminders for proper and safe assembly.
Proper Hardware Assembly
Lag screws require drilling pilot
holes to avoid splitting wood. Only
a flat washer is required. For ease of
installation liquid soap can be used
on all lag-type screws.
For bolts, tap T-Nut into hole with
hammer. Insert the hex bolt through
lock washer first then flat washer then
hole. Because the assemblies need to
be squared do not completely tighten
until instructed. Pay close attention to
diameter of the bolts. 5/16” is slightly
larger than 1/4”.
Once the assembly is tightened, watch for exposed
threads. If a thread protrudes from the T-Nut, remove the
bolt and add washers to eliminate this condition. Extra
washers have been provided for this purpose.
This identifies information that requires special
attention. Improper assembly could lead to an
unsafe or dangerous condition.
Where this is shown, 2 or 3
people are required to safely
complete the step. To avoid
injury or damage to the
assembly make sure to get help!
Check that assembly is square
before tightening bolts.
Use a measuring tape to assure
proper location.
Check that set or assembly is properly level
before proceeding.
Pre-drill a pilot hole before
fastening screw or lag to prevent
splitting of wood.
This indicates time to tighten bolts, but
not too tight! Do not crush the wood.
This may create splinters and cause
structural damage.
Use
Help
Use
Help
Measure
Distance
Square
Assembly
Use
Level
Pre-drill
1/8” Bit
Tighten
Bolts
No Yes
CAUTION – Protrusion Hazard
Tools Required
6
Shovel Level #2 & #3 Phillips
or Robertson
Safety
Glasses
Drill (1/8”
3/16” Bit)
Measuring
Tape
Hammer Ratchet 1/2”,
7/16” & 9/16”
Square
Ruler
Step
Ladder
Flat
Washer T-Nut
(Hammer into place)
Do not crush wood!
Lock
Washer
Hex Bolt
Bolt Assembly
If Bolt protrudes
beyond T-Nut
Use an extra
Flat Washer
Flat Washer
Lag Screw
Lag Assembly
Before mounting Lag Screws,
use factory drilled holes as
guides to drill 1/8” pilot holes.
Quantity Key Number
2X A1 Post 2 x 4 x 83”
Part Description, Part Size

2 - CE Rock Board (1" x 6" x 19 3/4")
3610631
2 - Ground Side (1" x 5" x 78 3/4")
3660118
1 - CE SW Rail (2" x 6" x 80")
3624980
4 - Post (5/4" x 4" x 79")
3660117
3 - CE Access Board (1" x 6" x 19 3/4")
3610606
2 - CE Rock Board (1" x 6" x 19 3/4")
3610630
2 - Post SW (5/4" x 4" x 81")
3664925
1 - Roof Upright (2" x 3" x 42 3/4")
3660629
6 - CE Floor Board (1" x 6" x 17")
3610101
1 - SL Brace (2" x 3" x 15")
3660120
4 - Floor Gusset (5/4" x 4" x 7 7/8")
3660121
3660632
3 - Floor Support (5/4" x 4" x 39 1/2")
3660119
1 1/2" x 1 1/2"
2" x 2"

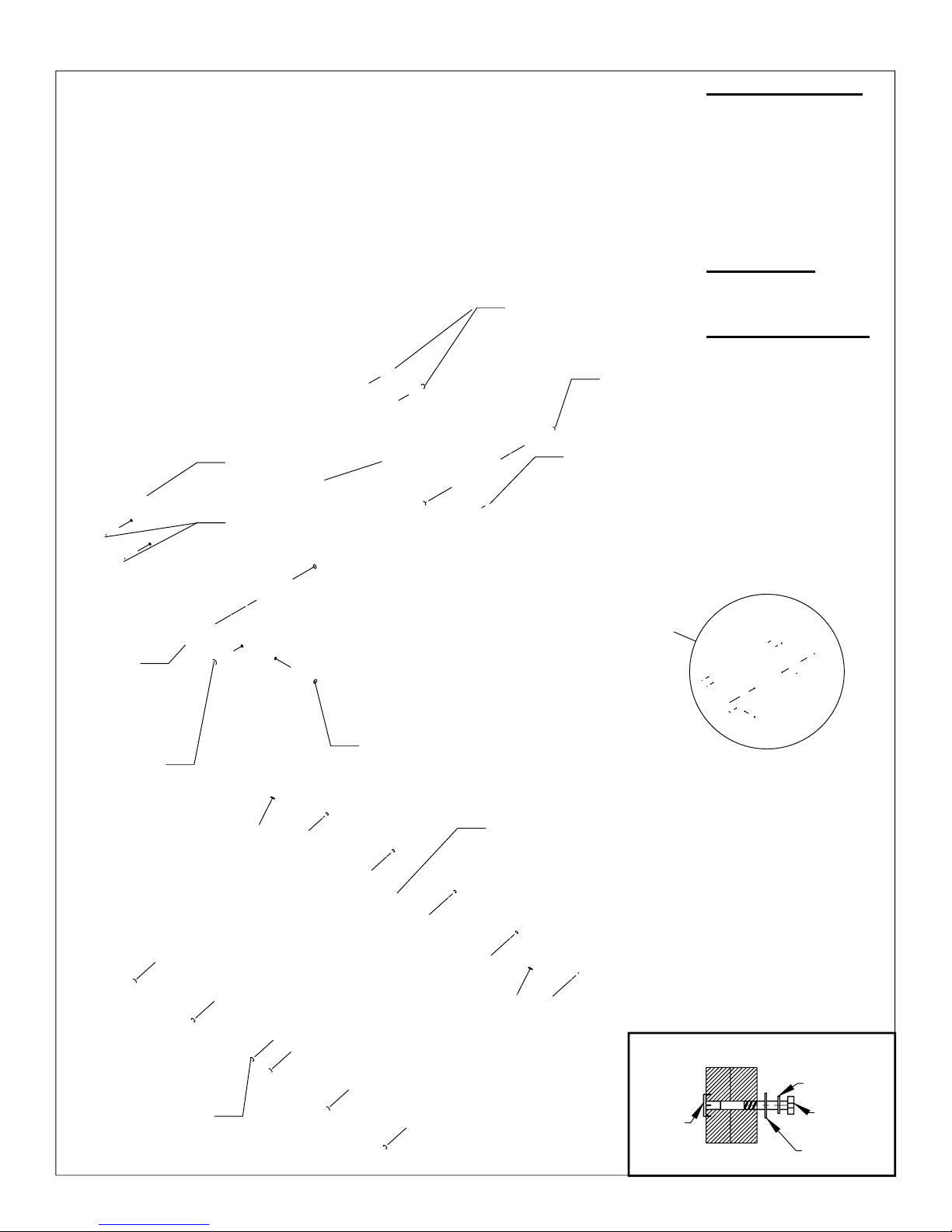

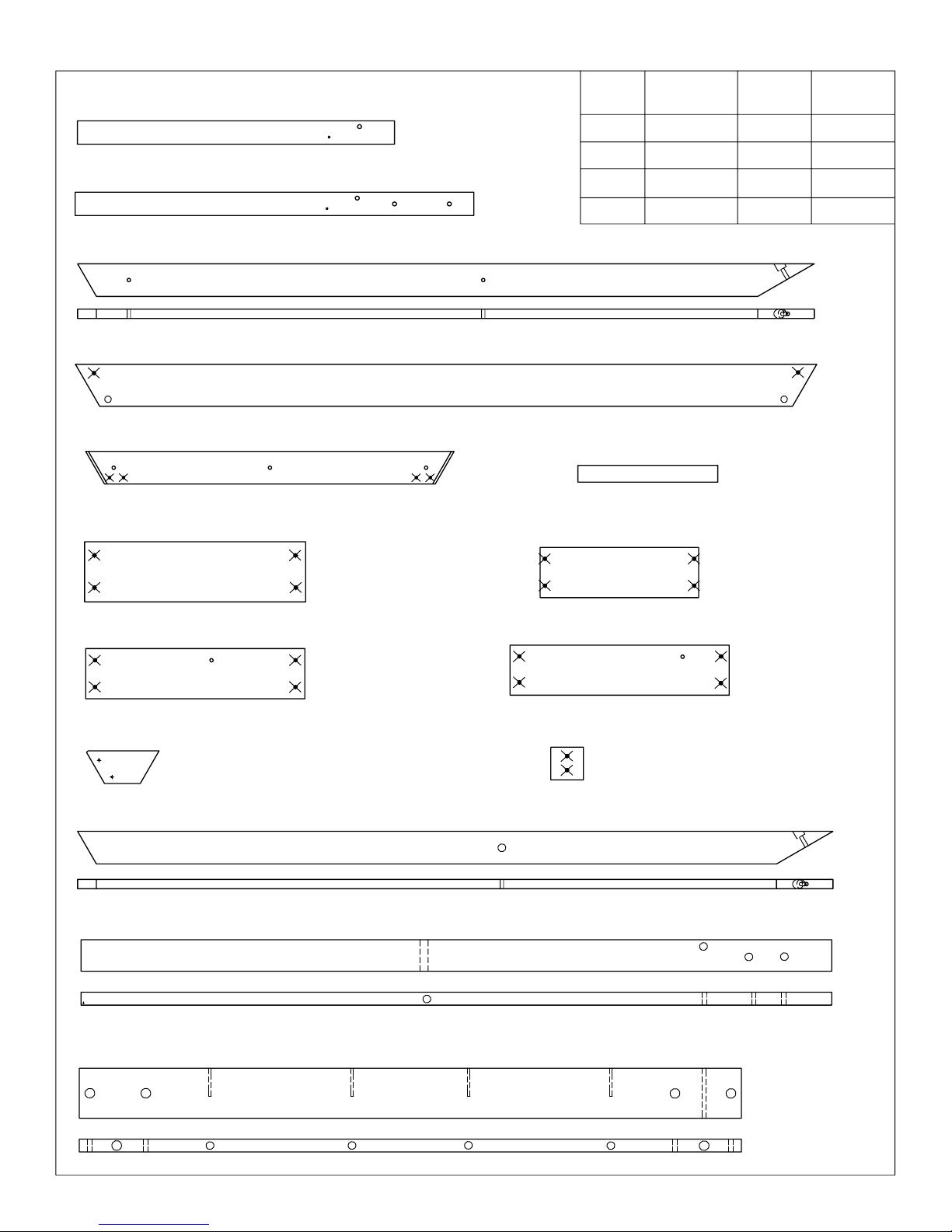

Wood Parts Identification (Reduced size)
1" x 5"
1 3/8" x 2 1/2"
2" x 3"
5/8" x 4-1/2"
Nominal
Size Actual
Size Actual Size
5/8" x 5 3/8"
1" x 6"
2" x 6"
Size
Nominal
"
1" x 3 1/2"
1 3/8" x 5 3/8"
2" x 4
" x 4"5/4
1 3/8" x 3 3/8"
3654909
1 - SW Block (5/4" x 4" x 3 1/2")
1 - Upright (2" x 3" x 34")
1 - SW Post (2" x 4" x 80 1/2")
3664916
7

Size Actual Size
5/8" x 5 3/8"
1" x 6"
Nominal Nominal
2" x 6" 1 3/8" x 5 3/8"
"
1" x 3 1/2"
2" x 4
" x 4"
1 3/8" x 2 1/2"
1 1/2" x 1 1/2"
2" x 2"
Wood Parts Identification (Reduced size)
2" x 3"
Size Actual Size

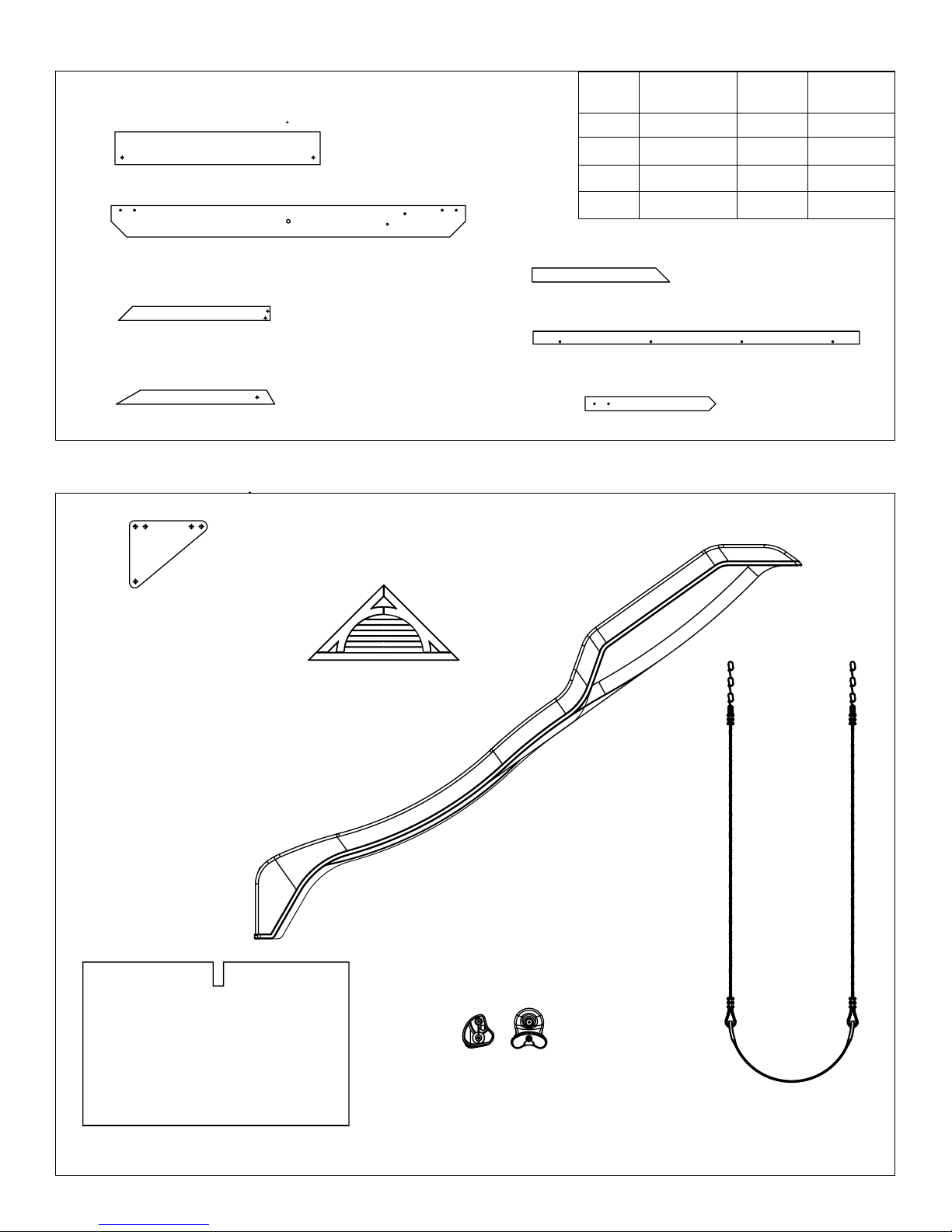

Accessory Parts Identification (Reduced Size)
1" x 5" 5/8" x 4-1/2"
5/4
1 3/8" x 3 3/8"
2 - Dormer Eave (5/4" x 4" x 22")
3660627
2 - Roof Ridge (1" x 2" x 35")
3660626
2 - Roof Side (1" x 4" x 38")
3660625
1 - Slide 40" High Rail
3310140
1 - Triangle Plate
3200182 (Pack of 2)
3750320
1 - Parkside Canopy 2 - Belt Swings with
Soft Touch Rope
3724933
1 - Climbing Rocks
with hardware
3320184 (Pack of 4)
2 - Small Gable Vent
3320299
2 - Roof Brace (2" x 2" x 17")
3660628 4 - Ground Stake (2" x 2" x 14")
3650318
2 - Roof Front (2" x 2" x 16 1/4")
3660624
2 - Roof Front Short (2" x 2" x 14 3/4")
3660633
8

(2) Hex Bolt 5/16 x 3" (9277330)
5/16" Lock Washer - 5/16" Flat Washer - 5/16" T-Nut
(2) Hex Bolt 1/4 x 5-1/2" (9277252)
1/4" Lock Washer - 1/4" Flat Washer - 1/4" T-Nut

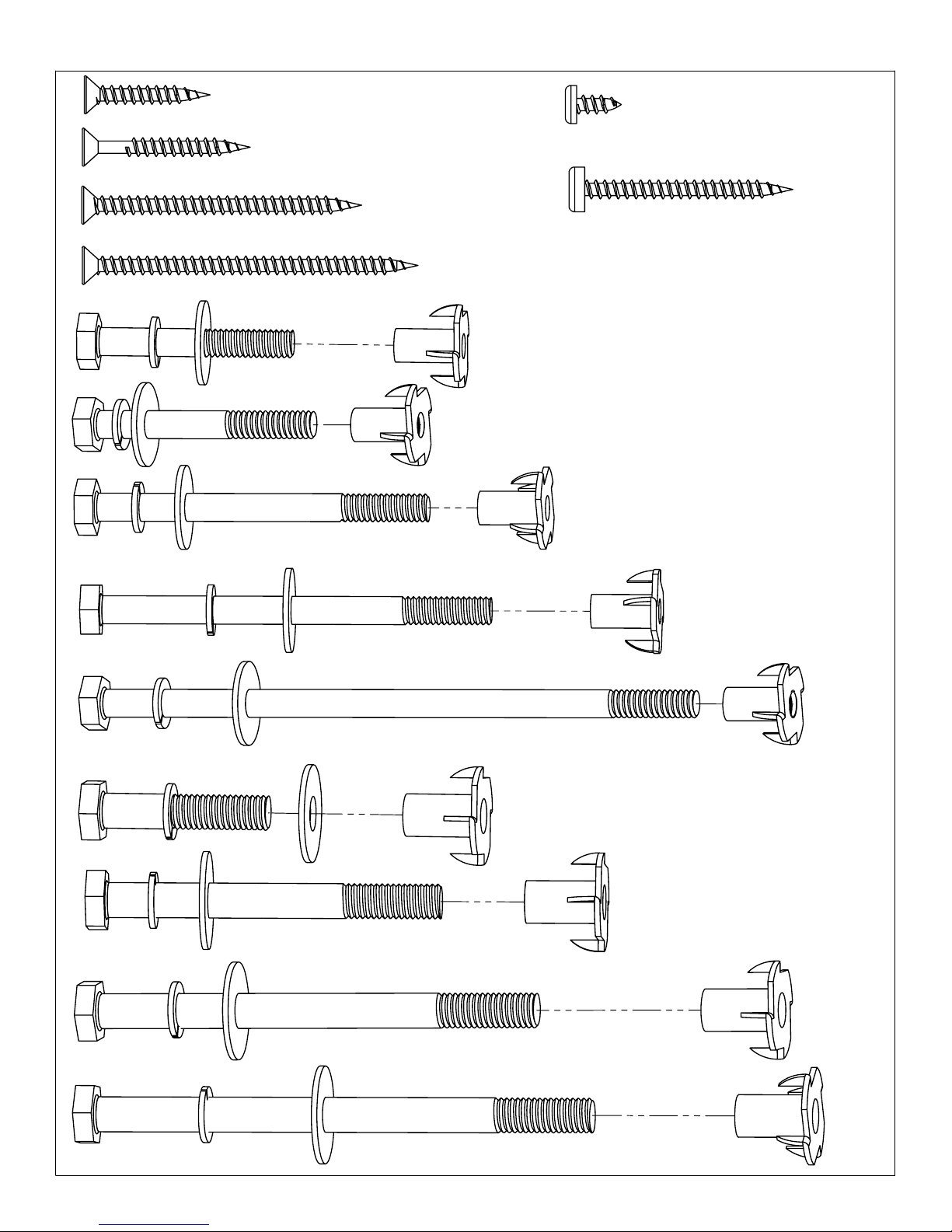

Hardware Parts Identification (Actual Size)
(17) Pan Screw #8 x 1/2" (9264502)
(10) Flat Head Screw #8 x 3" (9260530)
(6) Hex Bolt 1/4 x 2" (9277220)
1/4" Lock Washer - 1/4" Flat Washer - 1/4" T-Nut
(26) Flat Head Screw #8 x 2-1/2" (9260522)
(72) Flat Head Screw #8 x 1-1/2" (9260512)
(4) Pan Screw #12 x 2" (9264620)
(4) Flat Head Screw #8 x 1-1/8" (9260514)
(4) Hex Bolt 1/4 x 1-1/2" (9277212)
1/4" Lock Washer - 1/4" Flat Washer - 1/4" T-Nut
(2) 1/4" x 3 1/2" Hex Bolt (9277232)
1/4" Lock Washer-1/4" Flat Washer- T-Nut
(2) 1/4" x 3" Hex Bolt (9277230)
1/4" Lock Washer-1/4" Flat Washer- T-Nut
(3) Hex Bolt 5/16 x 4" (9277340)
5/16" Lock Washer - 5/16" Flat Washer - 5/16" T-Nut
(4) Hex Bolt 5/16 x 1-1/2" (9277312)
5/16" Lock Washer - 5/16" Flat Washer - 5/16" T-Nut
(1) Hex Bolt 5/16 x 4-1/2" (9277342)
5/16" Lock Washer - 5/16" Flat Washer - 5/16" T-Nut
9

THIS IS THE TIME FOR YOU TO SORT, IDENTIFY, AND COUNT ALL YOUR HARDWARE, WOOD
PIECES AND ACCESSORIES. THIS WILL ASSIST YOU IN YOUR ASSEMBLY.
WHEN THE PARTS IDENTIFICATION IS COMPLETED, YOU ARE READY TO START ASSEMBLY.
IF YOU NEED ASSISTANCE CONTACT THE CONSUMER RELATIONS DEPARTMENT AT
1-877-966-3738
[email protected]
• FILL THIS OUT BEFORE YOU DISCARD YOUR CARTONS
• THE CARTON I.D. STAMP IS LOCATED ON THE END OF EACH CARTON
• YOU WILL NEED THIS INFORMATION IF YOU CALL CONSUMER RELATIONS DEPARTMENT
PRODUCT NUMBER: F24068
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 3)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 4)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 5)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 6)
STOP
Additional Parts List (Box 1):
1. Warning I.D. Plaque c/w hardware (3320356)
11

REMEMBER TO USE THIS ASSEMBLY
PROCEDURE FOR HEX BOLTS
FLAT WASHER
LOCK WASHER
HEX BOLT
T-NUT
5/4" x 4" x 79"Post
2" x 3" x 34"
Upright
5/16" x 4" Hex Bolt
5/4" x 4" x 79"Post
5/16" x 4" Hex Bolt
Roof Upright
2" x 3" x 42 3/4"
and 2 Posts (5/4" x 4" x 79"). the Roof Upright (2" x 3" x 42 3/4")attach
attach loosely leaving a gap between
4 pcs 5/4 x4x 79" Post
the Upright (2" x 3" x 34")
and 2 Posts (5/4" x 4" x 79").
Note: Do not tighten the Hex Bolt
loosely leaving a gap between
Remember to use the proper assembly procedure for the Hex Bolt.
Using 1 Hex Bolt 5/16" x 4" (5/16" T-Nut, Washer and Lockwasher),
1 pc 2x3x34" Upright
Using 1 Hex Bolt 5/16" x 4" (5/16" T-Nut, Washer and Lockwasher), HARDWARE LIST
2 pcs 5/16x4" Hex Bolt
2 pcs 5/16" T-Nut
2 pcs 5/16" Flat Washer
2 pcs 5/16" Lock Washer
WOOD PARTS LIST
1 pc 2x3x42-3/4" Roof Upright

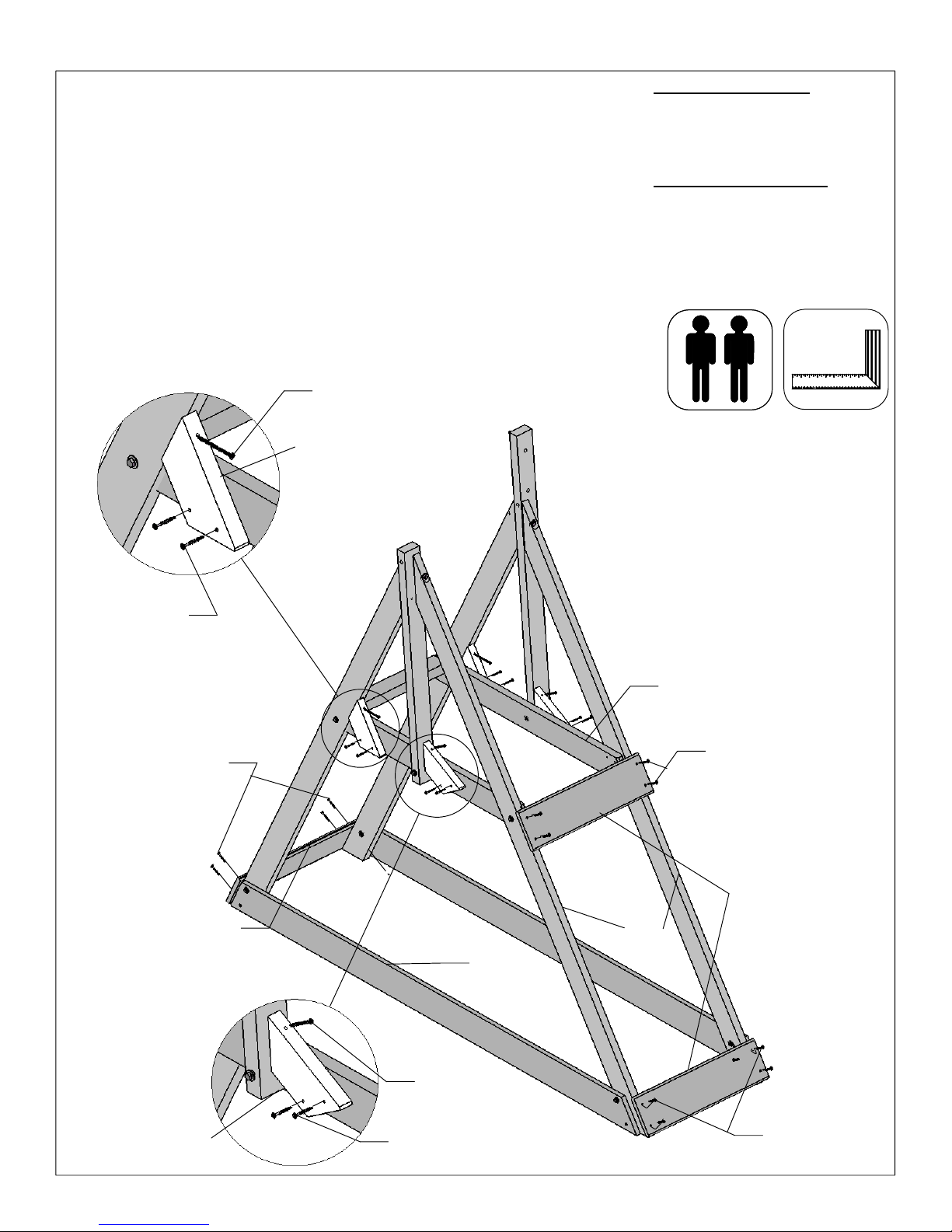

Step 1 Assemble Two Walls
12

PROCEDURE FOR HEX BOLTS
FLAT WASHER
LOCK WASHER
HEX BOLT
REMEMBER TO USE THIS ASSEMBLY
T-NUT
SL Brace
(2 x 3 x 15")
(5/4 x 4 x 39½")
Floor Support
#8 x 3"
Wood Screw
Wood Screw
#8 x 3"
1/4"
T-Nut
#8 x 1-1/2"
Wood Screw
Hex Bolt
1/4 x 1-1/2"
Hex Bolt
1/4 x 1-1/2"
Wood Screw
#8 x 1-1/2"
Ground Side
(1 x 5 x78-3/4")
HARDWARE LIST
Posts.
DO NOT OVER-TIGHTEN HEX BOLTS.
4 pcs 1/4" T-Nut
REPEAT THIS STEP FOR OTHER WALL
Using 2 Hex Bolts 1/4 x 1 1/2" (1/4" T-Nut, Flat Washer, Lock Washer) and
2 Wood Screws (#8 x 1-1/2") attach the Ground Side (1 x 5 x 78-3/4") to both
2 pcs 5/4x4x39-1/2" Floor Support
1 pc 2x3x15" SL Brace
SL Braces (2 x 3 x 15") to the Floor Supports (5/4" x 4" x 39 1/2").
Using 2 Wood Screws (#8 x 3") per side attach the
Assemble Floor SupportsStep 2
Attach Ground Side to WallsStep 3
Attach 4 T-Nuts 1/4" to the backs of the Floor Supports (5/4" x 4" x 39 1/2").
WOOD PARTS LIST
4 pcs #8x3" Wood Screw
HARDWARE LIST
4 pcs 1/4x1-1/2" Hex Bolt
4 pcs 1/4" Lock Washer
4 pcs 1/4" Flat Washer
4 pcs 1/4" T-Nut
4 pcs #8x1-1/2" Wood Screw
WOOD PARTS LIST
2 pcs 1x5x78-3/4" Ground Side
13

Use
Help
REMEMBER TO USE THIS ASSEMBLY
PROCEDURE FOR HEX BOLTS
FLAT WASHER
LOCK WASHER
HEX BOLT
T-NUT
Roof Upright
Upright
Hex Bolt
1/4" x 2" Hex Bolt
1/4" x 3 1/2" Hex Bolt
1/4" x 2"
Hex Bolt
Floor Support
1/4" x 3 1/2"
Post
Notice: T- Nuts
have been previously
installed.
6 pcs 1/4" Lock Washer
6 pcs 1/4" Flat Washer
Attach 2 Walls to Floor Supports
4 pcs 1/4x2" Hex Bolt
Step 4
2 pcs 1/4" T-Nut
HARDWARE LIST
2 pcs 1/4x3-1/2" Hex Bolt
Take previously assembled Floor Supports and attach to both Uprights of the
previously assembled Walls using 2 Hex Bolts 1/4" x 3 1/2" (1/4" T-Nut, Flat
Washer, and Lock Washer).
Using 4 Hex Bolts 1/4" x 2" (1/4" Flat Washer, Lock Washer)
attach the Floor Support (5/4" x 4" x 39 1/2") to the 2 Posts.
4 T-Nuts have been previously installed in Step 2.
NOTE: Remember to use the proper assembly procedure for Hex Bolts.
TIGHTEN BOLTS FROM ALL PREVIOUS STEPS
14

Use
Help
the Floor Gussets.
Square
Post
Side
Wood Screw
Ground
Floor Support
CE Access Board
1" x 6" x 19 3/4"
CE Access Board
1" x 6" x 19 3/4"
#8 x 1-1/2"
Wood Screw
#8 x 1-1/2"
Wood Screw
#8 x 1-1/2"
Square fort prior to attaching
Assembly
NOTE: An adult helper
may be required for this step.
5/4" x 4" x 7-7/8"
#8 x 1-1/2"
Floor Gusset
Wood Screw
#8 x 3"
Wood Screw
5/4" x 4" x 7-7/8"
#8 x 2 1/2"
Floor Gusset Wood Screw
#8 x 1 1/2"
Wood Screw
3 CE Access Boards (1" x 6" x 19 3/4") to the 2 Posts. 3 pcs 1x6x19-3/4" CE Access Board
Using 4 Wood Screws (#8 x 1 1/2") per CE Access Board, attach
7/8"), attach 4 Floor Gussets to the Floor Supports as shown below.
Using 2 Wood Screws (#8 x 3"), attach 2 Floor Gussets to the 2
are flush with the bottom of the Ground Sides, and the upper CE
Posts. Using 2 Wood Screws (#8 x 2 1/2"), attach 2 Floor Gussets to
Access Board is flush with top of the Floor Support.
both Uprights.
4 pcs 5/4x4x7-7/8" Floor Gusset
Using 2 Wood Screws (#8 x 1 1/2") per Floor Gusset (5/4 x 4 x 7-
Hold the CE Access Boards against the 2 Posts in the proper position
before proceeding to drill, making sure the lower CE Access Boards HARDWARE LIST
20 pcs #8x1-1/2" Wood Screw
2 pcs #8x2-1/2" Wood Screw
2 pcs #8x3" Wood Screw
WOOD PARTS LIST
Step 5 Attach CE Access Boards, Floor Gussets
15

6 CE Floor Boards (1" x 6" x 17") to the Floor Supports.
CE Floor Boards, making sure the CE Floor Boards are evenly spaced
4 pcs 1x6x19-3/4" CE Rock Boards
on the Floor Supports.
(1" x 6" x 19 3/4") to the 2 Posts, alternating holes in rock boards.
Boards,before proceeding to drill. Follow the same procedure for the
6 pcs 1x6x17" CE Floor Boards
Using 4 Wood Screws (#8 x 1 1/2") per board, attach 4 CE Rock Boards
Using 4 Wood Screws (#8 x 1 1/2") per board evenly space and attach
Hold the CE Rock Board against the 2 Posts.
Make sure the CE Rock Boards are evenly spaced between the CE Access HARDWARE LIST
40 pcs #8x1-1/2" Wood Screw
WOOD PARTS LIST
Step 6 Assemble CE Floor and CE Rock Boards
#8 x 1 1/2" Wood
Board
#8 x 1 1/2" Wood
Screw
CE Floor Board
1"x 6" x 17"
CE Access
CE Rock Board
1" x 6" x 19 3/4"
Board
Screw
CE Access
Floor Support
less than 1/2".
NOTE: Rock Board must be
evenly spaced at 2 3/8"- 2 5/8".
Floor Boards must be evenly
spaced at 1/2" - 5/8" but not
Spacing2 3/8"
5/8" Spacing
16

Using 4 Wood Screws #8 x 2-1/2" per side, fasten both
2 pcs 2x2x14¾" Roof Front Short
Pre-drill using 1/8" drill bit into Roof Ridges prior to fastening to Roof Fronts.
2 pcs 2x2x16¼" Roof Front
Dormer Eaves (5/4 x 4 x 22") to both Roof Sides (1 x 4 x 38").
Using 4 Wood Screws #8 x 1-1/8", fasten both Roof Ridges (1 x 2 x 35") together.
to both Roof Ridges (1 x 2 x 35").
Using 2 Wood Screws #8 x 2-1/2" per side, fasten both Roof Fronts (2 x 2 x 16-1/4")
Using 1 Wood Screw #8 x 2-1/2" per side, fasten the Roof Front (2 x 2 x 16-1/4") to
the Roof Front Short (2 x 2 x 14-3/4").
HARDWARE LIST
14 pcs #8 x 2½" Wood Screw
4 pcs #8 x 1-1/8" Wood Screw
PARTS LIST
2 pcs 1x4x38" Roof Side
2 pcs 5/4x4x22" Dormer Eave
2 pcs 1x2x35" Roof Ridge
Step 7 Assemble Roof
Dormer Eave
Roof Side
1"x 4" x 38" Screw
#8 x 2 1/2" Wood
5/4"x 4"x 22"
#8 x 2 1/2" Wood
Screw
2"x 2"x 14-3/4"
Roof Front
1"x 2"x 35"
#8 x 1 1/8" Wood
#8 x 2 1/2"
Roof Front
Pre-dril with 1/8"drill bit
Wood Screw
Roof Ridge
2"x 2"x 16-1/4"
2"x 2"x 16-1/4"
Roof Front Short
Screw
#8 x 2 1/2"
Wood Screw
Pre-dril with 1/8"drill bit
17

Screw
#8 x 1 1/2" Wood
#8 x 1 1/2" Wood Screw
Dormer Eave
5/4"x 4"x 22"
Step 8
Using the hardware provided with the Gable Vents, attach both Gable Vents
Attach Dormer Eave to Roof Front Assemby
Ridge assembly. HARDWARE LIST
to the Roof Front and Short Roof Front.
Using 4 Wood Screws #8 x 1-1/2", fasten the Dormer Eave assembly to the Roof
4 pcs #8 x 1½" Wood Screw
Attach Small Gable VentsStep 9
ACCESSORY LIST
2 Small Gable Vents with
hardware.
Gable Vent
Screw
Locations
18

REMEMBER TO USE THIS ASSEMBLY
PROCEDURE FOR HEX BOLTS
FLAT WASHER
LOCK WASHER
HEX BOLT
T-NUT
17 pcs #8 Flat Washer
4 pcs #8x1½" Wood Screw
ACCESSORY LIST
Step 10
2 pcs #8x3" Wood Screw
2 pcs #12x2" Pan Screw
PARTS LIST
2 pcs 2x2x17" Roof Brace
Attach Roof to Fort
1 Parkside Canopy
HARDWARE LIST
2 pcs 1/4 x 3" Hex Bolt
2 pcs 1/4" Flat Washer
2 pcs 1/4" Lock Washer
2 pcs 1/4" T-Nut
17 pcs #8x1/2" Pan Screw
Using 2 Hex Bolts 1/4" x 3" (1/4" T-Nut, Washer, and Lock Washer)
attach the Roof Assembly to the Fort.
Using 2 Wood Screws #8 x 1-1/2" per side, fasten the Roof Braces (2 x 2 x 17")
to the Roof Sides.
Using 1 Wood Screw #8 x 3" per side, fasten the Roof Braces (2 x 2 x 17") to the
Uprights.
Using 1 Pan Screw #12 x 2" per side, fasten the Roof Braces (2 x 2 x 17") to the
Post.
Using 17 Pan Screws #8 x 1/2" with #8 Flat Washers, attach Canopy to Roof.
#8 Flat Washer
Pan Screw with
#8 x 1/2"
Parkside
Canopy
#8 x 3"
Wood Screw
1/4" x 3"
Hex Bolt
Screw
#8 x 1 1/2" Wood
Hex Bolt
1/4" x 3"
2"x 2" x 17"
Roof Brace
Wood Screw
#8 x 1 1/2"
Wood Screw
#8 x 3"
#12 x 2"
Pan Screw
19

REMEMBER TO USE THIS ASSEMBLY
PROCEDURE FOR HEX BOLTS
FLAT WASHER
LOCK WASHER
HEX BOLT
T-NUT
Using 1 Hex Bolt 5/16" x 4 " (5/16" T-Nut, Washer, and Lock Washer), attach loosely leaving a gap the Floor Support (5/4" x 4" x 39 1/2") to the Post SW (5/4" x 4" x 81").
1 pc 5/4x4x3-1/2" SW Block
Using 2 Wood Screws (#8 x 3") attach 1 SW Block (5/4" x 4" x 3 1/2") to bottom of between the Post SW (5/4" x 4" x 81") and the SW Post (2" x 4" x 80 1/2") as shown in the diagram below. Using 1 Hex Bolt 5/16" x 4 1/2" (1/4" T-Nut, Washer, and Lock Washer),
1 pc 2x4x80-1/2" SW Post
the SW Post (2" x 4" x 80 1/2"). Refer to the diagram below. Using 2 Hex Bolts 1/4" x 2" (1/4" T-Nut, Washer, and Lock Washer), attach attach the Floor Support (5/4" x 4" x 39 1/2") to the SW Post (2" x 4" x 80 1/2"), as shown in the diagram.
HARDWARE LIST 2 pcs 1/4x2" Hex Bolt 2 pcs 1/4" T-Nut 2 pcs 1/4" Flat Washer 2 pcs 1/4" Lock Washer 1 pc 5/16x4-1/2" Hex Bolt 1 pc 5/16x4" Hex Bolt 2 pc 5/16" T-Nut 2 pc 5/16" Flat Washer 2 pc 5/16" Lock Washer 2 pcs #8x3" Wood Screw WOOD PARTS LIST 1 pc 5/4x4x39-1/2" Floor Support 2 pcs 5/4x4x81" Post SW
Step 11 Assemble Swing End
5/4" x 4" x 39-1/2"
#8 x 3"
5/16 x 4-1/2"
Wood Screw
after the Floor Support is attached NOTE! Do not tighten the Hex Bolt until
Hex Bolt
Floor Support
5/4" x 4" x 3-1/2" SW Block
Hex Bolt 1/4 x 2"
5/16 x 4" Hex Bolt
Post SW 5/4" x 4" x 81"
SW Post 2" x 4" x 80-1/2"
Post SW 5/4" x 4" x 81"
