HOMEDEPOT GSS00005B User manual

Item #589-239
Model #GSS00005B
USE AND CARE GUIDE
STEEL SOLAR SWING
Questions, problems, missing parts? Before returning to the store,
call Customer Service.
1-877-527-0313
HOMEDEPOT.COM

Table of Contents
Warranty
Pre-Assembly
Table of Contents ...................................................2
Warranty .................................................................2
What is Covered ................................................................2
What is Not Covered .........................................................2
Pre-Assembly
Planning Assembly
Hardware Included
Package Contents
Assembly
Care and Cleaning
1 YEAR FRAME AND FABRIC WARRANTY
WHAT IS COVERED
We warrant the frame and fabric to be free of manufacturing defects to the original purchaser for one year.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and package charges to and from our service center. This warranty does not cover
．
We reserve the right to make the substitutions with similar merchandise, if the model in question is no longer in production.
Contact the Customer Service Team at 1-887-527-0313 or visit www.HomeDepot.com.
PLANNING ASSEMBLY
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive
surface such as carpet or cardboard.
NOTE: More than one person may be required to
complete the assembly for this product.
2
............................................................2
..............................................................2
...............................................................3
................................................................4
..................................................................5
..................................................11

Pre-Assembly (continued)
3HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

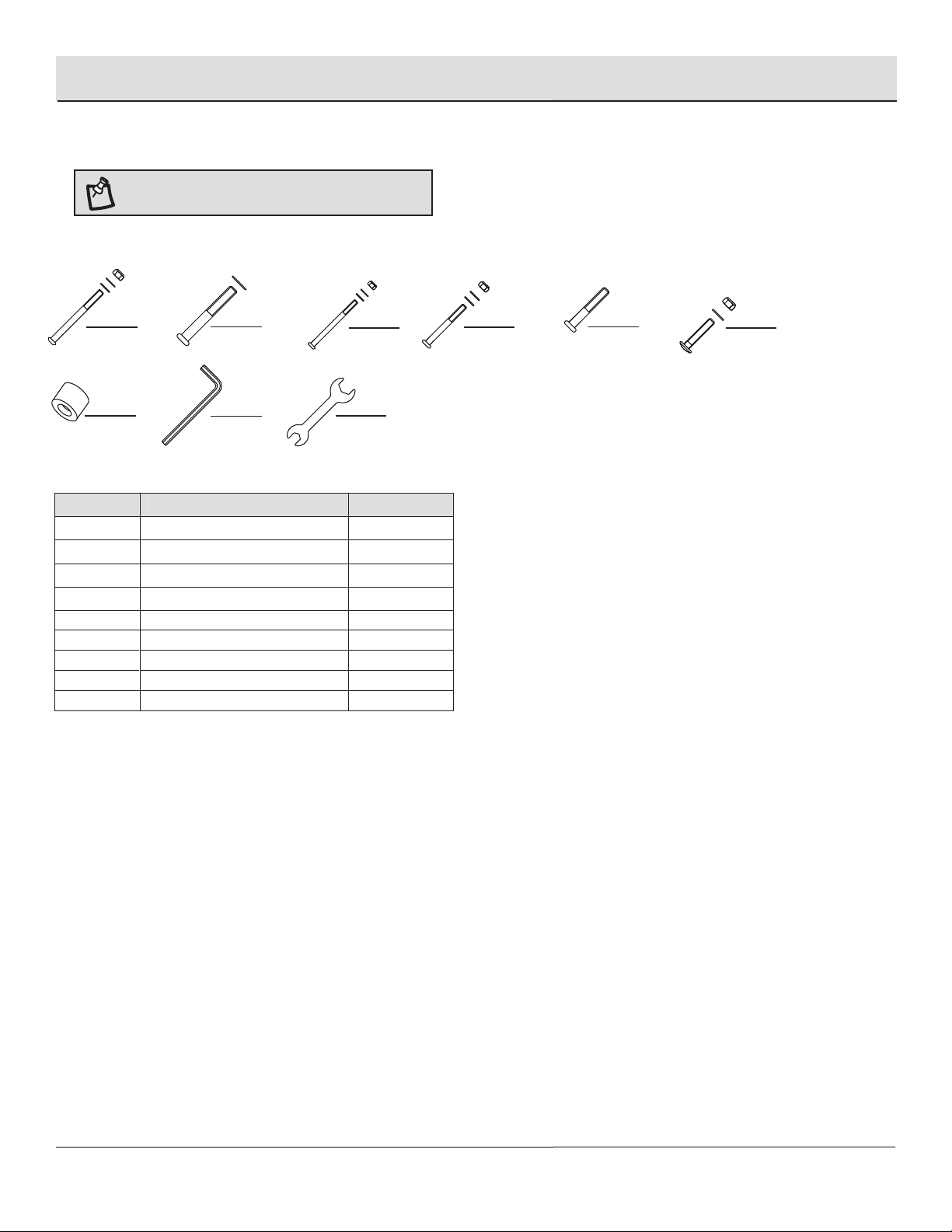

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC DD EE FF
GG HH II
Part Description Quantity
AA M8x95 Bolt and nut
BB
CC
8
6
M8x60 Bolt
M6x78 Bolt and nut 8
DD M6x35 Bolt and nut 4
EE M6x35 Bolt 2
FF M6x30 Bolt and nut 4
GG Plastic spacer 8
HH Hex wrench 1
II Wrench 1

Pre-Assembly (continued)
PACKAGE CONTENTS
4
Part Description Quantity
A Top bar
C
2
1
Back leg
Front leg 2
DSide bar 2
Part Description Quantity
KLeft curved bar
L
M
1
1
Right curved bar
Top straight bar 1
Front light tube 1
N
ELeg connector 1OBack light tube 1
FFoot cap 4
GSeat 1
P Canopy 1
HBack 1
IArm 2
JSpring hook 2
QScrew knob 2
A
B
P
K
N
M
A
C
B
D
H
G
I
J
F
E
Q
O
L

Assembly
Assembling the legs
Insert the foot caps (F) onto the bottom of the front legs (C) and back legs (B).
Stand the front leg (C) and back leg (B) upright.
Insert the top bar (A) into the back leg (B).
Align the three holes on the front leg (C) to the two holes on back leg (B) and the one hole on the top bar (A).
Secure the bars together using M8x95 bolts and nuts (AA).
Repeat the previous steps for the second set of legs (C and B).
Attach the side bar (D) to the back leg (B) and front leg (C) using M6x78 bolts and nuts (CC).
Attach the second side bar (D) to the other set of legs.
Attach the leg connector (E) to the side bar (D) using M6x35 bolts and nuts (DD).
1
5HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

Assembly (continued)
Attaching the seat and back to the arms
Attach the seat (G) to the two arms (I) by aligning the bottom holes of the arms (I) to the holes on the seat (G). Place an M8 plastic
spacer between the aligned holes and attach the arms (I) to the seat (G) using M8x60 bolts (BB).
Attach the back (H) to the two arms (I) by aligning the upper holes of the arms (I) to the holes on the back (H). Place a plastic spacer
between the aligned holes and attach the arms (I) to the seat (H) using M8x60 bolts (BB).
Attach the spring hooks (J) to the top of the two arms (I)
6
2
J
J
I
I
G
H
BB GG
GG
BB
BB
BB

Assembly (continued)

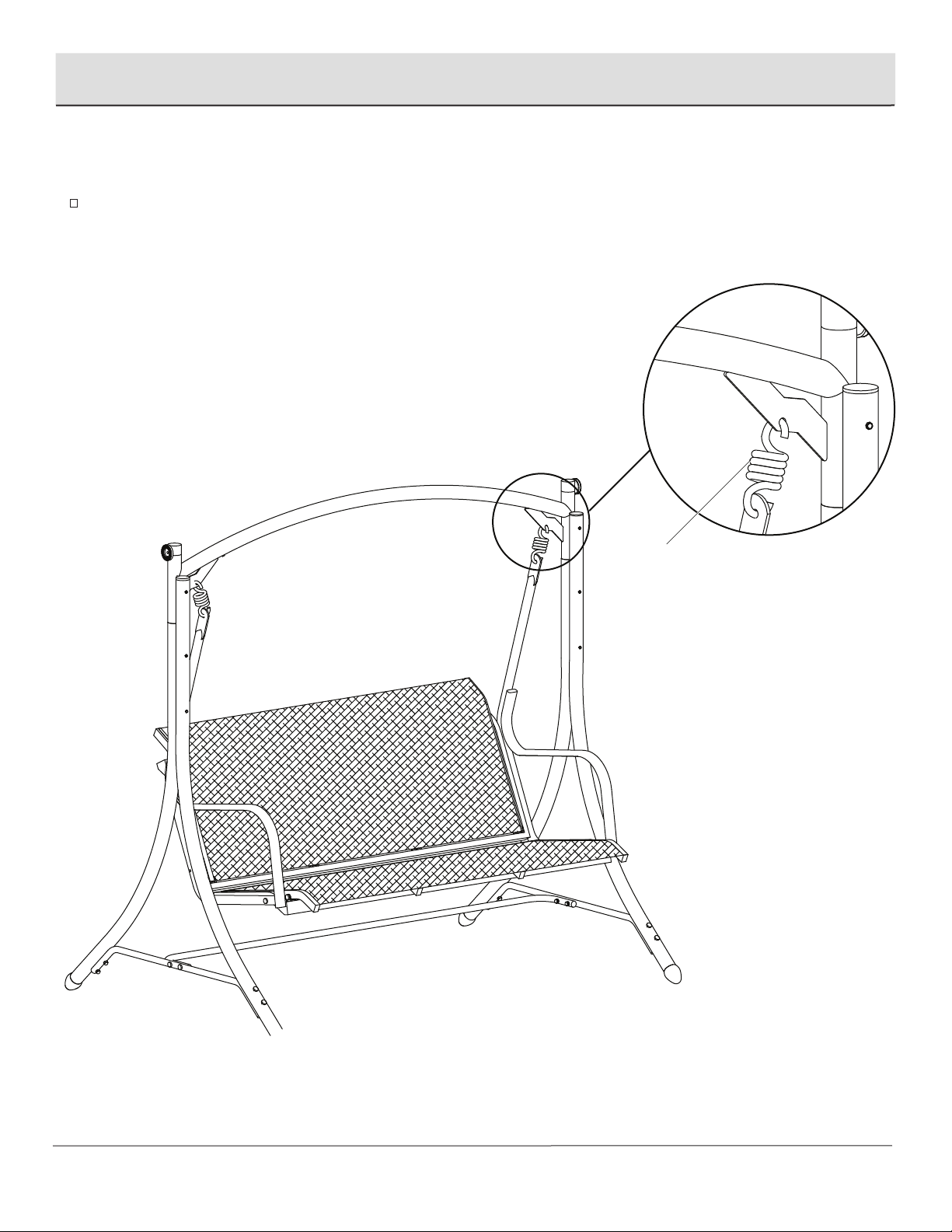

Connecting the seat to the frame
Attach the arms (I) to the top bar (A) using the spring hooks (J).
3
7HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

Assembly (continued)

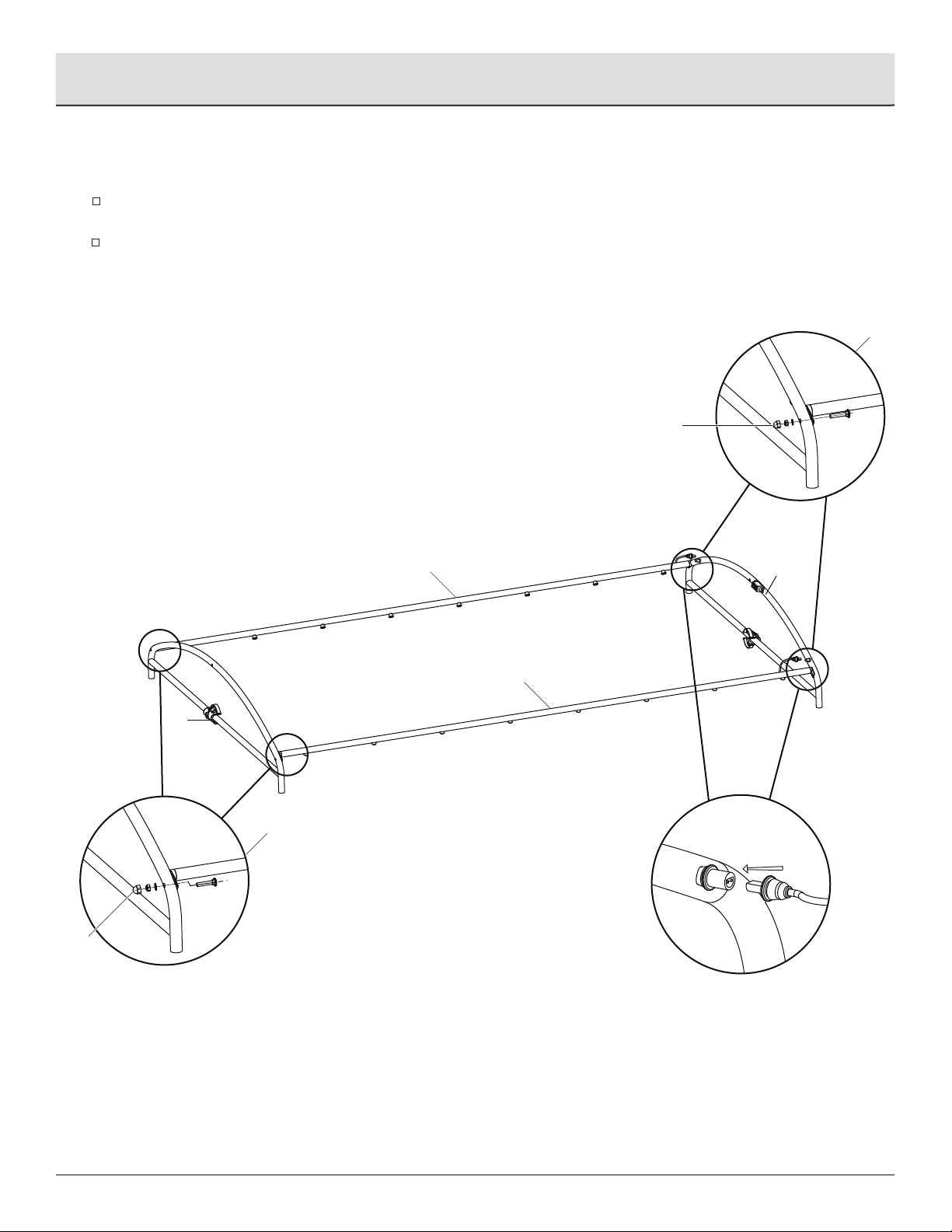

Assembling the top frame
Attach the back light tube (O) and front light tube (N) to the left curved bar (L) and right curved bar (K) using M6x30 bolts and nuts (FF).
Insert the light tube plugs into the plug holes of the top curved bar (K).
8
4
O
N
L
K
FF
FF
1
2
1

Assembly (continued)
Placing the canopy
Attach the top straight bar (M) to the right curved bar (L) and left curved bar (K) using M6x35 bolts (EE).
Place the canopy (P) on the assembled top frame.
5
9HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
EE
P

Assembly (continued)

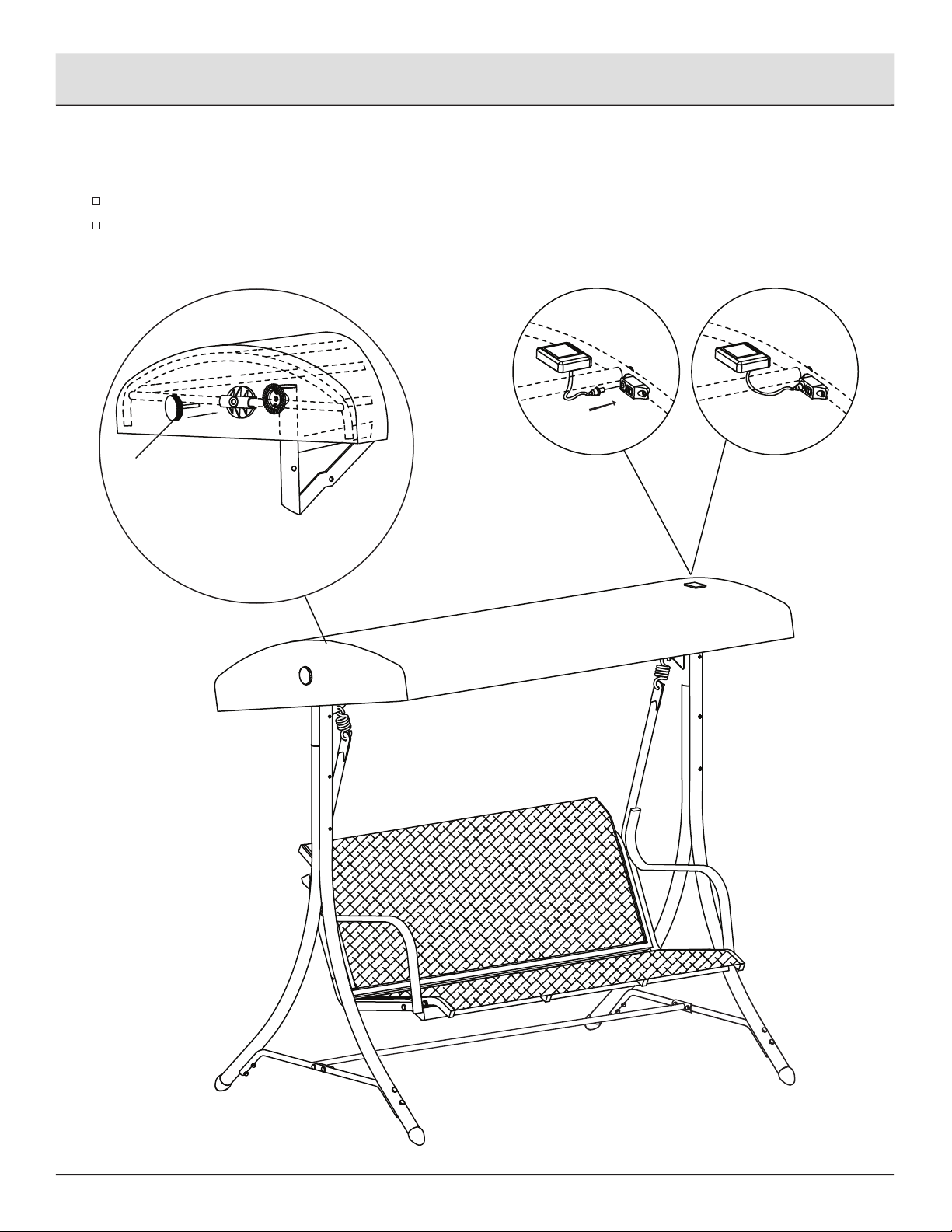

Attaching the top frame to the legs
Attach the assembled top frame from step 4 to the top bars (A) using the screw knobs (Q).
Connect the plug on top bar (A) to the charger in the canopy.
10
6
Q
